ISUZU KB P190 2007 Workshop Repair Manual

Engine Mechanical – V6 Page 6A1–262

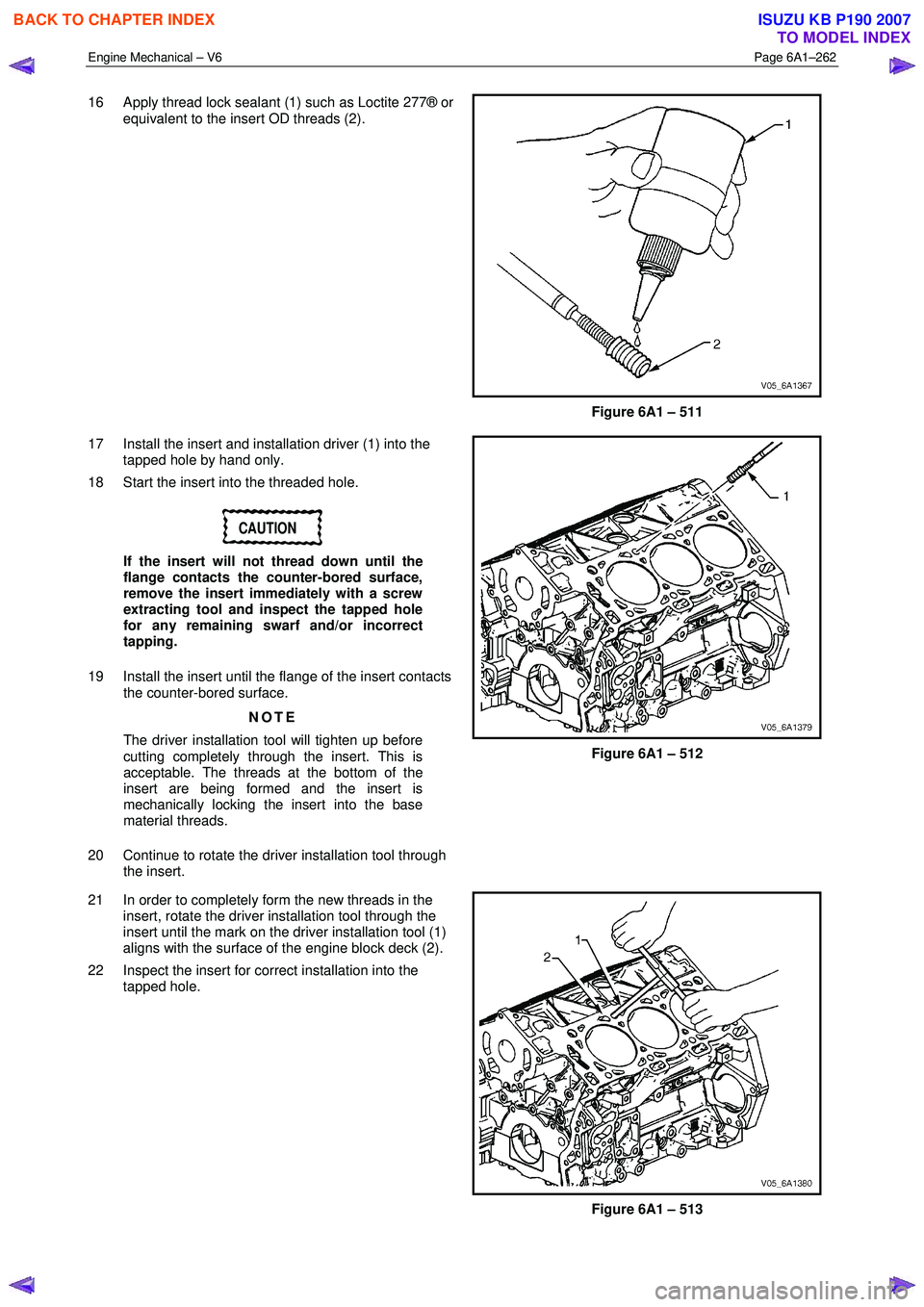

16 Apply thread lock sealant (1) such as Loctite 277® or
equivalent to the insert OD threads (2).
Figure 6A1 – 511
17 Install the insert and installation driver (1) into the tapped hole by hand only.
18 Start the insert into the threaded hole.
CAUTION
If the insert will not thread down until the
flange contacts the counter-bored surface,
remove the insert immediately with a screw
extracting tool and inspect the tapped hole
for any remaining swarf and/or incorrect
tapping.
19 Install the insert until the flange of the insert contacts the counter-bored surface.
NOTE
The driver installation tool will tighten up before
cutting completely through the insert. This is
acceptable. The threads at the bottom of the
insert are being formed and the insert is
mechanically locking the insert into the base
material threads.
20 Continue to rotate the driver installation tool through the insert.
Figure 6A1 – 512
21 In order to completely form the new threads in the insert, rotate the driver installation tool through the
insert until the mark on the driver installation tool (1)
aligns with the surface of the engine block deck (2).
22 Inspect the insert for correct installation into the tapped hole.
Figure 6A1 – 513

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–263

4.9 Thread Repair Specifications

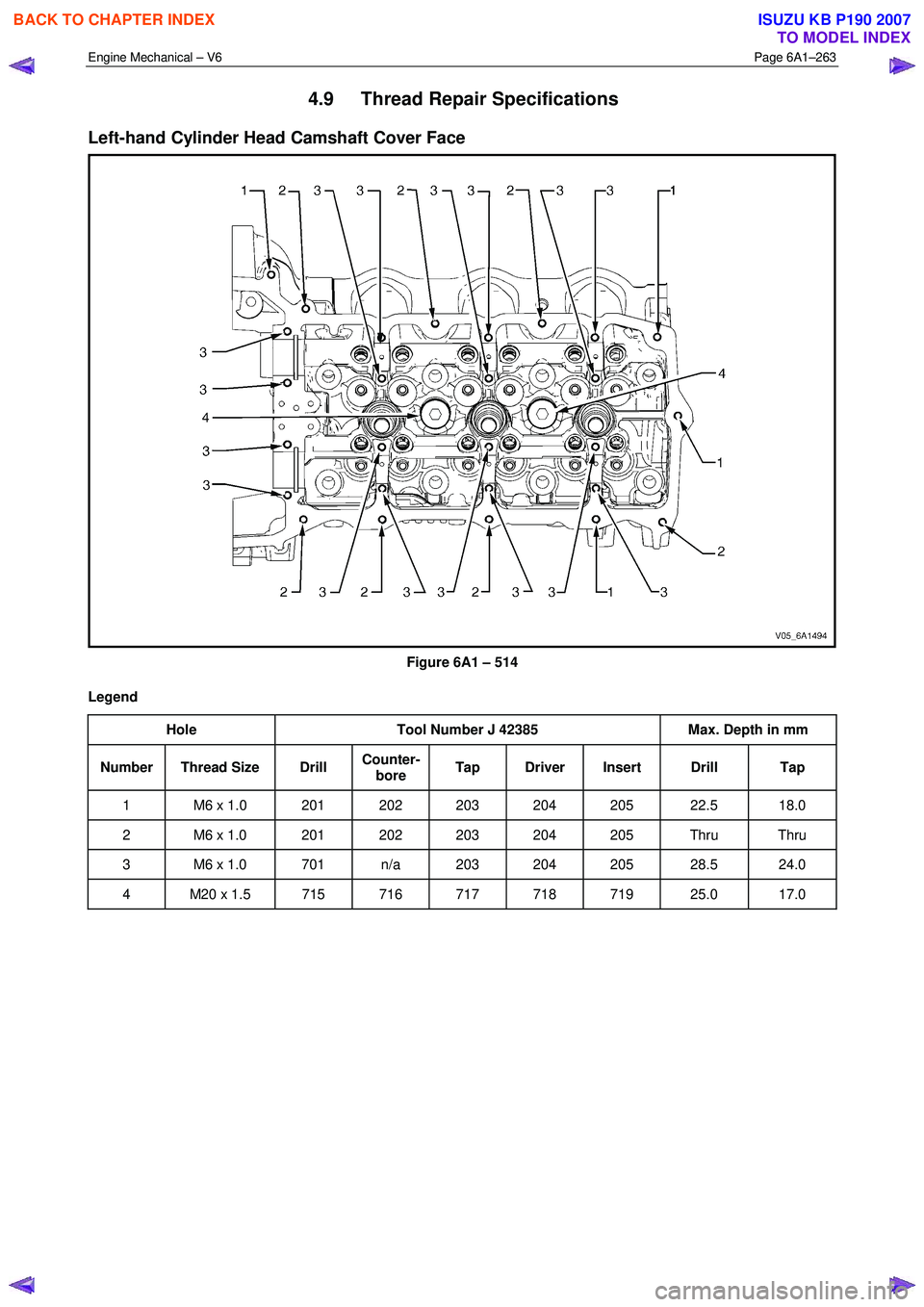

Left-hand Cylinder Head Camshaft Cover Face

Figure 6A1 – 514
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 22.5 18.0
2 M6 x 1.0 201 202 203 204 205 Thru Thru
3 M6 x 1.0 701 n/a 203 204 205 28.5 24.0
4 M20 x 1.5 715 716 717 718 719 25.0 17.0

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–264

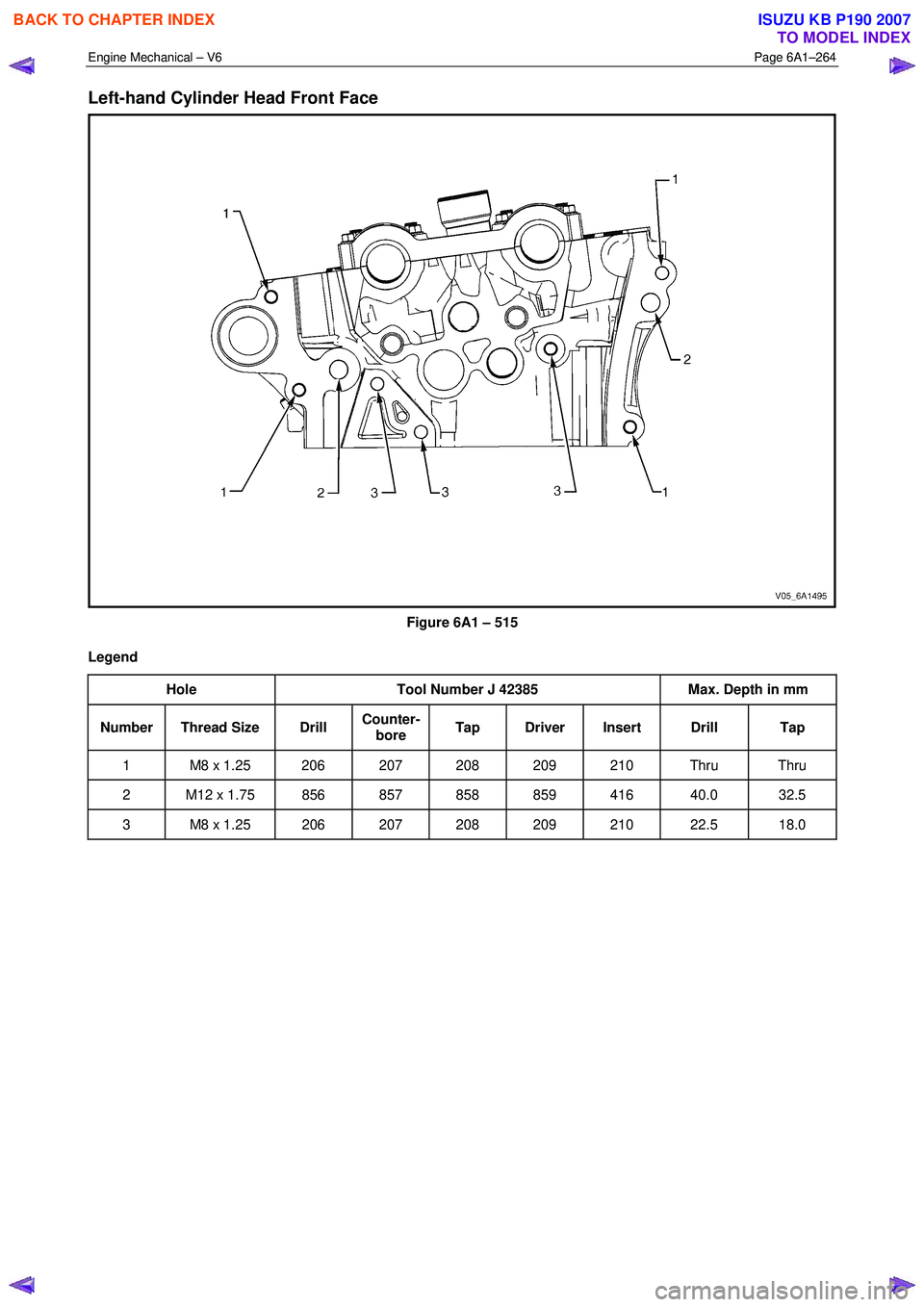

Left-hand Cylinder Head Front Face

Figure 6A1 – 515
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 Thru Thru
2 M12 x 1.75 856 857 858 859 416 40.0 32.5
3 M8 x 1.25 206 207 208 209 210 22.5 18.0

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–265

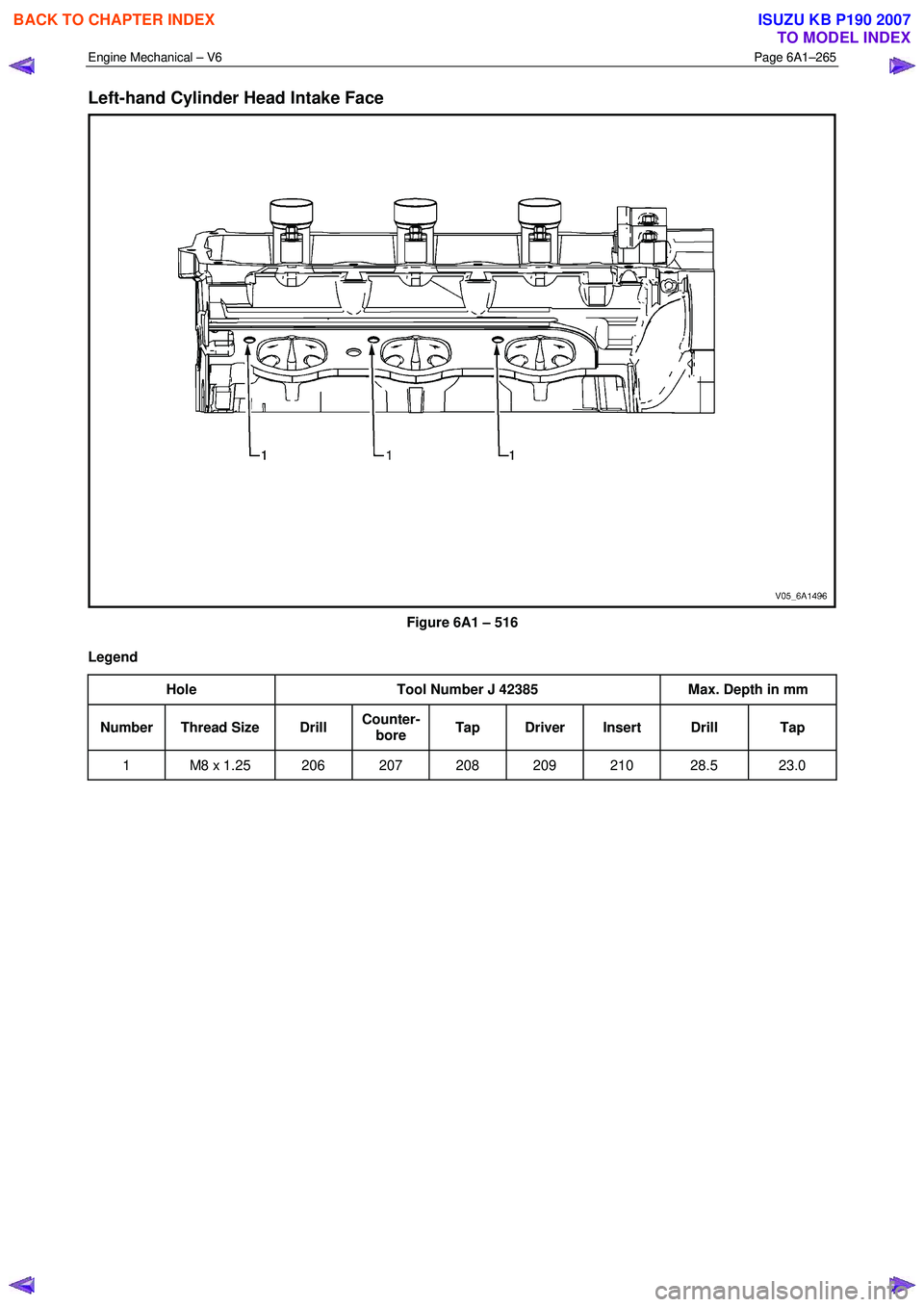

Left-hand Cylinder Head Intake Face

Figure 6A1 – 516
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–266

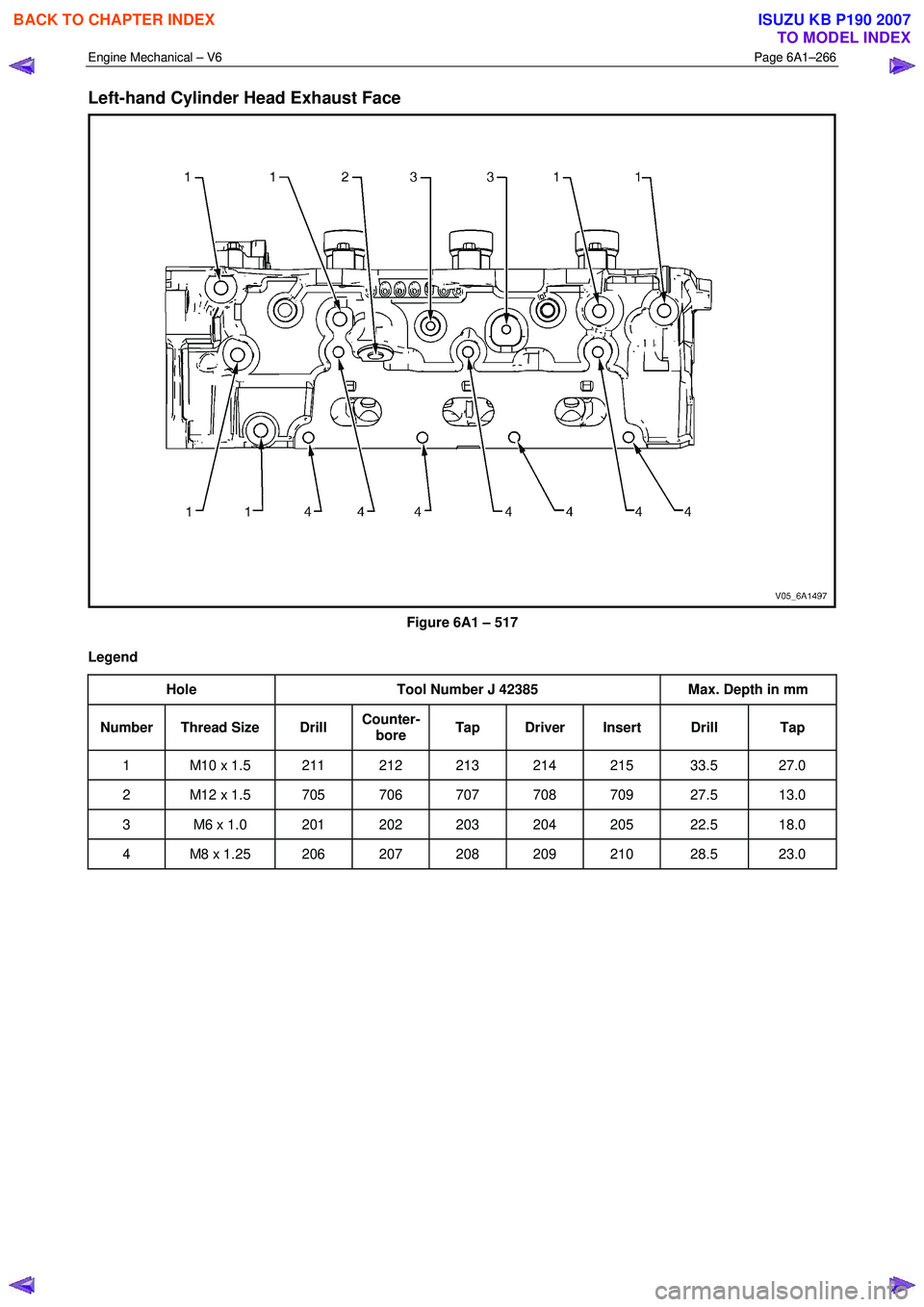

Left-hand Cylinder Head Exhaust Face

Figure 6A1 – 517
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27.0
2 M12 x 1.5 705 706 707 708 709 27.5 13.0
3 M6 x 1.0 201 202 203 204 205 22.5 18.0
4 M8 x 1.25 206 207 208 209 210 28.5 23.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–267

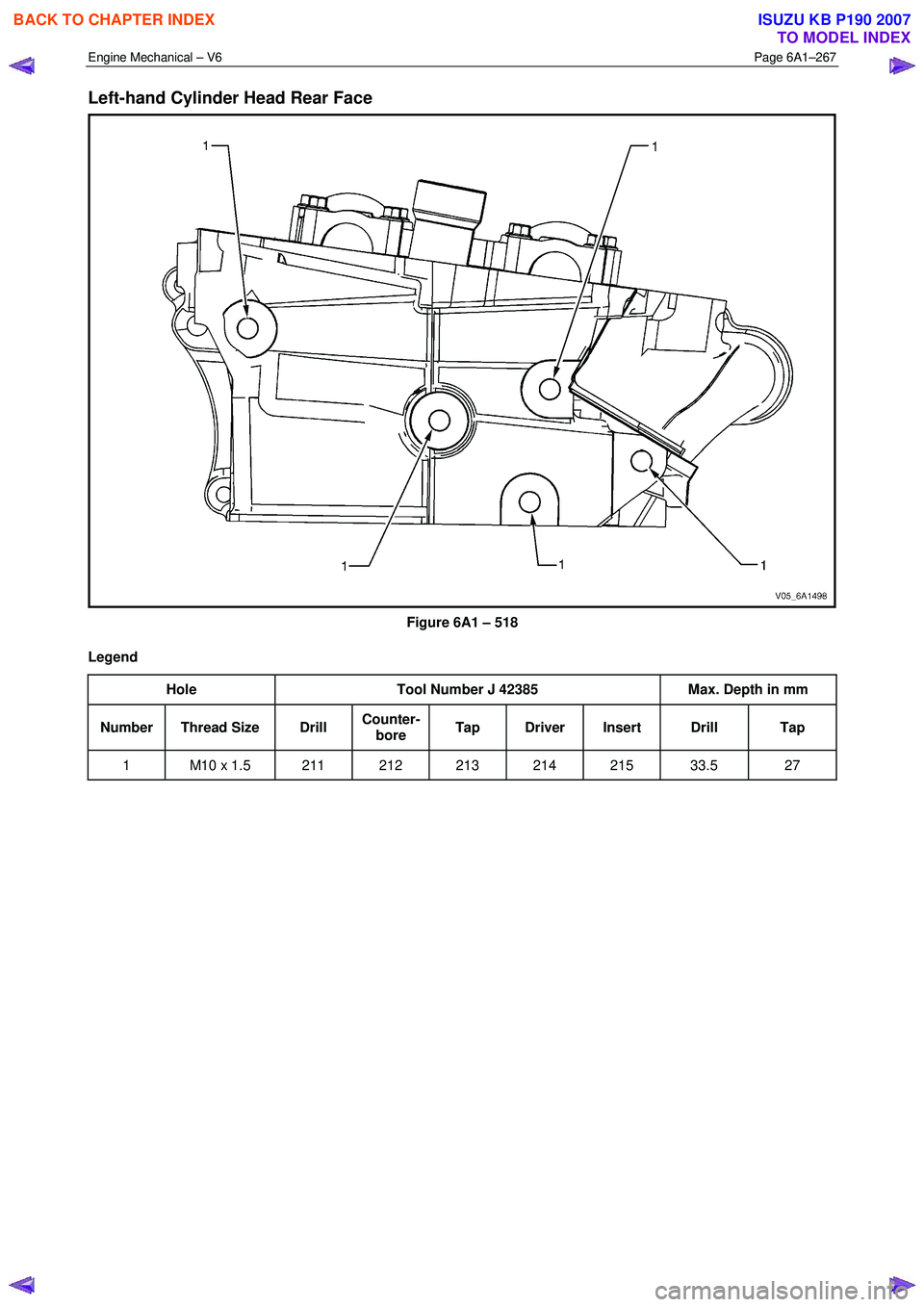

Left-hand Cylinder Head Rear Face

Figure 6A1 – 518
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–268

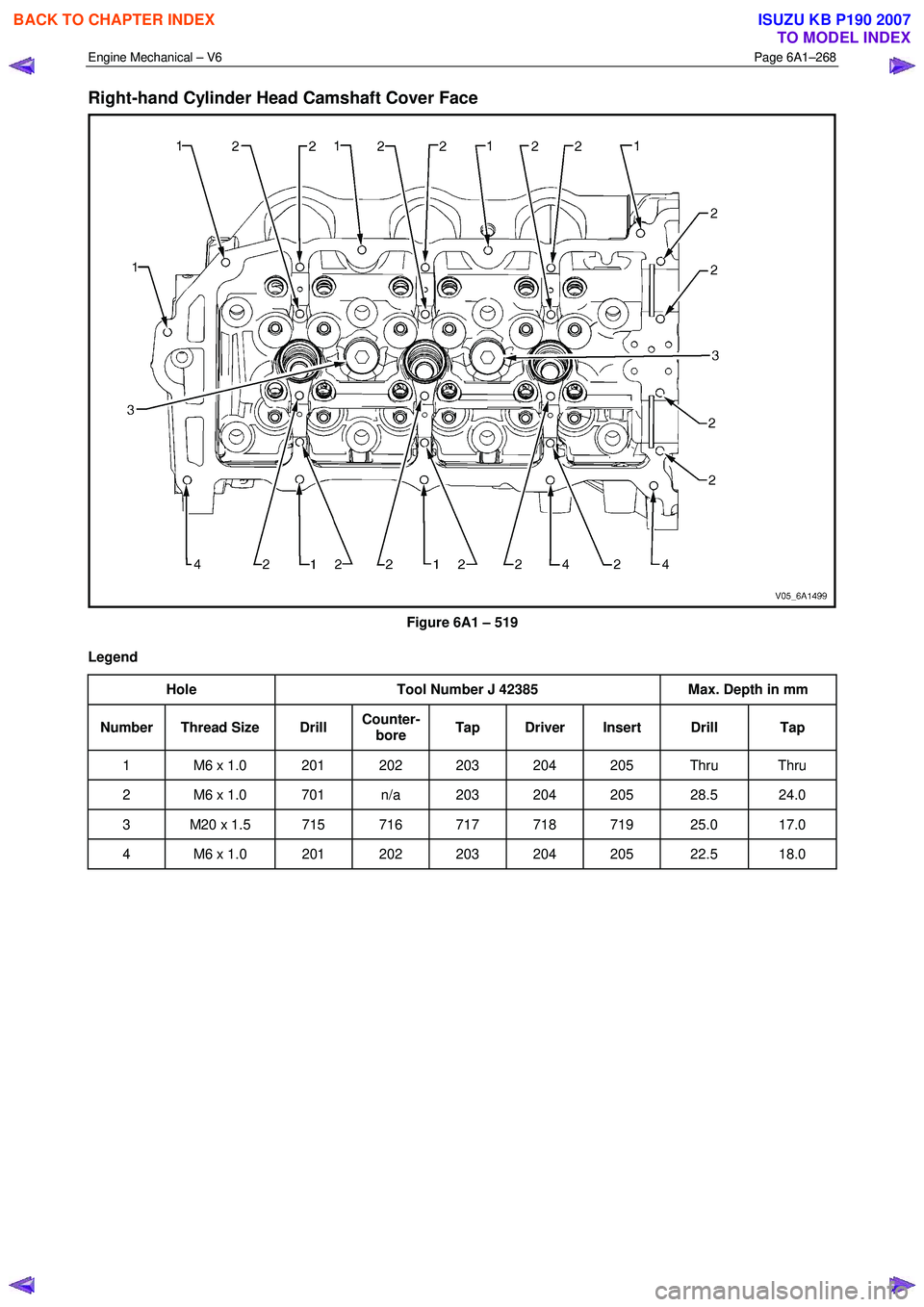

Right-hand Cylinder Head Camshaft Cover Face

Figure 6A1 – 519
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru
2 M6 x 1.0 701 n/a 203 204 205 28.5 24.0
3 M20 x 1.5 715 716 717 718 719 25.0 17.0
4 M6 x 1.0 201 202 203 204 205 22.5 18.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–269

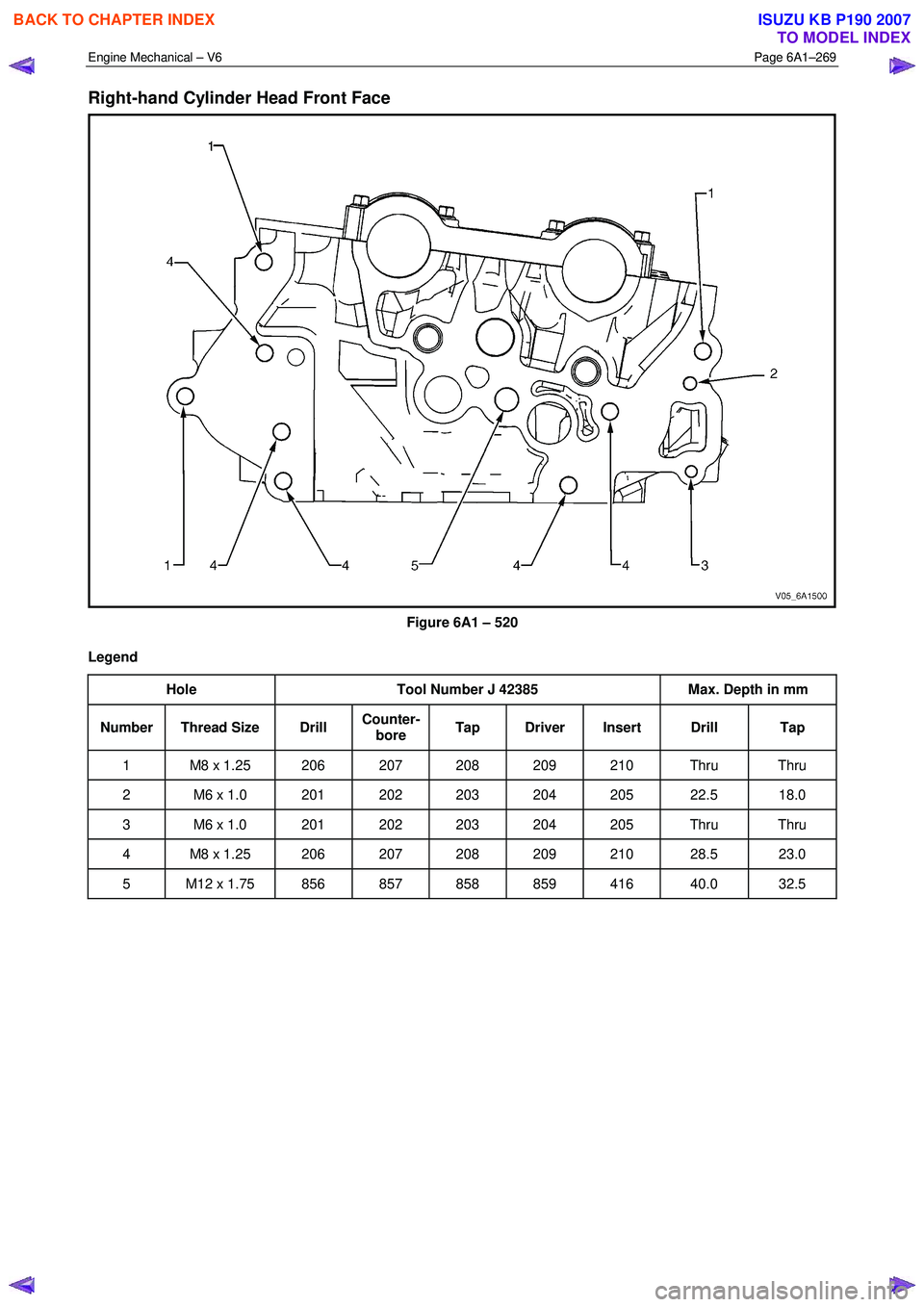

Right-hand Cylinder Head Front Face

Figure 6A1 – 520
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 Thru Thru
2 M6 x 1.0 201 202 203 204 205 22.5 18.0
3 M6 x 1.0 201 202 203 204 205 Thru Thru
4 M8 x 1.25 206 207 208 209 210 28.5 23.0
5 M12 x 1.75 856 857 858 859 416 40.0 32.5

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–270

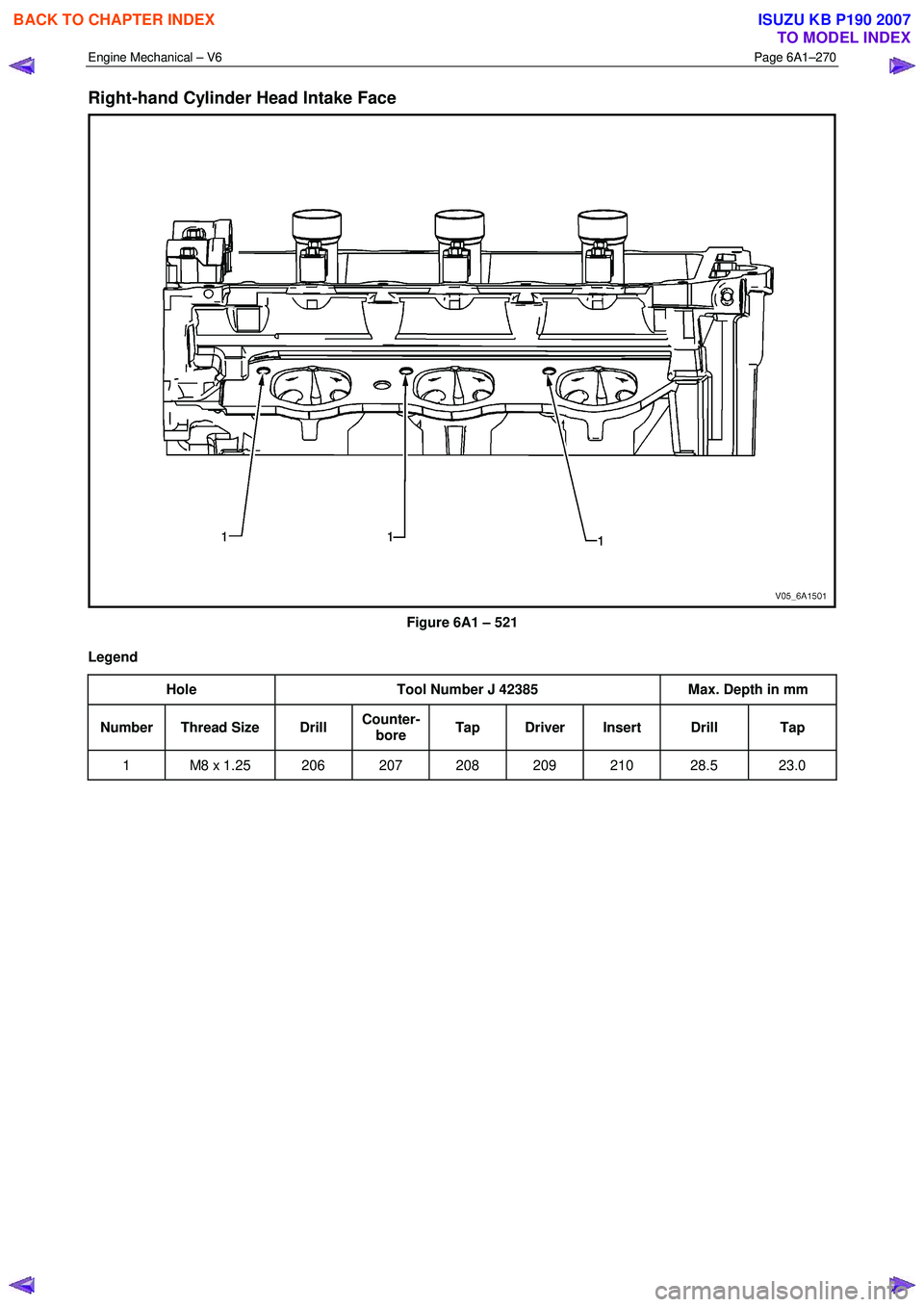

Right-hand Cylinder Head Intake Face

Figure 6A1 – 521
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–271

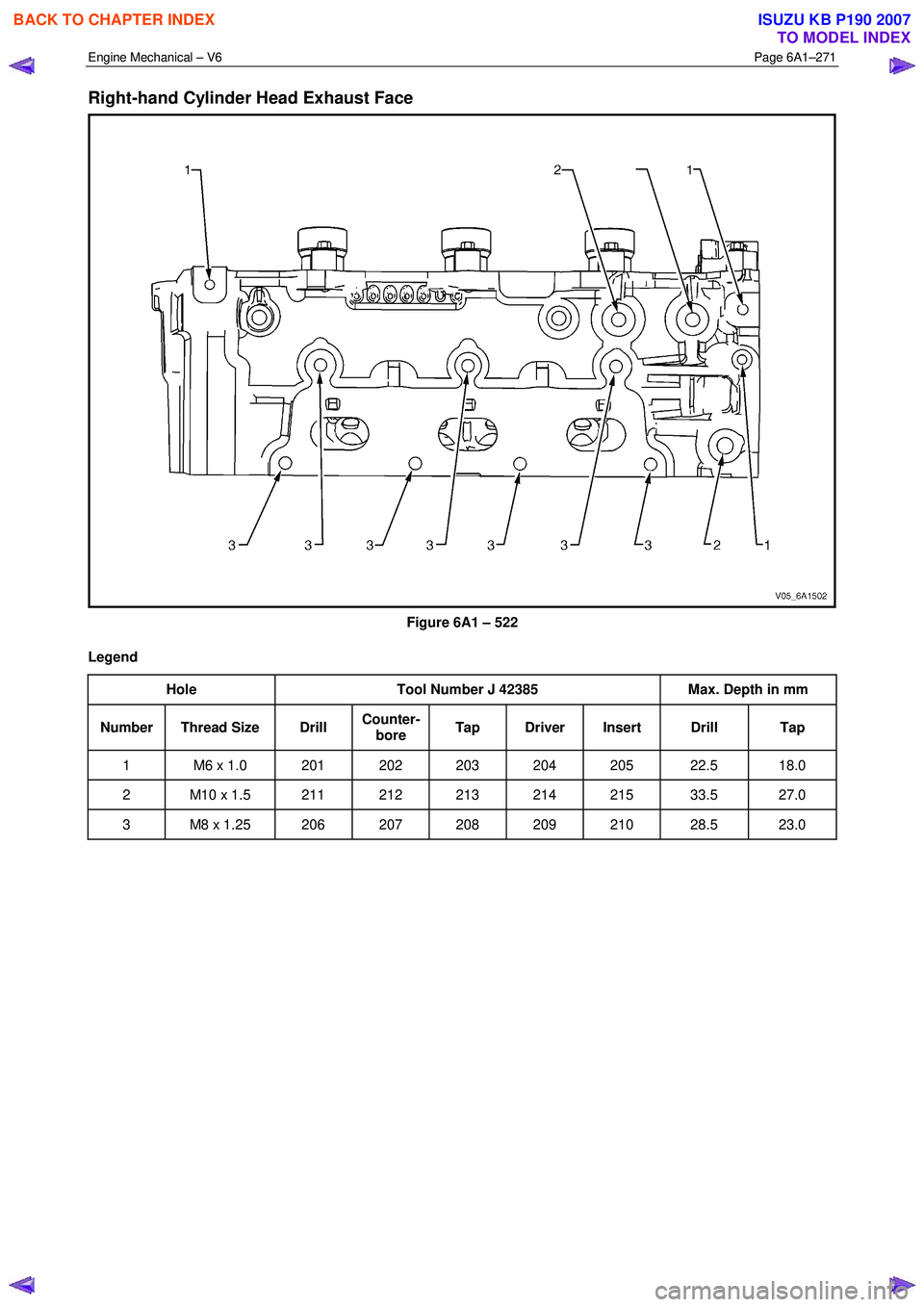

Right-hand Cylinder Head Exhaust Face

Figure 6A1 – 522
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 22.5 18.0
2 M10 x 1.5 211 212 213 214 215 33.5 27.0
3 M8 x 1.25 206 207 208 209 210 28.5 23.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
