ISUZU KB P190 2007 Workshop Repair Manual

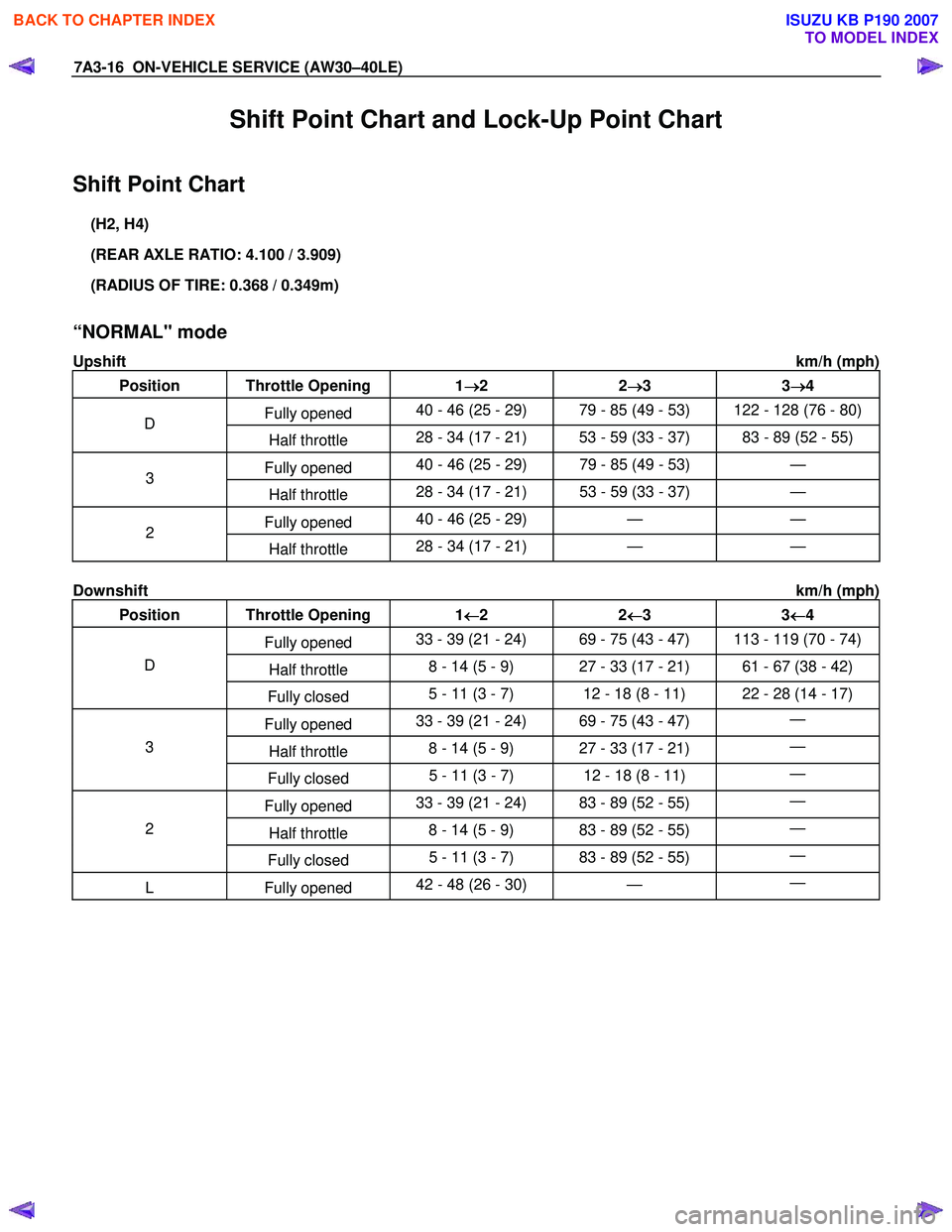

7A3-16 ON-VEHICLE SERVICE (AW30–40LE)
Shift Point Chart and Lock-Up Point Chart
Shift Point Chart
(H2, H4)
(REAR AXLE RATIO: 4.100 / 3.909)
(RADIUS OF TIRE: 0.368 / 0.349m)
“NORMAL" mode
Upshift km/h (mph)
Position Throttle Opening 1 →
→→
→
2 2 →
→→
→
3 3 →
→→
→
4
Fully opened 40 - 46 (25 - 29) 79 - 85 (49 - 53) 122 - 128 (76 - 80) D
Half throttle 28 - 34 (17 - 21) 53 - 59 (33 - 37) 83 - 89 (52 - 55)
Fully opened 40 - 46 (25 - 29) 79 - 85 (49 - 53) — 3
Half throttle 28 - 34 (17 - 21) 53 - 59 (33 - 37)
—
Fully opened 40 - 46 (25 - 29) — — 2
Half throttle 28 - 34 (17 - 21)
— —

Downshift km/h (mph)
Position Throttle Opening 1 ←
←←
←
2 2 ←
←←
←
3 3 ←
←←
←
4
Fully opened 33 - 39 (21 - 24) 69 - 75 (43 - 47) 113 - 119 (70 - 74)
Half throttle 8 - 14 (5 - 9) 27 - 33 (17 - 21) 61 - 67 (38 - 42) D
Fully closed 5 - 11 (3 - 7) 12 - 18 (8 - 11) 22 - 28 (14 - 17)
Fully opened 33 - 39 (21 - 24) 69 - 75 (43 - 47)
—
Half throttle 8 - 14 (5 - 9) 27 - 33 (17 - 21)
— 3
Fully closed 5 - 11 (3 - 7) 12 - 18 (8 - 11)
—
Fully opened 33 - 39 (21 - 24) 83 - 89 (52 - 55)
—
Half throttle 8 - 14 (5 - 9) 83 - 89 (52 - 55)
— 2
Fully closed 5 - 11 (3 - 7) 83 - 89 (52 - 55)
—
L Fully
opened 42 - 48 (26 - 30)
— —

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

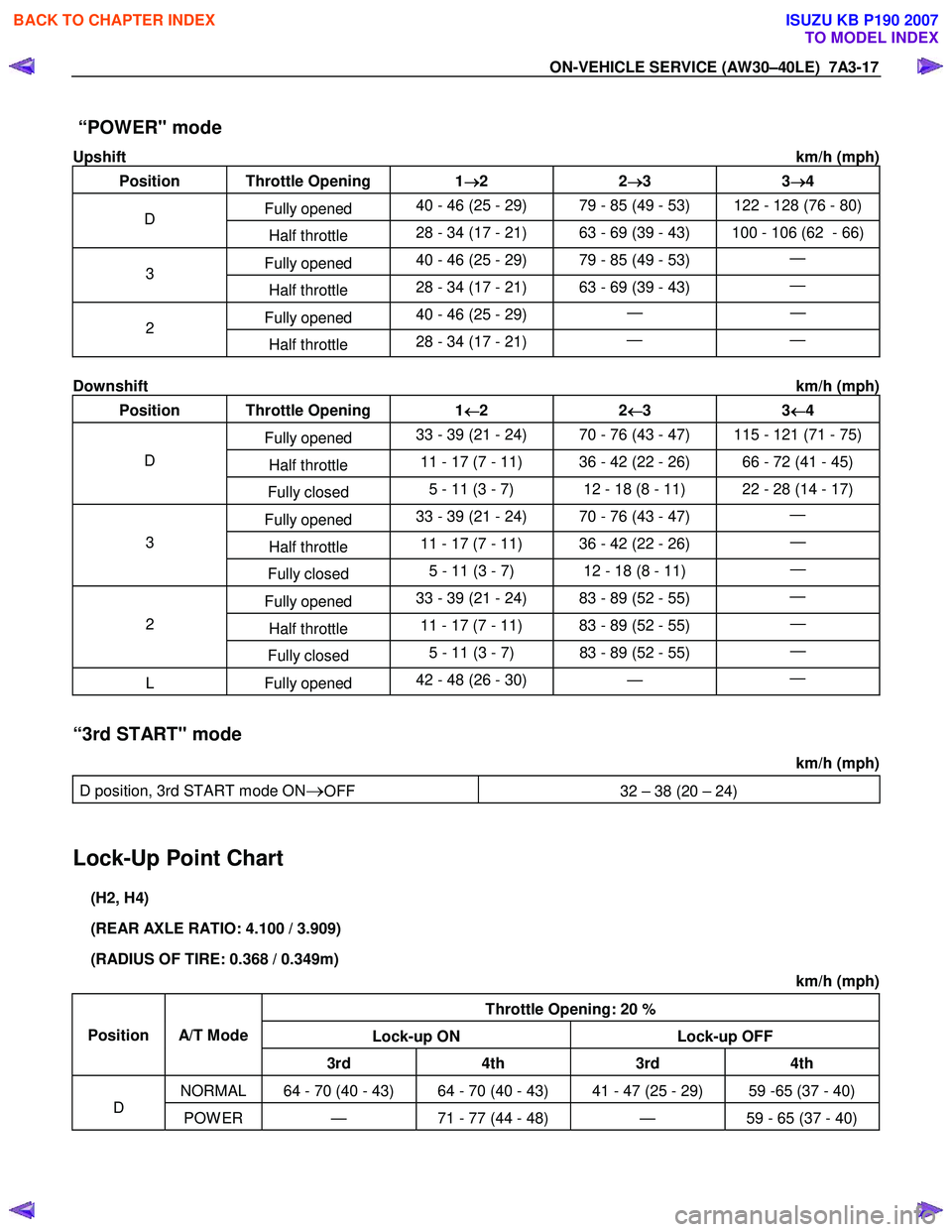

ON-VEHICLE SERVICE (AW30–40LE) 7A3-17
“POWER" mode
Upshift km/h (mph)
Position Throttle Opening 1 →
→→
→
2 2 →
→→
→
3 3 →
→→
→
4
Fully opened 40 - 46 (25 - 29) 79 - 85 (49 - 53) 122 - 128 (76 - 80) D
Half throttle 28 - 34 (17 - 21) 63 - 69 (39 - 43) 100 - 106 (62 - 66)
Fully opened 40 - 46 (25 - 29) 79 - 85 (49 - 53)
— 3
Half throttle 28 - 34 (17 - 21) 63 - 69 (39 - 43)
—
Fully opened 40 - 46 (25 - 29)
— — 2
Half throttle 28 - 34 (17 - 21)
— —

Downshift km/h (mph)
Position Throttle Opening 1 ←
←←
←
2 2 ←
←←
←
3 3 ←
←←
←
4
Fully opened 33 - 39 (21 - 24) 70 - 76 (43 - 47) 115 - 121 (71 - 75)
Half throttle 11 - 17 (7 - 11) 36 - 42 (22 - 26) 66 - 72 (41 - 45) D
Fully closed 5 - 11 (3 - 7) 12 - 18 (8 - 11) 22 - 28 (14 - 17)
Fully opened 33 - 39 (21 - 24) 70 - 76 (43 - 47)
—
Half throttle 11 - 17 (7 - 11) 36 - 42 (22 - 26)
— 3
Fully closed 5 - 11 (3 - 7) 12 - 18 (8 - 11)
—
Fully opened 33 - 39 (21 - 24) 83 - 89 (52 - 55)
—
Half throttle 11 - 17 (7 - 11) 83 - 89 (52 - 55)
— 2
Fully closed 5 - 11 (3 - 7) 83 - 89 (52 - 55)
—
L Fully
opened 42 - 48 (26 - 30)
— —
“3rd START" mode
km/h (mph)
D position, 3rd START mode ON
→OFF 32 – 38 (20 – 24)

Lock-Up Point Chart
(H2, H4)
(REAR AXLE RATIO: 4.100 / 3.909)
(RADIUS OF TIRE: 0.368 / 0.349m) km/h (mph)
Throttle Opening: 20 %
Lock-up ON Lock-up OFF

Position
A/T Mode
3rd 4th 3rd 4th
NORMAL 64 - 70 (40 - 43) 64 - 70 (40 - 43) 41 - 47 (25 - 29) 59 -65 (37 - 40)
D POW ER — 71 - 77 (44 - 48) — 59 - 65 (37 - 40)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A3-18 ON-VEHICLE SERVICE (AW30–40LE)
Transmission Fluid Level and Condition
Inspection
Park vehicle on level ground and set parking brake.
W ith the engine idling, move the shift lever through all
positions from “P" to “L", then return to position “P".
Check to see if the level of fluid comes to “HOT" range
of about 75 °
°°
°
C (167 °
°°
°
F) on the dipstick gauge.
If the level of fluid is too low, replenish to bring it to
maximum level in “HOT" range.
Inspection of fluid condition. If the ATF is except
normality (refer to the following table) or smells burnt,
try to find these cause and replace it.




RUW 37ASH002501


Color or ATF Condiction
Clear red Normality
Blackish discoloration Defects of power train parts (clutches)
W hite turbidity Include water
Discoloration of red brown Deterioration of ATF


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ON-VEHICLE SERVICE (AW30–40LE) 7A3-19
ATF Replacement
Inspection
NOTE: Do not overfill.
1. Remove the drain plug from oil pan and drain the
fluid.





RUW 17ASH013401
2. Reinstall the drain plug securely.
Torque: 19 N ⋅
⋅⋅
⋅
m (1.9 kgf ⋅
⋅⋅
⋅
m/14 Ib ⋅
⋅⋅
⋅
ft)
3. W ith the engine OFF, add new fluid through the fille
r
tube.



Drain and refill 5.2 liter
Dry fill 8.7 liter
Fluid Exxon Mobil ATF-3309
4. Start the engine and shift the selector into all
position from “P" through “L", and then shift into “P".
5. W ith the engine idling, check the fluid level. Add fluid up to the “COLD" level on the dipstick.
6. The ATF level must be checked again for correct level with the “HOT" level.
NOTE: To prevent fluid leaks, the drain plug gasket
must be replaced each time this plug is removed.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A3-20 ON-VEHICLE SERVICE (AW30–40LE)
Neutral Start Switch (Mode Switch)
Inspection
W ith a circuit tester, make a continuity test on the
neutral start switch with the moving piece set in each
position.













RTW 77ASH003401
Removal
Preparation:
Disconnect negative (–) battery cable.
1. Remove the rear side ATF cooler pipe from the
transmission elbow.
2. Disconnect neutral start switch connector.
3. Unstake the lock washer, and then remove the shaft
nut.
4. Remove the neutral start switch.
Installation
To install, follow the removal steps in the reverse order,
noting the following points;
If a engine starts at any selector position except “N” o
r
“P”, the neutral start switch (mode switch) should be
adjusted.
1. Loosen the neutral start switch bolt and set the shift
selector to the “N" position.
2. Align the groove and neutral basic line.
3. Hold in position and tighten the bolt and nut.
Torque:
Nut – 7 N ⋅
⋅⋅
⋅
m (0.7 kgf ⋅
⋅⋅
⋅
m/61 Ib ⋅
⋅⋅
⋅
in)
Bolt – 13 N ⋅
⋅⋅
⋅
m (1.3 kgf ⋅
⋅⋅
⋅
m/113 Ib ⋅
⋅⋅
⋅
in)
4. Lock the nut with the lock washer tubs at two points.



RUW 17ASH013601





BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ON-VEHICLE SERVICE (AW30–40LE) 7A3-21

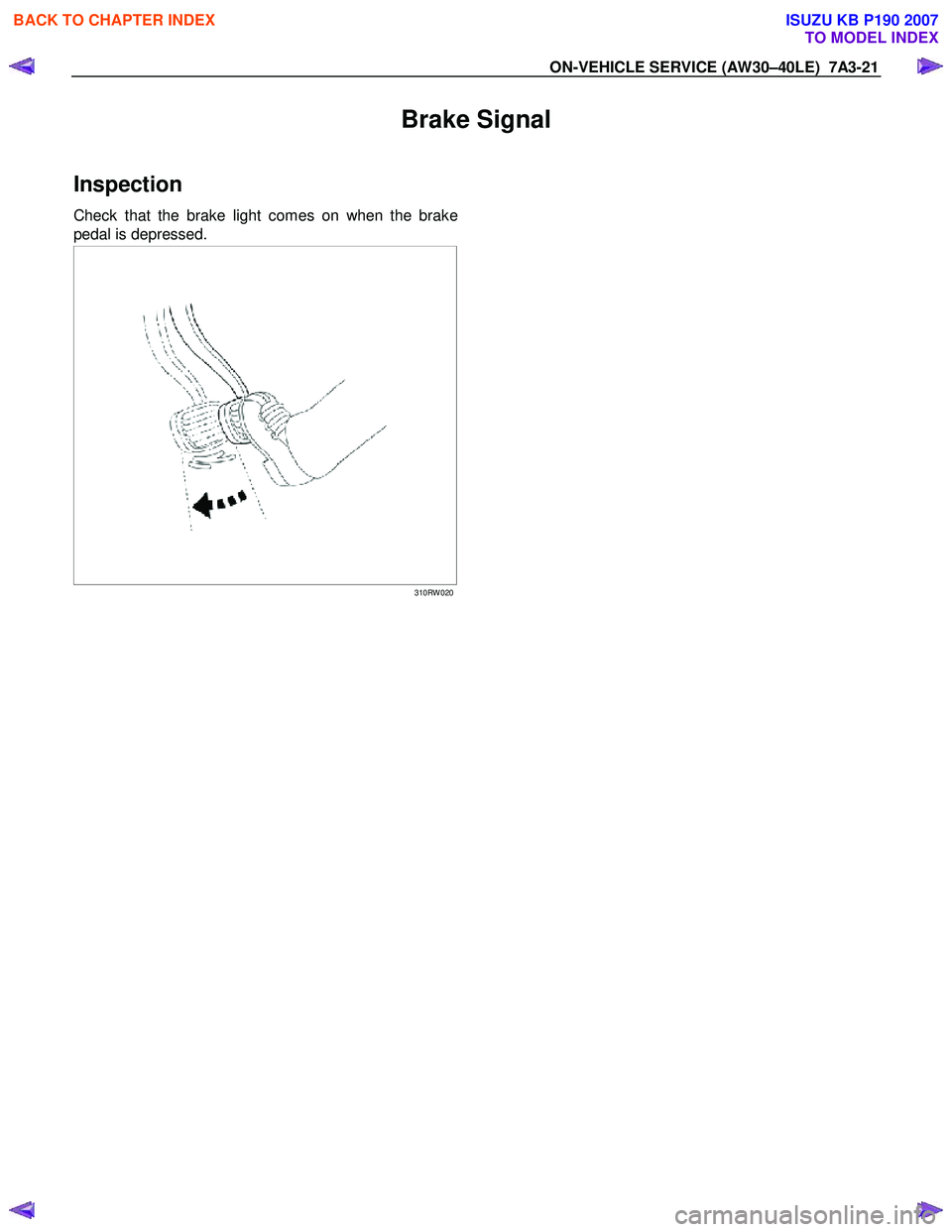

Brake Signal
Inspection
Check that the brake light comes on when the brake
pedal is depressed.





310RW 020




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A3-22 ON-VEHICLE SERVICE (AW30–40LE)
Input and Output Revolution Sensor
Inspection
1. Disconnect the input and output revolution sensor
connector.
2. Use an ohmmeter to measure the resistance between terminals 1 and 2.
Standard resistance
Input revolution sensor: 560 – 680
Ω
ΩΩ
Ω (at 20
°
°°
°
Cor
68 °
°°
°
F)
Output revolution sensor: 560 – 680
Ω
ΩΩ
Ω (at 20
°
°°
°
C
or 68 °
°°
°
F)





F07RY00018



Power and 3rd Start Switch
Inspection
1. Block the wheels.
2. Disconnect the negative battery cable.
3. Pry out the switch from the floor console.
4. Disconnect the harness connector.
5. Check continuity between terminals (5) and (6) at third (3rd) position.
6. Check continuity between terminals (3) and (6) at power (PW R) position.
7. Replace the power and 3rd start switch if the result of inspection is abnormal.
8. Connect the harness connector.
9. Connect the negative battery cable.
10. Remove the wheel blocks.
238R300003




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ON-VEHICLE SERVICE (AW30–40LE) 7A3-23

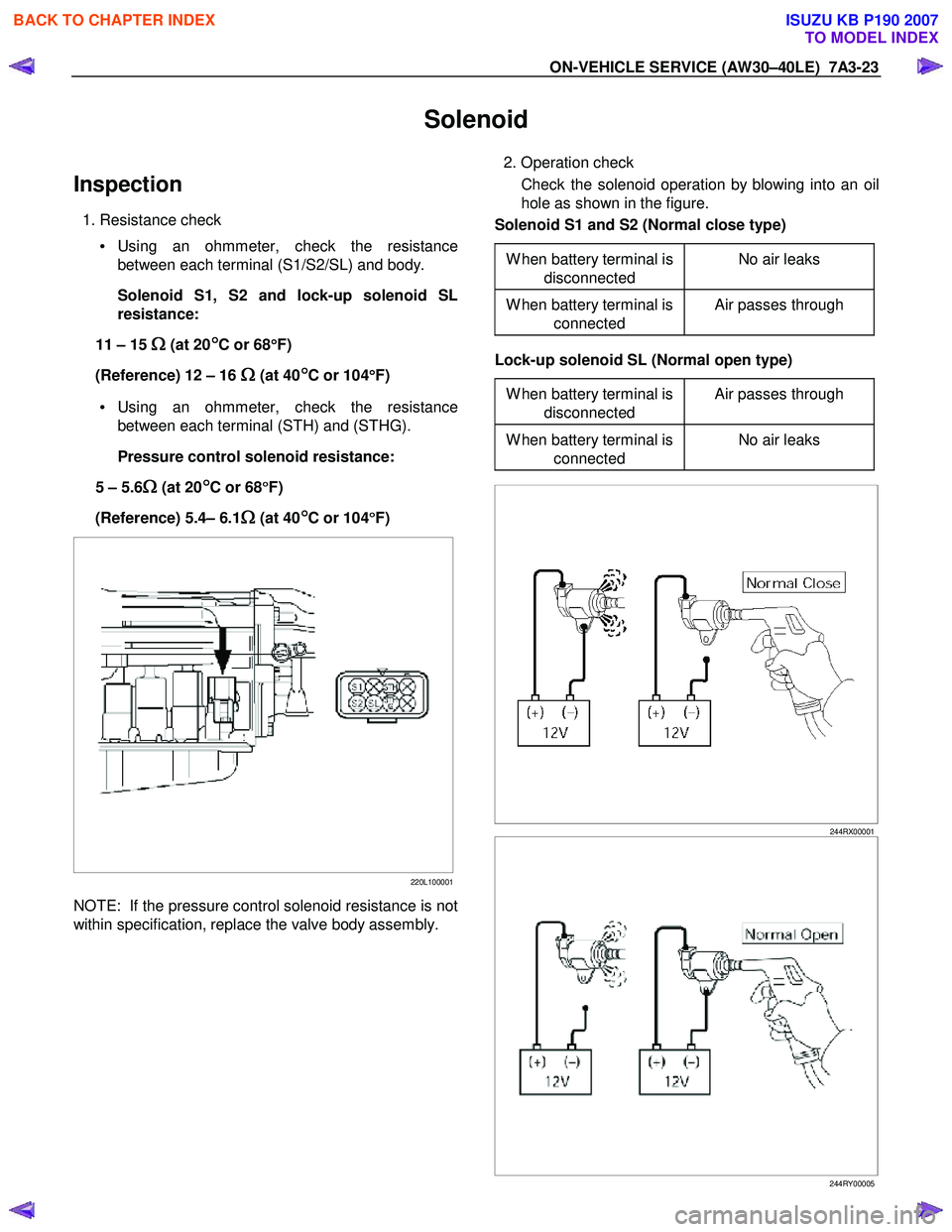

Solenoid
Inspection
1. Resistance check
• Using an ohmmeter, check the resistance
between each terminal (S1/S2/SL) and body.
Solenoid S1, S2 and lock-up solenoid SL
resistance:
11 – 15
Ω
ΩΩ
Ω (at 20°
°°
°C or 68
°
°°
°
F)
(Reference) 12 – 16
Ω
ΩΩ
Ω (at 40°
°°
°C or 104
°
°°
°
F)
• Using an ohmmeter, check the resistance
between each terminal (STH) and (STHG).
Pressure control solenoid resistance:
5 – 5.6
Ω
ΩΩ
Ω (at 20°
°°
°C or 68
°
°°
°
F)
(Reference) 5.4– 6.1
Ω
ΩΩ
Ω (at 40°
°°
°C or 104
°
°°
°
F)




220L100001
NOTE: If the pressure control solenoid resistance is not
within specification, replace the valve body assembly.



2. Operation check
Check the solenoid operation by blowing into an oil
hole as shown in the figure.
Solenoid S1 and S2 (Normal close type)


W hen battery terminal is disconnected No air leaks
W hen battery terminal is
connected Air passes through

Lock-up solenoid SL (Normal open type)


W hen battery terminal is disconnected Air passes through
W hen battery terminal is
connected No air leaks






244RX00001




244RY00005

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A3-24 ON-VEHICLE SERVICE (AW30–40LE)
ATF Temperature Sensor
Inspection
1. Disconnect the front side ATF cooler pipe from the
elbow and remove the elbow.
2. Remove the ATF temperature sensor from the transmission case.
3. Place the ATF temperature sensor in a container o
f
ATF.




RTW 77ASH003501
4. Measure the resistance between each terminal,
while warming ATF.
Resistance: 0.5 – 30 k
Ω
ΩΩ
Ω (at 0
°
°°
°
C – 120 °
°°
°
C or 32 °
°°
°
F –
248 °
°°
°
F)
5. If either of the measured values exceeds the
specified value, replace the ATF temperature
sensor.
Torque: 15 N ⋅
⋅⋅
⋅
m (1.5 kgf ⋅
⋅⋅
⋅
m/11 Ib ⋅
⋅⋅
⋅
ft)





BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ON-VEHICLE SERVICE (AW30–40LE) 7A3-25

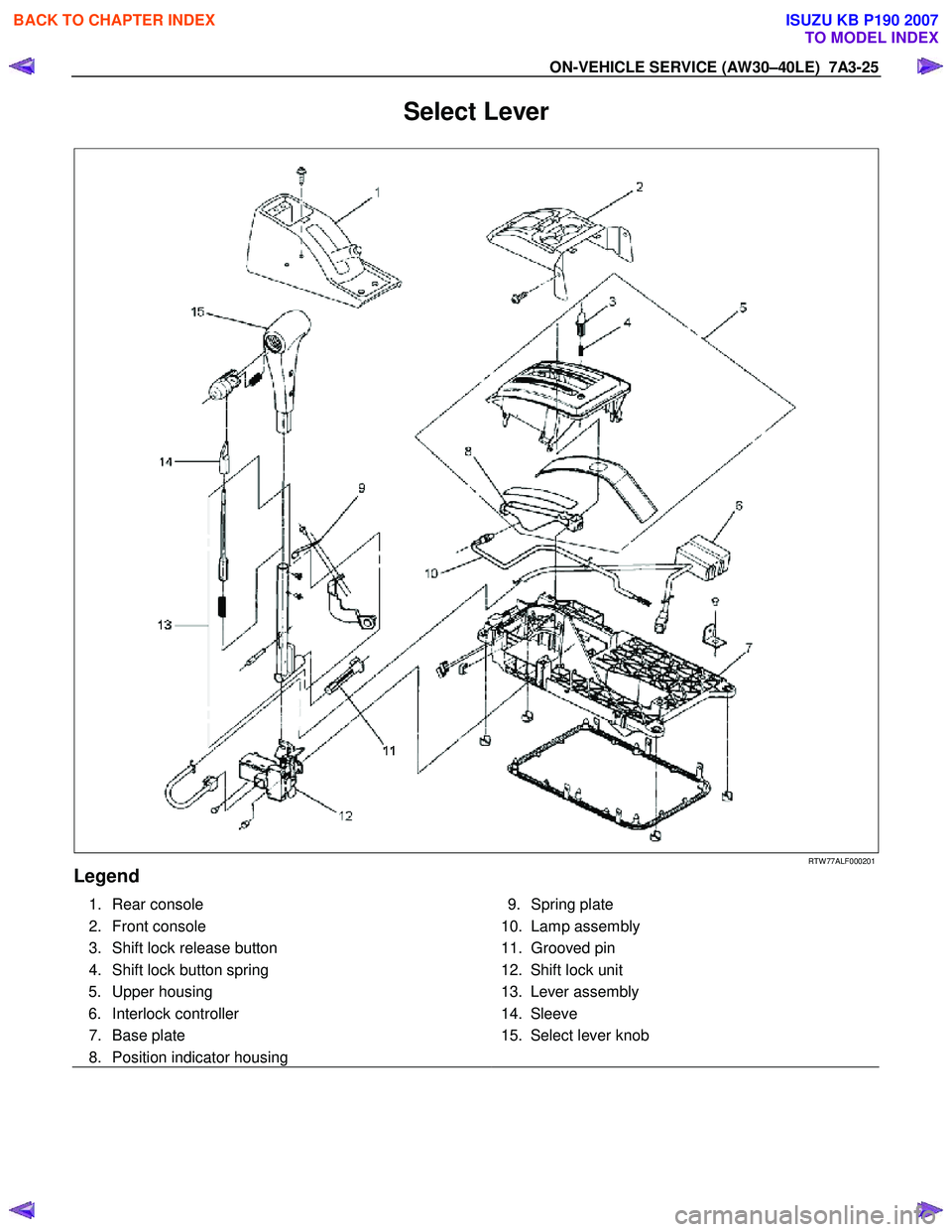

Select Lever



RTW 77ALF000201
Legend
1. Rear console
2. Front console
3. Shift lock release button
4. Shift lock button spring 5. Upper housing
6. Interlock controller
7. Base plate
8. Position indicator housing

9. Spring plate
10. Lamp assembly
11. Grooved pin
12. Shift lock unit
13. Lever assembly
14. Sleeve
15. Select lever knob
