MANUAL TRANSMISSION 7B1-105
TROUBLESHOOTING

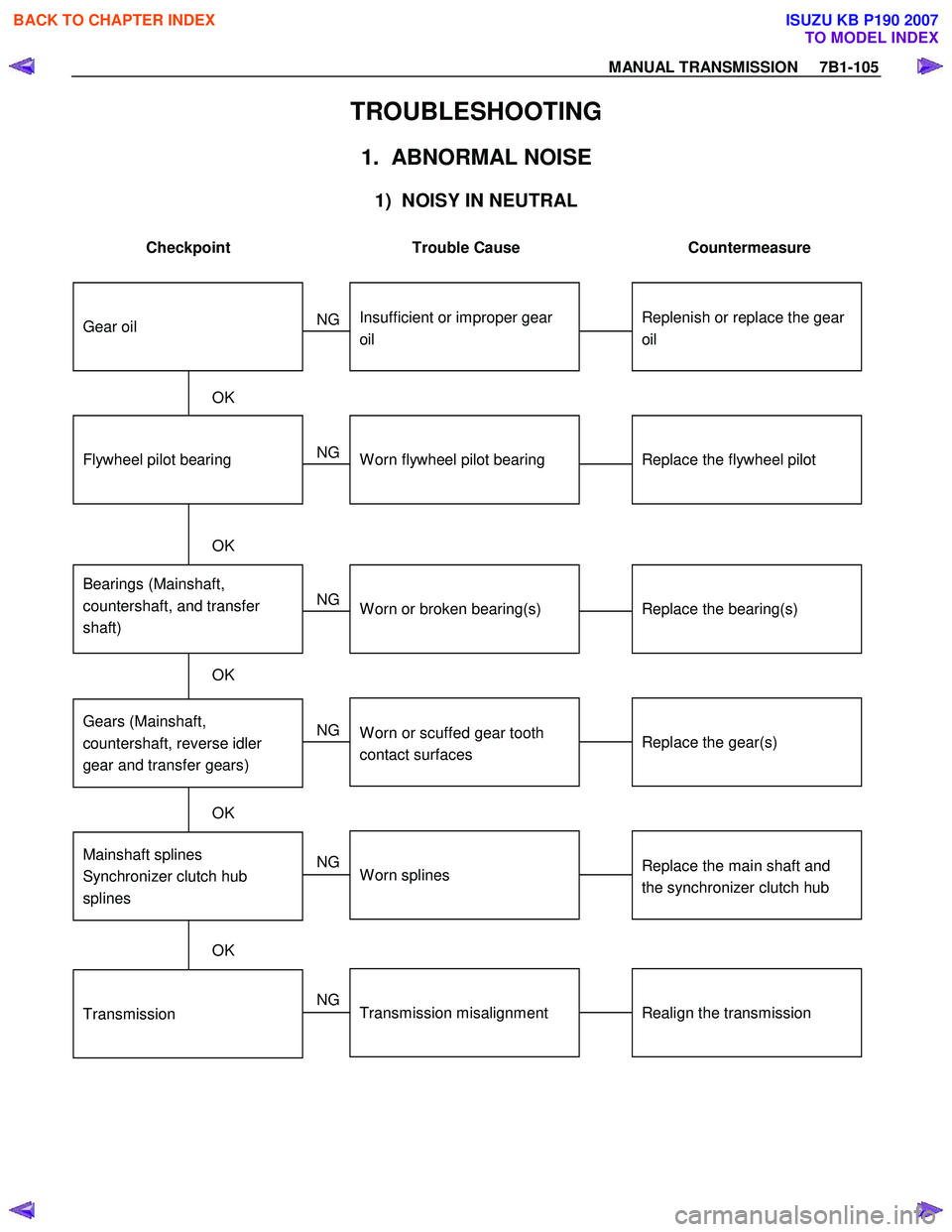

1. ABNORMAL NOISE

1) NOISY IN NEUTRAL

Checkpoint Trouble Cause Countermeasure

Replenish or replace the gear
oilInsufficient or improper gear
oil
NG
Mainshaft splines
Synchronizer clutch hub
splinesReplace the main shaft and
the synchronizer clutch hub
Replace the gear(s)
Replace the flywheel pilot
W orn splines
W orn or scuffed gear tooth
contact surfaces
Flywheel pilot bearingW orn flywheel pilot bearing
Bearings (Mainshaft,
countershaft, and transfer
shaft)
Gears (Mainshaft,
countershaft, reverse idler
gear and transfer gears)
Replace the bearing(s)W orn or broken bearing(s)
OK NG
NG
NG
NG
OK
OK
OK
Gear oil
TransmissionRealign the transmissionTransmission misalignment
OK
NG



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7B1-106 MANUAL TRANSMISSION
2) NOISY OPERATION

Checkpoint Trouble Cause Countermeasure

Replenish or replace the gear
oilInsufficient or improper engine
oil
NG
Replace the gear(s)
Replace the gear(s)
Replace the bearing(s)
Gears (Gear whining)Lack of backlash between
meshing gears
Free running gears seizing on
the thrust face or the inner
face
Bearings (Hissing, thumping
or bumping)W orn or broken bearing(s)
Gears (Squealing at high
speeds)
Replace the gear(s)Gears (Growling, humming, or
grinding)W orn, chipped, or cracked
gear(s)
NG
NG
NG
NG
OK
OK
OK
OK
Gear oil (Metallic rattling)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MANUAL TRANSMISSION 7B1-107
2. HARD SHIFTING

Checkpoint Trouble Cause Countermeasure

Change lever play
Clutch pedal free play
Repair or replace the
applicable parts and regrease
Readjust the clutch pedal free
play
W orn change lever sliding
portions
Improper clutch pedal free
play
Change lever operationRepair or regrease the change
lever assembly
Replenish or replace the
engine oil
Hard operating change lever
caused insufficient grease
Insufficient or improper gear
oil
OK
OK NG
NG
NG
NG
OK
OKGear oil
Continued on the next page
Shift rod and quadrant box
sliding faces, and other partsReplace the shidt rod and/or
the quadrant boxW orn shift rod and/or sliding
faces
Repair or replace the sleeveSleeve movement failure
NG
NG
OKShift block sleeve movement


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7B1-108 MANUAL TRANSMISSION

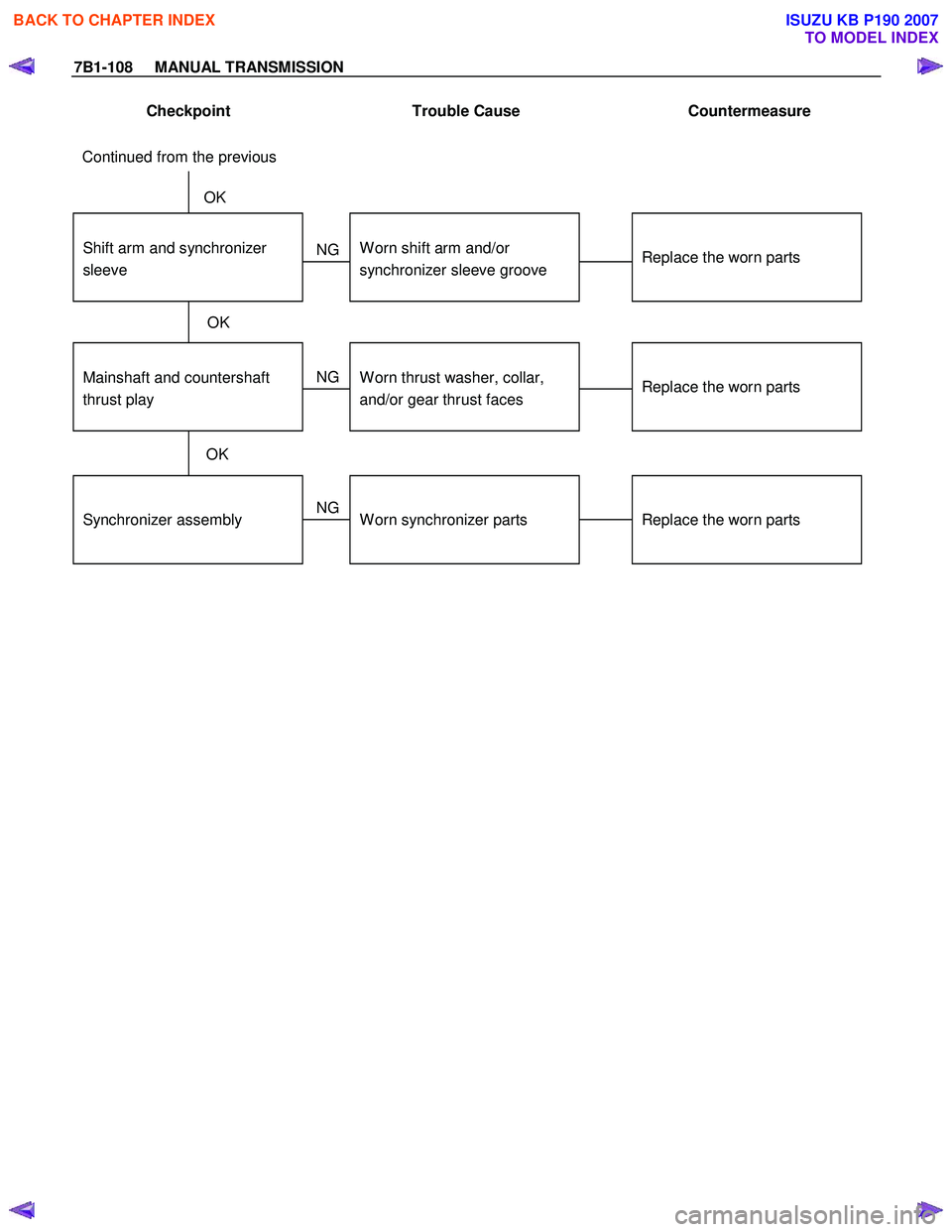

Checkpoint Trouble Cause Countermeasure

Synchronizer assembly
Shift arm and synchronizer
sleeve
Replace the worn parts
Replace the worn parts
W orn synchronizer parts
W orn shift arm and/or
synchronizer sleeve groove
Mainshaft and countershaft
thrust playReplace the worn partsW orn thrust washer, collar,
and/or gear thrust faces
OK NG
NG
NG
OK
OK
Continued from the previous


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MANUAL TRANSMISSION 7B1-109

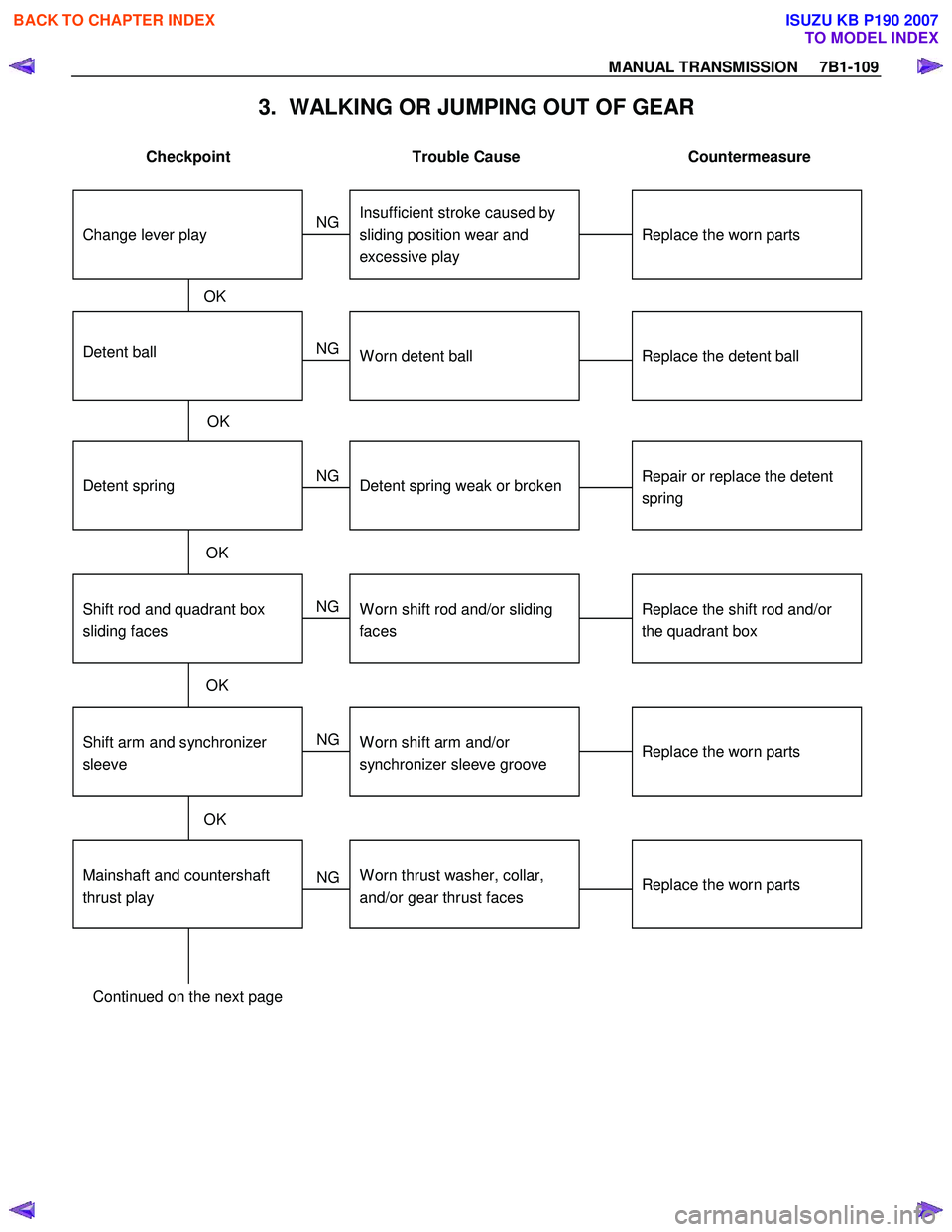

3. WALKING OR JUMPING OUT OF GEAR

Checkpoint Trouble Cause Countermeasure

Shift rod and quadrant box
sliding faces
Detent ball
Replace the shift rod and/or
the quadrant box
Replace the detent ball
W orn shift rod and/or sliding
faces
W orn detent ball
Detent springRepair or replace the detent
spring
Replace the worn parts
Detent spring weak or broken
Insufficient stroke caused by
sliding position wear and
excessive play
OK
OK NG
NG
NG
NG
OK
OK
Change lever play
Continued on the next page
Mainshaft and countershaft
thrust playReplace the worn partsW orn thrust washer, collar,
and/or gear thrust faces
Replace the worn partsW orn shift arm and/or
synchronizer sleeve groove
NG
NG
OKShift arm and synchronizer
sleeve


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7B1-110 MANUAL TRANSMISSION

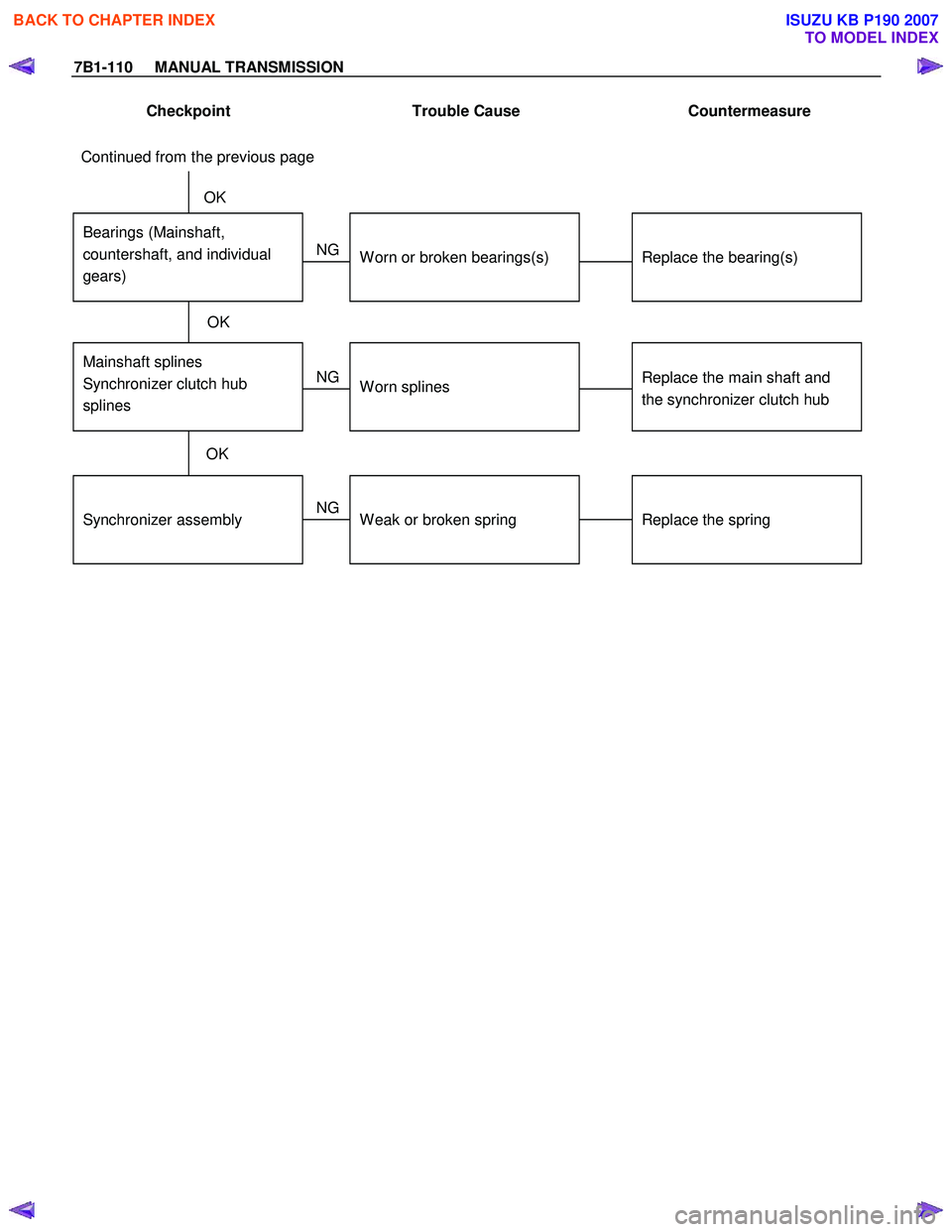

Checkpoint Trouble Cause Countermeasure

Synchronizer assembly
Bearings (Mainshaft,
countershaft, and individual
gears)
Replace the spring
Replace the bearing(s)
W eak or broken spring
W orn or broken bearings(s)
Mainshaft splines
Synchronizer clutch hub
splines
Replace the main shaft and
the synchronizer clutch hubW orn splines
OK NG
NG
NG
OK
OK
Continued from the previous page


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MANUAL TRANSMISSION 7B1-111

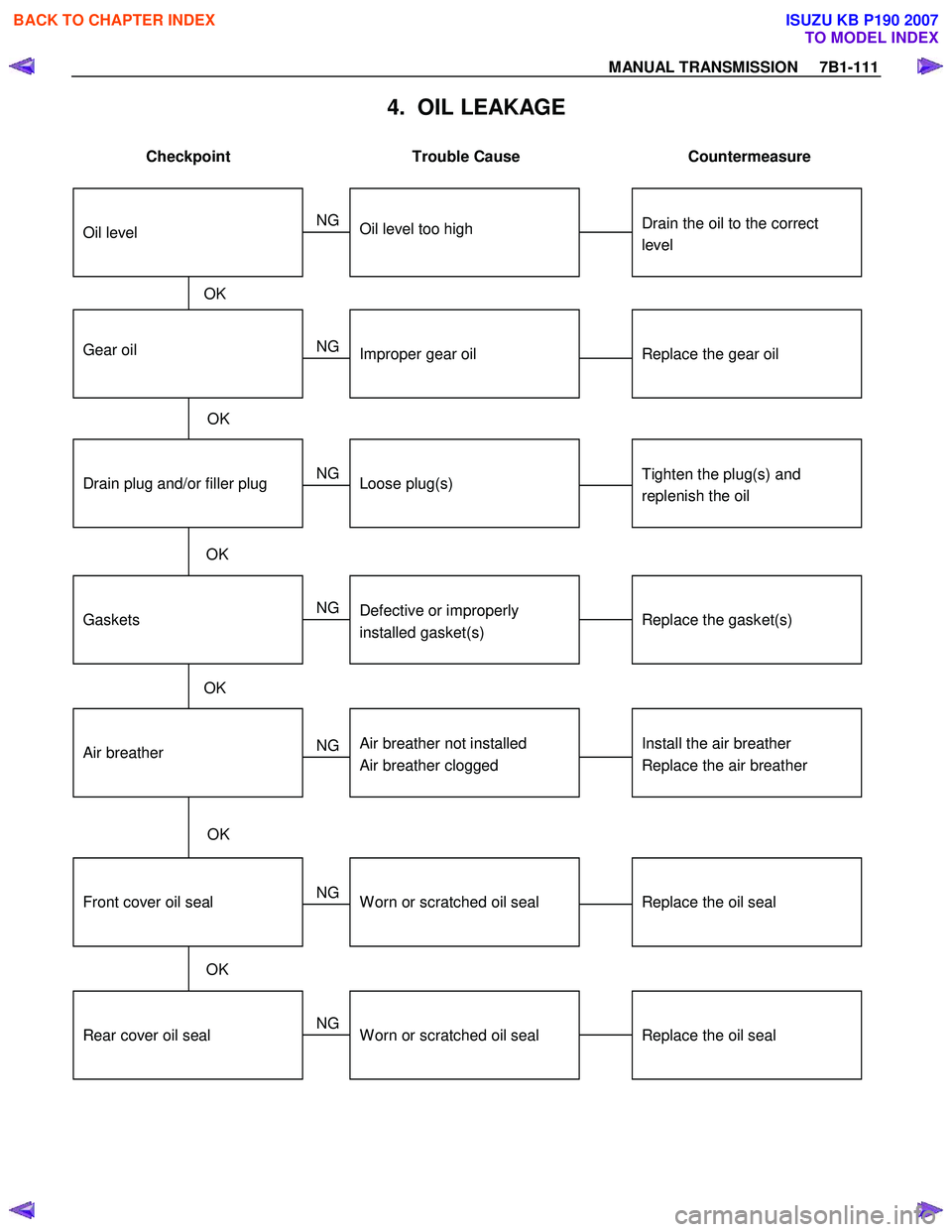

4. OIL LEAKAGE

Checkpoint Trouble Cause Countermeasure

Gear oilReplace the gear oilImproper gear oil
Drain plug and/or filler plugTighten the plug(s) and
replenish the oil
Drain the oil to the correct
level
Loose plug(s)
Oil level too high
OK NG
NG
NG
OK
OKOil level
Rear cover oil seal
Air breather
Replace the oil seal
Install the air breather
Replace the air breather
W orn or scratched oil seal
Air breather not installed
Air breather clogged
Front cover oil sealReplace the oil seal
Replace the gasket(s)
W orn or scratched oil seal
Defective or improperly
installed gasket(s)
OK NG
NG
NG
NG
OK
OKGaskets



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7B1-112 MANUAL TRANSMISSION

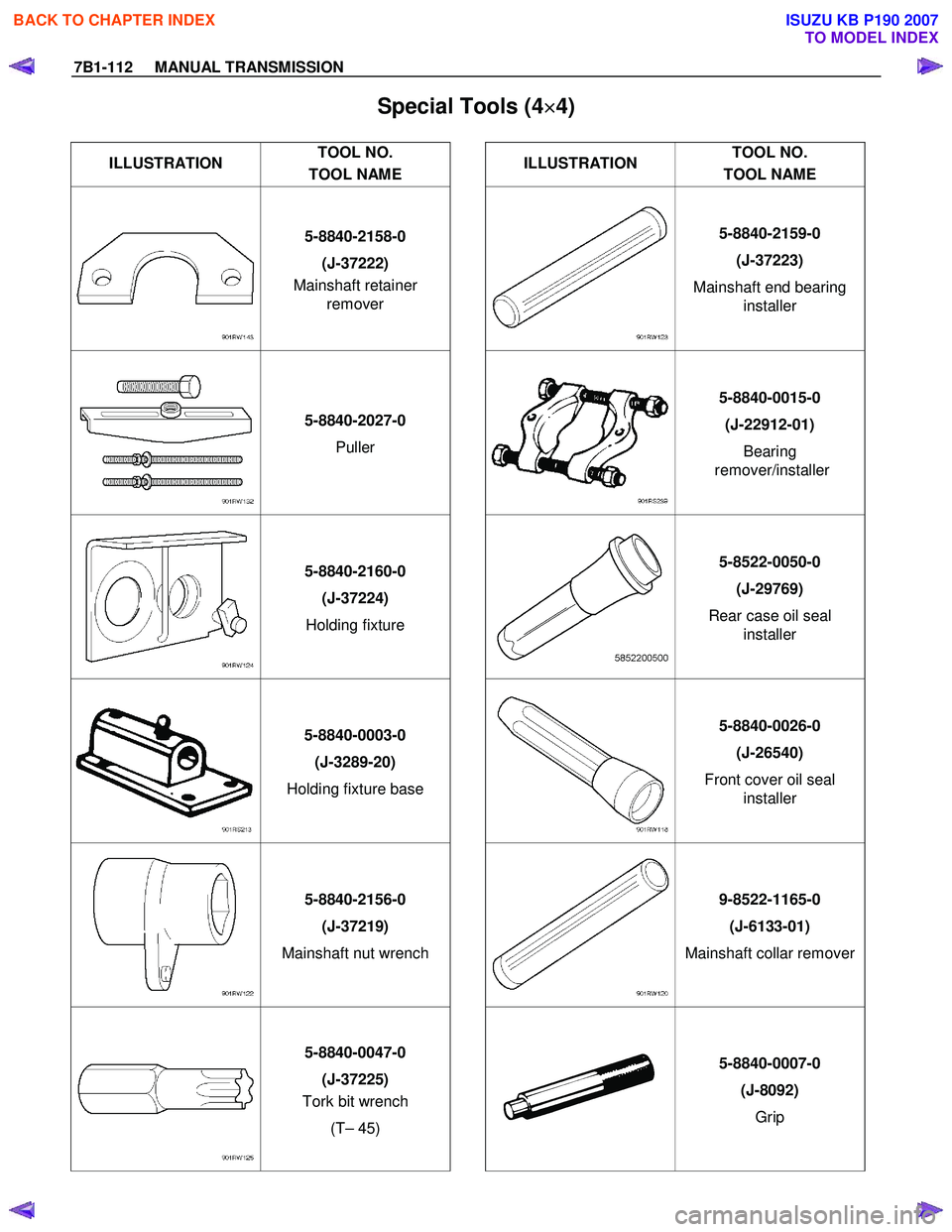

Special Tools (4×
××
×
4)

ILLUSTRATION TOOL NO.
TOOL NAME ILLUSTRATION
TOOL NO.
TOOL NAME
5-8840-2158-0
(J-37222)
Mainshaft retainer remover 5-8840-2159-0
(J-37223)
Mainshaft end bearing installer
5-8840-2027-0
Puller 5-8840-0015-0
(J-22912-01) Bearing
remover/installer
5-8840-2160-0
(J-37224)
Holding fixture

5-8522-0050-0
(J-29769)
Rear case oil seal installer
5-8840-0003-0
(J-3289-20)
Holding fixture base 5-8840-0026-0
(J-26540)
Front cover oil seal installer
5-8840-2156-0
(J-37219)
Mainshaft nut wrench 9-8522-1165-0
(J-6133-01)
Mainshaft collar remover
5-8840-0047-0
(J-37225)
Tork bit wrench
(T– 45) 5-8840-0007-0
(J-8092) Grip


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MANUAL TRANSMISSION 7B1-113

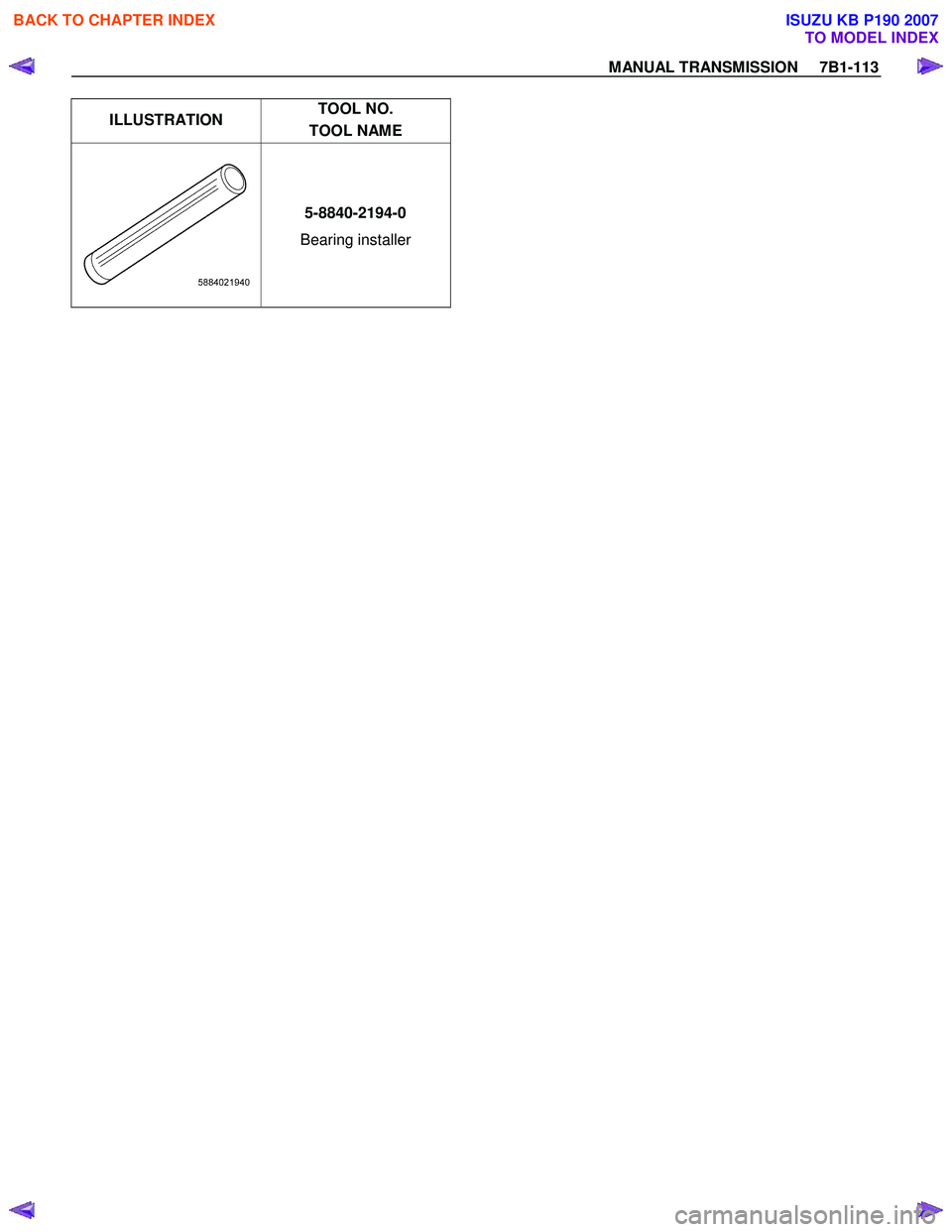

ILLUSTRATION TOOL NO.
TOOL NAME
5-8840-2194-0
Bearing installer




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

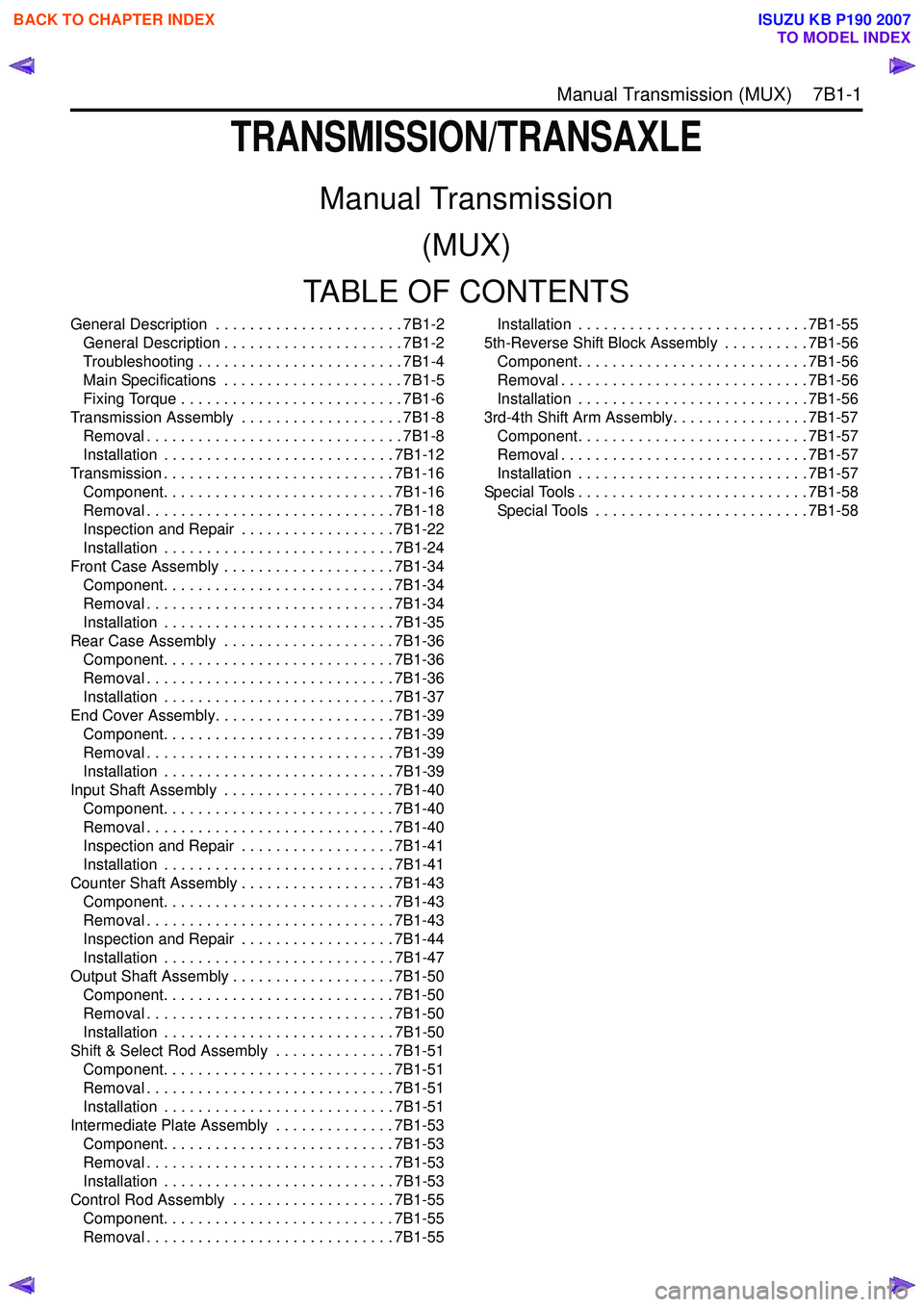

Manual Transmission (MUX) 7B1-1
TRANSMISSION/TRANSAXLE
Manual Transmission(MUX)
TABLE OF CONTENTS
General Description . . . . . . . . . . . . . . . . . . . . . . 7B1-2 General Description . . . . . . . . . . . . . . . . . . . . . 7B1-2
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 7B1-4
Main Specifications . . . . . . . . . . . . . . . . . . . . . 7B1-5
Fixing Torque . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-6
Transmission Assembly . . . . . . . . . . . . . . . . . . . 7B1-8 Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-12
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-16 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-16
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-18
Inspection and Repair . . . . . . . . . . . . . . . . . . 7B1-22
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-24
Front Case Assembly . . . . . . . . . . . . . . . . . . . . 7B1-34 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-34
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-34
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-35
Rear Case Assembly . . . . . . . . . . . . . . . . . . . . 7B1-36 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-36
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-36
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-37
End Cover Assembly. . . . . . . . . . . . . . . . . . . . . 7B1-39 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-39
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-39
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-39
Input Shaft Assembly . . . . . . . . . . . . . . . . . . . . 7B1-40 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-40
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-40
Inspection and Repair . . . . . . . . . . . . . . . . . . 7B1-41
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-41
Counter Shaft Assembly . . . . . . . . . . . . . . . . . . 7B1-43 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-43
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-43
Inspection and Repair . . . . . . . . . . . . . . . . . . 7B1-44
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-47
Output Shaft Assembly . . . . . . . . . . . . . . . . . . . 7B1-50 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-50
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-50
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-50
Shift & Select Rod Assembly . . . . . . . . . . . . . . 7B1-51 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-51
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-51
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-51
Intermediate Plate Assembly . . . . . . . . . . . . . . 7B1-53 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-53
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-53
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-53
Control Rod Assembly . . . . . . . . . . . . . . . . . . . 7B1-55 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-55
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-55 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-55
5th-Reverse Shift Block Assembly . . . . . . . . . . 7B1-56 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-56
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-56
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-56
3rd-4th Shift Arm Assembly. . . . . . . . . . . . . . . . 7B1-57 Component. . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-57
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-57
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-57
Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-58 Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . 7B1-58
