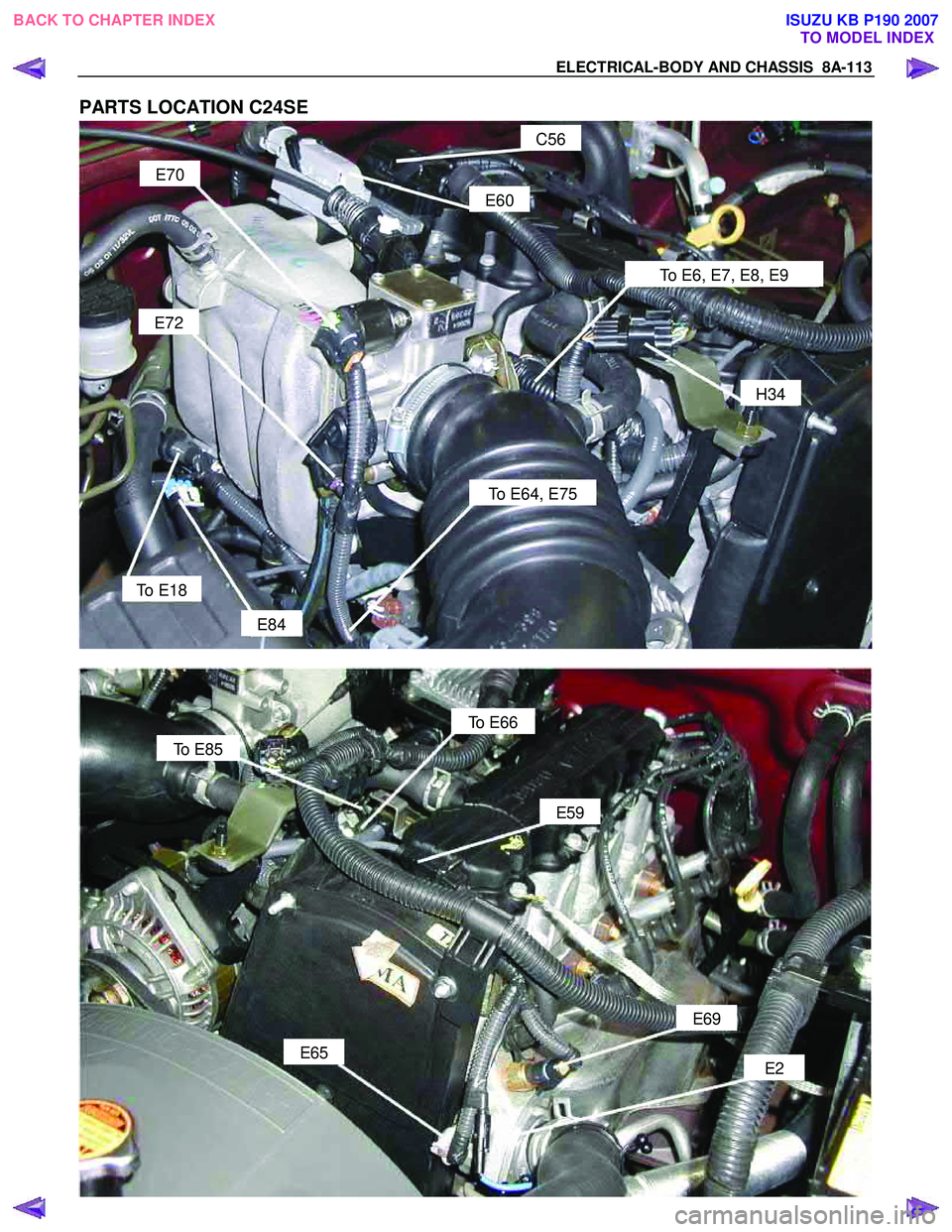

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-113 PARTS LOCATION C24SE C56 E60 To E6, E7, E8, E9 E70 E72 H34 To E64, E75 To E18 E84 To E66 E59 E69 E2 To E85 E65 BACK TO CHAPTER INDEX TO M

Page 5052 of 6020

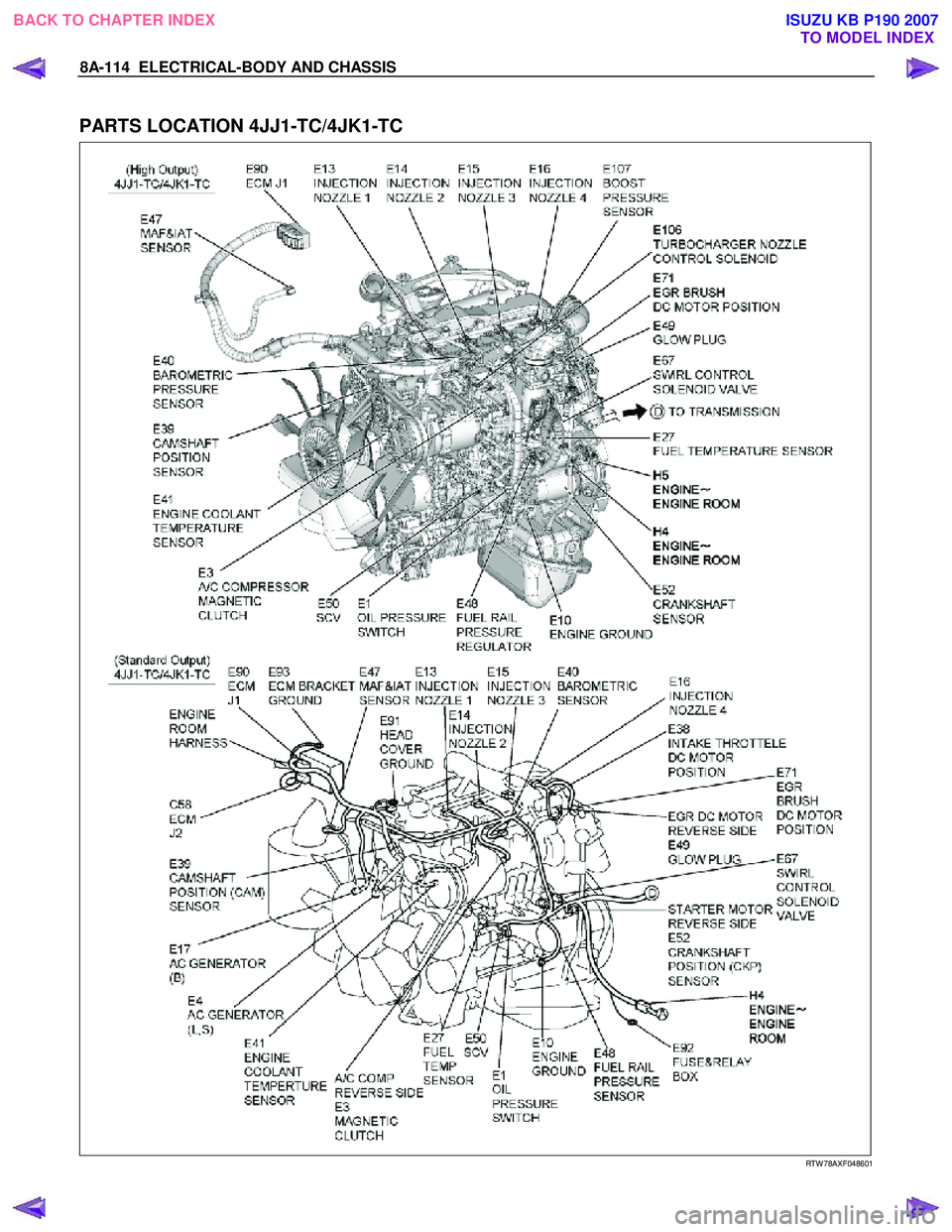

ISUZU KB P190 2007 Workshop Repair Manual 8A-114 ELECTRICAL-BODY AND CHASSIS PARTS LOCATION 4JJ1-TC/4JK1-TC RTW 78AXF048601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5053 of 6020

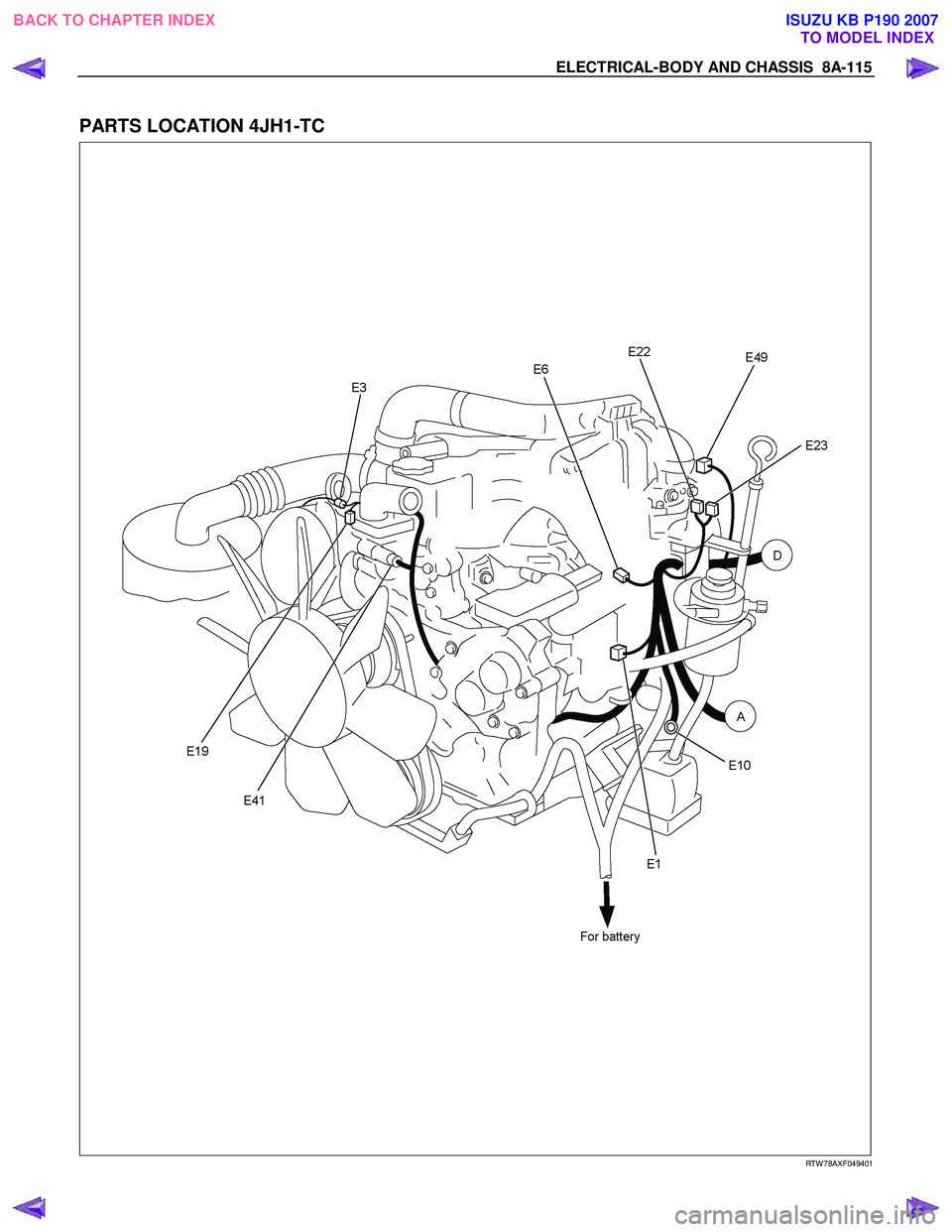

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-115 PARTS LOCATION 4JH1-TC RTW 78AXF049401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5054 of 6020

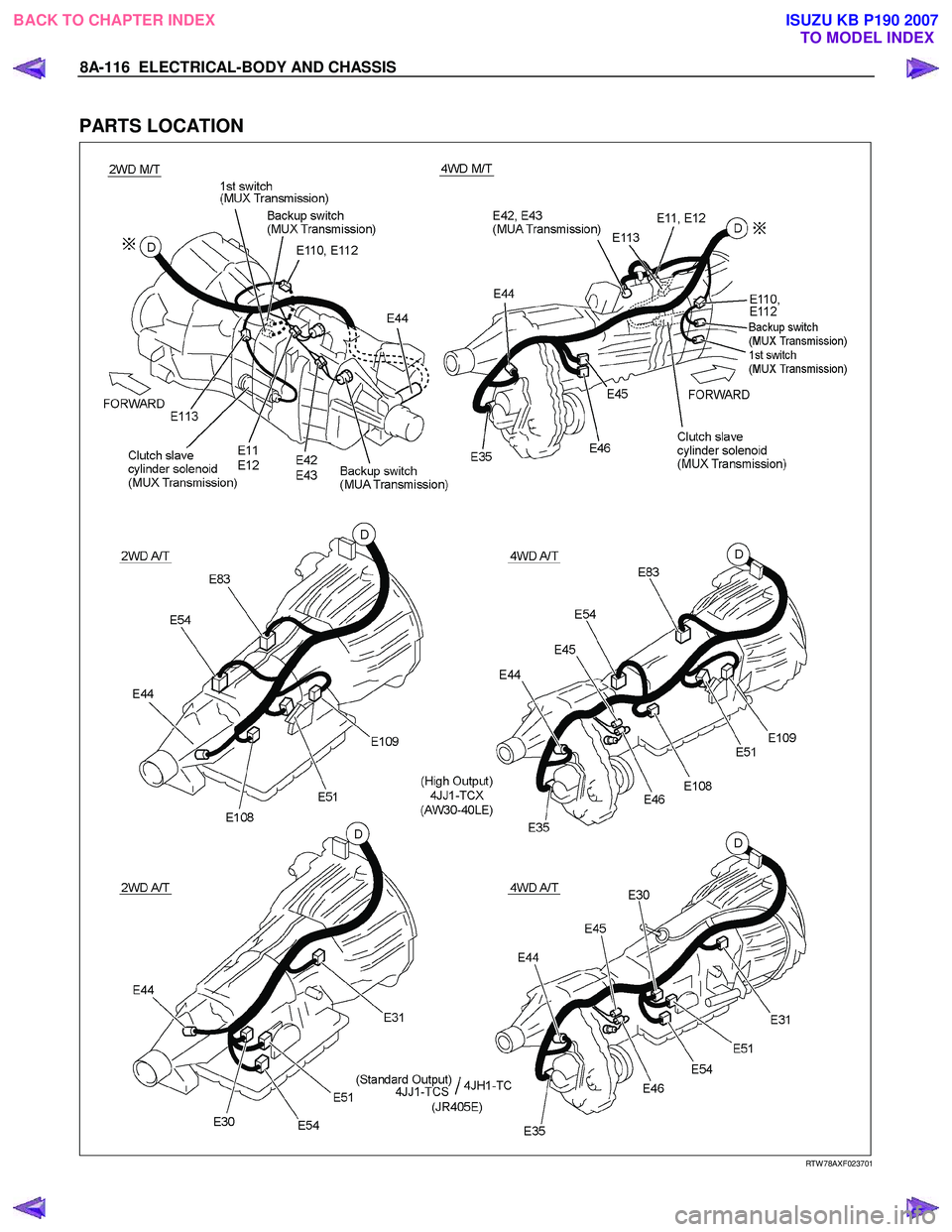

ISUZU KB P190 2007 Workshop Repair Manual 8A-116 ELECTRICAL-BODY AND CHASSIS PARTS LOCATION RTW 78AXF023701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5055 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-117 PARTS LOCATION RTW 78AXF049301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5056 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-118 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM C24SE Sheet 1/2 RTW 680XF005501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5057 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-119 CIRCUIT DIAGRAM C24SE Sheet 2/2 RTW 680XF005601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5058 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-120 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM HFV6 Sheet 1/3 RTW 78AXF023901 BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

Page 5059 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-121 CIRCUIT DIAGRAM HFV6 Sheet 2/3 RTW 78AXF024001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5060 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-122 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM HFV6 Sheet 3/3 RTW 78AXF024101 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
