Page 5011 of 6020

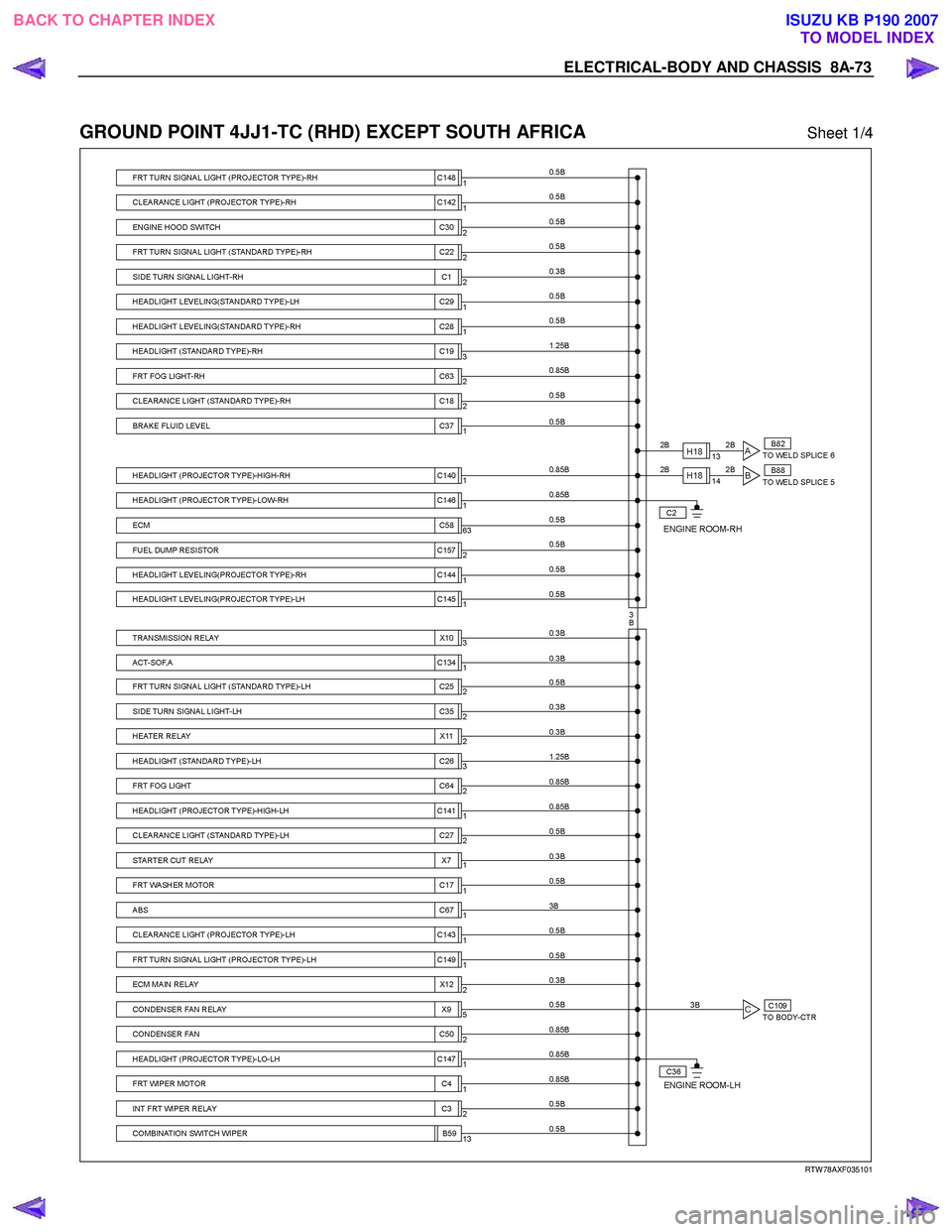

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-73 GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 1/4 RTW 78AXF035101 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5012 of 6020

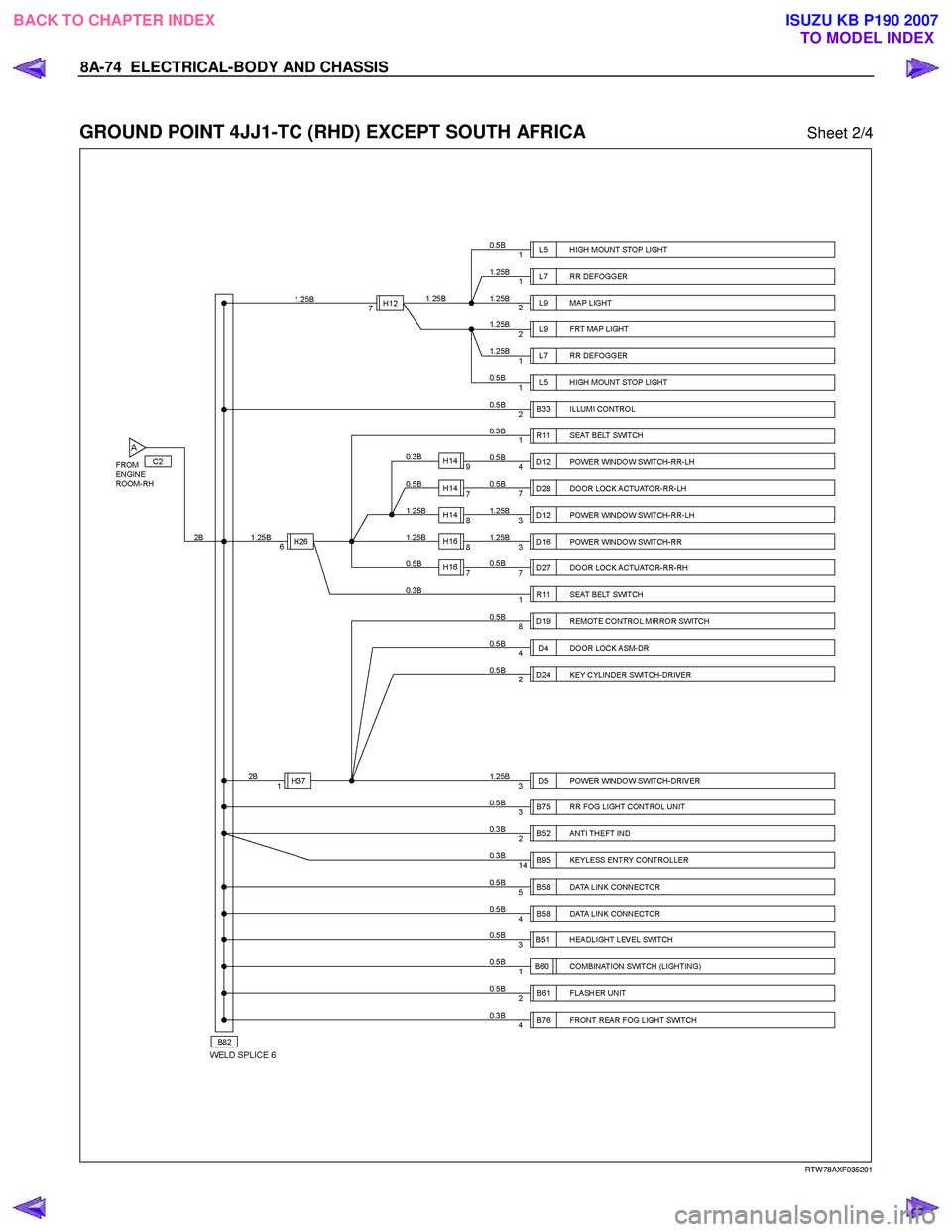

ISUZU KB P190 2007 Workshop Repair Manual 8A-74 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 2/4 RTW 78AXF035201 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5013 of 6020

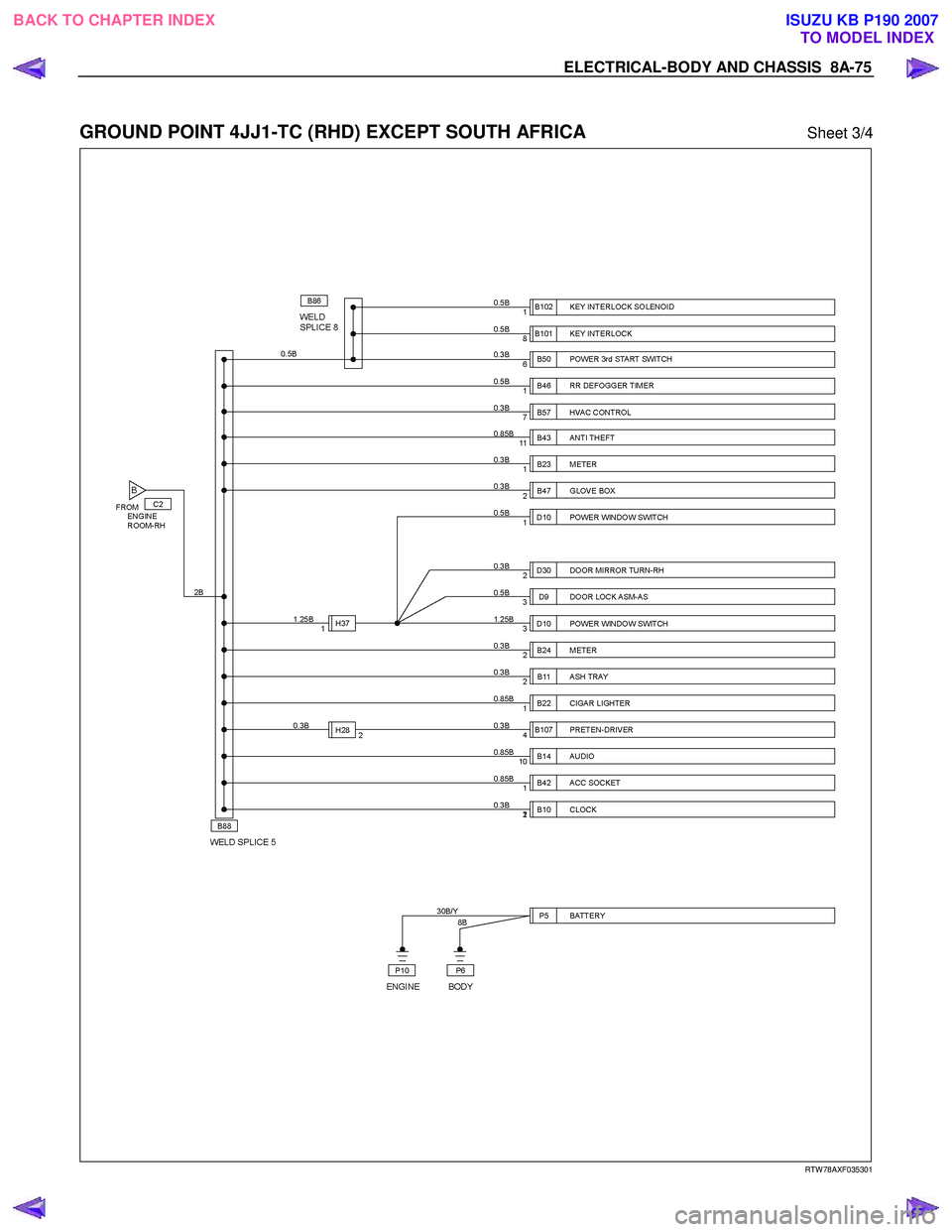

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-75 GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 3/4 RTW 78AXF035301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5014 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-76 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 4/4 RTW 78AXF035401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5015 of 6020

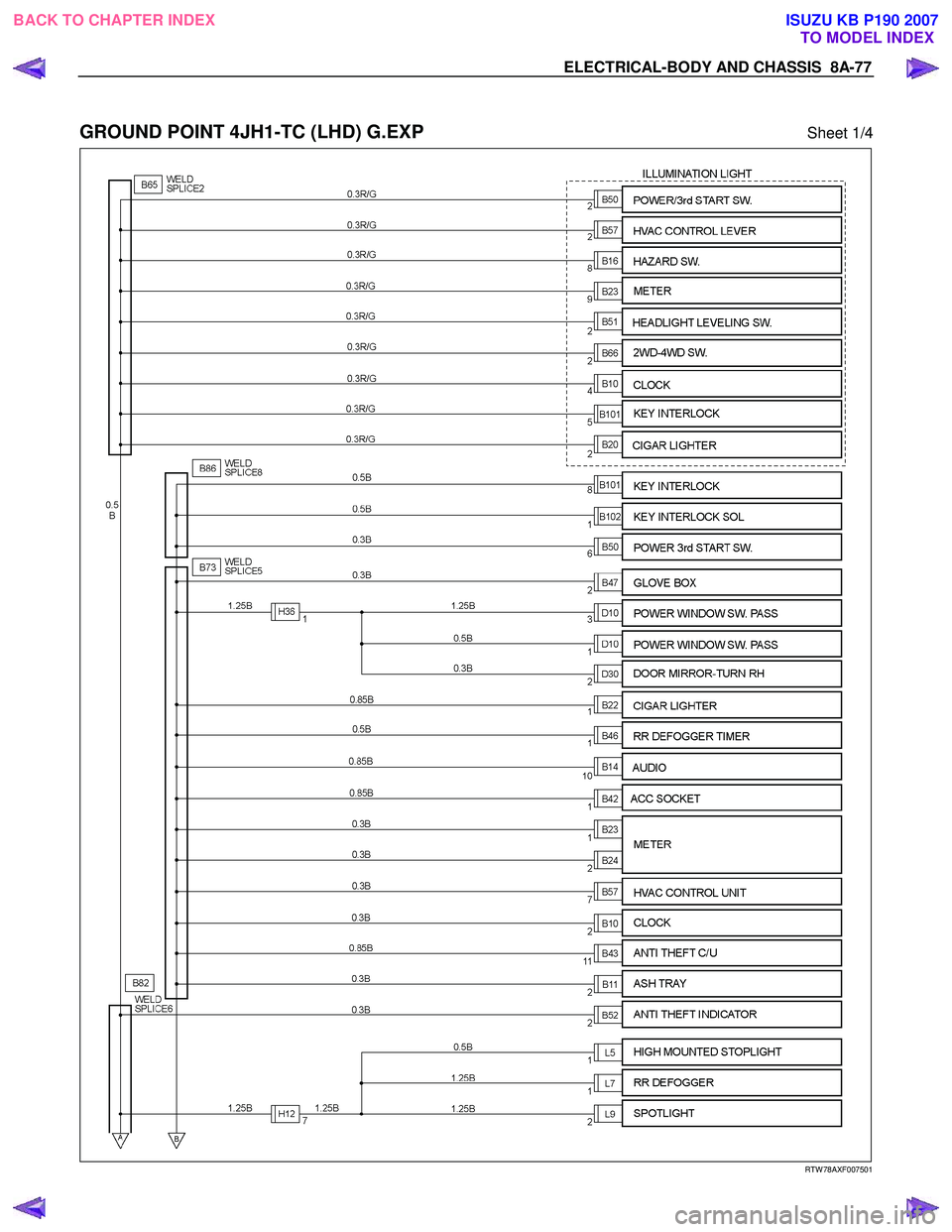

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-77 GROUND POINT 4JH1-TC (LHD) G.EXP Sheet 1/4 RTW 78AXF007501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5016 of 6020

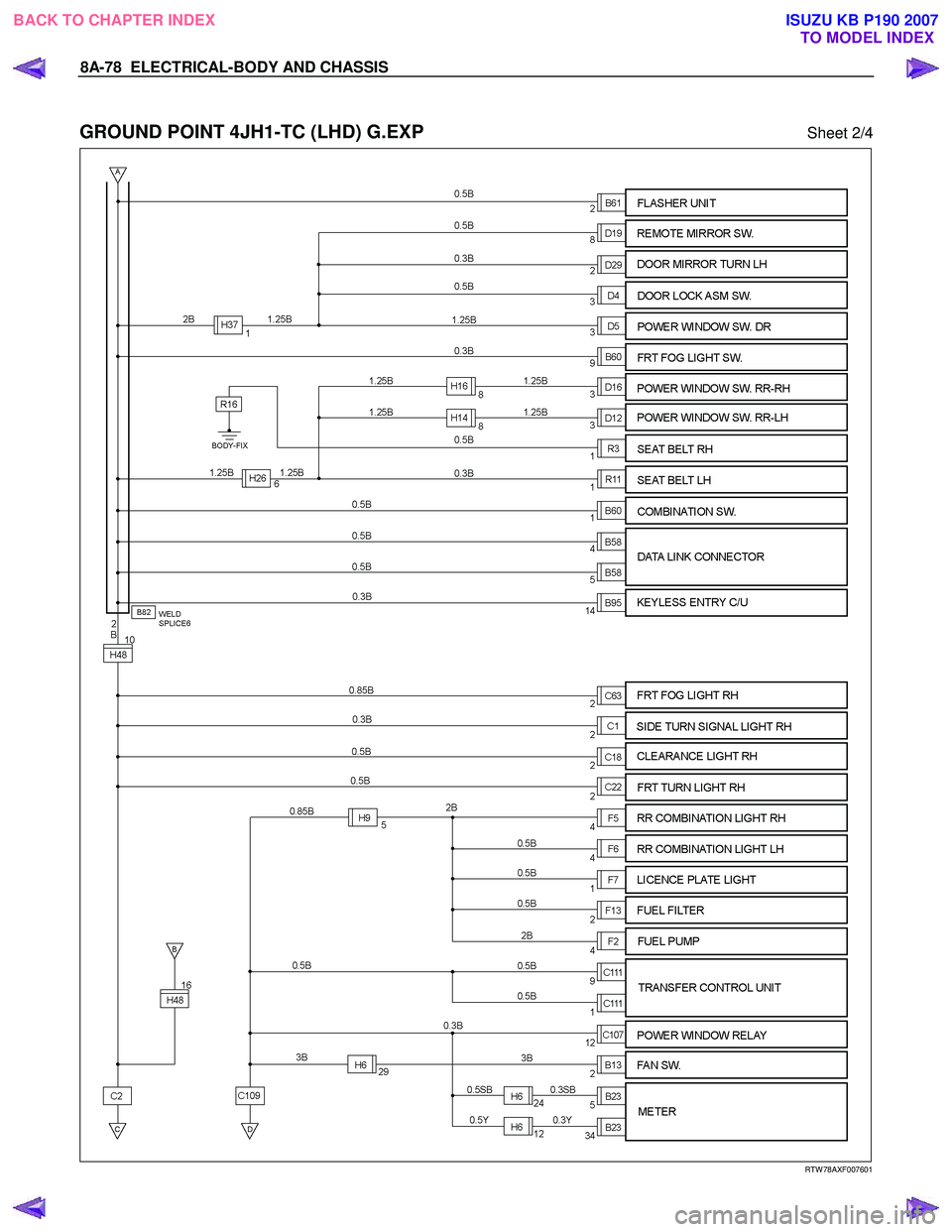

ISUZU KB P190 2007 Workshop Repair Manual 8A-78 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JH1-TC (LHD) G.EXP Sheet 2/4 RTW 78AXF007601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5017 of 6020

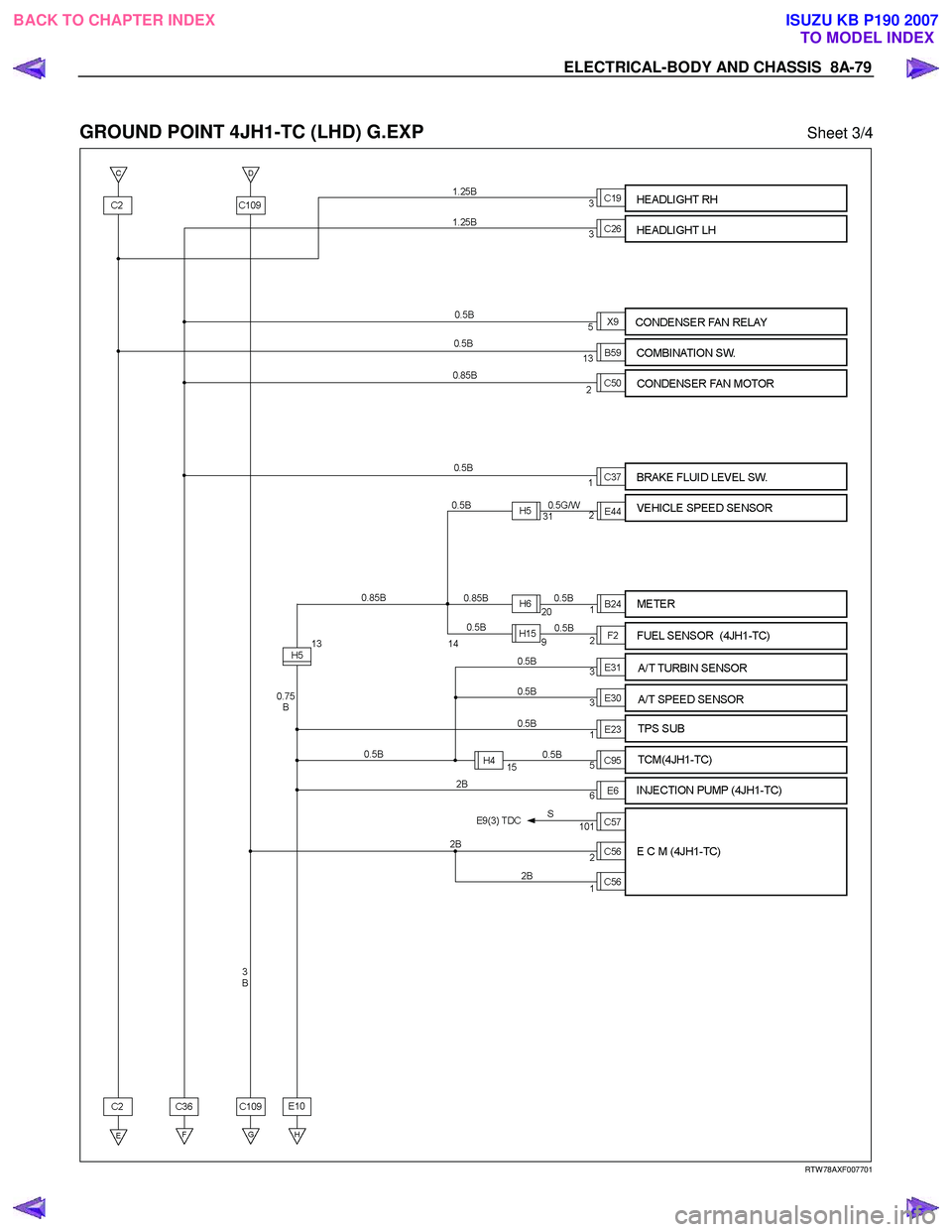

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-79 GROUND POINT 4JH1-TC (LHD) G.EXP Sheet 3/4 RTW 78AXF007701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5018 of 6020

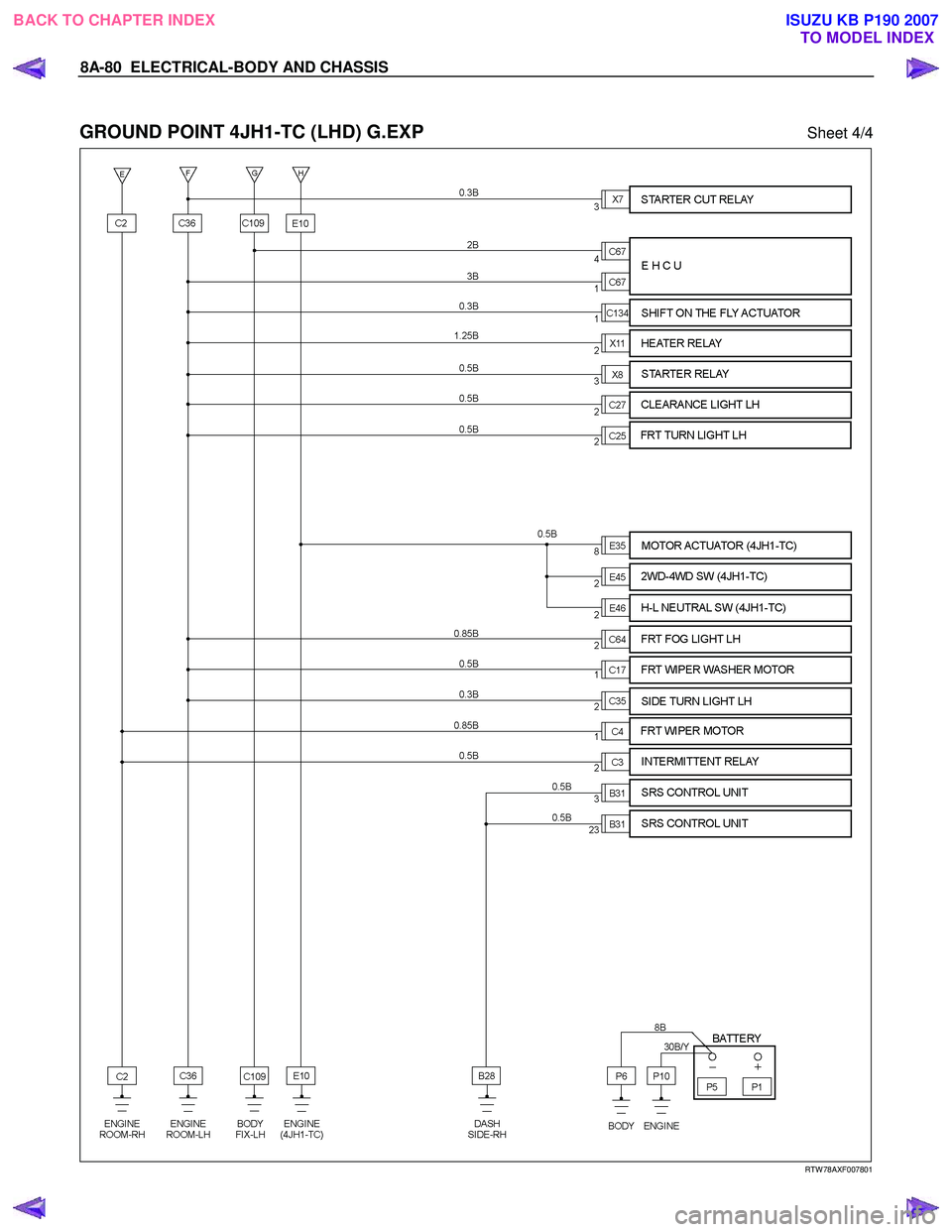

ISUZU KB P190 2007 Workshop Repair Manual 8A-80 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JH1-TC (LHD) G.EXP Sheet 4/4 RTW 78AXF007801 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5019 of 6020

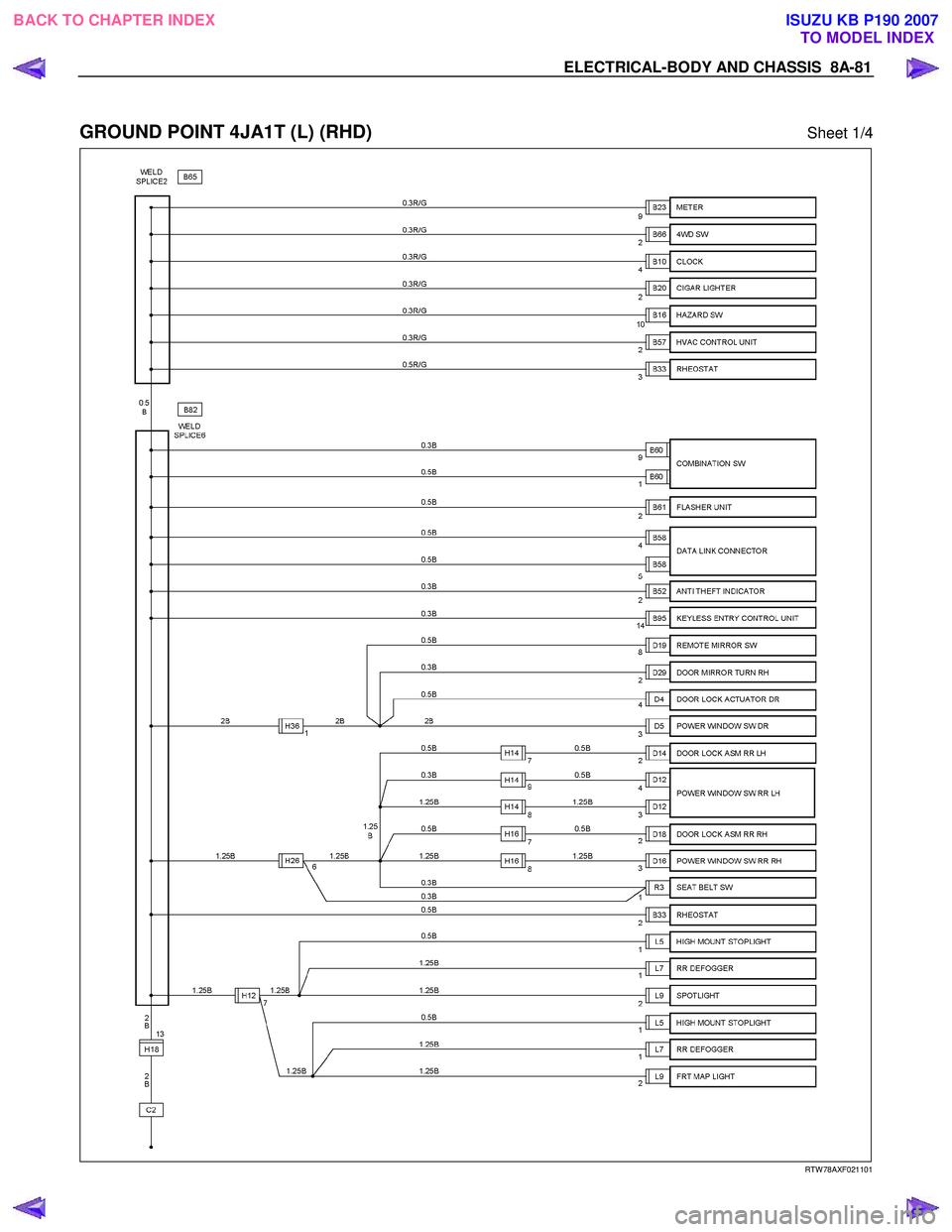

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-81 GROUND POINT 4JA1T (L) (RHD) Sheet 1/4 RTW 78AXF021101 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5020 of 6020

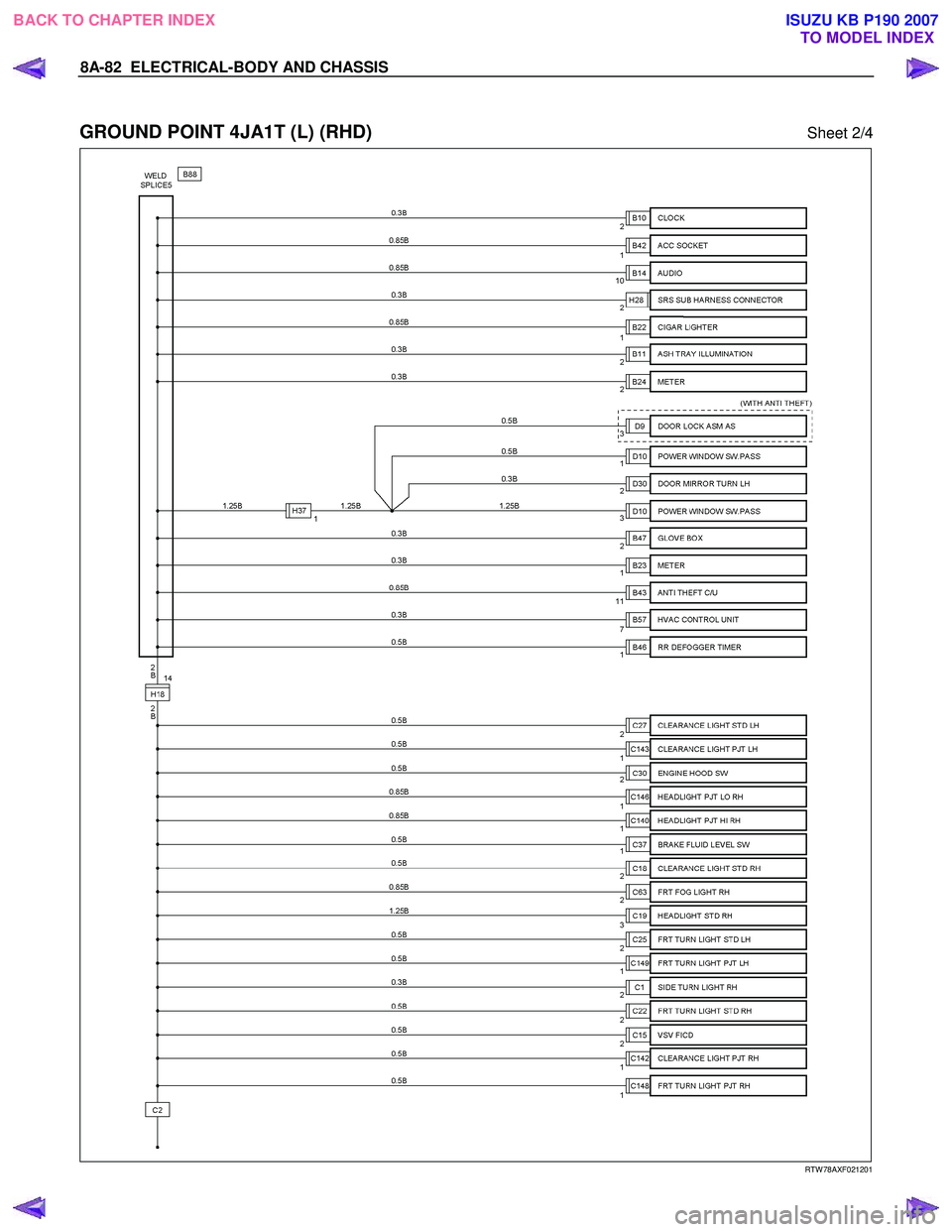

ISUZU KB P190 2007 Workshop Repair Manual 8A-82 ELECTRICAL-BODY AND CHASSIS GROUND POINT 4JA1T (L) (RHD) Sheet 2/4 RTW 78AXF021201 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
