ISUZU KB P190 2007 Workshop Repair Manual

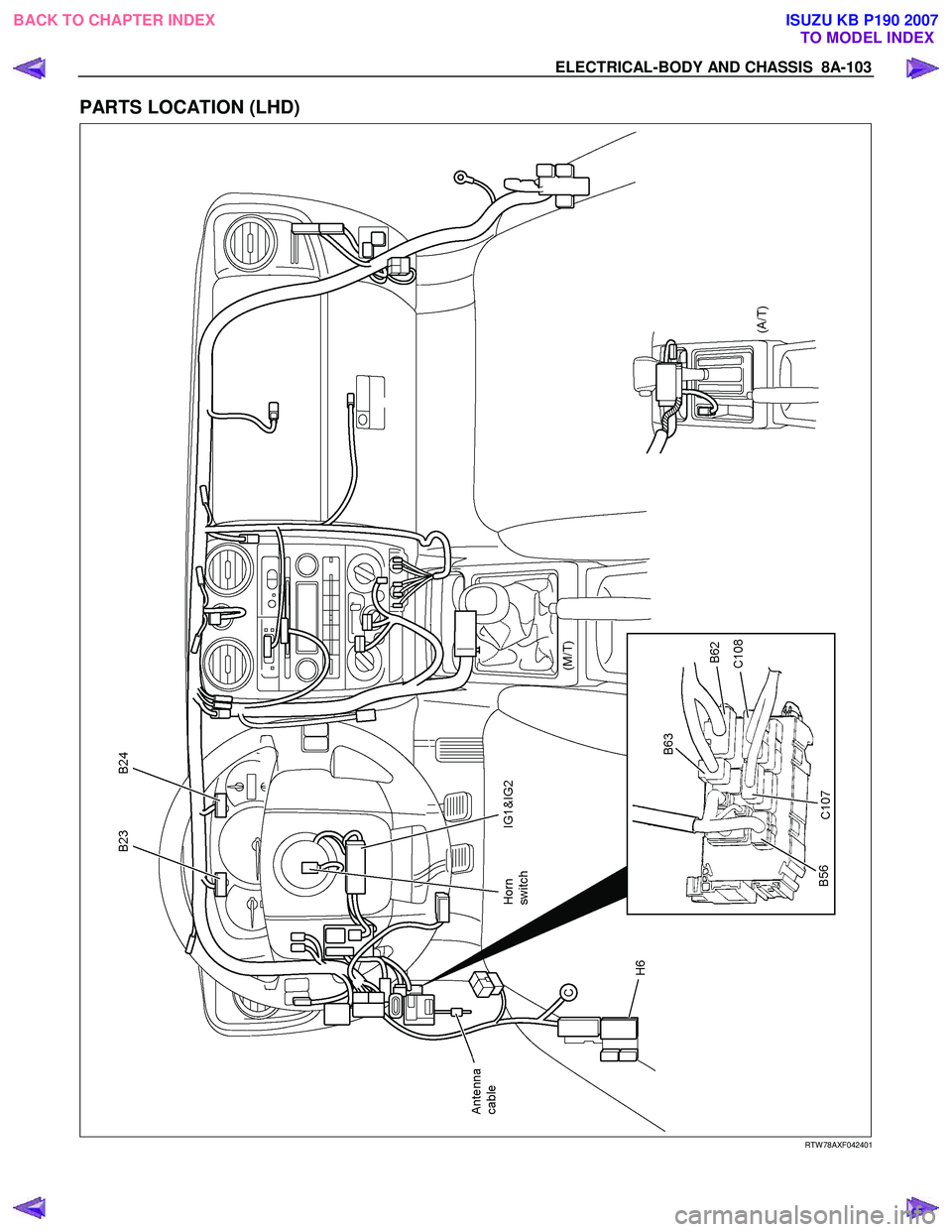

ELECTRICAL-BODY AND CHASSIS 8A-103
PARTS LOCATION (LHD)


RTW 78AXF042401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

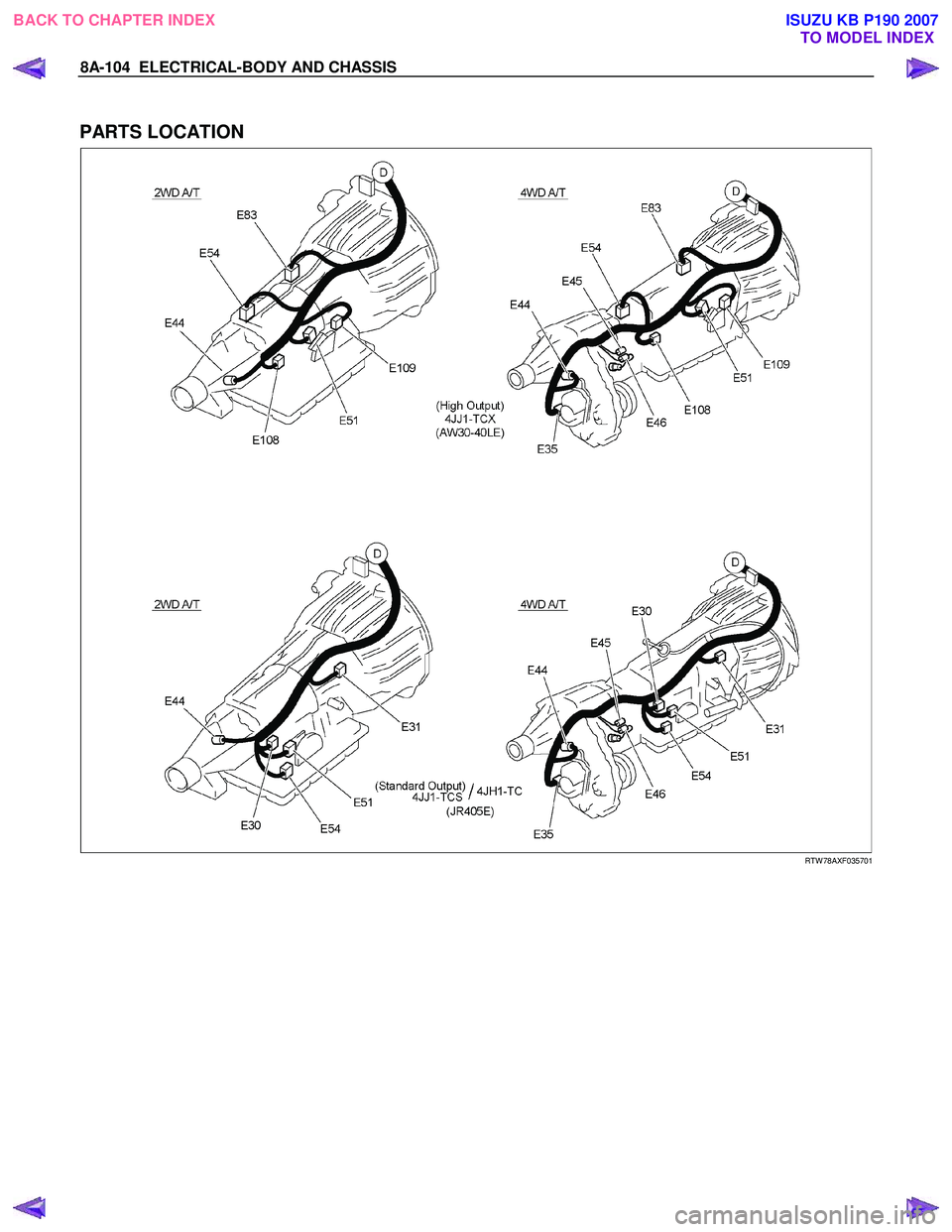

8A-104 ELECTRICAL-BODY AND CHASSIS

PARTS LOCATION


RTW 78AXF035701



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-105
CIRCUIT DIAGRAM C24SE


RTW 680XF005001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-106 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM HFV6




RTW 78AXF018201


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-107
CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC


RTW 78AXF025901

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-108 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JH1-TC (LHD)




RTW 78AXF005101

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-109
CIRCUIT DIAGRAM 4JA1T (L)


RTW 78AXF005801


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-110 ELECTRICAL-BODY AND CHASSIS
REMOVAL AND INSTALLATION

This illustration is based on RHD model
STARTER SWITCH
Removal
1. Steering Lock Assembly • Refer to Section 3B" STEERING COLUMN" for steering
lock assembly removal steps.
2. Starter Switch




Installation
Follow the removal procedure in the reverse order to install the
starter switch.


INSPECTION AND REPAIR

B62 B63
STARTER SWITCH
Switch Connections
Terminal No.

Starter
switch key
position B62
2
(B2) B62
4
(ACC) B62
1
(IG2) B63
1
(ST) B63
3
(B1) B62
3
(IG1)
Removed

OFF
ACC Inserted
ON
START
LOCK




RTW 78ASH003001

Starter relay
Check continuity between the relay terminals.
1 - 4............................ No continuity
(W hen battery voltage is applied between 2 and 3)
1 - 4............................ Continuity



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

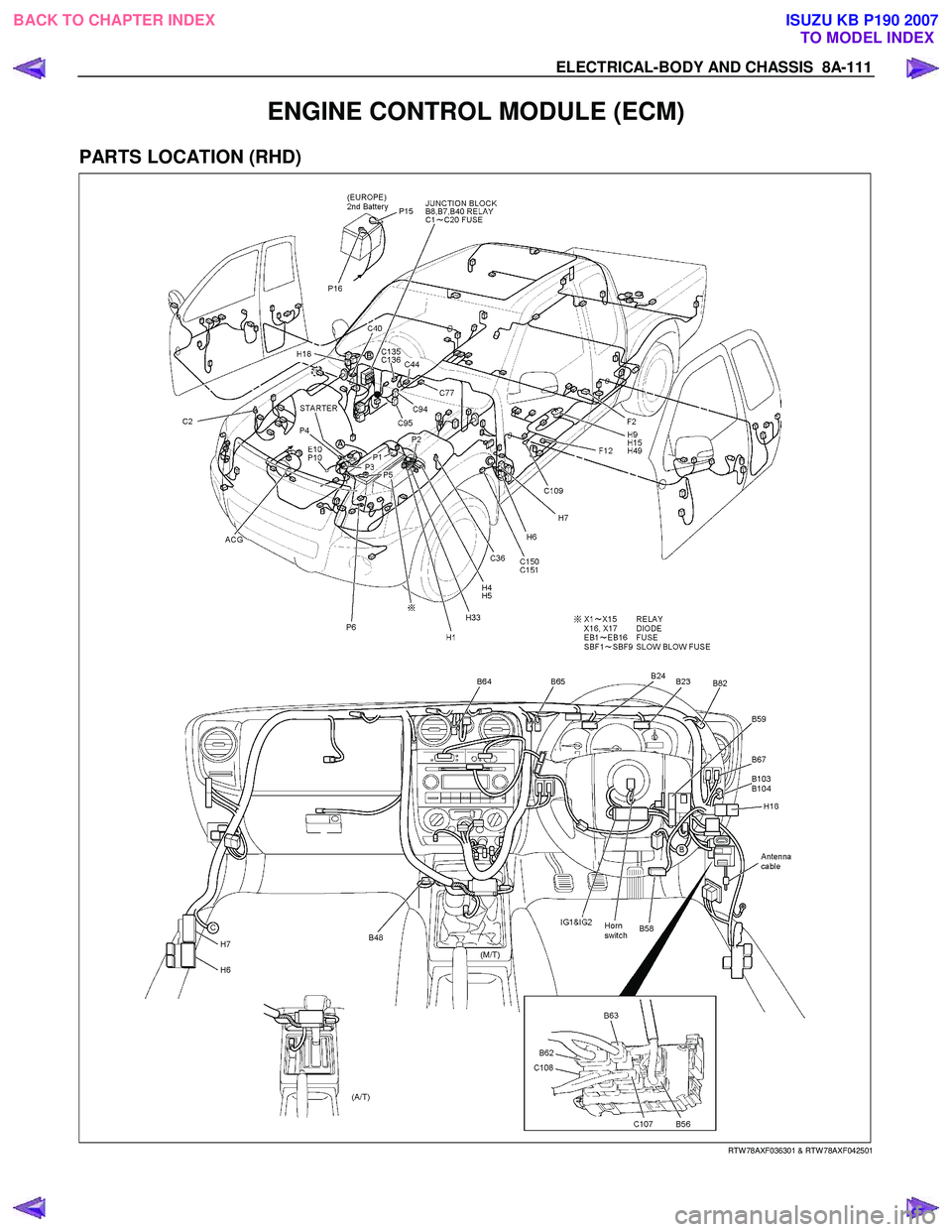

ELECTRICAL-BODY AND CHASSIS 8A-111
ENGINE CONTROL MODULE (ECM)
PARTS LOCATION (RHD)




RTW 78AXF036301 & RTW 78AXF042501

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

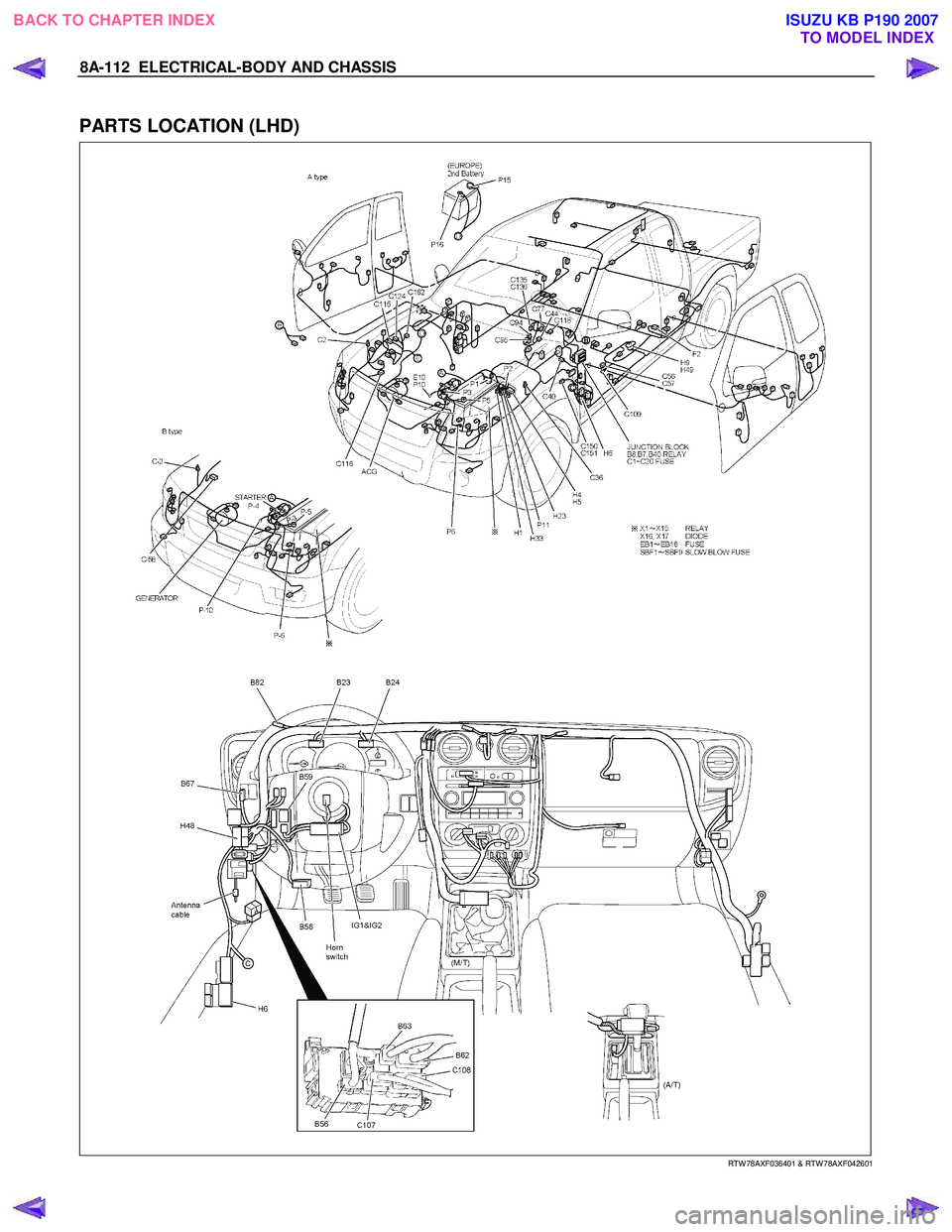

8A-112 ELECTRICAL-BODY AND CHASSIS

PARTS LOCATION (LHD)





RTW 78AXF036401 & RTW 78AXF042601
