6. Lift casing clear of door wais t flange and lock button and
withdraw for access.
7. Using pliers, remove housing from clip and fit to door panel.

8. Disconnect tweeter, speaker, puddle lamp and switchpack
harness multiplugs.
9. Remove armrest lower securing clip housing from casing. and
refit to door.

10. Remove door inner waist se al from holder, slacken and
remove screws securing waist seal holder and remove seal
holder.
11. Remove armrest from door casing. Refer to 76.34.22.

12. Slacken and remove puddle la mp securing screws and
remove lamp assembly from casing.
13. Remove pocket from door casing.

Installation



1. Release puddle lamp harness from clips at base of door pocket.
2. Slacken and remove th e two screws securing
bottom of pocket to casing.
3. Remove two spring clips securing top of pocket to casing.
14. Lift pocket from casing.

15. Slacken and remove door sp eaker securing screws and
remove speaker from casing.
1. Fit and fully seat casing securing clips.
2. Position speaker grill in casing align speaker and fit and tighten
securing screws.
3. Position pocket in casing and secure with screws and spring
clips.
4. Fit puddle lamp to casing, fit and tighten securing screws and
position harness in pocket clips.
5. Fit door armrest to casing. Refer to 76.34.23.
6. Fit inner waist seal holder to casing and fit and tighten the
securing screws.
7. Align and fit inner waist seal.
8. Fit door armrest to casing. Refer to .
9. Check that armrest tang locater and screw insert are correctly
positioned in door panel.
10. Position casing for access and connect tweeter, speaker,
puddle lamp and switchpack harnesses.
11. Finally position casing locating fold over waist flange and
firmly press armrest to locate retaining tang in door panel.
12. Commencing at front , press and firmly seat casing lower
fasteners in door inserts.
13. Fit and tighten armrest centre se curing screw in door insert.
14. Fit door casing veneer panel. Refer to 76.47.11.
15. Position door handle escutche on on casing, fit and tighten
securing screw and fit cover over screw.

Interior Trim and Ornamentation - Headliner
Removal and Installation
Removal
Vehicles with roof opening panel
All vehicles
1. Remove the roof opening panel trim.
For additional information, refer to: Roof Opening Panel Trim
(501-17 Roof Opening Panel, Removal and Installation).
2. Remove both C-pill ar trim panels.
For additional information, refer to: C
-Pillar Trim Panel (501-05
Interior Trim and Ornamentatio n, Removal and Installation).
3. Remove both A-pill ar trim panels.
For additional information, refer to: A
-Pillar Trim Panel (501-05
Interior Trim and Ornamentatio n, Removal and Installation).
4. Remove the overhead console.
For additional information, refer to: Overhead Console
(501-12
Instrument Panel and Console, Removal and Installation).
5. Remove the rear window glass.
For additional information, refer to: Rear Window Glass
(501-
11 Glass, Frames and Mechanis ms, Removal and Installation).

6. Disconnect the anti-theft se nsors electrical connector.
7. CAUTION: With the aid of an other technician, support the
headliner to ensure it is not folded or creased during removal.
Remove both sun visors.
For additional information, refer to: Sun Visor
(501-05 Interior
Trim and Ornamentation, Re moval and Installation).

8. NOTE: Left-hand shown, right-hand similar.
Detach the retaining screw cove r from the headliner retaining
trim.
9. NOTE: Left-hand shown, right-hand similar.
Remove the headline r retaining trim.

Vehicles with roof opening panel



7. Install both sun visors.
For additional information, refer to: Sun Visor (501-05 Interior
Trim and Ornamentation, Re moval and Installation).
8. Install the rear window glass.
For additional information, refer to: Rear Window Glass
(501-
11 Glass, Frames and Mechanis ms, Removal and Installation).

9. Fit the electrical connectors into the retaining clips at the
overhead console location.
10. Install the overhead console.
For additional information, refer to: Overhead Console
(501-12
Instrument Panel and Console, Removal and Installation).
11. Install both C-pillar trim panels.
For additional information, refer to: C
-Pillar Trim Panel (501-05
Interior Trim and Ornamentatio n, Removal and Installation).
12. Install both A-pillar trim panels.
For additional information, refer to: A
-Pillar Trim Panel (501-05
Interior Trim and Ornamentatio n, Removal and Installation).
13. Install the roof opening panel trim.
For additional information, refer to: Roof Opening Panel Trim

(501-17 Roof Opening Panel, Removal and Installation).

Interior Trim and Ornamentation - Luggage Compartment Front Trim
Panel
Removal and Installation
Removal
Installation

1.
Remove battery cover.
2. Remove trunk floor carpet.

3. Remove and discard the two fir tree fasteners securing the
front liner.
4. Remove liner from trunk.
1. Position liner in trunk.
2. Using new fir tree fasteners, secu re liner to front of trunk.
3. Fit trunk floor carpet.
4. Fit battery cover.

Interior Trim and Ornamentation - Luggage Compartment Lid Trim Panel
Removal and Installation
Removal
Installation
1. Remove trunk lamp assemblies. Refer to 86.45.16.

2. Release the three warning triang le securing clips and remove
warning triangle.

3. Slacken and remove warning triangle mounting bracket
securing screws an d remove bracket.

4. Remove covers from trunk latc h finisher securing bolts,
slacken and remove bolts and remove finisher.

5. Remove and discard the eighteee n trunk lid liner fasteners and
remove liner from vehicle.

Interior Trim and Ornamentation - Luggage Compartment Rear Trim Panel
Removal and Installation
Removal
Installation



1. Remove tail lamp covers.
2. Remove trunk floor and battery cover. Refer to operations in
this section.

3. Remove and discard the two fir tr ee fasteners securing finisher
to trunk rear panel.

4. Pull rear finisher upwards to release upper spring clips and
remove finisher from trunk.
1. Position finisher on trunk rear panel and press firmly
downwards to engage spring clips.
2. Fit and fully seat fir tree fasteners.
3. Fit trunk floor and battery cover. Refer to operations in this
section.
4. Fit tail lamp covers.

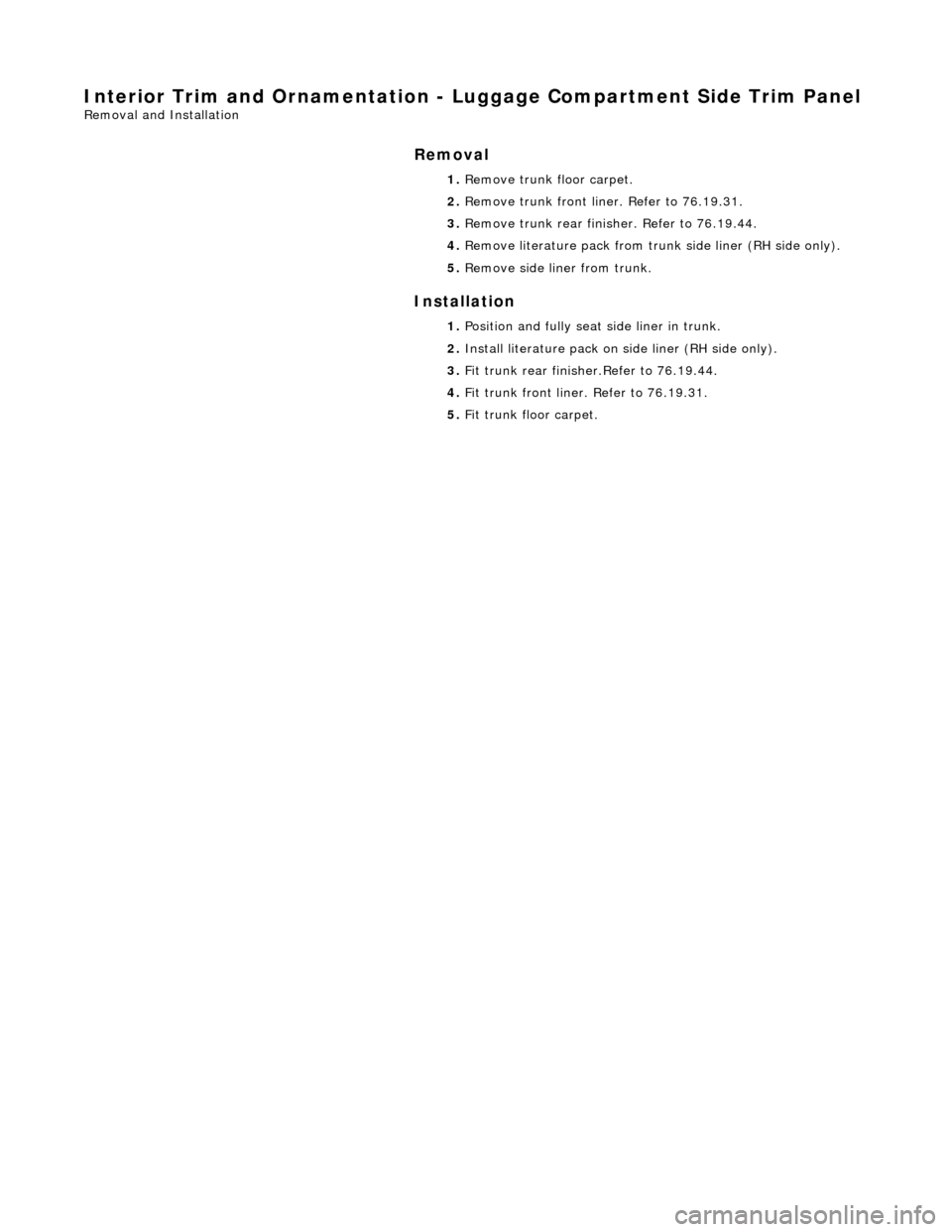

Interior Trim and Ornamentation - Luggage Compartment Side Trim Panel
Removal and Installation
Removal
Installation

1.
Remove trunk floor carpet.
2. Remove trunk front liner. Refer to 76.19.31.
3. Remove trunk rear finisher. Refer to 76.19.44.
4. Remove literature pack from tr unk side liner (RH side only).
5. Remove side liner from trunk.
1. Position and fully seat side liner in trunk.
2. Install literature pack on side liner (RH side only).
3. Fit trunk rear finisher.Refer to 76.19.44.
4. Fit trunk front liner. Refer to 76.19.31.
5. Fit trunk floor carpet.

Interior Trim and Ornamentation - Overhead Console Finish Panel
Removal and Installation
Removal
Installation

1.
Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
2. Remove roof console. Refer to 76.13.69.90.

3. Bend back veneer panel retain ing tangs from console and using a thin blade, carefully release panel from console.
1. Remove backing paper and apply adhesive pad to back of
panel.
2. Position and fully seat ve neer panel on console.
3. Bend retaining tangs to secure veneer panel to console.
4. Install roof console. Refer to 76.13.69.90.
5. Connect ground cable to batter y terminal and install battery
cover. Refer to 86.15.15.

Interior Trim and Ornamentation - Parcel Shelf Support
Removal and Installation
Removal
Installation

1.
Remove rear parcel tray. Refer to 76.67.06.90
2. Place parcel tray face down on clean bench.

3. Where sun blinds are fitted:
1. Slacken and remove nuts securing sun blind to parcel tray.
2. Remove washers.
3. Remove sun blind from parcel tray.

4. Remove eight clips securing parc el tray outer panel to inner
panel and separate panels.
1. Align outer panel to inner panel
2. Secure panels together with eight clips.
3. Where sun blinds are to be fitted, position rollers on underside
of parcel tray, fit washers and fit and tighten nuts to 5-7Nm.
4. Fit parcel tray. Refer to 76.67.06.90.
