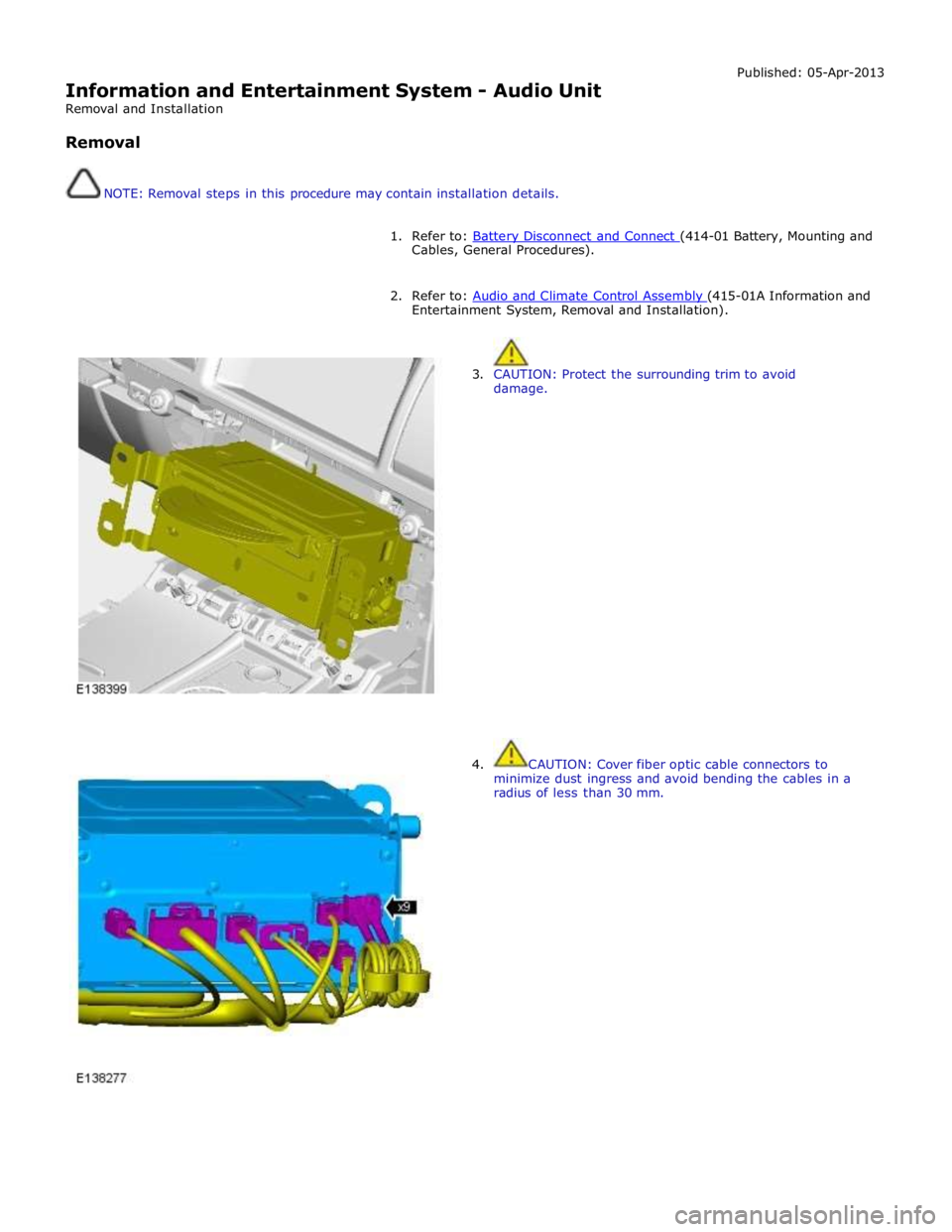

JAGUAR XFR 2010 1.G Workshop Manual

Information and Entertainment System - Audio Unit
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 05-Apr-2013

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Audio and Climate Control Assembly (415-01A Information and Entertainment System, Removal and Installation).


3. CAUTION: Protect the surrounding trim to avoid
damage.






















4. CAUTION: Cover fiber optic cable connectors to
minimize dust ingress and avoid bending the cables in a
radius of less than 30 mm.

1. To install, reverse the removal procedure.

Published: 11-May-2011

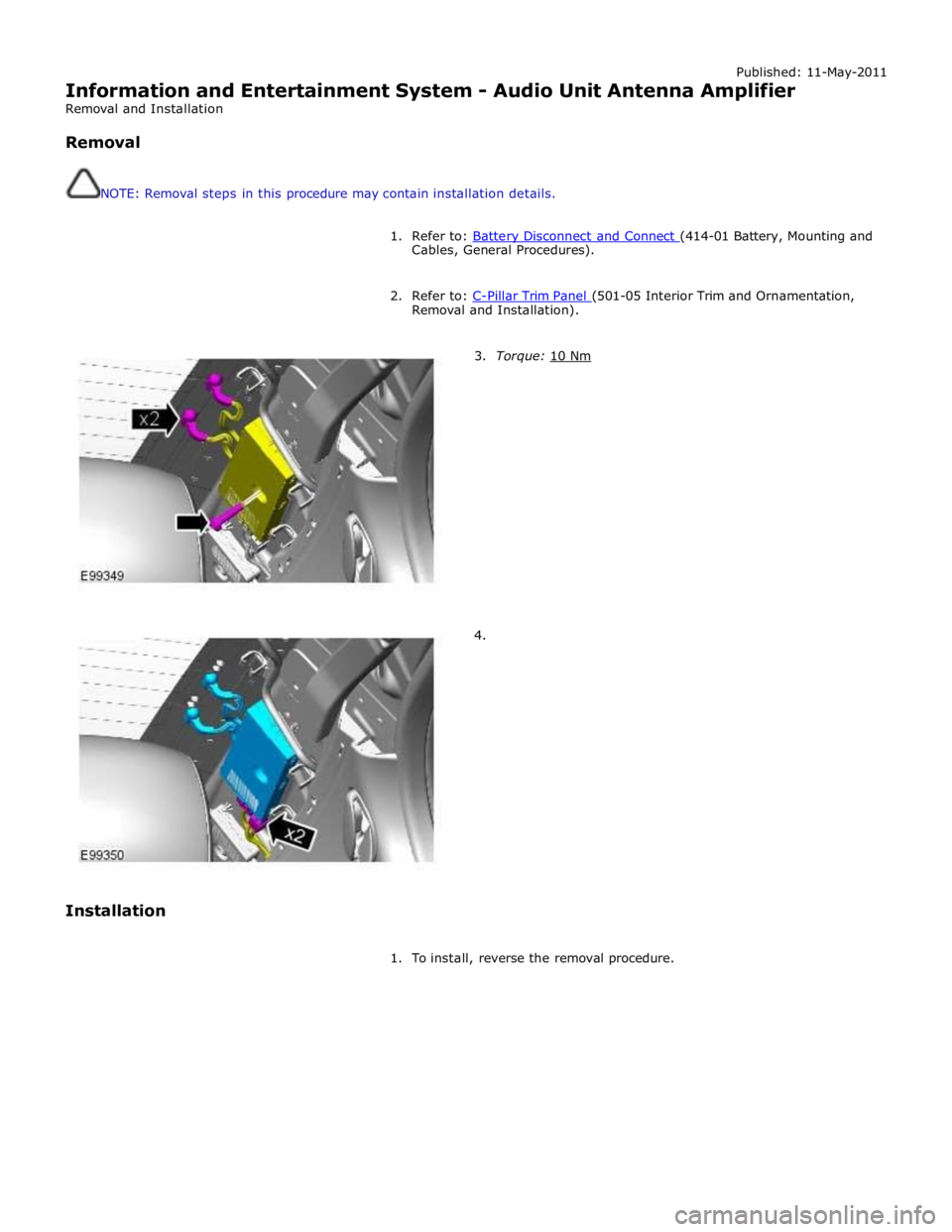

Information and Entertainment System - Audio Unit Antenna Amplifier
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: C-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).







Installation

3. Torque: 10 Nm
















4.

1. To install, reverse the removal procedure.

Published: 11-May-2011

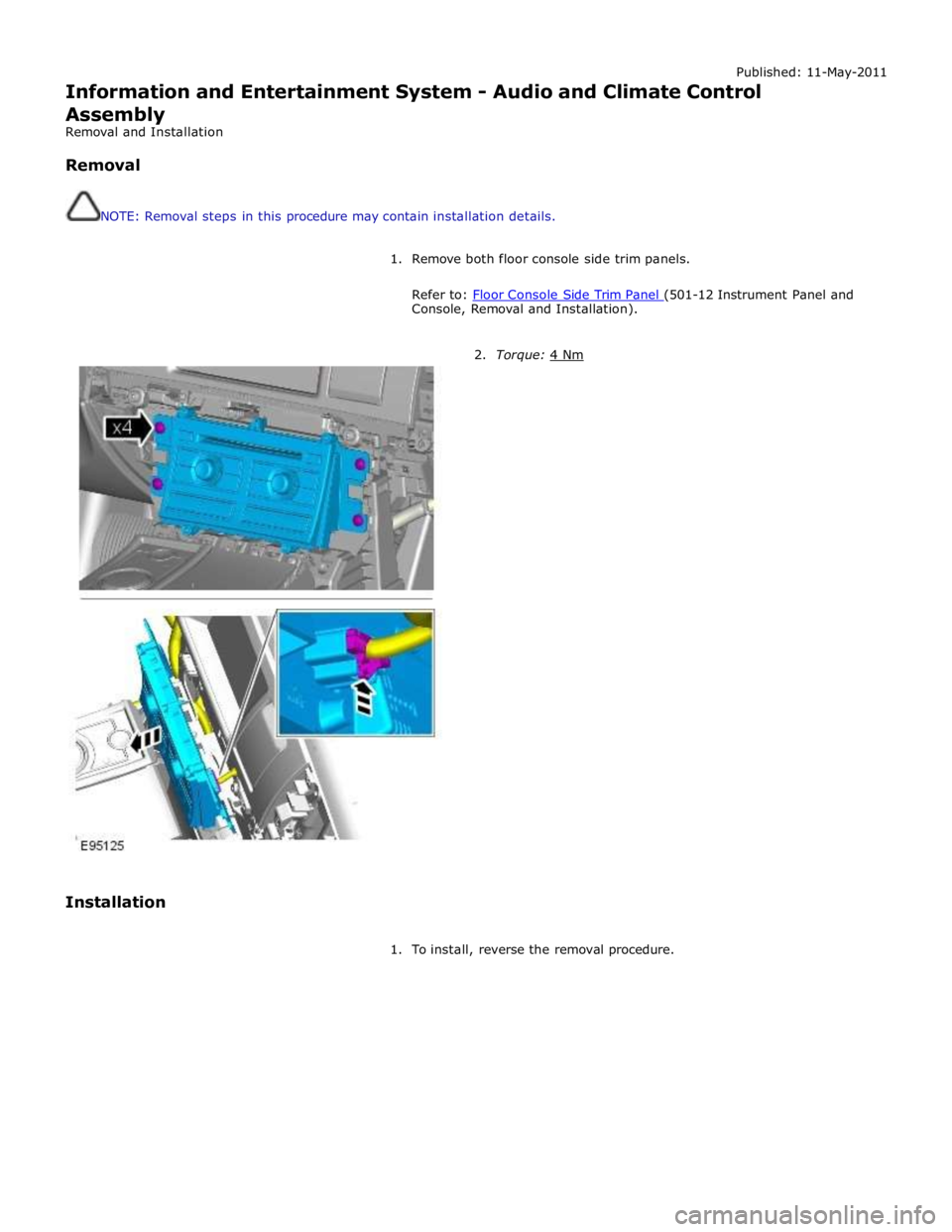

Information and Entertainment System - Audio and Climate Control Assembly
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Remove both floor console side trim panels.

Refer to: Floor Console Side Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).




Installation

2. Torque: 4 Nm
1. To install, reverse the removal procedure.

www.JagDocs.com

Published: 11-May-2011
Information and Entertainment System - Information and Entertainment Display
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Center Registers (412-01 Climate Control, Removal and Installation).

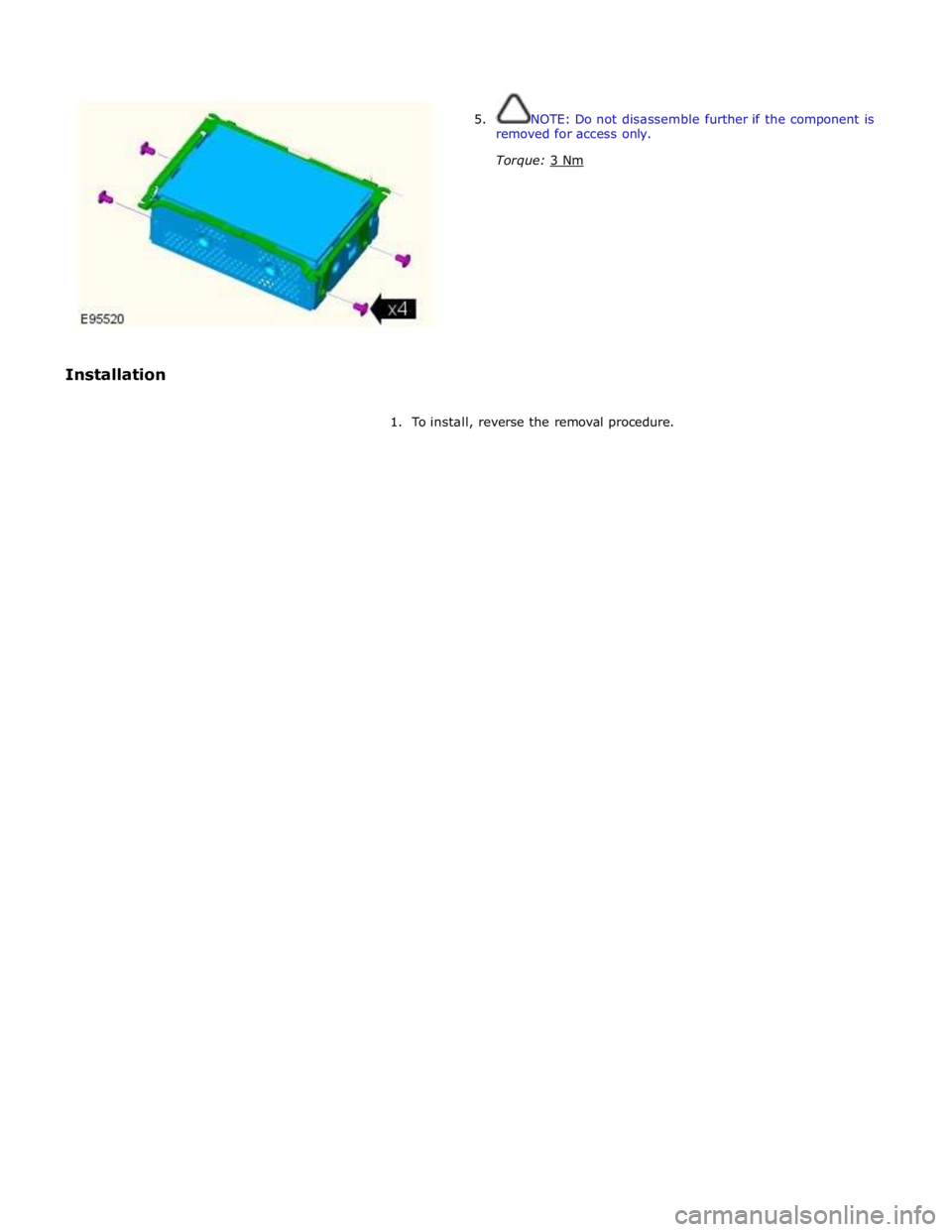

3. Torque: 2 Nm 4. CAUTION: Cover fiber optic cable connectors to
minimize dust ingress and avoid bending the cables in a
radius of less than 30 mm.

1. To install, reverse the removal procedure.

Published: 11-May-2011
Information and Entertainment System - Information and Entertainment Module
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Audio Unit (415-01A Information and Entertainment System, Removal and Installation).




Installation

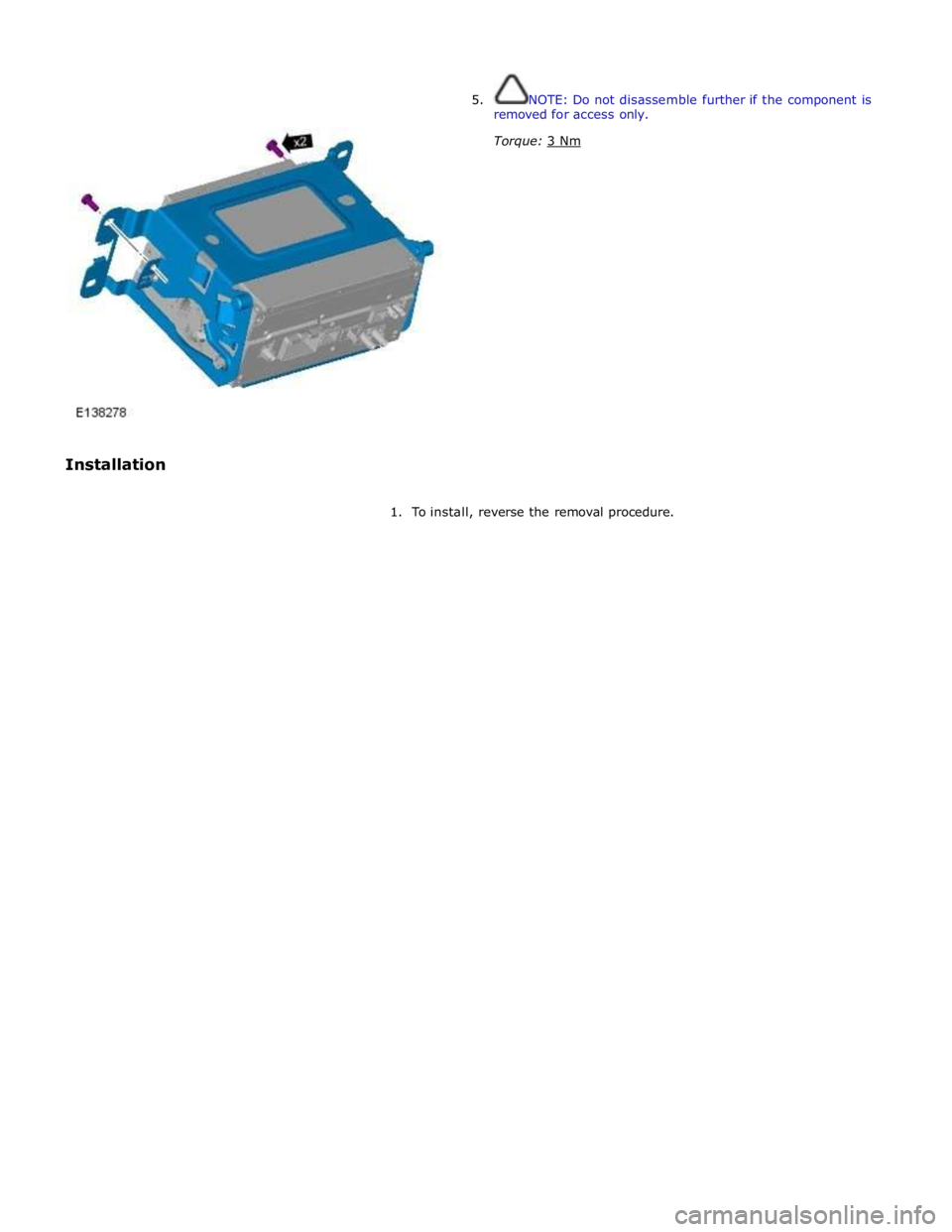

3. Torque: 3 Nm

1. NOTE: New units must be configured using the Programmable
Module Installation Routine in the diagnostic tool.
To install, reverse the removal procedure.

Published: 11-May-2011

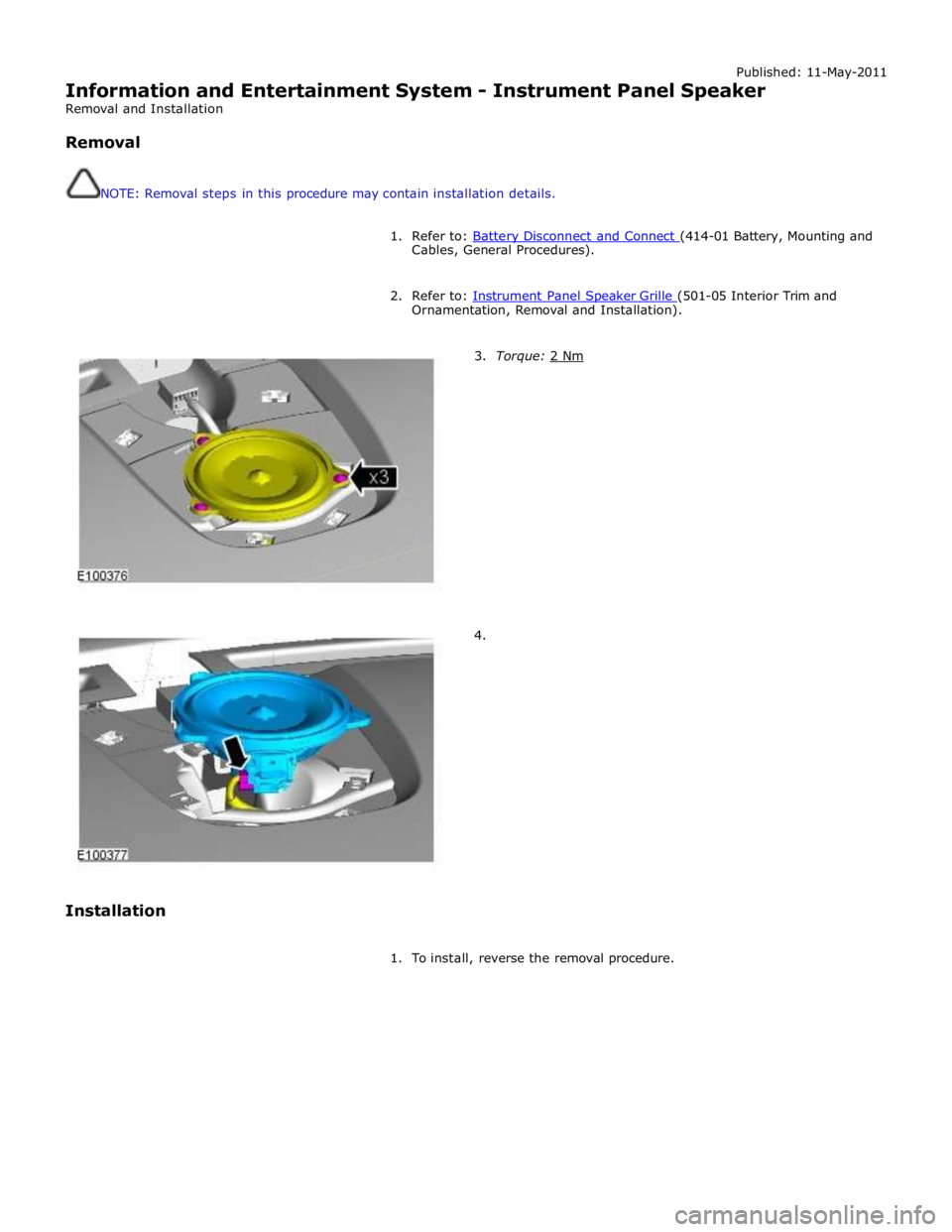

Information and Entertainment System - Instrument Panel Speaker
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Instrument Panel Speaker Grille (501-05 Interior Trim and Ornamentation, Removal and Installation).







Installation

3. Torque: 2 Nm
















4.

1. To install, reverse the removal procedure.

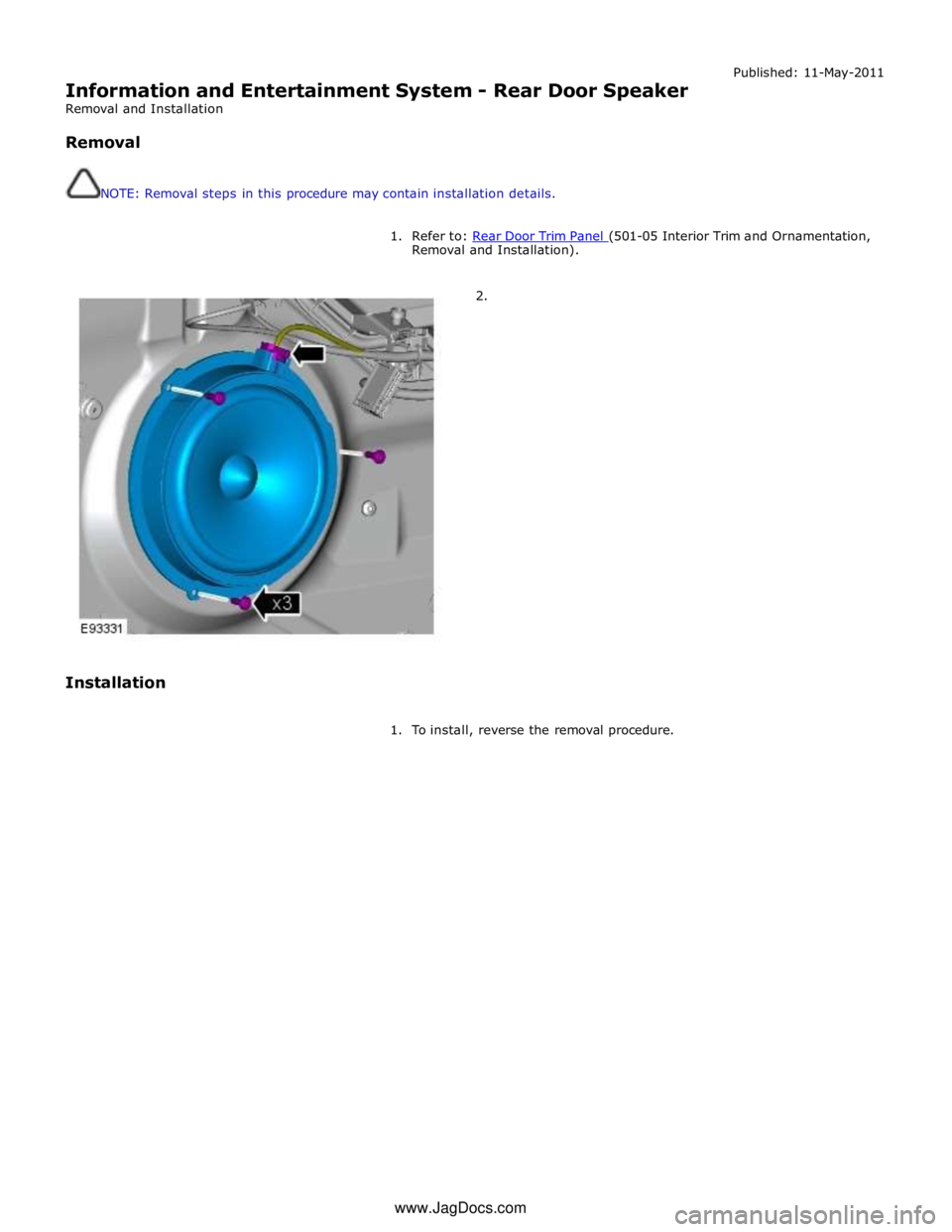

Information and Entertainment System - Rear Door Speaker
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

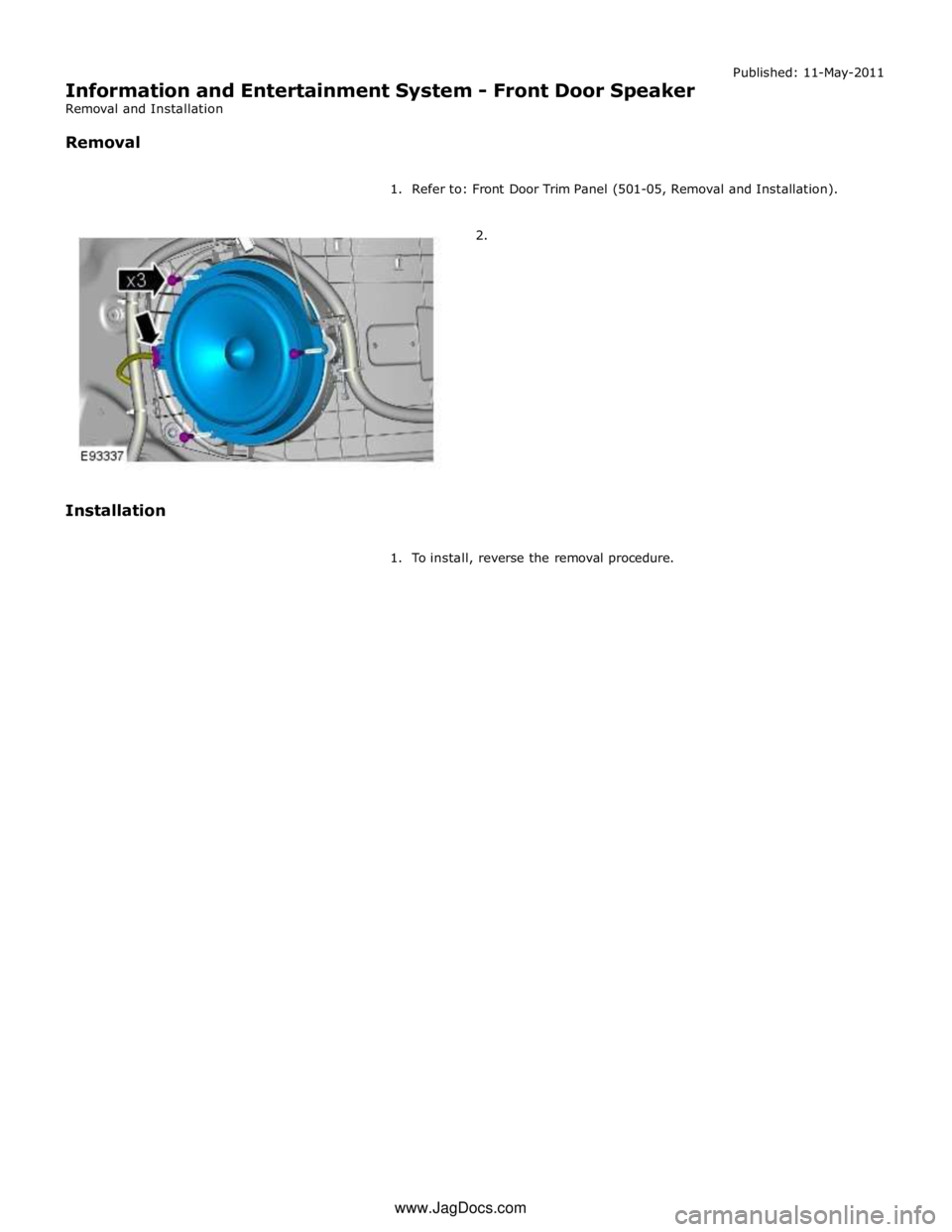

2.
Installation

1. To install, reverse the removal procedure. www.JagDocs.com
