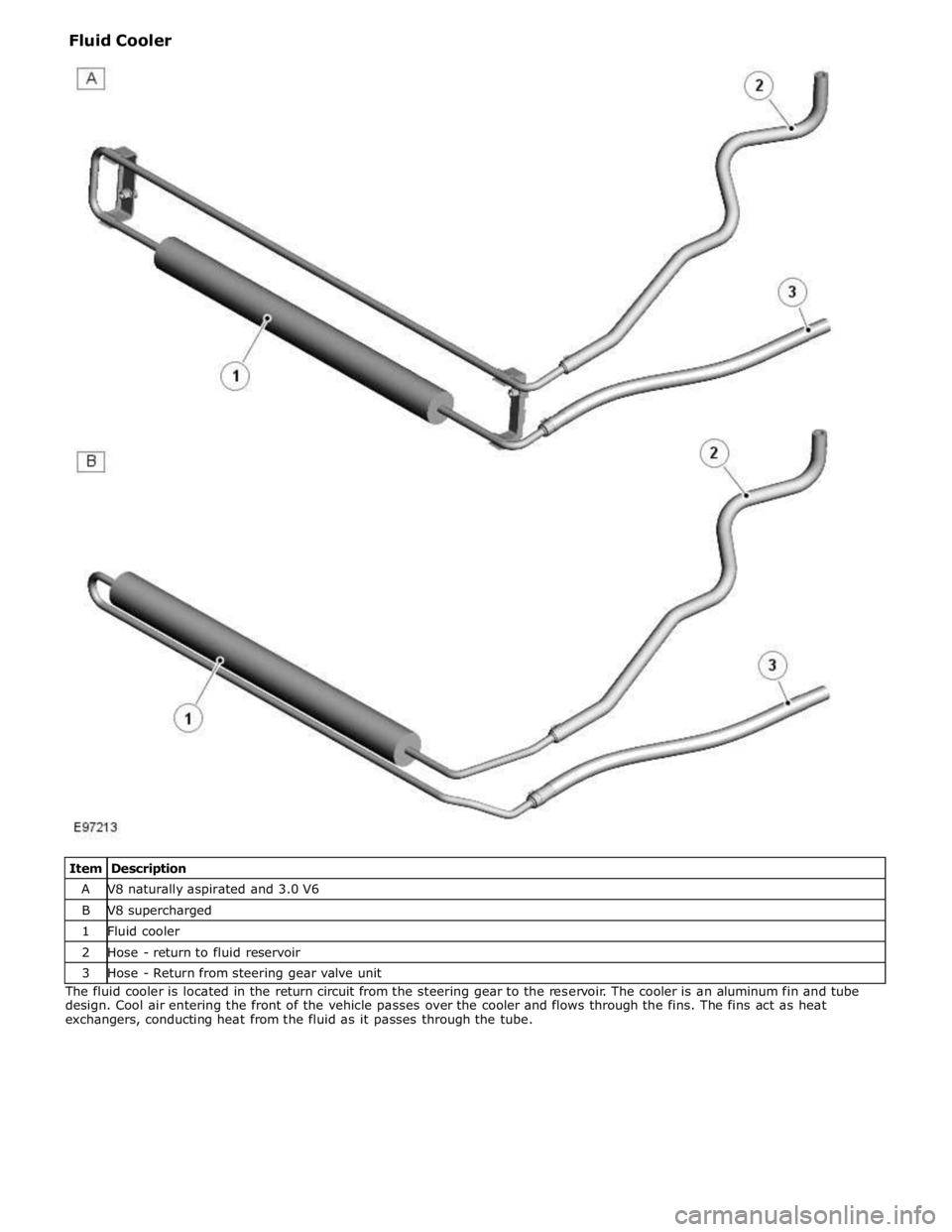

A V8 naturally aspirated and 3.0 V6 B V8 supercharged 1 Fluid cooler 2 Hose - return to fluid reservoir 3 Hose - Return from steering gear valve unit The fluid cooler is located in the return circuit from the steering gear to the reservoir. The cooler is an aluminum fin and tube
design. Cool air entering the front of the vehicle passes over the cooler and flows through the fins. The fins act as heat
exchangers, conducting heat from the fluid as it passes through the tube.

Published: 11-May-2011
www.JagDocs.com

Power Steering - Steering Gear
Removal and Installation Published: 04-Jul-2013



CAUTIONS: Removal

Make sure that only the manufacturers' recommended four wheel alignment equipment is used.


Do not turn the steering wheel with the steering column lower shaft disconnected as damage to the clockspring and
steering wheel switches may occur.
NOTES:


Make sure the steering is in the straight ahead position.


RHD illustration shown, LHD is similar.

Some variation in the illustrations may occur, but the essential information is always correct.

1. Raise and support the vehicle.

2. Center the steering wheel.
Lock in position and remove the ignition key.

3. Remove the front wheels and tires.
For additional information, refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

4. Remove the air deflector.
For additional information, refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).

5. Make sure the alignment mark, on the steering gear pinion
seal protection cover, is central to the steering gear pinion
casting.



























6. CAUTION: Do not allow the gaiter to twist.

Release both track rods from tie rod ends, note the number
of turns for installation.
Loosen the tie-rod ends lock nuts.












7. Disconnect the power steering control valve actuator
electrical connector.

8. CAUTION: Air tools MUST NOT be used on steering
column bolts.

Disconnect the lower steering column from the steering
gear.
Remove and discard the bolt.









9. Release the power steering line support bracket.

10. CAUTIONS:


Before disconnecting or removing the components,
make sure the area around the joint faces and connections
are clean and dry. Plug open connections to prevent
contamination.


Cap the power steering line to prevent loses of fluid
and dirt ingress.


If power steering fluid is spilt on the paintwork, the
effected area must be immediately washed down with cold
water. Failure to follow this instruction may result in
damage to the vehicle.


NOTE: Some fluid spillage is inevitable during this
operation.

Disconnect the power steering feed and return fluid lines
from the steering gear.
Remove the bolt.
Position a container to collect spillage.
Remove and discard both O-ring seals.

11. Remove the steering gear.
Remove the 3 bolts.












Installation

1. To install, reverse the removal procedure.

Suspension System - General Information, General Procedures).
www.JagDocs.com

Published: 11-May-2011
Power Steering - Power Steering Fluid Reservoir V8 5.0L Petrol/V8 S/C 5.0L
Petrol
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.


1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

2. Refer to: Power Steering System Filling - V8 5.0L Petrol/V8 S/C 5.0L Petrol (211-00 Steering System - General Information, General Procedures).




Installation

3. CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new
blanking caps.

1. To install, reverse the removal procedure.

Published: 11-May-2011
Power Steering - Power Steering Pump V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal and Installation

Removal

NOTES:


Removal steps in this procedure may contain installation details.


Some variation in the illustrations may occur, but the essential information is always correct.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Power Steering System Bleeding (211-00 Steering System - General Information, General Procedures).

4. Refer to: Air Cleaner Outlet Pipe LH (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

5. Refer to: Air Cleaner LH (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

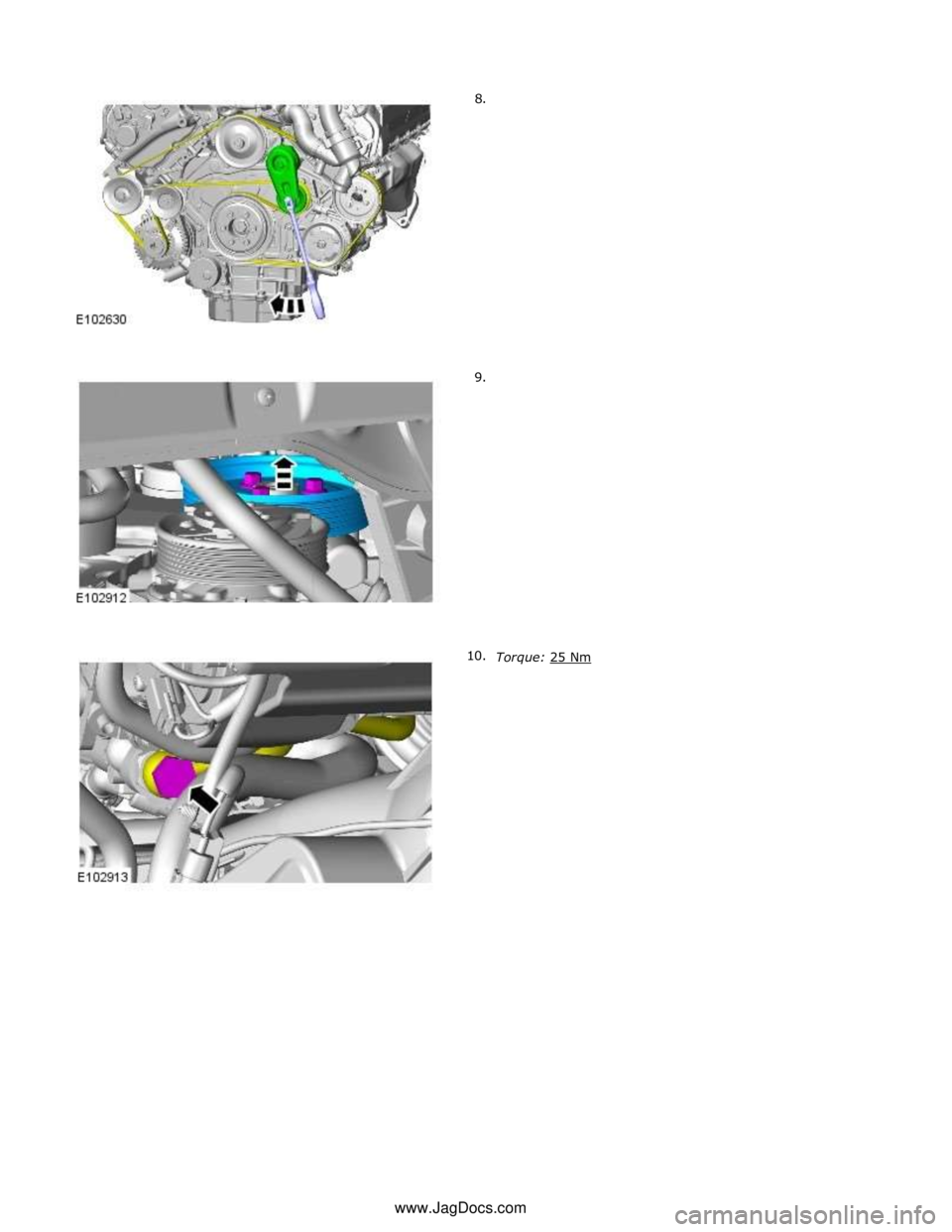

6. Torque: 25 Nm 7. NOTE: Do not loosen the bolts more than 2 turns.
Torque: 25 Nm
