JAGUAR XFR 2010 1.G Workshop Manual

2. CAUTION: Install a new friction washer before
installing the crankshaft pulley.
NOTES:


Make sure to clean the threads in the end of the
crankshaft and that the crank nose is free of any foreign
materials.


Skip to step 11 for engines fitted with early RH thread
crankshaft bolt.












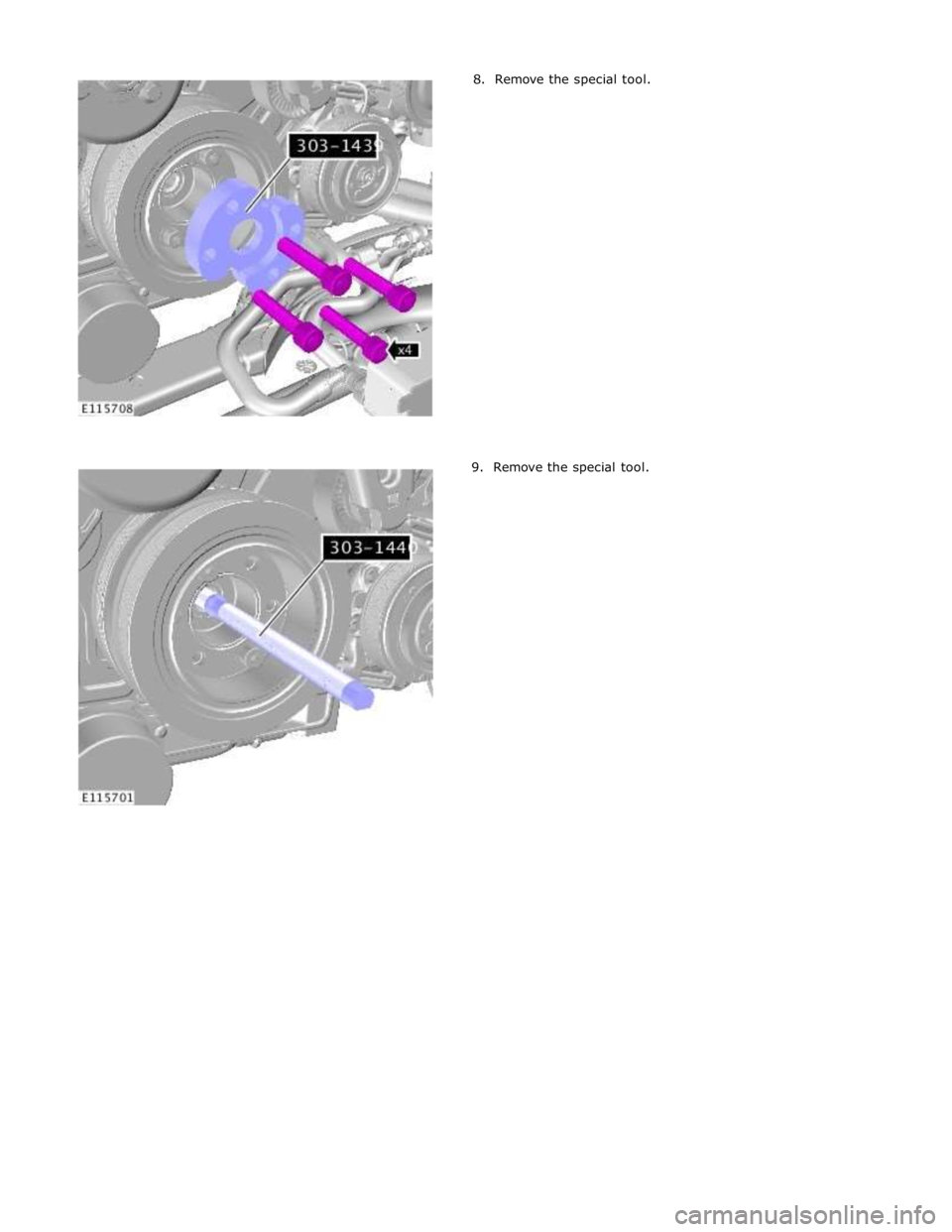

3. Install the special tool. www.JagDocs.com

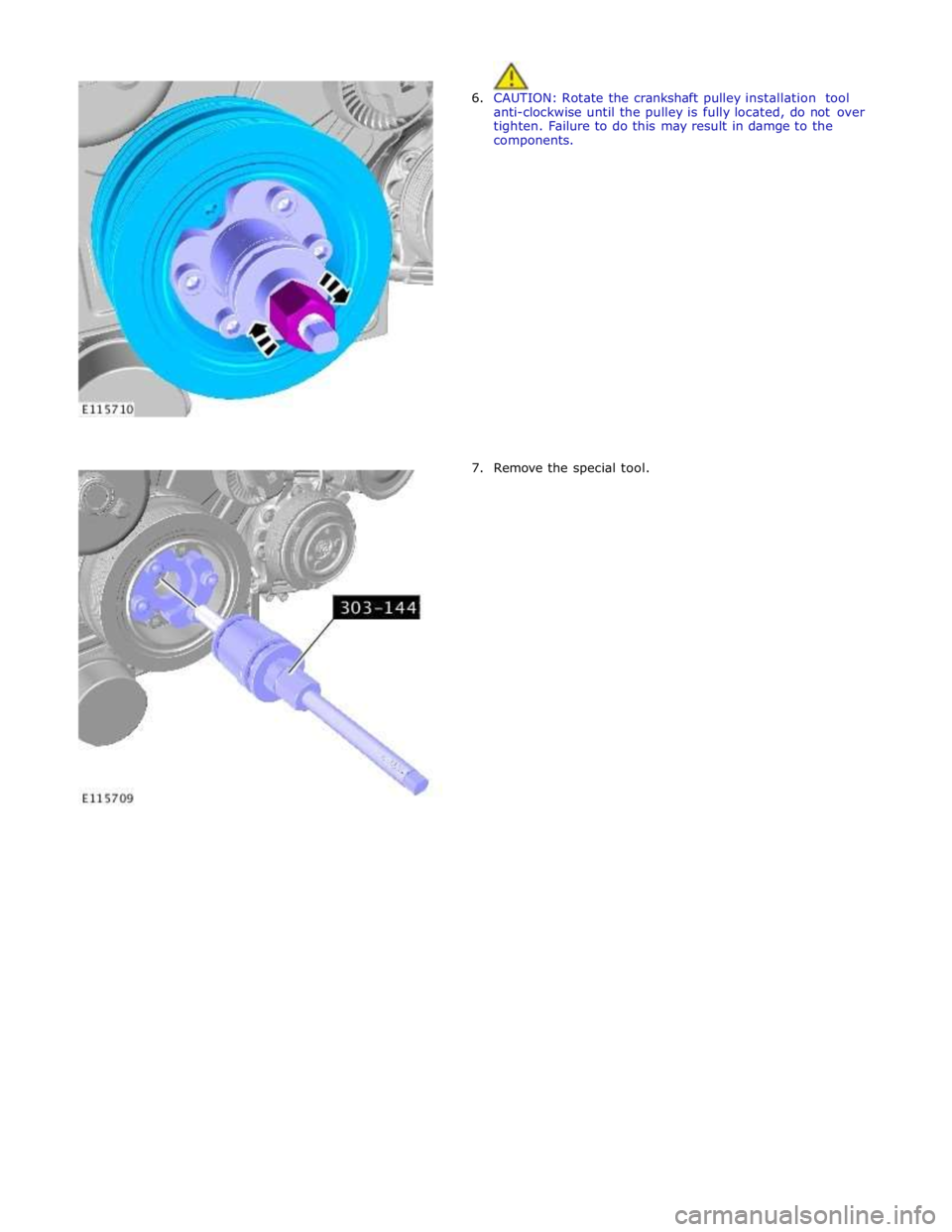

6. CAUTION: Rotate the crankshaft pulley installation tool
anti-clockwise until the pulley is fully located, do not over
tighten. Failure to do this may result in damge to the
components.




















7. Remove the special tool.

10.























11.

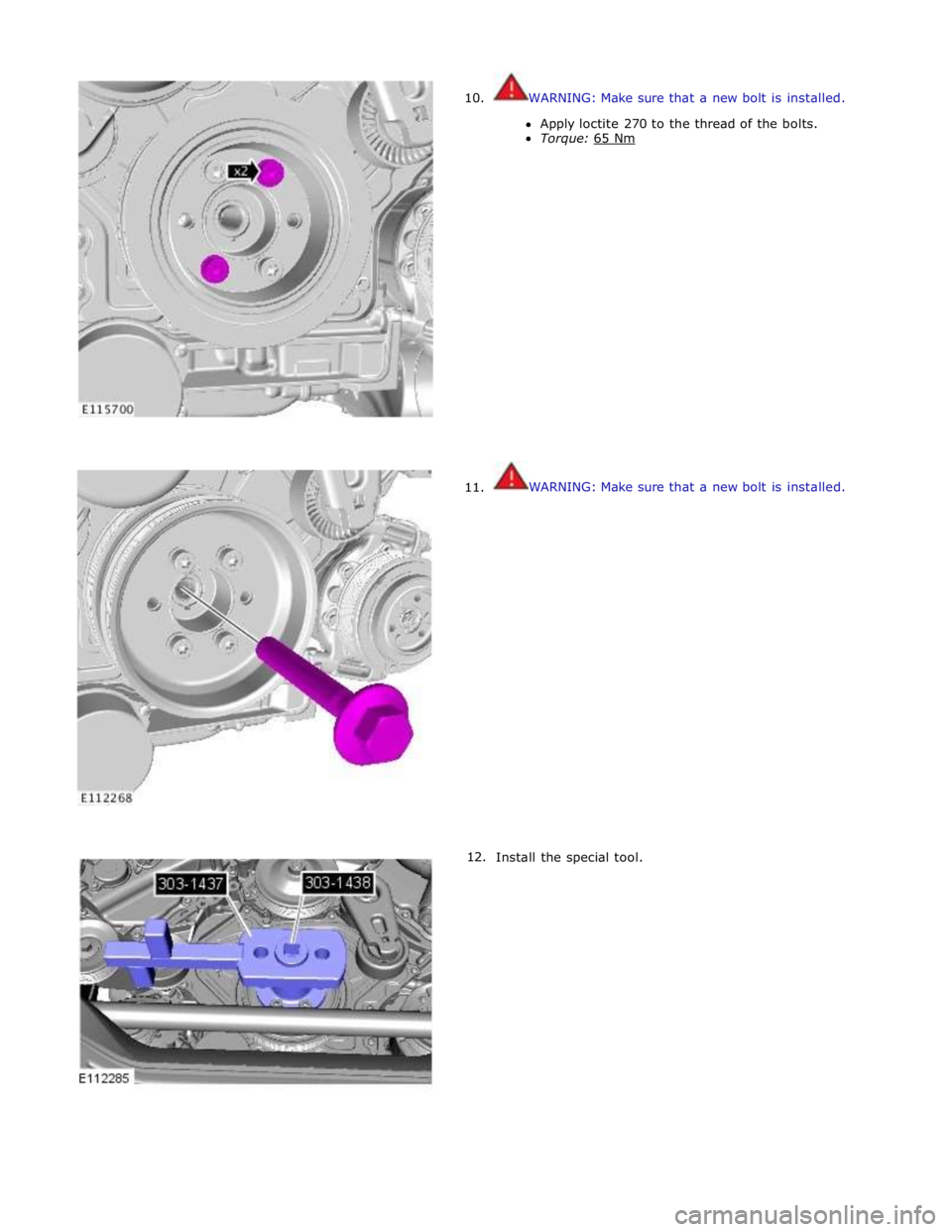

12. WARNING: Make sure that a new bolt is installed.

Apply loctite 270 to the thread of the bolts.
Torque: 65 Nm





















WARNING: Make sure that a new bolt is installed.























Install the special tool.

13.
14.
15. Torque: 65 Nm

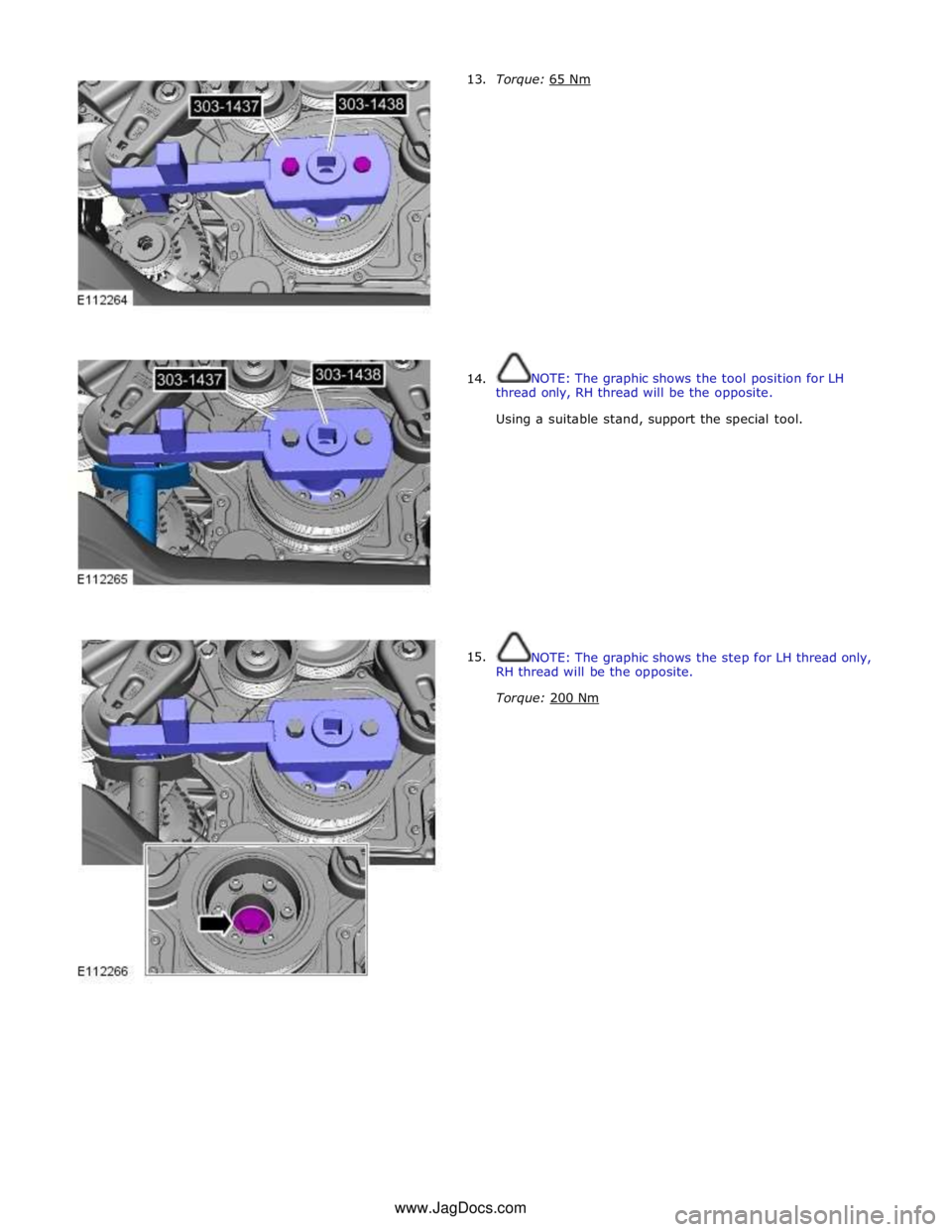

NOTE: The graphic shows the tool position for LH
thread only, RH thread will be the opposite.
Using a suitable stand, support the special tool.















NOTE: The graphic shows the step for LH thread only,
RH thread will be the opposite.
Torque: 200 Nm www.JagDocs.com

16.

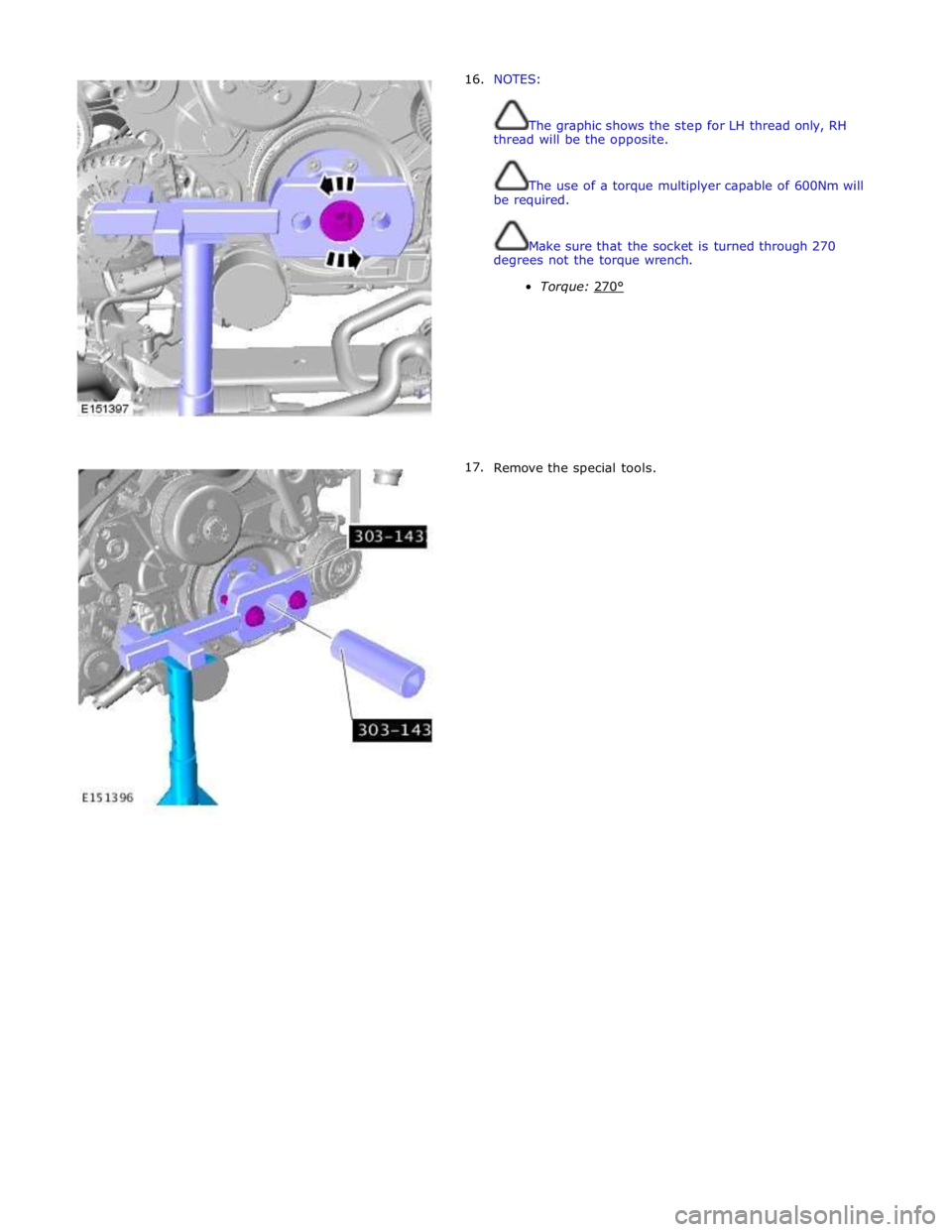

17. NOTES:


The graphic shows the step for LH thread only, RH
thread will be the opposite.


The use of a torque multiplyer capable of 600Nm will
be required.


Make sure that the socket is turned through 270
degrees not the torque wrench.
Torque: 270°










Remove the special tools.

18.























19. WARNING: Make sure that a new bolt is installed.

Apply loctite 270 to the thread of the bolts.

Torque: 65 Nm

5.0L Petrol, Removal and Installation).

23. Refer to: Cooling Fan Motor and Shroud - Vehicles With: Supercharger (303-03C Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal
and Installation).

24. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Engine - V8 S/C 5.0L Petrol - Crankshaft Rear Seal
Removal and Installation

Special Tool(s)






Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 12-May-2014

1. Refer to: Flexplate (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

2. 303-1442
Rear Crankshaft Seal Installer JLR-303-1622
Alignment Tool, Engine Rear Oil Seal
