JAGUAR XFR 2010 1.G Workshop Manual

16.



































17. NOTE: Remove and discard the O-ring seal.



































NOTE: Discard the gasket. www.JagDocs.com

18.
19.

























CAUTIONS:


If a new cylinder head has been installed then new
tappets must be installed.


If the cylinder head is being removed without a new
component being installed, the tappets must be installed in
their original positions.

20.



































21. CAUTION: Discard the bolts.



































NOTE: Discard the gasket.

Installation

1. CAUTION: An acceptable flatness of the cylinder head
is 0.1mm.


NOTE: For cylinder head with distortion above the
maximum allowance, the cylinder head material must be
measured.

Check cylinder head face for distortion, across the center
and from corner to corner.








2. WARNING: Make sure care is taken when handling the
cylinder head gasket.


NOTE: Install a new gasket.

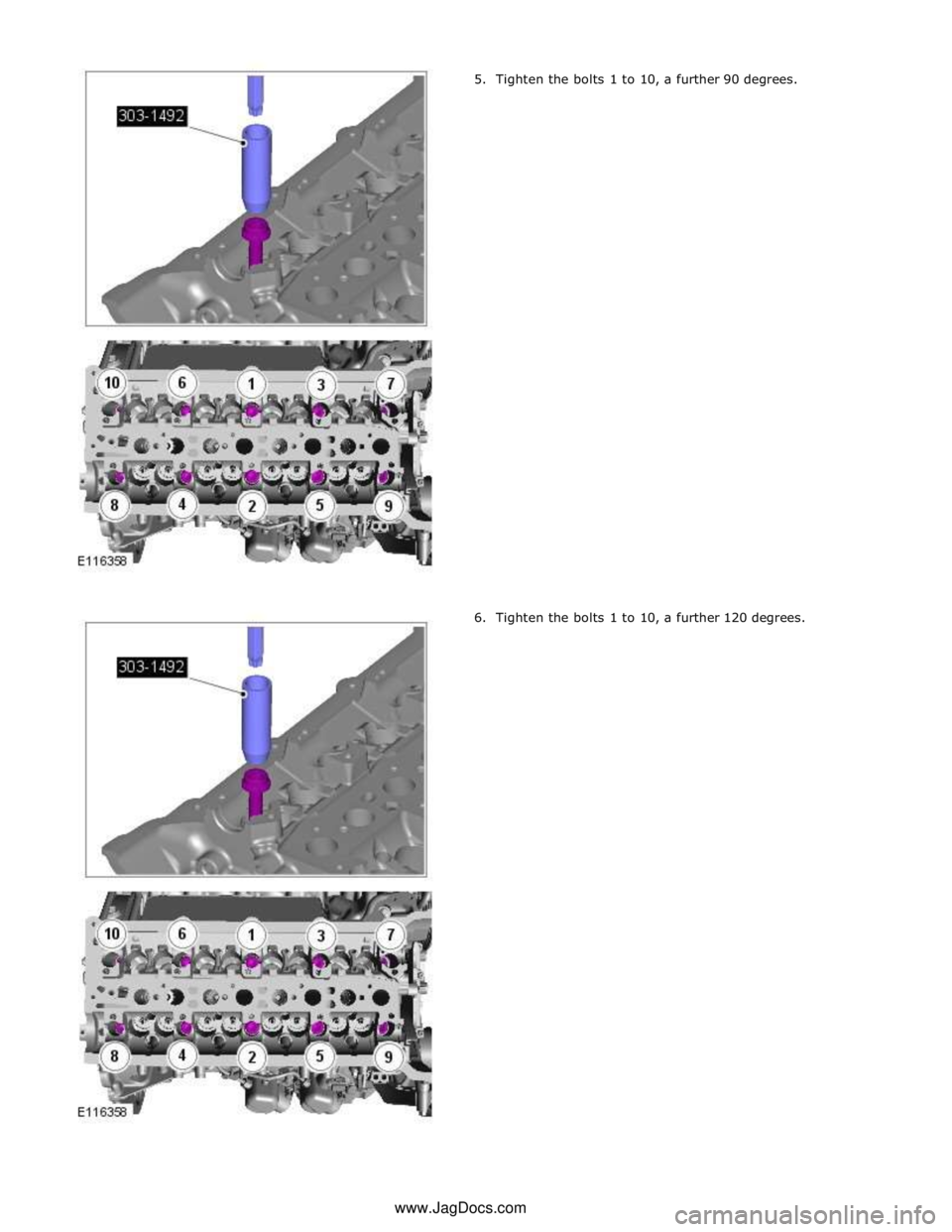

3. CAUTION: Make sure that new cylinder head bolts are
installed.
Torque: 20 Nm






























4. Torque: 35 Nm

www.JagDocs.com

7. Torque: 25 Nm 8. Torque: 12 Nm 9. CAUTIONS:


If a new cylinder head has been installed then new
tappets must be installed.


If the cylinder head is being removed without a new
component being installed, the tappets must be installed in
their original positions.
Lubricate the valve tappets with clean engine oil.

10.

























11. NOTE: Install a new gasket.

























CAUTION: A new O-ring seal is to be installed.


NOTE: Install a new engine oil filter.

Torque: 20 Nm
















Torque: 20 Nm

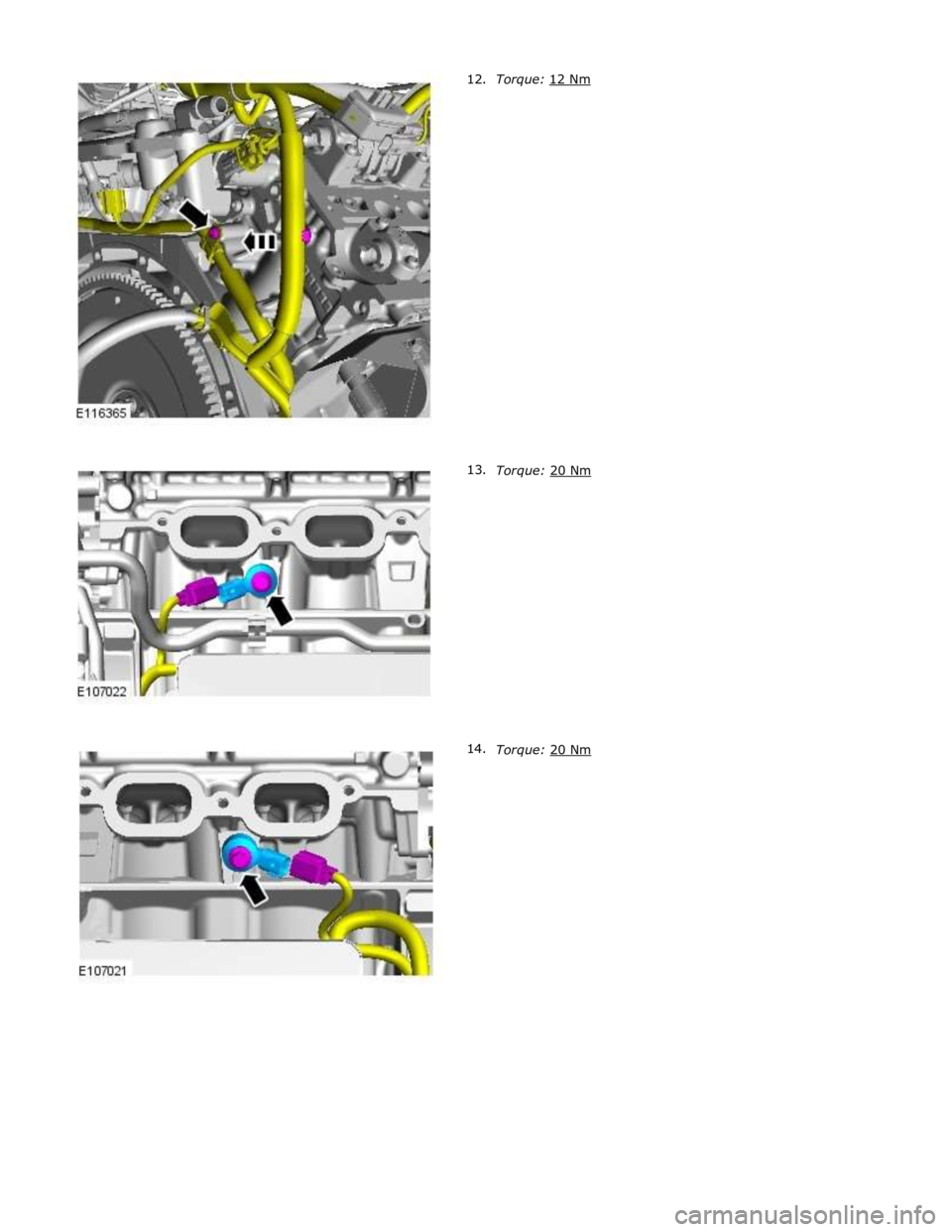

15.
















16.
17. CAUTION: Install the new seals.

Torque: 10 Nm








































NOTE: Clamp the hose to minimize coolant loss.
