JAGUAR XFR 2010 1.G Workshop Manual

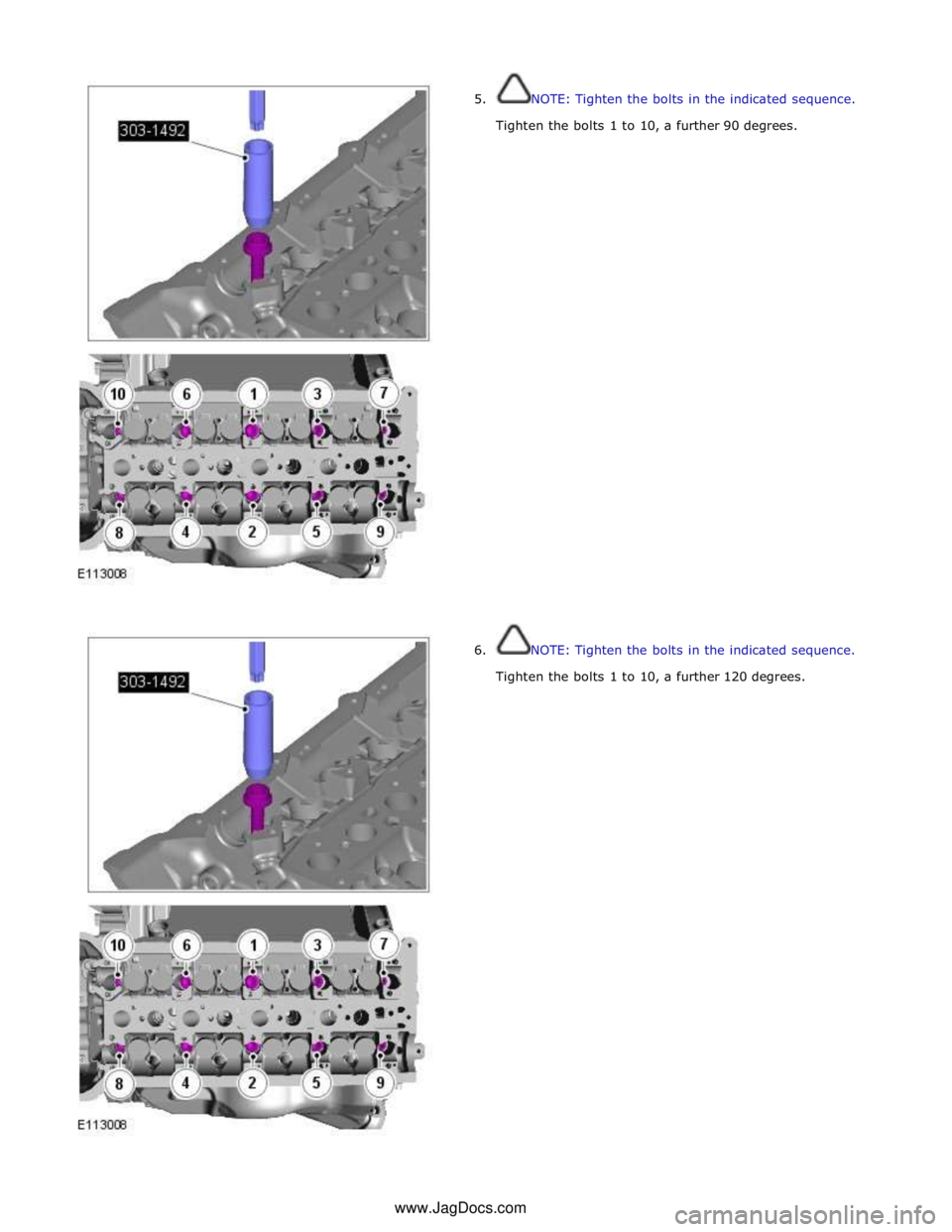

5. NOTE: Tighten the bolts in the indicated sequence.
Tighten the bolts 1 to 10, a further 90 degrees.































6. NOTE: Tighten the bolts in the indicated sequence.
Tighten the bolts 1 to 10, a further 120 degrees. www.JagDocs.com

7.
















8.
9.
10. Torque: 25 Nm

















NOTE: Tighten the bolts in the indicated sequence.

Torque: 12 Nm













CAUTIONS:


If a new cylinder head has been installed then new
tappets must be installed.


If the cylinder head is being removed without a new
component being installed, the tappets must be installed in
their original positions.
Lubricate the valve tappets with clean engine oil.







Torque: 10 Nm

11.















12.
13.

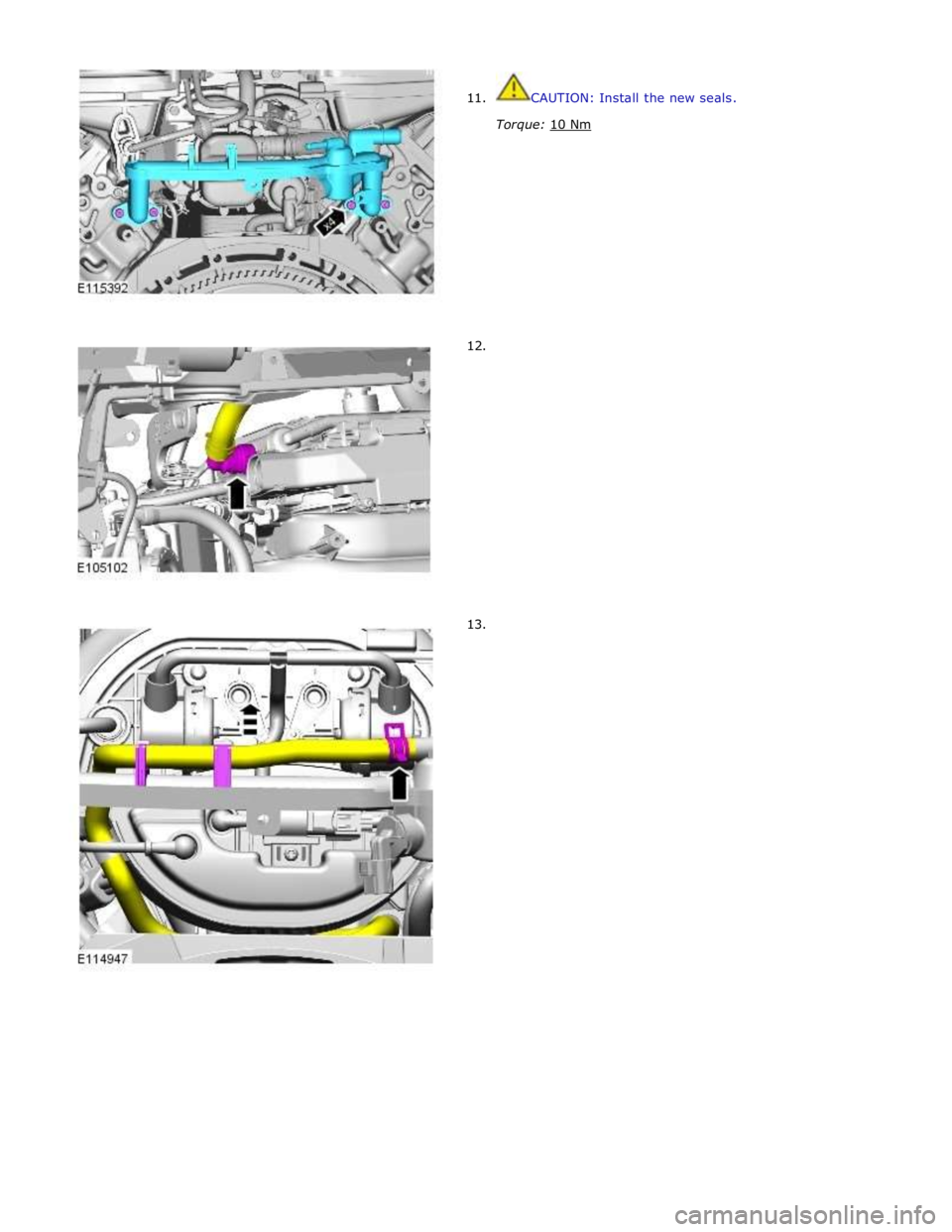

CAUTION: Install the new seals.

Torque: 10 Nm

14.
15.
16.


























CAUTION: Install a new seal.


NOTE: Engine shown removed for clarity.
Torque: 12 Nm

Torque: 20 Nm

Torque: 12 Nm



















22.
Refer to: Exhaust Manifold LH (303-01C Engine - V8 5.0L Petrol, Removal and Installation).

23. Refer to: Camshaft LH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

24. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). www.JagDocs.com

Engine - V8 S/C 5.0L Petrol - Cylinder Head RH
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Raise and support the vehicle.

3. Refer to: Supercharger (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

4. Refer to: Camshaft RH (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

5. Refer to: Exhaust Manifold (303-01A, Removal and Installation).

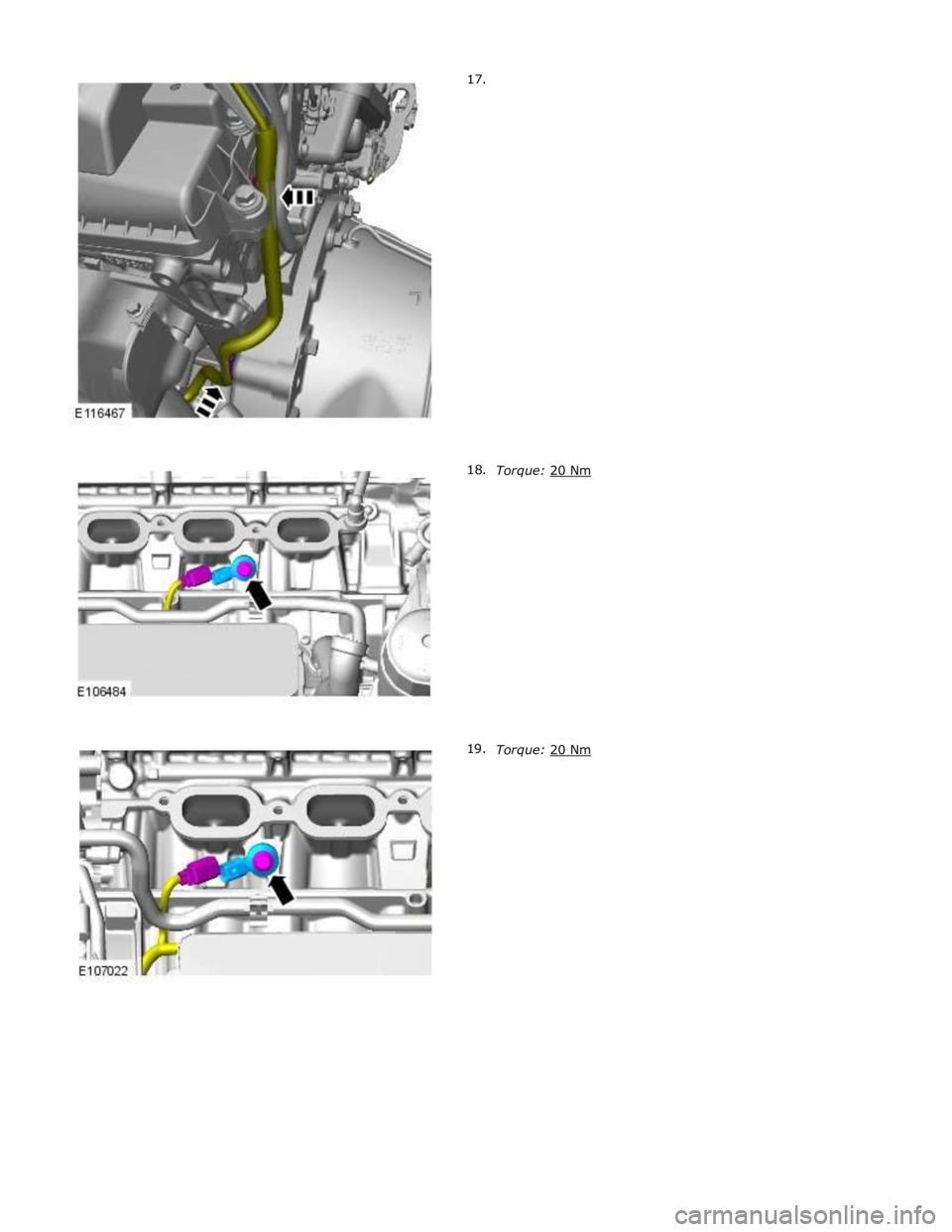

6.

7.
8. CAUTIONS:


Discard the seal.


LH illustration shown, RH is similar.


NOTE: Engine shown removed for clarity.








9.

10.
11.

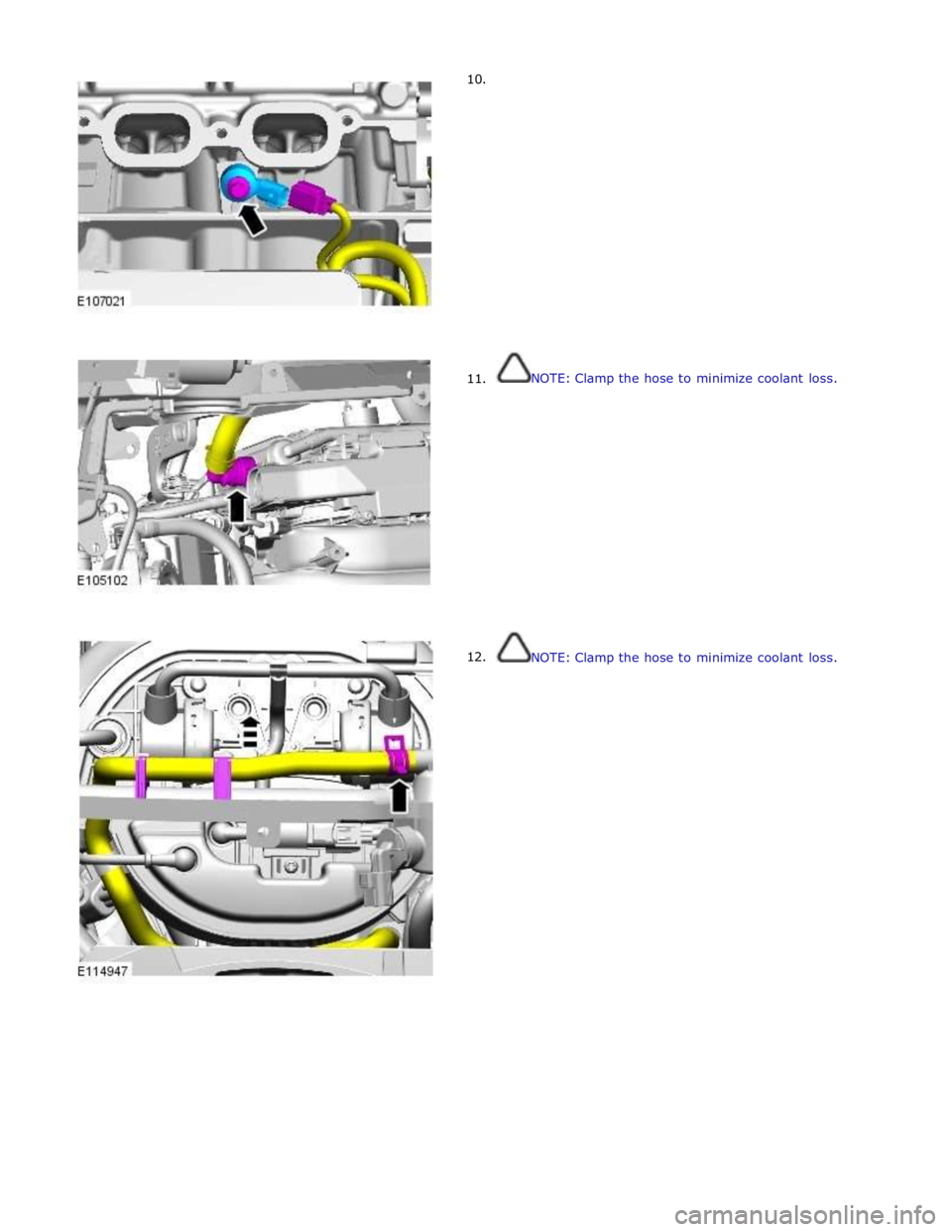

12.



















NOTE: Clamp the hose to minimize coolant loss.

















NOTE: Clamp the hose to minimize coolant loss.

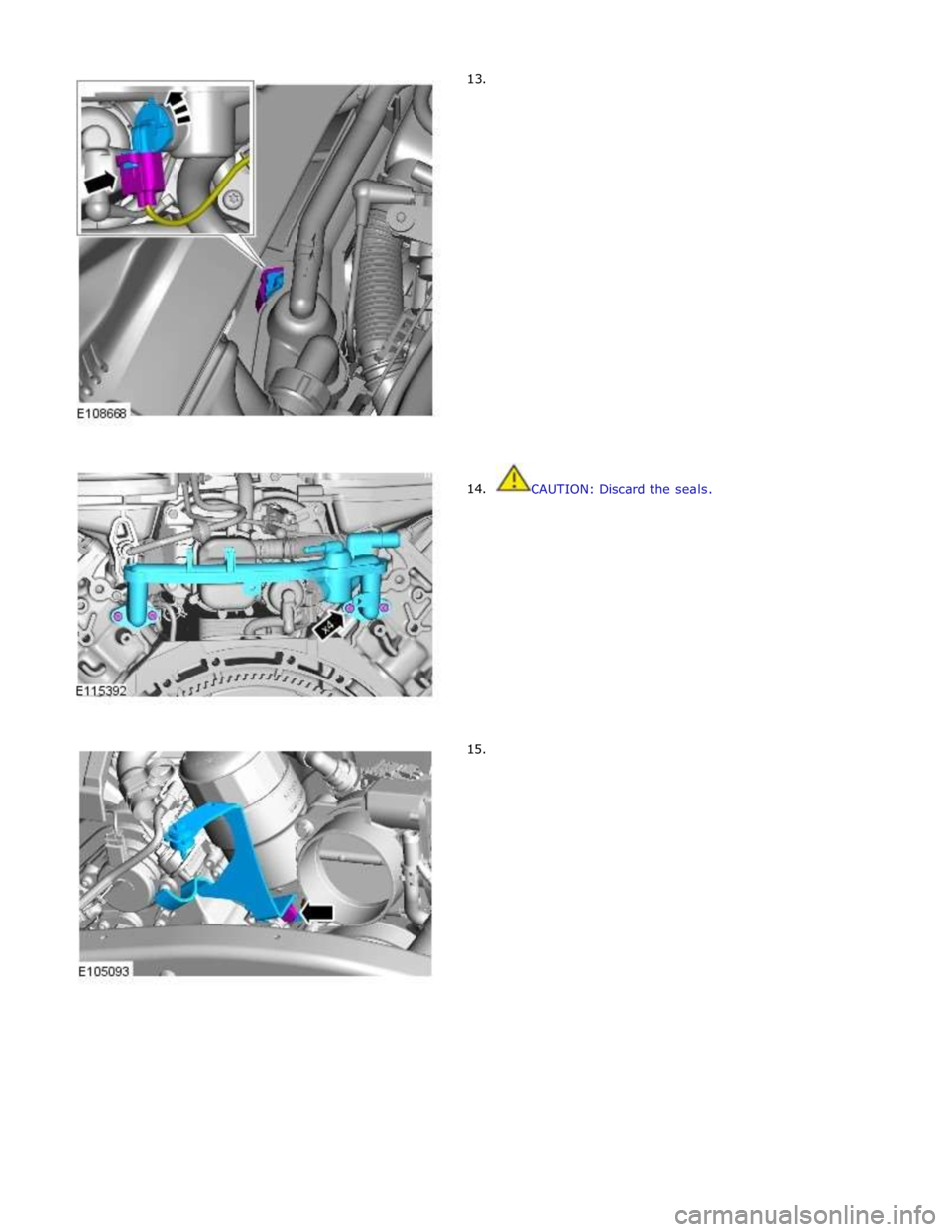

13.
14.
15.


























CAUTION: Discard the seals.
