JAGUAR XFR 2010 1.G Workshop Manual

9.
10.

11.
12.
























































CAUTION: Discard the bolts.

NOTES:


Discard the gasket.


Make sure that the position of the spacers is noted
before removal of the manifold. www.JagDocs.com

Installation
13.

NOTE: Do not disassemble further if the component is
removed for access only.

1. CAUTIONS:


Make sure that the mating faces are clean and free of
foreign material.


Make sure the anti-seize compound does not contact
the catalyst monitor sensor tip.


If accidentally dropped or knocked install a new
sensor.


Make sure the catalyst monitor sensor wiring harness
is not twisted more than 180 degrees and is not in contact
with either the exhaust or driveshaft.


NOTE: If the original sensor is to be installed, apply
lubricant meeting specification ESE-M12A4-A to the thread
of the sensor.
Torque: 45 Nm

2. NOTE: Install a new gasket.

Special Tool(s): 303-1444-01

3. NOTE: If a new cylinder head is installed use the
special tools in the illustration.
Special Tool(s): 303-1444-02












4. CAUTION: Make sure that new bolts are installed.
NOTE: Install the spacers in the noted position.
Torque: 10 Nm










5. Remove the special tool.
6. CAUTION: Make sure that new bolts are installed.
NOTE: Install the spacers in the noted position.
Torque: 10 Nm

7.

8.

9.
10. Torque: 18 Nm



































Torque: 100 Nm

















WARNING: Make sure that a new bolt is installed.


NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
Torque: 35 Nm

Torque: 10 Nm
















Torque: 3 Nm

Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

16. Refer to: Power Steering Pump - V8 5.0L Petrol/V8 S/C 5.0L Petrol (211-02 Power Steering, Removal and Installation).

17. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
www.JagDocs.com

Engine - V8 S/C 5.0L Petrol - Exhaust Manifold RH
Removal and Installation

Special Tool(s)


303-1444-01
Exhaust Manifold Installation Guide Pins - Threaded

303-1444-02
Exhaust Manifold Installation Guide Pins - Unthreaded Removal Published: 11-May-2011


NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. NOTE: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Catalytic Converter RH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

Right-hand drive vehicles

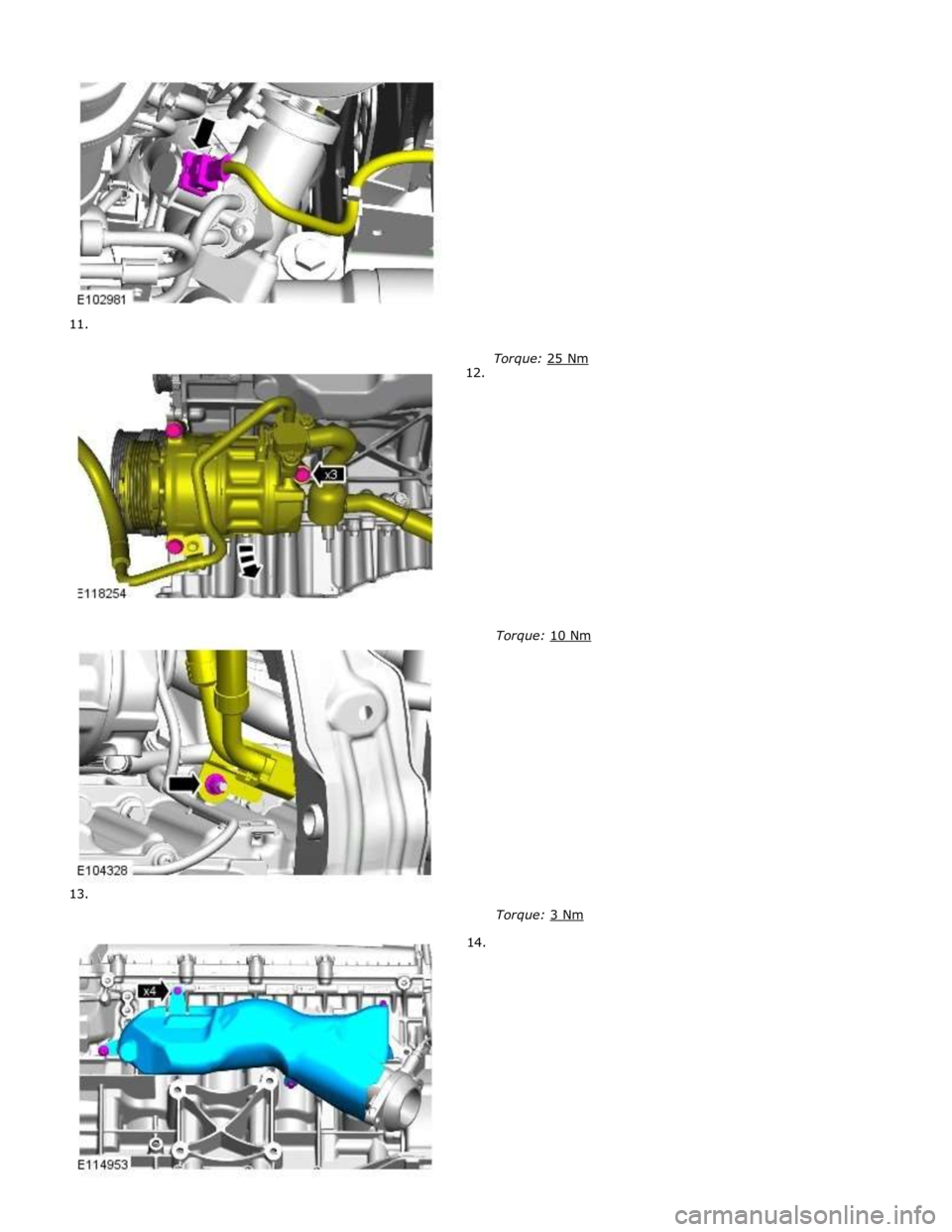

4.

5.
6.
All vehicles

7.
CAUTION: Discard the bolt.

Torque: 35 Nm













Torque: 100 Nm



















Torque: 12 Nm

8.

9.

10.
11. Torque: 48 Nm





















































CAUTIONS:


Discard the bolts.


LH illustration shown, RH is similar.
NOTES:


Discard the gasket.


Make sure that the position of the spacers is noted
before removal of the manifold.

Installation
12.

NOTE: Do not disassemble further if the component is
removed for access only.

All vehicles

1. Torque: 45 Nm 2. CAUTION: LH illustration shown, RH is similar.

NOTE: Install a new gasket.
Install the special tool.

Special Tool(s): 303-1444-01
