LAND ROVER FREELANDER 2001 Workshop Manual

ENGINE - K SERIES KV6
12-3-64 REPAIRS
Refit
NOTE: Following front or rear timing belt
refitment, it is possible that, after rotating the
engine and positioning the crankshaft pulley to
the 'SAFE' position, the timing marks on the
rear timing gears may be misaligned. This
misalignment is acceptable provided that the
timing belt refitting procedure was carried out
correctly.
1.Clean camshaft gears and hubs, crankshaft
gear, tensioner and water pump pulleys.
CAUTION: If the sintered gears have been
subjected to prolonged oil contamination,
they must be soaked in a solvent bath and
then thoroughly washed in clean solvent
before refitting. Because of the porous
construction of sintered material, oil
impregnated in the gears will emerge and
contaminate the belt.
2.Fit hubs to camshaft gears and fit gears to
camshafts. Fit new bolts and tighten sufficiently
to allow gears to rotate without tipping.
3.Position timing belt to crankshaft gear.
NOTE: To prevent the timing belt from
disengaging from the crankshaft gear when
fitting, fit a suitable wedge between the belt and
oil pump belt guard.
4.Fit tool LRT-12-197 into each exhaust
camshaft in turn.5.Using assistance, rotate each exhaust
camshaft slightly and align timing marks on LH
and RH rear camshaft gears.
6.Remove tool LRT-12-197 from exhaust
camshaft.
7.Fit tools LRT-12-175 to LH and RH rear
camshaft gears.
8.Rotate both front inlet camshaft gears fully
clockwise as viewed from front of engine.
9.Using fingers only, fit timing belt to gears,
starting at the crankshaft gear and working in
an anti-clockwise direction, keeping the belt run
as taut as possible and turning the camshaft
gears only a minimum amount anti-clockwise to
fit timing belt.
CAUTION: Gears must not be rotated anti-
clockwise more than one tooth.
10.Position an Allen key in tensioner backplate
and hold tensioner pulley against timing belt.

ENGINE - K SERIES KV6
REPAIRS 12-3-65
11.With assistance, position tensioner, fit new
Patchlok bolts and tighten to 25 Nm (18 lbf.ft).
CAUTION: Ensure tensioner plunger is
contacting underside of tensioner
backplate.
12.Remove tools LRT-12-175 from rear timing belt
gears.
13.Fit tools LRT-12-196 to both front inlet
camshaft gears and into the end of each
exhaust camshaft.
CAUTION: Special tools must be fitted when
tightening or loosening gear retaining bolts,
otherwise damage to camshafts may occur.
14. Tighten front inlet camshaft gear bolts to:
lStage 1 - 27 Nm (20 lbf.ft)
lStage 2 - Further 90°
15.Remove tools LRT-12-196 from both inlet
camshaft gears and exhaust camshafts.
16.Remove wedge from between drive belt and oil
pump belt guard.
17.Remove 1.5 mm diameter pin from tensioner.
18.Fit rubber blanking plug around tensioner.
19.Remove timing pin LRT-12-232.
20.Clean exhaust camshaft front cap seal
locations and fit new cap seals.
CAUTION: The sealing edge of the cap seal
and mating face must be clean and dry.
21.Position engine front mounting plate and
manoeuvre plate into position. Fit bolts but do
not tighten at this stage.22.Fit bolts securing IRD support bracket to front
mounting plate but do not tighten at this stage.
23.Tighten bolts in the sequence shown:
lBolt No. 1 - 25 Nm (18 lbf.ft)
lBolt No. 5 - 45 Nm (33 lbf.ft)
lBolts Nos. 2, 3, 4, 6 and 7 - 85 Nm (63 lbf.ft)
24.Position engine lifting bracket, fit bolts securing
lifting bracket and front mounting plate to
cylinder block and RH cylinder head. Tighten
M10 bolts to 45 Nm (33 lbf.ft) and M8 bolt to 25
Nm (18 lbf.ft).
25.Clean end of dipstick tube.
26.Position dipstick tube to sump and cylinder
block, fit bolt and tighten to 9 Nm (7 lbf.ft).
27.Position A/C compressor to front mounting
plate and cylinder block, align heat shield, fit
and tighten bolts to 25 Nm (18 lbf.ft).
28.Clean lower timing belt cover.
29.Position lower timing belt cover, fit and tighten
bolts to 9 Nm (7 lbf.ft).
30.Clean crankshaft pulley.
31.Fit crankshaft pulley to crankshaft gear and
ensure that the indent on pulley locates over
the lug on crankshaft gear.
32.Fit crankshaft pulley bolt and washer, position
LRT-12-161 with LRT-12-199 into crankshaft
pulley. Tighten pulley bolt to 160 Nm (118
lbf.ft).
33.Remove tools LRT-12-161 and LRT-12-
199from crankshaft pulley.
34.Clean ancillary drive belt tensioner.
35.Position ancillary belt tensioner, fit bolts and
tighten to 25 Nm (18 lbf.ft).
36.Clean LH and RH front timing belt covers.
37.Position LH and RH front timing belt covers, fit
and tighten bolts to 4 Nm (3 lbf.ft).
38.Clean idler pulley, position pulley to engine
front mounting plate and tighten Allen bolt to 45
Nm (33 lbf.ft).
39.Position alternator to front mounting plate.

ENGINE - K SERIES KV6
12-3-66 REPAIRS
40.Fit bolt and nut and bolt securing alternator to
front mounting plate and tighten to 45 Nm (33
lbf.ft).
41.Connect alternator multiplug.
42.Connect battery lead to alternator, fit and
tighten nut to 8 Nm (6 lbf.ft), fit terminal cover.
43.Position PAS pump to front mounting plate, fit
and tighten bolts to 25 Nm (18 lbf.ft).
44.Position PAS pipe to engine front mounting
plate, fit and tighten bolt to 25 Nm (18 lbf.ft).
45.Clean PAS pump pulley mating faces.
46.Position PAS pump pulley, fit and tighten Torx
screws to 9 Nm (7 lbf.ft).
47.Position lower engine steady to sump
mounting, fit and tighten bolt to 100 Nm (74
lbf.ft).
48.Tighten bolt securing lower engine steady to
subframe to 100 Nm (74 lbf.ft).
49.Clean LH rear timing belt cover.
50.Position LH rear timing belt cover, fit and
tighten bolts to 4 Nm (3 lbf.ft).
51.Clean RH rear timing belt cover.
52.position RH rear timing belt cover, fit bolts and
tighten to 4 Nm (3 lbf.ft).
53.Position heat shield, fit bolts and tighten M6 bolt
to 9 Nm (7 lbf.ft) and M8 bolt to 25 Nm (18 lbf.ft).
54.Fit inlet manifold chamber.

+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.

+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - from 03MY.
55.Fit RH road wheel and tighten nuts to 115 Nm
(85 lbf.ft).
56.Fit ancillary drive belt.

+ CHARGING AND STARTING,
REPAIRS, Ancillary drive belt - KV6.
Camshaft timing belt cover - RH front
$% 12.65.39
Remove
1.Disconnect battery earth lead.
2.Remove ancillary drive belt.

+ CHARGING AND STARTING,
REPAIRS, Ancillary drive belt - KV6.
3.Remove 3 bolts securing camshaft timing belt
RH front cover and remove cover.
Refit
1.Clean RH front timing belt cover.
2.Position RH front timing belt cover, fit and
tighten bolts to 4 Nm (3 lbf.ft).
3.Fit ancillary drive belt.

+ CHARGING AND STARTING,
REPAIRS, Ancillary drive belt - KV6.
4.Connect battery earth lead.

ENGINE - K SERIES KV6
REPAIRS 12-3-67
Camshaft timing belt cover - LH front
$% 12.65.41
Remove
1.Disconnect battery earth lead.
2.Remove ancillary drive belt.

+ CHARGING AND STARTING,
REPAIRS, Ancillary drive belt - KV6.
3.Remove 3 Torx screws securing PAS pump
pulley, and remove pulley.
4.Remove Torx screw securing idler pulley to
front mounting plate and remove pulley.5.Remove bolt securing dipstick tube to cylinder
block.
6.Remove 3 bolts securing camshaft timing belt
LH front cover and remove cover.
Refit
1.Clean LH front timing belt cover.
2.Position LH front timing belt cover, fit and
tighten bolts to 4 Nm (3 lbf.ft).
3.Position dipstick tube bracket to cylinder block
and tighten bolt to 9 Nm (7 lbf.ft).
4.Clean idler pulley, position pulley to engine
front mounting plate and tighten Torx bolt to 45
Nm (33 lbf.ft).
5.Position PAS pump pulley, fit and tighten Torx
screws to 9 Nm (7 lbf.ft).
6.Fit ancillary drive belt

+ CHARGING AND STARTING,
REPAIRS, Ancillary drive belt - KV6.
7.Connect battery earth lead.
M12 6672

ENGINE - K SERIES KV6
12-3-68 REPAIRS

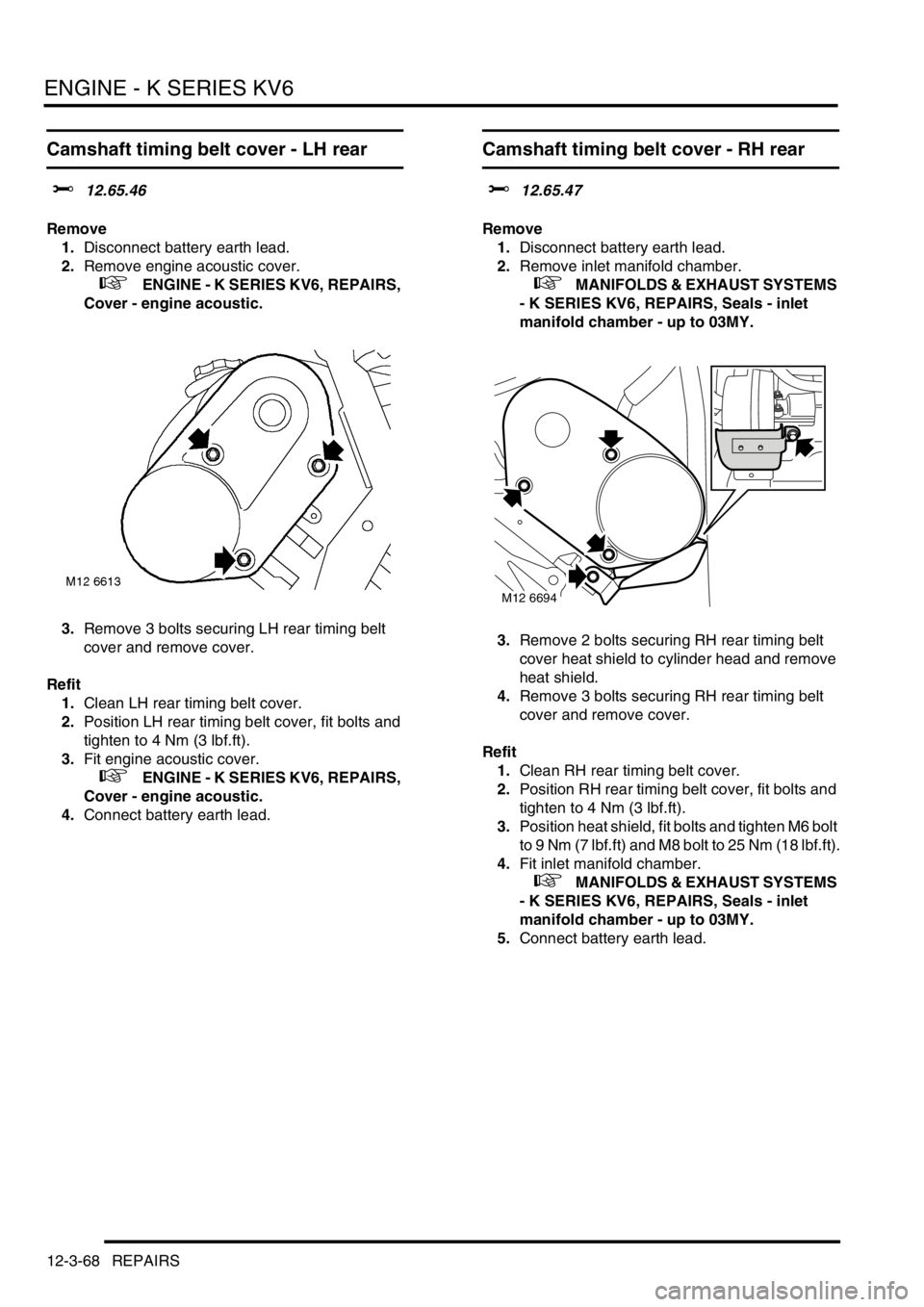

Camshaft timing belt cover - LH rear
$% 12.65.46
Remove
1.Disconnect battery earth lead.
2.Remove engine acoustic cover.

+ ENGINE - K SERIES KV6, REPAIRS,
Cover - engine acoustic.
3.Remove 3 bolts securing LH rear timing belt
cover and remove cover.
Refit
1.Clean LH rear timing belt cover.
2.Position LH rear timing belt cover, fit bolts and
tighten to 4 Nm (3 lbf.ft).
3.Fit engine acoustic cover.

+ ENGINE - K SERIES KV6, REPAIRS,
Cover - engine acoustic.
4.Connect battery earth lead.
Camshaft timing belt cover - RH rear
$% 12.65.47
Remove
1.Disconnect battery earth lead.
2.Remove inlet manifold chamber.

+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.
3.Remove 2 bolts securing RH rear timing belt
cover heat shield to cylinder head and remove
heat shield.
4.Remove 3 bolts securing RH rear timing belt
cover and remove cover.
Refit
1.Clean RH rear timing belt cover.
2.Position RH rear timing belt cover, fit bolts and
tighten to 4 Nm (3 lbf.ft).
3.Position heat shield, fit bolts and tighten M6 bolt
to 9 Nm (7 lbf.ft) and M8 bolt to 25 Nm (18 lbf.ft).
4.Fit inlet manifold chamber.

+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.
5.Connect battery earth lead.
M12 6694

ENGINE - K SERIES KV6
REPAIRS 12-3-69

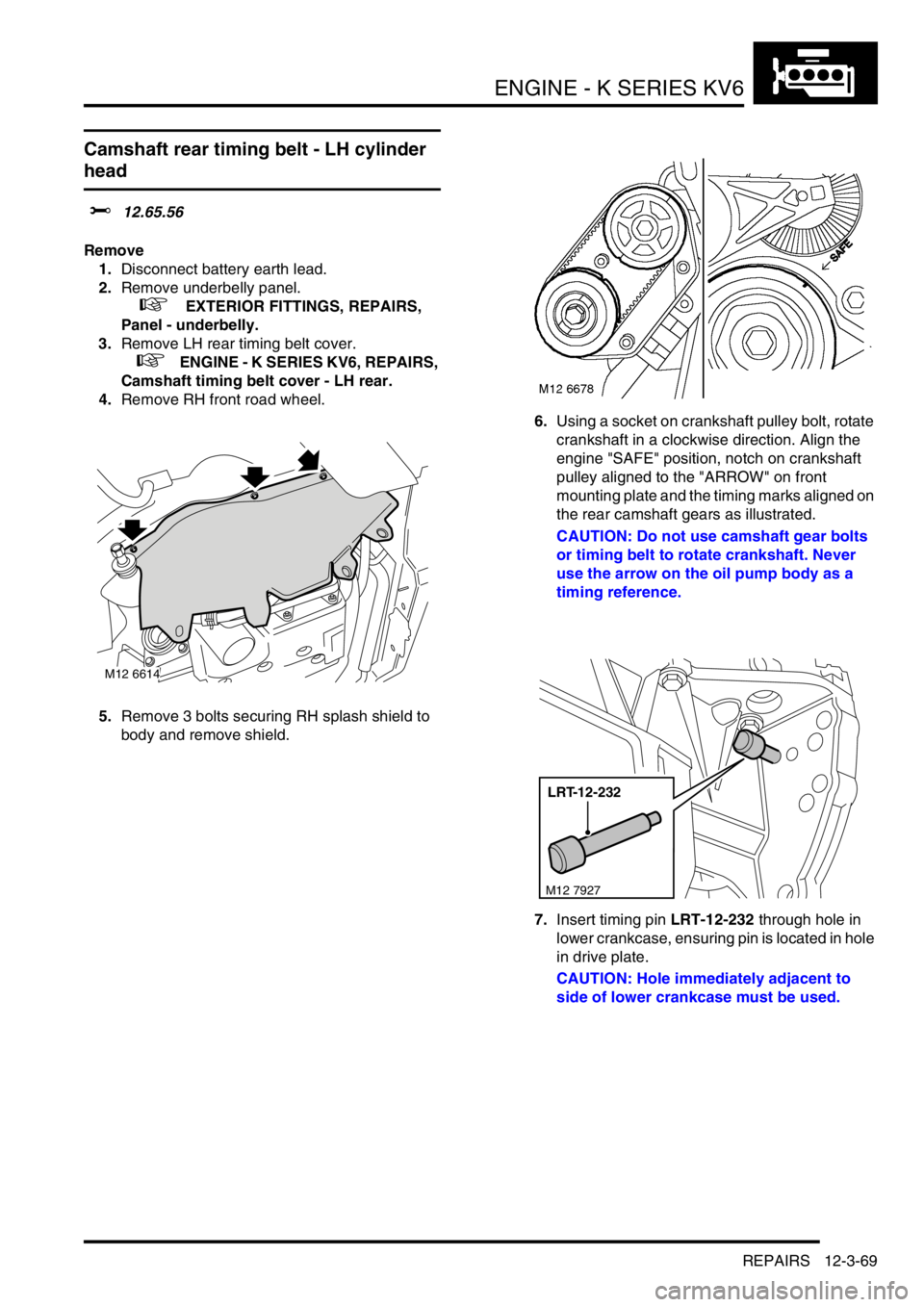

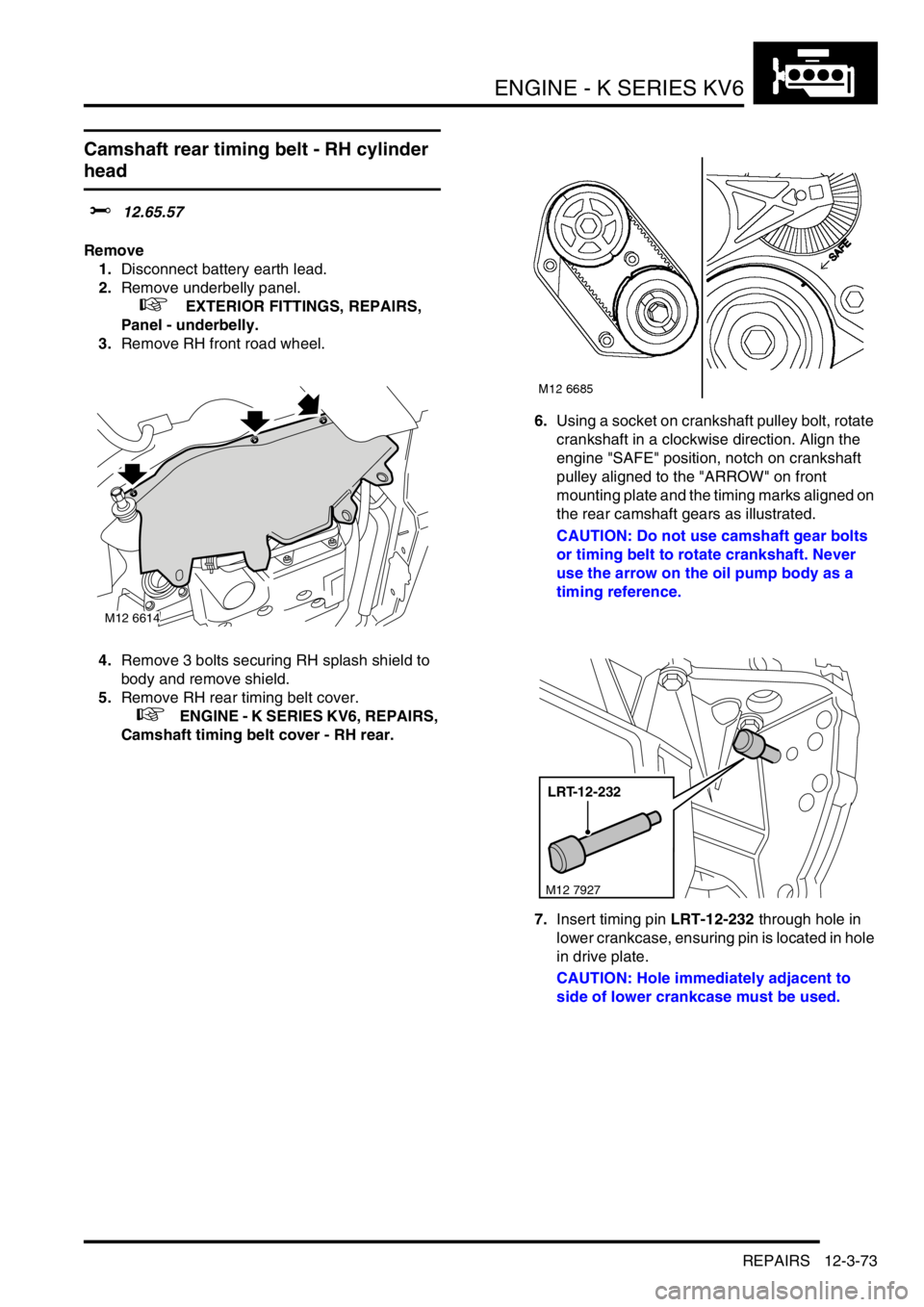

Camshaft rear timing belt - LH cylinder
head
$% 12.65.56
Remove
1.Disconnect battery earth lead.
2.Remove underbelly panel.

+ EXTERIOR FITTINGS, REPAIRS,
Panel - underbelly.
3.Remove LH rear timing belt cover.

+ ENGINE - K SERIES KV6, REPAIRS,
Camshaft timing belt cover - LH rear.
4.Remove RH front road wheel.
5.Remove 3 bolts securing RH splash shield to
body and remove shield.6.Using a socket on crankshaft pulley bolt, rotate
crankshaft in a clockwise direction. Align the
engine "SAFE" position, notch on crankshaft
pulley aligned to the "ARROW" on front
mounting plate and the timing marks aligned on
the rear camshaft gears as illustrated.
CAUTION: Do not use camshaft gear bolts
or timing belt to rotate crankshaft. Never
use the arrow on the oil pump body as a
timing reference.
7.Insert timing pin LRT-12-232 through hole in
lower crankcase, ensuring pin is located in hole
in drive plate.
CAUTION: Hole immediately adjacent to
side of lower crankcase must be used.
M12 6614
LRT-12-232
M12 7927

ENGINE - K SERIES KV6
12-3-70 REPAIRS
8.Remove and discard LH front exhaust
camshaft cap seal from cylinder head.
9.Position LRT-12-175 to rear camshaft gears as
illustrated, remove and discard bolts securing
gears to camshafts.
10.Remove rear camshaft gears, timing belt and
special tool as an assembly.
CAUTION: Do not turn the crankshaft or the
camshafts while the timing belt is removed.
11.If camshaft timing belt is to be refitted, mark
direction of rotation on timing belt.12.Remove LRT-12-175 from camshaft gears and
remove timing belt from gears.
CAUTION: Do not rotate crankshaft or
camshafts with timing belt removed and
cylinder heads fitted.
CAUTION: Camshaft timing belts must be
stored and handled with care. Always store
a camshaft timing belt on its edge with a
bend radius greater than 50 mm (2.0 in). Do
not use a camshaft timing belt that has been
twisted or bent double as this will damage
the reinforcing fibres. Do not use a
camshaft timing belt if debris other than belt
dust is found in timing belt covers. Do not
use a camshaft timing belt if partial engine
seizure has occurred. Do not use a
camshaft timing belt if mileage exceeds
72,000 km (45,000 miles). Do not use an oil
or coolant contaminated timing belt, cause
of contamination must be rectified.

ENGINE - K SERIES KV6
REPAIRS 12-3-71
Refit
NOTE: Following front or rear timing belt
refitment, it is possible that after rotating the
engine and positioning the crankshaft pulley to
the 'SAFE' position, the timing marks on the
rear timing gears may be misaligned. This
misalignment is acceptable provided that the
timing belt refitting procedure was carried out
correctly.
1.Clean camshaft gears and mating faces on
camshafts.
CAUTION: If the sintered gears have been
subjected to prolonged oil contamination,
they must be soaked in a solvent bath and
then thoroughly washed in clean solvent
before refitting. Because of the porous
construction of sintered material, oil
impregnated in the gears will emerge and
contaminate the belt.
2.Place gears inverted on a flat surface, with the
locating lugs on the gears positioned as
illustrated.3.Keeping the timing marks aligned, position
timing belt onto gears.
4.Position LRT-12-195 between the gears, turn
centre nut sufficiently to spread drive belt.
5.Invert gears and timing belt and position LRT-
12-175 to camshaft gears.
6.Check that the locating lugs are still aligned and
remove LRT-12-195 from between camshaft
gears.
7.Fit LRT-12-198 alignment pins into the end of
each camshaft.
8.Position timing belt and gears over LRT-12-198
and locate gears onto camshafts.

ENGINE - K SERIES KV6
12-3-72 REPAIRS
9.Position LRT-12-197 into the front end of the
LH exhaust camshaft.
10.With assistance, using a 30 mm socket on LRT-
12-197, turn the LH exhaust camshaft
sufficiently to align camshaft gears to the drive
slots in each camshaft.
11.Remove LRT-12-198 alignment pins and fit
new camshaft gear retaining bolts.
12.Tighten camshaft gear bolts to:
lStage 1 - 27 Nm (20 lbf.ft)
lStage 2 - Further 90°
13.Remove LRT-12-175 from camshaft gears.
14.Remove LRT-12-197 from front end of exhaust
camshaft.15.Clean LH exhaust camshaft cap seal recess
and fit new cap seal.
16.Remove timing pin LRT-12-232 from lower
crankcase.
17.Fit splash shield and secure with bolts.
18.Fit RH road wheel and tighten nuts to 115 Nm
(85 lbf.ft).
19.Fit LH rear timing belt cover.

+ ENGINE - K SERIES KV6, REPAIRS,
Camshaft timing belt cover - LH rear.
20.Fit underbelly panel.

+ EXTERIOR FITTINGS, REPAIRS,
Panel - underbelly.
21.Connect battery earth lead.

ENGINE - K SERIES KV6
REPAIRS 12-3-73
Camshaft rear timing belt - RH cylinder
head
$% 12.65.57
Remove
1.Disconnect battery earth lead.
2.Remove underbelly panel.

+ EXTERIOR FITTINGS, REPAIRS,
Panel - underbelly.
3.Remove RH front road wheel.
4.Remove 3 bolts securing RH splash shield to
body and remove shield.
5.Remove RH rear timing belt cover.

+ ENGINE - K SERIES KV6, REPAIRS,
Camshaft timing belt cover - RH rear.6.Using a socket on crankshaft pulley bolt, rotate
crankshaft in a clockwise direction. Align the
engine "SAFE" position, notch on crankshaft
pulley aligned to the "ARROW" on front
mounting plate and the timing marks aligned on
the rear camshaft gears as illustrated.
CAUTION: Do not use camshaft gear bolts
or timing belt to rotate crankshaft. Never
use the arrow on the oil pump body as a
timing reference.
7.Insert timing pin LRT-12-232 through hole in
lower crankcase, ensuring pin is located in hole
in drive plate.
CAUTION: Hole immediately adjacent to
side of lower crankcase must be used.
M12 6614
LRT-12-232
M12 7927
