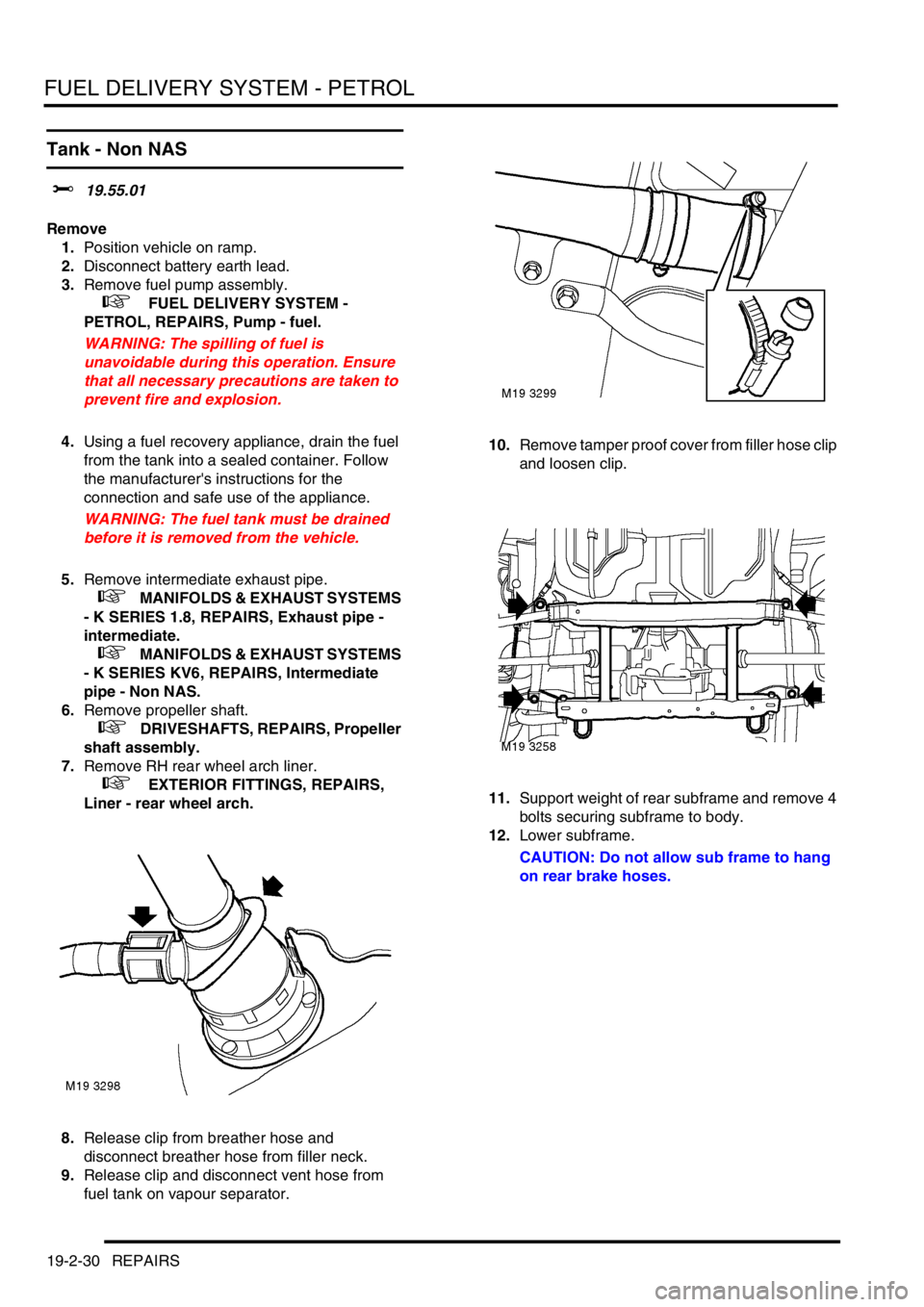

FUEL DELIVERY SYSTEM - PETROL
19-2-30 REPAIRS
Tank - Non NAS
$% 19.55.01
Remove
1.Position vehicle on ramp.
2.Disconnect battery earth lead.
3.Remove fuel pump assembly.
+ FUEL DELIVERY SYSTEM -
PETROL, REPAIRS, Pump - fuel.
WARNING: The spilling of fuel is
unavoidable during this operation. Ensure
that all necessary precautions are taken to
prevent fire and explosion.
4.Using a fuel recovery appliance, drain the fuel
from the tank into a sealed container. Follow
the manufacturer's instructions for the
connection and safe use of the appliance.
WARNING: The fuel tank must be drained
before it is removed from the vehicle.
5.Remove intermediate exhaust pipe.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES 1.8, REPAIRS, Exhaust pipe -
intermediate.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Intermediate
pipe - Non NAS.
6.Remove propeller shaft.
+ DRIVESHAFTS, REPAIRS, Propeller
shaft assembly.
7.Remove RH rear wheel arch liner.
+ EXTERIOR FITTINGS, REPAIRS,
Liner - rear wheel arch.
8.Release clip from breather hose and
disconnect breather hose from filler neck.
9.Release clip and disconnect vent hose from
fuel tank on vapour separator.10.Remove tamper proof cover from filler hose clip
and loosen clip.
11.Support weight of rear subframe and remove 4
bolts securing subframe to body.
12.Lower subframe.
CAUTION: Do not allow sub frame to hang
on rear brake hoses.

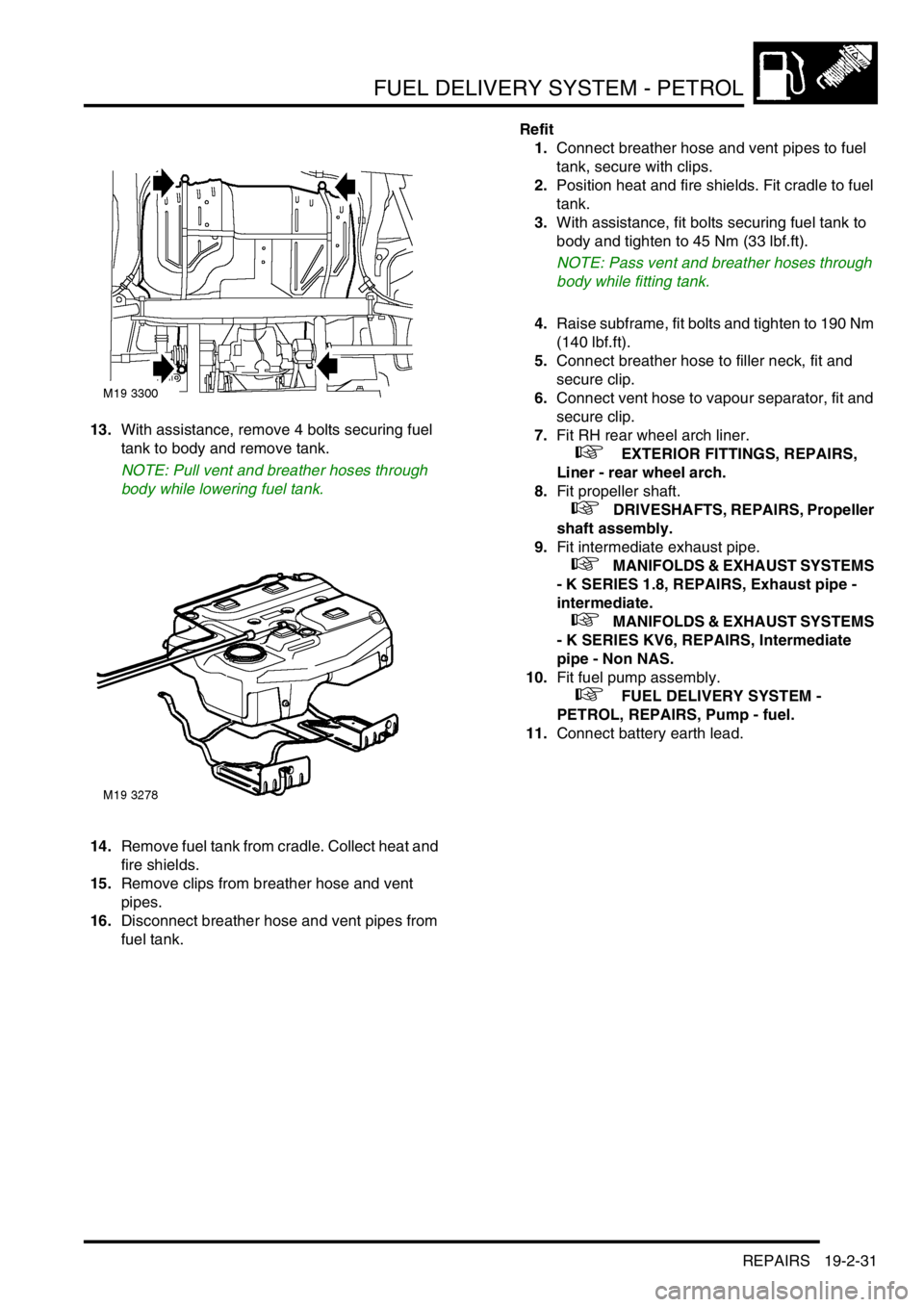

Page 352 of 1007
FUEL DELIVERY SYSTEM - PETROL
REPAIRS 19-2-31
13.With assistance, remove 4 bolts securing fuel
tank to body and remove tank.
NOTE: Pull vent and breather hoses through
body while lowering fuel tank.
14.Remove fuel tank from cradle. Collect heat and
fire shields.
15.Remove clips from breather hose and vent
pipes.
16.Disconnect breather hose and vent pipes from
fuel tank.Refit
1.Connect breather hose and vent pipes to fuel
tank, secure with clips.
2.Position heat and fire shields. Fit cradle to fuel
tank.
3.With assistance, fit bolts securing fuel tank to
body and tighten to 45 Nm (33 lbf.ft).
NOTE: Pass vent and breather hoses through
body while fitting tank.
4.Raise subframe, fit bolts and tighten to 190 Nm
(140 lbf.ft).
5.Connect breather hose to filler neck, fit and
secure clip.
6.Connect vent hose to vapour separator, fit and
secure clip.
7.Fit RH rear wheel arch liner.
+ EXTERIOR FITTINGS, REPAIRS,
Liner - rear wheel arch.
8.Fit propeller shaft.
+ DRIVESHAFTS, REPAIRS, Propeller
shaft assembly.
9.Fit intermediate exhaust pipe.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES 1.8, REPAIRS, Exhaust pipe -
intermediate.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Intermediate
pipe - Non NAS.
10.Fit fuel pump assembly.
+ FUEL DELIVERY SYSTEM -
PETROL, REPAIRS, Pump - fuel.
11.Connect battery earth lead.
Page 353 of 1007
FUEL DELIVERY SYSTEM - PETROL
19-2-32 REPAIRS

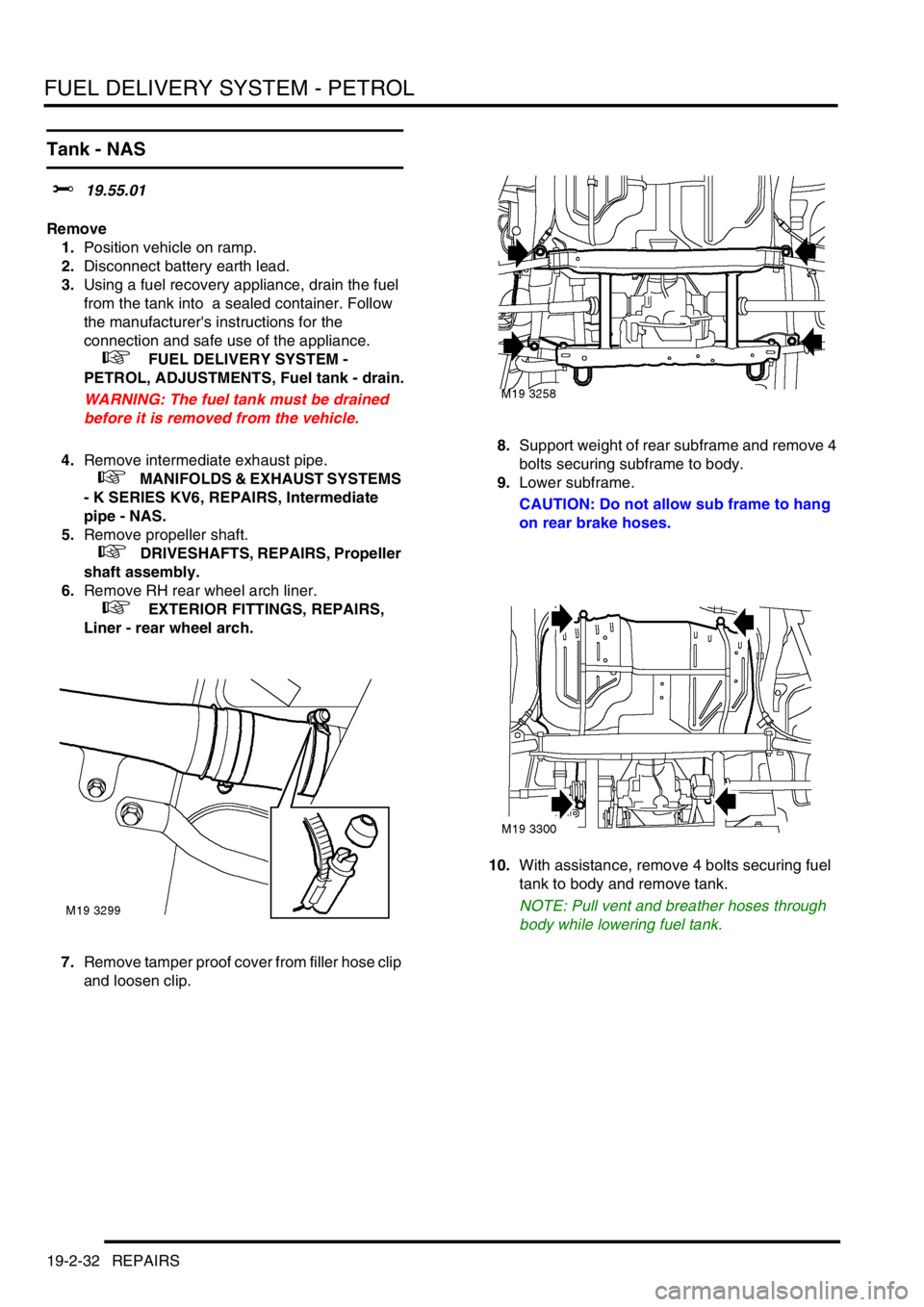

Tank - NAS
$% 19.55.01
Remove
1.Position vehicle on ramp.
2.Disconnect battery earth lead.
3.Using a fuel recovery appliance, drain the fuel
from the tank into a sealed container. Follow
the manufacturer's instructions for the
connection and safe use of the appliance.
+ FUEL DELIVERY SYSTEM -
PETROL, ADJUSTMENTS, Fuel tank - drain.
WARNING: The fuel tank must be drained
before it is removed from the vehicle.
4.Remove intermediate exhaust pipe.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Intermediate
pipe - NAS.
5.Remove propeller shaft.
+ DRIVESHAFTS, REPAIRS, Propeller
shaft assembly.
6.Remove RH rear wheel arch liner.
+ EXTERIOR FITTINGS, REPAIRS,
Liner - rear wheel arch.
7.Remove tamper proof cover from filler hose clip
and loosen clip.8.Support weight of rear subframe and remove 4
bolts securing subframe to body.
9.Lower subframe.
CAUTION: Do not allow sub frame to hang
on rear brake hoses.
10.With assistance, remove 4 bolts securing fuel
tank to body and remove tank.
NOTE: Pull vent and breather hoses through
body while lowering fuel tank.

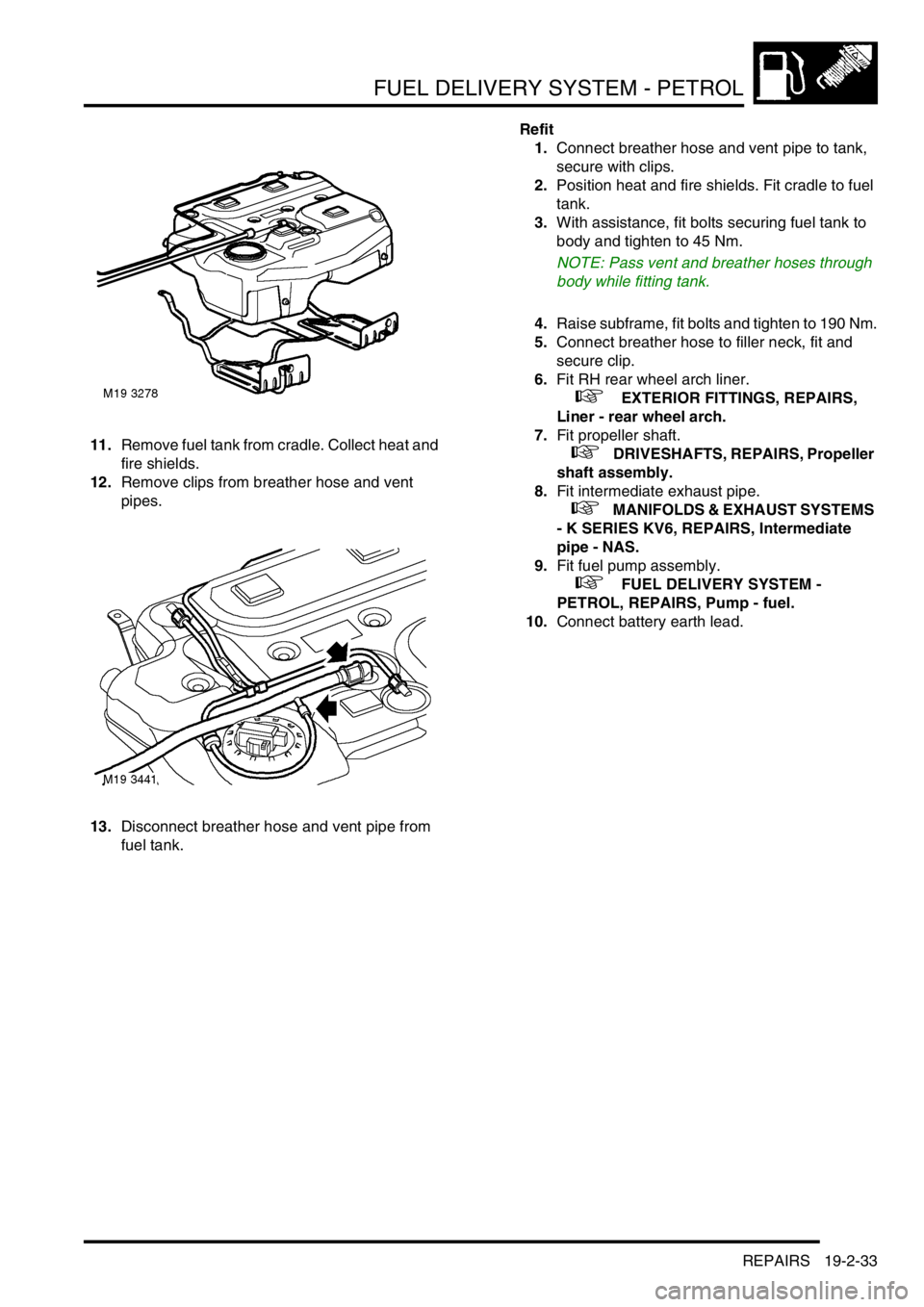

Page 354 of 1007
FUEL DELIVERY SYSTEM - PETROL
REPAIRS 19-2-33
11.Remove fuel tank from cradle. Collect heat and
fire shields.
12.Remove clips from breather hose and vent
pipes.
13.Disconnect breather hose and vent pipe from
fuel tank.Refit
1.Connect breather hose and vent pipe to tank,
secure with clips.
2.Position heat and fire shields. Fit cradle to fuel
tank.
3.With assistance, fit bolts securing fuel tank to
body and tighten to 45 Nm.
NOTE: Pass vent and breather hoses through
body while fitting tank.
4.Raise subframe, fit bolts and tighten to 190 Nm.
5.Connect breather hose to filler neck, fit and
secure clip.
6.Fit RH rear wheel arch liner.
+ EXTERIOR FITTINGS, REPAIRS,
Liner - rear wheel arch.
7.Fit propeller shaft.
+ DRIVESHAFTS, REPAIRS, Propeller
shaft assembly.
8.Fit intermediate exhaust pipe.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Intermediate
pipe - NAS.
9.Fit fuel pump assembly.
+ FUEL DELIVERY SYSTEM -
PETROL, REPAIRS, Pump - fuel.
10.Connect battery earth lead.

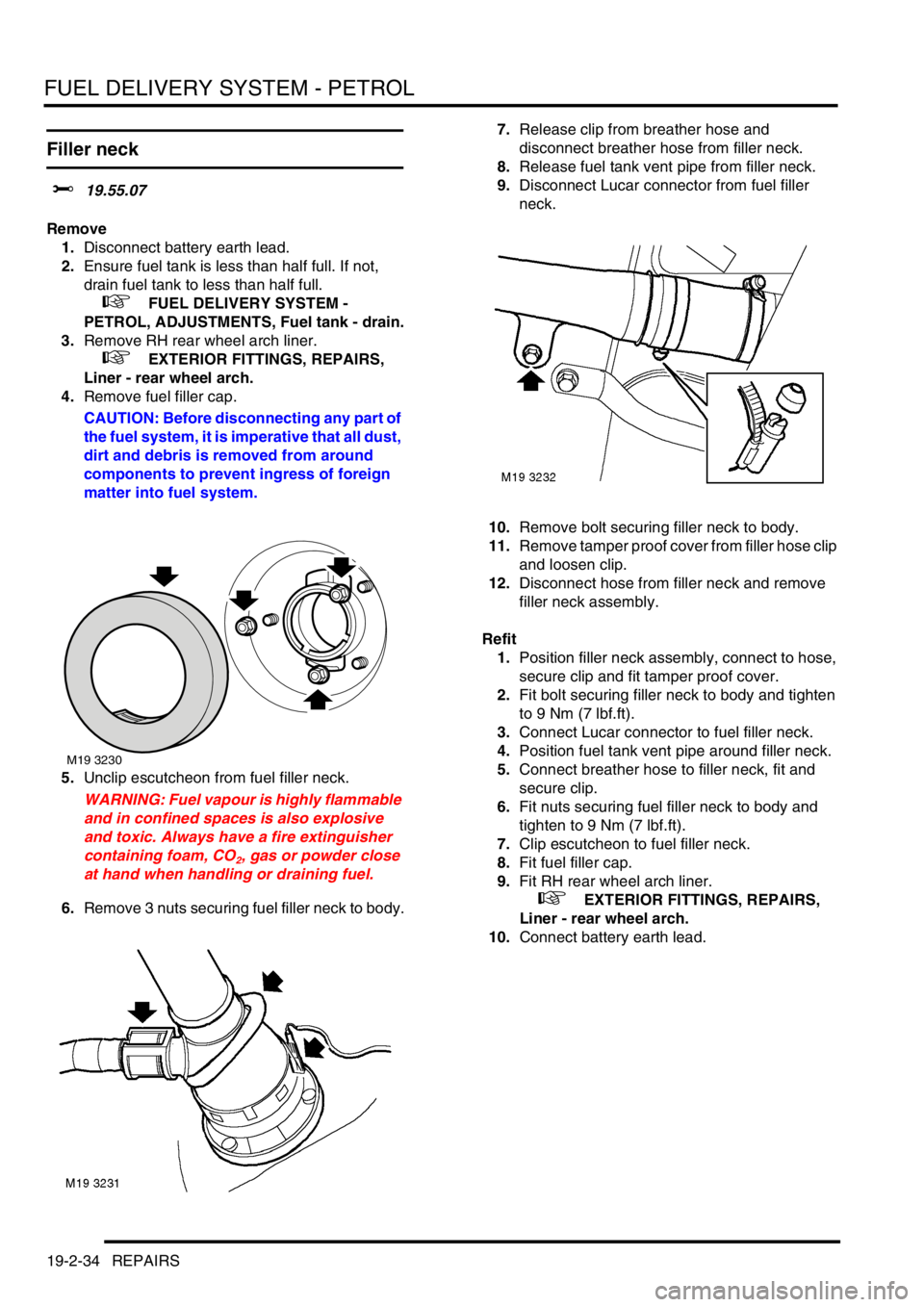

Page 355 of 1007
FUEL DELIVERY SYSTEM - PETROL
19-2-34 REPAIRS
Filler neck
$% 19.55.07
Remove
1.Disconnect battery earth lead.
2.Ensure fuel tank is less than half full. If not,
drain fuel tank to less than half full.
+ FUEL DELIVERY SYSTEM -
PETROL, ADJUSTMENTS, Fuel tank - drain.
3.Remove RH rear wheel arch liner.
+ EXTERIOR FITTINGS, REPAIRS,
Liner - rear wheel arch.
4.Remove fuel filler cap.
CAUTION: Before disconnecting any part of
the fuel system, it is imperative that all dust,
dirt and debris is removed from around
components to prevent ingress of foreign
matter into fuel system.
5.Unclip escutcheon from fuel filler neck.
WARNING: Fuel vapour is highly flammable
and in confined spaces is also explosive
and toxic. Always have a fire extinguisher
containing foam, CO
2, gas or powder close
at hand when handling or draining fuel.
6.Remove 3 nuts securing fuel filler neck to body.7.Release clip from breather hose and
disconnect breather hose from filler neck.
8.Release fuel tank vent pipe from filler neck.
9.Disconnect Lucar connector from fuel filler
neck.
10.Remove bolt securing filler neck to body.
11.Remove tamper proof cover from filler hose clip
and loosen clip.
12.Disconnect hose from filler neck and remove
filler neck assembly.
Refit
1.Position filler neck assembly, connect to hose,
secure clip and fit tamper proof cover.
2.Fit bolt securing filler neck to body and tighten
to 9 Nm (7 lbf.ft).
3.Connect Lucar connector to fuel filler neck.
4.Position fuel tank vent pipe around filler neck.
5.Connect breather hose to filler neck, fit and
secure clip.
6.Fit nuts securing fuel filler neck to body and
tighten to 9 Nm (7 lbf.ft).
7.Clip escutcheon to fuel filler neck.
8.Fit fuel filler cap.
9.Fit RH rear wheel arch liner.
+ EXTERIOR FITTINGS, REPAIRS,
Liner - rear wheel arch.
10.Connect battery earth lead.
M19 3230
Page 356 of 1007
FUEL DELIVERY SYSTEM - PETROL
REPAIRS 19-2-35

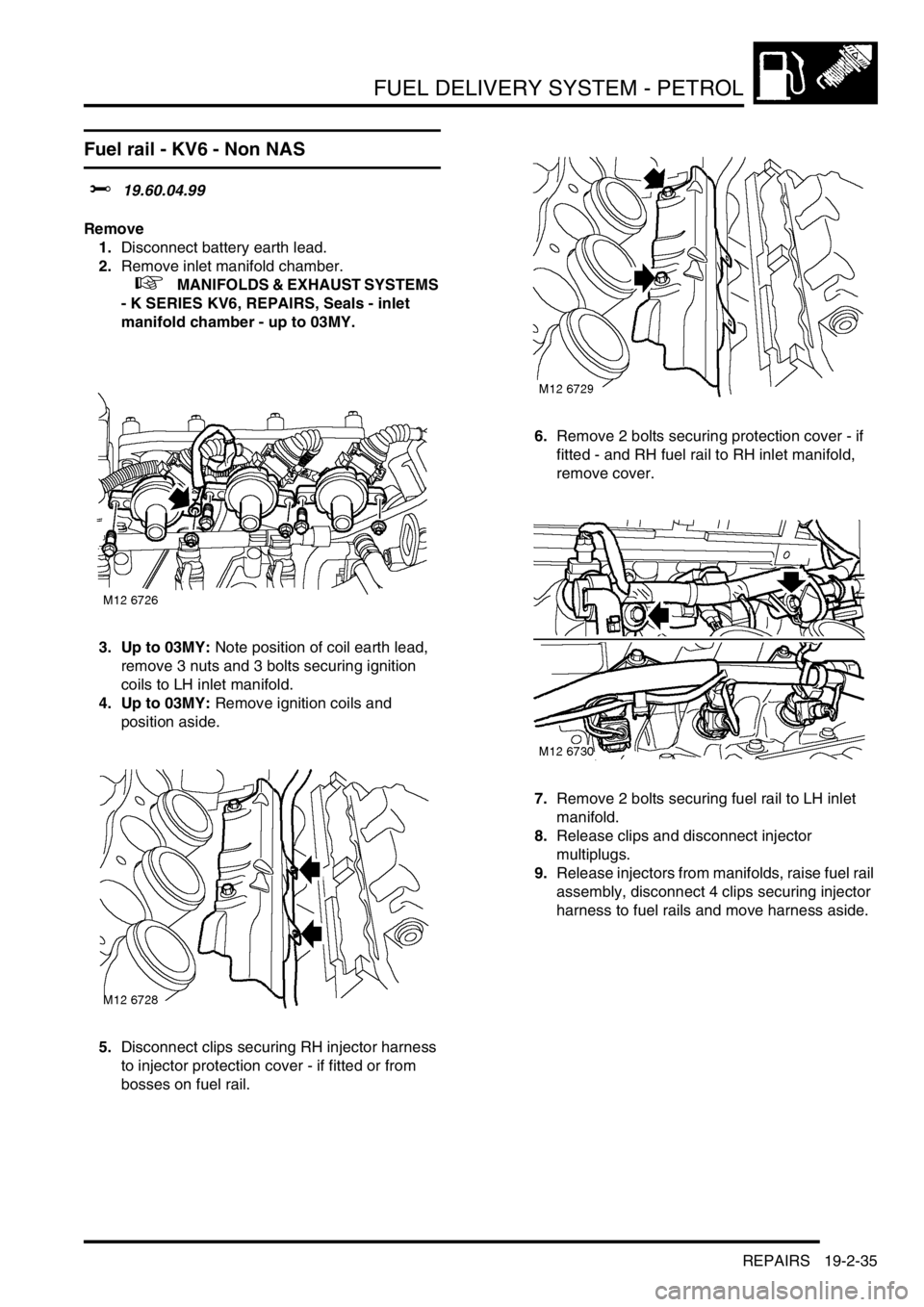

Fuel rail - KV6 - Non NAS
$% 19.60.04.99
Remove
1.Disconnect battery earth lead.
2.Remove inlet manifold chamber.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.
3. Up to 03MY: Note position of coil earth lead,
remove 3 nuts and 3 bolts securing ignition
coils to LH inlet manifold.
4. Up to 03MY: Remove ignition coils and
position aside.
5.Disconnect clips securing RH injector harness
to injector protection cover - if fitted or from
bosses on fuel rail.6.Remove 2 bolts securing protection cover - if
fitted - and RH fuel rail to RH inlet manifold,
remove cover.
7.Remove 2 bolts securing fuel rail to LH inlet
manifold.
8.Release clips and disconnect injector
multiplugs.
9.Release injectors from manifolds, raise fuel rail
assembly, disconnect 4 clips securing injector
harness to fuel rails and move harness aside.
Page 357 of 1007

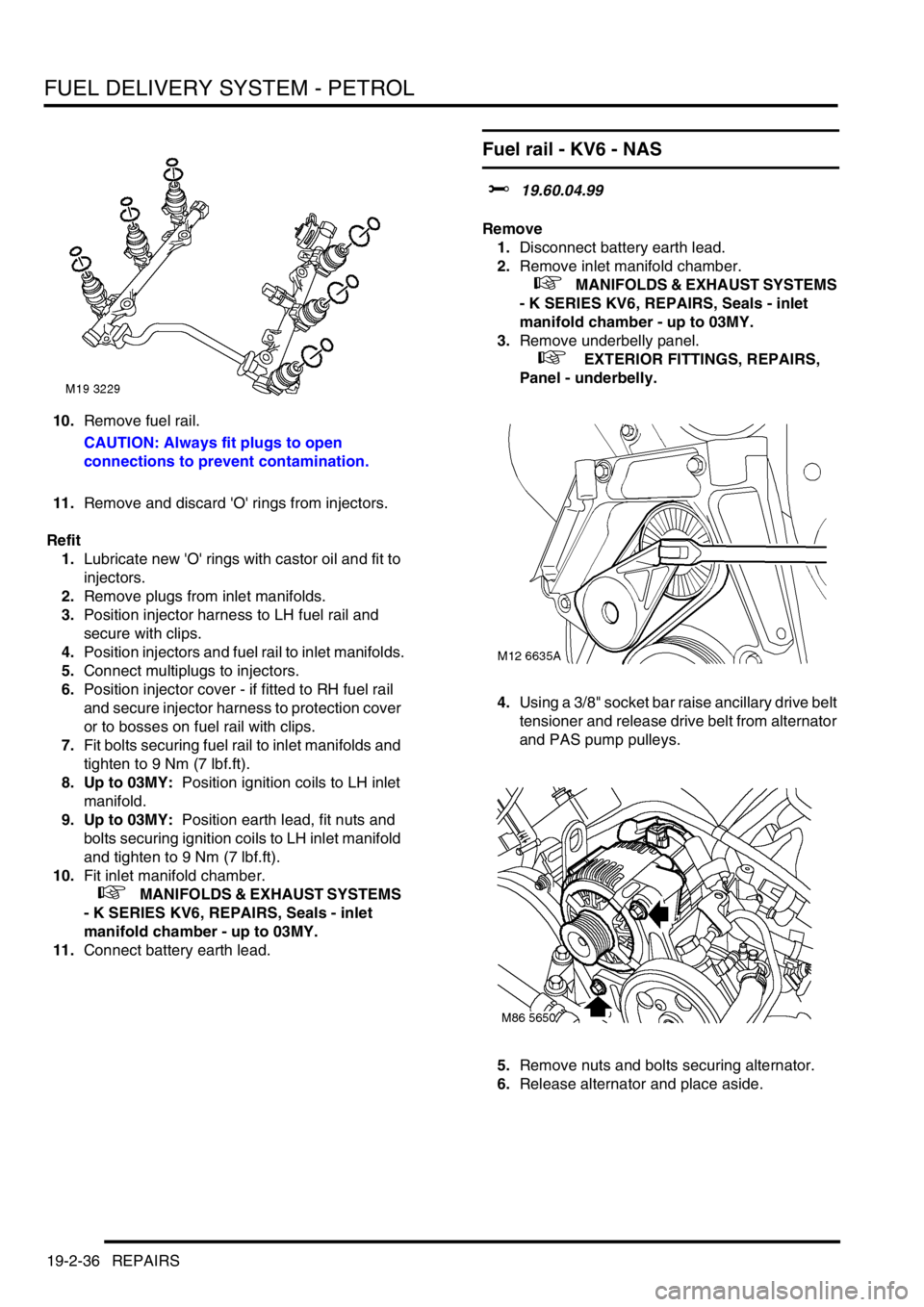

FUEL DELIVERY SYSTEM - PETROL
19-2-36 REPAIRS
10.Remove fuel rail.
CAUTION: Always fit plugs to open
connections to prevent contamination.
11.Remove and discard 'O' rings from injectors.
Refit
1.Lubricate new 'O' rings with castor oil and fit to
injectors.
2.Remove plugs from inlet manifolds.
3.Position injector harness to LH fuel rail and
secure with clips.
4.Position injectors and fuel rail to inlet manifolds.
5.Connect multiplugs to injectors.
6.Position injector cover - if fitted to RH fuel rail
and secure injector harness to protection cover
or to bosses on fuel rail with clips.
7.Fit bolts securing fuel rail to inlet manifolds and
tighten to 9 Nm (7 lbf.ft).
8. Up to 03MY: Position ignition coils to LH inlet
manifold.
9. Up to 03MY: Position earth lead, fit nuts and
bolts securing ignition coils to LH inlet manifold
and tighten to 9 Nm (7 lbf.ft).
10.Fit inlet manifold chamber.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.
11.Connect battery earth lead.
Fuel rail - KV6 - NAS
$% 19.60.04.99
Remove
1.Disconnect battery earth lead.
2.Remove inlet manifold chamber.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.
3.Remove underbelly panel.
+ EXTERIOR FITTINGS, REPAIRS,
Panel - underbelly.
4.Using a 3/8" socket bar raise ancillary drive belt
tensioner and release drive belt from alternator
and PAS pump pulleys.
5.Remove nuts and bolts securing alternator.
6.Release alternator and place aside.
Page 358 of 1007

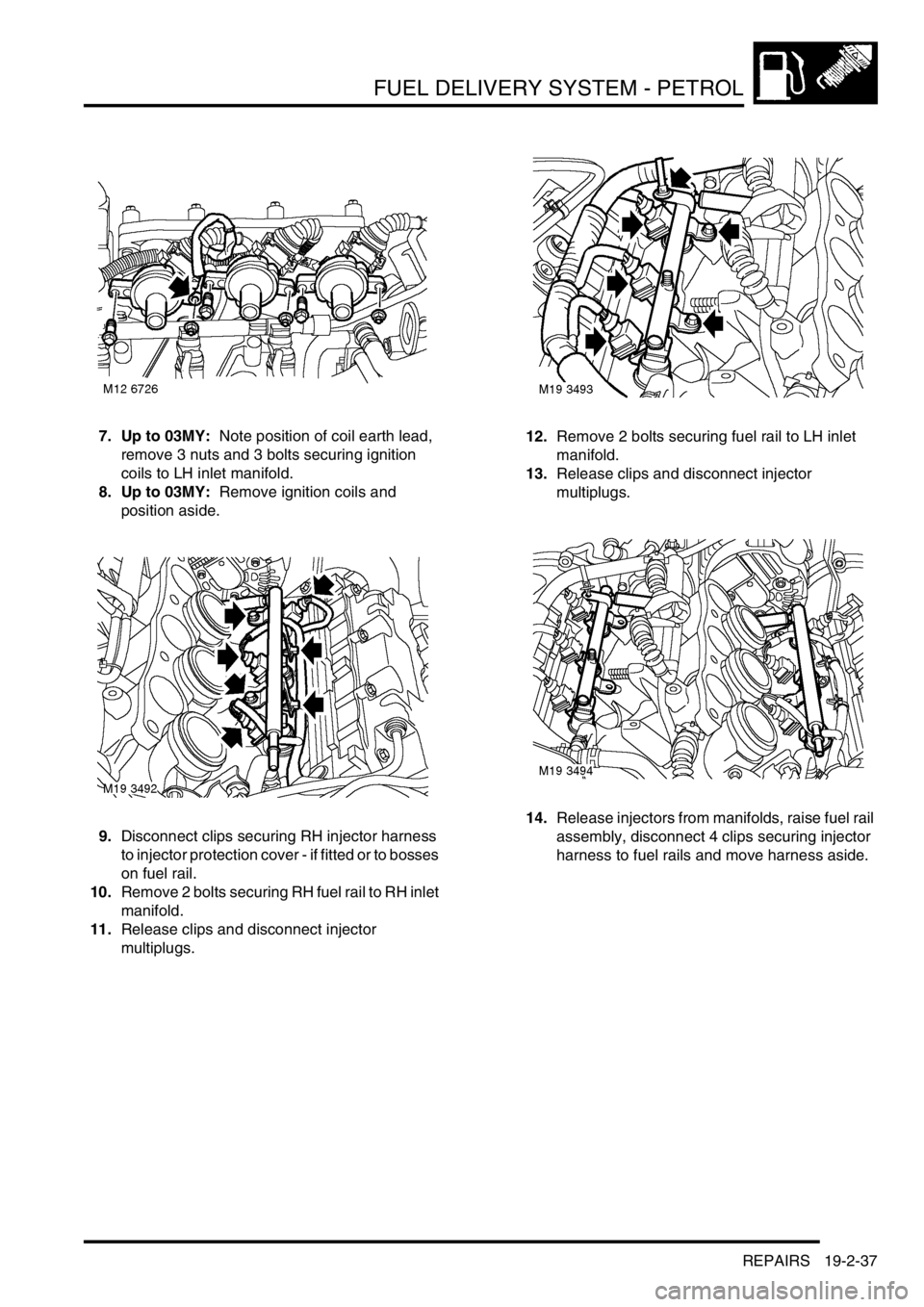

FUEL DELIVERY SYSTEM - PETROL
REPAIRS 19-2-37
7. Up to 03MY: Note position of coil earth lead,
remove 3 nuts and 3 bolts securing ignition
coils to LH inlet manifold.
8. Up to 03MY: Remove ignition coils and
position aside.
9.Disconnect clips securing RH injector harness
to injector protection cover - if fitted or to bosses
on fuel rail.
10.Remove 2 bolts securing RH fuel rail to RH inlet
manifold.
11.Release clips and disconnect injector
multiplugs.12.Remove 2 bolts securing fuel rail to LH inlet
manifold.
13.Release clips and disconnect injector
multiplugs.
14.Release injectors from manifolds, raise fuel rail
assembly, disconnect 4 clips securing injector
harness to fuel rails and move harness aside.
Page 359 of 1007

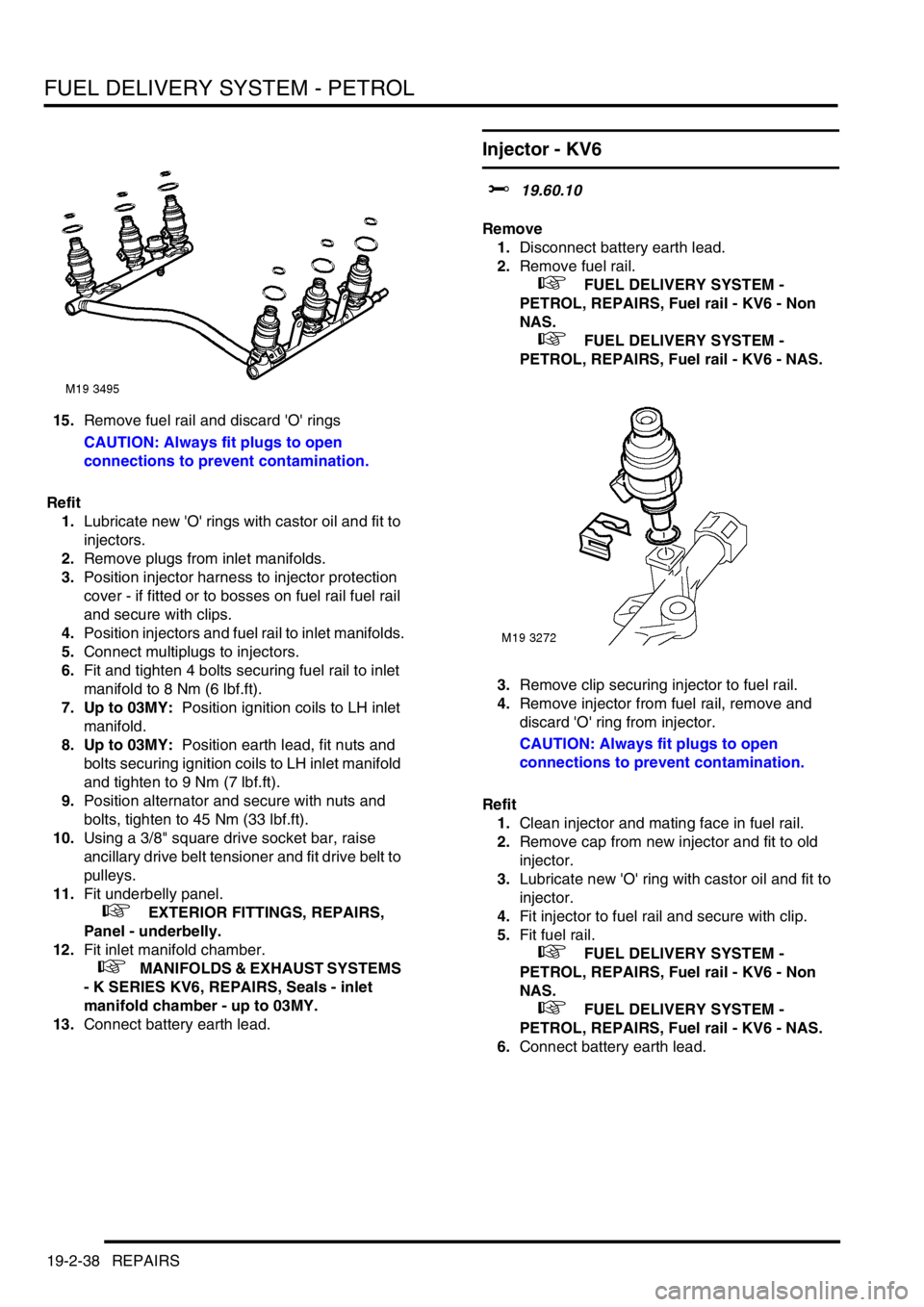

FUEL DELIVERY SYSTEM - PETROL
19-2-38 REPAIRS
15.Remove fuel rail and discard 'O' rings
CAUTION: Always fit plugs to open
connections to prevent contamination.
Refit
1.Lubricate new 'O' rings with castor oil and fit to
injectors.
2.Remove plugs from inlet manifolds.
3.Position injector harness to injector protection
cover - if fitted or to bosses on fuel rail fuel rail
and secure with clips.
4.Position injectors and fuel rail to inlet manifolds.
5.Connect multiplugs to injectors.
6.Fit and tighten 4 bolts securing fuel rail to inlet
manifold to 8 Nm (6 lbf.ft).
7. Up to 03MY: Position ignition coils to LH inlet
manifold.
8. Up to 03MY: Position earth lead, fit nuts and
bolts securing ignition coils to LH inlet manifold
and tighten to 9 Nm (7 lbf.ft).
9.Position alternator and secure with nuts and
bolts, tighten to 45 Nm (33 lbf.ft).
10.Using a 3/8" square drive socket bar, raise
ancillary drive belt tensioner and fit drive belt to
pulleys.
11.Fit underbelly panel.
+ EXTERIOR FITTINGS, REPAIRS,
Panel - underbelly.
12.Fit inlet manifold chamber.
+ MANIFOLDS & EXHAUST SYSTEMS
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.
13.Connect battery earth lead.
Injector - KV6
$% 19.60.10
Remove
1.Disconnect battery earth lead.
2.Remove fuel rail.
+ FUEL DELIVERY SYSTEM -
PETROL, REPAIRS, Fuel rail - KV6 - Non
NAS.
+ FUEL DELIVERY SYSTEM -
PETROL, REPAIRS, Fuel rail - KV6 - NAS.
3.Remove clip securing injector to fuel rail.
4.Remove injector from fuel rail, remove and
discard 'O' ring from injector.
CAUTION: Always fit plugs to open
connections to prevent contamination.
Refit
1.Clean injector and mating face in fuel rail.
2.Remove cap from new injector and fit to old
injector.
3.Lubricate new 'O' ring with castor oil and fit to
injector.
4.Fit injector to fuel rail and secure with clip.
5.Fit fuel rail.
+ FUEL DELIVERY SYSTEM -
PETROL, REPAIRS, Fuel rail - KV6 - Non
NAS.
+ FUEL DELIVERY SYSTEM -
PETROL, REPAIRS, Fuel rail - KV6 - NAS.
6.Connect battery earth lead.
Page 360 of 1007
FUEL DELIVERY SYSTEM - PETROL
REPAIRS 19-2-39

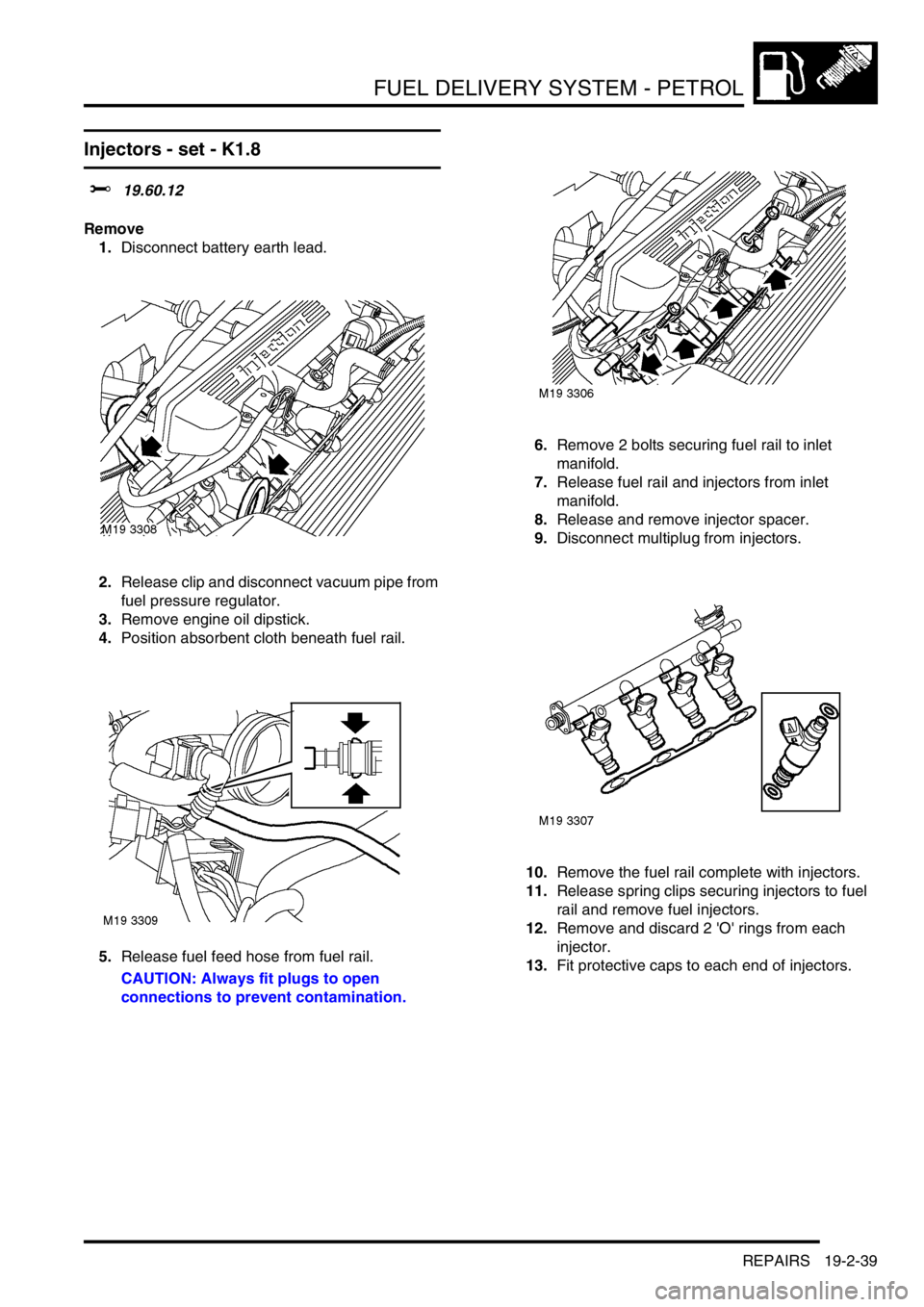

Injectors - set - K1.8
$% 19.60.12
Remove
1.Disconnect battery earth lead.
2.Release clip and disconnect vacuum pipe from
fuel pressure regulator.
3.Remove engine oil dipstick.
4.Position absorbent cloth beneath fuel rail.
5.Release fuel feed hose from fuel rail.
CAUTION: Always fit plugs to open
connections to prevent contamination.6.Remove 2 bolts securing fuel rail to inlet
manifold.
7.Release fuel rail and injectors from inlet
manifold.
8.Release and remove injector spacer.
9.Disconnect multiplug from injectors.
10.Remove the fuel rail complete with injectors.
11.Release spring clips securing injectors to fuel
rail and remove fuel injectors.
12.Remove and discard 2 'O' rings from each
injector.
13.Fit protective caps to each end of injectors.
