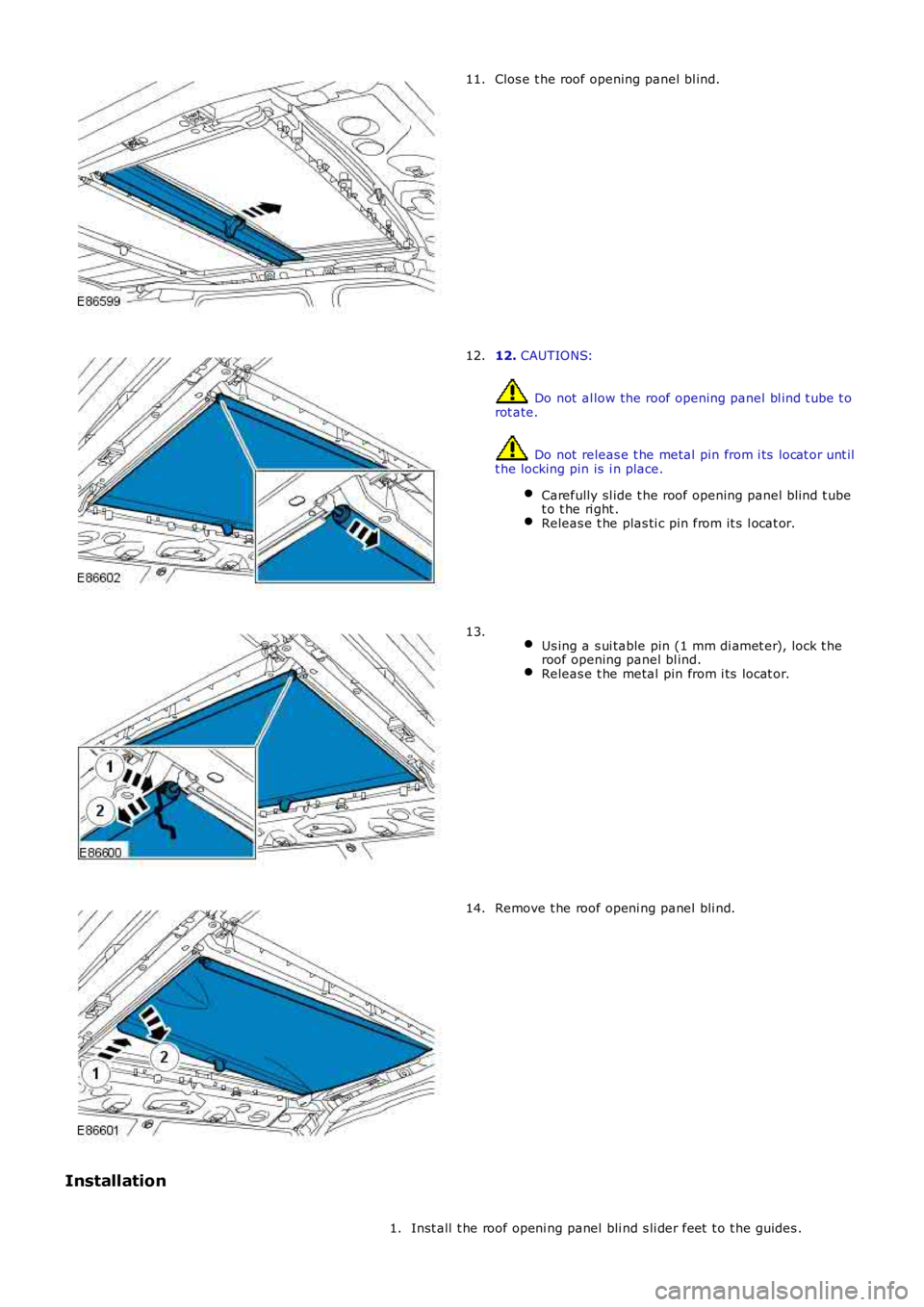

Clos e t he roof opening panel bl ind.
11. 12.
CAUTIONS: Do not al low the roof opening panel bl ind t ube t o
rot ate. Do not releas e t he metal pin from i ts locat or unt il
t he locking pin is i n place.
Carefully sl ide t he roof opening panel bl ind t ube
t o t he ri ght . Releas e t he plas ti c pin from it s l ocat or.12.

Us ing a s ui table pin (1 mm di amet er), lock t he
roof opening panel bl ind. Releas e t he metal pin from i ts locat or.13.
Remove t he roof openi ng panel bli nd.
14.
Installation Inst all t he roof openi ng panel bli nd s li der feet t o t he guides .
1.

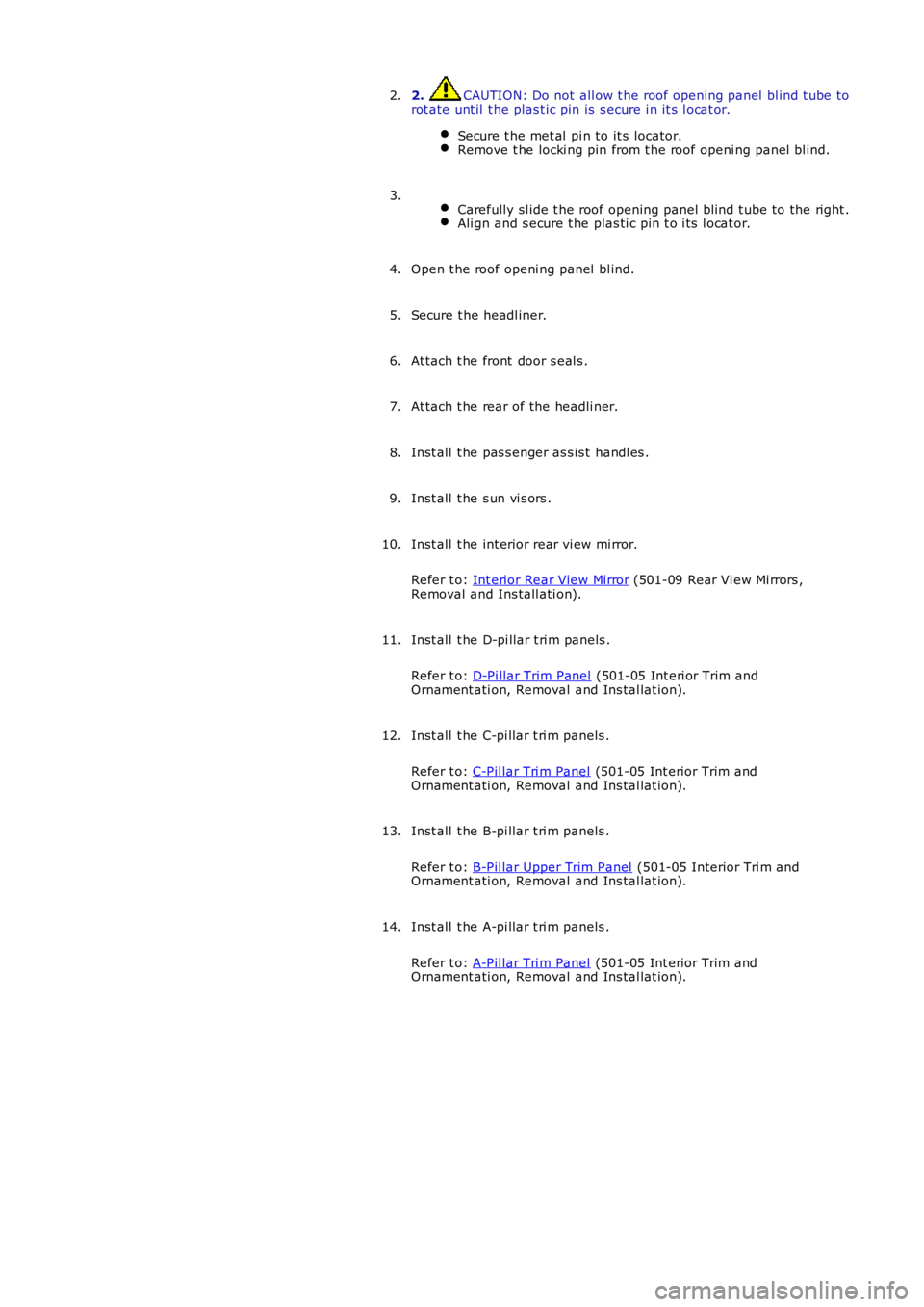

2. CAUTION: Do not all ow t he roof opening panel bl ind t ube to
rot ate unt il t he plas t ic pin is s ecure i n it s l ocat or.
Secure t he met al pi n to it s locator. Remove t he locki ng pin from t he roof openi ng panel bl ind.2.
Carefully sl ide t he roof opening panel bl ind t ube to the right . Ali gn and s ecure t he plas ti c pin t o i ts l ocat or.3.
Open t he roof openi ng panel bl ind.
4.
Secure t he headl iner.
5.
At tach t he front door s eal s .
6.
At tach t he rear of the headli ner.
7.
Inst all t he pas s enger as s is t handl es .
8.
Inst all t he s un vi s ors .
9.
Inst all t he int erior rear vi ew mi rror.
Refer t o: Int erior Rear View Mirror (501-09 Rear Vi ew Mi rrors ,
Removal and Ins tall ati on).
10.
Inst all t he D-pi llar t ri m panels .
Refer t o: D-Pi llar Trim Panel (501-05 Int eri or Trim and
Ornament ati on, Removal and Ins tal lat ion).
11.
Inst all t he C-pi llar t ri m panels .
Refer t o: C-Pil lar Tri m Panel (501-05 Int erior Trim and
Ornament ati on, Removal and Ins tal lat ion).
12.
Inst all t he B-pi llar t ri m panels .
Refer t o: B-Pil lar Upper Trim Panel (501-05 Interior Tri m and
Ornament ati on, Removal and Ins tal lat ion).
13.
Inst all t he A-pi llar t ri m panels .
Refer t o: A-Pil lar Tri m Panel (501-05 Int erior Trim and
Ornament ati on, Removal and Ins tal lat ion).
14.

Publi s hed: 11-May-2011

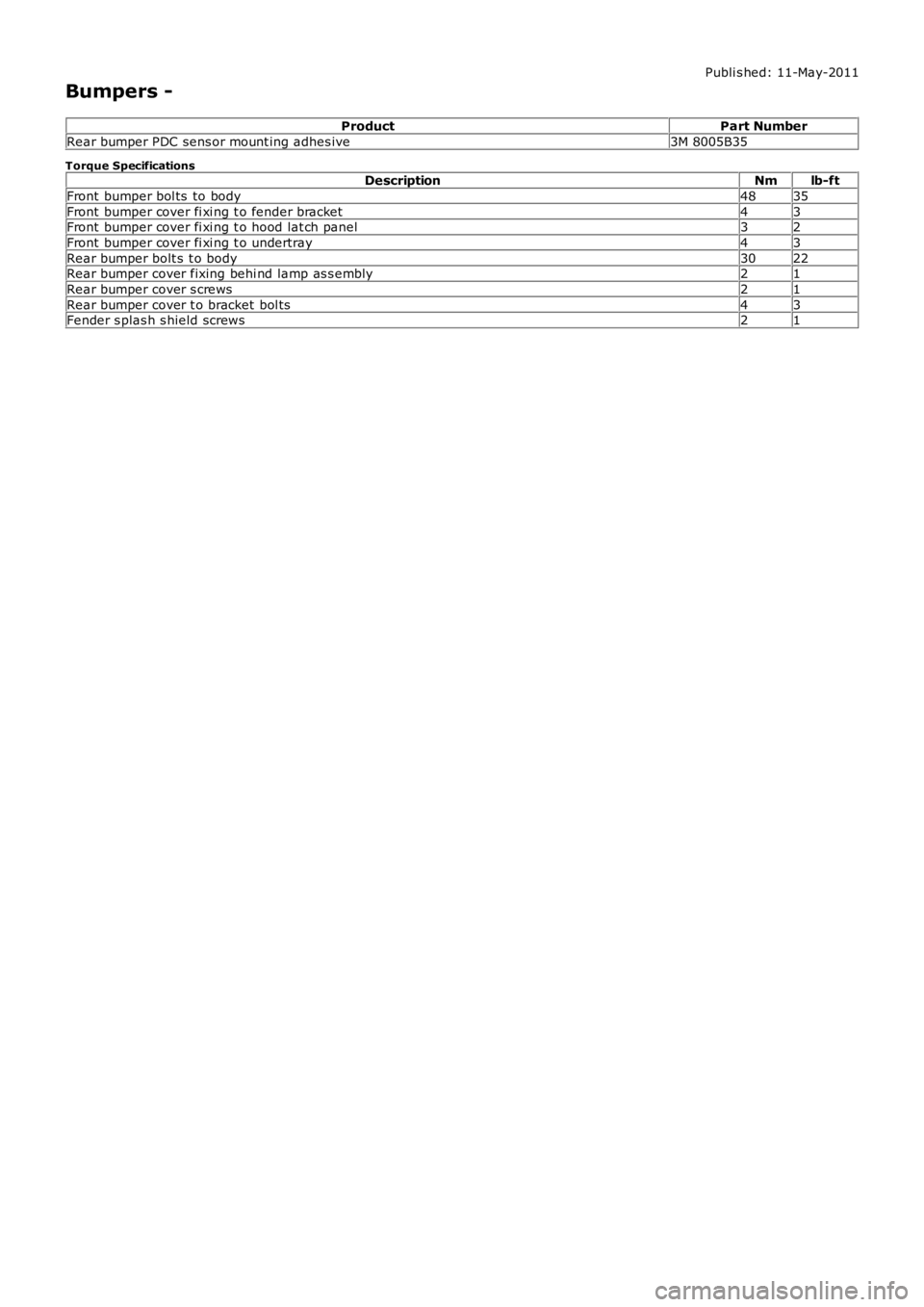

Bumpers -
ProductPart Number
Rear bumper PDC sens or mount ing adhes ive3M 8005B35
Torque SpecificationsDescriptionNmlb-ft
Front bumper bol ts to body4835
Front bumper cover fi xi ng t o fender bracket43Front bumper cover fi xi ng t o hood lat ch panel32
Front bumper cover fi xi ng t o undertray43
Rear bumper bolt s t o body3022Rear bumper cover fixing behi nd lamp as s embly21
Rear bumper cover s crews21
Rear bumper cover t o bracket bol ts43Fender s plas h s hield screws21

Publi s hed: 11-May-2011

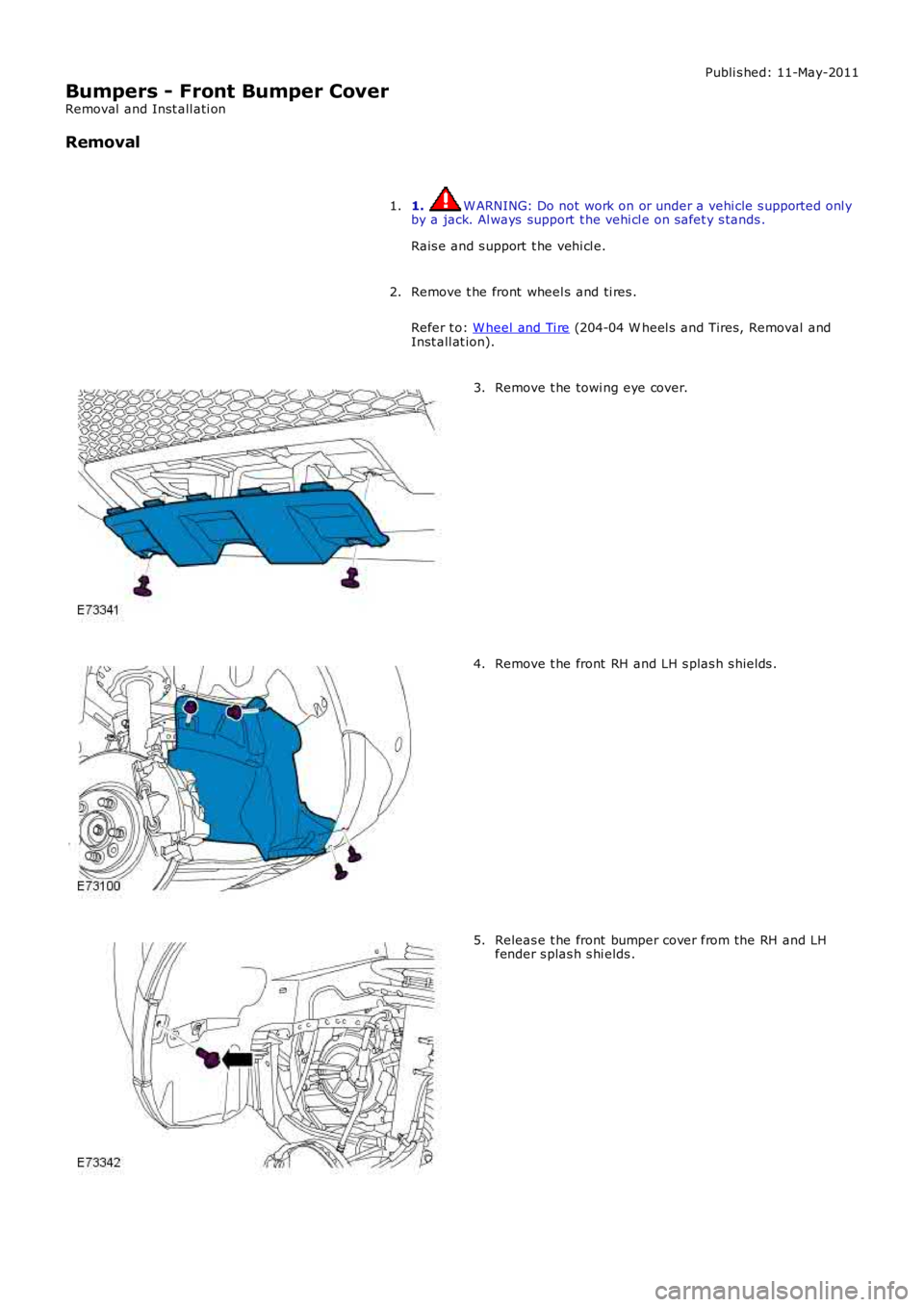

Bumpers - Front Bumper Cover
Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl yby a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel s and ti res .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
2.
Remove t he towi ng eye cover.3.
Remove t he front RH and LH s plas h s hields .4.
Releas e t he front bumper cover from the RH and LHfender s plas h s hi elds .5.

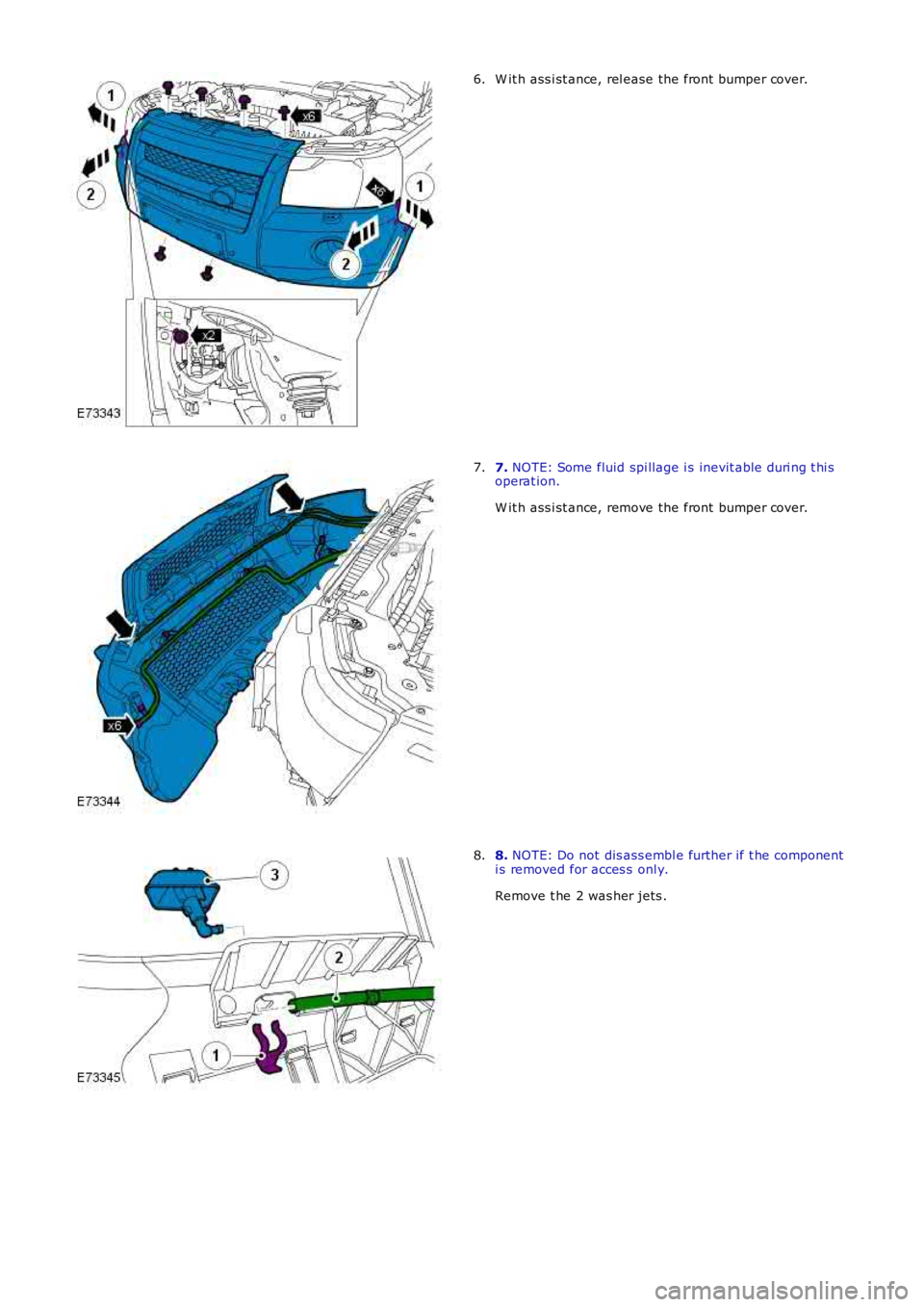

W it h ass i st ance, rel ease the front bumper cover.6.
7. NOTE: Some fluid spi llage i s inevit able duri ng t hi soperat ion.
W it h ass i st ance, remove the front bumper cover.
7.
8. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.
Remove t he 2 was her jets .
8.

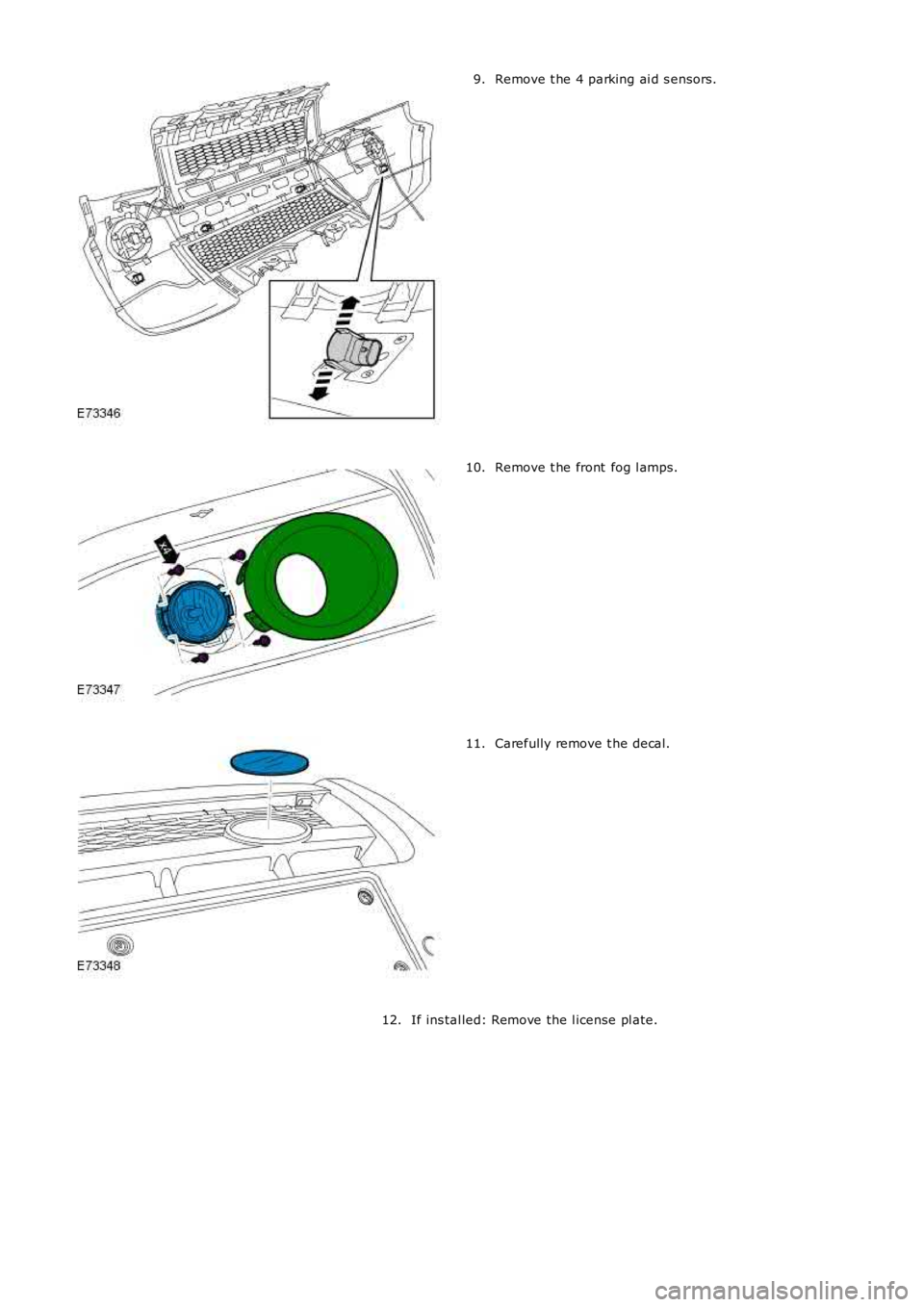

Remove t he 4 parking ai d s ensors.9.
Remove t he front fog l amps.10.
Carefully remove t he decal.11.
If ins tal led: Remove the l icense pl ate.12.

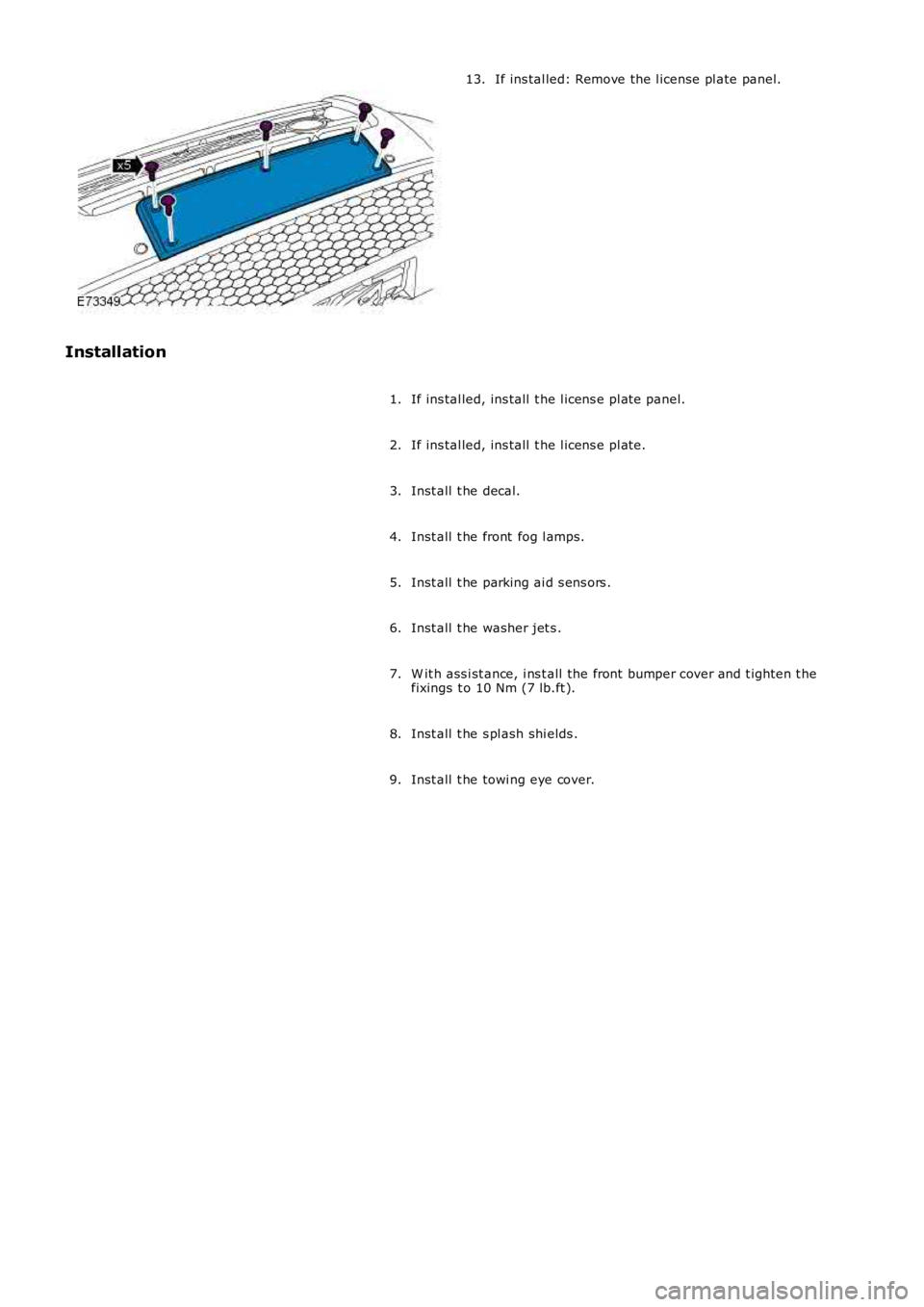

If ins tal led: Remove the l icense pl ate panel.13.
Installation
If ins tal led, ins tall t he l icens e pl at e panel.1.
If ins tal led, ins tall t he l icens e pl at e.2.
Inst all t he decal.3.
Inst all t he front fog l amps.4.
Inst all t he parking ai d s ens ors .5.
Inst all t he washer jet s .6.
W it h ass i st ance, i ns t all the front bumper cover and t ighten t hefixings t o 10 Nm (7 lb.ft ).7.
Inst all t he s pl ash shi elds .8.
Inst all t he towi ng eye cover.9.

Publi s hed: 11-May-2011

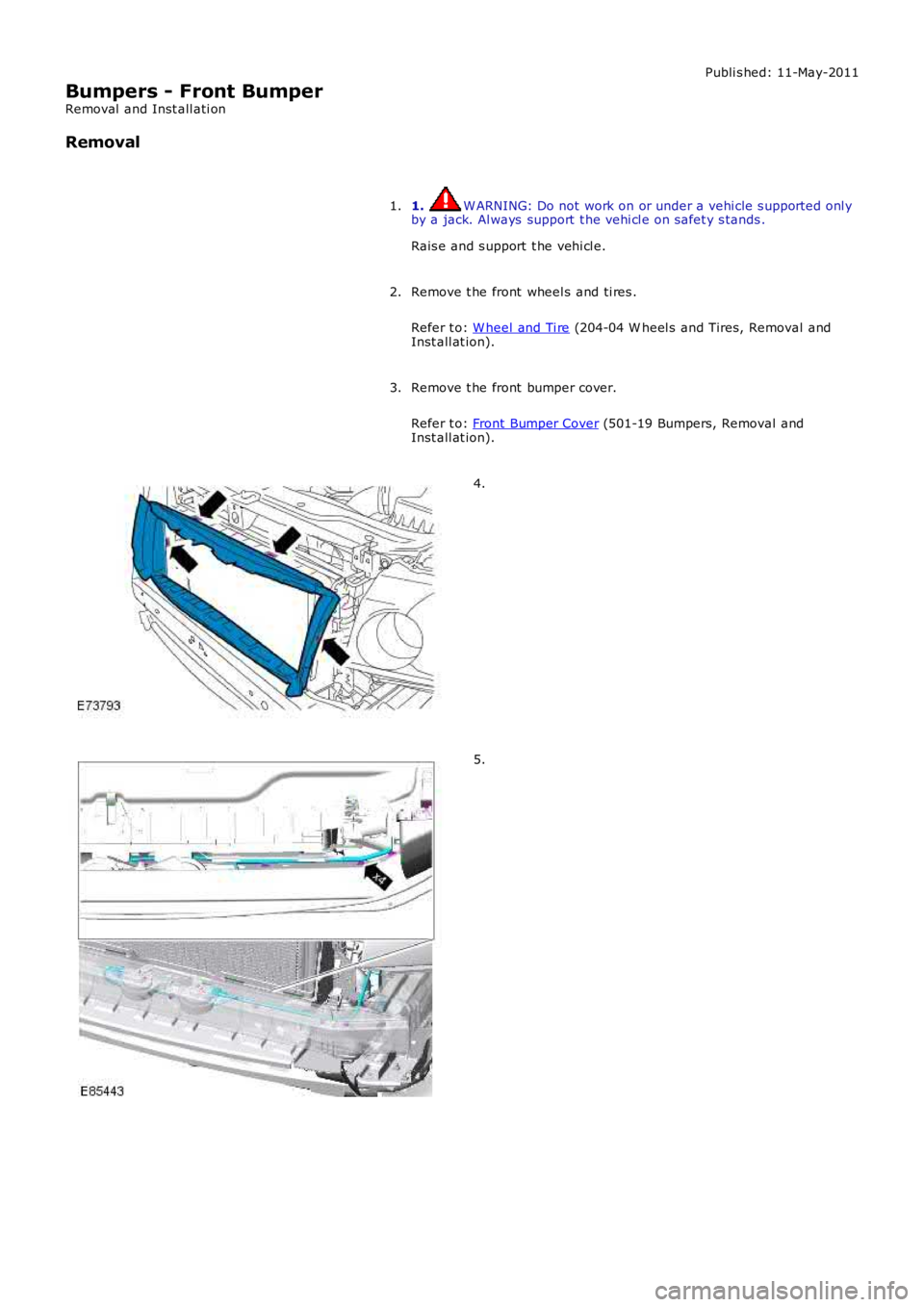

Bumpers - Front Bumper
Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl yby a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel s and ti res .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
2.
Remove t he front bumper cover.
Refer t o: Front Bumper Cover (501-19 Bumpers, Removal andInst all at ion).
3.
4.
5.

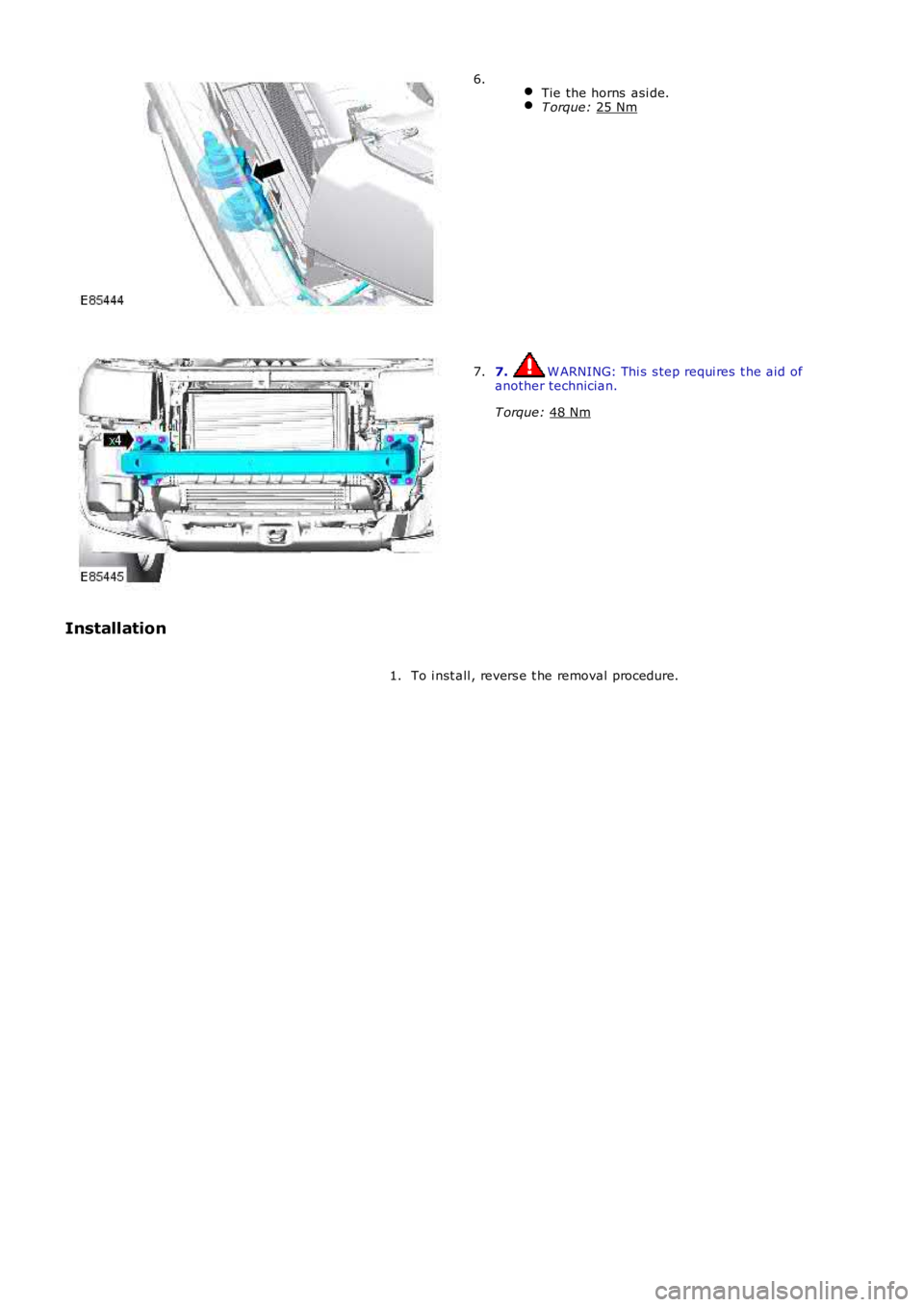

Tie the horns asi de. T orque:
25 Nm 6.
7. W ARNING: Thi s s tep requi res t he aid of
another technician.
T orque: 48 Nm 7.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

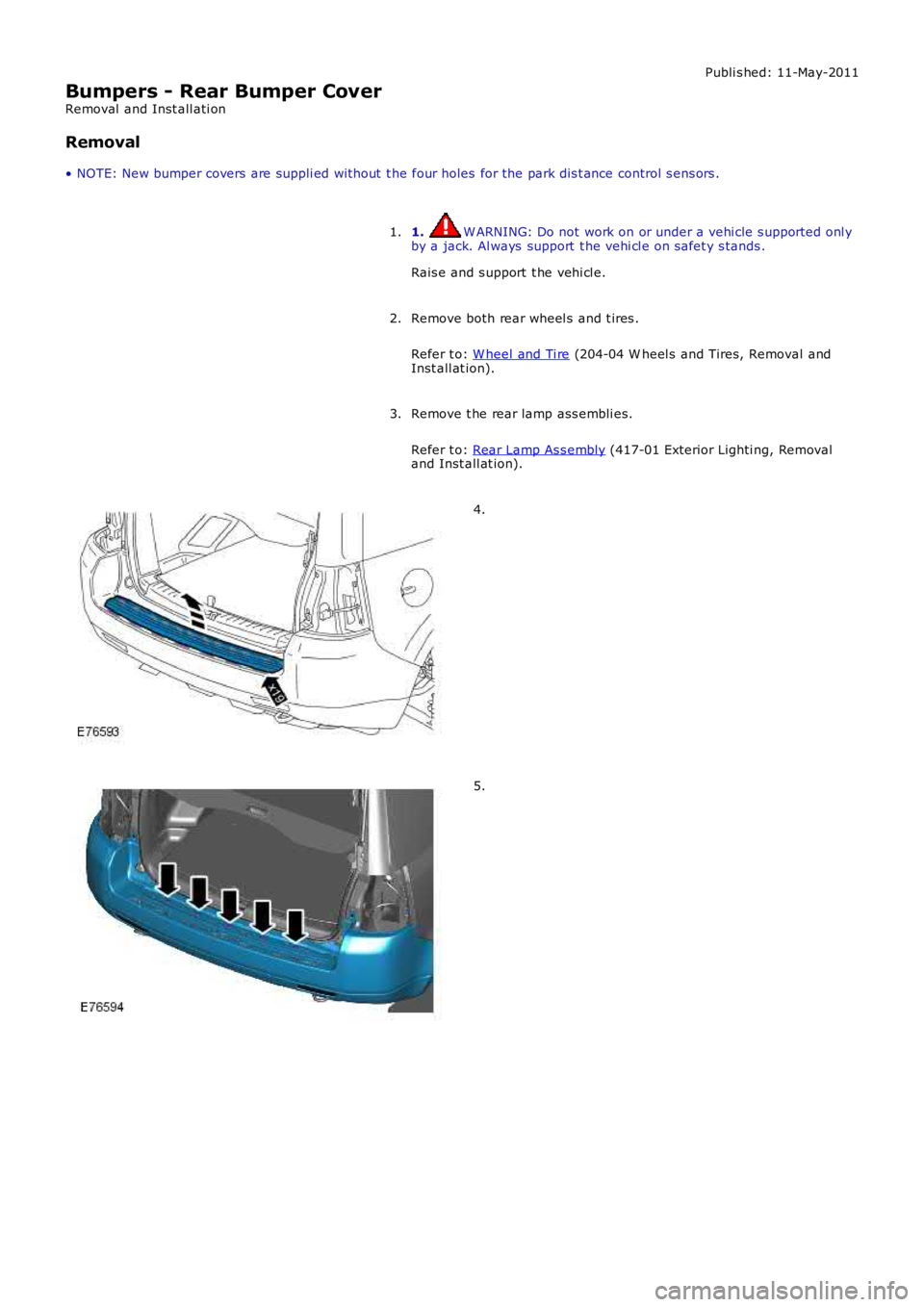

Bumpers - Rear Bumper Cover
Removal and Inst all ati on
Removal
• NOTE: New bumper covers are suppli ed wit hout t he four holes for the park dis t ance control s ens ors .
1. W ARNING: Do not work on or under a vehi cle s upported onl yby a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove both rear wheel s and t ires .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
2.
Remove t he rear lamp ass embli es.
Refer t o: Rear Lamp As s embly (417-01 Exterior Lighti ng, Removaland Inst all at ion).
3.
4.
5.
