LAND ROVER FRELANDER 2 2006 Repair Manual

6.
7.

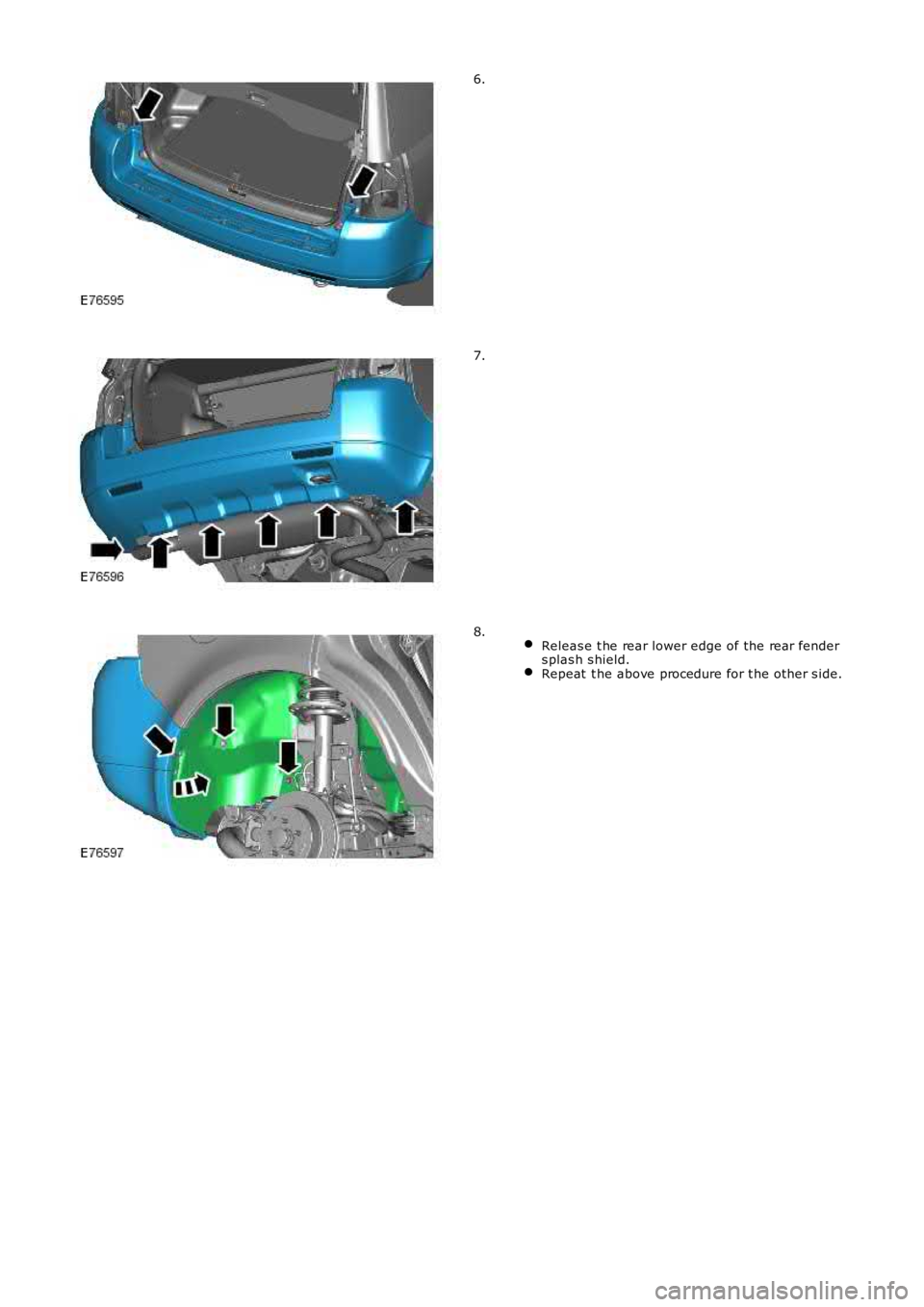

Releas e t he rear lower edge of the rear fenders plas h s hield.Repeat t he above procedure for t he other s ide.
8.

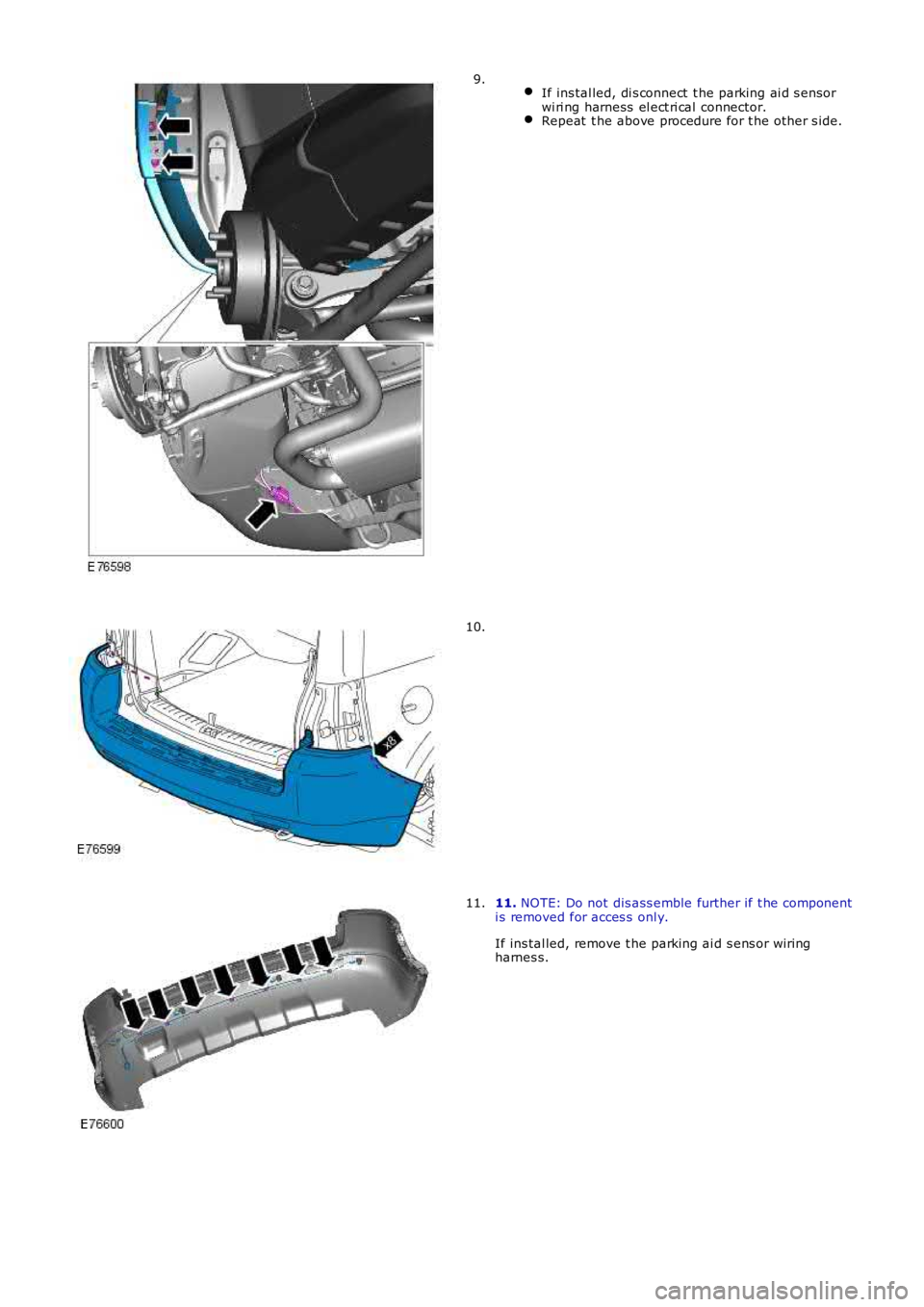

If ins tal led, di s connect t he parking ai d s ensorwi ri ng harness el ect ri cal connector.Repeat t he above procedure for t he other s ide.
9.
10.
11. NOTE: Do not dis ass emble further if t he componenti s removed for acces s onl y.
If ins tal led, remove t he parking ai d s ens or wiringharnes s.
11.

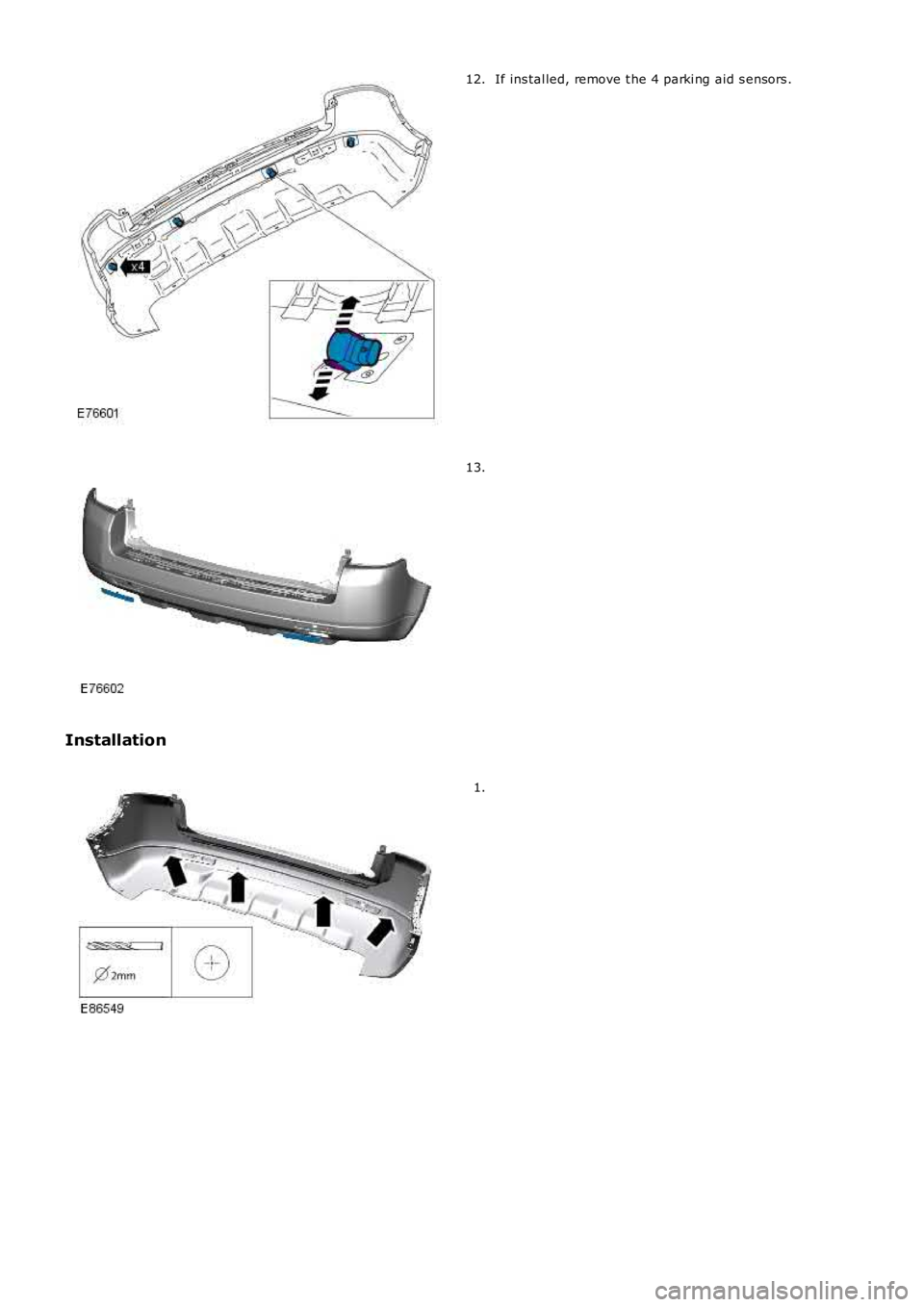

If ins tal led, remove t he 4 parki ng aid s ensors .12.
13.
Installation
1.

2.

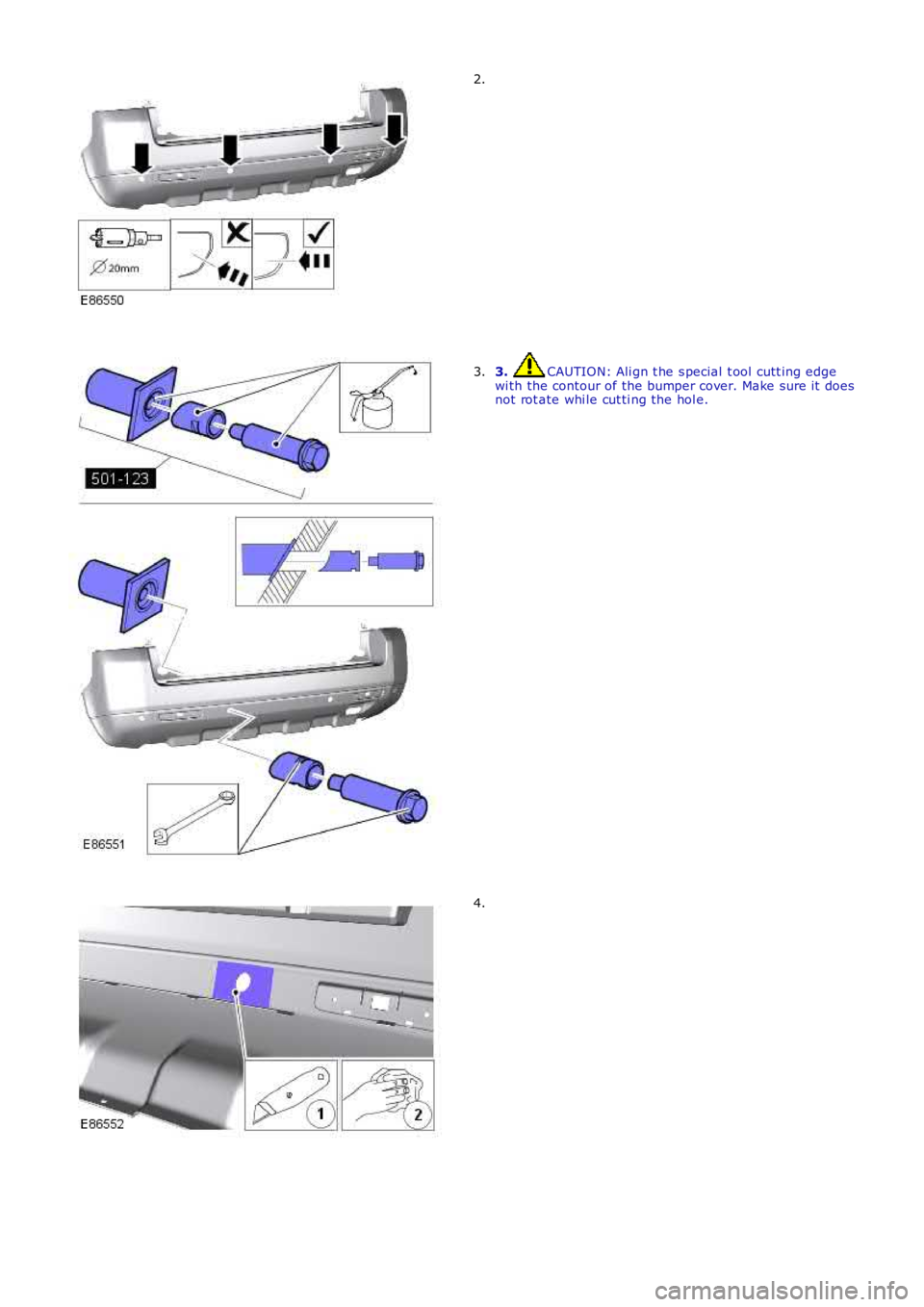

3. CAUTION: Ali gn t he s pecial t ool cutt ing edgewi th the contour of the bumper cover. Make sure it doesnot rot ate whi le cut ti ng the hol e.
3.
4.

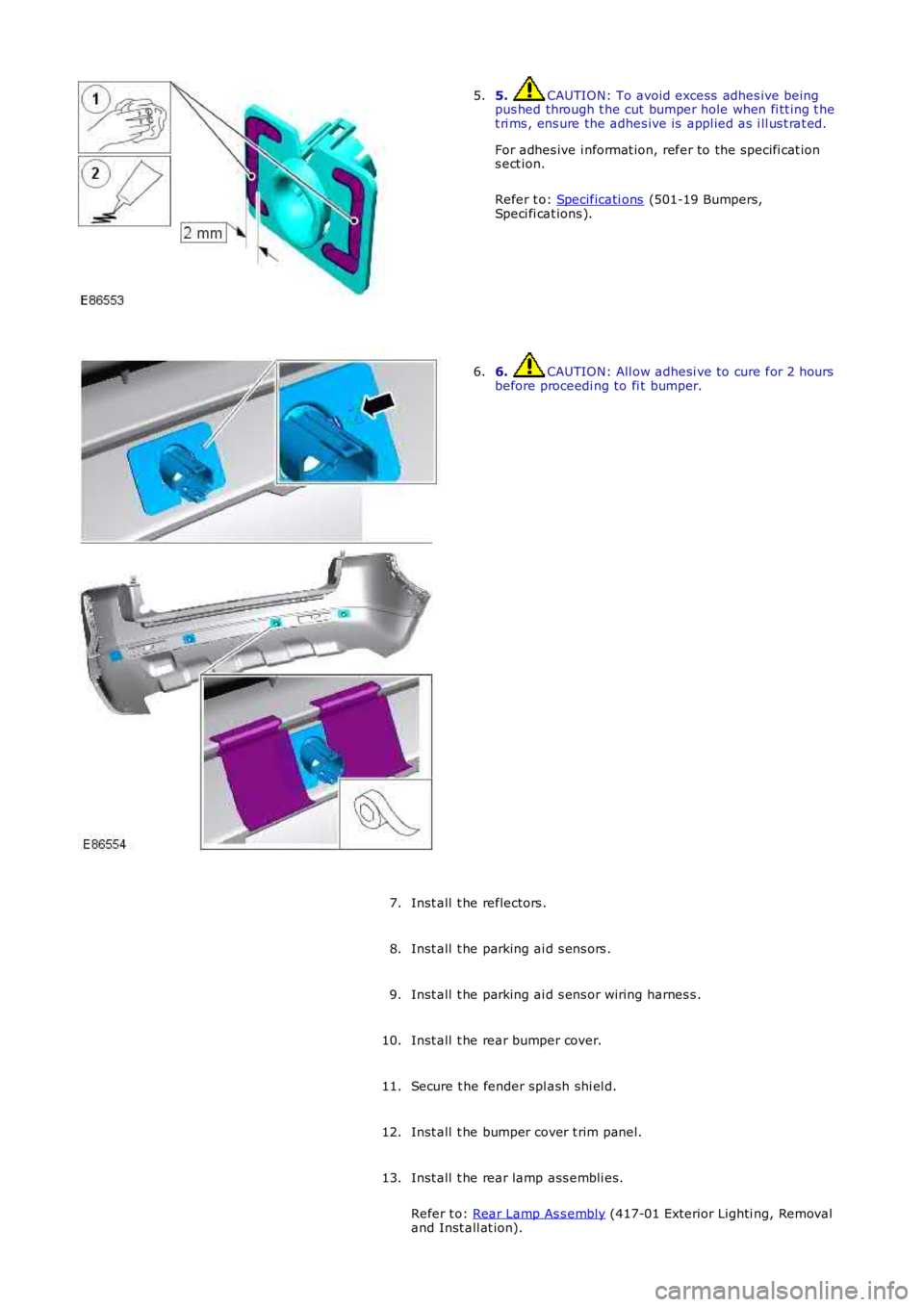

5. CAUTION: To avoid excess adhes ive beingpus hed through t he cut bumper hole when fi tt ing t het ri ms , ens ure the adhes ive is appl ied as i ll us t rat ed.
For adhes ive i nformat ion, refer to the s pecifi cat ions ect ion.
Refer t o: Specificati ons (501-19 Bumpers,Speci fi cat ions ).
5.
6. CAUTION: All ow adhesi ve to cure for 2 hoursbefore proceedi ng to fi t bumper.6.
Inst all t he reflectors .7.
Inst all t he parking ai d s ens ors .8.
Inst all t he parking ai d s ens or wiring harnes s .9.
Inst all t he rear bumper cover.10.
Secure t he fender spl ash shi el d.11.
Inst all t he bumper cover t rim panel.12.
Inst all t he rear lamp ass embli es.
Refer t o: Rear Lamp As s embly (417-01 Exterior Lighti ng, Removaland Inst all at ion).
13.

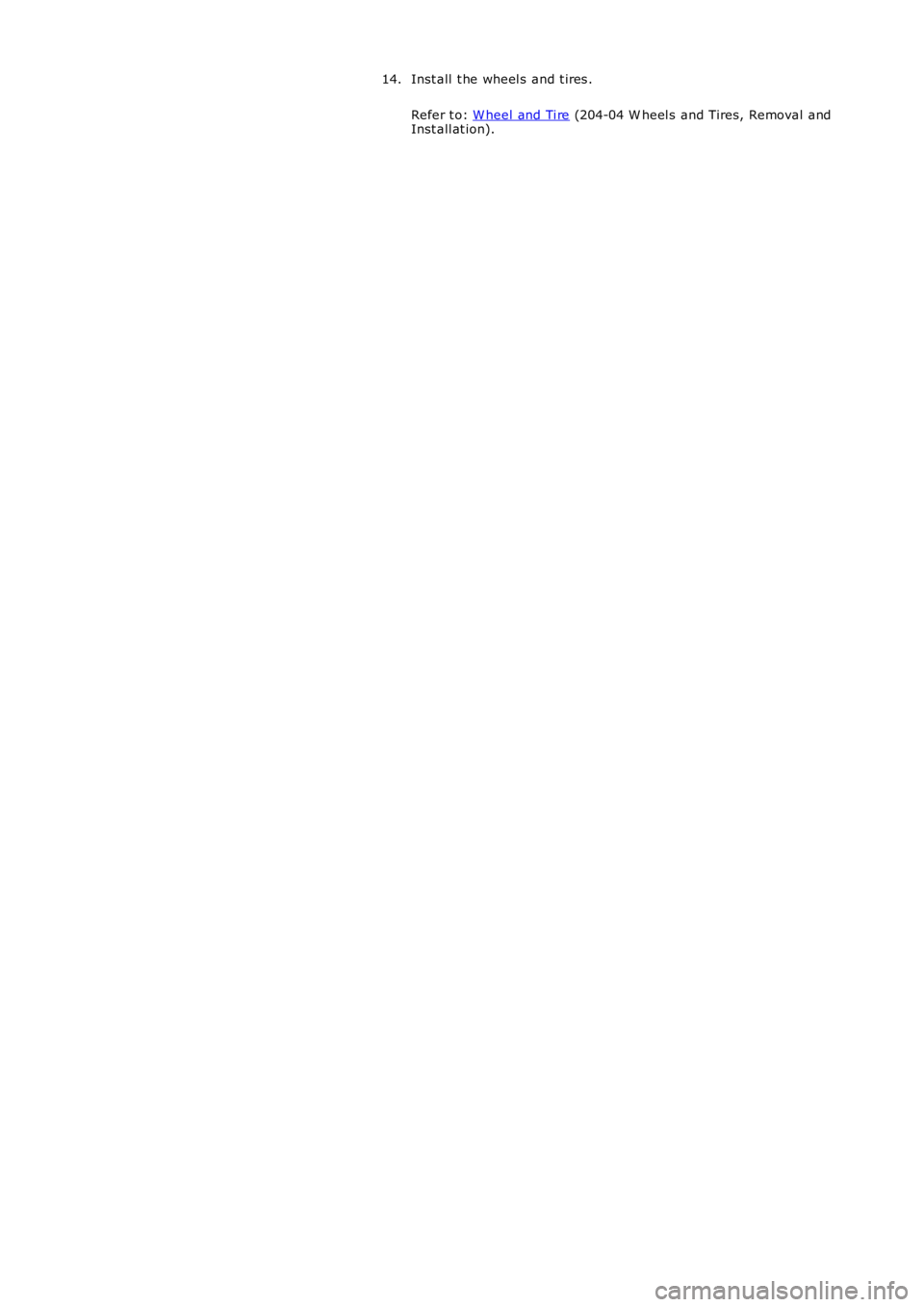

Inst all t he wheel s and t ires .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal andInst all at ion).
14.

Publi s hed: 11-May-2011
Bumpers - Rear Bumper

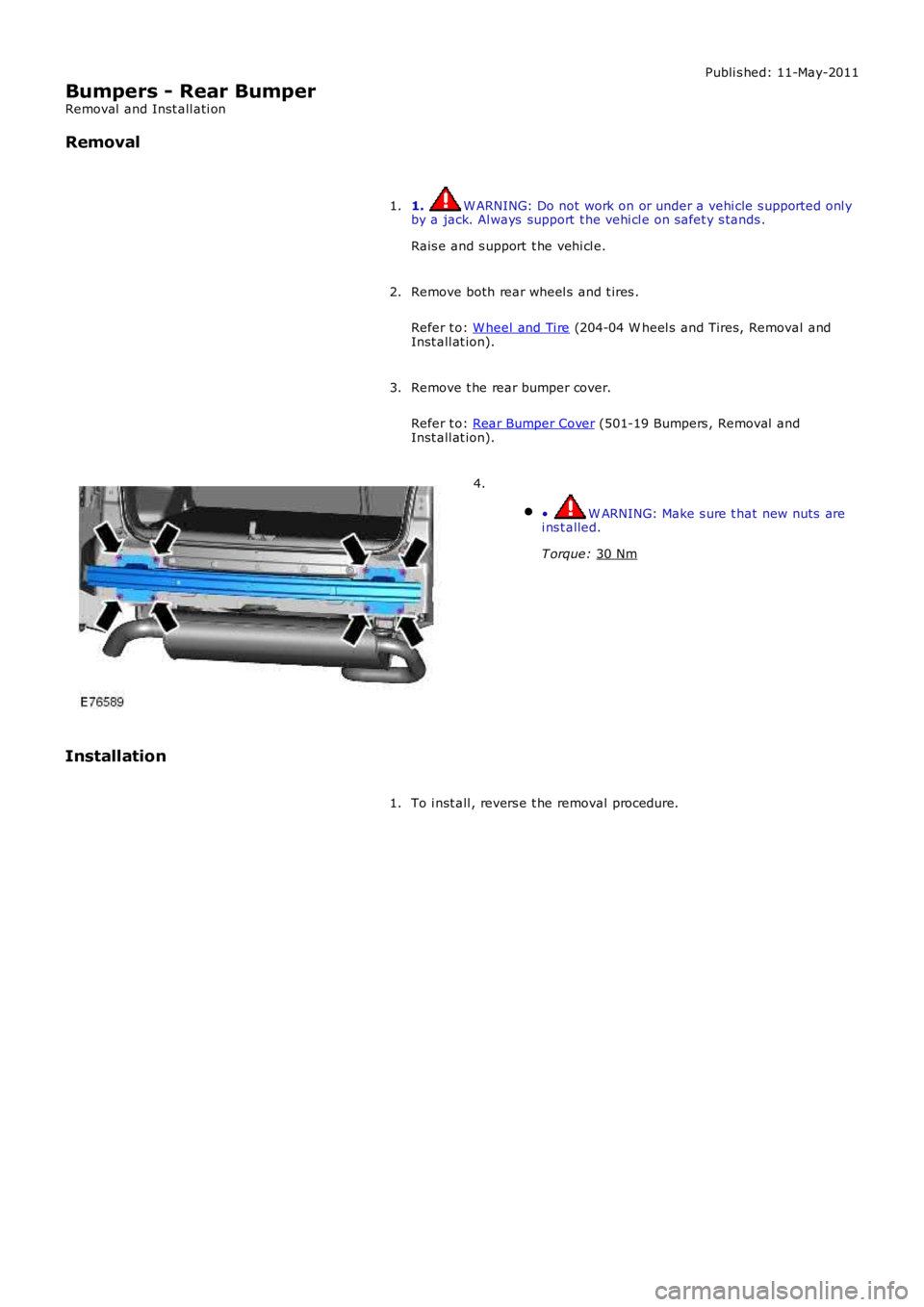

Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove both rear wheel s and t ires .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
2.
Remove t he rear bumper cover.
Refer t o: Rear Bumper Cover (501-19 Bumpers , Removal and
Inst all at ion).
3.
• W ARNING: Make s ure t hat new nuts are
i ns t alled.
T orque: 30 Nm 4.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011
Safety Belt System -

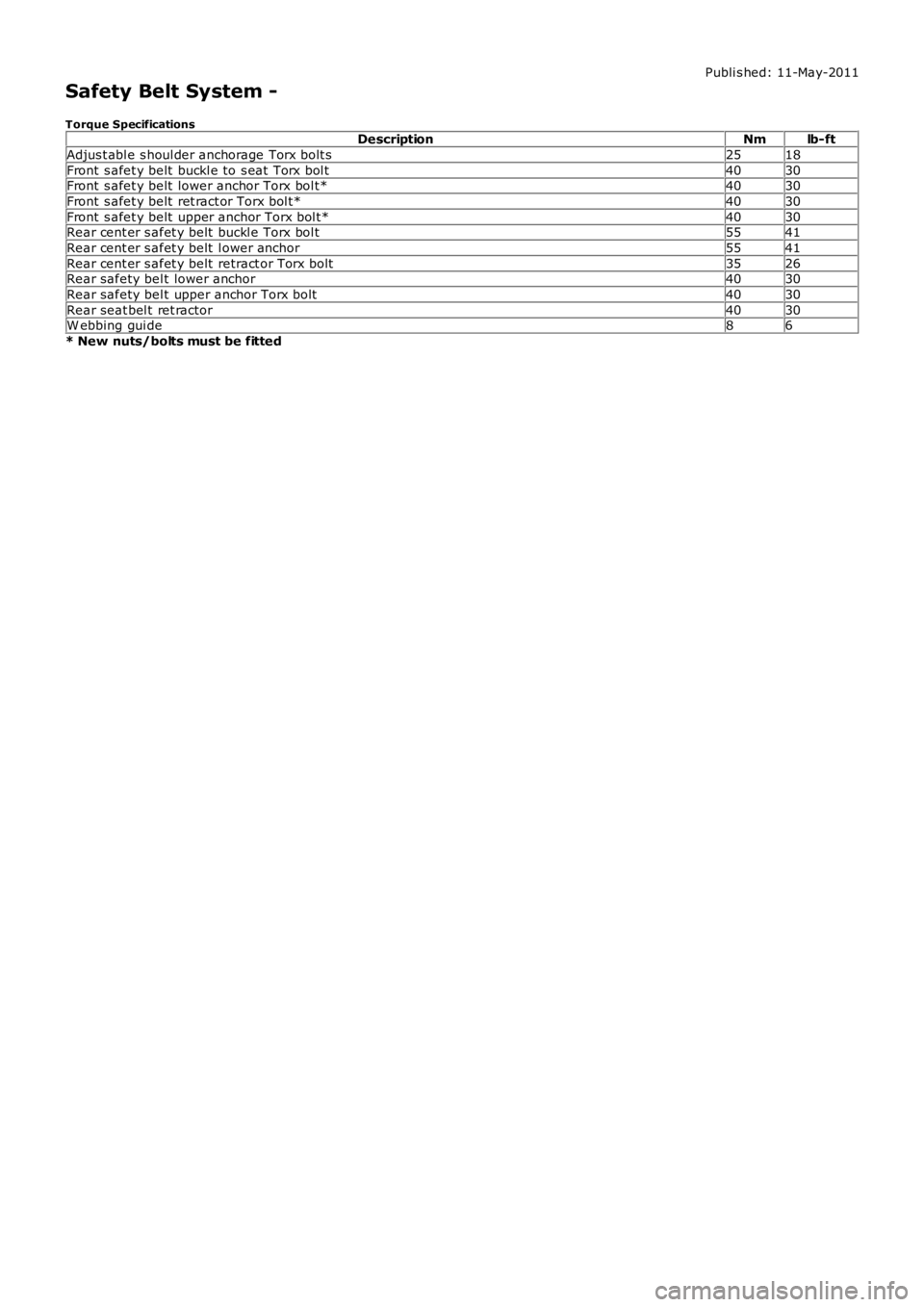

Torque SpecificationsDescriptionNmlb-ft
Adjus t abl e s houl der anchorage Torx bolt s2518
Front s afet y belt buckl e to s eat Torx bol t4030Front s afet y belt lower anchor Torx bol t*4030
Front s afet y belt ret ract or Torx bol t*4030
Front s afet y belt upper anchor Torx bol t*4030Rear cent er s afet y belt buckl e Torx bol t5541
Rear cent er s afet y belt l ower anchor5541
Rear cent er s afet y belt retract or Torx bolt3526Rear safety bel t lower anchor4030
Rear safety bel t upper anchor Torx bolt4030
Rear seat bel t ret ractor4030W ebbing gui de86
* New nuts/bolts must be fitted

Publi s hed: 11-May-2011
Safety Belt System - Safety Belt System
Des cript ion and Operat ion

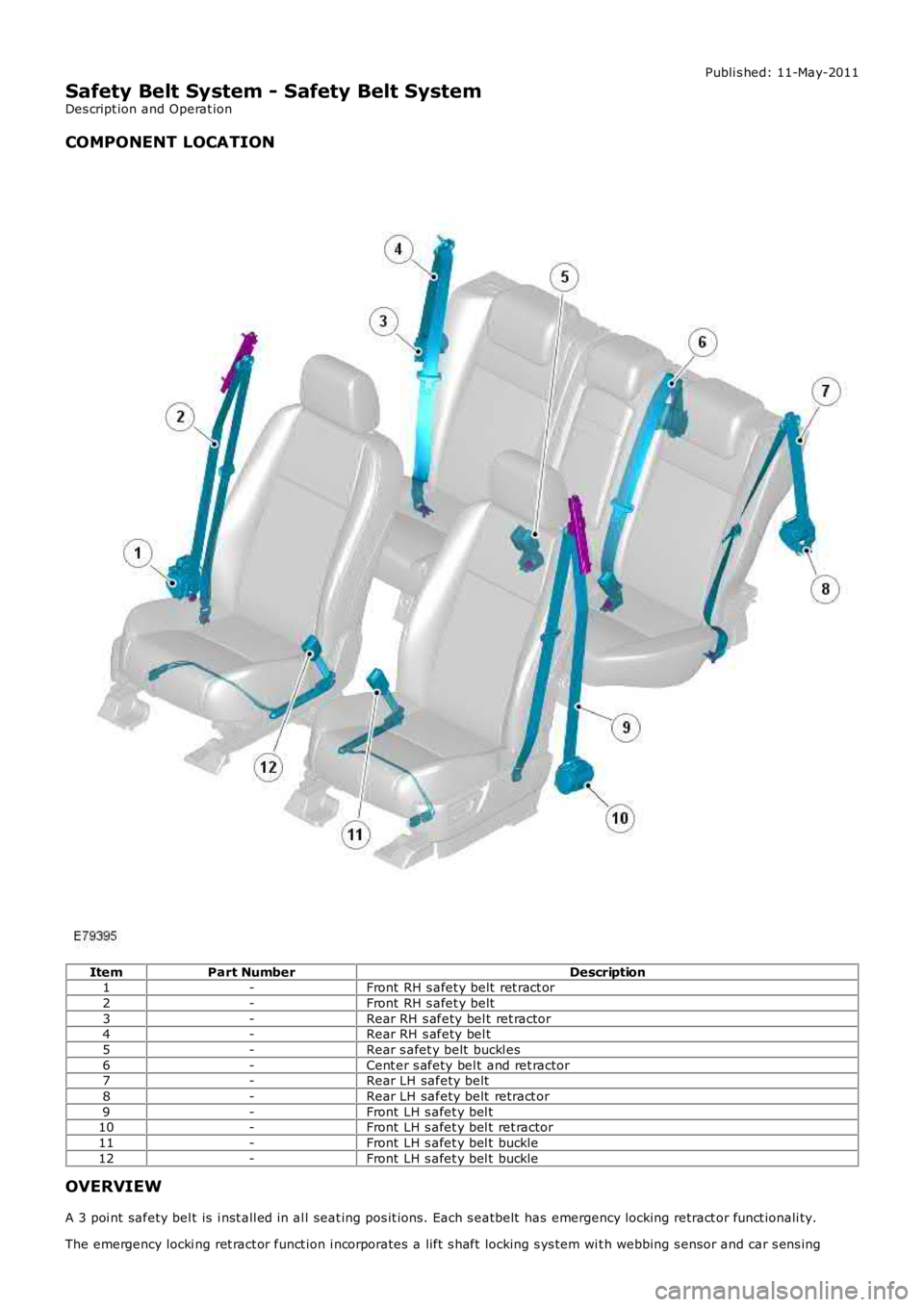

COMPONENT LOCATION
ItemPart NumberDescription1-Front RH s afet y belt ret ract or
2-Front RH s afet y belt
3-Rear RH s afety bel t ret ractor4-Rear RH s afety bel t
5-Rear s afet y belt buckl es
6-Cent er s afety bel t and ret ractor7-Rear LH safety belt
8-Rear LH safety belt retract or
9-Front LH s afet y bel t10-Front LH s afet y bel t ret ractor
11-Front LH s afet y bel t buckle
12-Front LH s afet y bel t buckle
OVERVIEW
A 3 poi nt safety bel t is i nst all ed in al l seat ing pos it ions. Each s eatbelt has emergency locking retract or funct ionali ty.
The emergency locki ng ret ract or funct ion i ncorporates a lift s haft locking s ys tem wit h webbing s ensor and car s ens ing

act ivat ing mechani s ms . The webbi ng s ens or act ivates the l ocking mechanis m if t he webbi ng is subject ed to a s harp pull .The car s ens or act ivates t he locking s yst em if t he vehi cl e is subject ed to s udden decel erat ion or s evere t ilt angle.
All row 1 driver and pas s enger emergency l ocking retract or incorporat e an electricall y act ivat ed webbi ng tens ion reducer(comfort device). This device i s act ivat ed when the vehicl e enters ignit ion mode 6 and ins ert ion of t he s eat belt t ongue i ntot he buckle.
All row 2 pas s engers and NAS front Pas s enger emergency locking retract ors are enhanced wi th aut omati c locki ng ret ract ors .
The automat ic l ocking retract or all ows webbi ng to be extract ed to act ivate a rat chet device. Thi s device all ows webbi ng t obe cinched ti ght t o faci li tat e chi ld seat fit ment. W it h s eat belt webbing t ens i oned in automat ic locki ng ret ractor mode t hes eat belt i s always locked.
A s afet y belt warning i ndi cat or is i ns t alled in t he i ns t rument clus ter t o remind t he front seat occupants to fas ten t heirs afety bel ts . On North Ameri can Specificati on (NAS) vehicles , when the i gnit ion mode i s acces s ory/convenience, thewarni ng indicator i lluminates i f the s afet y belt of an occupi ed front seat is not fas tened. The warning i ndi cat or remai nsil lumi nat ed unti l the s afet y belt of each occupied front s eat is fast ened, or t he ignit ion mode is off. In all market s exceptNAS, a belt mi nder funct ion provi des a more int rus ive reminder to fas ten the front safet y bel ts .

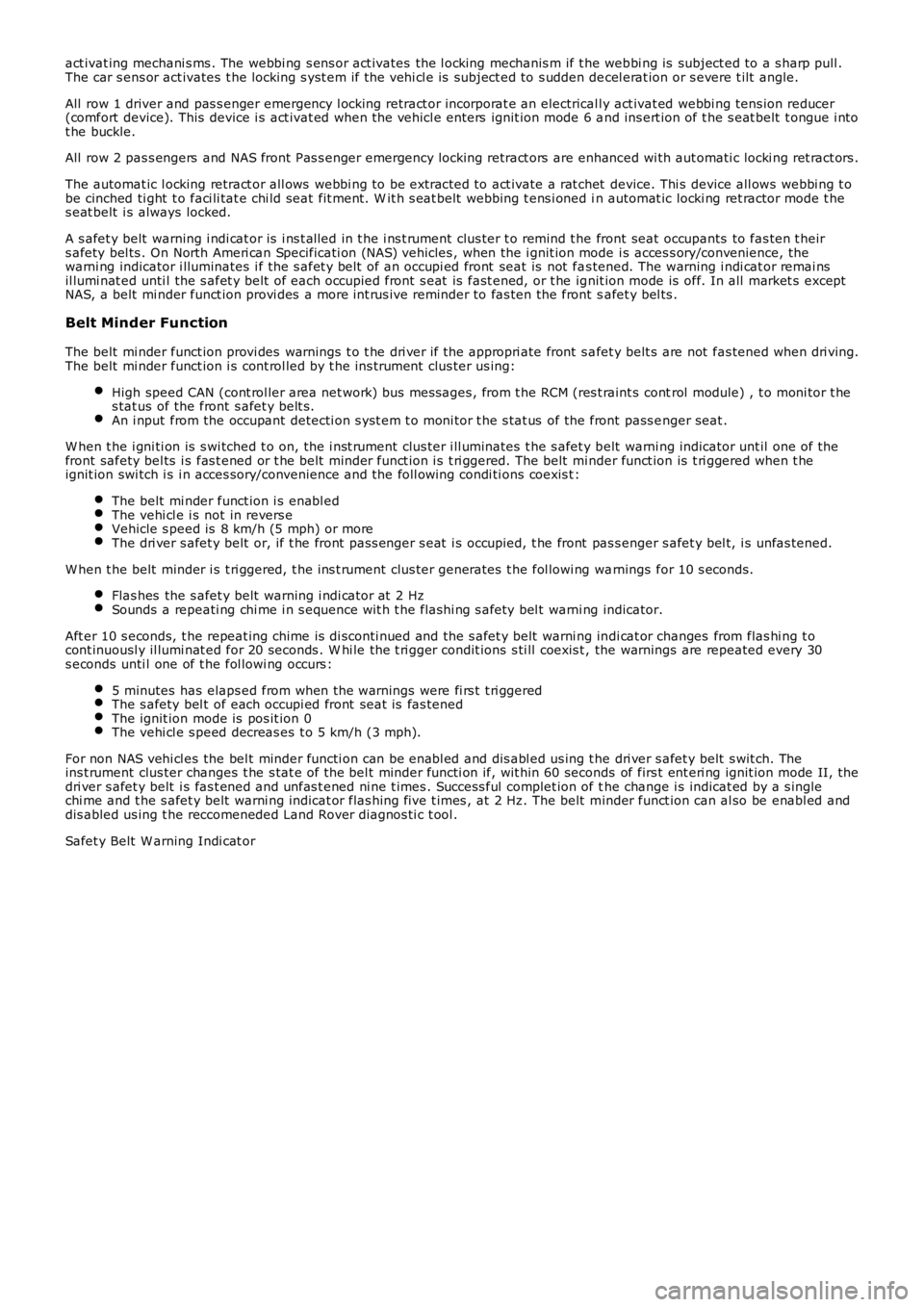

Belt Minder Function
The belt mi nder funct ion provi des warnings t o t he dri ver i f the appropri ate front s afet y belt s are not fas tened when dri ving.The belt mi nder funct ion i s cont rol led by t he ins t rument clus ter us ing:
High speed CAN (cont rol ler area net work) bus mes sages , from t he RCM (res t raint s control module) , t o moni tor t hes tat us of the front s afet y belt s.An i nput from the occupant detecti on s yst em t o moni tor t he s tat us of the front pass enger seat .
W hen t he i gni ti on is s wi tched t o on, the i nst rument clus ter i ll uminates t he s afet y belt warni ng indicator unt il one of thefront safety bel ts i s fas t ened or t he belt minder funct ion i s t ri ggered. The belt minder funct ion is t ri ggered when t heignit ion swi tch i s i n acces sory/convenience and the foll owing condi ti ons coexis t :
The belt mi nder funct ion i s enabl edThe vehi cl e i s not in revers eVehicle s peed is 8 km/h (5 mph) or moreThe dri ver s afet y belt or, if t he front pas s enger s eat i s occupied, t he front pas s enger s afet y bel t, i s unfas tened.
W hen t he belt minder i s t ri ggered, t he ins t rument clus ter generates t he fol lowi ng warnings for 10 s econds.
Flas hes the s afet y belt warning i ndi cat or at 2 HzSounds a repeati ng chi me i n s equence wit h t he flas hi ng s afety bel t warni ng indicator.
Aft er 10 s econds, t he repeat ing chime is di sconti nued and the s afet y belt warni ng indi cat or changes from flas hi ng t ocont inuousl y il lumi nat ed for 20 seconds . W hi le the t ri gger condit ions s ti ll coexis t , the warnings are repeated every 30s econds unti l one of t he fol lowi ng occurs :
5 minutes has elaps ed from when the warnings were fi rs t t ri ggeredThe s afety bel t of each occupi ed front seat is fas tenedThe ignit ion mode is pos it ion 0The vehi cl e s peed decreas es t o 5 km/h (3 mph).
For non NAS vehi cl es the bel t minder functi on can be enabl ed and dis abl ed us ing t he dri ver s afet y belt s wit ch. Theins t rument clus ter changes t he s tat e of the bel t minder functi on if, wit hin 60 seconds of firs t ent eri ng ignit ion mode II, thedri ver s afet y belt i s fas t ened and unfas t ened ni ne t imes . Success ful complet ion of the change i s indicat ed by a s inglechi me and t he s afet y belt warni ng indicat or flas hing five t imes , at 2 Hz. The belt minder funct ion can al so be enabl ed anddis abled us ing t he reccomeneded Land Rover di agnos ti c t ool .
