LEXUS LS430 2003 Factory Repair Manual

Fig. 46: Identifying Yaw Rate Sensor Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the yaw rate sensor connector (Y1).
c. Measure the resistance according to the value (s) in the table below.
Standard:
YAW RATE SENSOR CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)
OK: GO TO NEXT STEP
2.CHECK WIRE HARNESS (IG, GND)
Tester connectionConditionSpecified value
Y1-2 (CANL) - Y1-3 (CANH)Ignition Switch OFF54 to 69 ohms

Fig. 47: Identifying Yaw Rate Sensor Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Measure the resistance according to the value (s) in the table below.
b. Measure the voltage according to the value (s) in the table below.
Standard:
YAW RATE SENSOR CONNECTOR TERMINALS RESISTANCE AND VOLTAGE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE YAW RATE SENSOR (SEE REPLACEMENT
)
Tester ConnectionConditionSpecified Condition
Y1-1 (GND) - Body groundAlwaysBelow 1 ohms
Y1-5 (IG) - Body groundIgnition Switch ON10 to 14 V

MODE DESCRIPTION
Fig. 48: Problem Symptom Diagnostic Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM

Fig. 49: Wiring Diagram - Distance Control ECU Communication Stop Mode
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK CAN BUS LINE FOR DISCONNECTION (DISTANCE CONTROL ECU SUB BUS
LINE)

<0029004c004a0011000300180013001d00030027004c00560046005200510051004800460057004c0051004a00030027004c0056005700440051004600480003002600520051005700550052004f0003002800260038000300260052005100510048004600
57005200550003000b00270015000c[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the distance control ECU connector (D2).
c. Measure the resistance accordin
g to the value (s) in the table below.

Standard:
DISTANCE CONTROL ECU CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE DISTANCE CONTROL ECU SUB BUS LINE OR CONNECTOR
(CAN-H, CAN-L)
OK: GO TO NEXT STEP
2.CHECK WIRE HARNESS (+B, GND)
Tester connectionConditionSpecified value
D2-8 (CANH) - D2-9 (CANL)Ignition Switch OFF54 to 69 ohms

<0029004c004a0011000300180014001d00030027004c00560046005200510051004800460057004c0051004a00030027004c0056005700440051004600480003002600520051005700550052004f0003002800260038000300260052005100510048004600
57005200550003000b00270015000c[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Measure the resistance according to the value (s) in the table below.
b. Measure the voltage according to the value (s) in the table below.
Standard:

DISTANCE CONTROL ECU CONNECTOR TERMINALS RESISTANCE AND VOLTAGE
NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
OK: REPLACE DISTANCE CONTROL ECU ASSY (SEE REPLACEMENT
)
MODE DESCRIPTION
Fig. 52: Problem Symptom Diagnostic Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Tester ConnectionConditionSpecified Condition
D2-12 (GND) - Body groundAlwaysBelow 1 ohms
D2-1 (+B) - Body groundIgnition Switch ON10 to 14 V

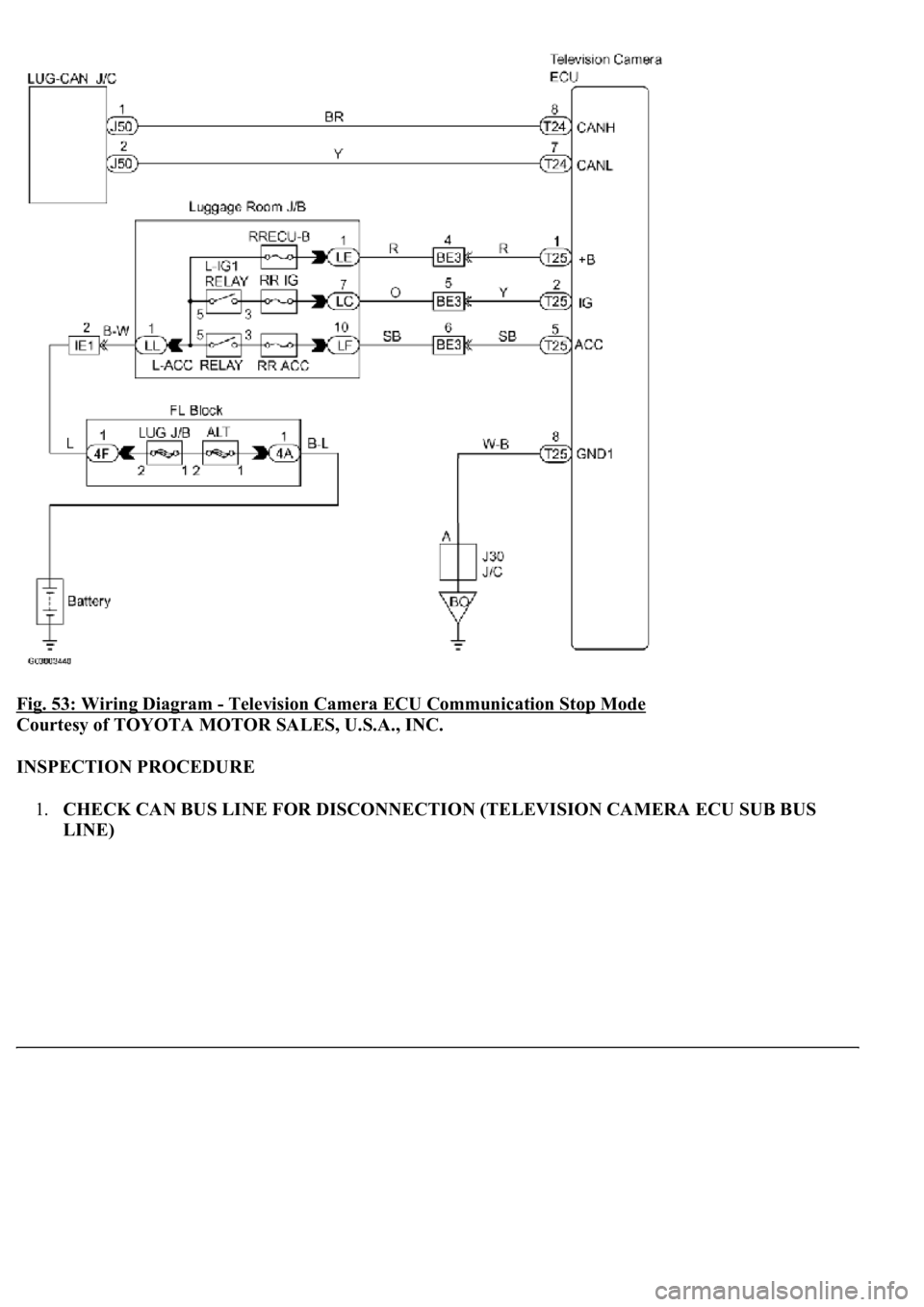

Fig. 53: Wiring Diagram - Television Camera ECU Communication Stop Mode
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK CAN BUS LINE FOR DISCONNECTION (TELEVISION CAMERA ECU SUB BUS
LINE)

Fig. 54: Disconnecting Television Camera ECU Connector (T24)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the television camera ECU connector (T24).
c. Measure the resistance according to the value (s) in the table below.
Standard:
TELEVISION CAMERA ECU CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE TELEVISION CAMERA ECU SUB BUS LINE OR CONNECTOR
(CAN-H, CAN-L)
OK: GO TO NEXT STEP
2.CHECK WIRE HARNESS (IG, +B, ACC, GND1)
Tester connectionConditionSpecified value
T24-8 (CANH) - T24-7 (CANL)Ignition Switch OFF54 to 69 ohms
