Page 1261 of 4500

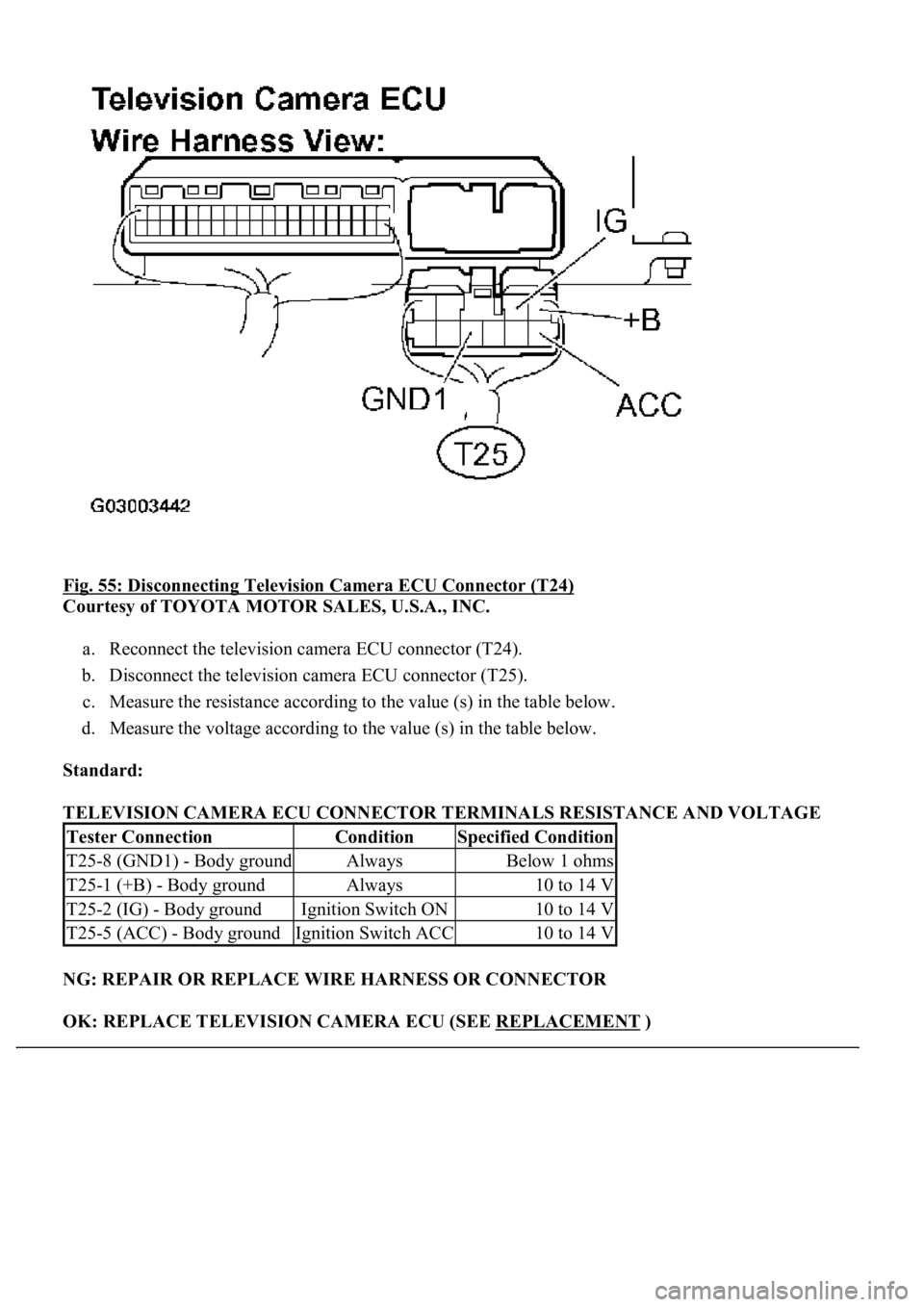

Fig. 55: Disconnecting Television Camera ECU Connector (T24)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Reconnect the television camera ECU connector (T24).
b. Disconnect the television camera ECU connector (T25).
c. Measure the resistance according to the value (s) in the table below.
d. Measure the voltage according to the value (s) in the table below.
Standard:
TELEVISION CAMERA ECU CONNECTOR TERMINALS RESISTANCE AND VOLTAGE
NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
OK: REPLACE TELEVISION CAMERA ECU (SEE REPLACEMENT
)
Tester ConnectionConditionSpecified Condition
T25-8 (GND1) - Body groundAlwaysBelow 1 ohms
T25-1 (+B) - Body groundAlways10 to 14 V
T25-2 (IG) - Body groundIgnition Switch ON10 to 14 V
T25-5 (ACC) - Body groundIgnition Switch ACC10 to 14 V
Page 1262 of 4500

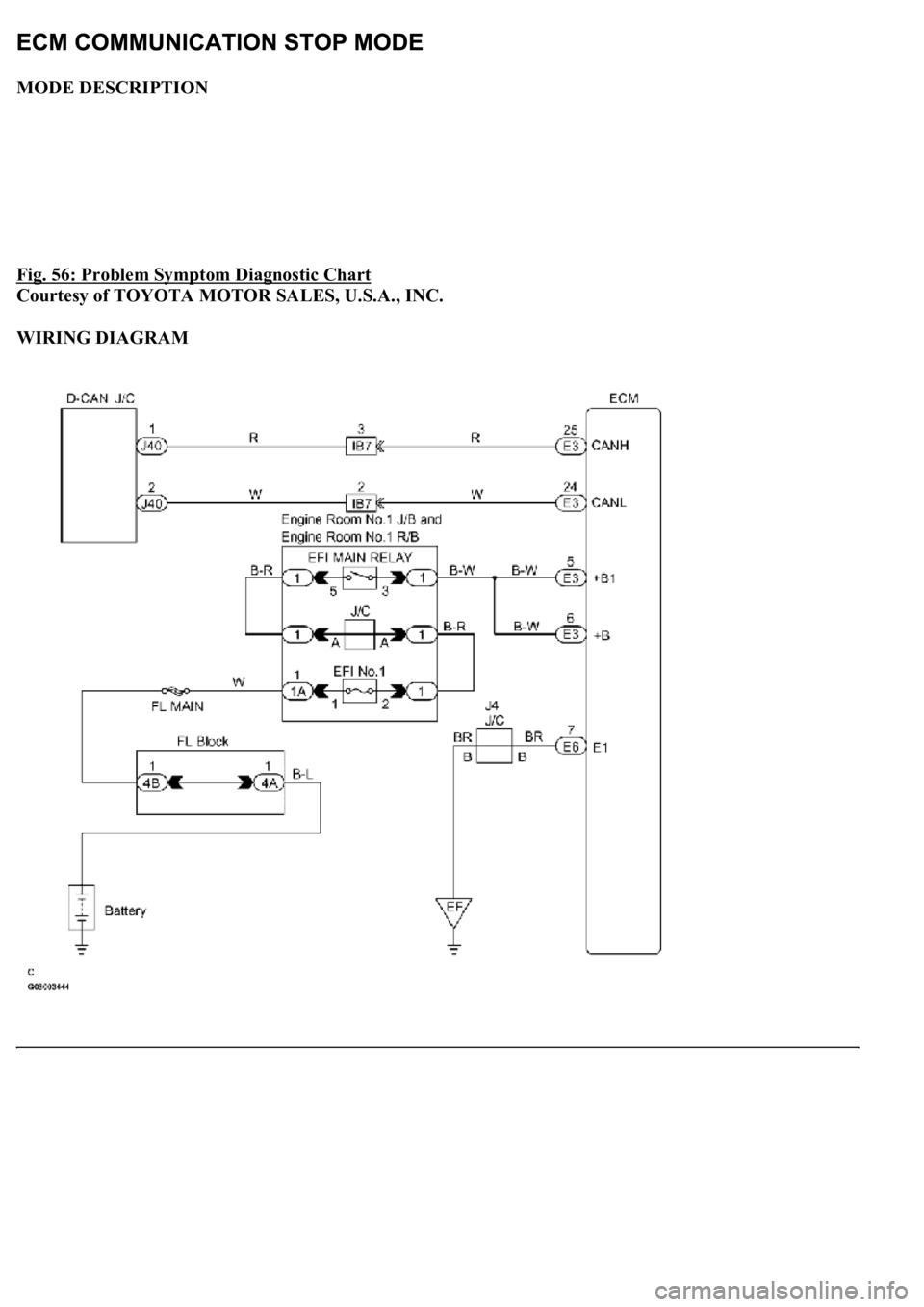

MODE DESCRIPTION
Fig. 56: Problem Symptom Diagnostic Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Page 1263 of 4500

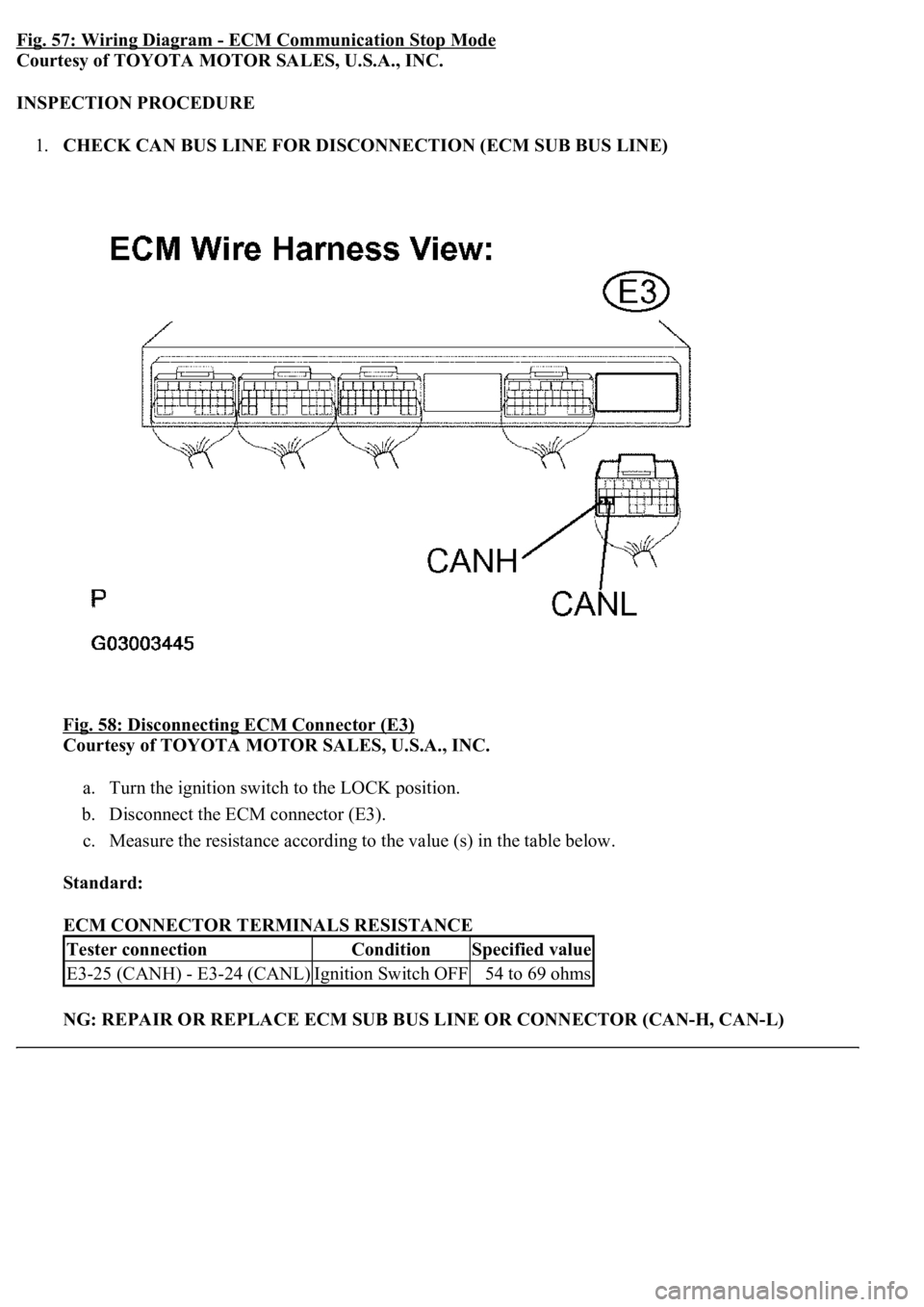

Fig. 57: Wiring Diagram - ECM Communication Stop Mode
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK CAN BUS LINE FOR DISCONNECTION (ECM SUB BUS LINE)
Fig. 58: Disconnecting ECM Connector (E3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the ECM connector (E3).
c. Measure the resistance according to the value (s) in the table below.
Standard:
ECM CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE ECM SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
Tester connectionConditionSpecified value
E3-25 (CANH) - E3-24 (CANL)Ignition Switch OFF54 to 69 ohms
Page 1264 of 4500
OK: GO TO NEXT STEP

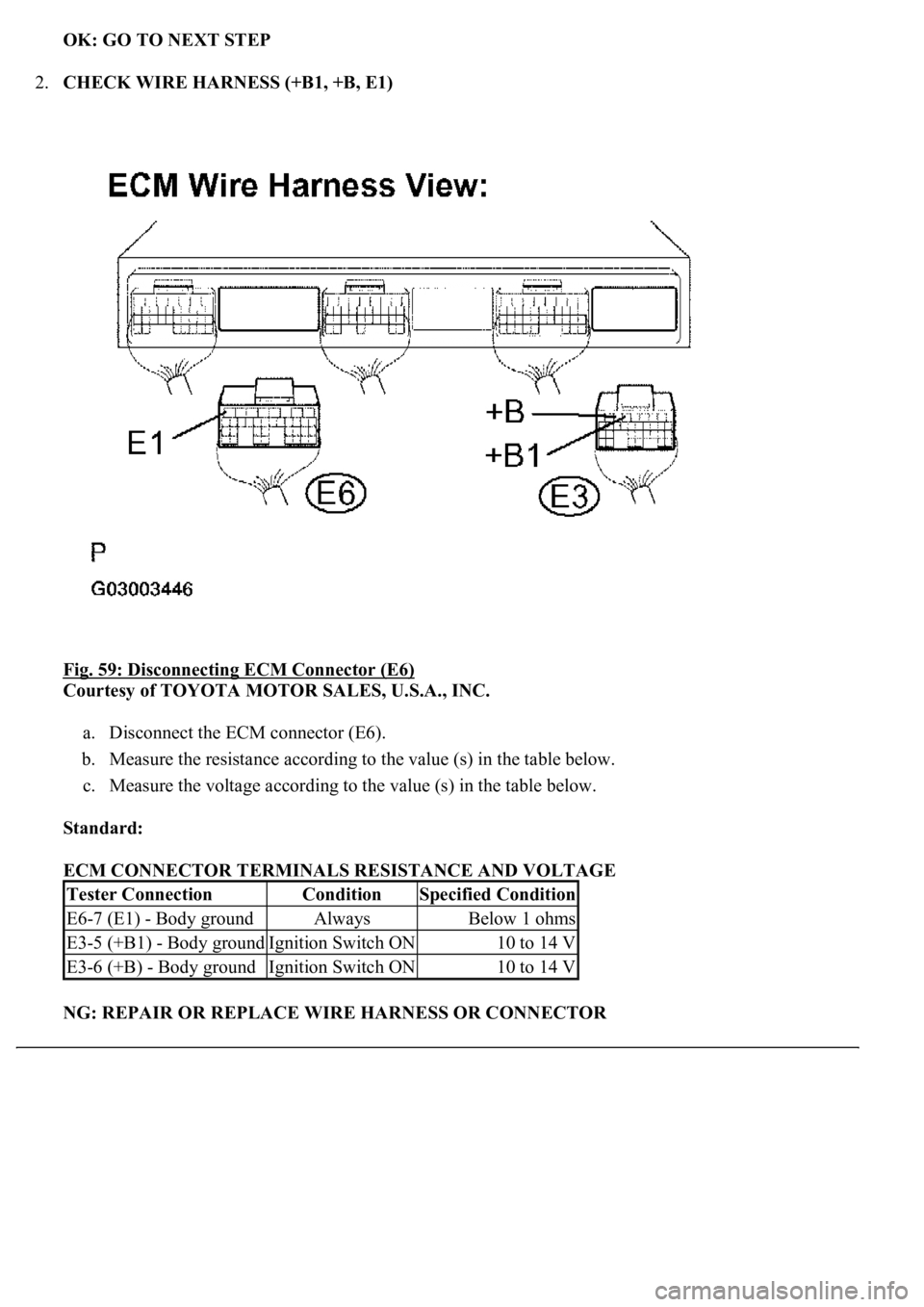

2.CHECK WIRE HARNESS (+B1, +B, E1)
Fig. 59: Disconnecting ECM Connector (E6)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the ECM connector (E6).
b. Measure the resistance according to the value (s) in the table below.
c. Measure the voltage according to the value (s) in the table below.
Standard:
ECM CONNECTOR TERMINALS RESISTANCE AND VOLTAGE
NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
Tester ConnectionConditionSpecified Condition
E6-7 (E1) - Body groundAlwaysBelow 1 ohms
E3-5 (+B1) - Body groundIgnition Switch ON10 to 14 V
E3-6 (+B) - Body groundIgnition Switch ON10 to 14 V
Page 1265 of 4500
OK: REPLACE ECM (SEE REPLACEMENT)
MODE DESCRIPTION
Fig. 60: Problem Symptom Diagnostic Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Page 1266 of 4500
Fig. 61: Wiring Diagram - Gateway ECU Communication Stop Mode
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK CAN BUS LINE FOR DISCONNECTION (GATEWAY ECU SUB BUS LINE)
Page 1267 of 4500
Fig. 62: Disconnecting Gateway ECU Connector (G3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the gateway ECU connector (G3).
c. Measure the resistance according to the value (s) in the table below.
Standard:
GATEWAY ECU CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE GATEWAY ECU SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)
OK: GO TO NEXT STEP
2.CHECK WIRE HARNESS (BATT, ACC, IG, CG, GND)
Tester connectionConditionSpecified value
G3-17 (CA1H) - G3-18 (CA1L)Ignition Switch OFF54 to 69 ohms
Page 1268 of 4500

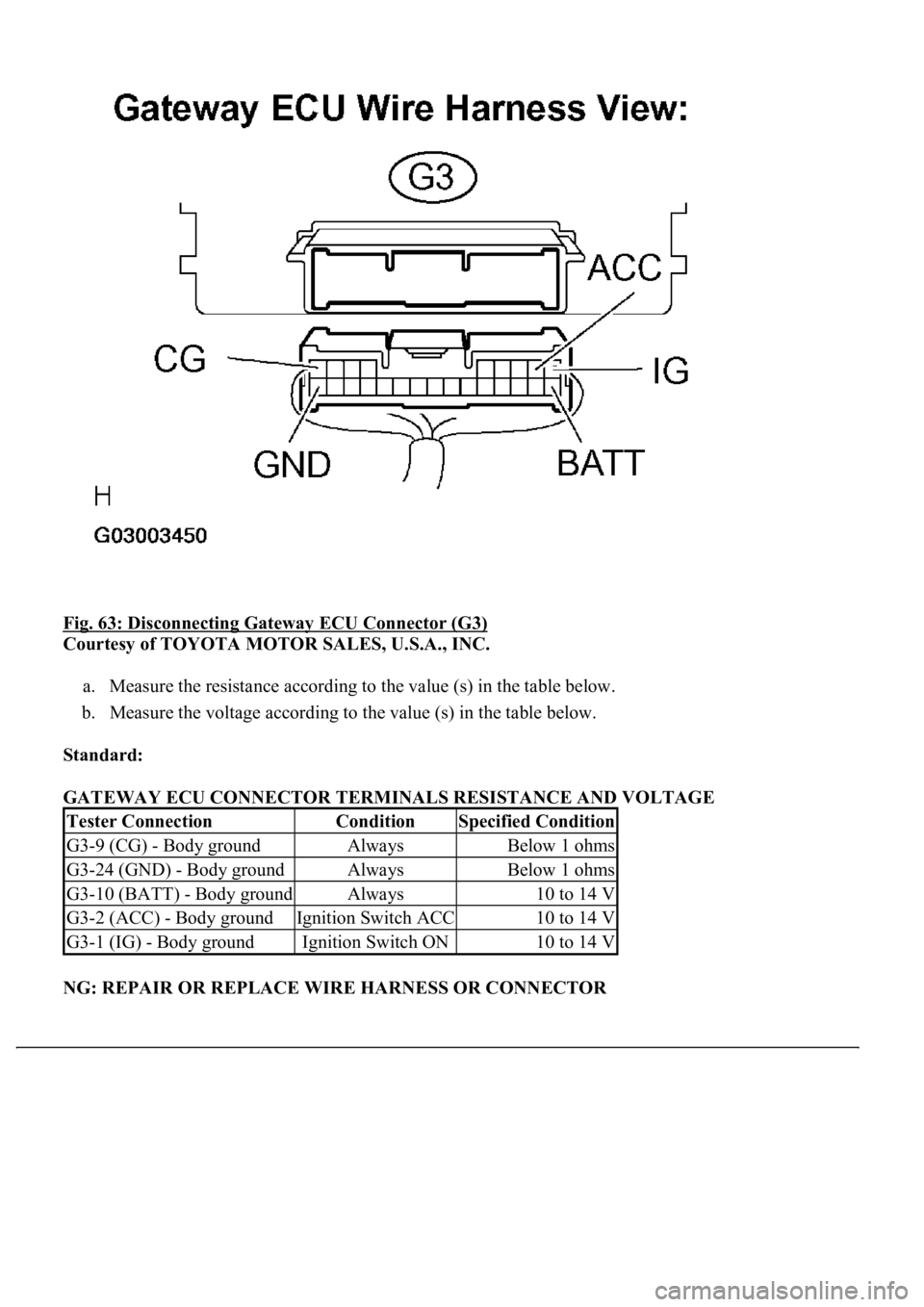

Fig. 63: Disconnecting Gateway ECU Connector (G3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Measure the resistance according to the value (s) in the table below.
b. Measure the voltage according to the value (s) in the table below.
Standard:
GATEWAY ECU CONNECTOR TERMINALS RESISTANCE AND VOLTAGE
NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
Tester ConnectionConditionSpecified Condition
G3-9 (CG) - Body groundAlwaysBelow 1 ohms
G3-24 (GND) - Body groundAlwaysBelow 1 ohms
G3-10 (BATT) - Body groundAlways10 to 14 V
G3-2 (ACC) - Body groundIgnition Switch ACC10 to 14 V
G3-1 (IG) - Body groundIgnition Switch ON10 to 14 V
Page 1269 of 4500
OK: REPLACE GATEWAY ECU
MODE DESCRIPTION
Fig. 64: Problem Symptom Diagnostic Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Page 1270 of 4500

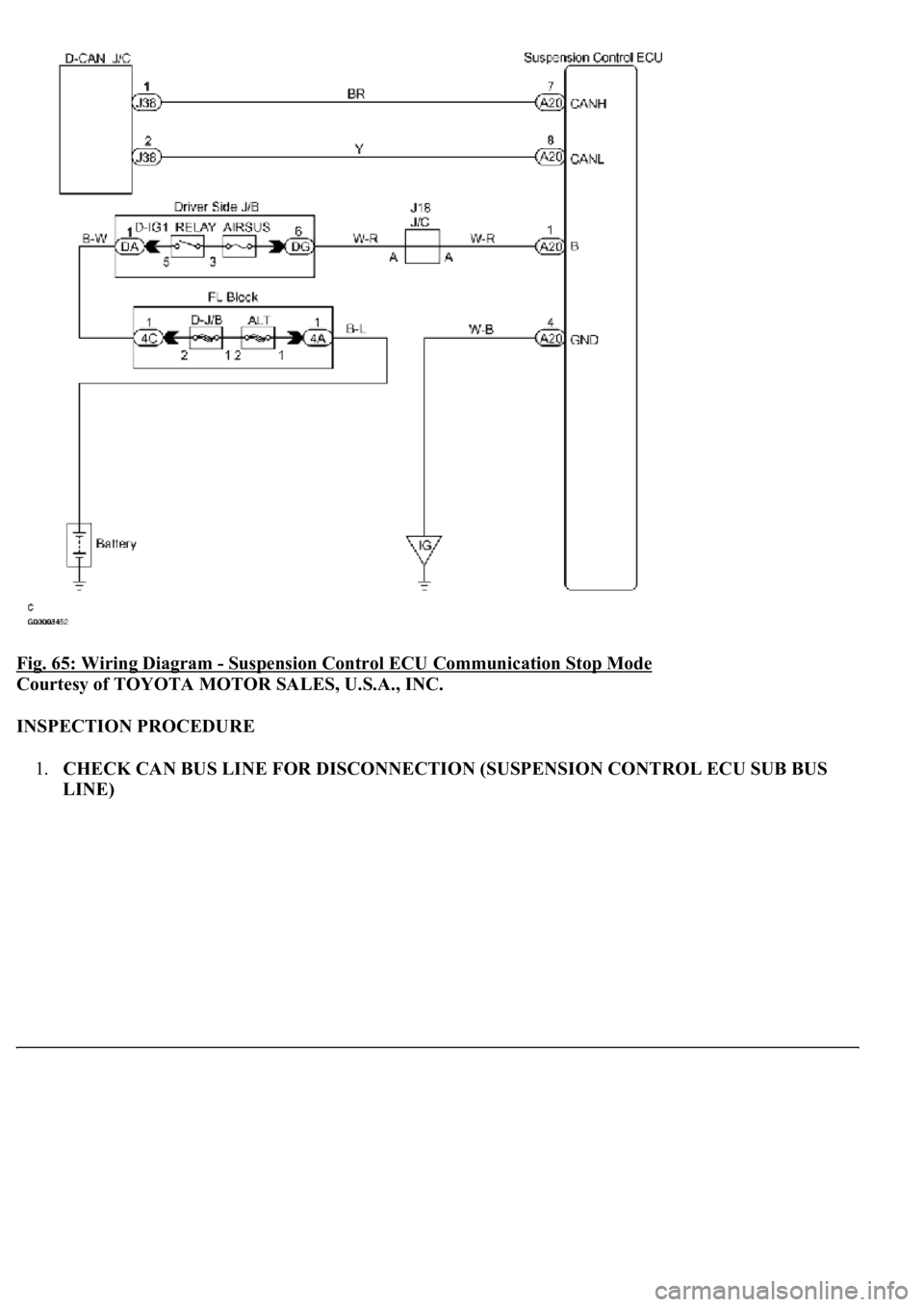

Fig. 65: Wiring Diagram - Suspension Control ECU Communication Stop Mode
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK CAN BUS LINE FOR DISCONNECTION (SUSPENSION CONTROL ECU SUB BUS
LINE)
