LEXUS LS430 2003 Factory Repair Manual

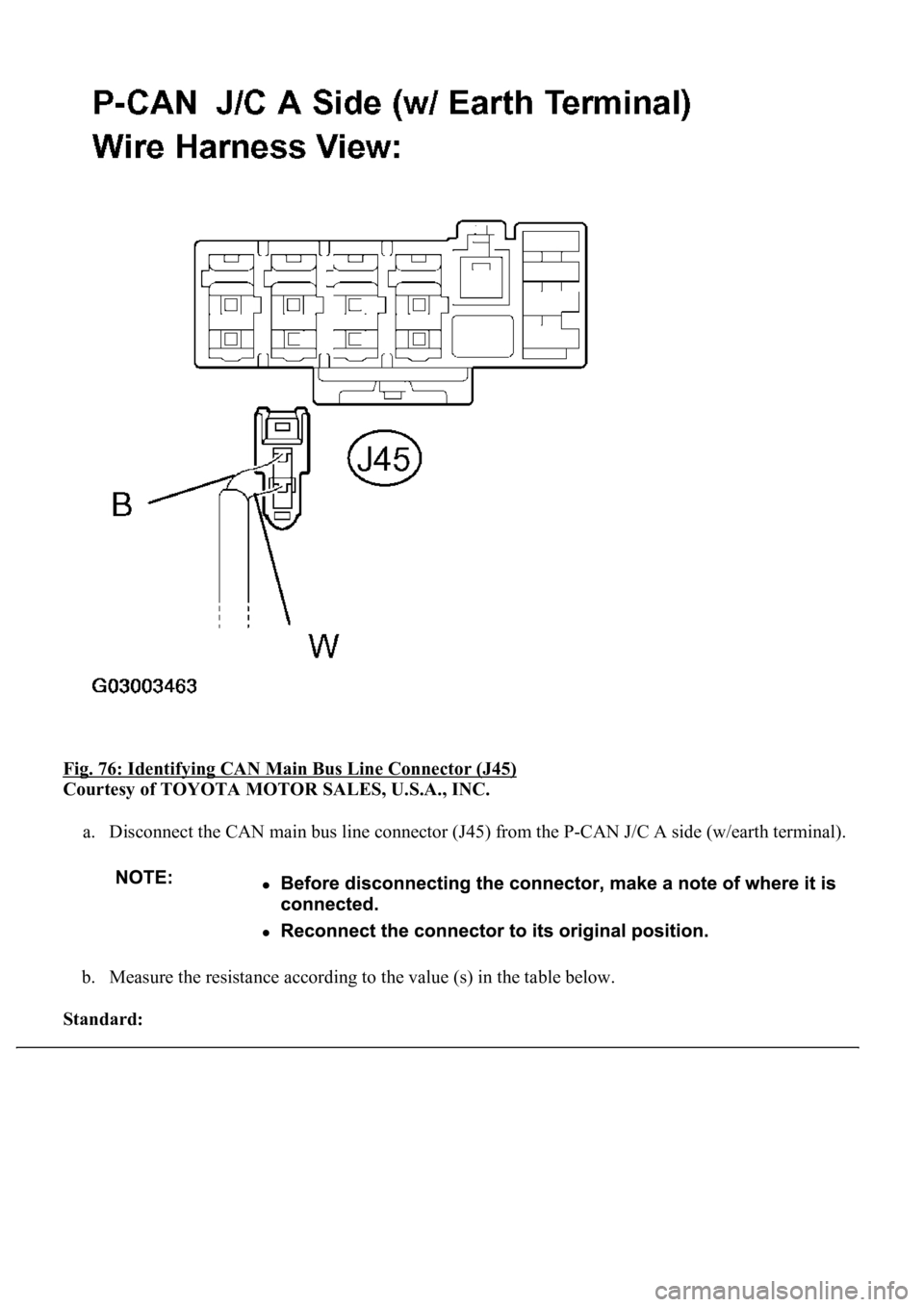

Fig. 76: Identifying CAN Main Bus Line Connector (J45)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J45) from the P-CAN J/C A side (w/earth terminal).
b. Measure the resistance according to the value (s) in the table below.
Standard:

CAN MAIN BUS LINE CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (P-CAN J/C - D-CAN
J/C)
OK: GO TO NEXT STEP
5.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
6.CHECK CAN MAIN BUS LINE FOR DISCONNECTION (P-CAN J/C)
Tester connectionConditionSpecified value
J45-1 (CANH) - J45-2 (CANL)Ignition Switch OFF108 to 132 ohms

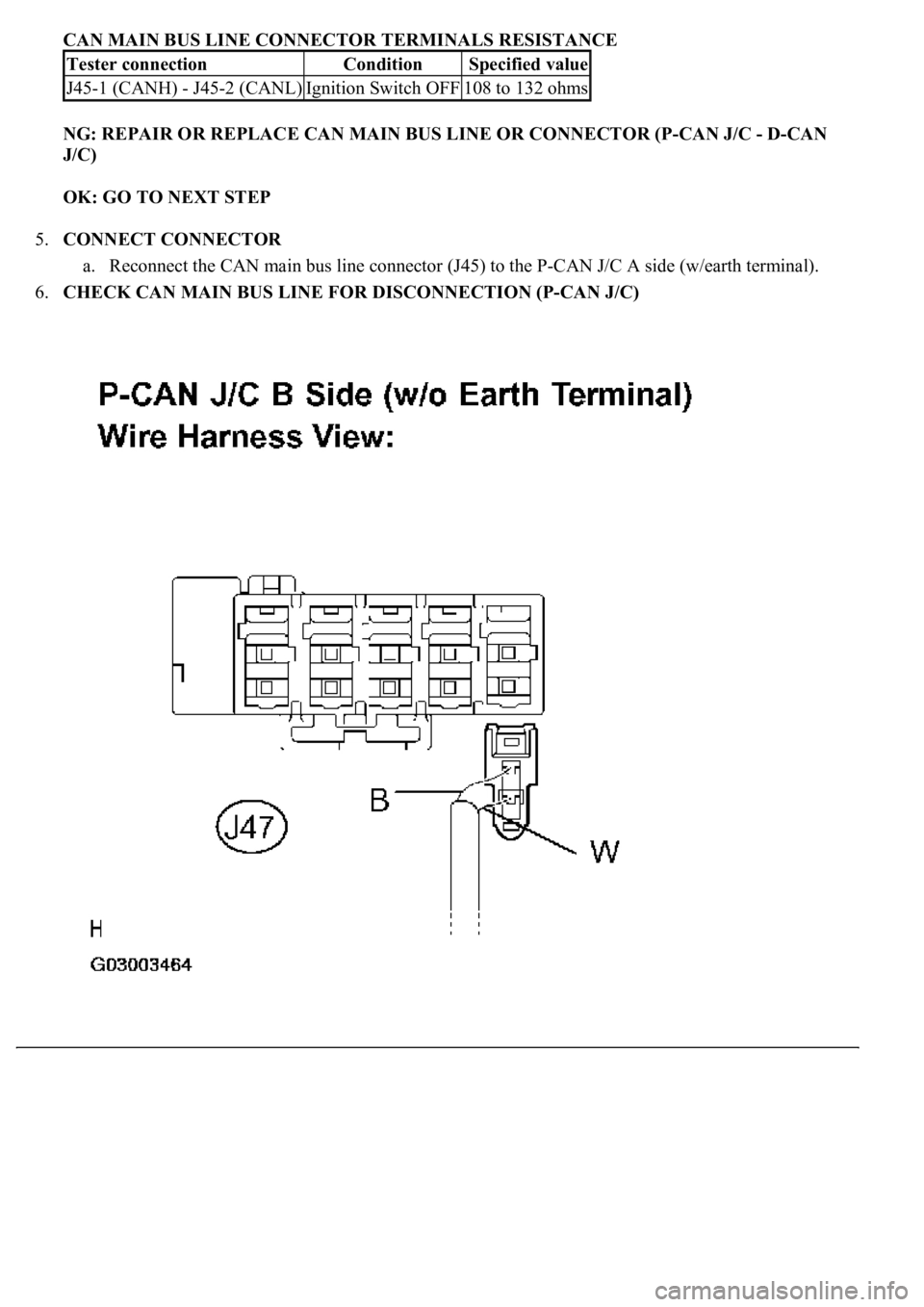

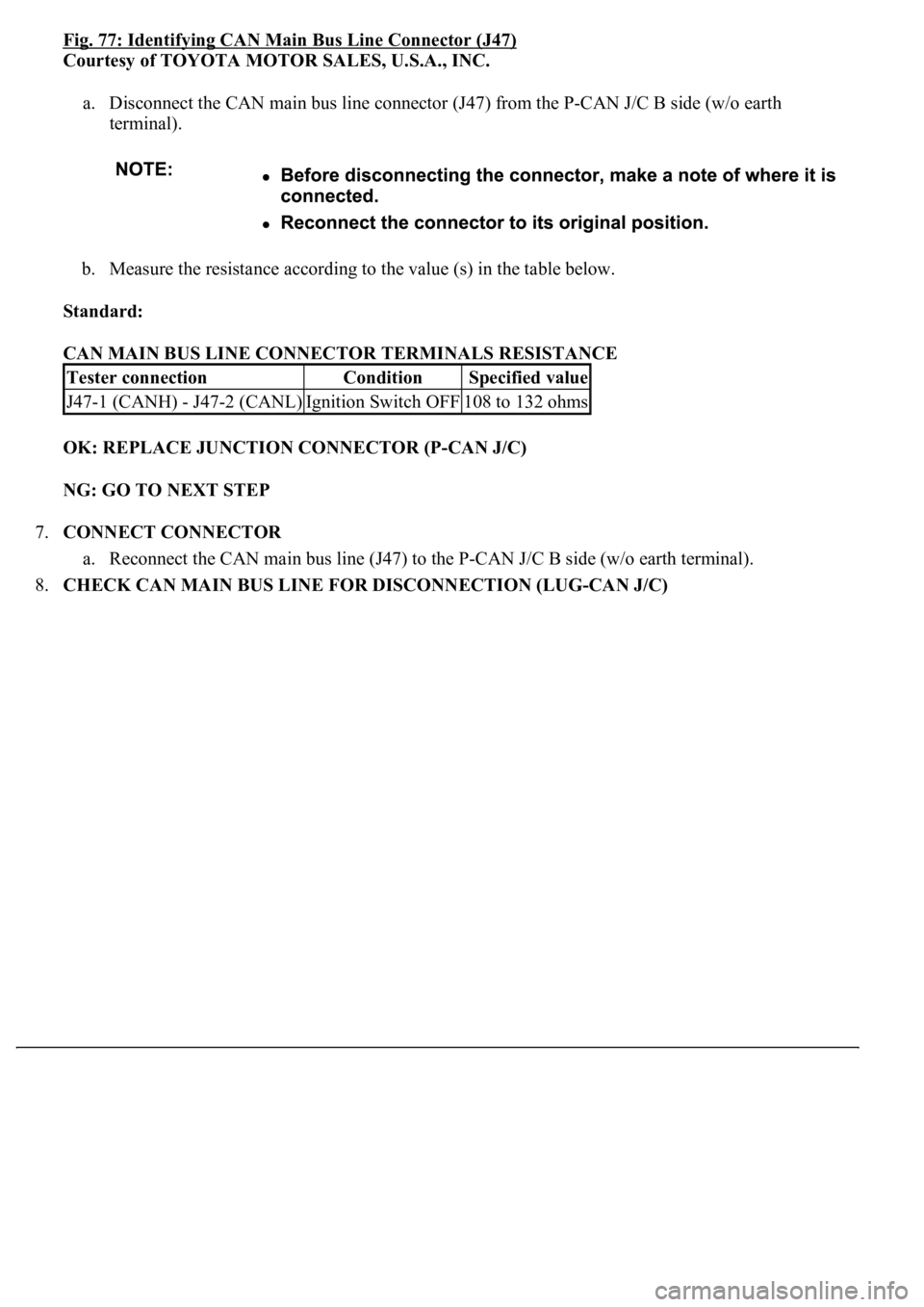

Fig. 77: Identifying CAN Main Bus Line Connector (J47)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J47) from the P-CAN J/C B side (w/o earth
terminal).
b. Measure the resistance according to the value (s) in the table below.
Standard:
CAN MAIN BUS LINE CONNECTOR TERMINALS RESISTANCE
OK: REPLACE JUNCTION CONNECTOR (P-CAN J/C)
NG: GO TO NEXT STEP
7.CONNECT CONNECTOR
a. Reconnect the CAN main bus line (J47) to the P-CAN J/C B side (w/o earth terminal).
8.CHECK CAN MAIN BUS LINE FOR DISCONNECTION (LUG-CAN J/C)
Tester connectionConditionSpecified value
J47-1 (CANH) - J47-2 (CANL)Ignition Switch OFF108 to 132 ohms

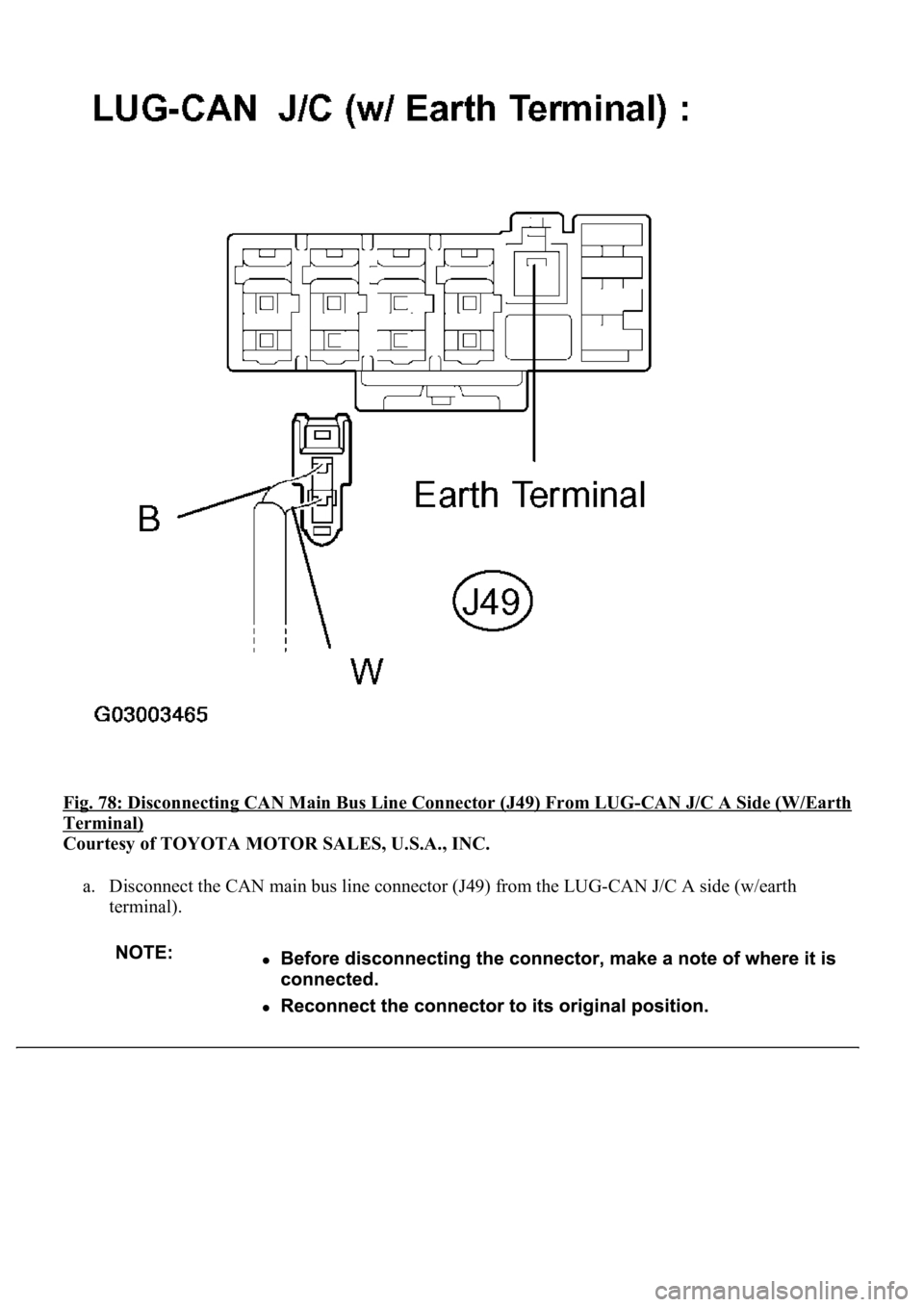

Fig. 78: Disconnecting CAN Main Bus Line Connector (J49) From LUG-CAN J/C A Side (W/Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J49) from the LUG-CAN J/C A side (w/earth
terminal).

b. Measure the resistance according to the value (s) in the table below.
Standard:

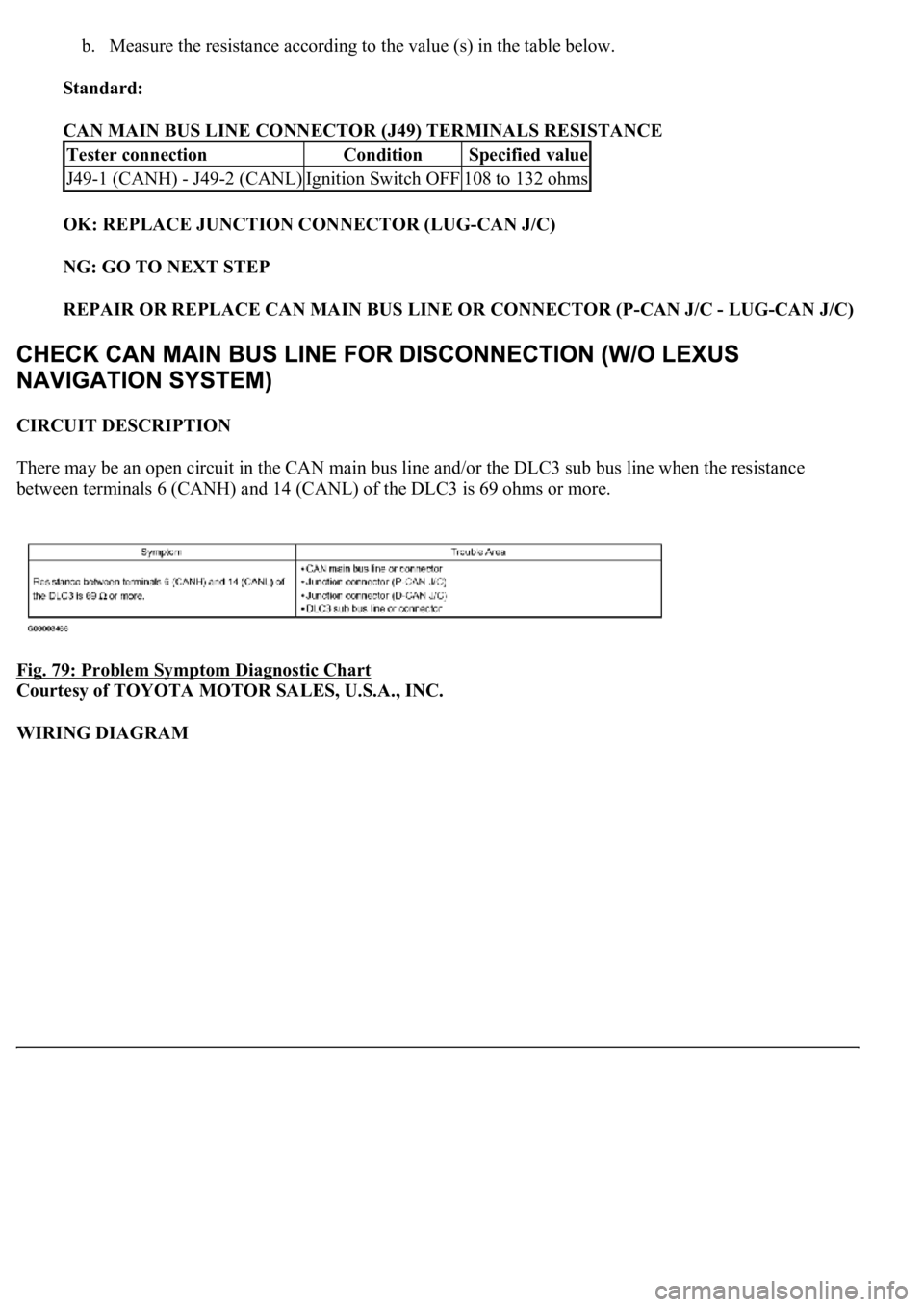

CAN MAIN BUS LINE CONNECTOR (J49) TERMINALS RESISTANCE
OK: REPLACE JUNCTION CONNECTOR (LUG-CAN J/C)
NG: GO TO NEXT STEP
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (P-CAN J/C - LUG-CAN J/C)
CIRCUIT DESCRIPTION
There may be an open circuit in the CAN main bus line and/or the DLC3 sub bus line when the resistance
between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 ohms or more.
Fig. 79: Problem Symptom Diagnostic Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Tester connectionConditionSpecified value
J49-1 (CANH) - J49-2 (CANL)Ignition Switch OFF108 to 132 ohms

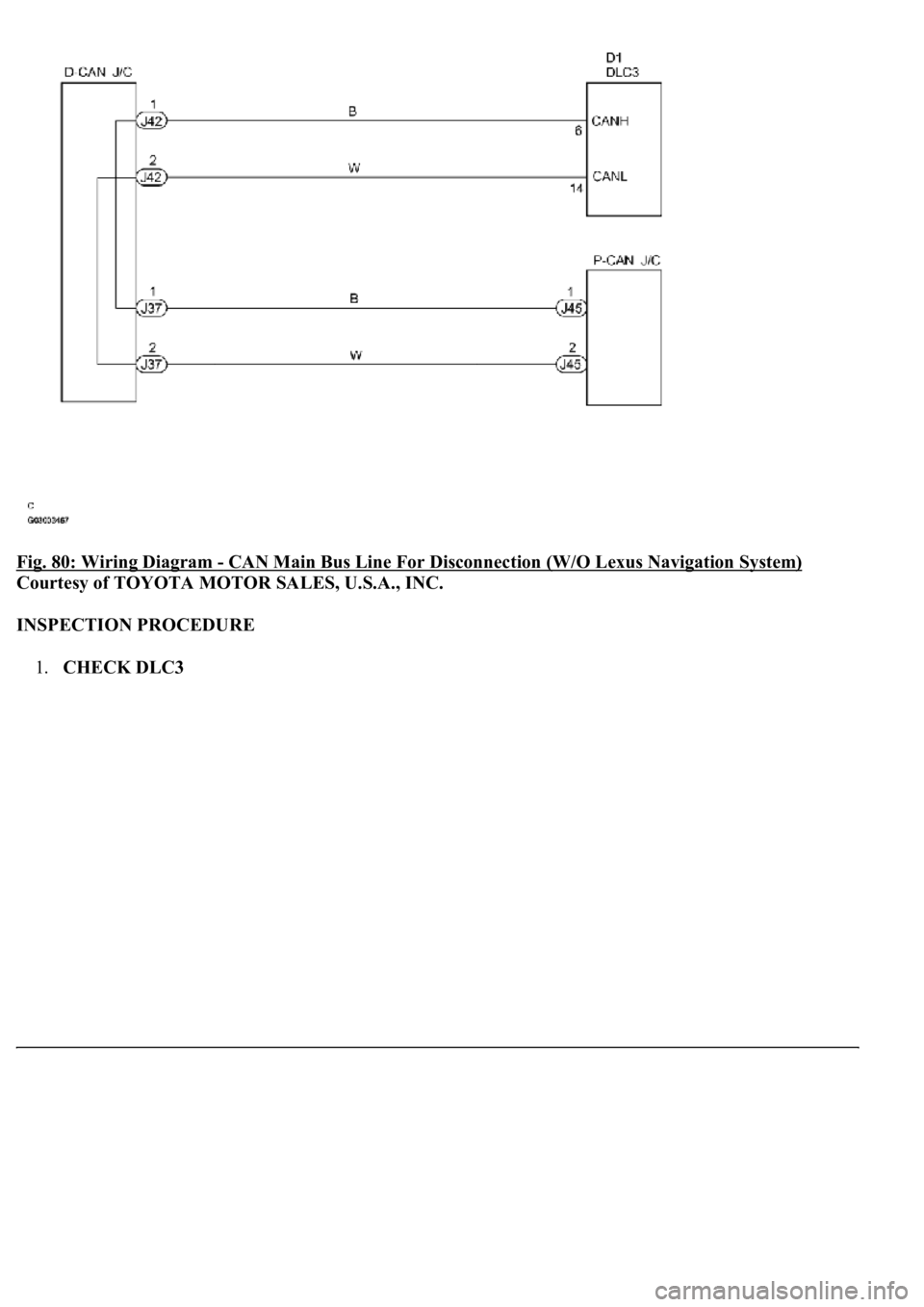

Fig. 80: Wiring Diagram - CAN Main Bus Line For Disconnection (W/O Lexus Navigation System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK DLC3

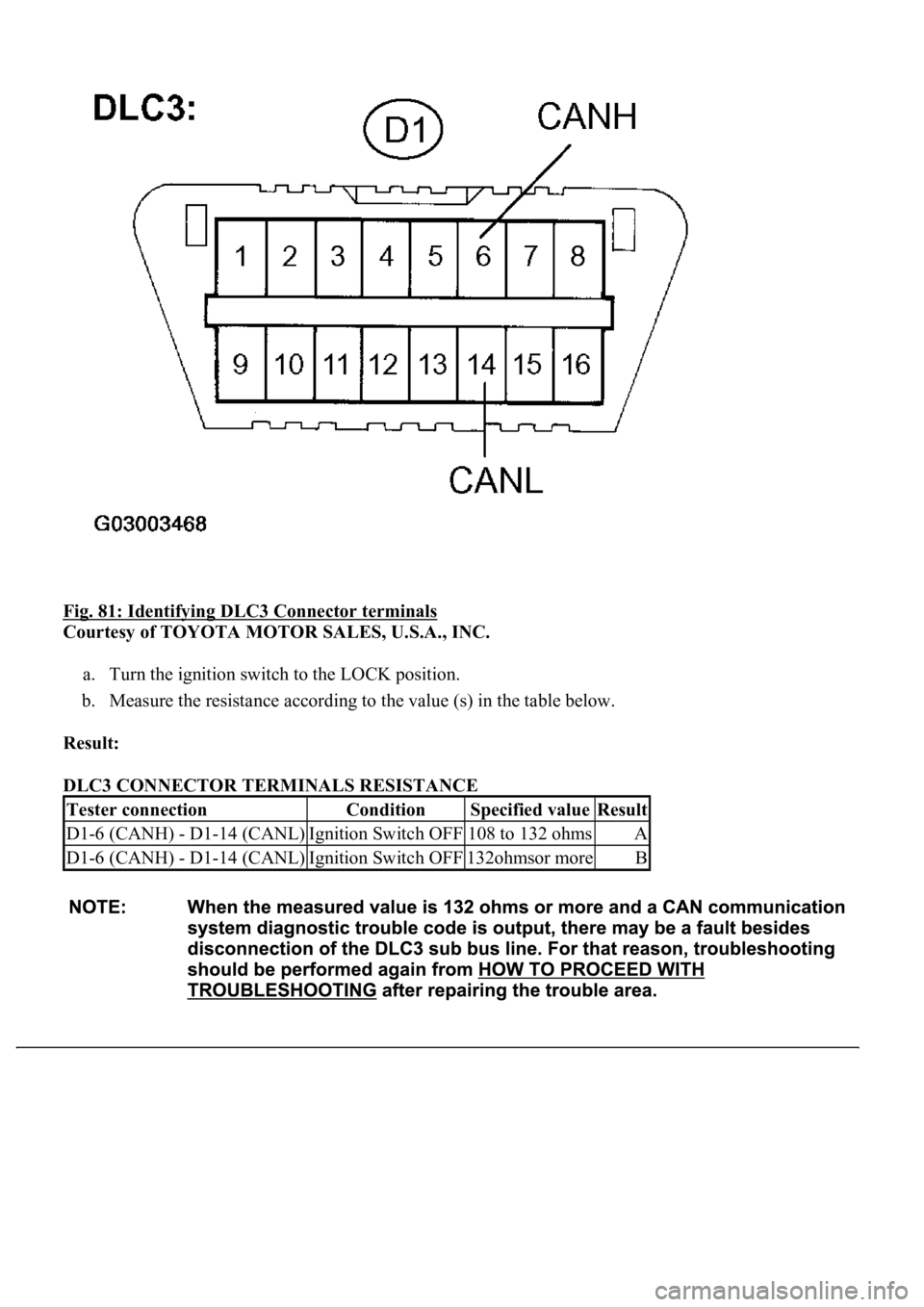

Fig. 81: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Measure the resistance according to the value (s) in the table below.
Result:
DLC3 CONNECTOR TERMINALS RESISTANCE
Tester connectionConditionSpecified valueResult
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF108 to 132 ohmsA
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF132ohmsor moreB

B: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
A: GO TO NEXT STEP
2.CHECK CAN MAIN BUS LINE FOR DISCONNECTION (D-CAN J/C)
Fig. 82: Disconnecting CAN Main Bus Line Connector (J37) From D
-CAN J/C A Side (W/Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J37) from the D-CAN J/C A side (w/earth terminal).

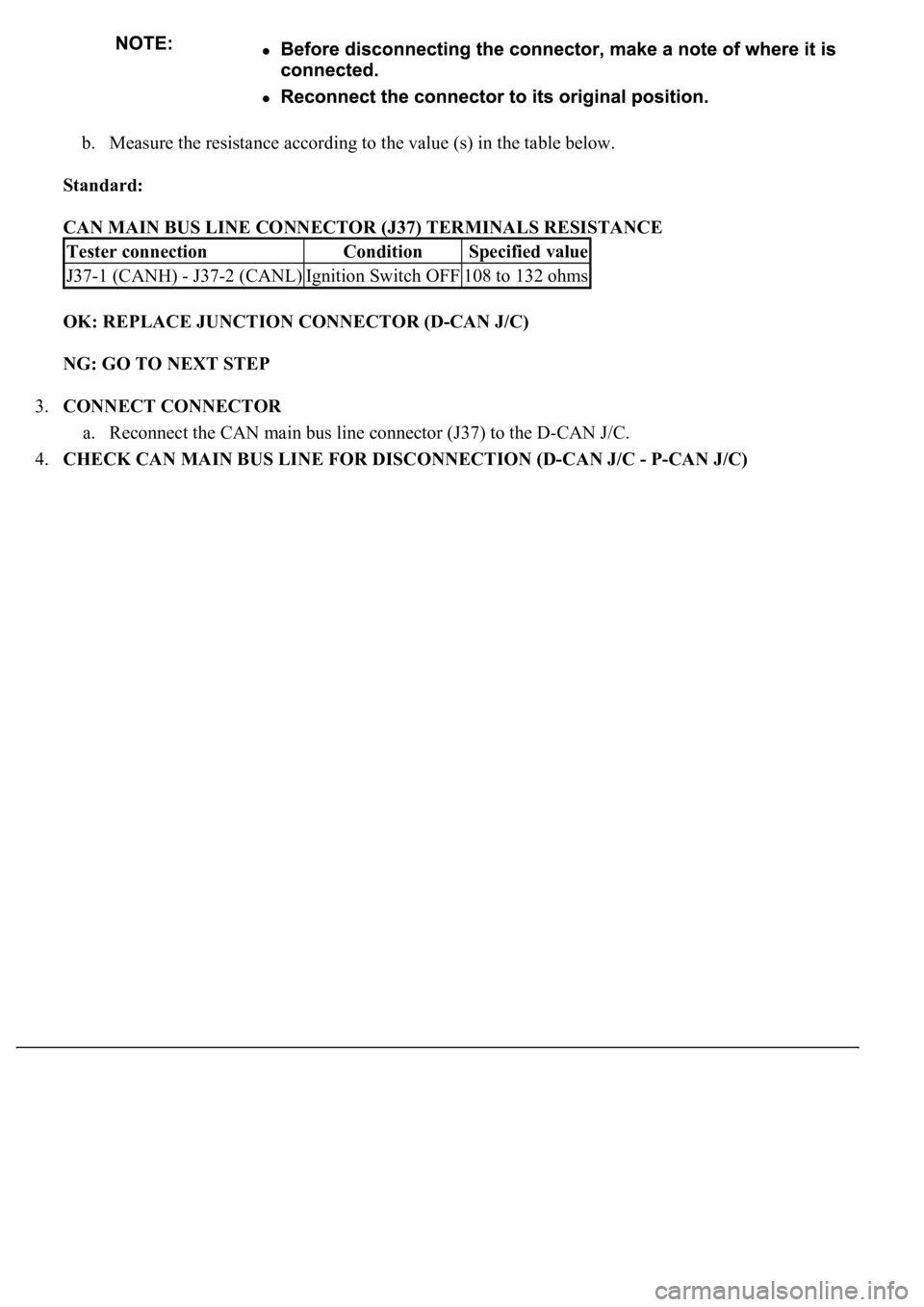

b. Measure the resistance according to the value (s) in the table below.
Standard:
CAN MAIN BUS LINE CONNECTOR (J37) TERMINALS RESISTANCE
OK: REPLACE JUNCTION CONNECTOR (D-CAN J/C)
NG: GO TO NEXT STEP
3.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J37) to the D-CAN J/C.
4.CHECK CAN MAIN BUS LINE FOR DISCONNECTION (D-CAN J/C - P-CAN J/C)
Tester connectionConditionSpecified value
J37-1 (CANH) - J37-2 (CANL)Ignition Switch OFF108 to 132 ohms

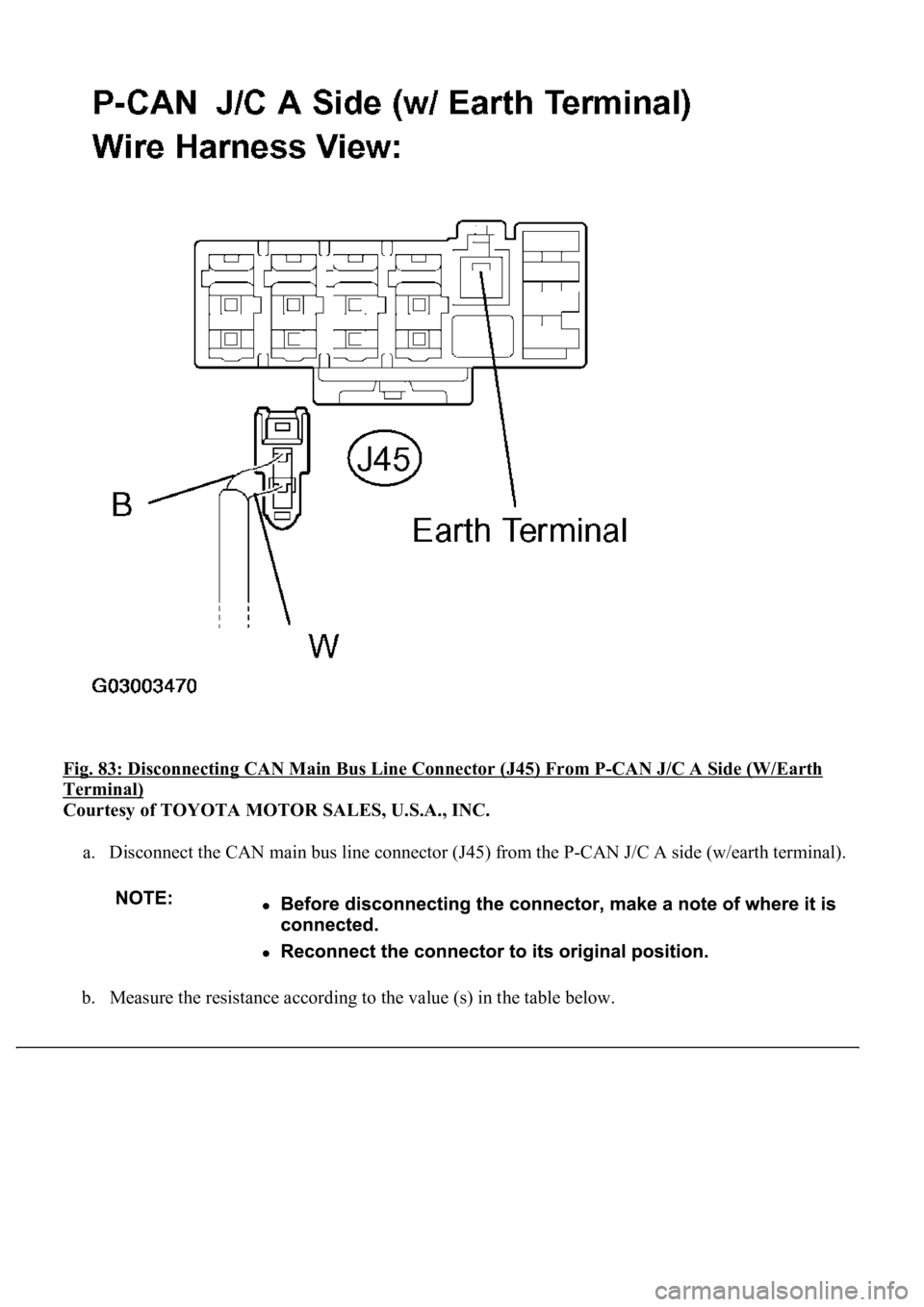

Fig. 83: Disconnecting CAN Main Bus Line Connector (J45) From P-CAN J/C A Side (W/Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J45) from the P-CAN J/C A side (w/earth terminal).
b. Measure the resistance according to the value (s) in the table below.
