LEXUS LS430 2003 Factory Repair Manual

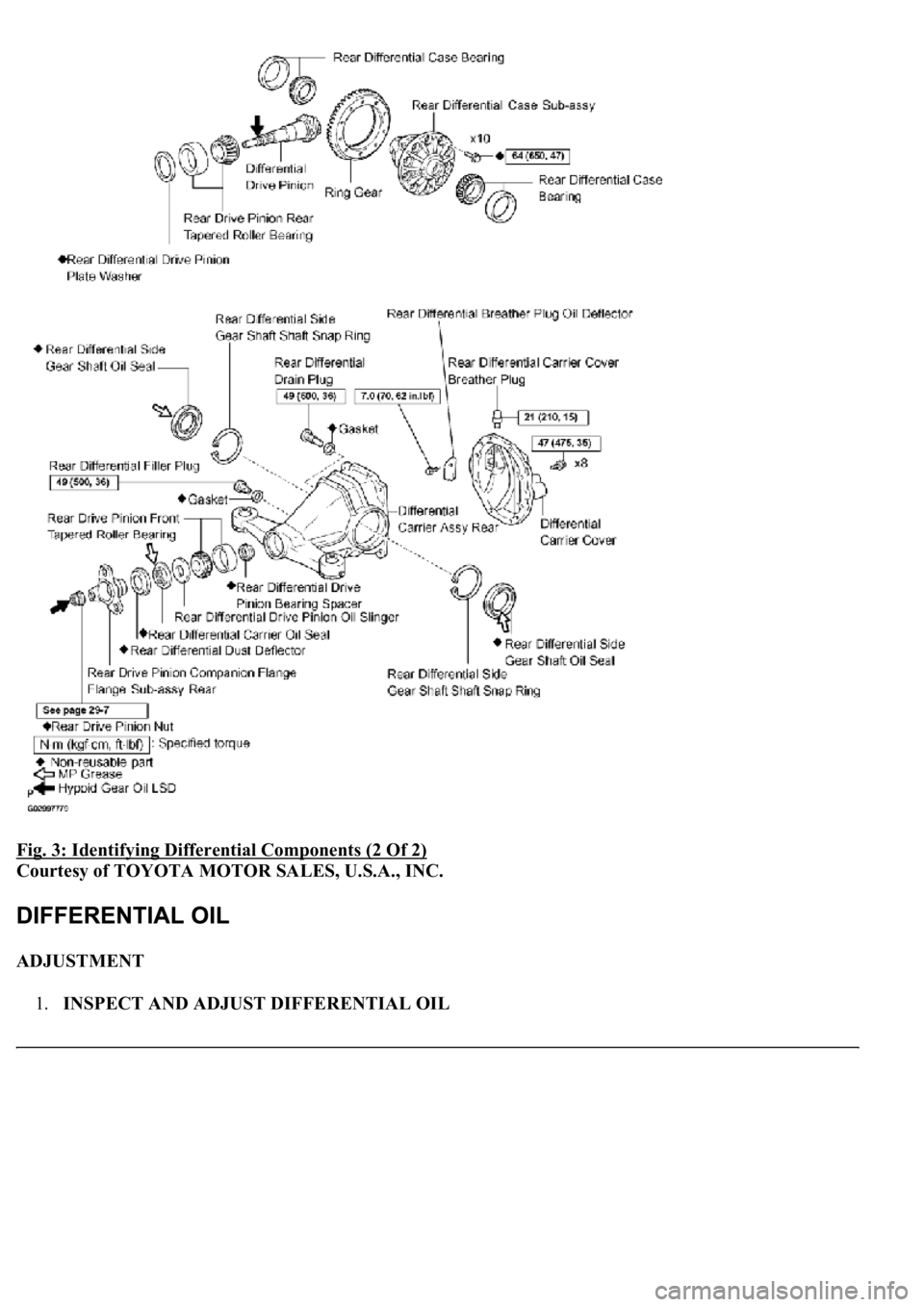

Fig. 3: Identifying Differential Components (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
ADJUSTMENT
1.INSPECT AND ADJUST DIFFERENTIAL OIL

a. Stop the vehicle on a level place.
b. Using a hexagon wrench (10 mm), remove the rear differential filler plug and gasket.
c. Check that the oil surface is within 5 mm (0.20 in.) of the lowest position of the inner surface of the
differential filler plug opening.

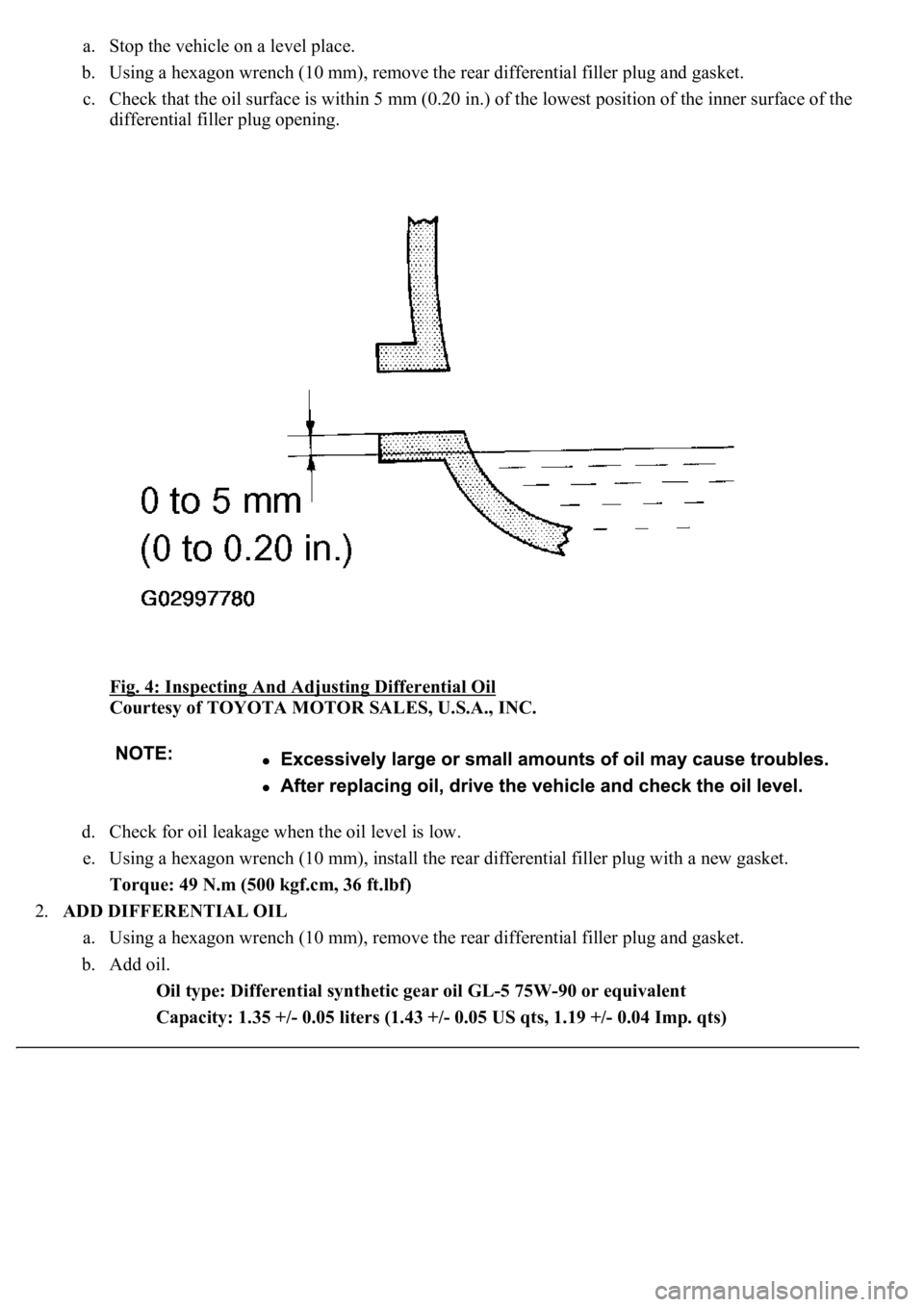

Fig. 4: Inspecting And Adjusting Differential Oil

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Check for oil leakage when the oil level is low.
e. Using a hexagon wrench (10 mm), install the rear differential filler plug with a new gasket.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
2.ADD DIFFERENTIAL OIL
a. Using a hexagon wrench (10 mm), remove the rear differential filler plug and gasket.
b. Add oil.
Oil type: Differential synthetic gear oil GL-5 75W-90 or equivalent
Capacity: 1.35 +/- 0.05 liters (1.43 +/- 0.05 US qts, 1.19 +/- 0.04 Imp. qts)

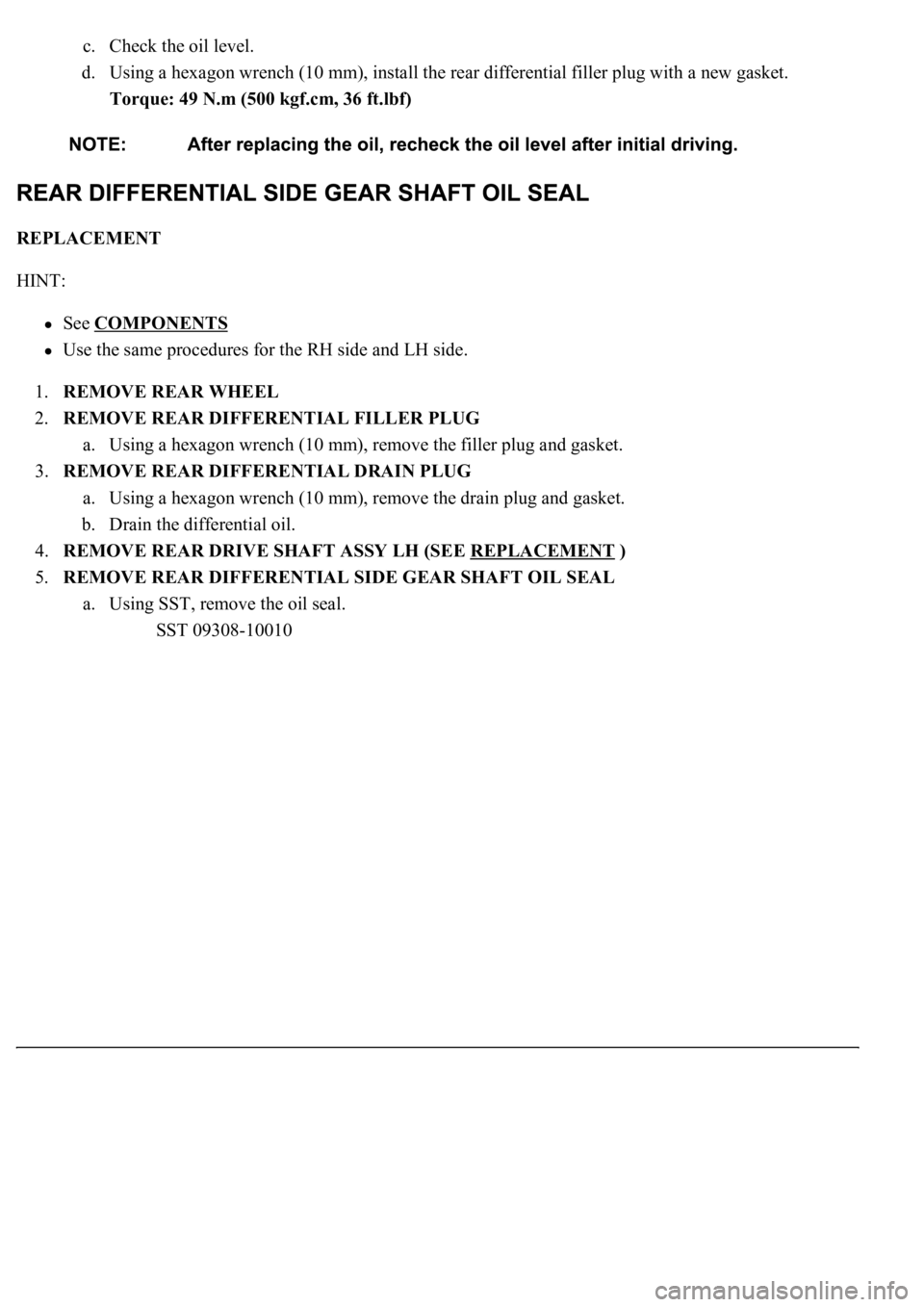

c. Check the oil level.
d. Using a hexagon wrench (10 mm), install the rear differential filler plug with a new gasket.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
REPLACEMENT
HINT:
See COMPONENTS
Use the same procedures for the RH side and LH side.
1.REMOVE REAR WHEEL
2.REMOVE REAR DIFFERENTIAL FILLER PLUG
a. Using a hexagon wrench (10 mm), remove the filler plug and gasket.
3.REMOVE REAR DIFFERENTIAL DRAIN PLUG
a. Using a hexagon wrench (10 mm), remove the drain plug and gasket.
b. Drain the differential oil.
4.REMOVE REAR DRIVE SHAFT ASSY LH (SEE REPLACEMENT
)
5.REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL
a. Using SST, remove the oil seal.
SST 09308-10010

Fig. 5: Removing Rear Differential Side Gear Shaft Oil Seal
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL
a. Using SST and a hammer, install a new oil seal.
b. Apply MP grease to the oil seal lip.
SST 09950-70010 (09951-07150), 09223-15030
Oil seal drive in depth: 0 +/- 0.5 mm (0 +/- 0.020 in.)

Fig. 6: Installing Rear Differential Side Gear Shaft Oil Seal
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL REAR DRIVE SHAFT ASSY LH (SEE REPLACEMENT
)
8.INSTALL REAR DIFFERENTIAL DRAIN PLUG
a. Using a hexagon wrench (10 mm), install the drain plug with a new gasket.
Torque: 49 N.m (500 kgf.cm, 36 ft.)
9.ADD DIFFERENTIAL OIL
a. Fill the rear differential carrier assy with differential gear oil.
Oil type: Differential synthetic gear oil GL-5 75W-90 or equivalent.
<00260044005300440046004c0057005c001d000300140011001600180003000e00120010000300130011001300180003004f004c00570048005500560003000b00140011001700160003000e00120010000300130011001300180003003800360003005400
570056000f0003001400110014001c0003000e001200100003[0.04 Imp. qts)
10.INSPECT DIFFERENTIAL OIL (SEE ADJUSTMENT
)
11.INSTALL REAR DIFFERENTIAL FILLER PLUG
a. Using a hexagon wrench (10 mm), install the filler plug with a new gasket.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
12.STABILIZE SUSPENSION (SEE ADJUSTMENT
)
13.INSPECT AND ADJUST REAR WHEEL ALIGNMENT (SEE ADJUSTMENT
)
14.CHECK ABS SPEED SENSOR SIGNAL (SEE TEST MODE PROCEDURE
)

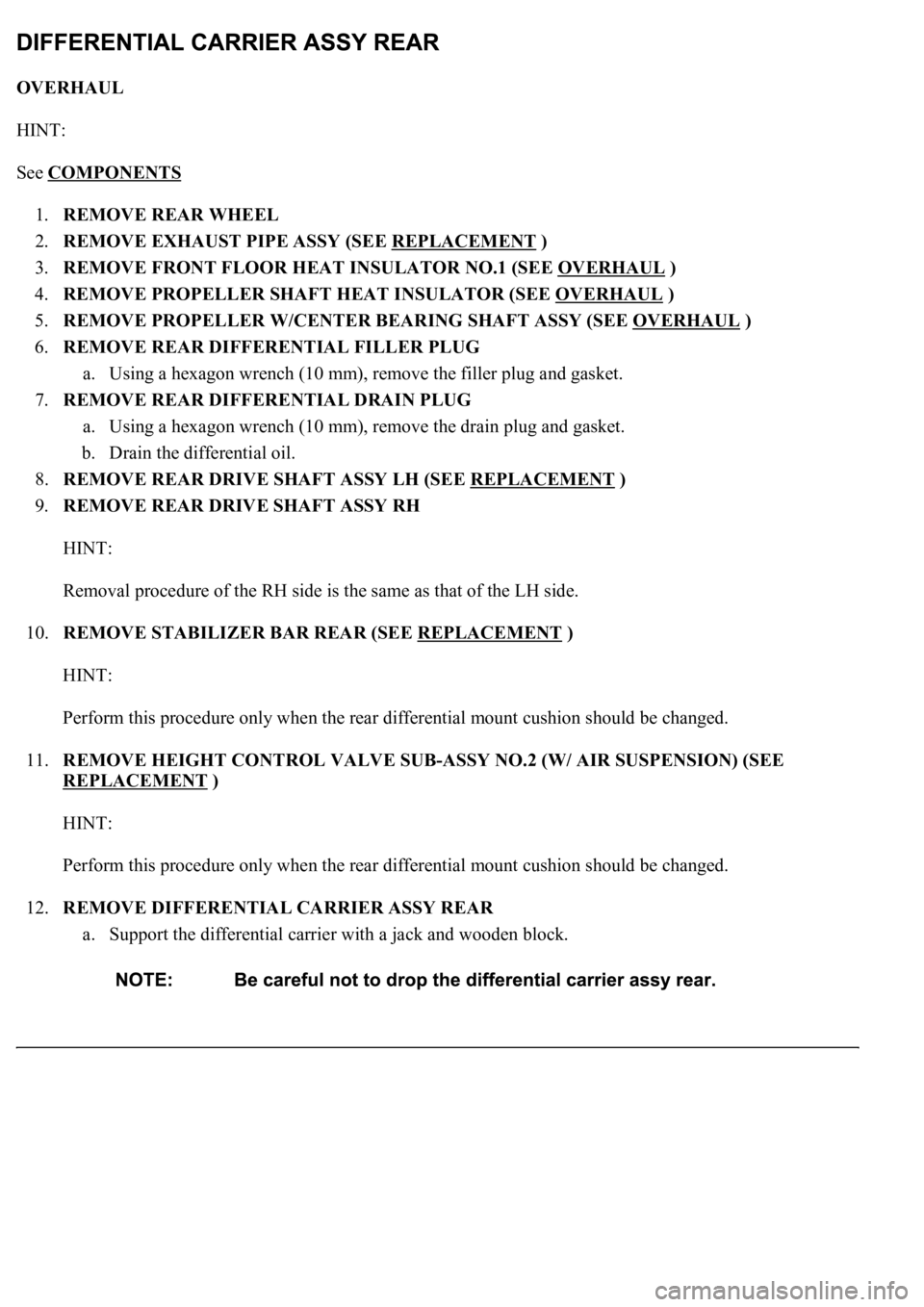

OVERHAUL
HINT:
See COMPONENTS

1.REMOVE REAR WHEEL
2.REMOVE EXHAUST PIPE ASSY (SEE REPLACEMENT
)
3.REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (SEE OVERHAUL
)
4.REMOVE PROPELLER SHAFT HEAT INSULATOR (SEE OVERHAUL
)
5.REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (SEE OVERHAUL
)
6.REMOVE REAR DIFFERENTIAL FILLER PLUG
a. Using a hexagon wrench (10 mm), remove the filler plug and gasket.
7.REMOVE REAR DIFFERENTIAL DRAIN PLUG
a. Using a hexagon wrench (10 mm), remove the drain plug and gasket.
b. Drain the differential oil.
8.REMOVE REAR DRIVE SHAFT ASSY LH (SEE REPLACEMENT
)
9.REMOVE REAR DRIVE SHAFT ASSY RH
HINT:
Removal procedure of the RH side is the same as that of the LH side.
10.REMOVE STABILIZER BAR REAR (SEE REPLACEMENT
)
HINT:
Perform this procedure only when the rear differential mount cushion should be changed.
11.REMOVE HEIGHT CONTROL VALVE SUB-ASSY NO.2 (W/ AIR SUSPENSION) (SEE
REPLACEMENT
)
HINT:
Perform this procedure only when the rear differential mount cushion should be changed.
12.REMOVE DIFFERENTIAL CARRIER ASSY REAR
a. Support the differential carrier with a jack and wooden block.

b. Using a hexagon wrench (12 mm), remove the 3 hexagon bolts.

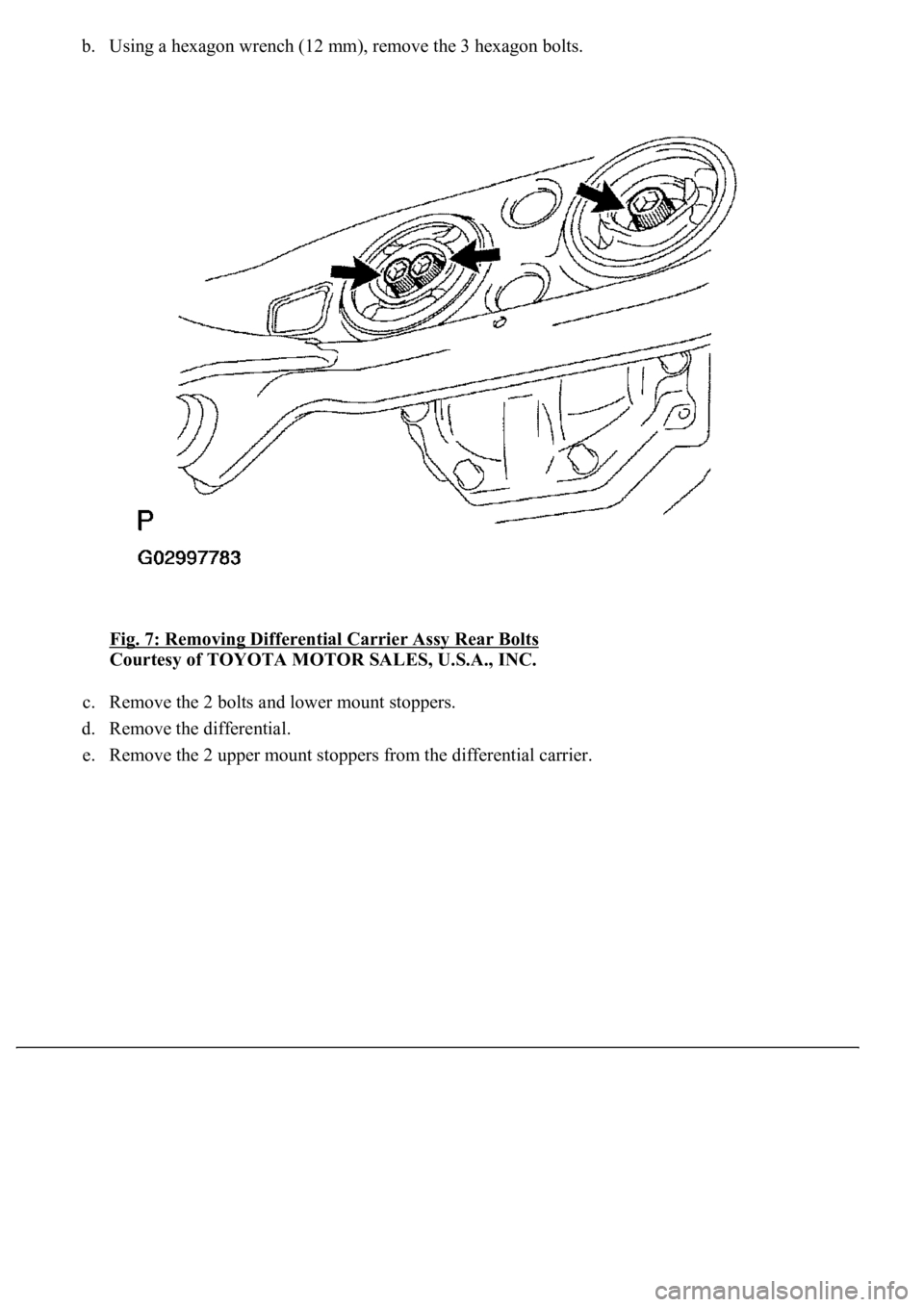

Fig. 7: Removing Differential Carrier Assy Rear Bolts

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the 2 bolts and lower mount stoppers.
d. Remove the differential.
e. Remove the 2 upper mount stoppers from the differential carrier.

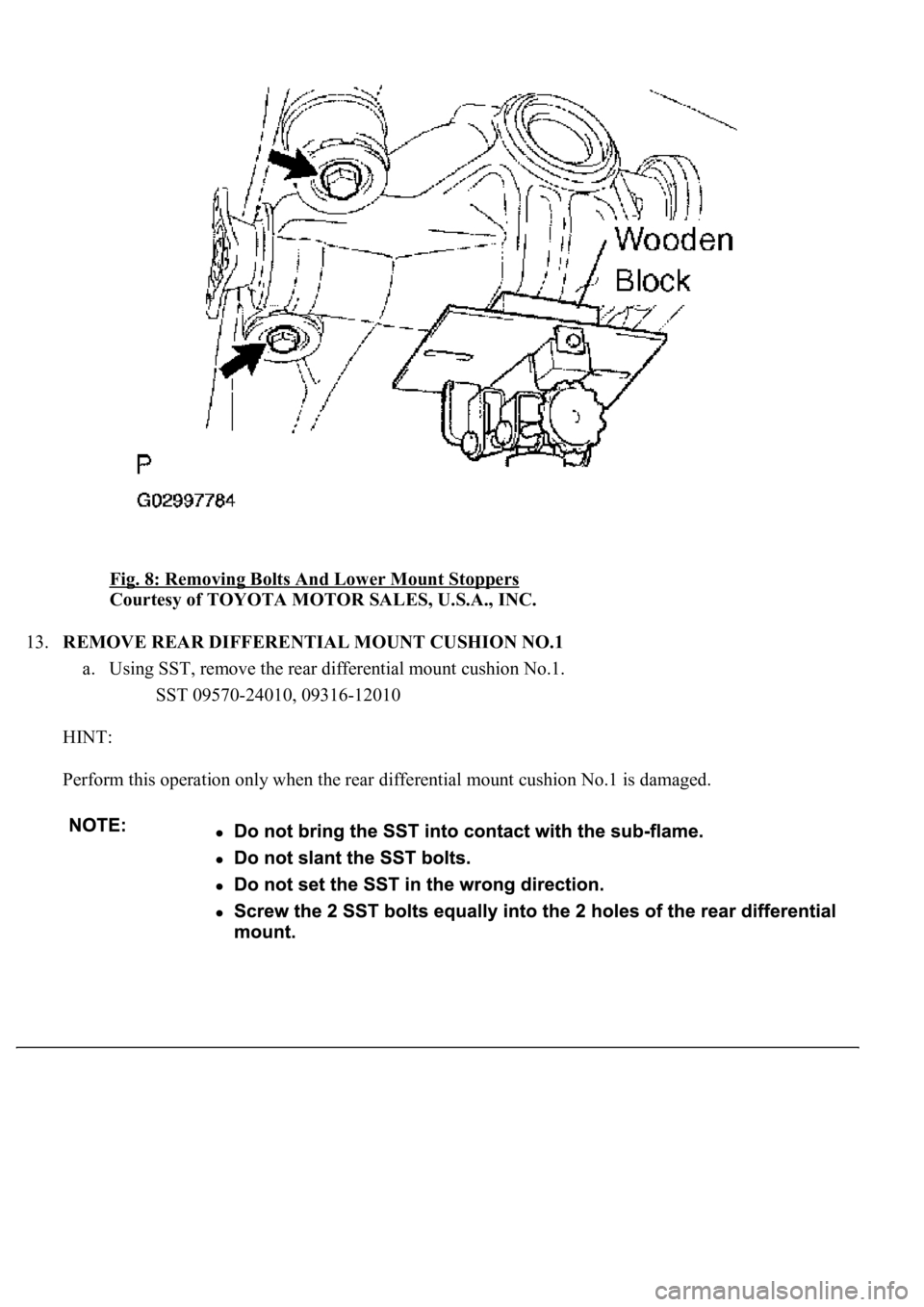

Fig. 8: Removing Bolts And Lower Mount Stoppers
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.REMOVE REAR DIFFERENTIAL MOUNT CUSHION NO.1
a. Using SST, remove the rear differential mount cushion No.1.
SST 09570-24010, 09316-12010
HINT:
Perform this operation only when the rear differential mount cushion No.1 is damaged.

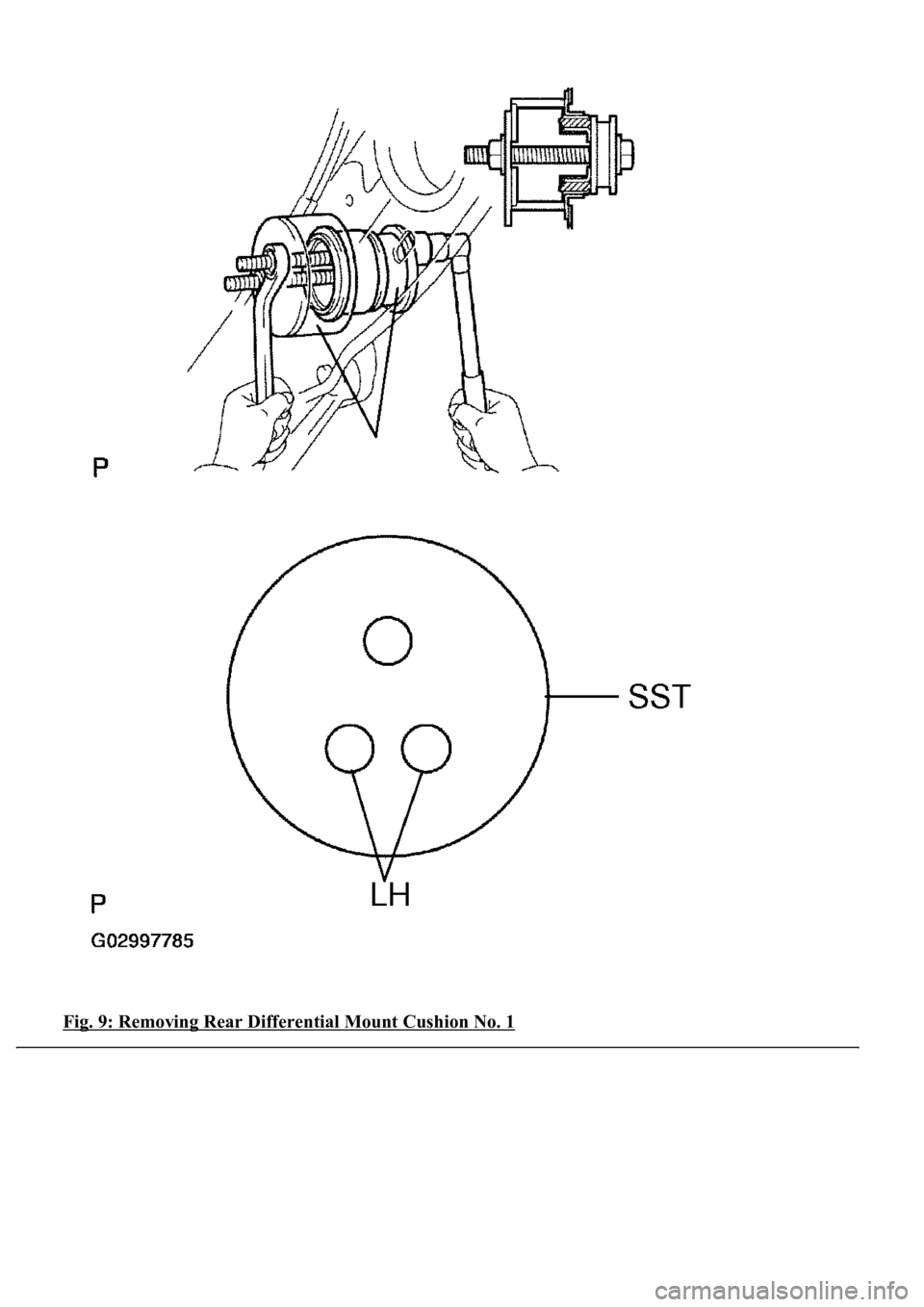

Fig. 9: Removing Rear Differential Mount Cushion No. 1

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
14.REMOVE REAR DIFFERENTIAL MOUNT CUSHION NO.2
a. Using SST remove the rear differential mount cushion No.2.
SST 09570-24010, 09316-12010
HINT:
Perform this operation only when the rear differential mount cushion No.2 is damaged.

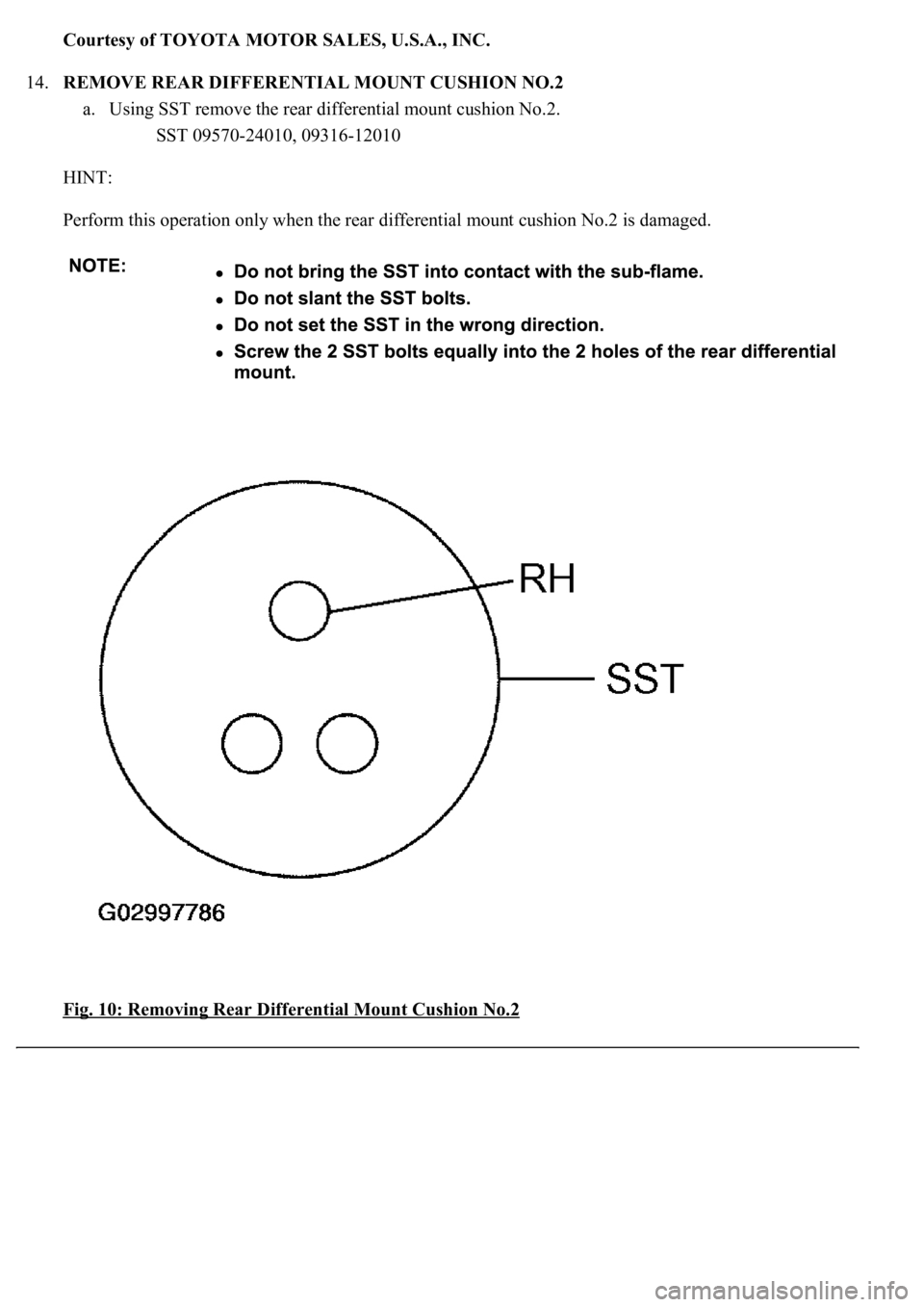

Fig. 10: Removing Rear Differential Mount Cushion No.2
