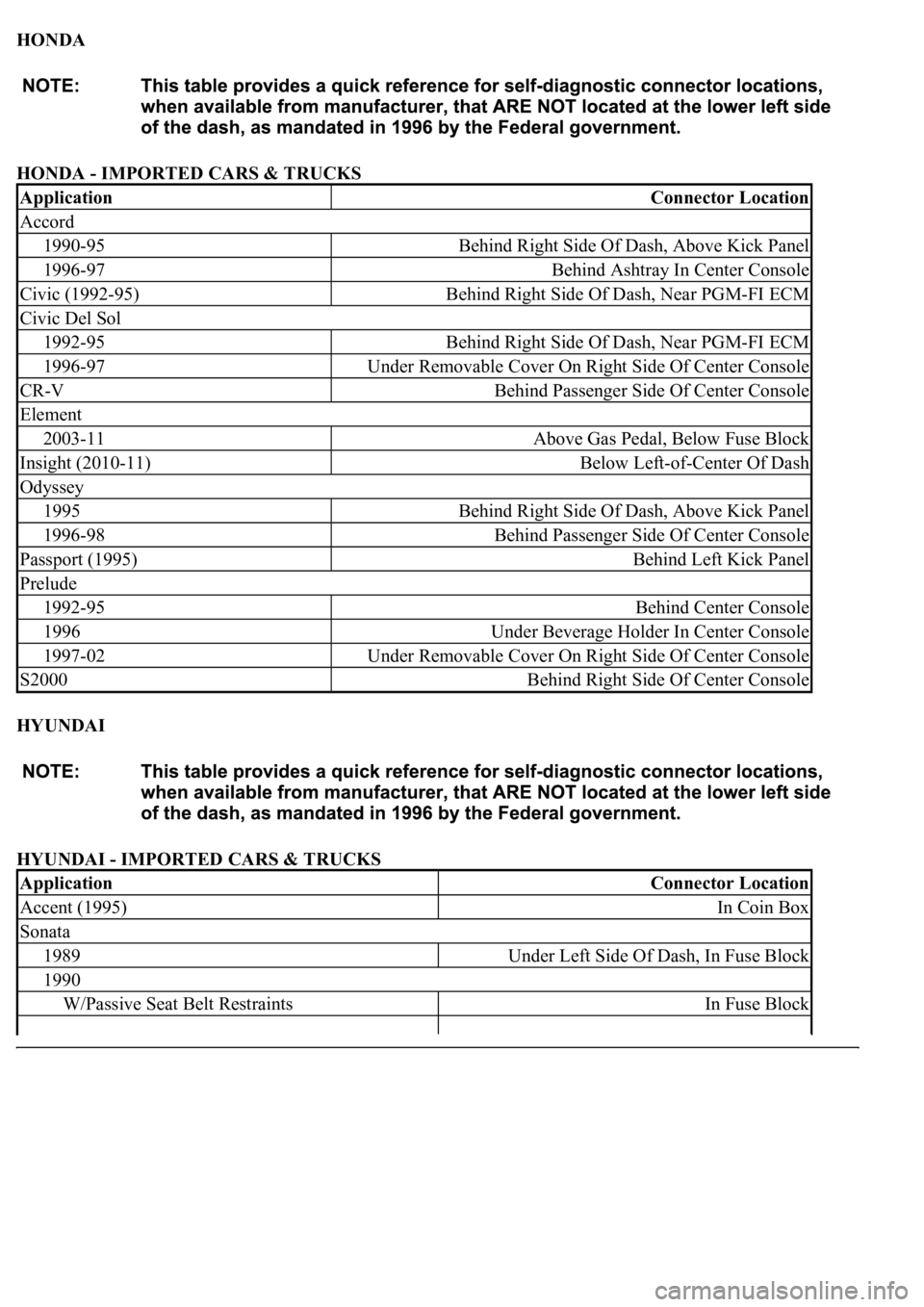

HONDA
HONDA - IMPORTED CARS & TRUCKS
HYUNDAI
HYUNDAI - IMPORTED CARS & TRUCKS
ApplicationConnector Location
Accord
1990-95Behind Right Side Of Dash, Above Kick Panel
1996-97Behind Ashtray In Center Console
Civic (1992-95)Behind Right Side Of Dash, Near PGM-FI ECM
Civic Del Sol
1992-95Behind Right Side Of Dash, Near PGM-FI ECM
1996-97Under Removable Cover On Right Side Of Center Console
CR-VBehind Passenger Side Of Center Console
Element
2003-11Above Gas Pedal, Below Fuse Block
Insight (2010-11)Below Left-of-Center Of Dash
Odyssey
1995Behind Right Side Of Dash, Above Kick Panel
1996-98Behind Passenger Side Of Center Console
Passport (1995)Behind Left Kick Panel
Prelude
1992-95Behind Center Console
1996Under Beverage Holder In Center Console
1997-02Under Removable Cover On Right Side Of Center Console
S2000Behind Right Side Of Center Console
ApplicationConnector Location
Accent (1995)In Coin Box
Sonata
1989Under Left Side Of Dash, In Fuse Block
1990
W/Passive Seat Belt RestraintsIn Fuse Block

INFINITI
INFINITI - IMPORTED CARS & TRUCKS
ISUZU
ISUZU - IMPORTED CARS & TRUCKS

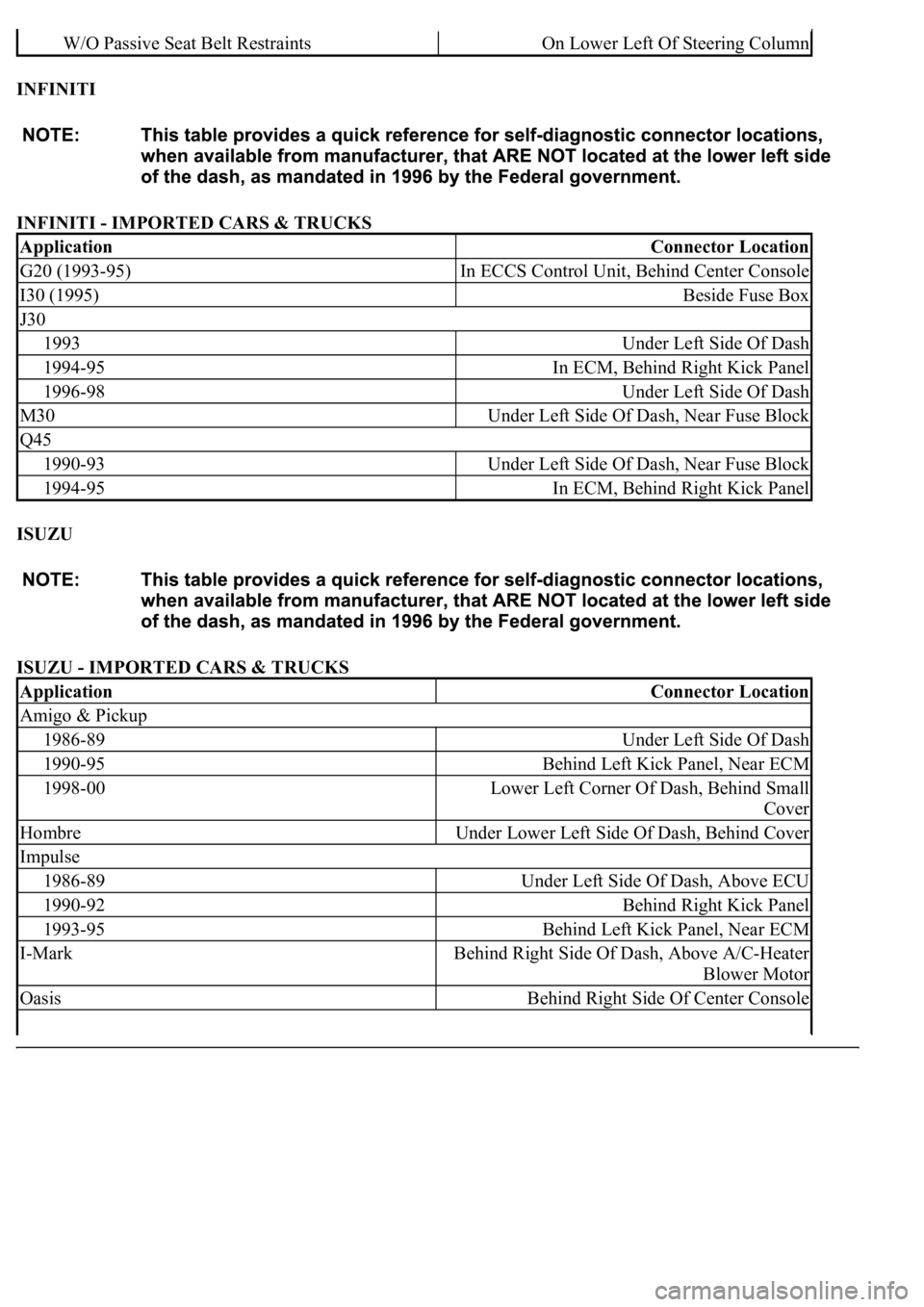

W/O Passive Seat Belt RestraintsOn Lower Left Of Steering Column
ApplicationConnector Location
G20 (1993-95)In ECCS Control Unit, Behind Center Console
I30 (1995)Beside Fuse Box
J30
1993Under Left Side Of Dash
1994-95In ECM, Behind Right Kick Panel
1996-98Under Left Side Of Dash
M30Under Left Side Of Dash, Near Fuse Block
Q45
1990-93Under Left Side Of Dash, Near Fuse Block
1994-95In ECM, Behind Right Kick Panel
ApplicationConnector Location
Amigo & Pickup
1986-89Under Left Side Of Dash
1990-95Behind Left Kick Panel, Near ECM
1998-00Lower Left Corner Of Dash, Behind Small
Cover
HombreUnder Lower Left Side Of Dash, Behind Cover
Impulse
1986-89Under Left Side Of Dash, Above ECU
1990-92Behind Right Kick Panel
1993-95Behind Left Kick Panel, Near ECM
I-MarkBehind Right Side Of Dash, Above A/C-Heater
Blower Motor
OasisBehind Right Side Of Center Console

JAGUAR
JAGUAR - IMPORTED CARS & TRUCKS
KIA

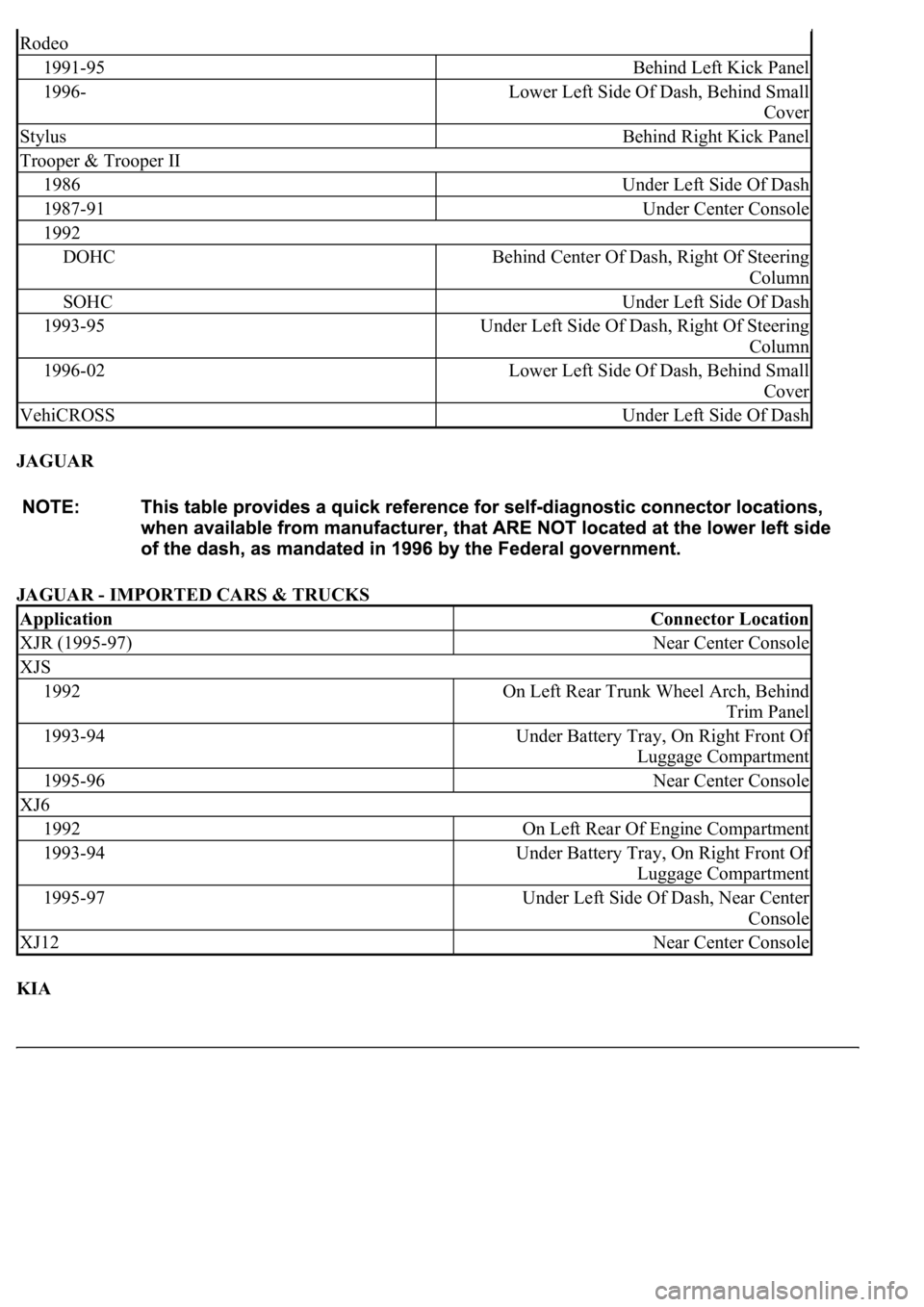

Rodeo
1991-95Behind Left Kick Panel
1996-Lower Left Side Of Dash, Behind Small
Cover
StylusBehind Right Kick Panel
Trooper & Trooper II
1986Under Left Side Of Dash
1987-91Under Center Console
1992
DOHCBehind Center Of Dash, Right Of Steering
Column
SOHCUnder Left Side Of Dash
1993-95Under Left Side Of Dash, Right Of Steering
Column
1996-02Lower Left Side Of Dash, Behind Small
Cover
VehiCROSSUnder Left Side Of Dash
ApplicationConnector Location
XJR (1995-97)Near Center Console
XJS
1992On Left Rear Trunk Wheel Arch, Behind
Trim Panel
1993-94Under Battery Tray, On Right Front Of
Luggage Compartment
1995-96Near Center Console
XJ6
1992On Left Rear Of Engine Compartment
1993-94Under Battery Tray, On Right Front Of
Luggage Compartment
1995-97Under Left Side Of Dash, Near Center
Console
XJ12Near Center Console

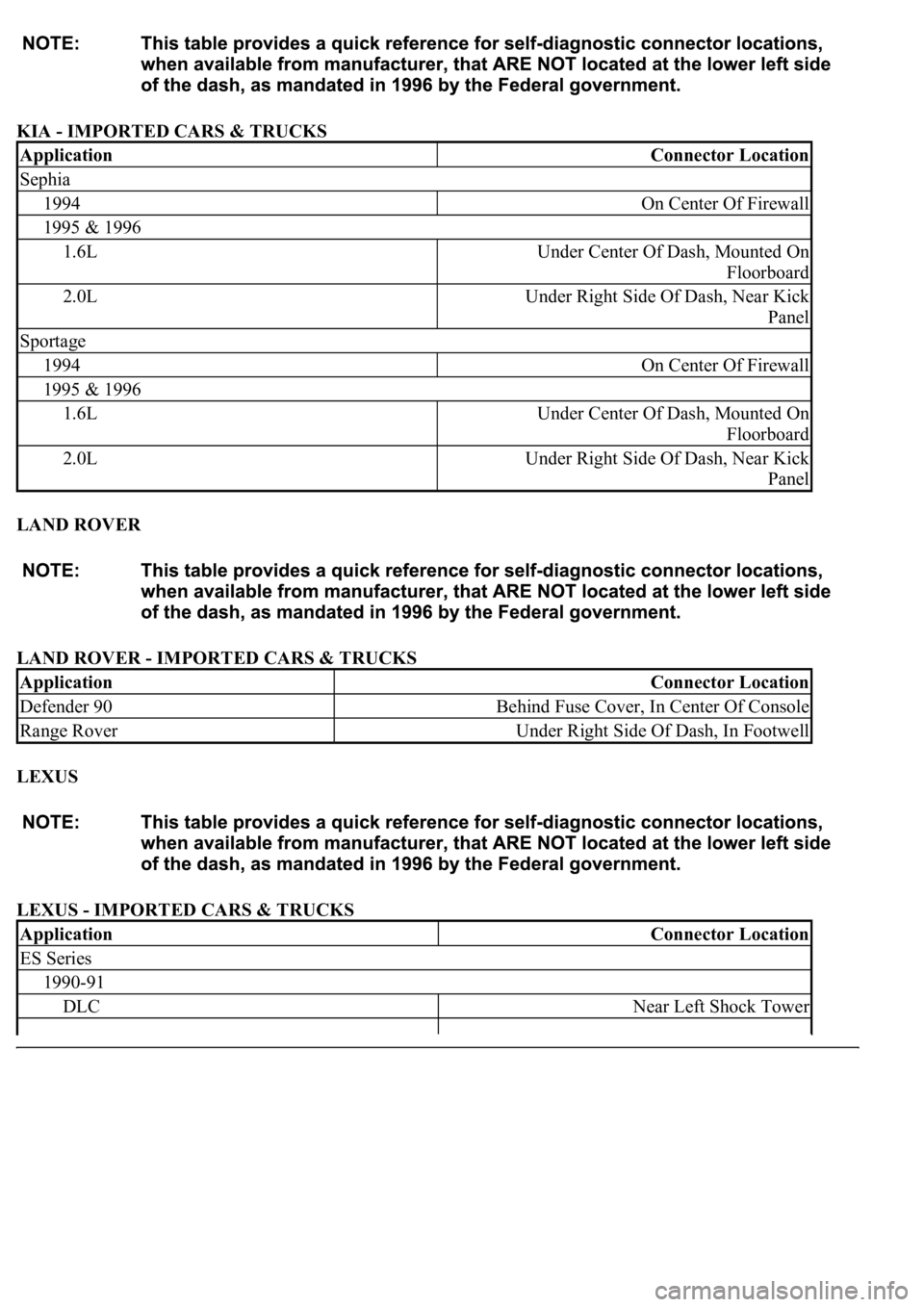

KIA - IMPORTED CARS & TRUCKS
LAND ROVER
LAND ROVER - IMPORTED CARS & TRUCKS
LEXUS
LEXUS - IMPORTED CARS & TRUCKS
ApplicationConnector Location
Sephia
1994On Center Of Firewall
1995 & 1996
1.6LUnder Center Of Dash, Mounted On
Floorboard
2.0LUnder Right Side Of Dash, Near Kick
Panel
Sportage
1994On Center Of Firewall
1995 & 1996
1.6LUnder Center Of Dash, Mounted On
Floorboard
2.0LUnder Right Side Of Dash, Near Kick
Panel
ApplicationConnector Location
Defender 90Behind Fuse Cover, In Center Of Console
Range RoverUnder Right Side Of Dash, In Footwell
ApplicationConnector Location
ES Series
1990-91
DLCNear Left Shock Tower

MAZDA
MAZDA - IMPORTED CARS & TRUCKS

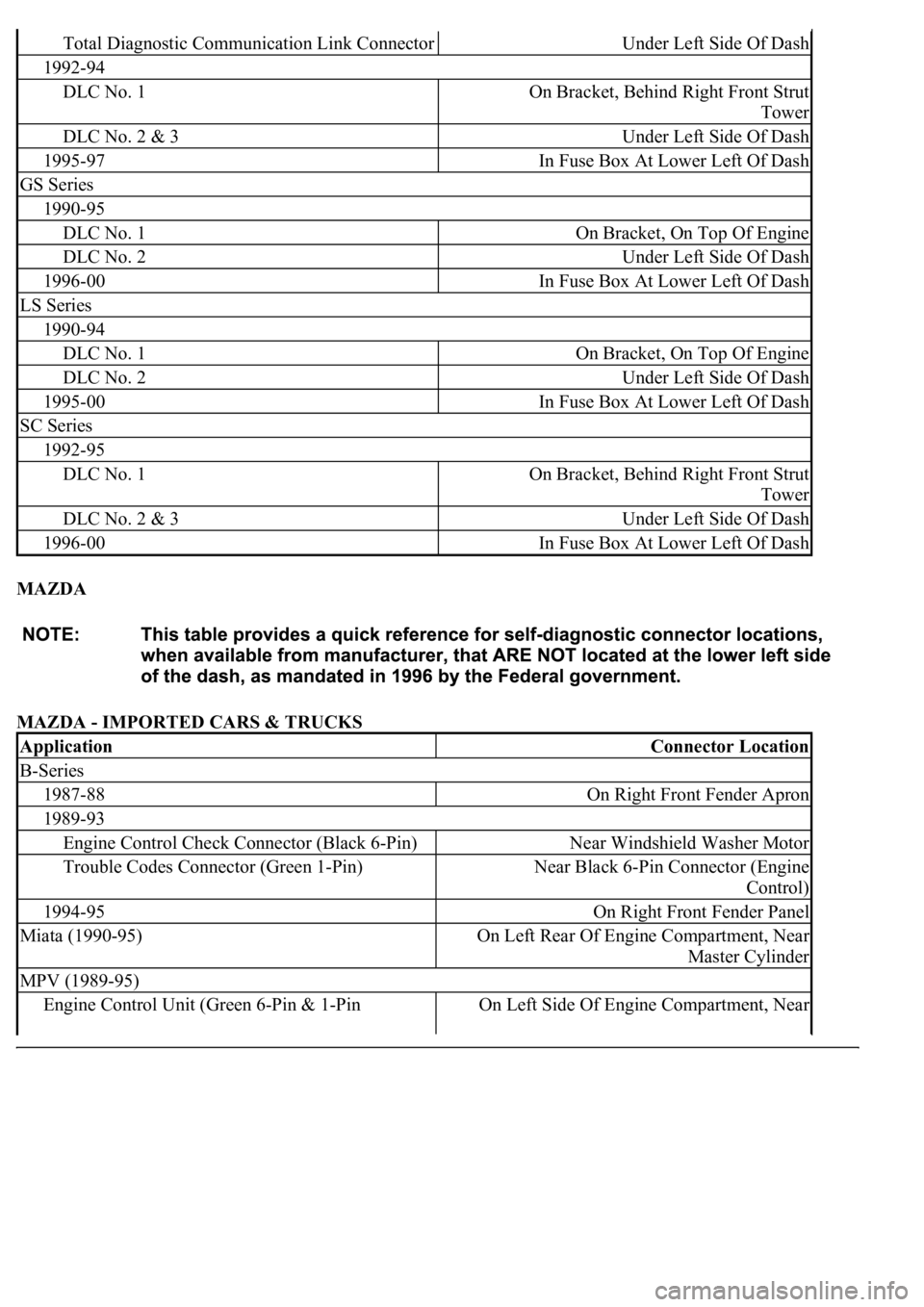

Total Diagnostic Communication Link ConnectorUnder Left Side Of Dash
1992-94
DLC No. 1On Bracket, Behind Right Front Strut
Tower
DLC No. 2 & 3Under Left Side Of Dash
1995-97In Fuse Box At Lower Left Of Dash
GS Series
1990-95
DLC No. 1On Bracket, On Top Of Engine
DLC No. 2Under Left Side Of Dash
1996-00In Fuse Box At Lower Left Of Dash
LS Series
1990-94
DLC No. 1On Bracket, On Top Of Engine
DLC No. 2Under Left Side Of Dash
1995-00In Fuse Box At Lower Left Of Dash
SC Series
1992-95
DLC No. 1On Bracket, Behind Right Front Strut
Tower
DLC No. 2 & 3Under Left Side Of Dash
1996-00In Fuse Box At Lower Left Of Dash
ApplicationConnector Location
B-Series
1987-88On Right Front Fender Apron
1989-93
Engine Control Check Connector (Black 6-Pin)Near Windshield Washer Motor
Trouble Codes Connector (Green 1-Pin)Near Black 6-Pin Connector (Engine
Control)
1994-95On Right Front Fender Panel
Miata (1990-95)On Left Rear Of Engine Compartment, Near
Master Cylinder
MPV (1989-95)
Engine Control Unit (Green 6-Pin & 1-Pin On Left Side Of Engine Compartment, Near

MERCEDES-BENZ
MERCEDES-BENZ - IMPORTED CARS & TRUCKS
Connectors)Inner Fender Panel
MX-3Mounted On Bracket, On Left Front Strut Tower
MX-6 & 626
1988Behind Left Front Shock Tower
1989On Left Front Corner Of Engine
Compartment
1990-91At ECU Connector Terminal
1992On Left Rear Corner Of Engine Compartment
1993On Side Of Fuse/Relay Block, Near Battery
1994-95On Left Front Fender Apron
Navajo
1991-93On Right Rear Corner Of Engine
Compartment
1994-95On Right Front Fender Panel
Protege
1987-89On Passenger's Footwell (Left Foot Area)
1990-95On Left Side Of Firewall, Near Wiper Motor
RX7
1986-88 (3 Check Connectors)At Left & Right Corners Of Engine
Compartment
1989-91 (Green 6-Pin Connector)Behind Ignition Coil
1993-95On Bracket, On Left Front Strut Tower
323
1986-88Front Left Of Engine Compartment, Near
Ignition Coil
1989 (Green 6-Pin & Green 1-Pin Connectors)On Left Side Of Firewall
1990-95On Left Side Of Firewall, Near Wiper Motor
929
1989Near Air Cleaner
1990-91 (Green 6-Pin Connector)In Left Front Corner Of Engine Compartment
1992-93Mounted On Air Cleaner Housing
1994-95On Left Front Strut Tower
ApplicationConnector Location
C-Class (1994)On Right Rear Of Engine Compartment

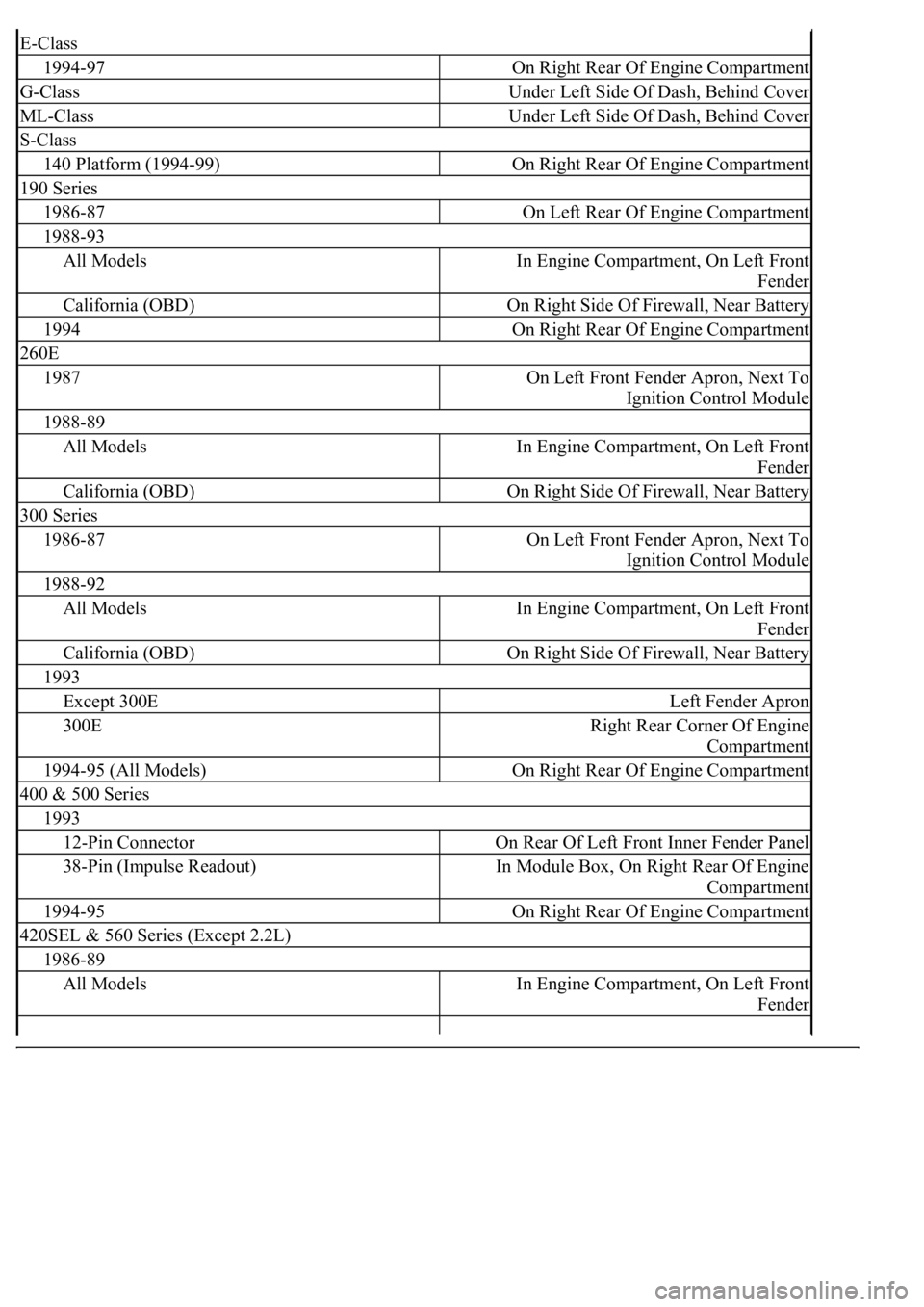

E-Class
1994-97On Right Rear Of Engine Compartment
G-ClassUnder Left Side Of Dash, Behind Cover
ML-ClassUnder Left Side Of Dash, Behind Cover
S-Class
140 Platform (1994-99)On Right Rear Of Engine Compartment
190 Series
1986-87On Left Rear Of Engine Compartment
1988-93
All ModelsIn Engine Compartment, On Left Front
Fender
California (OBD)On Right Side Of Firewall, Near Battery
1994On Right Rear Of Engine Compartment
260E
1987On Left Front Fender Apron, Next To
Ignition Control Module
1988-89
All ModelsIn Engine Compartment, On Left Front
Fender
California (OBD)On Right Side Of Firewall, Near Battery
300 Series
1986-87On Left Front Fender Apron, Next To
Ignition Control Module
1988-92
All ModelsIn Engine Compartment, On Left Front
Fender
California (OBD)On Right Side Of Firewall, Near Battery
1993
Except 300ELeft Fender Apron
300ERight Rear Corner Of Engine
Compartment
1994-95 (All Models)On Right Rear Of Engine Compartment
400 & 500 Series
1993
12-Pin ConnectorOn Rear Of Left Front Inner Fender Panel
38-Pin (Impulse Readout)In Module Box, On Right Rear Of Engine
Compartment
1994-95On Right Rear Of Engine Compartment
420SEL & 560 Series (Except 2.2L)
1986-89
All ModelsIn Engine Compartment, On Left Front
Fender

MITSUBISHI
MITSUBISHI - IMPORTED CARS & TRUCKS
NISSAN
NISSAN - IMPORTED CARS & TRUCKS
California (OBD)On Right Side Of Firewall, Near Battery
1990-91In Engine Compartment, On Left Front
Fender
560 Series (2.2L)On Lower Left Side Of Engine Connector
ApplicationConnector Location
Diamante (1992-98)Under Left Side Of Dash, Near Fuse/Relay
Block
ExpoUnder Left Side Of Dash, Near Fuse/Relay
Block
Montero
1986-88Left Rear Corner Of Engine Compartment
1989-91Behind Glove Compartment
PickupUnder Left Side Of Dash, Near Fuse/Relay
Block
Raider
1987-88Left Rear Corner Of Engine Compartment
1989Behind Glove Compartment
3000GT
1991-98Under Left Side Of Dash, On Fuse/Relay
Block
1999Under Left Side Of Dash, Left Of Center
Console
ApplicationConnector Location
Altima
1993-94On Driver-Side Of Center Console, Above
Accelerator Pedal
1995-96Below Fuse Box

PEUGEOT
PEUGEOT - IMPORTED CARS & TRUCKS
PORSCHE
PORSCHE - IMPORTED CARS & TRUCKS

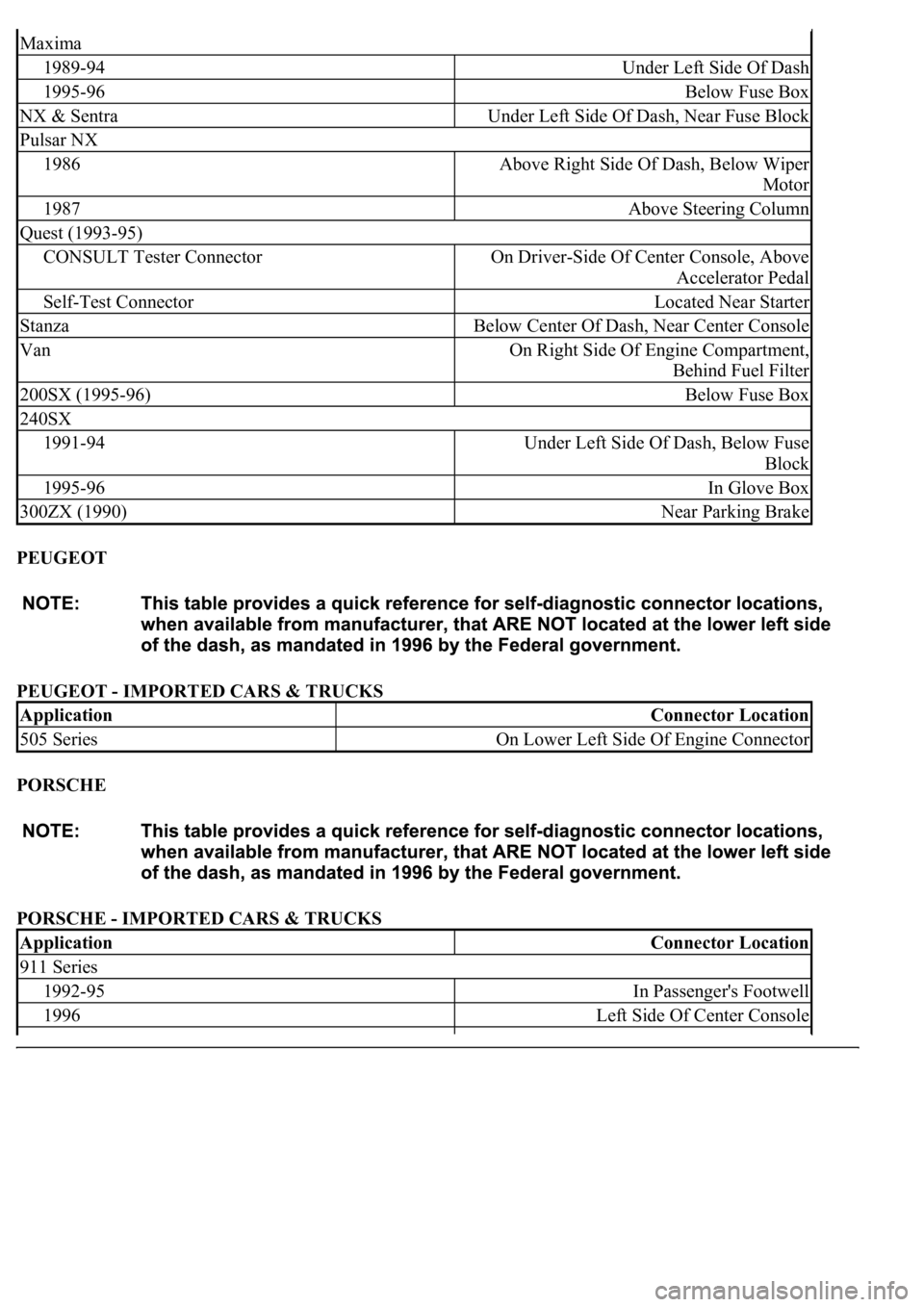

Maxima
1989-94Under Left Side Of Dash
1995-96Below Fuse Box
NX & SentraUnder Left Side Of Dash, Near Fuse Block
Pulsar NX
1986Above Right Side Of Dash, Below Wiper
Motor
1987Above Steering Column
Quest (1993-95)
CONSULT Tester ConnectorOn Driver-Side Of Center Console, Above
Accelerator Pedal
Self-Test ConnectorLocated Near Starter
StanzaBelow Center Of Dash, Near Center Console
VanOn Right Side Of Engine Compartment,
Behind Fuel Filter
200SX (1995-96)Below Fuse Box
240SX
1991-94Under Left Side Of Dash, Below Fuse
Block
1995-96In Glove Box
300ZX (1990)Near Parking Brake
ApplicationConnector Location
505 SeriesOn Lower Left Side Of Engine Connector
ApplicationConnector Location
911 Series
1992-95In Passenger's Footwell
1996Left Side Of Center Console

RENAULT
RENAULT - IMPORTED CARS & TRUCKS
ROLLS-ROYCE
ROLLS-ROYCE - IMPORTED CARS & TRUCKS
SAAB
SAAB - IMPORTED CARS & TRUCKS
928STop Front Of Engine
944 SeriesOn Left Side Of Engine Compartment
ApplicationConnector Location
Sportwagon
Engine DiagnosticOn Center Of Firewall
Fuel Injection DiagnosticRight Rear Of Engine Compartment,
Behind Airflow Meter
ApplicationConnector Location
All Models
1996-00In Glove Compartment
2001-Under Left Side Of Dash
ApplicationConnector Location
900 Series
1986-90In Front Of Fuse/Relay Panel
1991-93Under Back Seat, On Right Side
1994
ConvertibleUnder Rear Seat
HatchbackUnder Steering Column
All OthersUnder Right Front Seat
