LEXUS LS430 2003 Factory Repair Manual

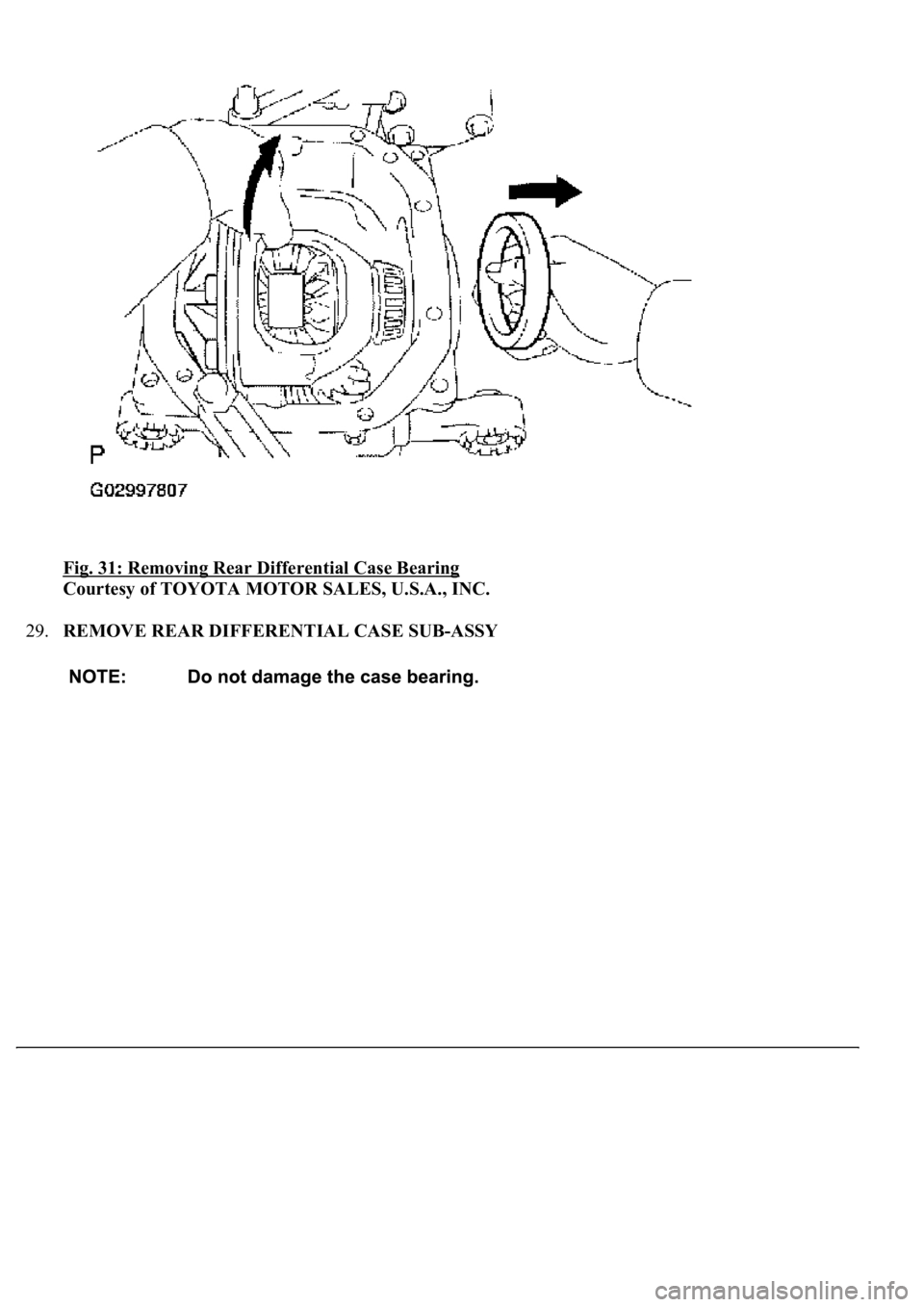

Fig. 31: Removing Rear Differential Case Bearing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
29.REMOVE REAR DIFFERENTIAL CASE SUB-ASSY

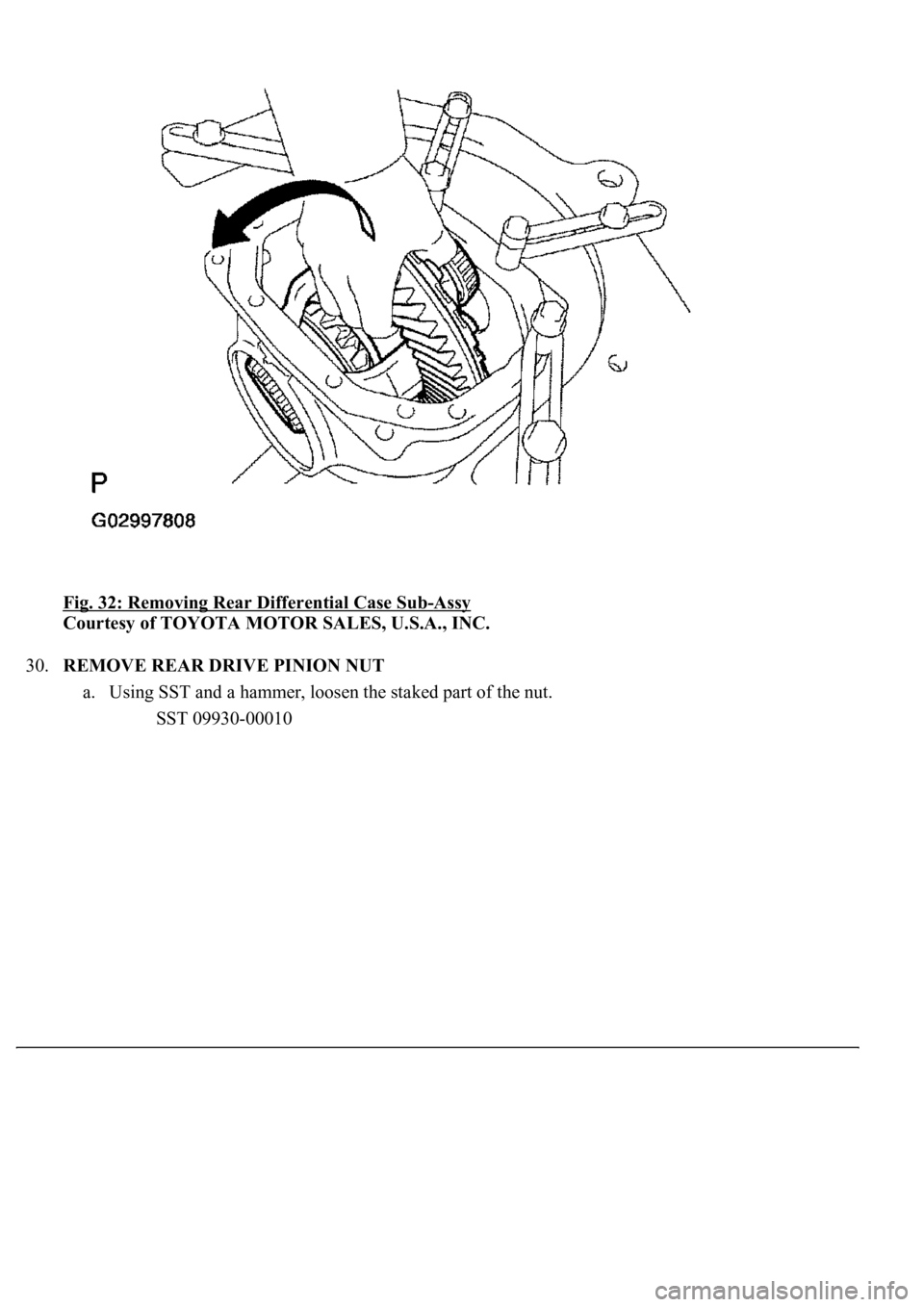

Fig. 32: Removing Rear Differential Case Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.REMOVE REAR DRIVE PINION NUT
a. Using SST and a hammer, loosen the staked part of the nut.
SST 09930-00010

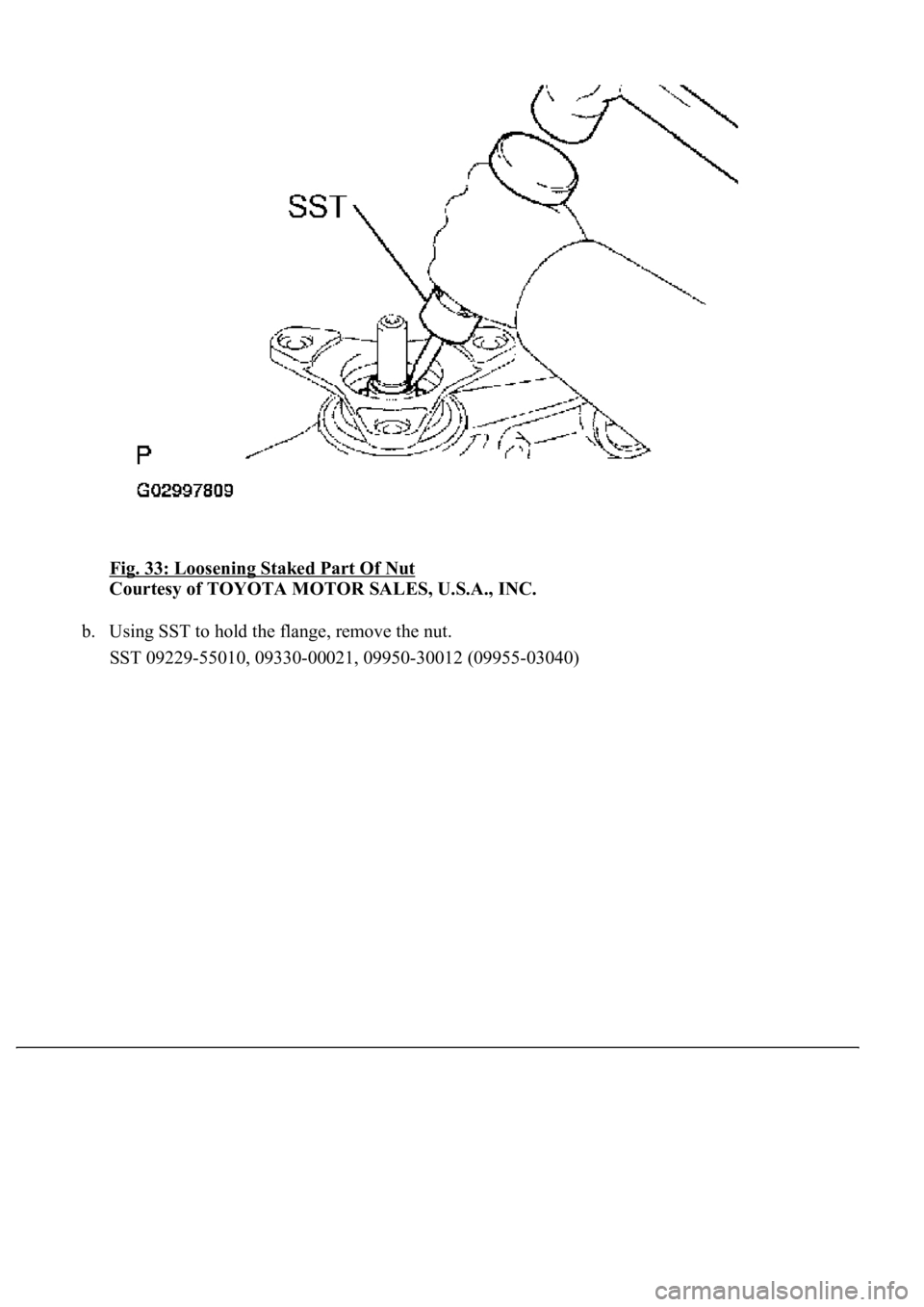

Fig. 33: Loosening Staked Part Of Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using SST to hold the flange, remove the nut.
SST 09229-55010, 09330-00021, 09950-30012 (09955-03040)

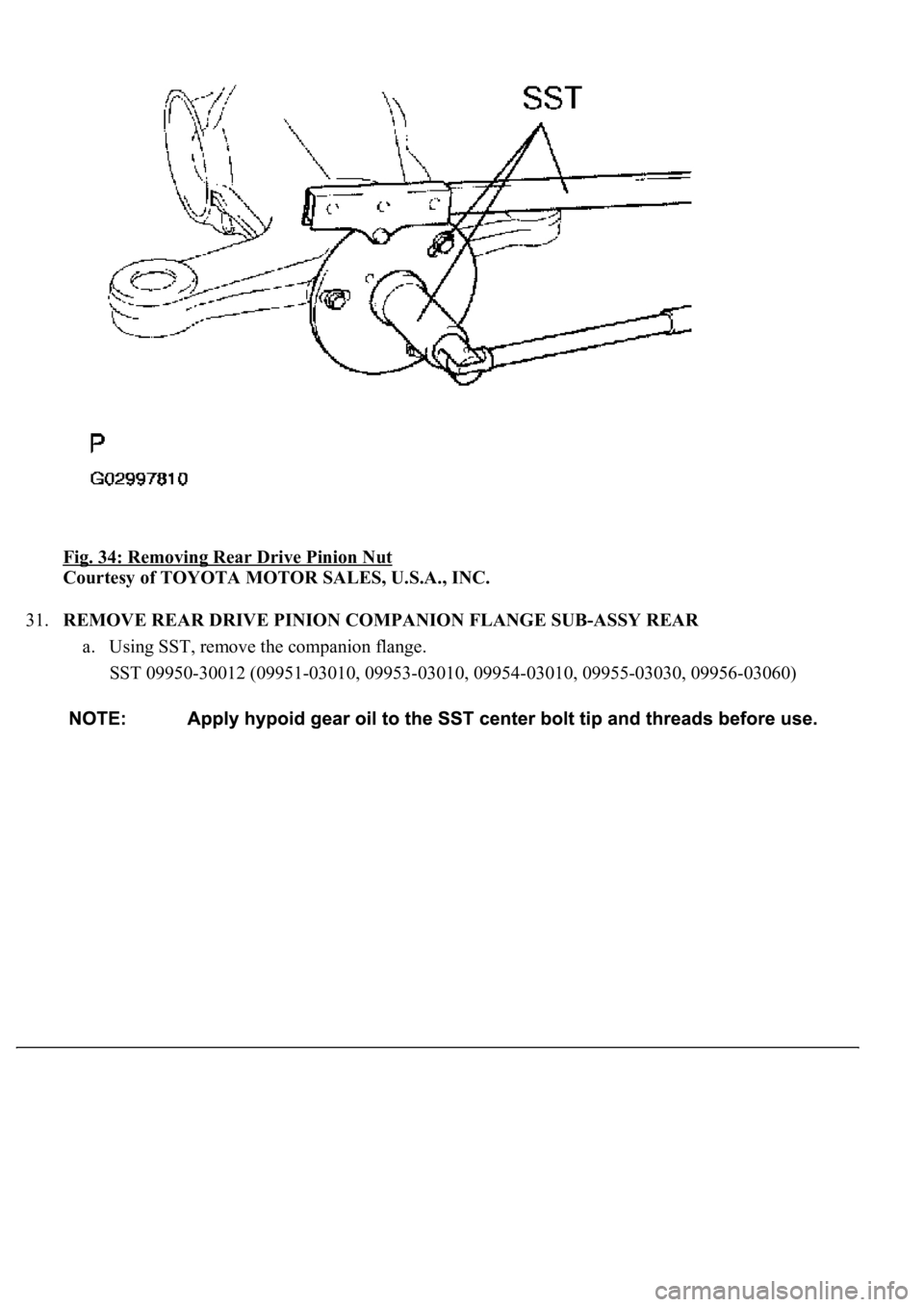

Fig. 34: Removing Rear Drive Pinion Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

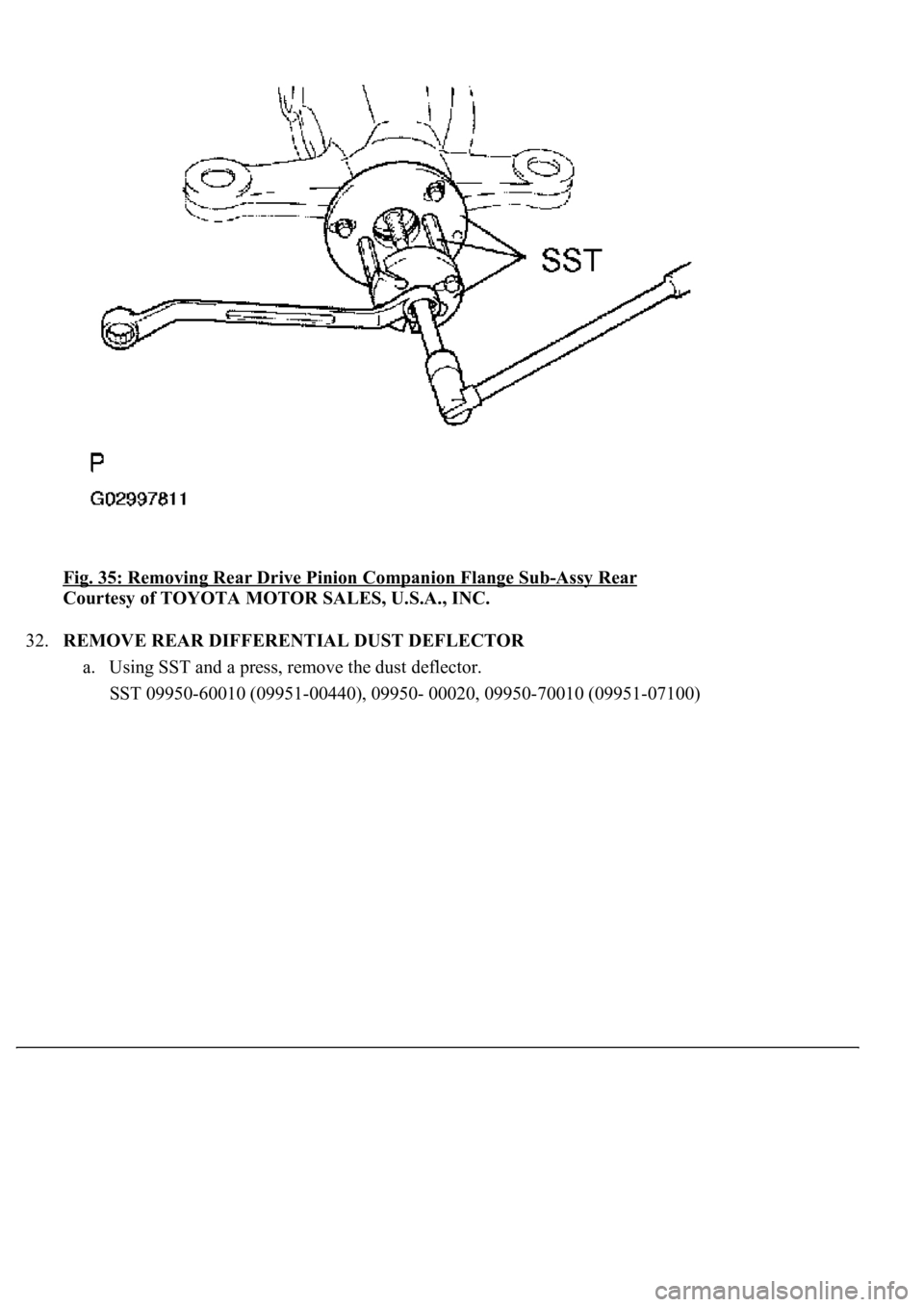

31.REMOVE REAR DRIVE PINION COMPANION FLANGE SUB-ASSY REAR
a. Using SST, remove the companion flange.
SST 09950-30012 (09951-03010, 09953-03010, 09954-03010, 09955-03030, 09956-03060)

<0029004c004a0011000300160018001d000300350048005000520059004c0051004a00030035004800440055000300270055004c0059004800030033004c0051004c005200510003002600520050005300440051004c0052005100030029004f0044005100
4a00480003003600580045[-Assy Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
32.REMOVE REAR DIFFERENTIAL DUST DEFLECTOR
a. Using SST and a press, remove the dust deflector.
SST 09950-60010 (09951-00440), 09950- 00020, 09950-70010 (09951-07100)

Fig. 36: Removing Rear Differential Dust Deflector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
33.REMOVE REAR DIFFERENTIAL CARRIER OIL SEAL
a. Using SST, remove the oil seal from the differential carrier.
SST 09308-10010

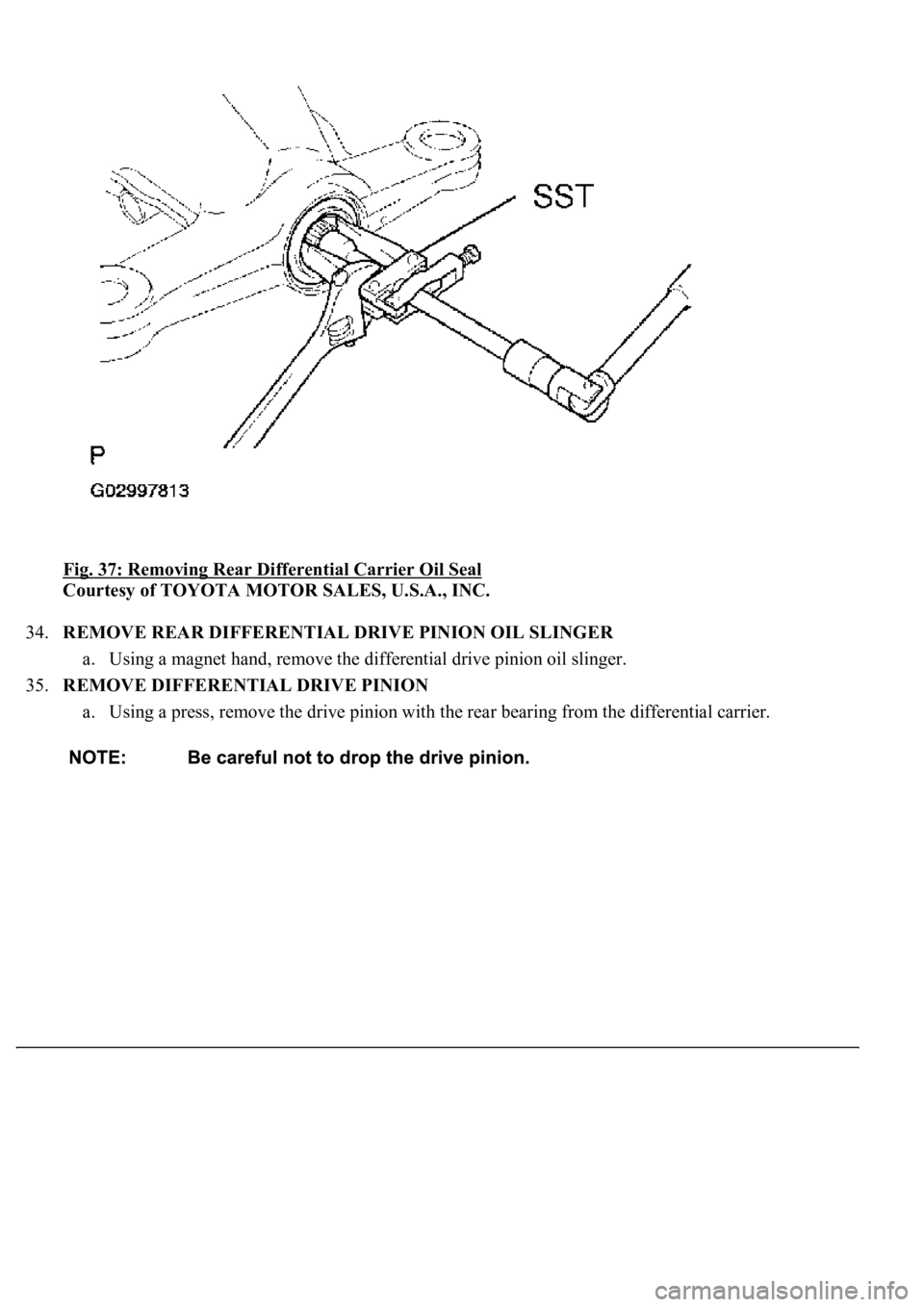

Fig. 37: Removing Rear Differential Carrier Oil Seal
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
34.REMOVE REAR DIFFERENTIAL DRIVE PINION OIL SLINGER
a. Using a magnet hand, remove the differential drive pinion oil slinger.
35.REMOVE DIFFERENTIAL DRIVE PINION
a. Using a press, remove the drive pinion with the rear bearing from the differential carrier.

Fig. 38: Removing Differential Drive Pinion
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
36.REMOVE REAR DIFFERENTIAL DRIVE PINION BEARING SPACER
a. Remove the spacer from the drive pinion.

Fig. 39: Removing Rear Differential Drive Pinion Bearing Spacer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
37.REMOVE REAR DRIVE PINION FRONT TAPERED ROLLER BEARING
a. Remove the front bearing from the differential carrier.

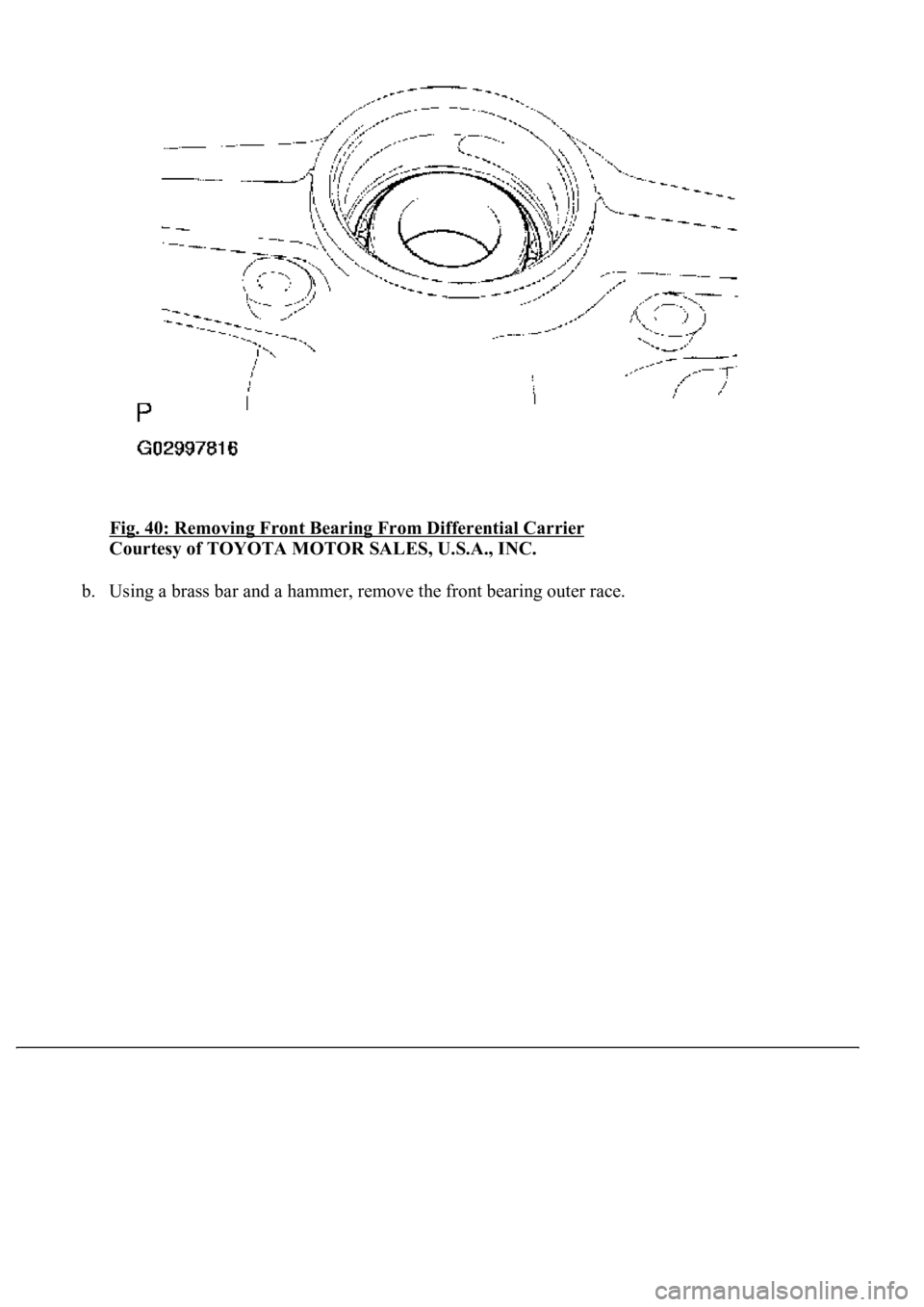

Fig. 40: Removing Front Bearing From Differential Carrier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b.Using a brass bar and a hammer, remove the front bearing outer race.
