LEXUS LS430 2003 Factory Repair Manual

Fig. 123: Applying MP Grease To Sliding And Rotating Areas Of Door Lock
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Apply adhesive to the threads of the 3 screws.
Adhesive:

Part No. 08833-00070, THREE BOND 1324 or equivalent
c. w/o Door closer:
Using a T30 Torx° wrench, install the door lock with the 3 screws.
Torque: 5.5 N.m (56 kgf.cm, 44 in..lbf)
d. w/ Door closer:
Using a T30 Torx° wrench, install the door lock with the 4 screws.
Torque: 5.5 N.m (56 kgf.cm, 44 in..lbf)
e. Connect the door lock connector.

Fig. 124: Connecting Door Lock Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
32.INSTALL REAR DOOR QUARTER WINDOW GLASS LH
a. Install the quarter window weatherstrip on the
glass.

b. Install the quarter window glass in the direction indicated by the arrow mark in the illustration.
Fig. 125: Installing Quarter Window Glass

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
33.INSTALL REAR DOOR WINDOW GUIDE SUB-ASSY FRONT LH
a. Instal the guide with the 2 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

Fig. 126: Installing Rear Door Window Guide Sub-Assy Front LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
34.INSTALL POWER WINDOW REGULATOR MOTOR ASSY LH REAR
a. Ali
gn the matchmarks. Keep them aligned until the window glass installation is complete.

Fig. 127: Installing Power Window Regulator Motor Assy LH Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using a T25 Torx° driver, install the motor with the 3 screws.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

Fig. 128: Installing Motor Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

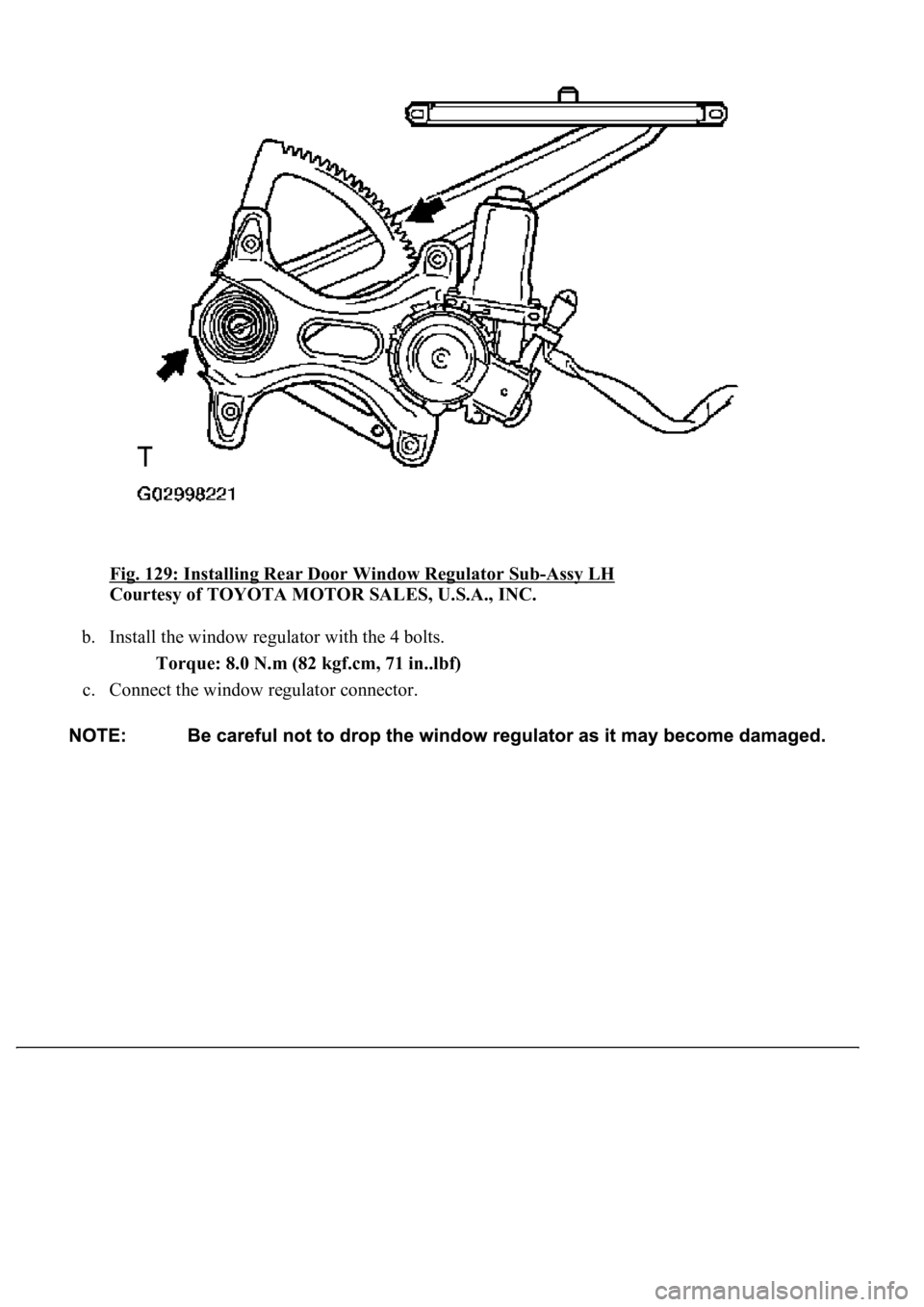

35.INSTALL REAR DOOR WINDOW REGULATOR SUB-ASSY LH
a. Apply MP grease to the sliding and rotating areas of the window regulator.

<0029004c004a0011000300140015001c001d0003002c0051005600570044004f004f004c0051004a00030035004800440055000300270052005200550003003a004c005100470052005a000300350048004a0058004f004400570052005500030036005800
45[-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the window regulator with the 4 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
c. Connect the window regulator connector.

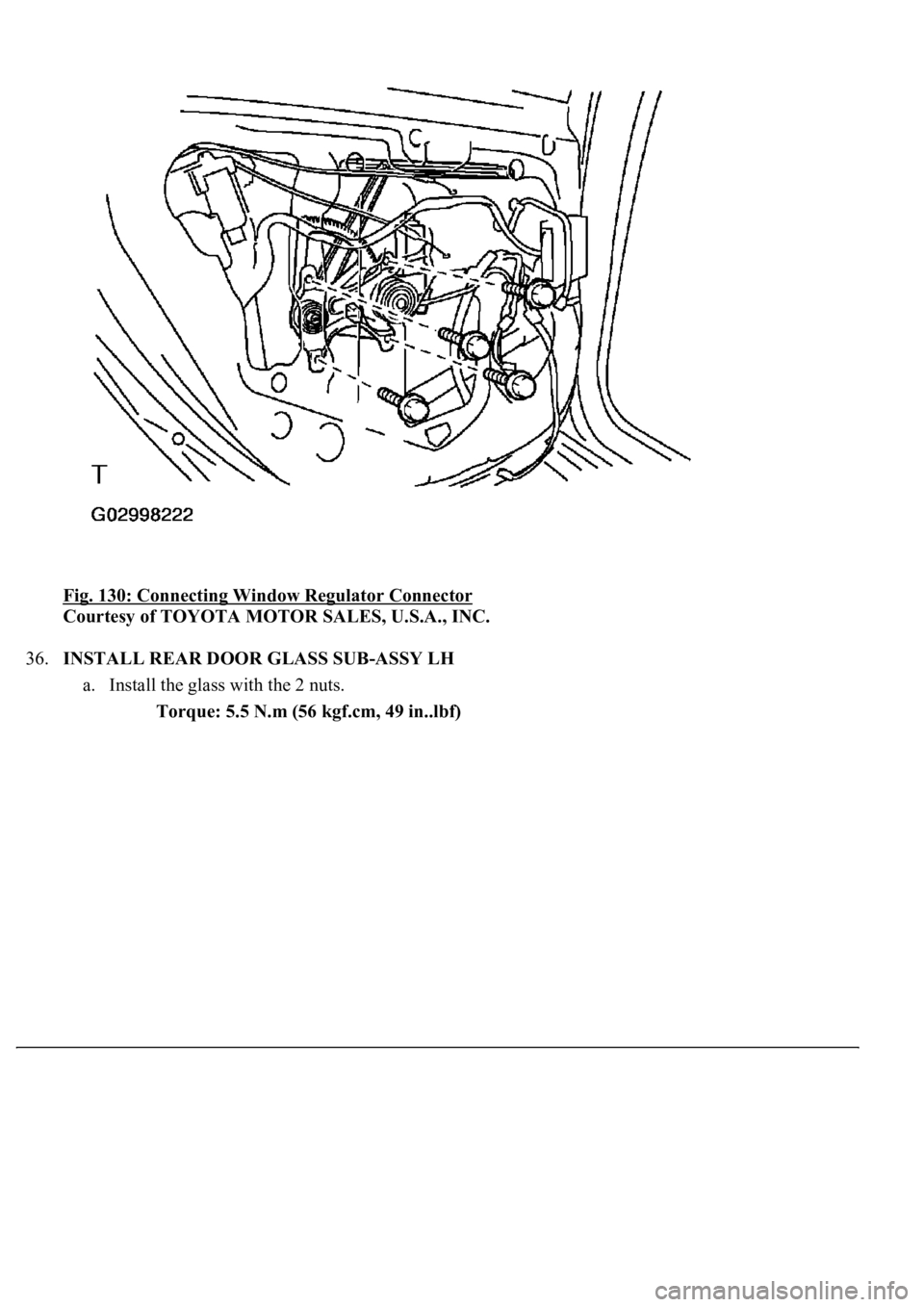

Fig. 130: Connecting Window Regulator Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
36.INSTALL REAR DOOR GLASS SUB-ASSY LH
a. Install the glass with the 2 nuts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

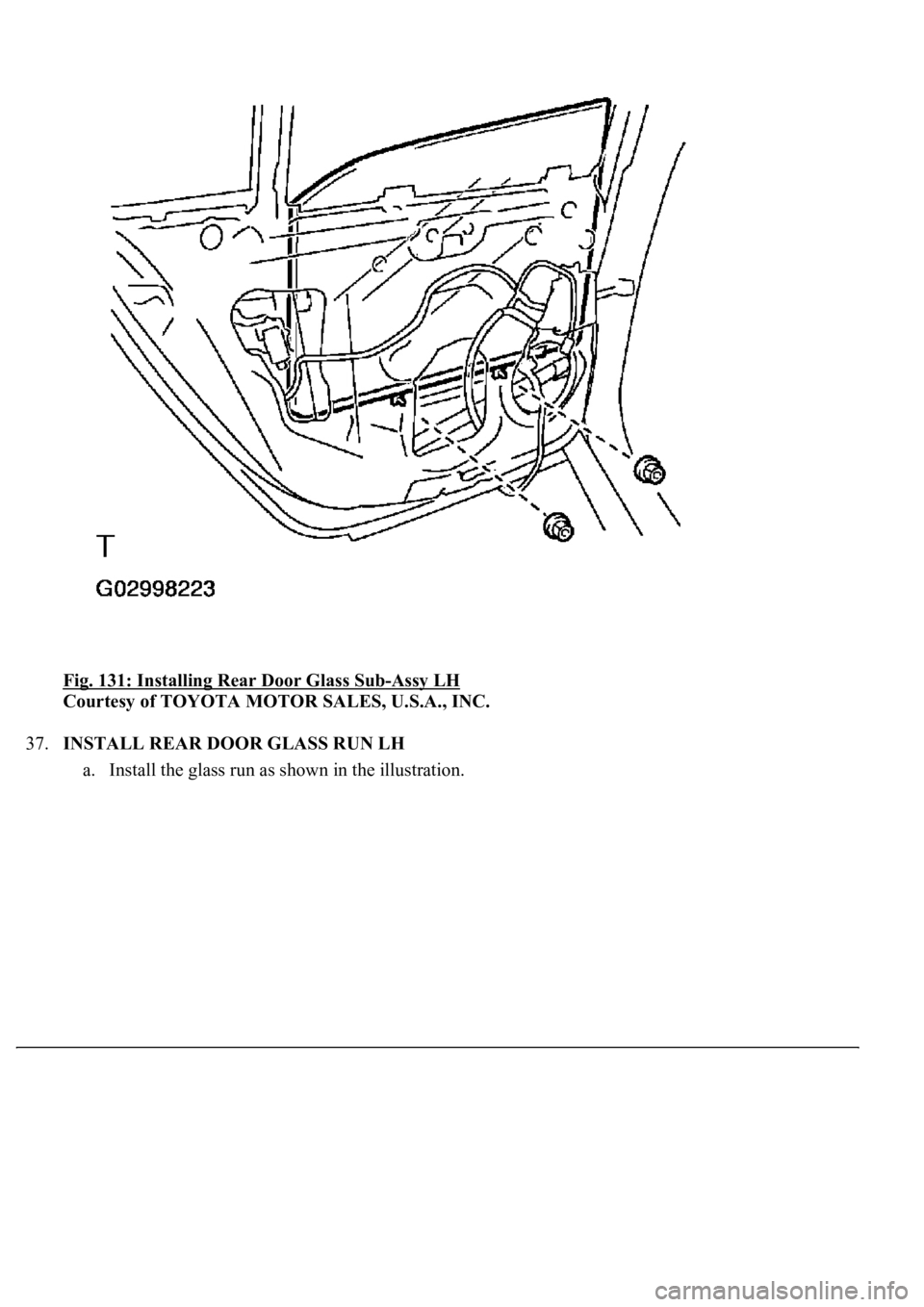

Fig. 131: Installing Rear Door Glass Sub-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
37.INSTALL REAR DOOR GLASS RUN LH
a. Install the glass run as shown in the illustration.
