LEXUS LS430 2003 Factory Repair Manual

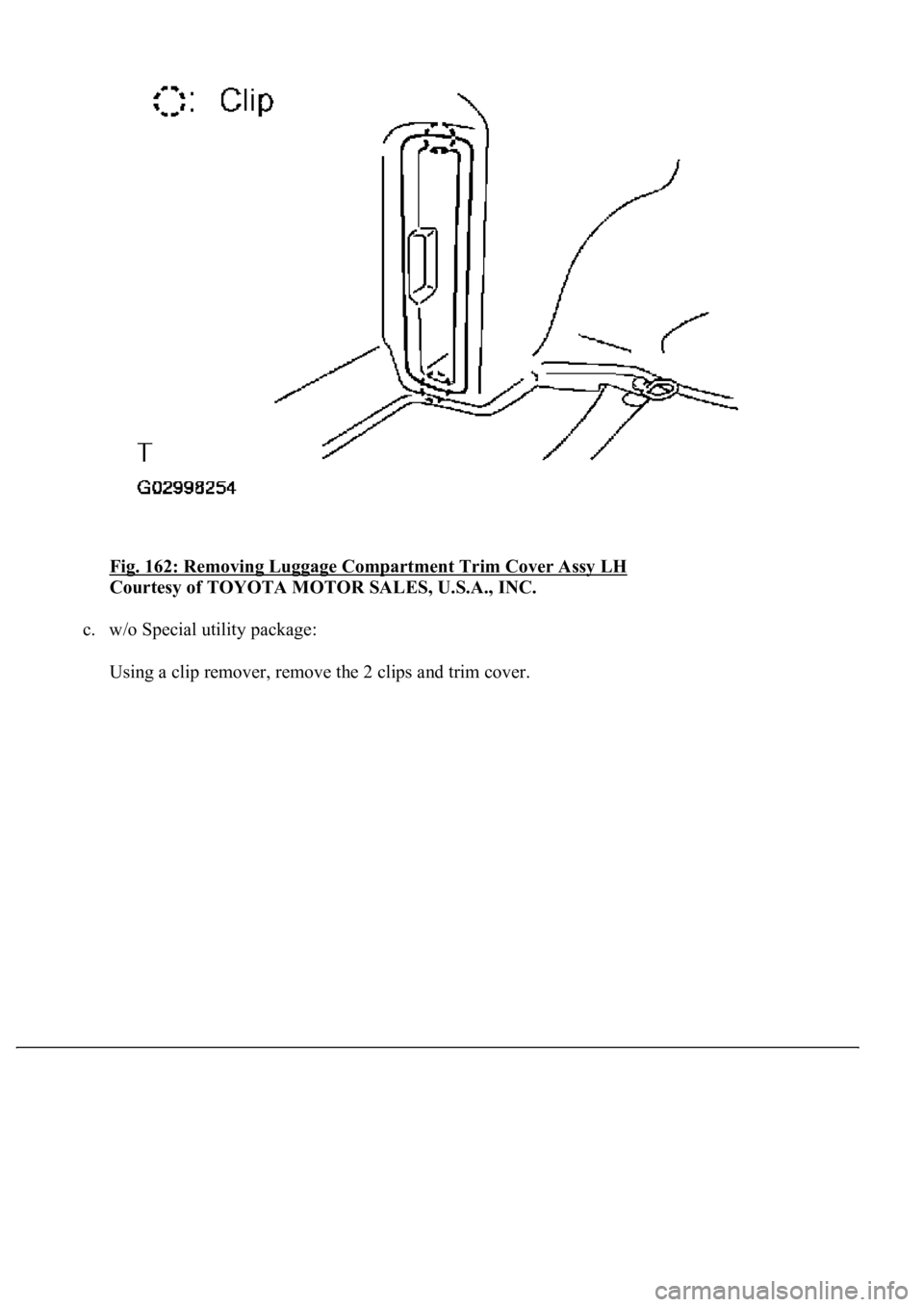

Fig. 162: Removing Luggage Compartment Trim Cover Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. w/o Special utility package:
Usin
g a clip remover, remove the 2 clips and trim cover.

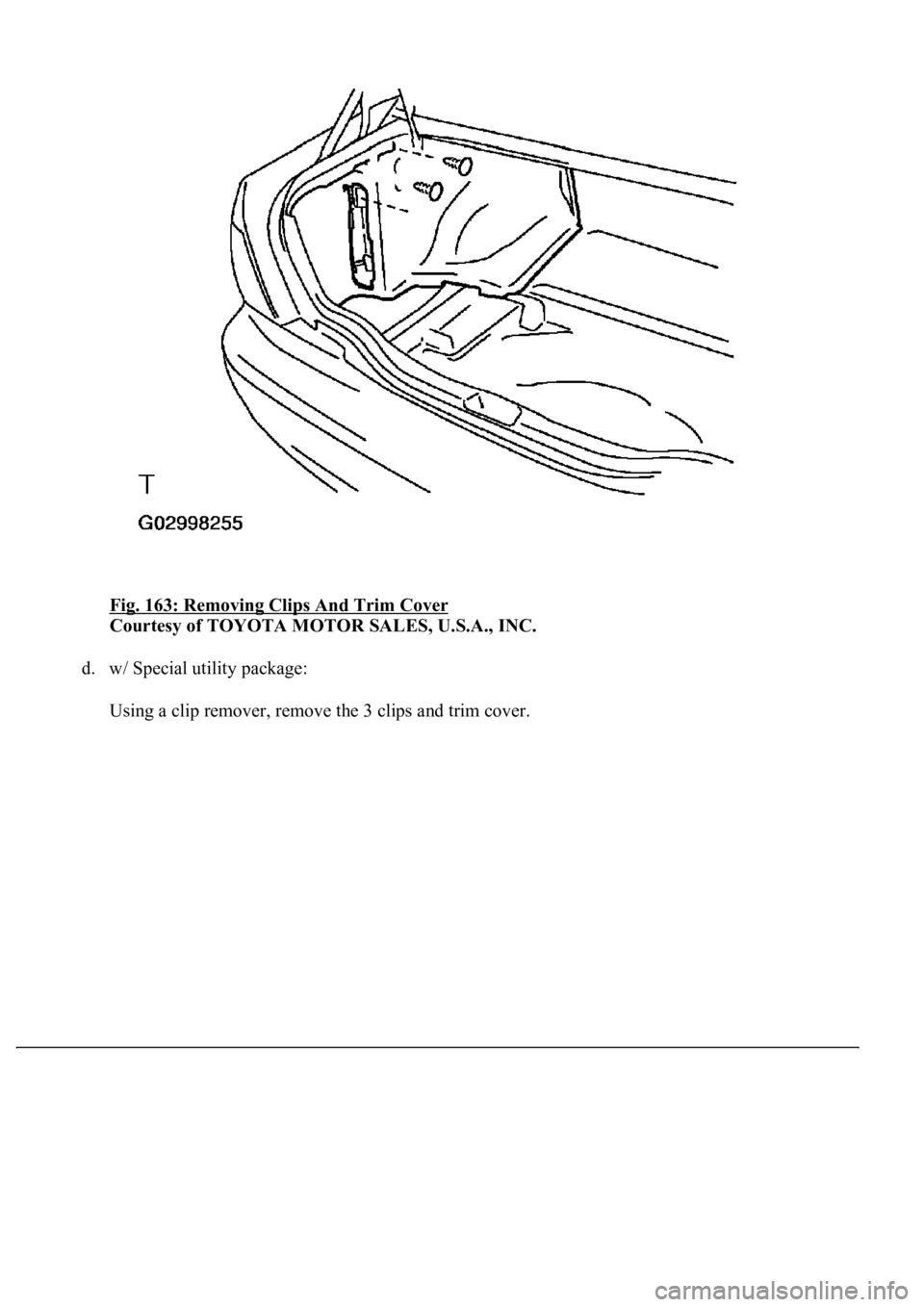

Fig. 163: Removing Clips And Trim Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. w/ Special utility package:
Usin
g a clip remover, remove the 3 clips and trim cover.

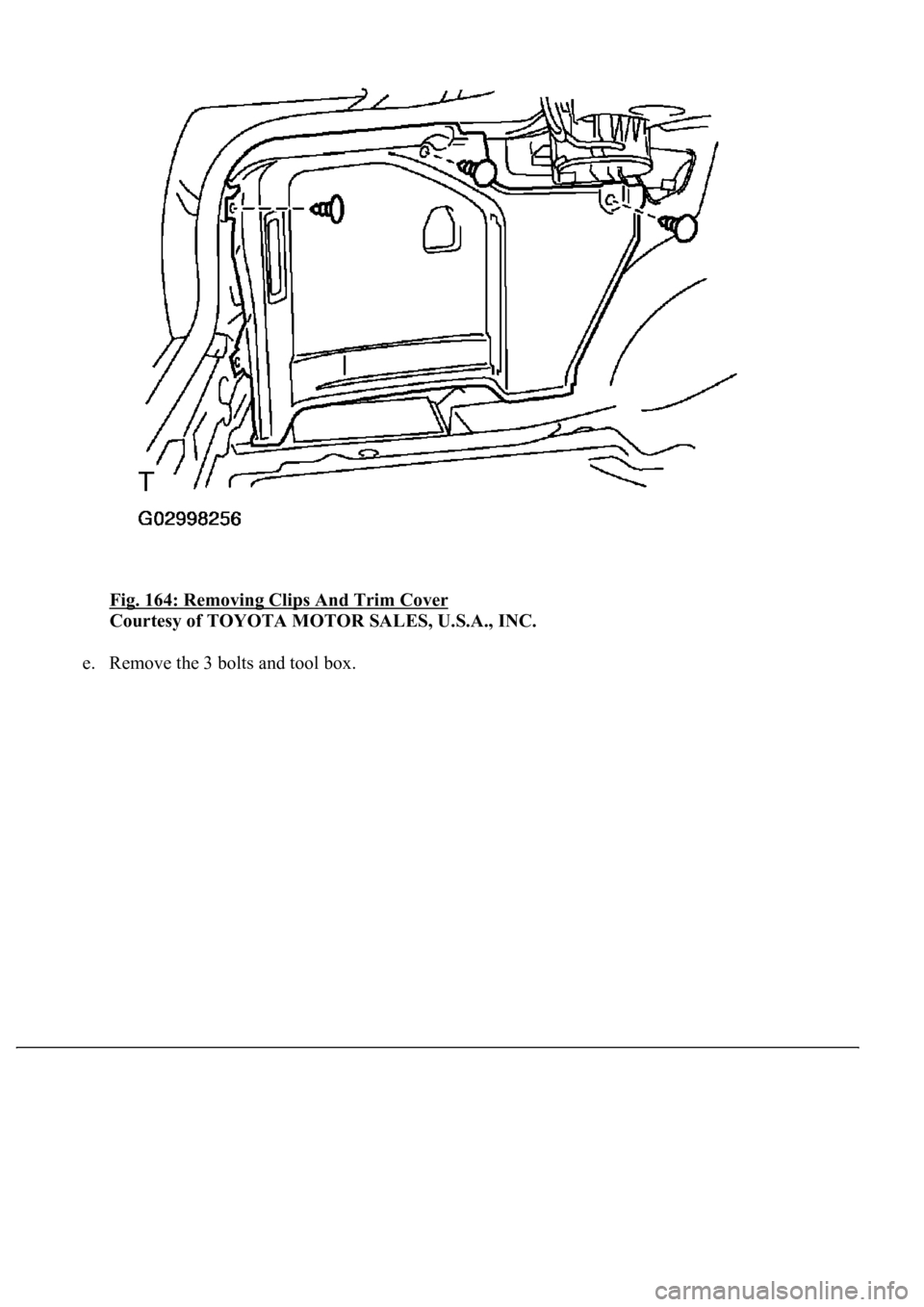

Fig. 164: Removing Clips And Trim Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Remove the 3 bolts and tool box.

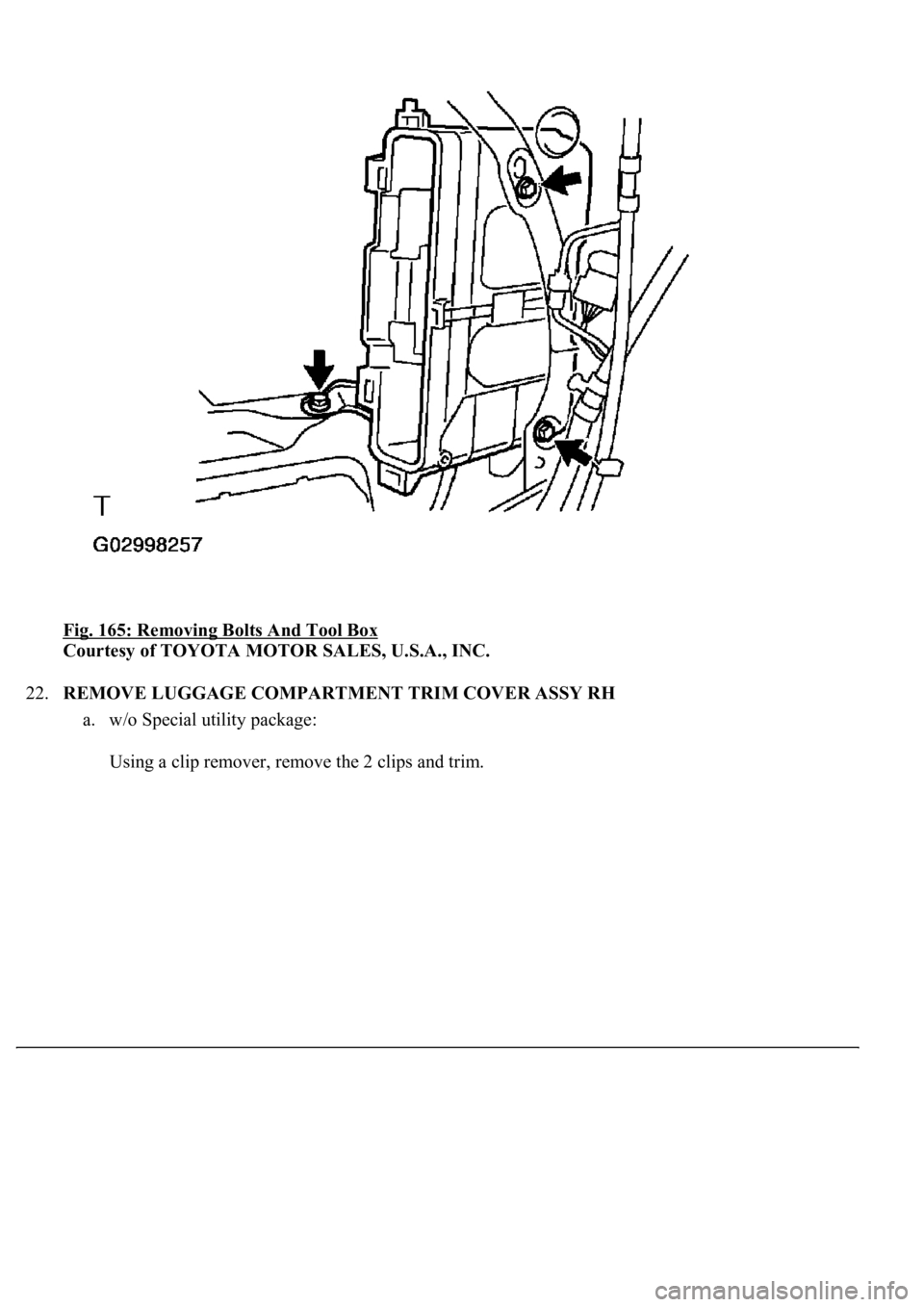

Fig. 165: Removing Bolts And Tool Box
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
22.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH
a. w/o Special utility package:
Usin
g a clip remover, remove the 2 clips and trim.

Fig. 166: Removing Luggage Compartment Trim Cover Assy Rh
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. w/ Special utility package:
Usin
g a clip remover, remove the 3 clips and trim.

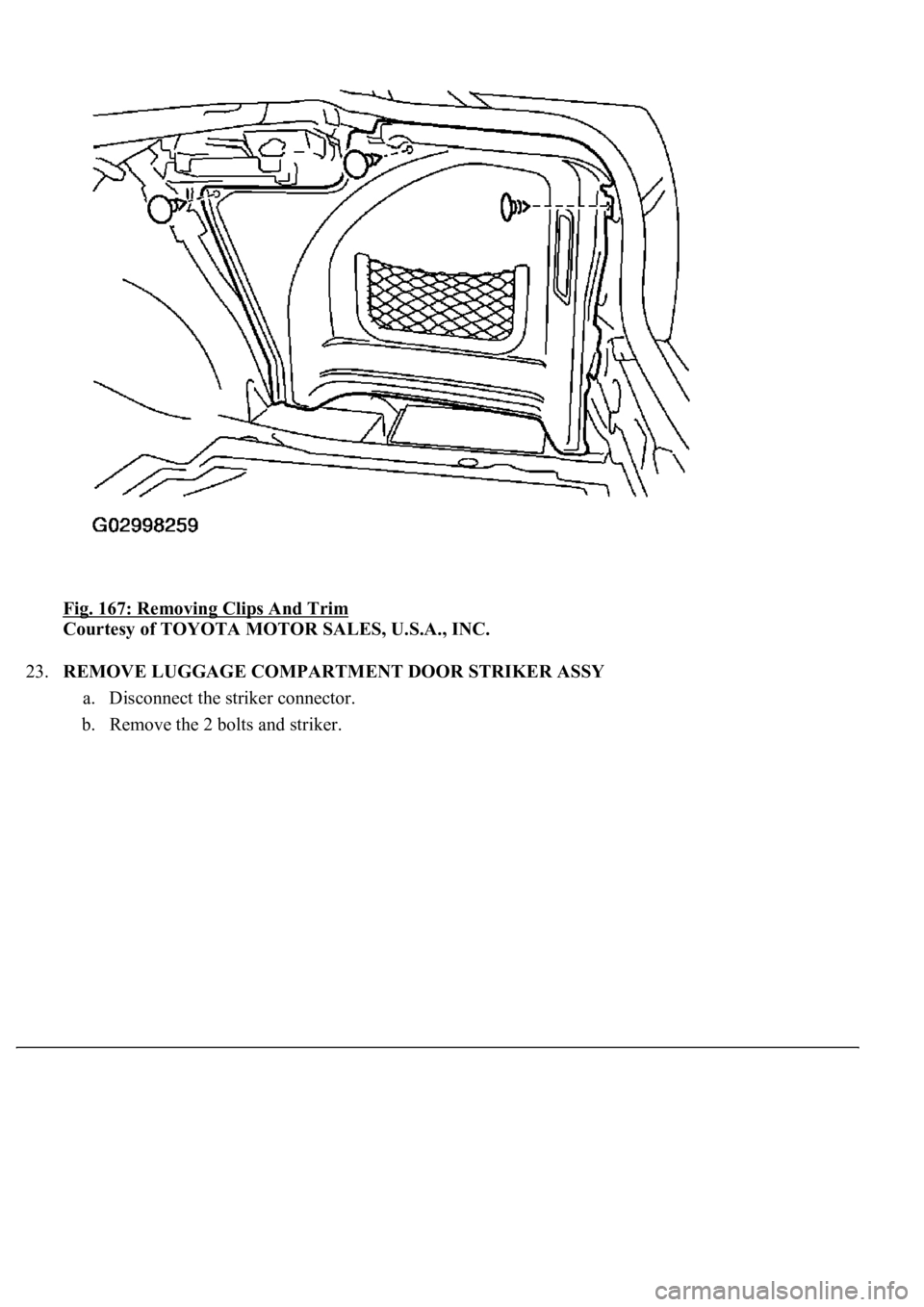

Fig. 167: Removing Clips And Trim
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
23.REMOVE LUGGAGE COMPARTMENT DOOR STRIKER ASSY
a. Disconnect the striker connector.
b. Remove the 2 bolts and striker.

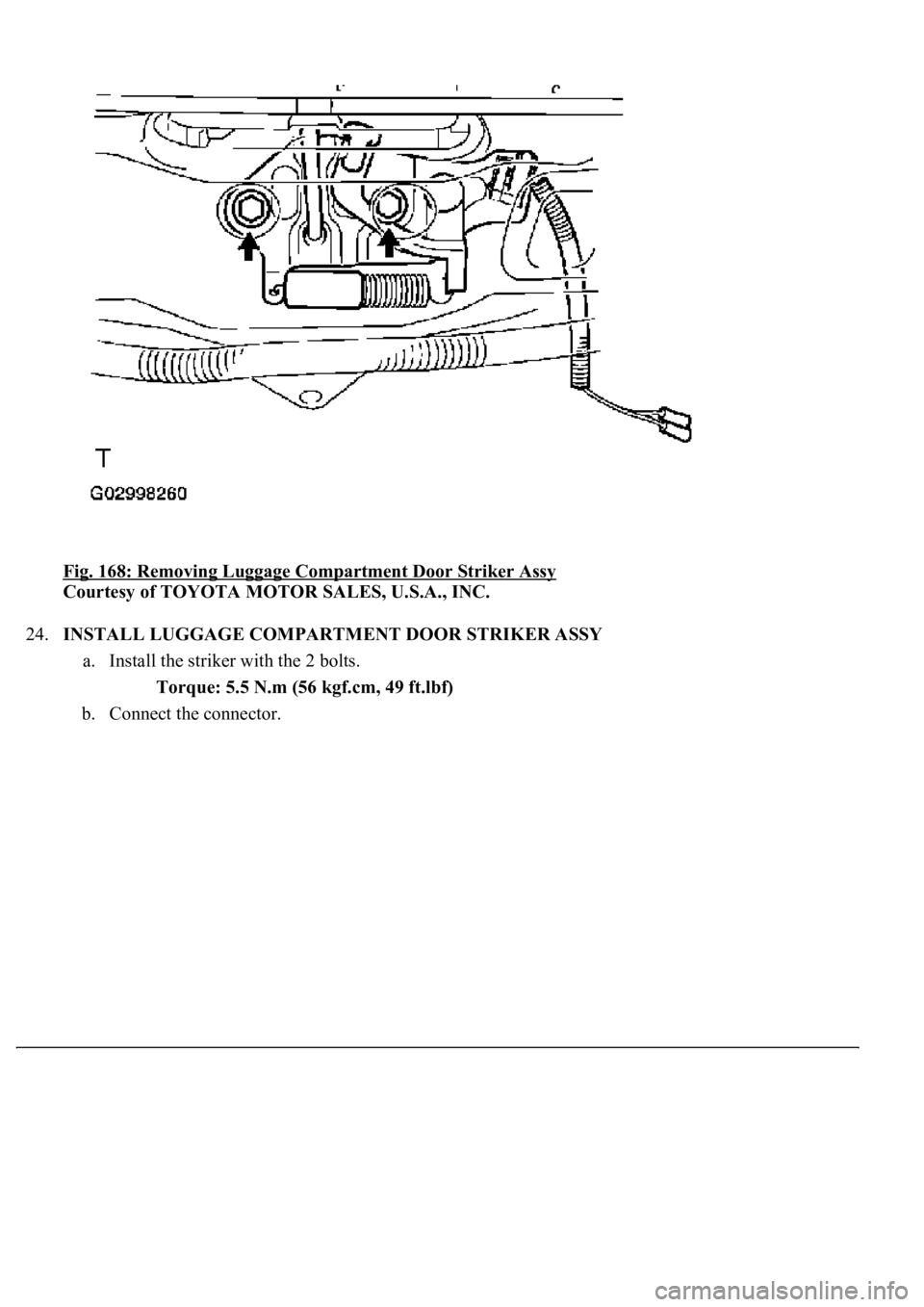

Fig. 168: Removing Luggage Compartment Door Striker Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
24.INSTALL LUGGAGE COMPARTMENT DOOR STRIKER ASSY
a. Install the striker with the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 ft.lbf)
b. Connect the connector.

Fig. 169: Installing Luggage Compartment Door Striker Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
25.INSTALL LUGGAGE DOOR CLOSER ASSY
a. Install the door closer with the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
b. Connect the connector.

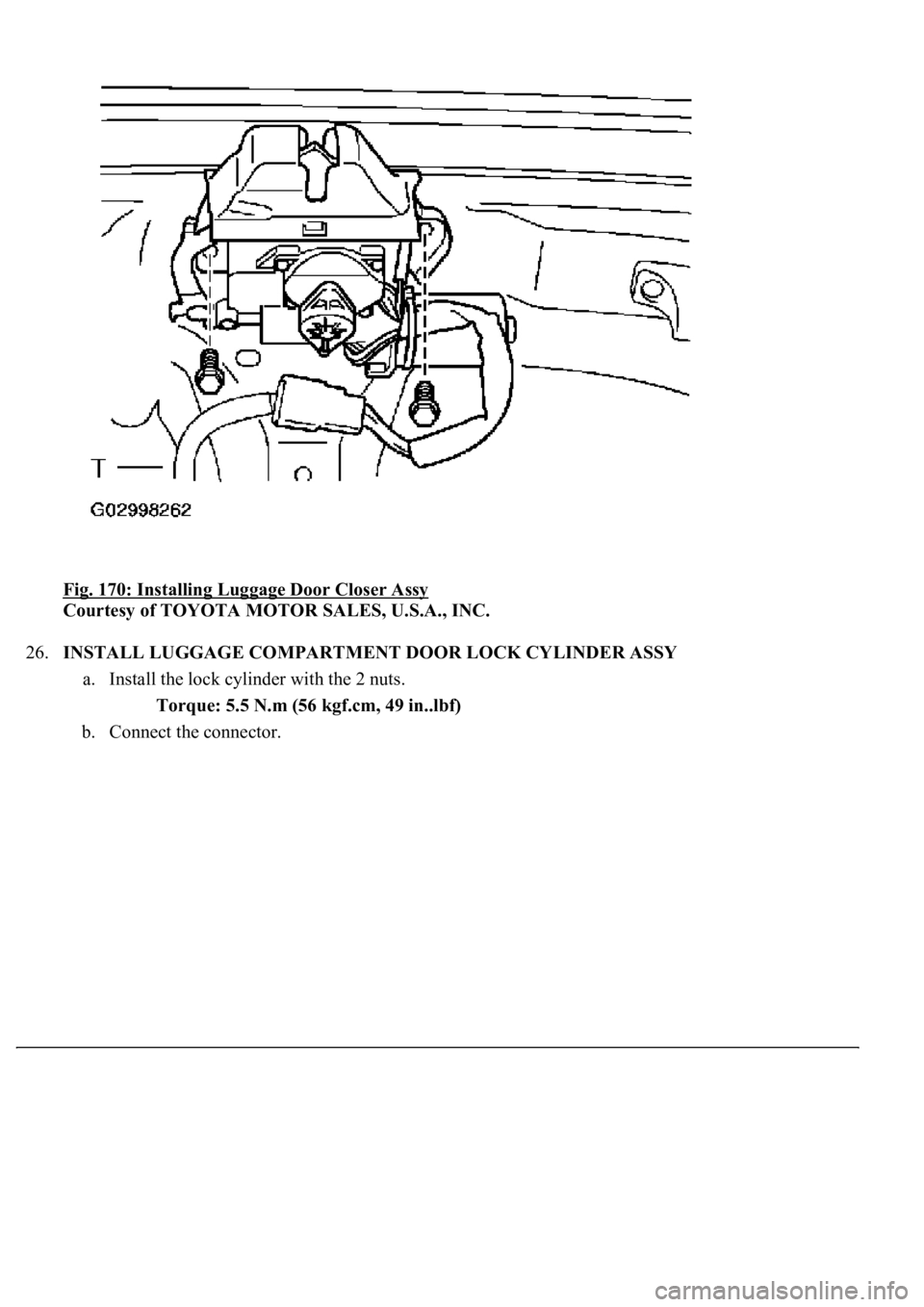

Fig. 170: Installing Luggage Door Closer Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSY
a. Install the lock cylinder with the 2 nuts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
b. Connect the connector.

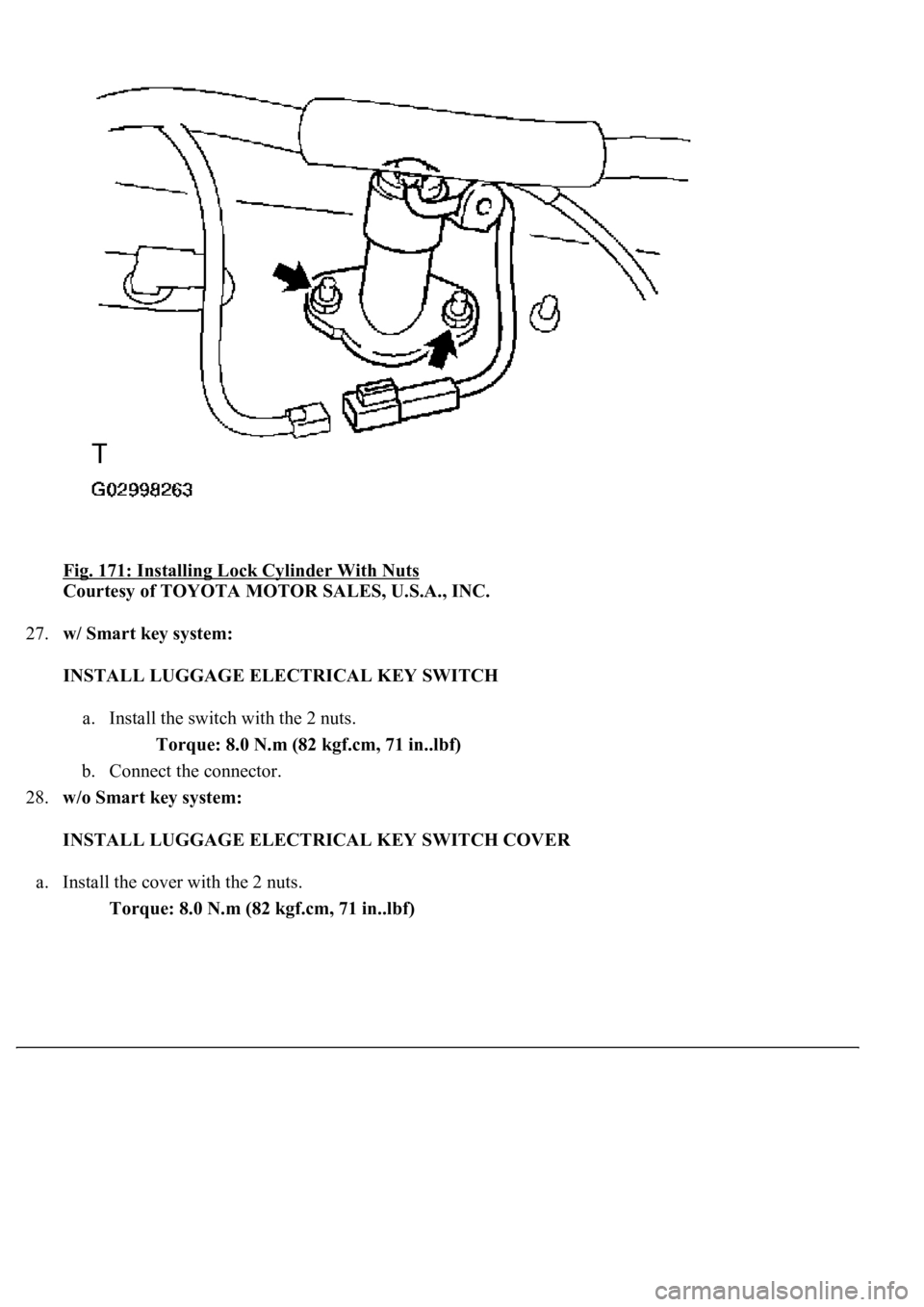

Fig. 171: Installing Lock Cylinder With Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.w/ Smart key system:
INSTALL LUGGAGE ELECTRICAL KEY SWITCH
a. Install the switch with the 2 nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
b. Connect the connector.
28.w/o Smart key system:
INSTALL LUGGAGE ELECTRICAL KEY SWITCH COVER
a. Install the cover with the 2 nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
