LEXUS LS430 2003 Factory Repair Manual

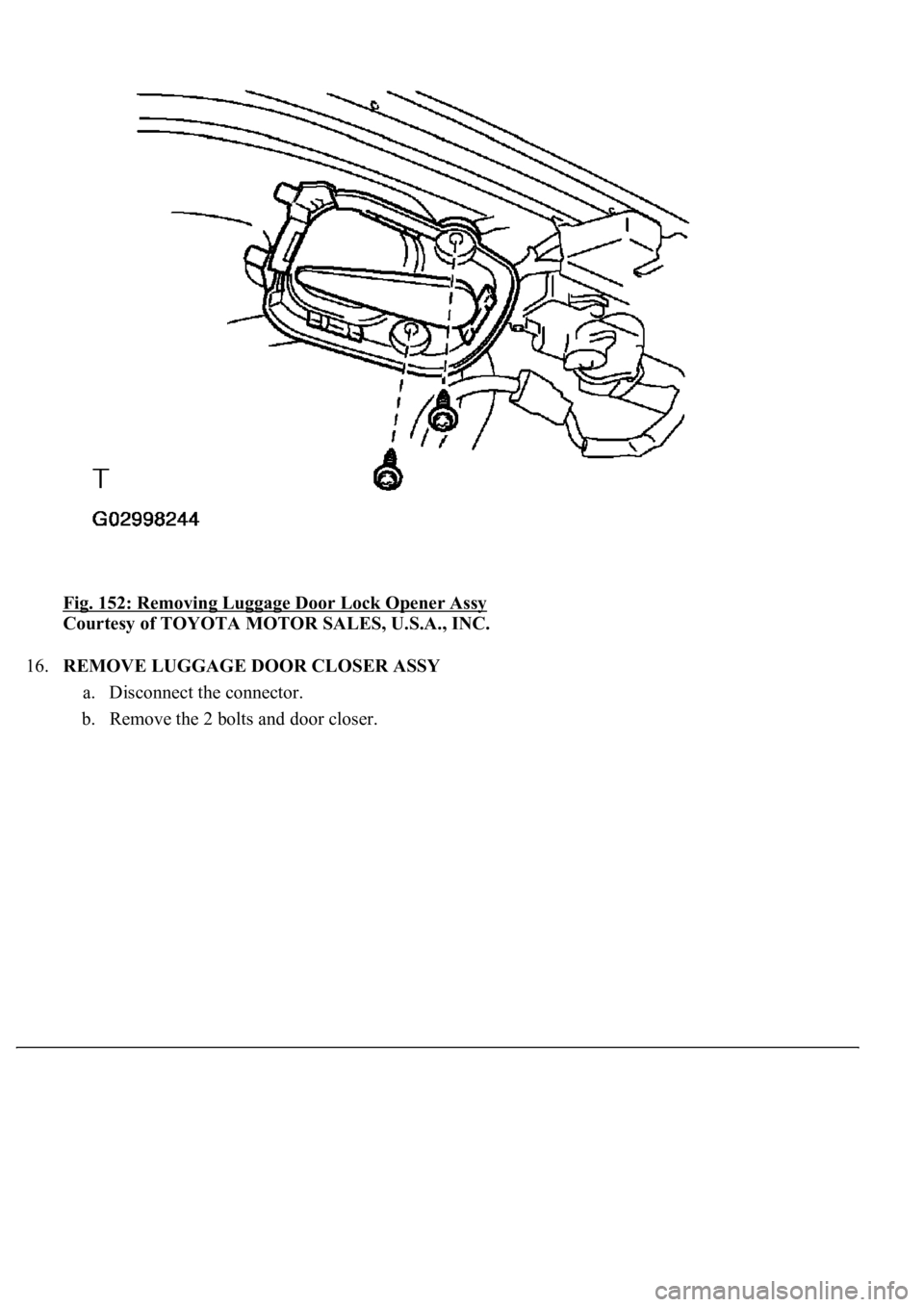

Fig. 152: Removing Luggage Door Lock Opener Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
16.REMOVE LUGGAGE DOOR CLOSER ASSY
a. Disconnect the connector.
b. Remove the 2 bolts and door closer.

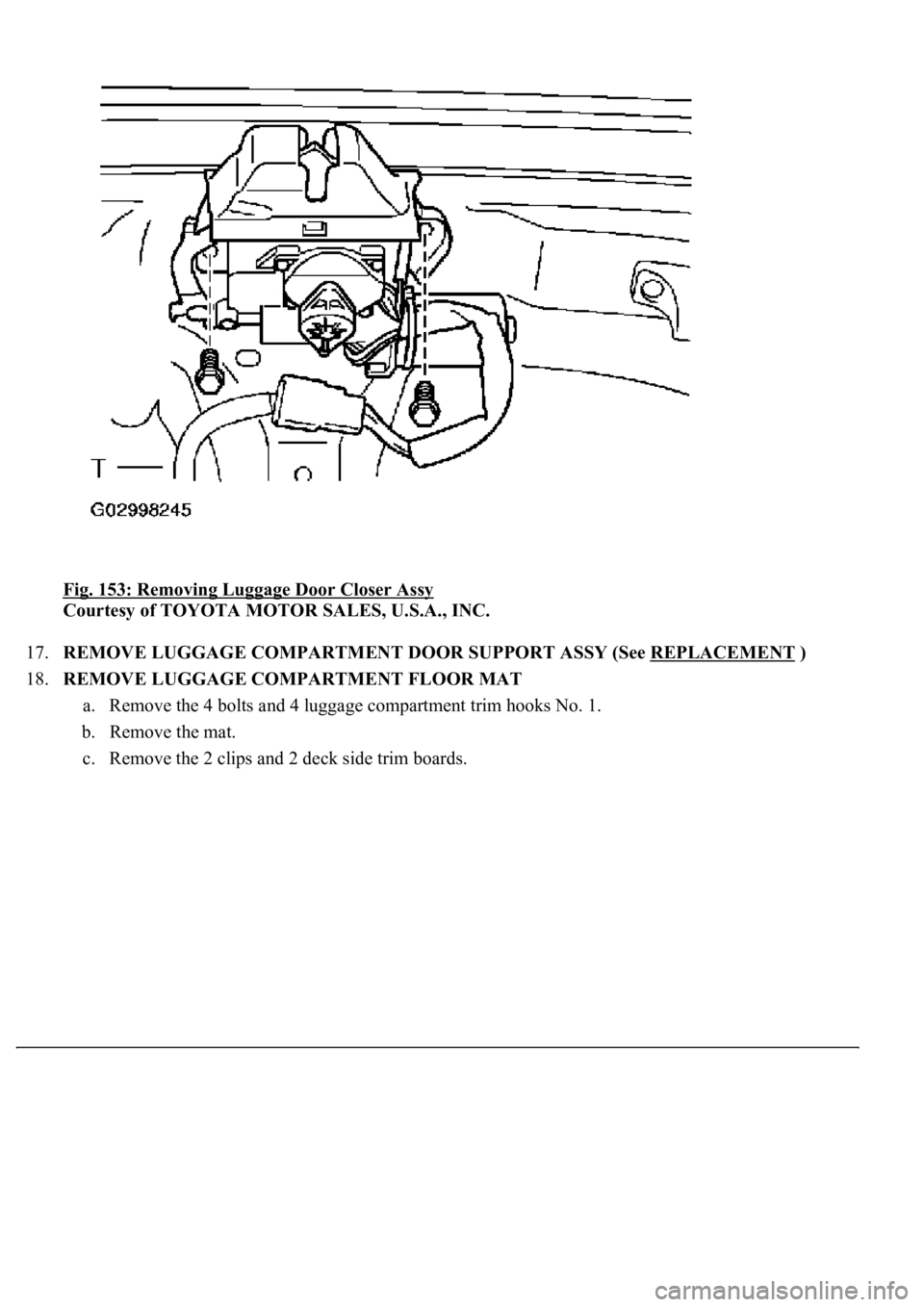

Fig. 153: Removing Luggage Door Closer Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
17.REMOVE LUGGAGE COMPARTMENT DOOR SUPPORT ASSY (See REPLACEMENT
)
18.REMOVE LUGGAGE COMPARTMENT FLOOR MAT
a. Remove the 4 bolts and 4 luggage compartment trim hooks No. 1.
b. Remove the mat.
c. Remove the 2 clips and 2 deck side trim boards.

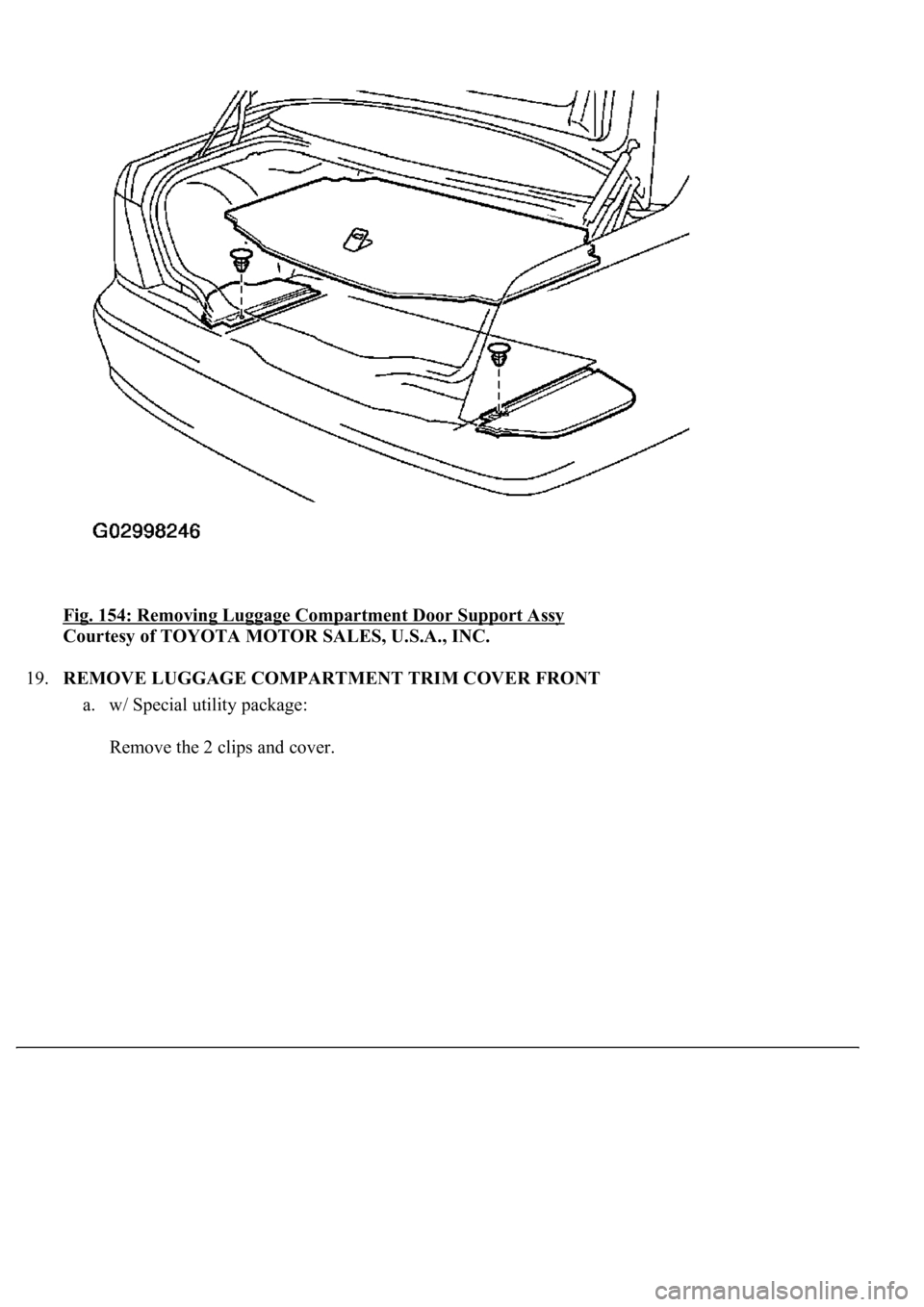

Fig. 154: Removing Luggage Compartment Door Support Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
19.REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
a. w/ Special utility package:
Remove the 2 clips and cover.

Fig. 155: Removing Luggage Compartment Trim Cover Front
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. w/ Special utility package:
Usin
g a clip remover, remove the 5 clips.

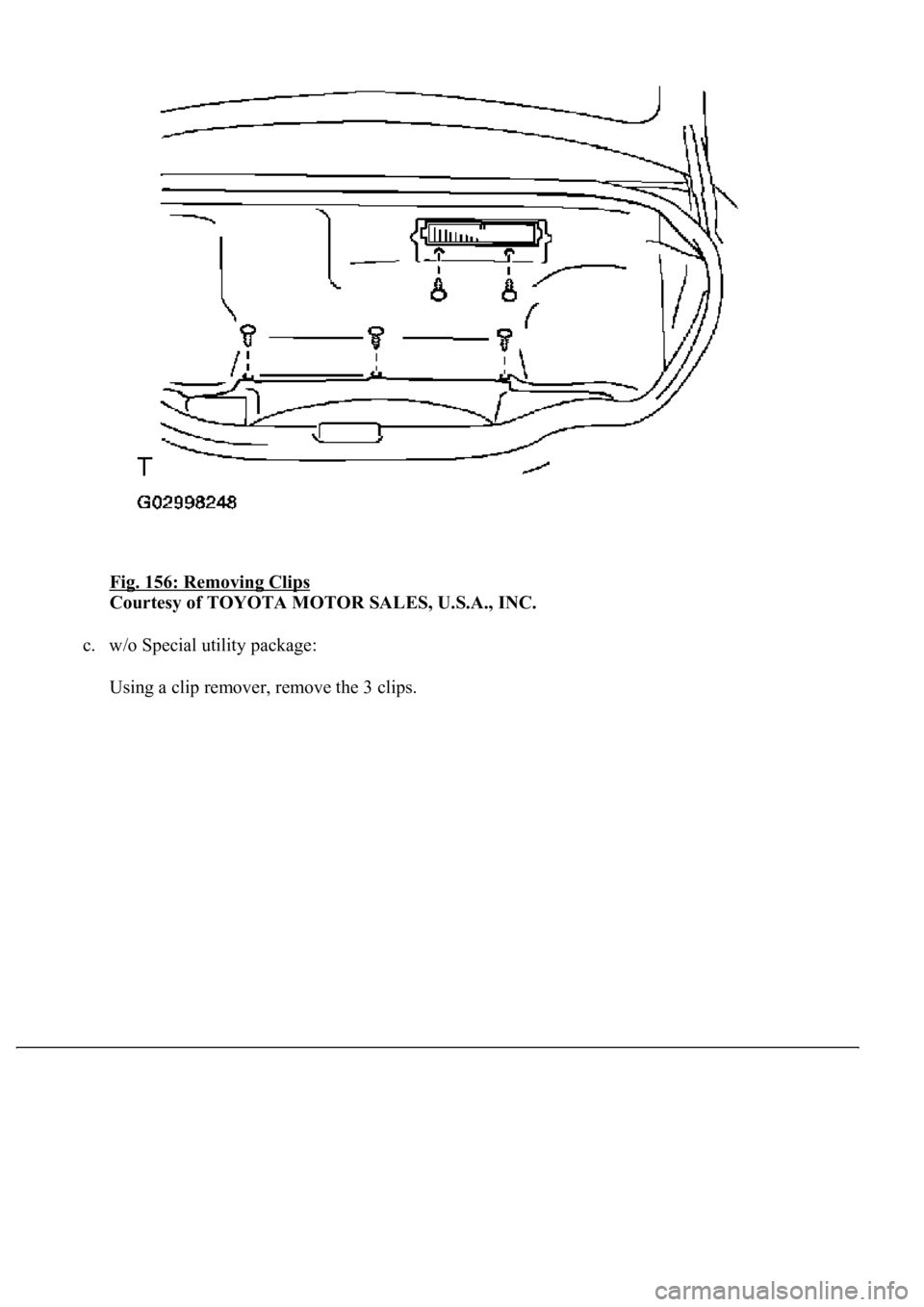

Fig. 156: Removing Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. w/o Special utility package:
Usin
g a clip remover, remove the 3 clips.

Fig. 157: Removing 3 Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Using a screwdriver, remove the wire harness cover.
HINT:
Tape the screwdriver tip before use.
e. Using a screwdriver, remove the 2 rope hooks.
HINT:
Turn the rope hook 90 degrees counterclockwise. Insert a screwdriver (with its tip taped) into the
slit in the side of the rope hook. Hold down the claw inside the slit and remove the rope hook as
shown in the illustration.

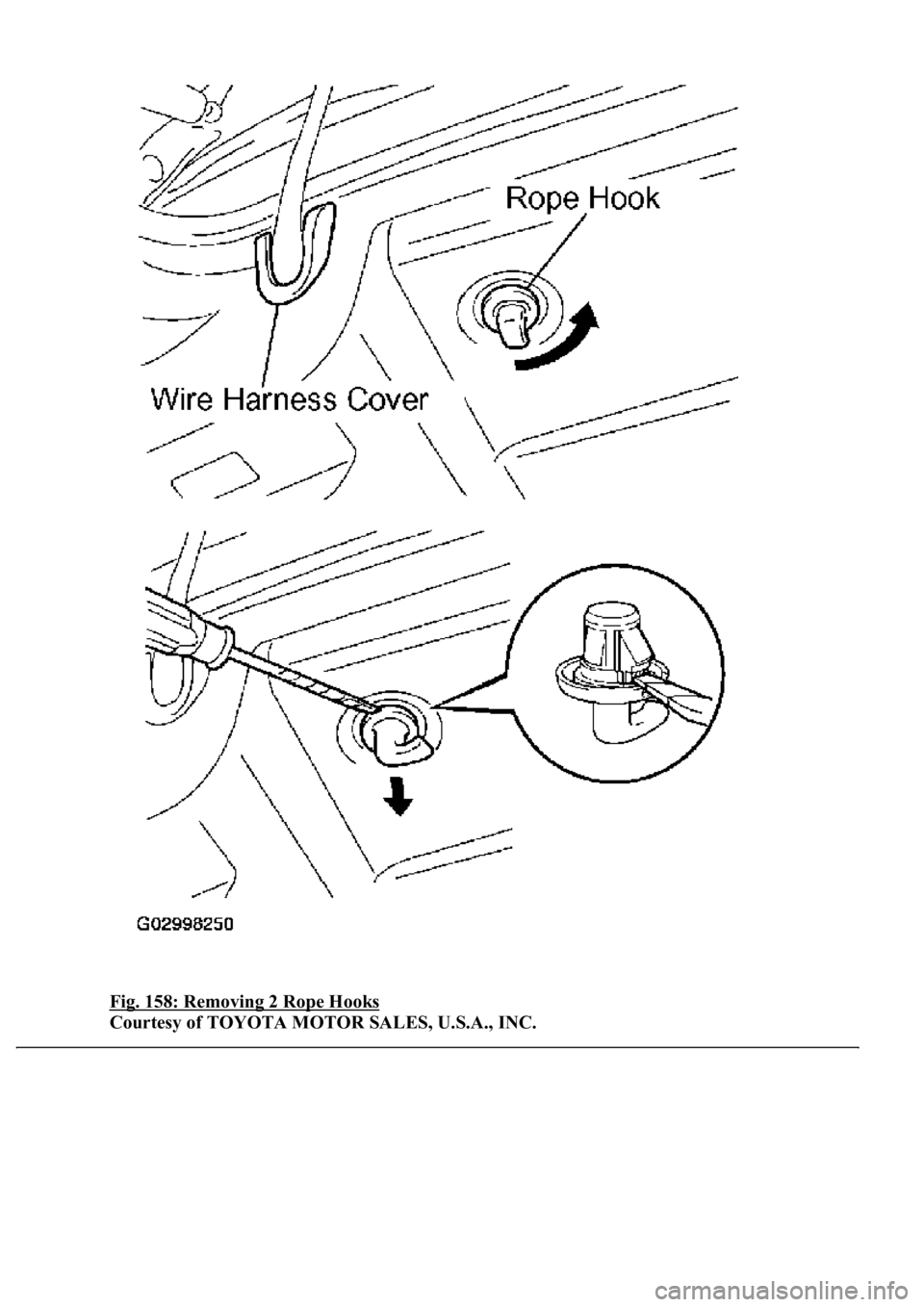

Fig. 158: Removing 2 Rope Hooks
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

f. w/ Special utility package:
Remove the 2 clips.
g. w/ Special utility package:
Disengage the 6 claws and remove the cover.

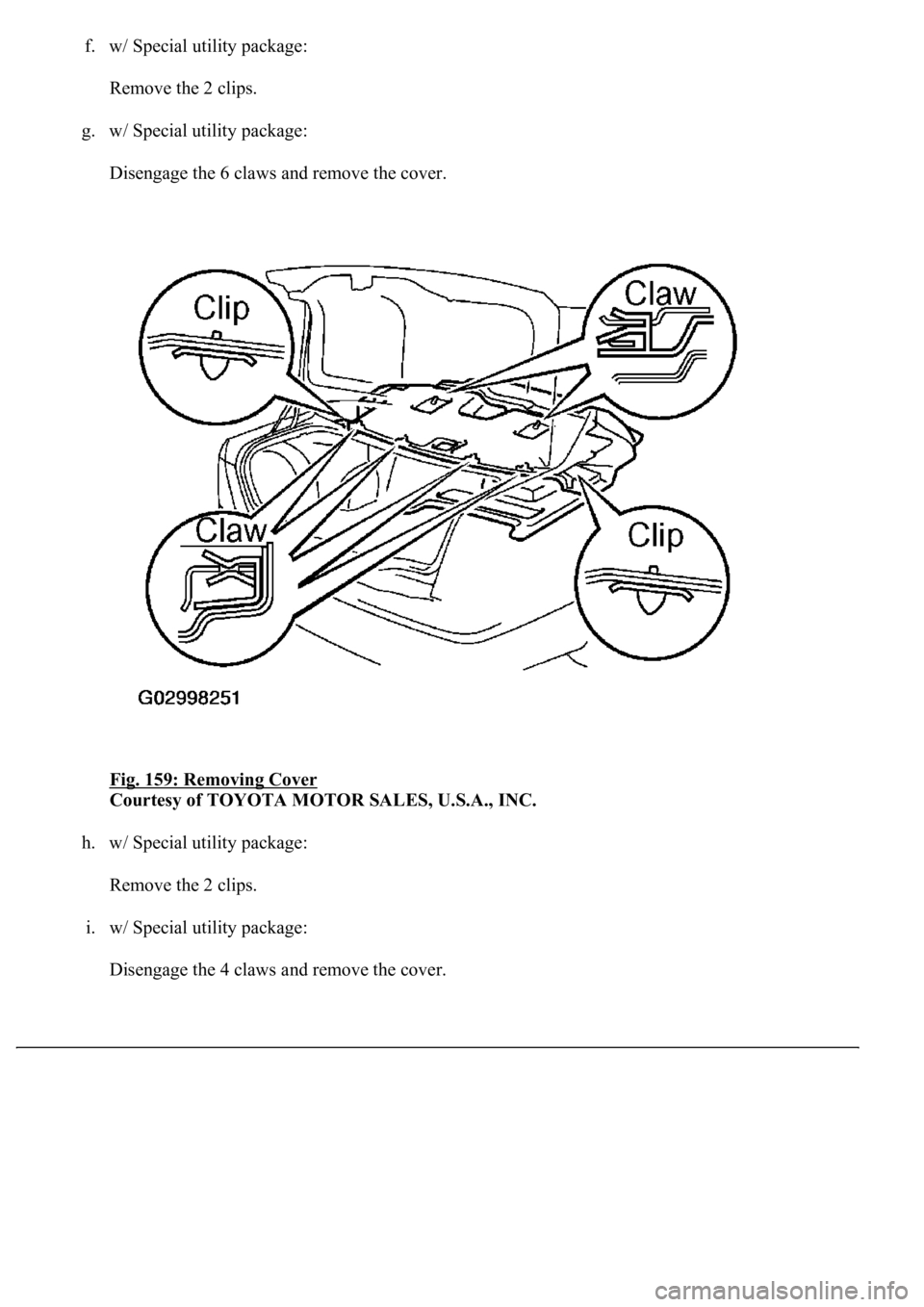

Fig. 159: Removing Cover

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
h. w/ Special utility package:
Remove the 2 clips.
i. w/ Special utility package:
Disengage the 4 claws and remove the cover.

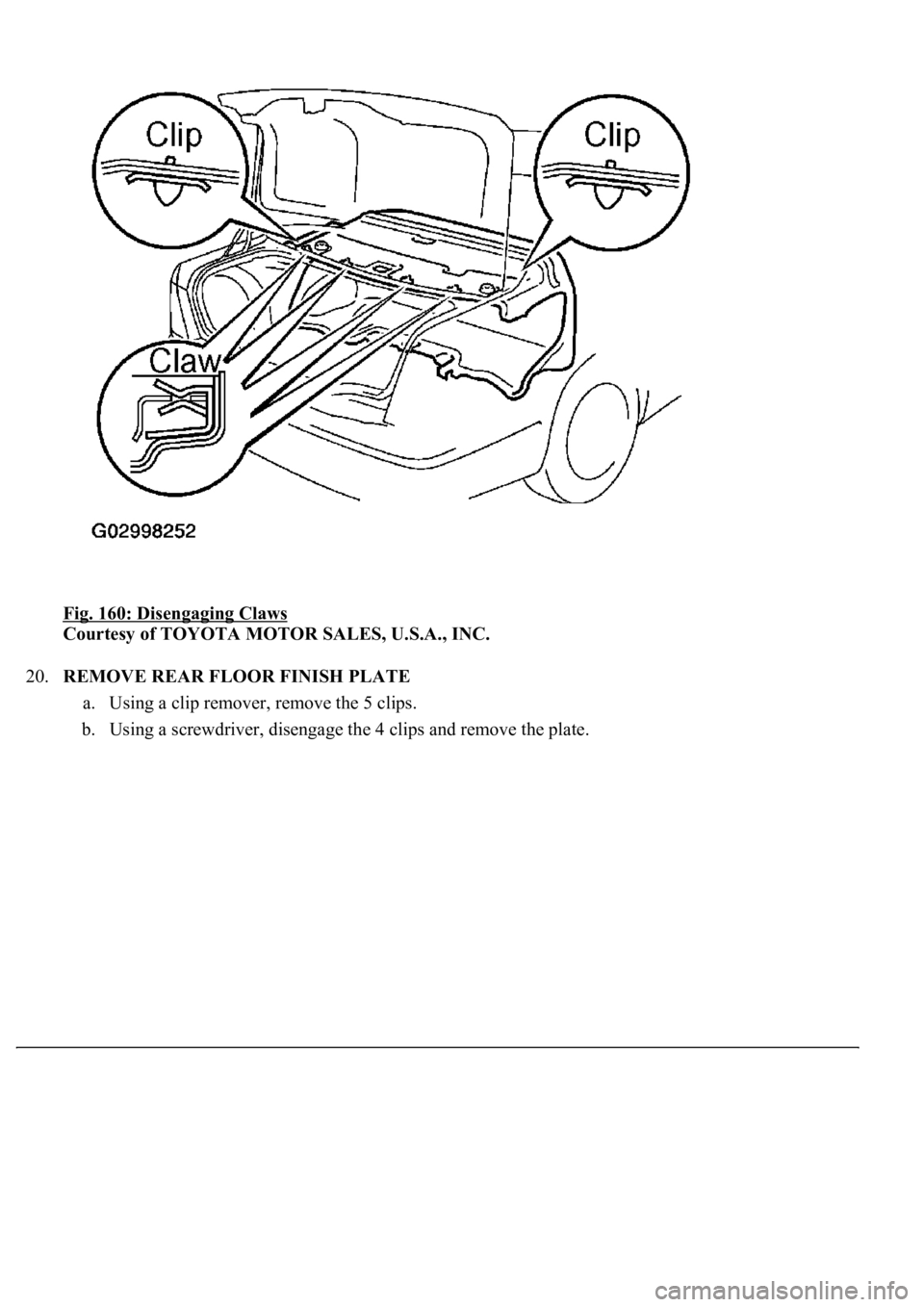

Fig. 160: Disengaging Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
20.REMOVE REAR FLOOR FINISH PLATE
a. Using a clip remover, remove the 5 clips.
b. Using a screwdriver, disengage the 4 clips and remove the plate.

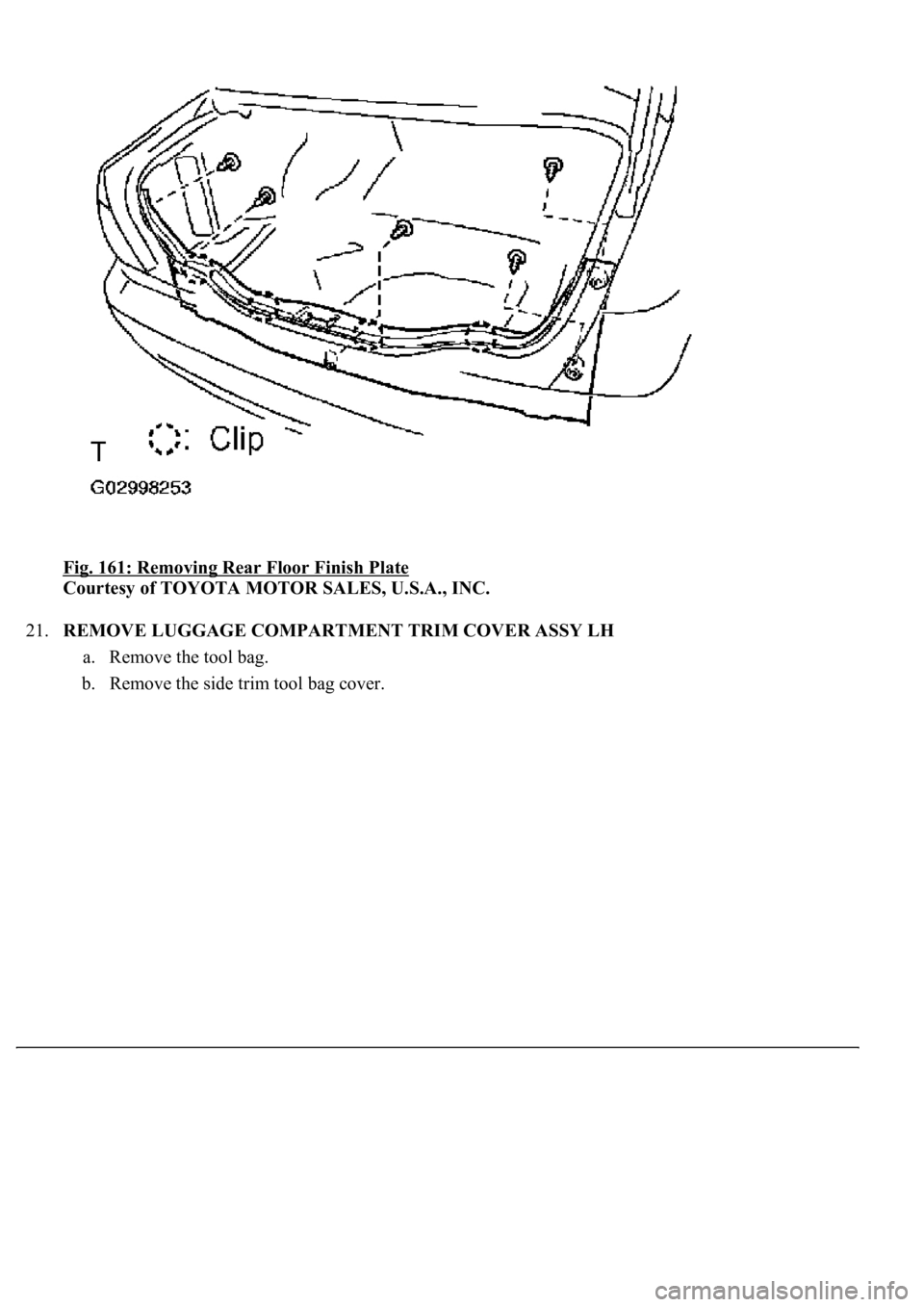

Fig. 161: Removing Rear Floor Finish Plate
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
21.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY LH
a. Remove the tool bag.
b. Remove the side trim tool bag cover.
