LEXUS LS430 2003 Factory Repair Manual

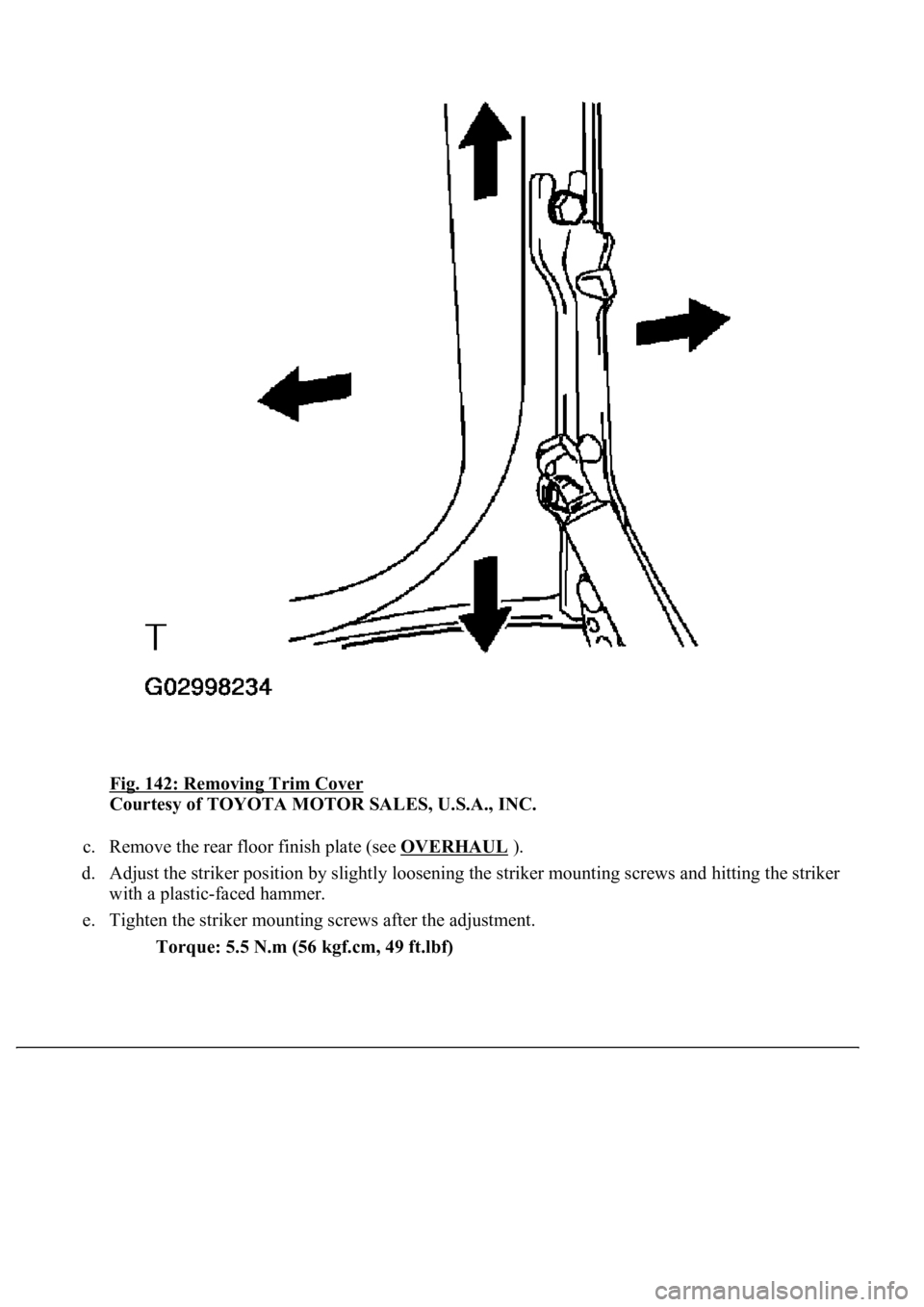

Fig. 142: Removing Trim Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the rear floor finish plate (see OVERHAUL
).
d. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker
with a plastic-faced hammer.
e. Tighten the striker mounting screws after the adjustment.
Torque: 5.5 N.m (56 kgf.cm, 49 ft.lbf)

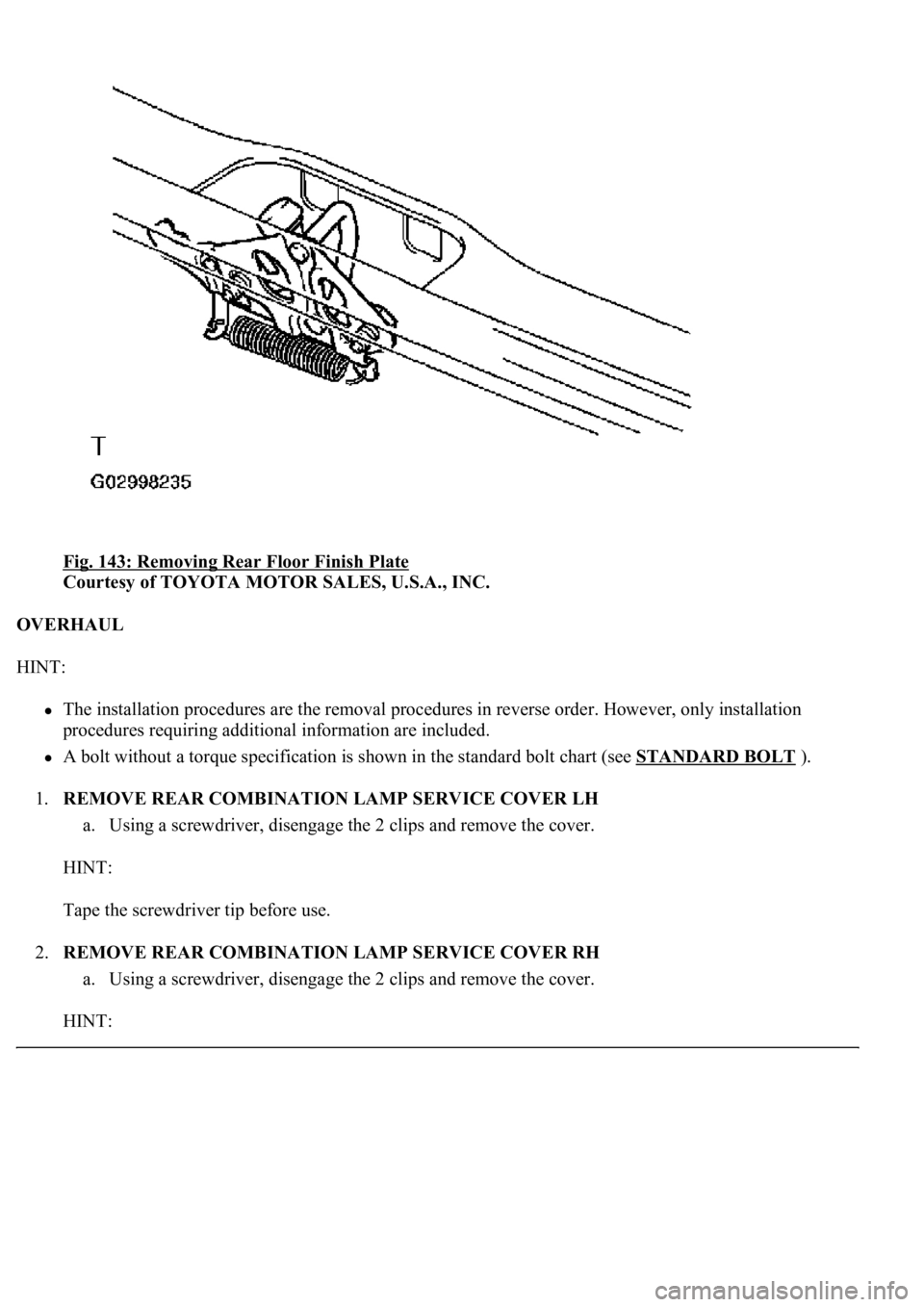

Fig. 143: Removing Rear Floor Finish Plate
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OVERHAUL
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
1.REMOVE REAR COMBINATION LAMP SERVICE COVER LH
a. Using a screwdriver, disengage the 2 clips and remove the cover.
HINT:
Tape the screwdriver tip before use.
2.REMOVE REAR COMBINATION LAMP SERVICE COVER RH
a. Using a screwdriver, disengage the 2 clips and remove the cover.
HINT:

Tape the screwdriver tip before use.
Fig. 144: Taping Screwdriver Tip

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.REMOVE DOOR INSIDE HANDLE BEZEL
a. Using a screwdriver, disengage the 4 claws and remove the bezel.
HINT:
Tape the screwdriver tip before use.

Fig. 145: Removing Door Inside Handle Bezel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.REMOVE LUGGAGE COMPARTMENT LAMP ASSY NO.1
a. Using a screwdriver, disengage the clip and remove the lamp.
HINT:
Tape the screwdriver tip before use.

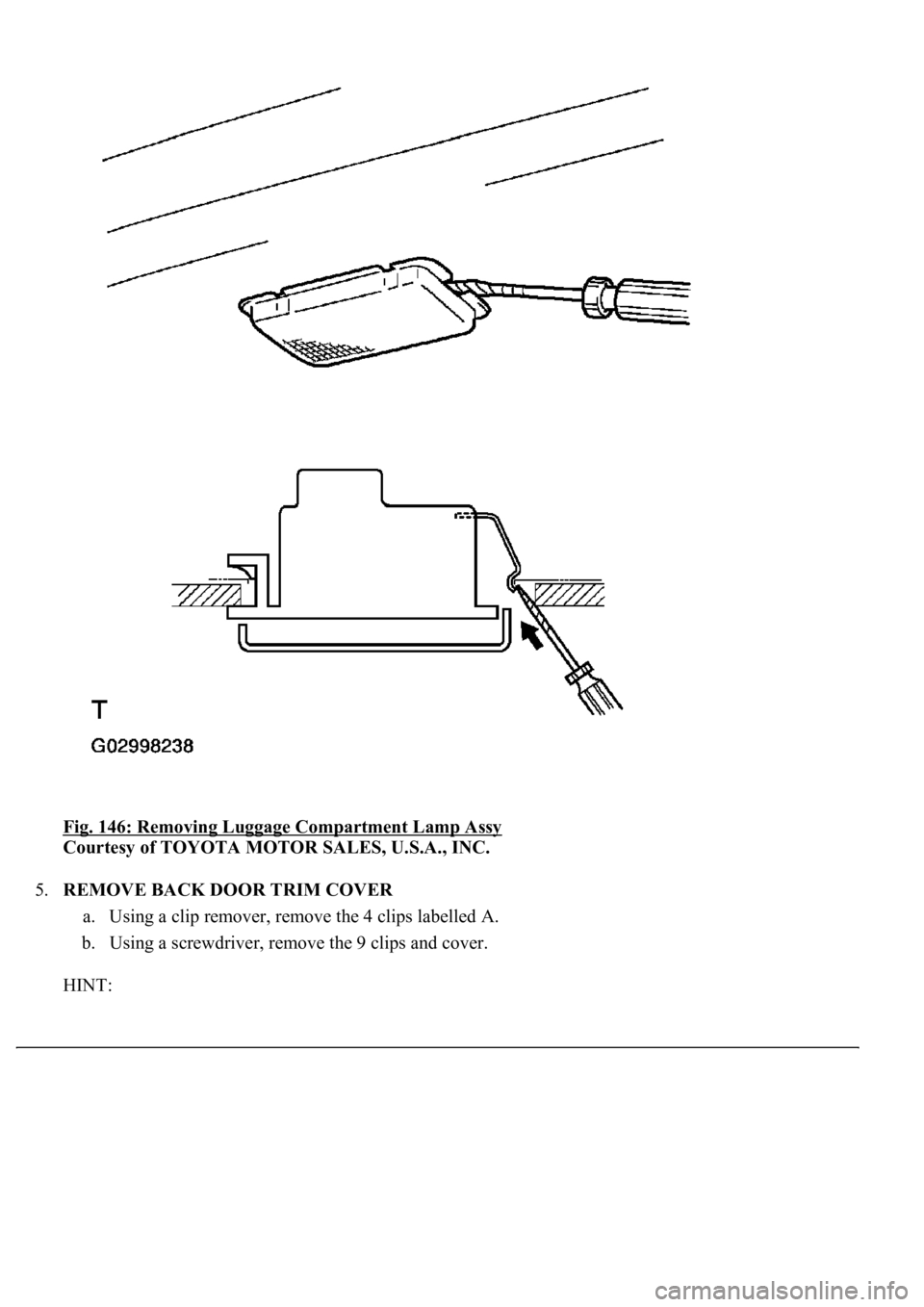

Fig. 146: Removing Luggage Compartment Lamp Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.REMOVE BACK DOOR TRIM COVER
a. Using a clip remover, remove the 4 clips labelled A.
b. Using a screwdriver, remove the 9 clips and cover.
HINT:

Tape the screwdriver tip before use.

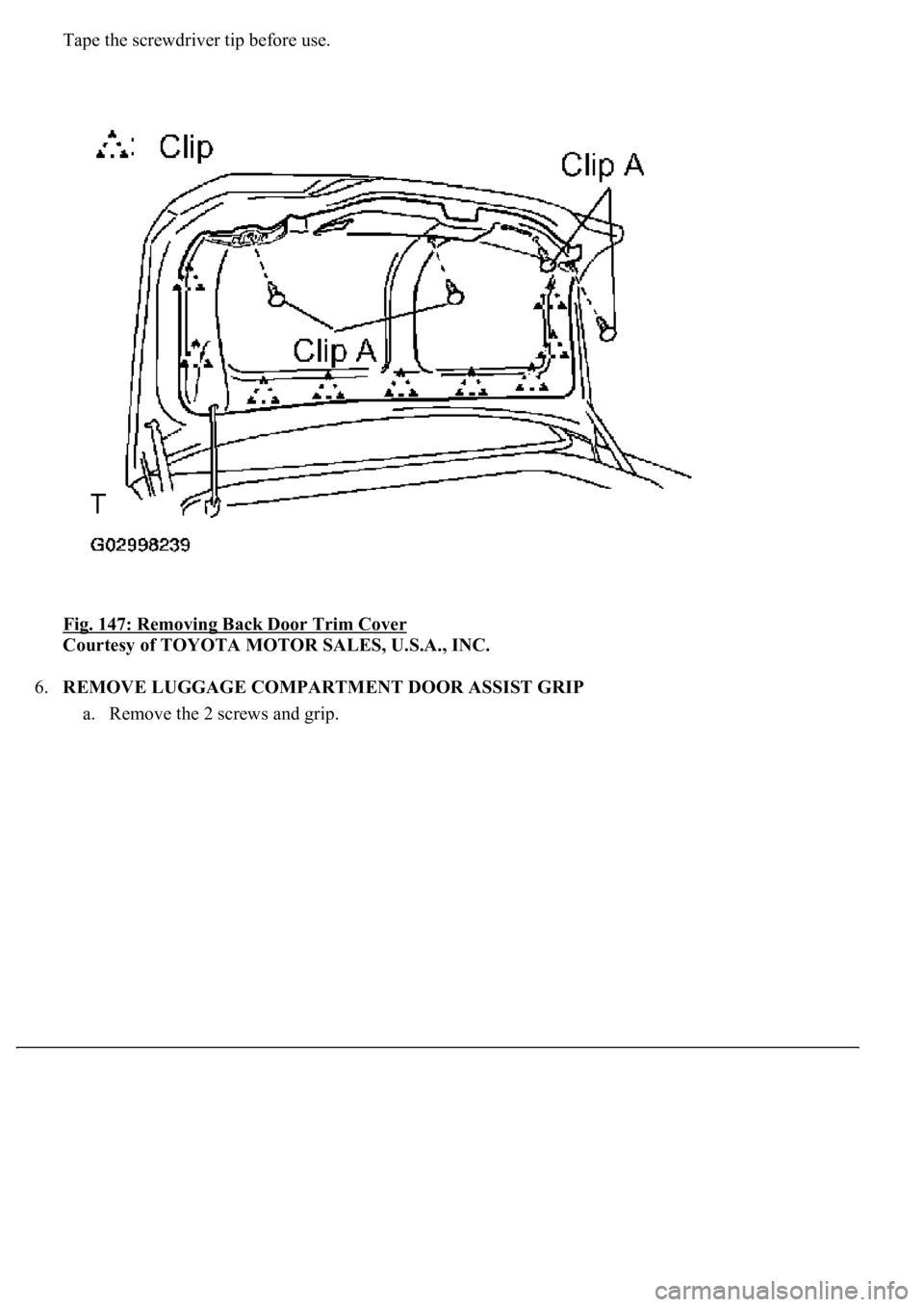

Fig. 147: Removing Back Door Trim Cover

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
a. Remove the 2 screws and
grip.

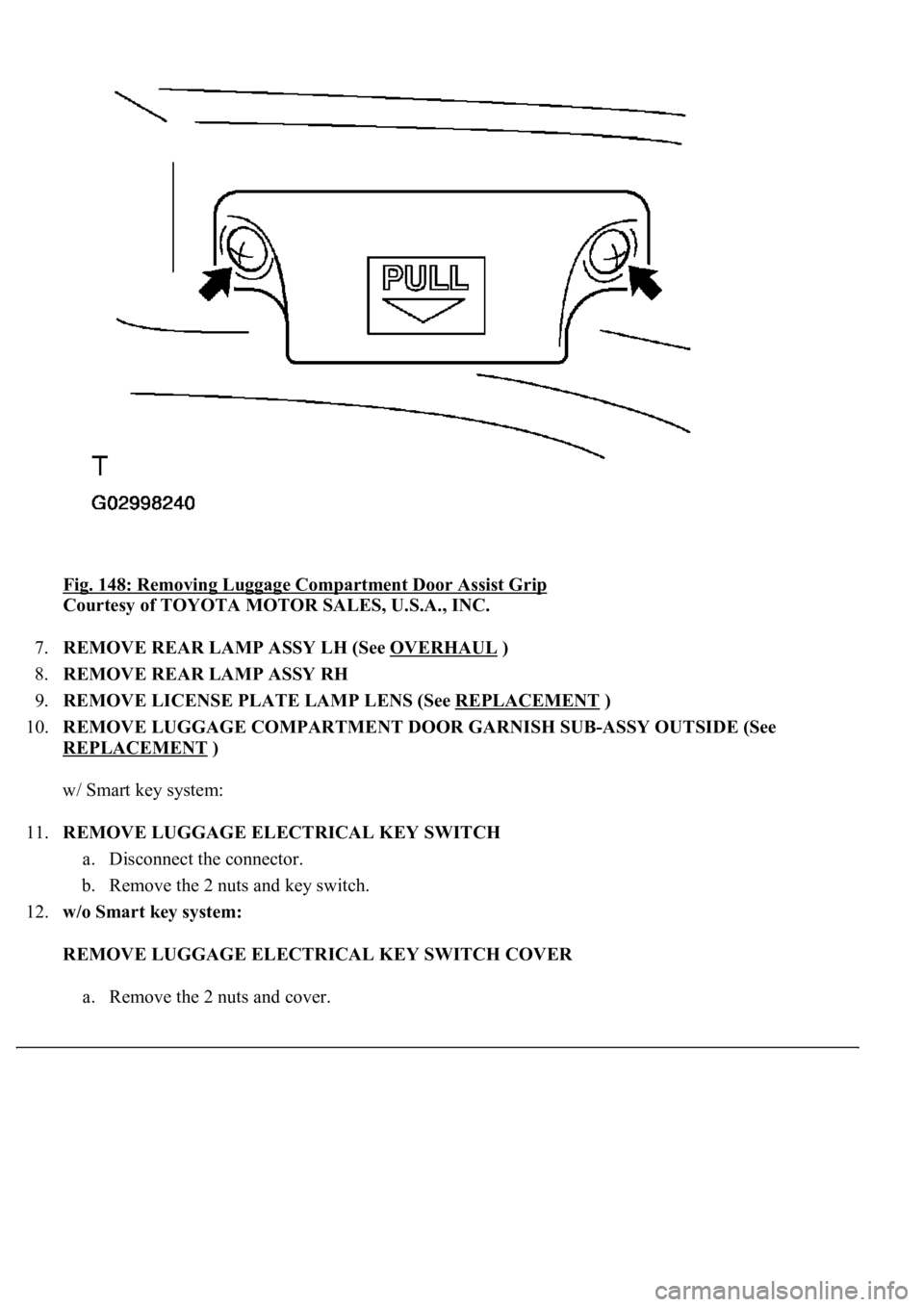

Fig. 148: Removing Luggage Compartment Door Assist Grip
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE REAR LAMP ASSY LH (See OVERHAUL
)
8.REMOVE REAR LAMP ASSY RH
9.REMOVE LICENSE PLATE LAMP LENS (See REPLACEMENT
)
10.REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUTSIDE (See
REPLACEMENT
)
w/ Smart key system:
11.REMOVE LUGGAGE ELECTRICAL KEY SWITCH
a. Disconnect the connector.
b. Remove the 2 nuts and key switch.
12.w/o Smart key system:
REMOVE LUGGAGE ELECTRICAL KEY SWITCH COVER
a. Remove the 2 nuts and cover.

Fig. 149: Removing Luggage Electrical Key Switch Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSY
a. Disconnect the connector.
b. Remove the 2 nuts and lock cylinder.

Fig. 150: Removing Nuts And Lock Cylinder
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
14.w/ Camera:
REMOVE TELEVISION CAMERA ASSY
a. Remove the 2 bolts and camera.

Fig. 151: Removing Television Camera Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
15.REMOVE LUGGAGE DOOR LOCK OPENER ASSY
a. Remove the 2 screws and opener.
