Page 3301 of 4500

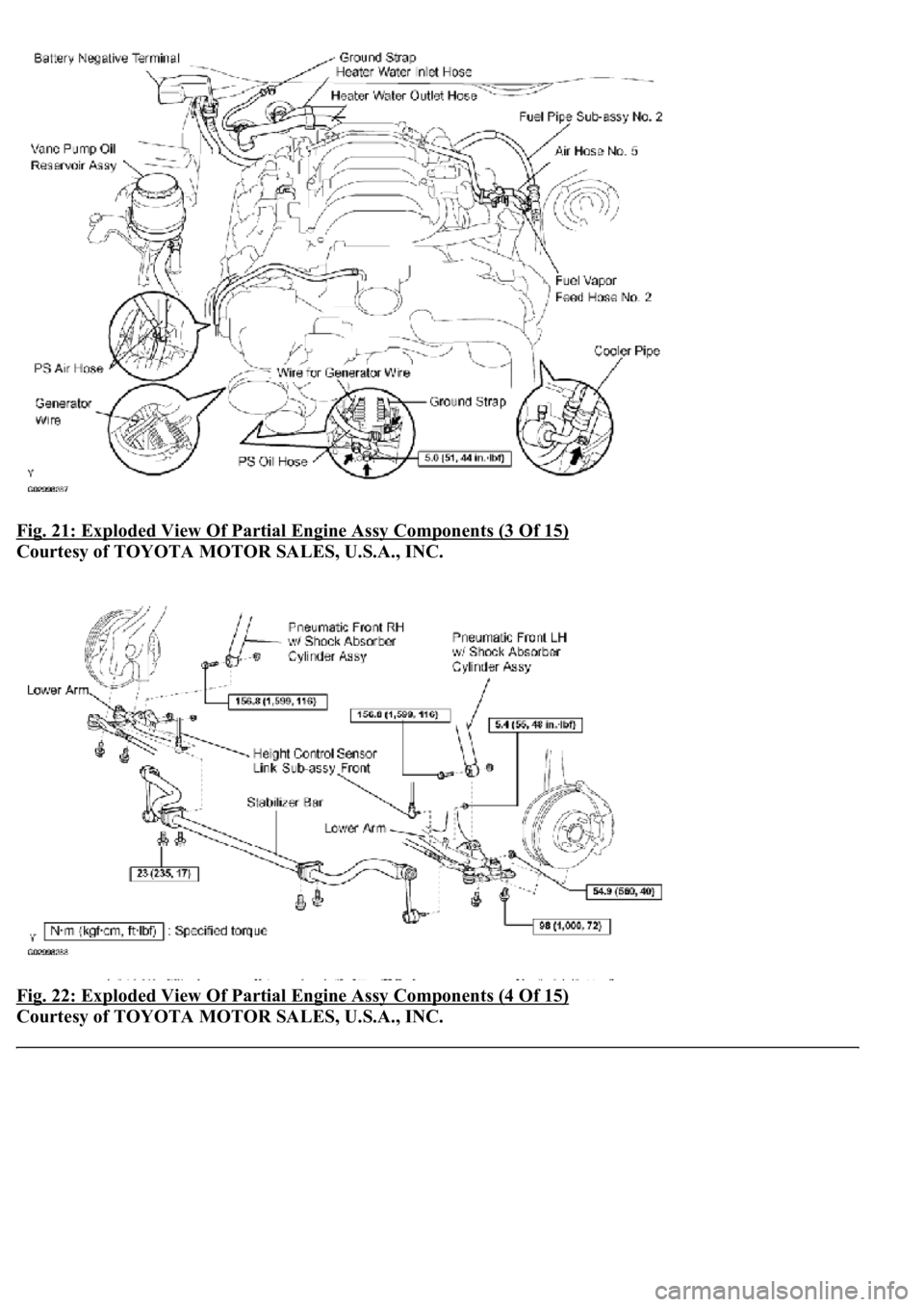

Fig. 21: Exploded View Of Partial Engine Assy Components (3 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

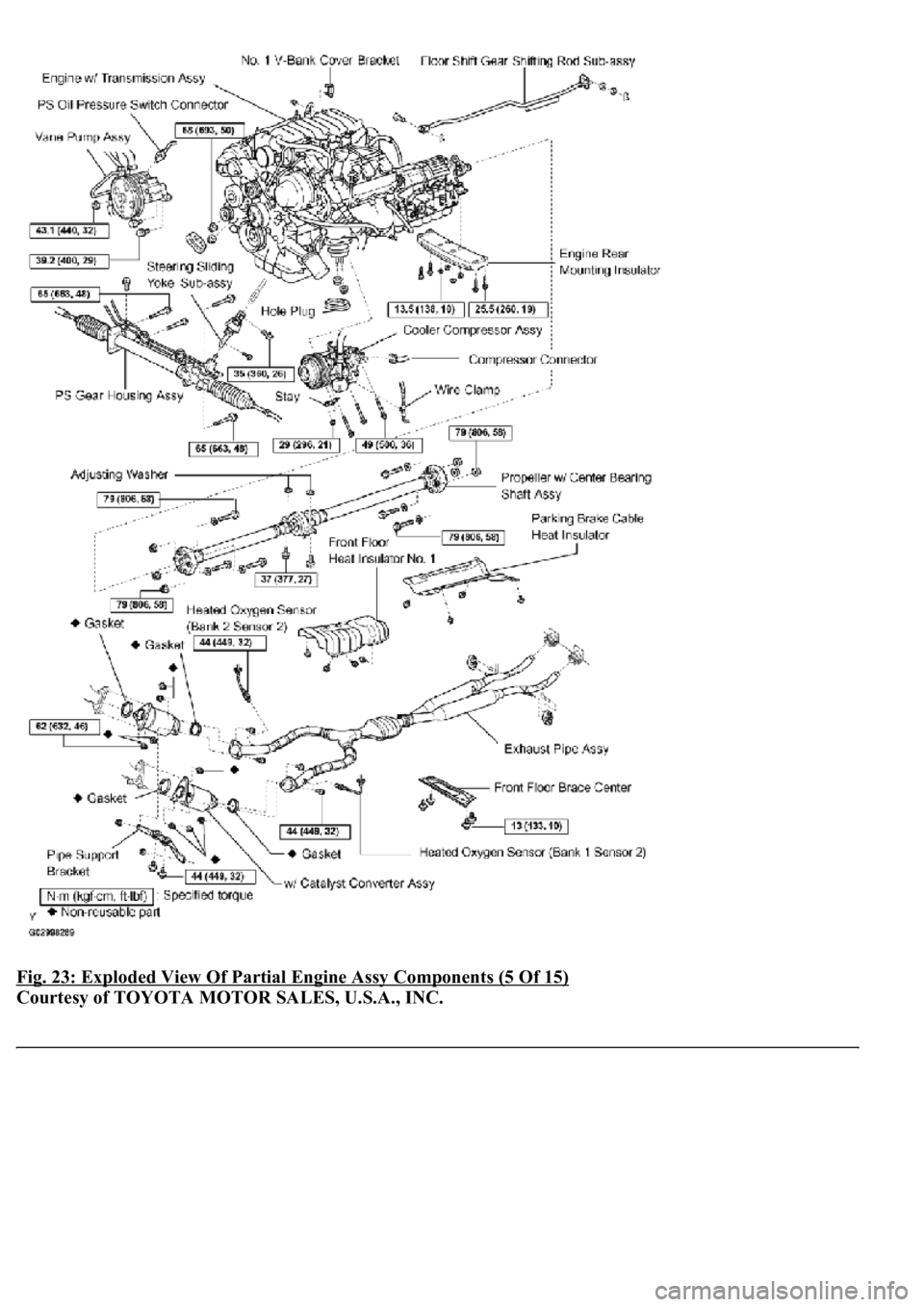

Fig. 22: Exploded View Of Partial Engine Assy Components (4 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3302 of 4500
Fig. 23: Exploded View Of Partial Engine Assy Components (5 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3303 of 4500
Fig. 24: Exploded View Of Partial Engine Assy Components (6 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3304 of 4500

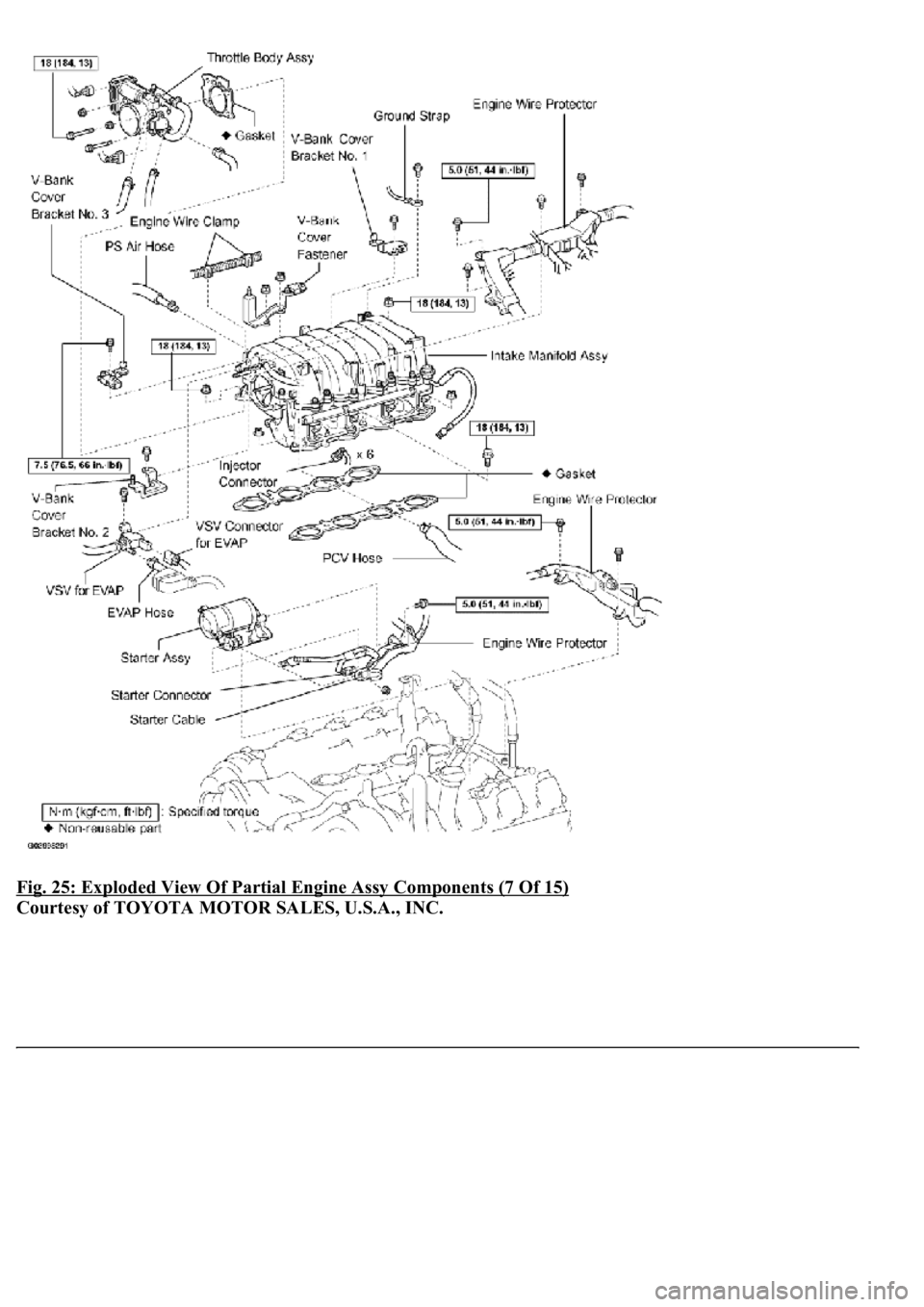

Fig. 25: Exploded View Of Partial Engine Assy Components (7 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3305 of 4500
Fig. 26: Exploded View Of Partial Engine Assy Components (8 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3306 of 4500

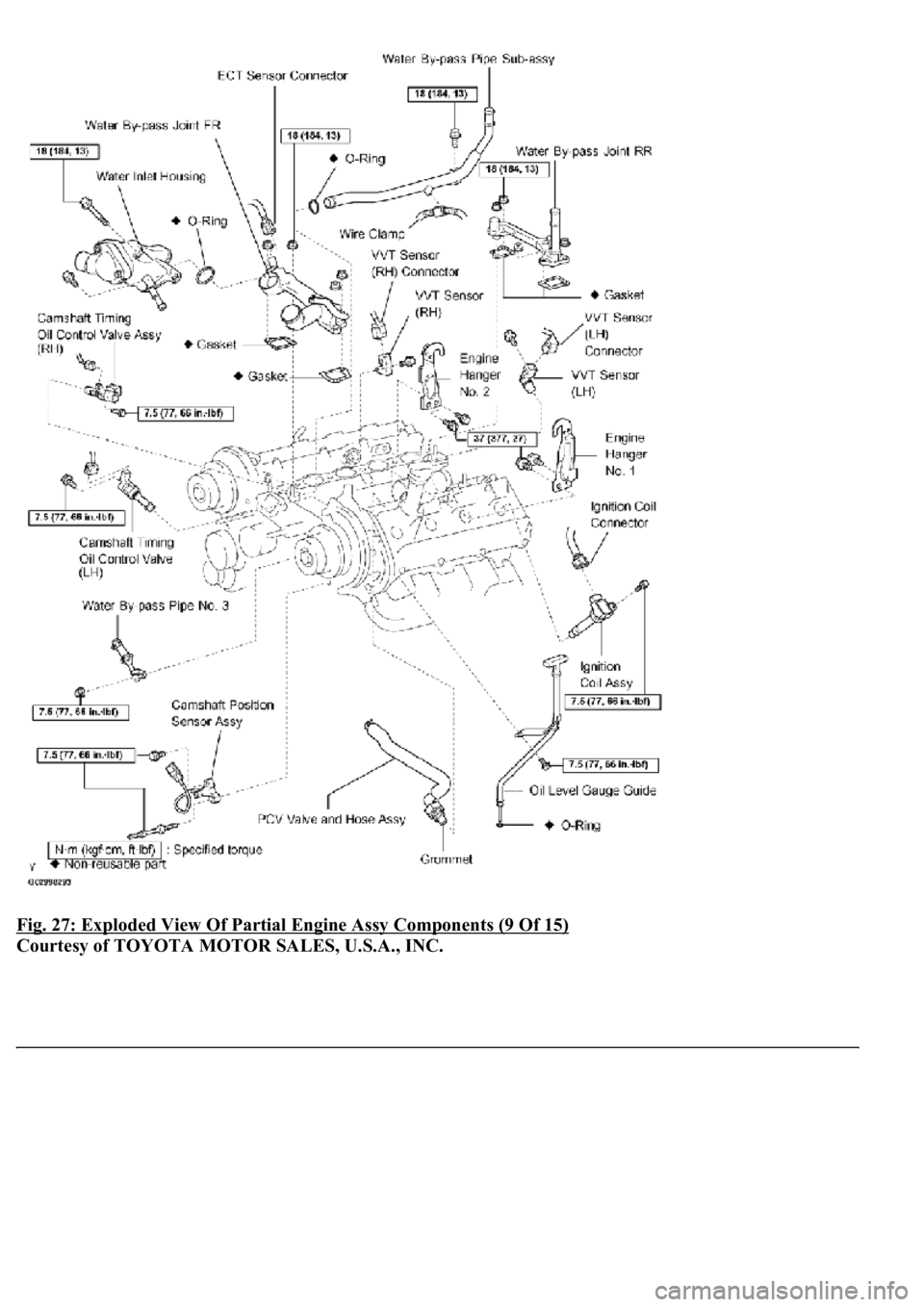

Fig. 27: Exploded View Of Partial Engine Assy Components (9 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3307 of 4500

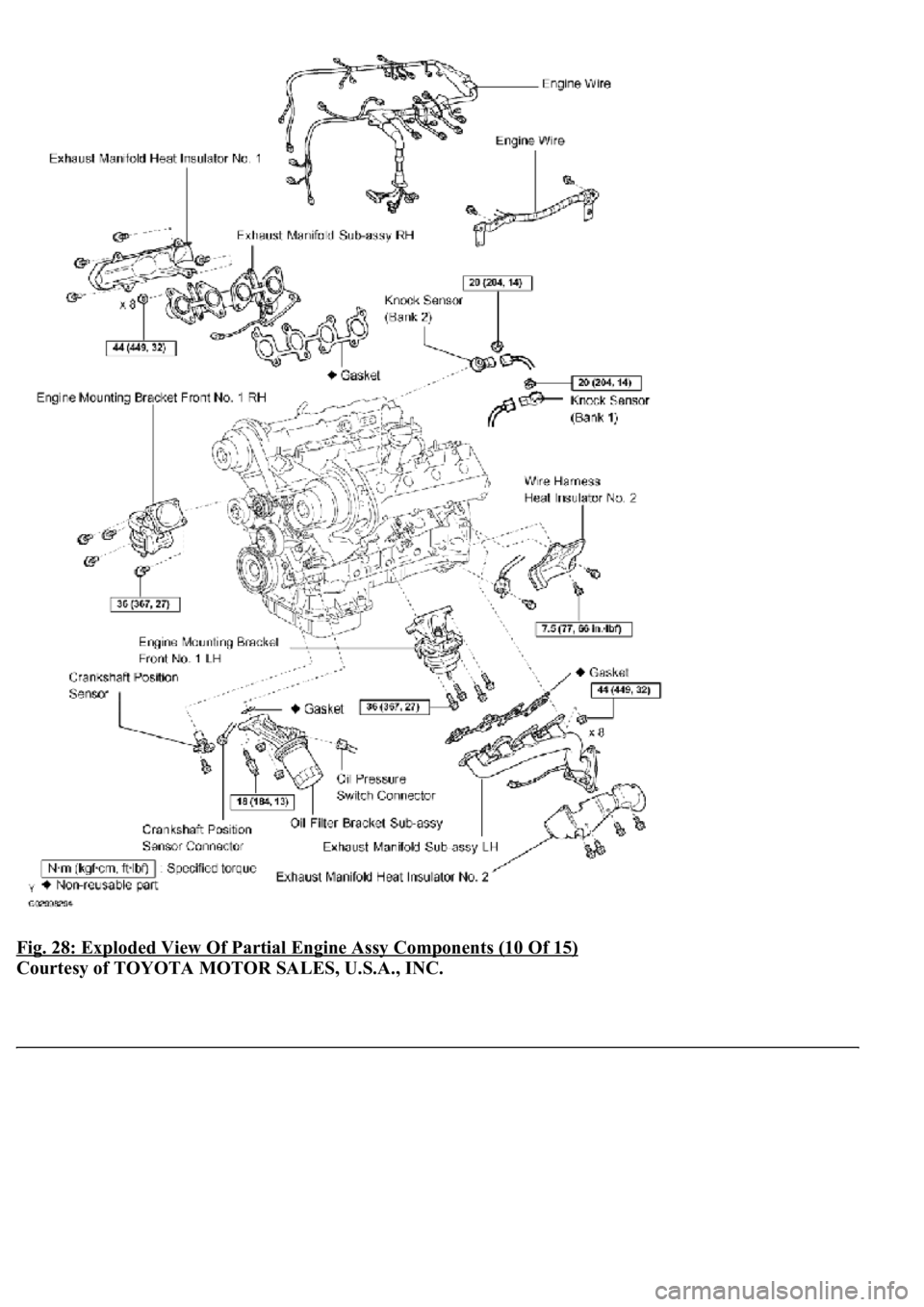

Fig. 28: Exploded View Of Partial Engine Assy Components (10 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3308 of 4500

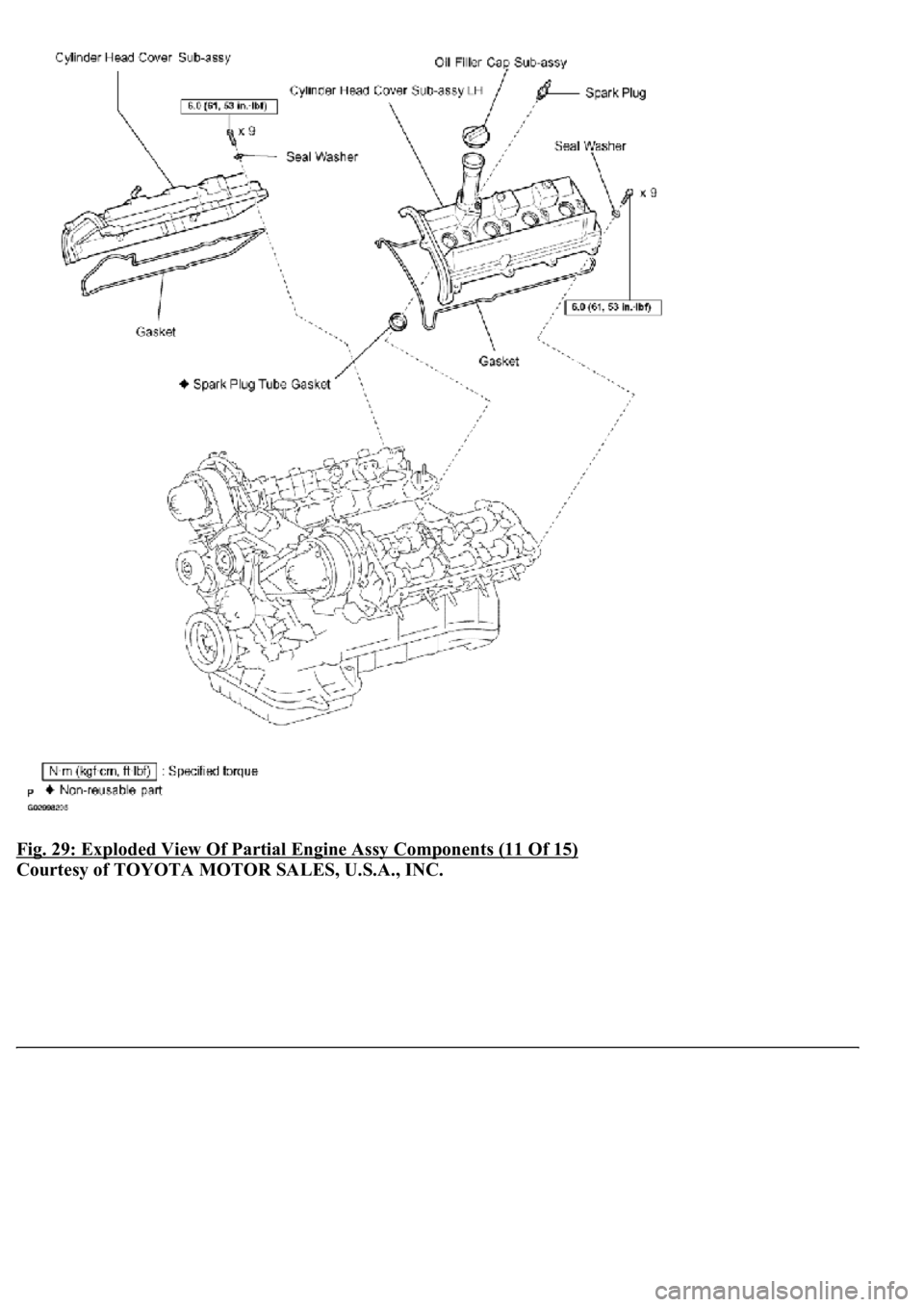

Fig. 29: Exploded View Of Partial Engine Assy Components (11 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3309 of 4500

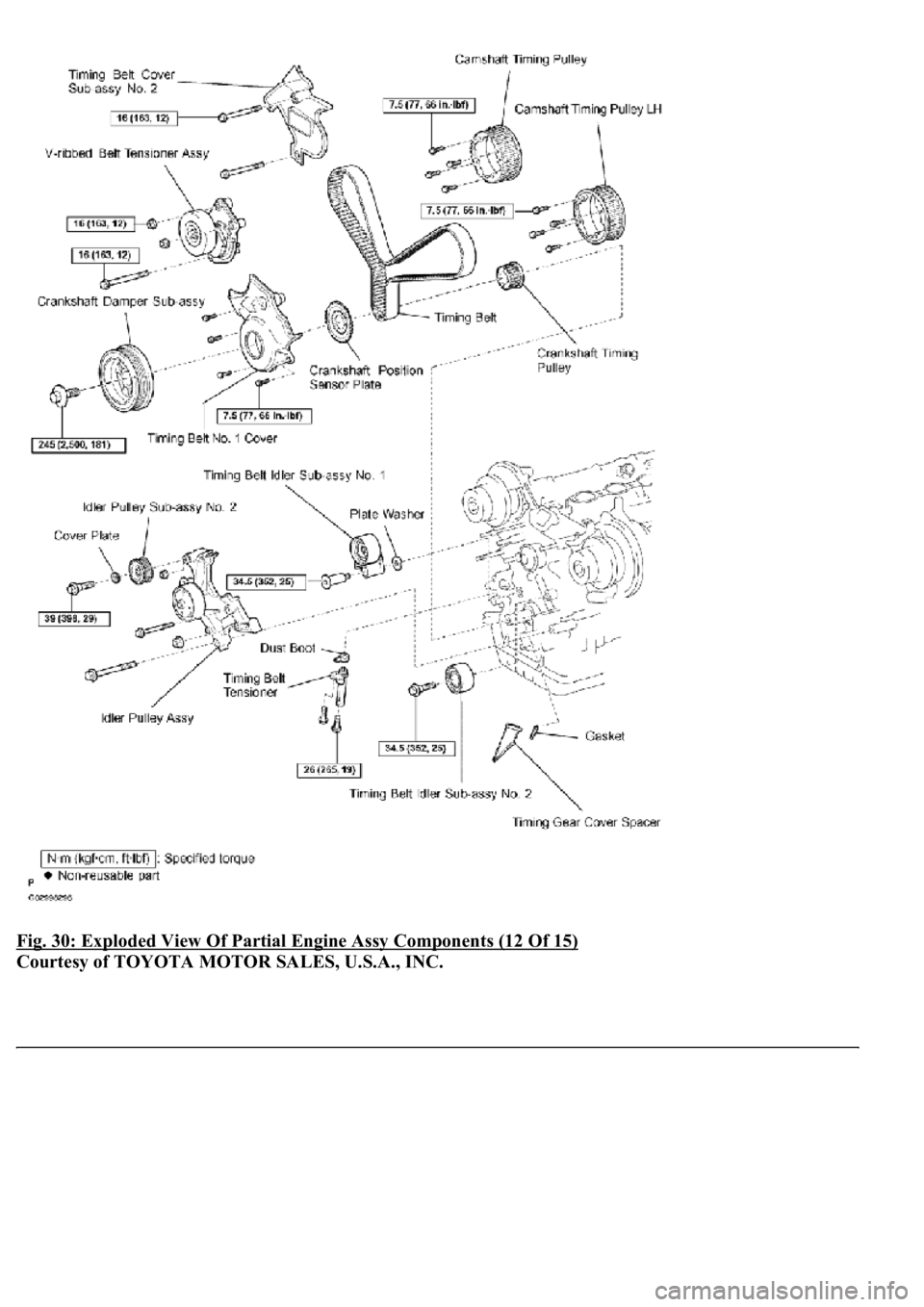

Fig. 30: Exploded View Of Partial Engine Assy Components (12 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3310 of 4500

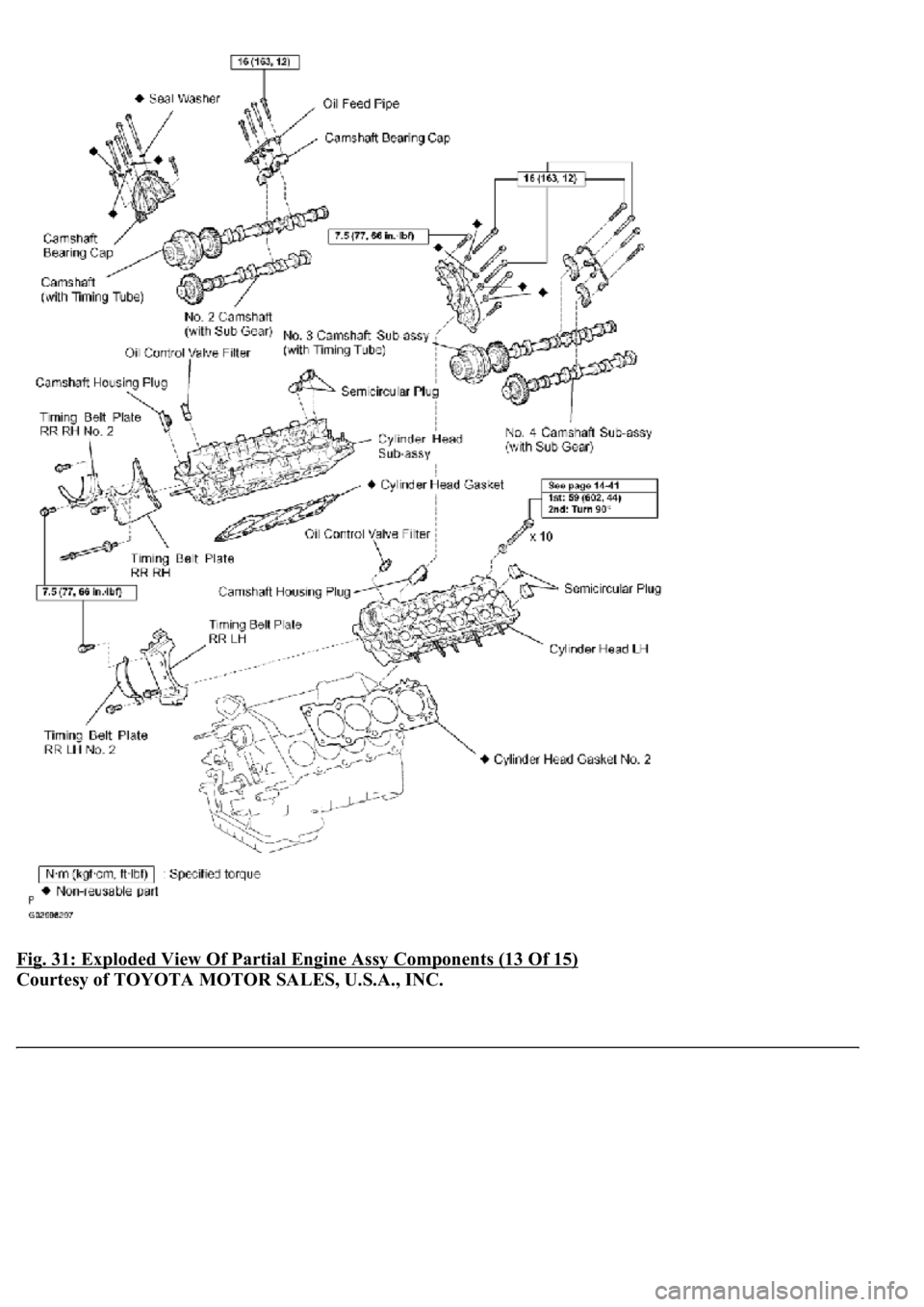

Fig. 31: Exploded View Of Partial Engine Assy Components (13 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
