LEXUS LS430 2003 Factory Repair Manual

OVERHAUL - FIXED)
5.REMOVE REAR DOOR SCUFF PLATE RH (See REPLACEMENT
)
6.REMOVE REAR DOOR SCUFF PLATE LH (See REPLACEMENT
)
7.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (See REPLACEMENT
)
8.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (See REPLACEMENT
)
9.REMOVE REAR SEAT SIDE COVER RH (See REPLACEMENT
)
10.REMOVE REAR SEAT SIDE COVER LH (See REPLACEMENT
)
11.REMOVE ROOF SIDE GARNISH INNER RH (See REPLACEMENT
)
12.REMOVE ROOF SIDE GARNISH INNER LH (See REPLACEMENT
)
13.REMOVE CENTER STOP LAMP ASSY (See REPLACEMENT
)
14.REMOVE REAR SPEAKER GRILLE SUB-ASSY (See REPLACEMENT
)
15.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See REPLACEMENT
)
16.REMOVE STEREO COMPONENT SPEAKER ASSY REAR
a. Disconnect the connector.
b. Remove the 4 screws and stereo component speaker assy rear.
Fig. 34: Removing Stereo Component Speaker Assy Rear Screws

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REPLACEMENT
HINT:
See LOCATION
Installation is in the reverse order of removal.
1.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See step 19 on REPLACEMENT
)
2.REMOVE FRONT NO. 2 SPEAKER ASSY
a. Disconnect the connector.
b. Disengage the clip.
c. Remove the 2 nuts and front No. 2 speaker assy.
d. Perform the same procedure on the other side.

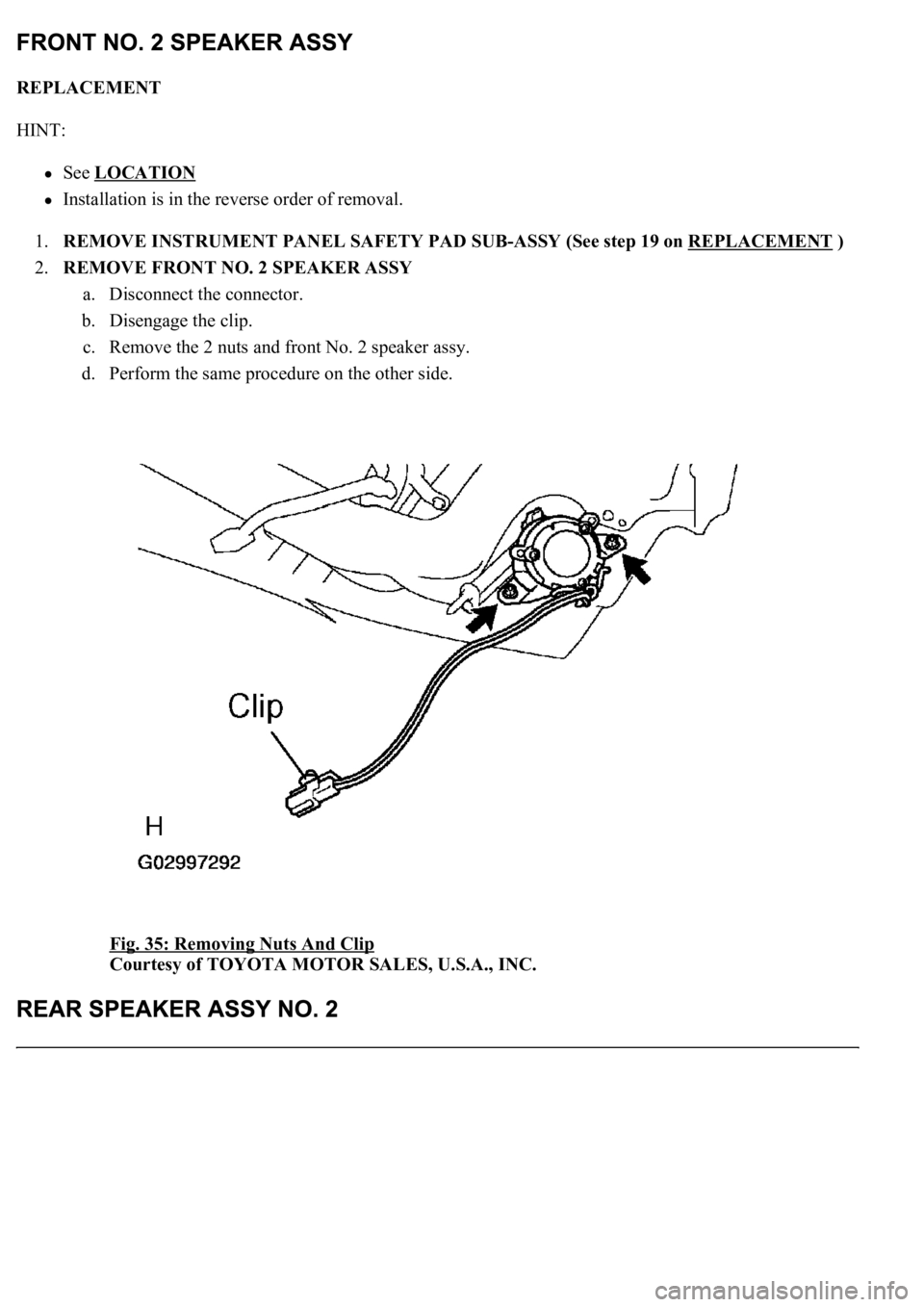

Fig. 35: Removing Nuts And Clip

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REPLACEMENT
HINT:
See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.
The procedure for the left side is the same as that for the right side. The procedure for right side is shown
below.
1.REMOVE SIDE TRIM BOARD COVER FRONT RH (See OVERHAUL
)
2.REMOVE SIDE REAR CURTAIN ASSY RH (W/ REAR CURTAIN SUB-ASSY) (See step 4 on
OVERHAUL
)
3.REMOVE POWER WINDOW REGULATOR SWITCH ASSY REAR (See step 18 on
OVERHAUL
)
4.REMOVE REAR DOOR INSIDE HANDLE BEZEL RH (See OVERHAUL
)
5.REMOVE REAR DOOR TRIM BOARD SUB-ASSY RH (See step 5 on OVERHAUL
)
6.REMOVE REAR SPEAKER ASSY NO. 2
a. Disconnect the connector.
b. Remove the 3 screws and rear speaker assy No. 2.

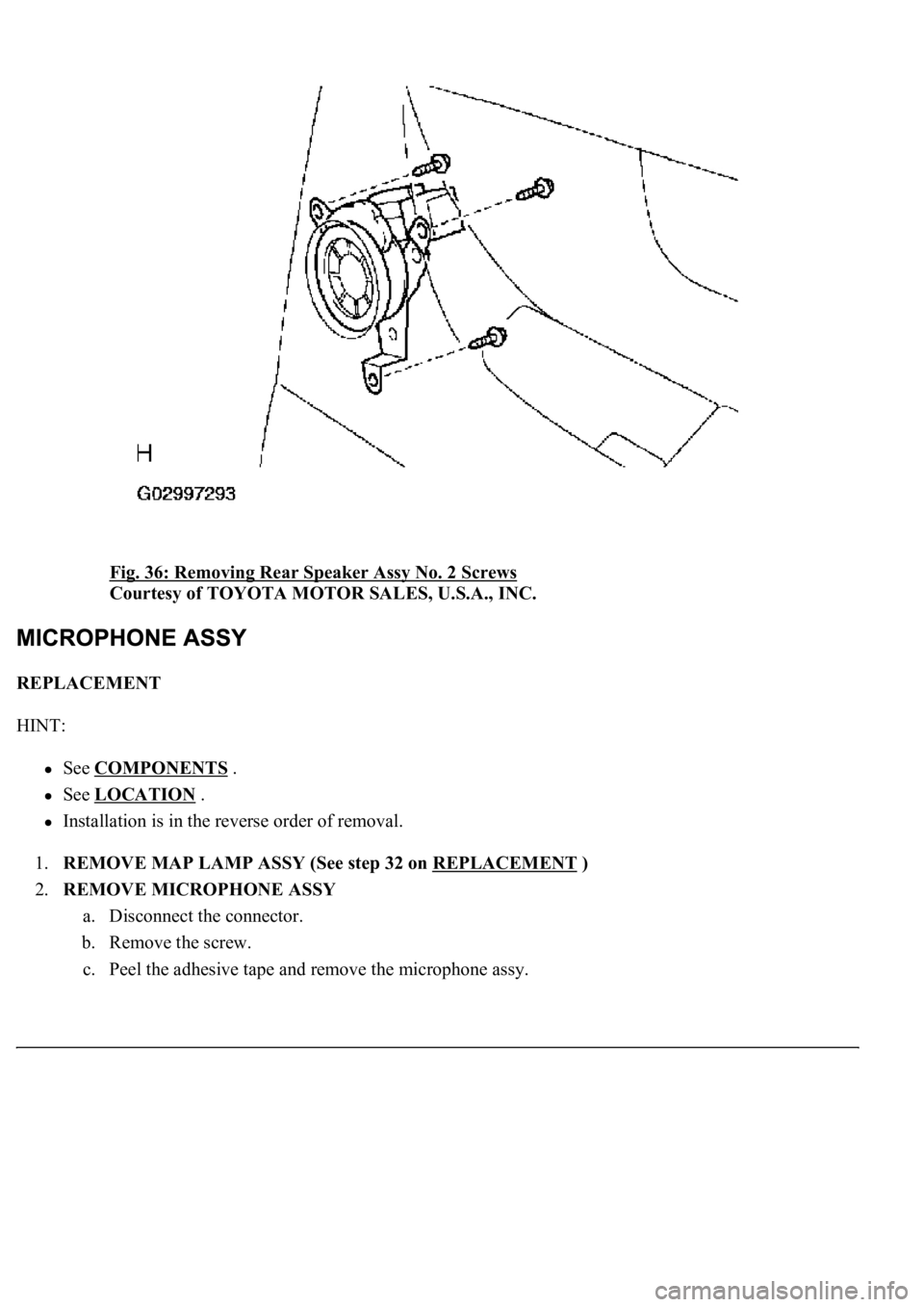

Fig. 36: Removing Rear Speaker Assy No. 2 Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.
1.REMOVE MAP LAMP ASSY (See step 32 on REPLACEMENT
)
2.REMOVE MICROPHONE ASSY
a. Disconnect the connector.
b. Remove the screw.
c. Peel the adhesive tape and remove the microphone assy.

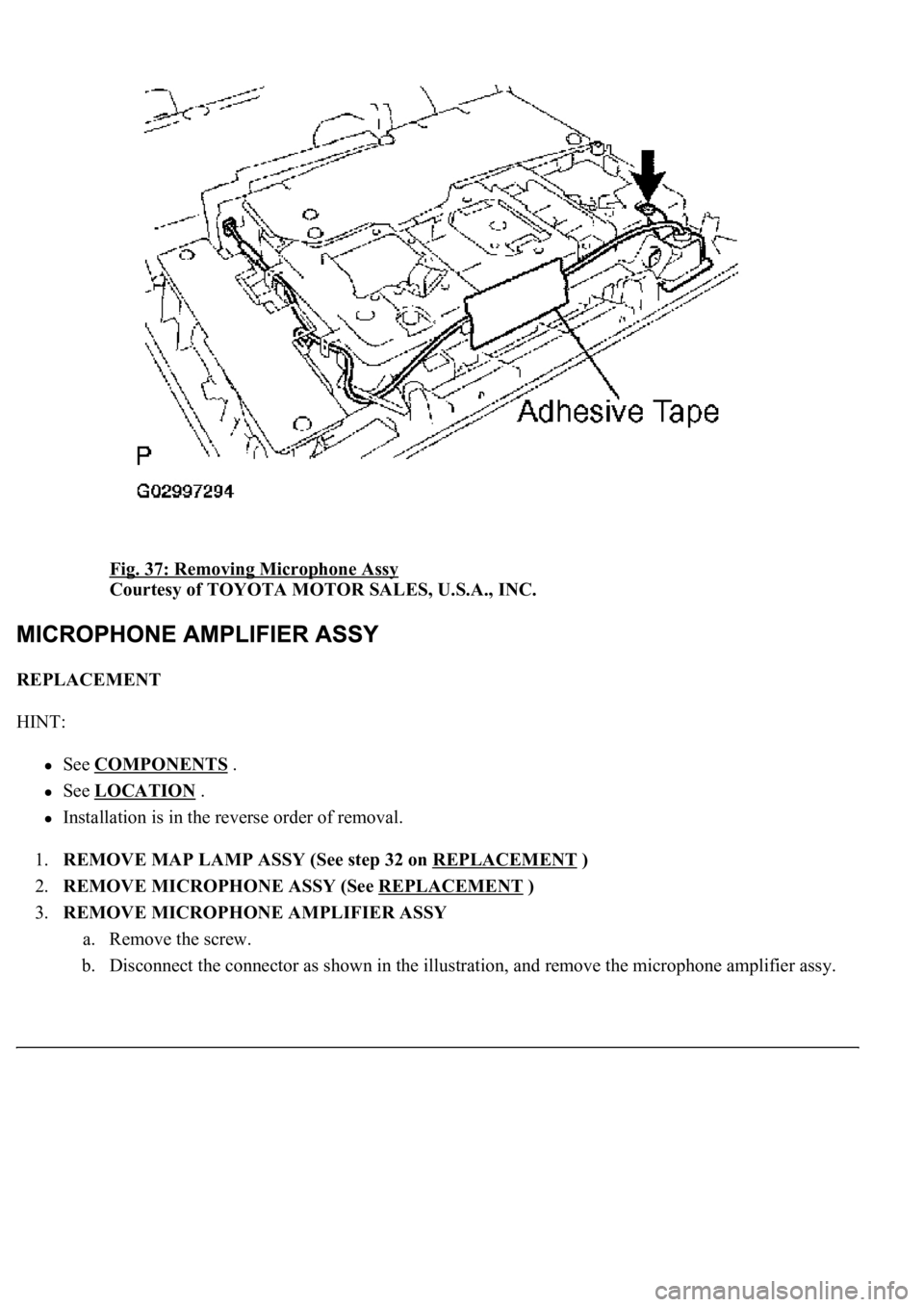

Fig. 37: Removing Microphone Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.
1.REMOVE MAP LAMP ASSY (See step 32 on REPLACEMENT
)
2.REMOVE MICROPHONE ASSY (See REPLACEMENT
)
3.REMOVE MICROPHONE AMPLIFIER ASSY
a. Remove the screw.
b. Disconnect the connector as shown in the illustration, and remove the microphone amplifier assy.

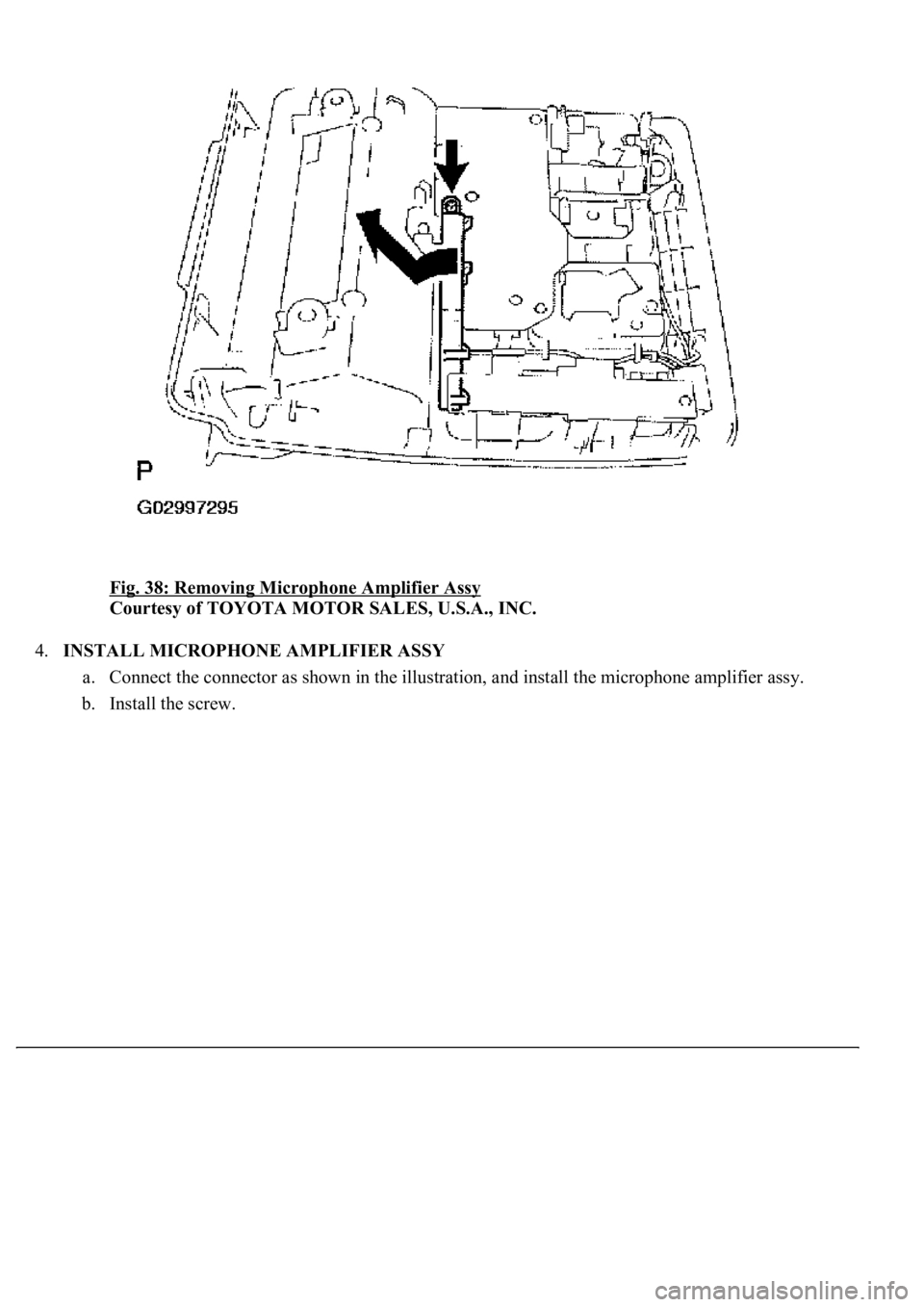

Fig. 38: Removing Microphone Amplifier Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.INSTALL MICROPHONE AMPLIFIER ASSY
a. Connect the connector as shown in the illustration, and install the microphone amplifier assy.
b. Install the screw.

Fig. 39: Installing Microphone Amplifier Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.
1.REMOVE SWITCH & VOLUME CASE
a. Disengage the 3 claws and remove the switch & volume case.

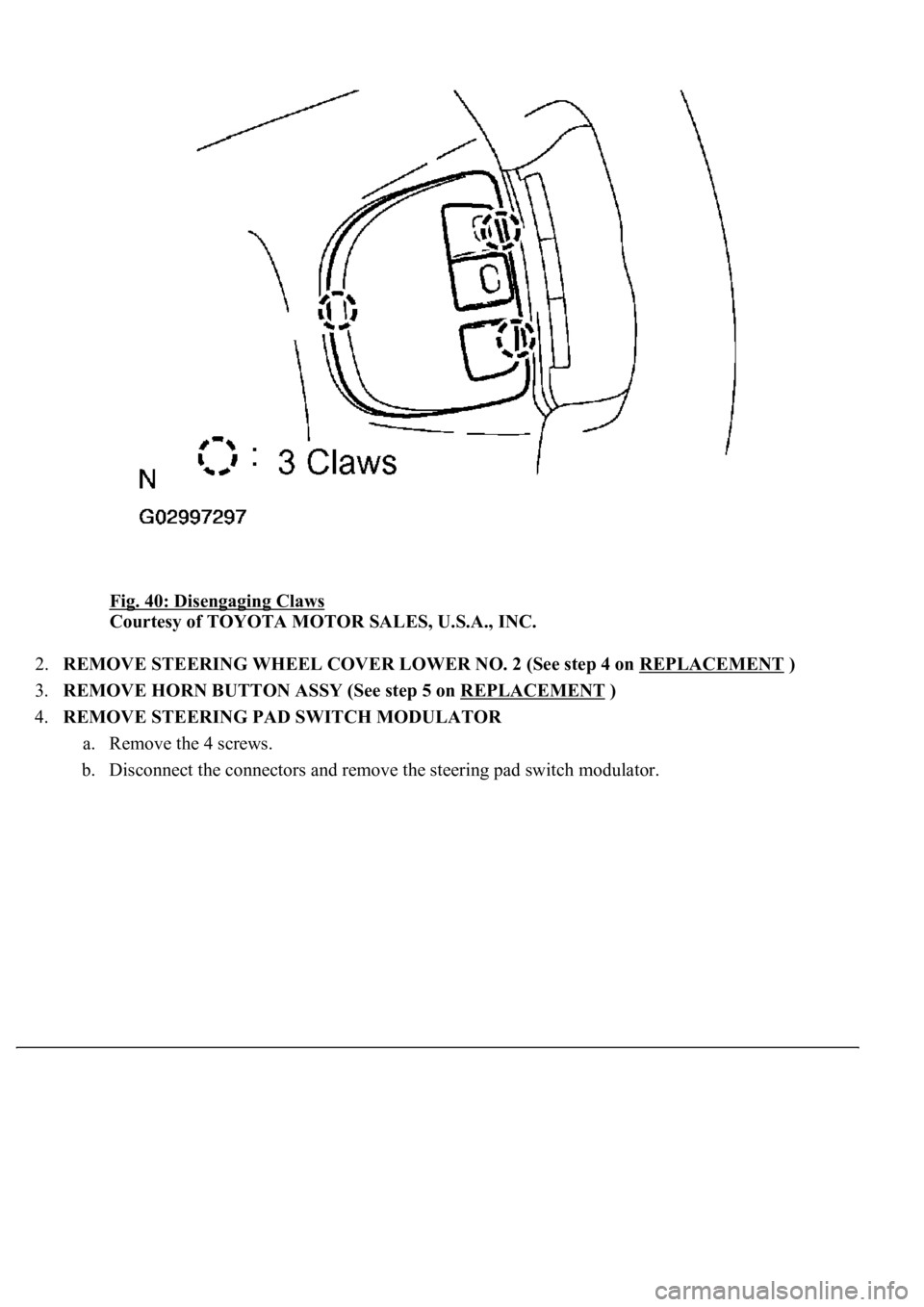

Fig. 40: Disengaging Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.REMOVE STEERING WHEEL COVER LOWER NO. 2 (See step 4 on REPLACEMENT
)
3.REMOVE HORN BUTTON ASSY (See step 5 on REPLACEMENT
)
4.REMOVE STEERING PAD SWITCH MODULATOR
a. Remove the 4 screws.
b. Disconnect the connectors and remove the steering pad switch modulator.

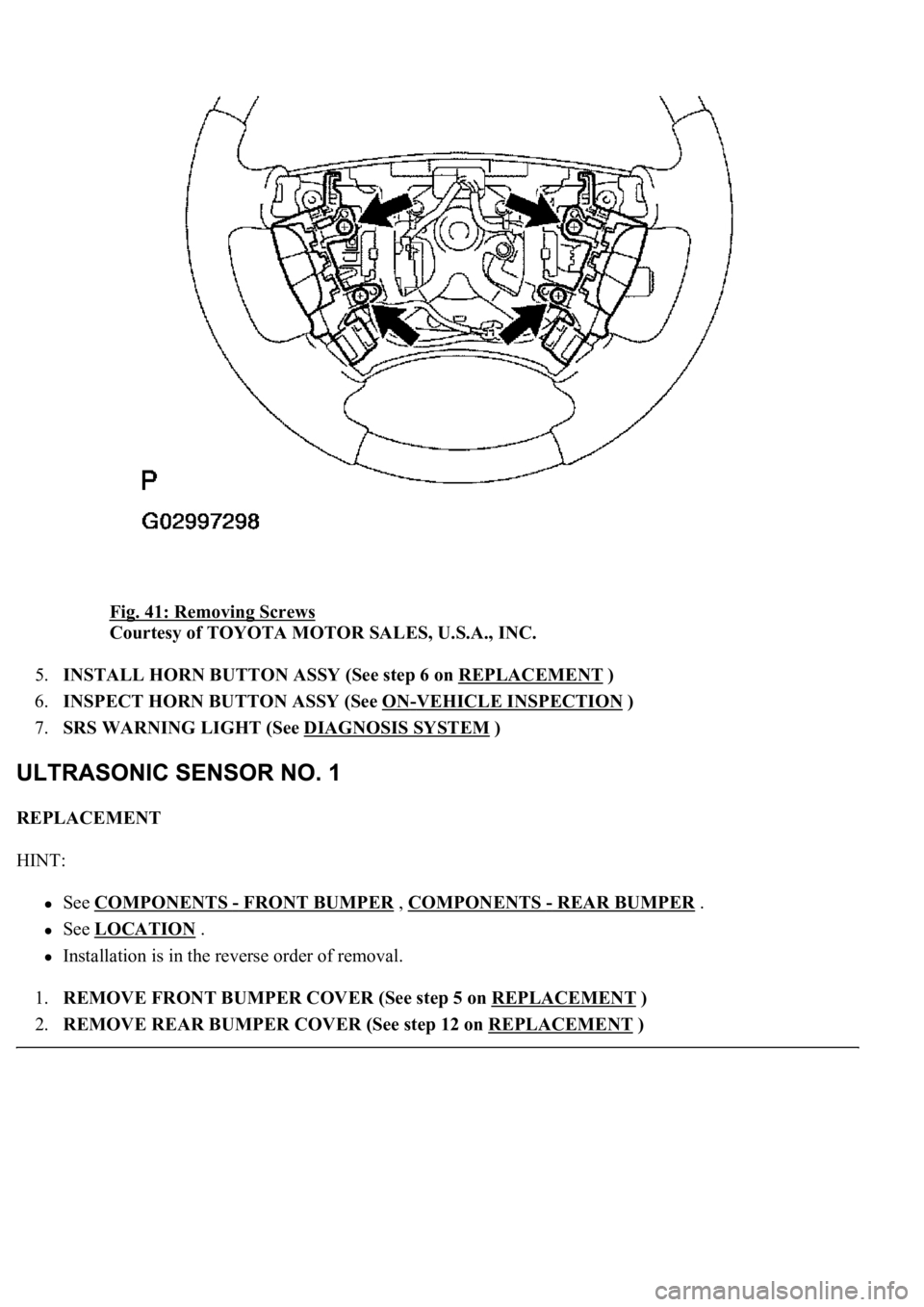

Fig. 41: Removing Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.INSTALL HORN BUTTON ASSY (See step 6 on REPLACEMENT
)
6.INSPECT HORN BUTTON ASSY (See ON
-VEHICLE INSPECTION )
7.SRS WARNING LIGHT (See DIAGNOSIS SYSTEM
)
REPLACEMENT
HINT:
See COMPONENTS - FRONT BUMPER , COMPONENTS - REAR BUMPER .
See LOCATION .
Installation is in the reverse order of removal.
1.REMOVE FRONT BUMPER COVER (See step 5 on REPLACEMENT
)
2.REMOVE REAR BUMPER COVER (See step 12 on REPLACEMENT
)

3.REMOVE ULTRASONIC SENSOR RETAINER NO. 1
a. Disconnect the connector.
b. Remove the ultrasonic sensor retainer No. 1 as shown in the illustration.
Fig. 42: Removing Ultrasonic Sensor Retainer No. 1

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.REMOVE ULTRASONIC SENSOR NO. 1
a. Remove the ultrasonic sensor No. 1.
