LEXUS LS430 2003 Factory Repair Manual

REPLACEMENT
HINT:
See COMPONENTS
See LOCATION
Installation is in the reverse order of removal.
1.REMOVE REAR COMBINATION LAMP SERVICE COVER RH (See OVERHAUL
)
2.REMOVE REAR COMBINATION LAMP SERVICE COVER LH (See OVERHAUL
)
3.REMOVE LUGGAGE COMPARTMENT LAMP ASSY NO. 1 (See step 4 on OVERHAUL
)
4.REMOVE BACK DOOR TRIM COVER (See step 5 on OVERHAUL
)
5.REMOVE LUGGAGE OPENER CANCEL CYLINDER & KEY SET (See OVERHAUL
)
6.REMOVE LUGGAGE DOOR OPENING SWITCH ASSY (See OVERHAUL
)
7.REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUTSIDE (See step 5 on

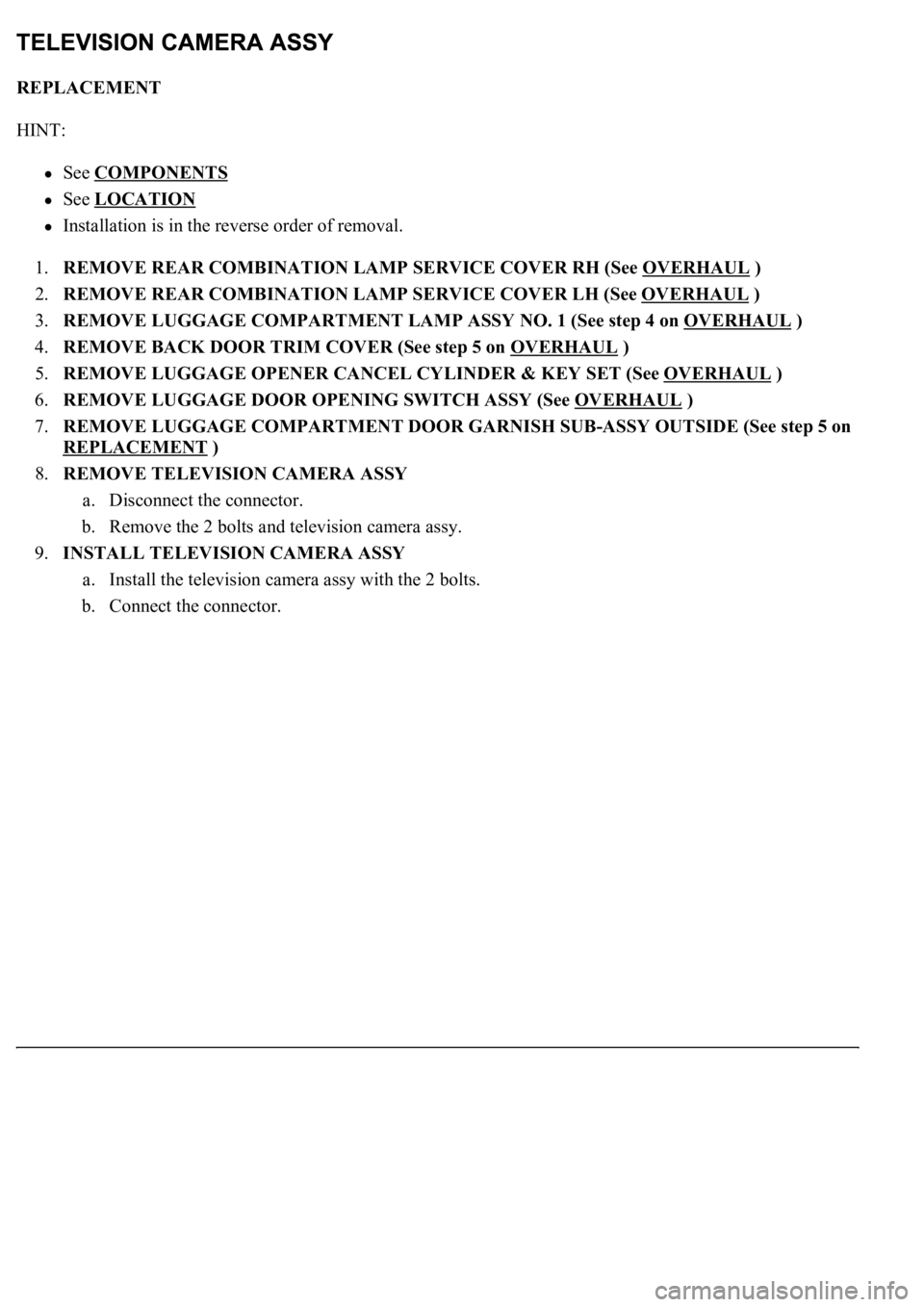

REPLACEMENT
)
8.REMOVE TELEVISION CAMERA ASSY
a. Disconnect the connector.
b. Remove the 2 bolts and television camera assy.
9.INSTALL TELEVISION CAMERA ASSY
a. Install the television camera assy with the 2 bolts.
b. Connect the connector.

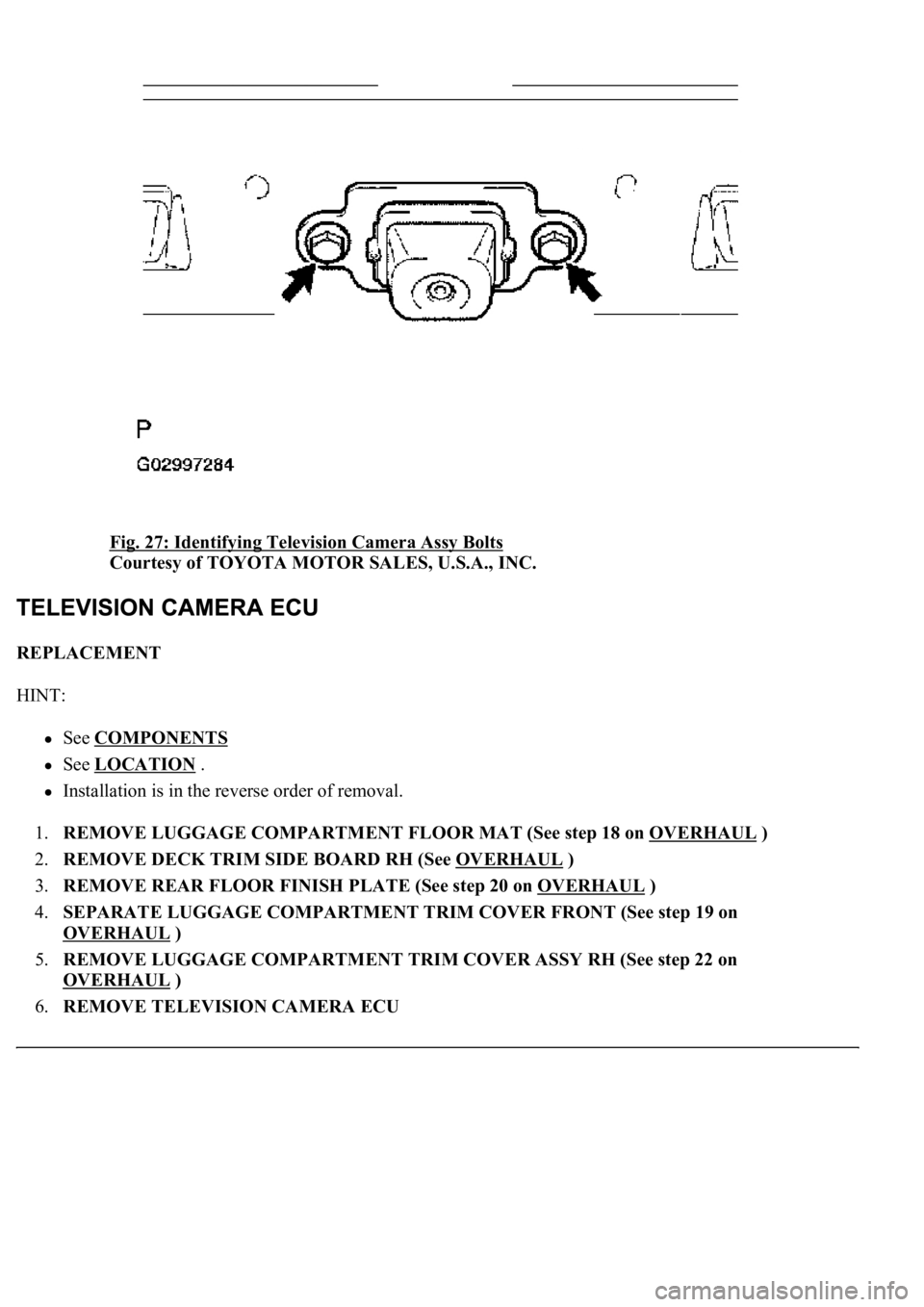

Fig. 27: Identifying Television Camera Assy Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS
See LOCATION .
Installation is in the reverse order of removal.
1.REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See step 18 on OVERHAUL
)
2.REMOVE DECK TRIM SIDE BOARD RH (See OVERHAUL
)
3.REMOVE REAR FLOOR FINISH PLATE (See step 20 on OVERHAUL
)
4.SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRONT (See step 19 on
OVERHAUL
)
5.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (See step 22 on
OVERHAUL
)
6.REMOVE TELEVISION CAMERA ECU

a. Disconnect the connector and remove the bolt.
b. Pull out the television camera ECU along the stereo component amplifier assy guide toward the
rear of the vehicle to remove it.
If the television camera ECU is not easily removed due to a lack of space between the television camera
ECU and the vehicle, remove the television camera ECU together with the stereo component amplifier
assy (see REPLACEMENT
).

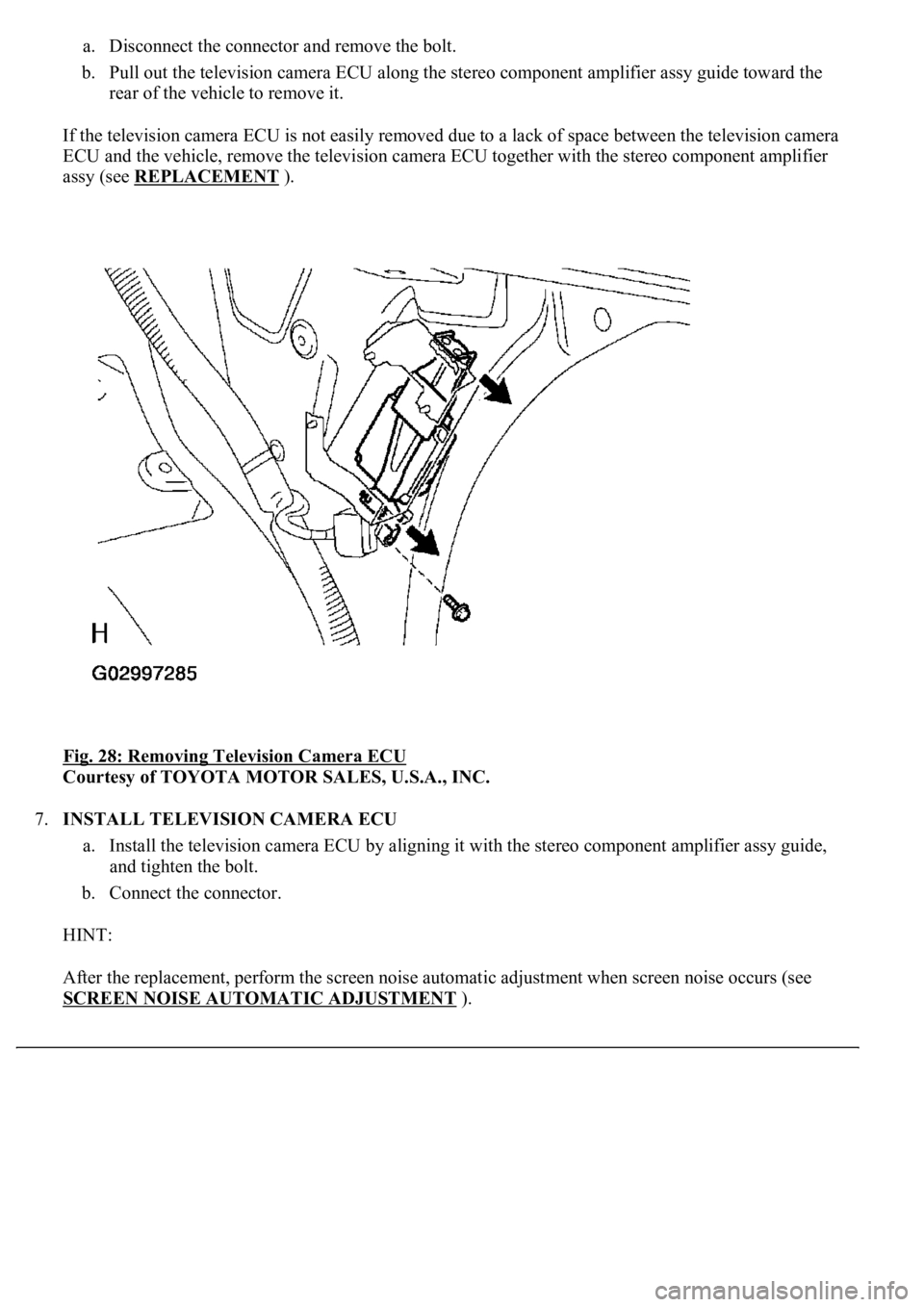

Fig. 28: Removing Television Camera ECU

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL TELEVISION CAMERA ECU
a. Install the television camera ECU by aligning it with the stereo component amplifier assy guide,
and tighten the bolt.
b. Connect the connector.
HINT:
After the replacement, perform the screen noise automatic adjustment when screen noise occurs (see
SCREEN NOISE AUTOMATIC ADJUSTMENT
).

REPLACEMENT
HINT:
See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.
1.REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See step 18 on OVERHAUL
)
2.REMOVE DECK TRIM SIDE BOARD RH (See OVERHAUL
)
3.REMOVE REAR FLOOR FINISH PLATE (See step 20 on OVERHAUL
)
4.SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRONT (See step 19 on
OVERHAUL
)
5.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (See step 22 on
OVERHAUL
)
6.REMOVE TELEVISION CAMERA ECU (W/ TELEVISION CAMERA) (See REPLACEMENT
)
7.REMOVE STEREO COMPONENT AMPLIFIER ASSY W/BRACKET
a. Disconnect the connector.
b. Remove the 2 nuts.
c. Disen
gage the 2 clips and remove the stereo component amplifier assy with bracket.

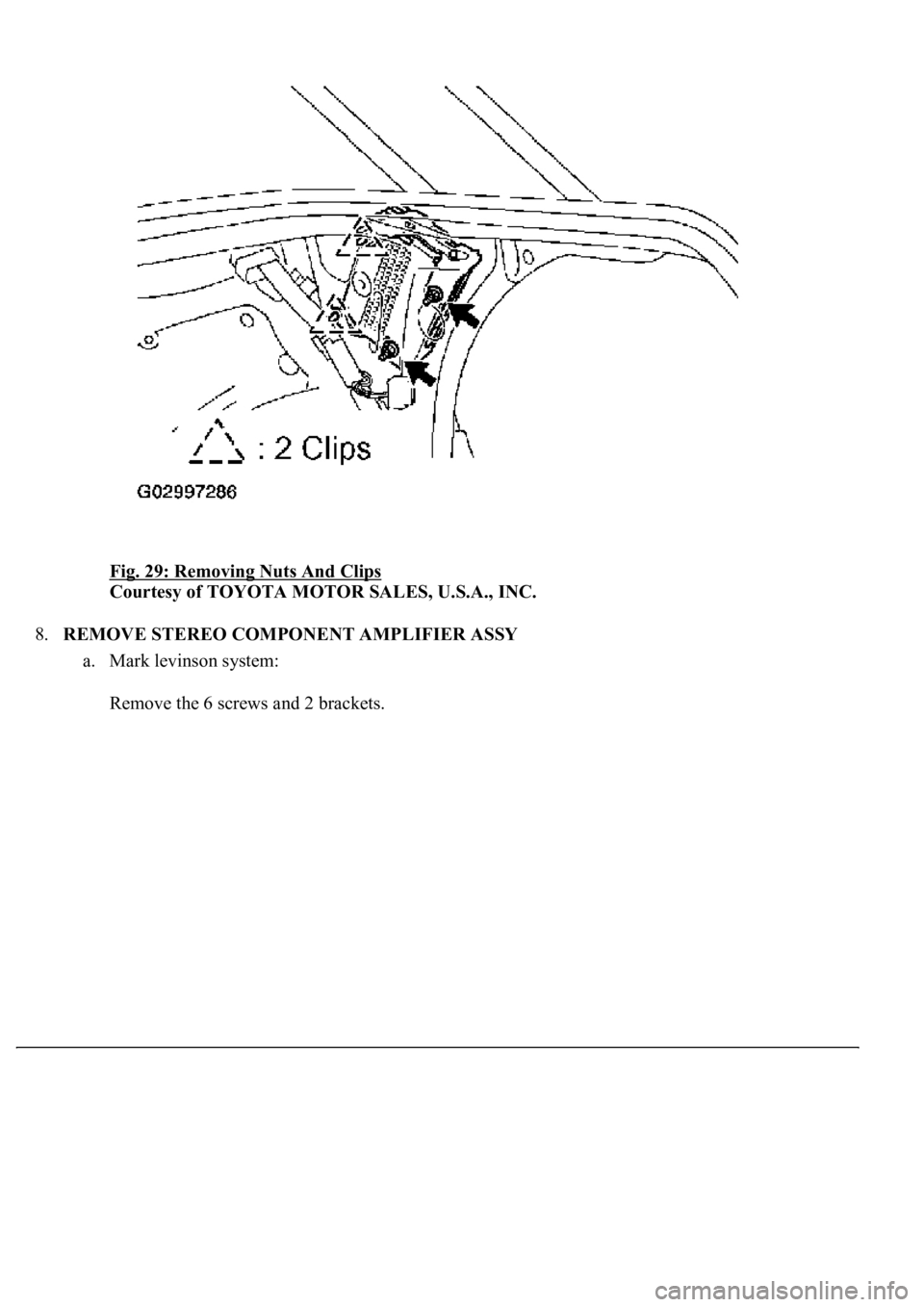

Fig. 29: Removing Nuts And Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE STEREO COMPONENT AMPLIFIER ASSY
a. Mark levinson system:
Remove the 6 screws and 2 brackets.

Fig. 30: Removing Screws And Brackets
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Non-mark levinson system:
Remove the 5 screws and 2 brackets.

Fig. 31: Removing Screws And Brackets
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:

See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.
The procedure for the left side is the same as that for the right side. The procedure for right side is shown
below.
1.REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY (See OVERHAUL
)
2.REMOVE FRONT DOOR INSIDE HANDLE BEZEL RH (See OVERHAUL
)
3.REMOVE FRONT DOOR TRIM BOARD SUB-ASSY RH (See step 4 on OVERHAUL
)
4.REMOVE FRONT NO. 1 SPEAKER ASSY
a. Disconnect the connector.
b. Disengage the 2 clips.
c. Remove the 3 screws and front No. 1 speaker assy.

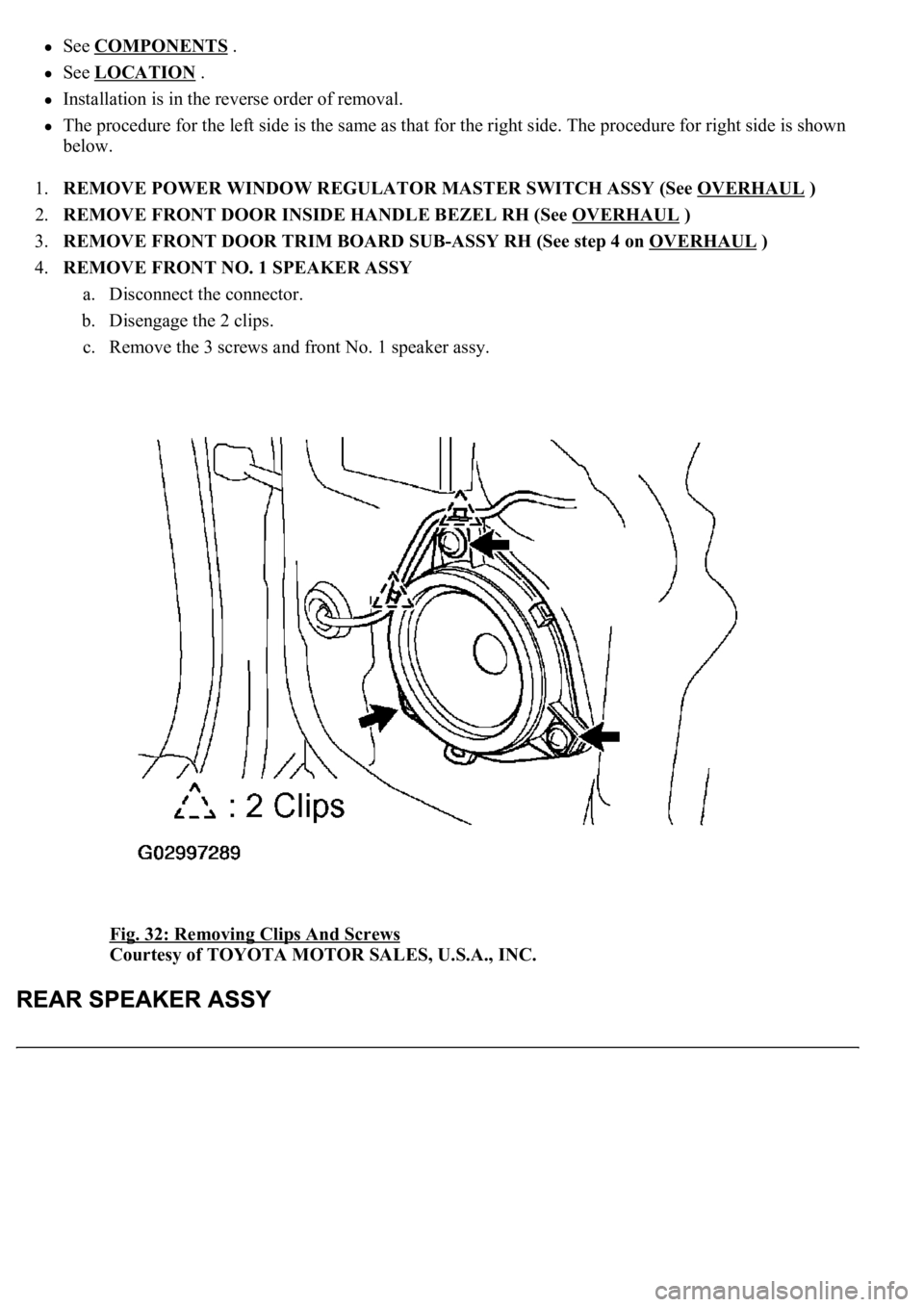

Fig. 32: Removing Clips And Screws

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

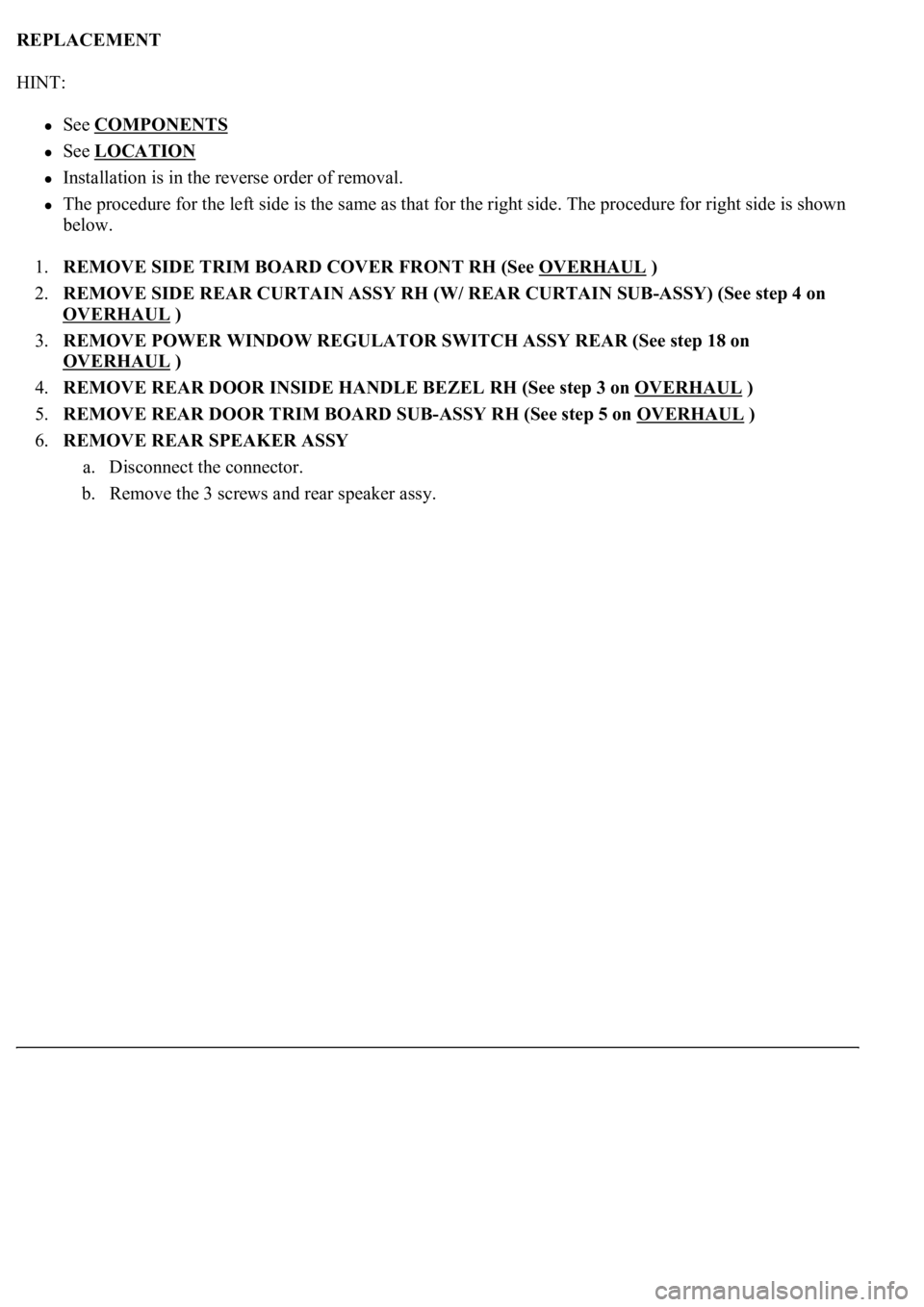

REPLACEMENT
HINT:
See COMPONENTS
See LOCATION
Installation is in the reverse order of removal.
The procedure for the left side is the same as that for the right side. The procedure for right side is shown
below.
1.REMOVE SIDE TRIM BOARD COVER FRONT RH (See OVERHAUL
)
2.REMOVE SIDE REAR CURTAIN ASSY RH (W/ REAR CURTAIN SUB-ASSY) (See step 4 on
OVERHAUL
)
3.REMOVE POWER WINDOW REGULATOR SWITCH ASSY REAR (See step 18 on
OVERHAUL
)
4.REMOVE REAR DOOR INSIDE HANDLE BEZEL RH (See step 3 on OVERHAUL
)
5.REMOVE REAR DOOR TRIM BOARD SUB-ASSY RH (See step 5 on OVERHAUL
)
6.REMOVE REAR SPEAKER ASSY
a. Disconnect the connector.
b. Remove the 3 screws and rear speaker assy.

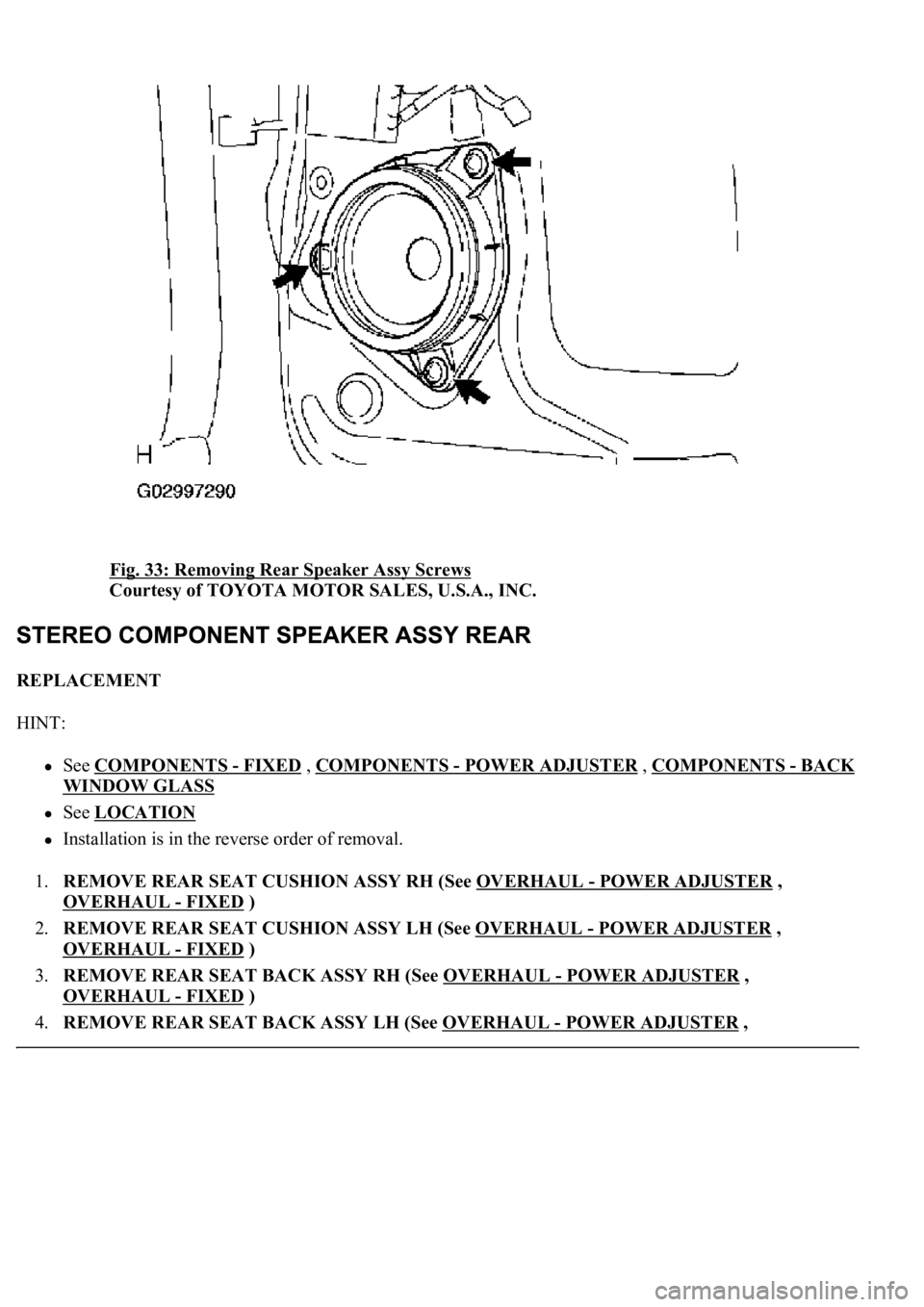

Fig. 33: Removing Rear Speaker Assy Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS - FIXED , COMPONENTS - POWER ADJUSTER , COMPONENTS -BACK
WINDOW GLASS
See LOCATION
Installation is in the reverse order of removal.
1.REMOVE REAR SEAT CUSHION ASSY RH (See OVERHAUL
- POWER ADJUSTER ,
OVERHAUL
- FIXED )
2.REMOVE REAR SEAT CUSHION ASSY LH (See OVERHAUL
- POWER ADJUSTER ,
OVERHAUL
- FIXED )
3.REMOVE REAR SEAT BACK ASSY RH (See OVERHAUL
- POWER ADJUSTER ,
OVERHAUL
- FIXED )
4.REMOVE REAR SEAT BACK ASSY LH (See OVERHAUL
- POWER ADJUSTER ,
