LEXUS LS430 2003 Factory Repair Manual

Fig. 7: Removing Radio Receiver Assembly Bolts And Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. w/ Multi-display:
Remove the 2 bolts.
c. w/ Multi-display:
Disengage the 2 clips and 4 claws.
d. Disconnect the connector and remove the radio receiver assembl
y with bracket.

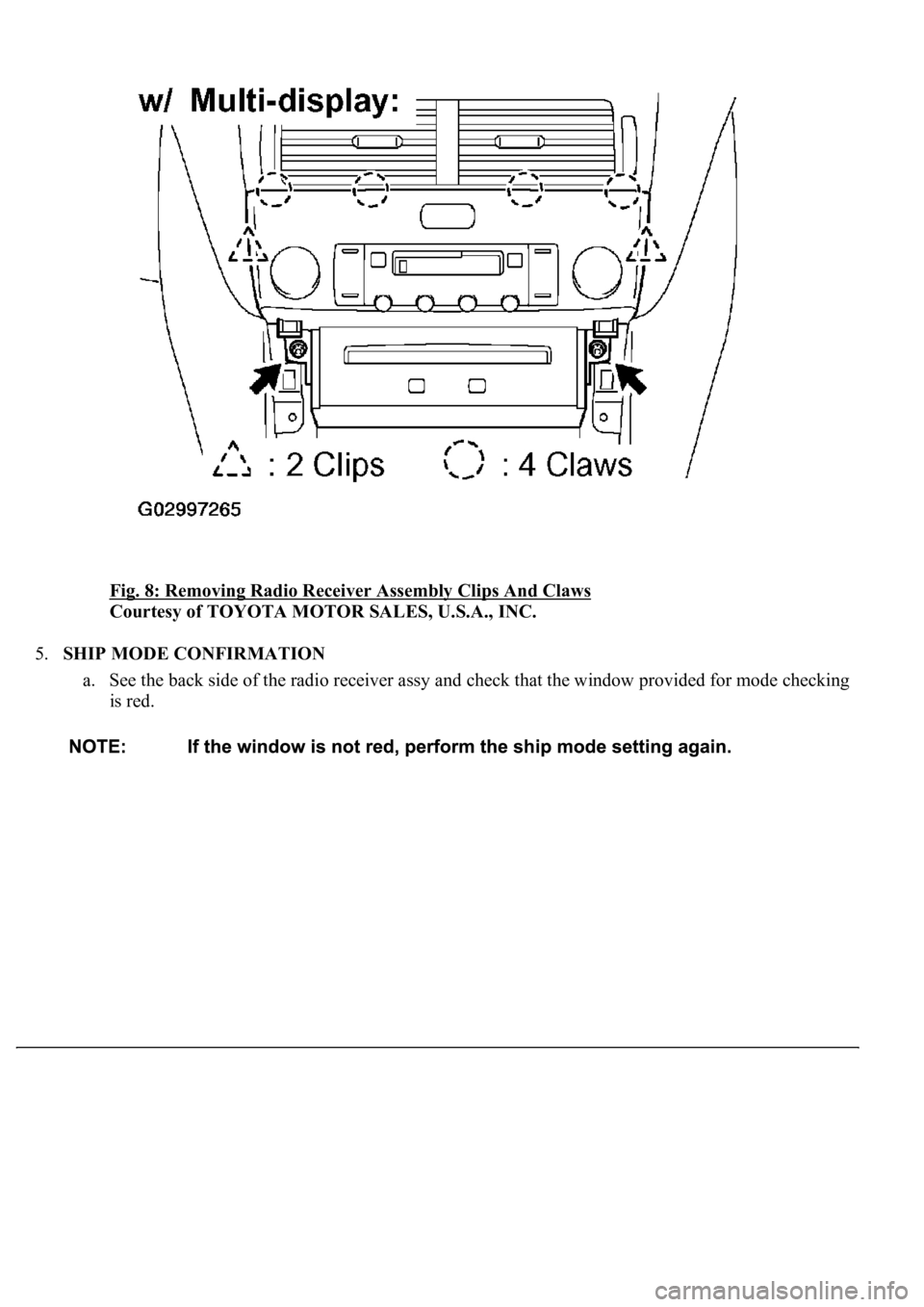

Fig. 8: Removing Radio Receiver Assembly Clips And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.SHIP MODE CONFIRMATION
a. See the back side of the radio receiver assy and check that the window provided for mode checking
is red.

Fig. 9: Identifying Ship Mode Confirmation
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE RADIO RECEIVER ASSY
a. Remove the 4 screws and 2 brackets from the radio receiver assembly.

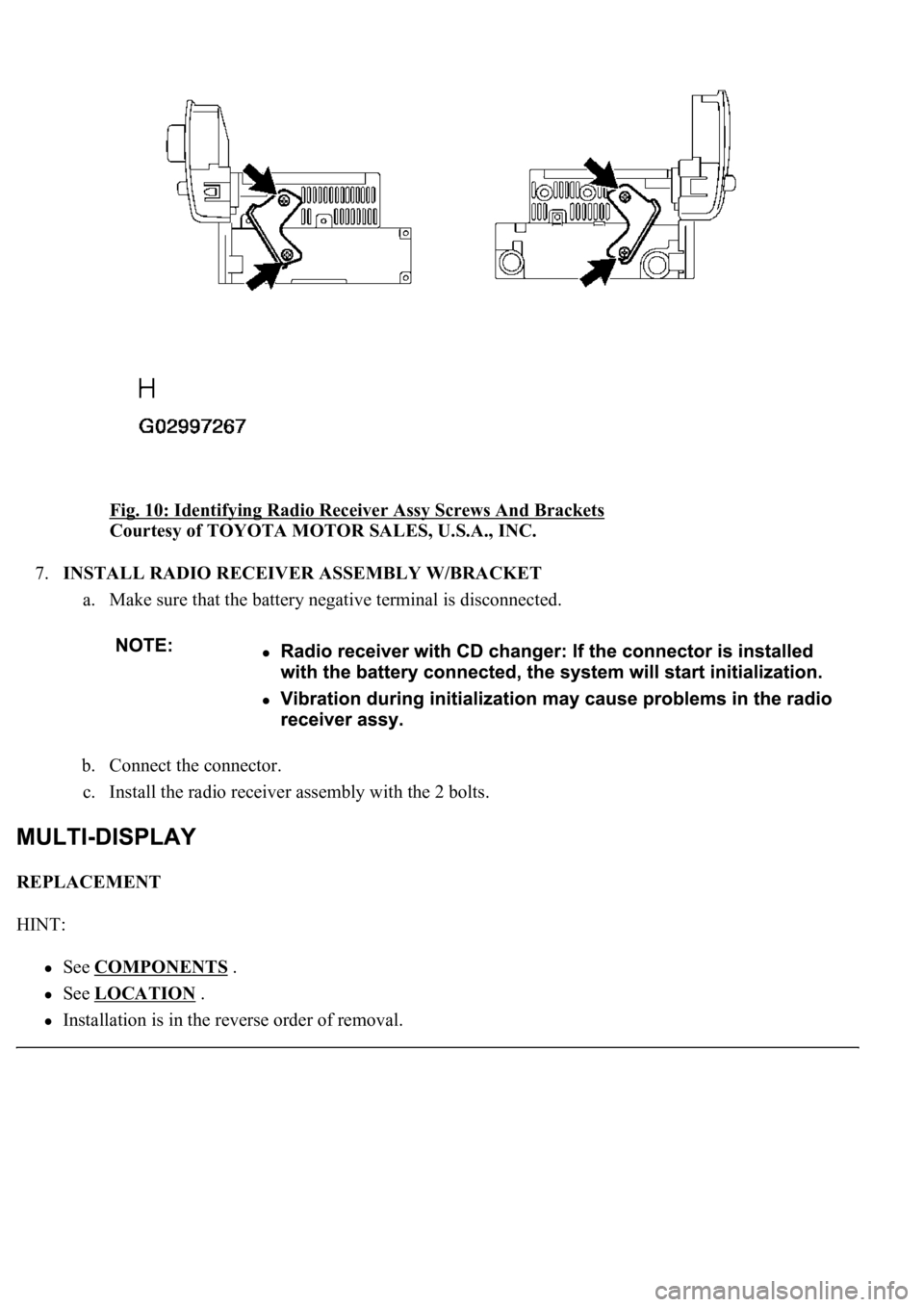

Fig. 10: Identifying Radio Receiver Assy Screws And Brackets
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL RADIO RECEIVER ASSEMBLY W/BRACKET
a. Make sure that the battery negative terminal is disconnected.
b. Connect the connector.
c. Install the radio receiver assembly with the 2 bolts.
REPLACEMENT
HINT:
See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.

1.SHIP MODE SETTING (See REPLACEMENT )
2.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
)
3.REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (See step 27 on
REPLACEMENT
)
4.REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (See REPLACEMENT
)
5.SHIP MODE CONFIRMATION (See REPLACEMENT
)
6.REMOVE TEMPERATURE CONTROL SWITCH ASSY
a. Disengage the 2 claws.
b. Disconnect the connector and remove the temperature control switch assembly.
c. Perform the same procedure on the other side.
Fig. 11: Disengaging Claws

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
a. Remove the 4 bolts.
b.Disengage the 4 clips.

c. Disconnect the connector and remove the instrument cluster finish panel sub-assy center.
Fig. 12: Removing Bolts And Clips

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE MULTI-DISPLAY
a. Remove the 4 screws and multi-display.
HINT:
After the replacement, perform the screen noise automatic adjustment when screen noise occurs (see
SCREEN NOISE AUTOMATIC ADJUSTMENT
).

Fig. 13: Removing Multi-Display Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.
1.REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See step 18 on OVERHAUL
)
2.REMOVE DECK TRIM SIDE BOARD RH (See OVERHAUL
)
3.REMOVE REAR FLOOR FINISH PLATE (See step 20 on OVERHAUL
)
4.SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRONT (See step 19 on

OVERHAUL )
5.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (See step 22 on
OVERHAUL
)
6.REMOVE NAVIGATION ECU W/BRACKET
a. Disconnect the connector.
b. Remove the 2 nuts and navigation ECU with bracket.
Fig. 14: Removing Navigation ECU Bracket Nuts

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE NAVIGATION ECU
a. Remove the 2 screws.

Fig. 15: Removing Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Remove the navigation ECU with bracket along the guide as shown in the illustration.

Fig. 16: Removing Navigation ECU With Bracket
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the 4 screws and 2 brackets.
HINT:
After the replacement, perform the screen noise automatic adjustment when screen noise occurs (see
SCREEN NOISE AUTOMATIC ADJUSTMENT
).
