5 ALTERNATOR
TEST 3
1. Turn all electric loads off and release the brake pedal.
2. Check that output current is 5A or more at 2,500—3,000 rpm of the engine speed.
B • , \ B terminal
.w/^y
w
86U05X-013
TEST 4
1. Turn all electric loads off and release the brake pedal.
2. Check that output voltage between S terminal and ground is within specification at
2,500—3,000 rpm of the engin speed.
Voltage: 14.1—14.7V
S terminal
86U05X-072
TEST 5
1. Turn the ignition switch ON.
2. Check that L terminal voltage is within specification.
Voltage: 1—5 V
- L terminal
86U05X-073
5—26

5 STARTER (GASOLINE ENGINE, 0.85, 0.95 KW TYPE)
4BG05X-078
4BG05X-079
4BG05X-080
Drive Pinion
Remove the stopper for the overrunning clutch by us-
ing a pipe as shown in the figure.
Adjustment of Pinion Gap
1. Disconnect the wiring from terminal (M).
2. Apply battery power to the terminal (S) and ground
the starter motor body, the pinion will eject outward
and then stop.
3. Measure the clearance (pinion gap) between the
pinion and the stopper.
Pinion gap: 0.5—2.0 mm (0.020—0.079 in)
Caution
Do not let electricity flow continuously for
more than 10 seconds.
If the pinion gap is not within the specified range,
make the adjustment by increasing or decreasing
the number of washers used between the magnetic
switch and the drive housing. The gap will become
smaller if the number of washers is increased.
Caution
Do not use the washers
(0.079 in) in all.
more than 2 mm
INSPECTION
Armature Coil
1. Ground of the armature coil
(1) Check for continuity between the commutator
and the core by using a circuit tester.
(2) Replace the armature if there is continuity.
4BG05X-081
5—40

STARTER (GASOLINE ENGINE, 0.85, 0.95 KW TYPE) 5
4BG05X-082
4BG05X-083
4BG05X-084
2. Vibration of the commutator
(1) Place the armature on V blocks, and measure
the vibration by using a dial gauge.
(2) If the vibration is Limit or more, repair so that
it becomes standard by using a lathe, or re-
place the armature.
Standard vibration: 0.05 mm (0.002 in)
Limit: 0.4 mm (0.018 in)
Note
Before checking, be sure that there is no play
in the bearings.
3. Outer diameter of the commutator
Replace the armature if the outer diameter of the
commutator is grind limit or less.
4. Roughness of the commutator surface
(1) If the commutator surface is dirty, wipe it with
a cloth.
(2) If it is rough, repair it by using a lathe or fine
sandpaper.
Grind limit: 31 mm (1.22 in)
5. Segment groove depth
If the depth of the mold between segments is limit
depth or less, undercut the grooves by standard
depth.
Standard depth:
0.5—0.8 mm (0.020—0.031 in)
Limit depth: 0.2 mm (0.008 in)
Field Coil
1. Wiring damage
(1) Check for continuity between the connector
and brushes by using a circuit tester.
(2) Replace the yoke assembly if there is no con-
tinuity.
4BG05X-085
5—41

5 STARTER (GASOLINE ENGINE, 0.85, 0.95 KW TYPE)
4BG05X-086
4BG05X-087
4BG05X-088
2. Ground of the field coil
(1) Check for continuity between the connector
and yoke by using a circuit tester.
(2) Repair, or replace the yoke assembly if there
is continuity.
3. Installation of the field coil
Replace the yoke assembly
if
the field coil is loose.
Brush and Brush Holder
1. Brush
If the brushes are worn beyond the wear limit, or
if the wear is near the limit, replace the brushes.
Standard:
Wear limit:
17 mm (0.669 in)
11 mm (0.433 in)
2. Brush spring
(1) Measure the force of the brush spring by us-
ing a spring balance.
(2) Replace the brush spring if the force is Limit
or less.
Limit: 9 N (900 g, 31.75 oz)
3. Brush holder
(1) Check for continuity between the insulated
brush and the plate by using a circuit tester.
(2) Repair or replace if there is continuity.
(3) Also check to be sure that the brush slides
smoothly inside the brush holder.
4BG05X-089
5—42

STARTER (GASOLINE ENGINE, 0.85, 0.95 KW TYPE) 5
4BG05X-090
4BG05X-091
4BG05X-092
Drive Pinion and Housing
1. Pinion gear
(1) Check for wear or damage of the pinion gear.
(2) Replace if necessary.
(3) If the pinion gear is seriously damaged, also
check the flywheel ring gear.
2. Bushing
(1) Check for wear or damage.
(2) Replace if necessary.
3. Switch coil
(1) Check for continuity between the M terminal
and the body by using a circuit tester.
(2) Replace the switch if there is no continuity.
PERFORMANCE INSPECTION
Magnetic Switch
Disconnect the terminal M wire, and make the fol-
lowing tests.
Pull-in Test
The switch is normal
if
the pinion ejects outward when
the battery is connected as shown in the figure.
Caution
Do not supply power continuously for more
than 10 seconds.
Hold-in Test
1. After completing the pull-in test, disconnect the wire
from terminal M (with the pinion left ejected).
2. The hold-in coil is functioning properly if the pin-
ion does not return.
4BG05X-093
5-43

5 STARTER (GASOLINE ENGINE, 0.85, 0.95 KW TYPE)
(TM (TM /AgLjM) terminal
xtsfif
4BG05X-094
Return Test
1. Connect the battery between terminal M of the
magnetic switch and the body, as shown in the
figure.
2. Pull the pinion out manually to the pinion stopper
position.
3. The pinion should immediately return to its origi-
nal position when it is released.
No-load Test
1. After adjusting the pinion gap, form a test circuit
with a voltmeter and an ammeter.
Note
Use wires as thick as possible and tighten
each terminal fully.
2. Close switch "K" to run the starter.
3. If the voltmeter and ammeter show the following
values while the starter is running, it is normal.
0.85 kW
type
0.95 kW
type
Battery voltage (volt) 11.5
Current
(ampere) 60 or less
Gear shaft speed (rpm) 6,500 or more
6,600
or more
4. If any abnormality is noted, check it according to
"INSPECTION"
5—44

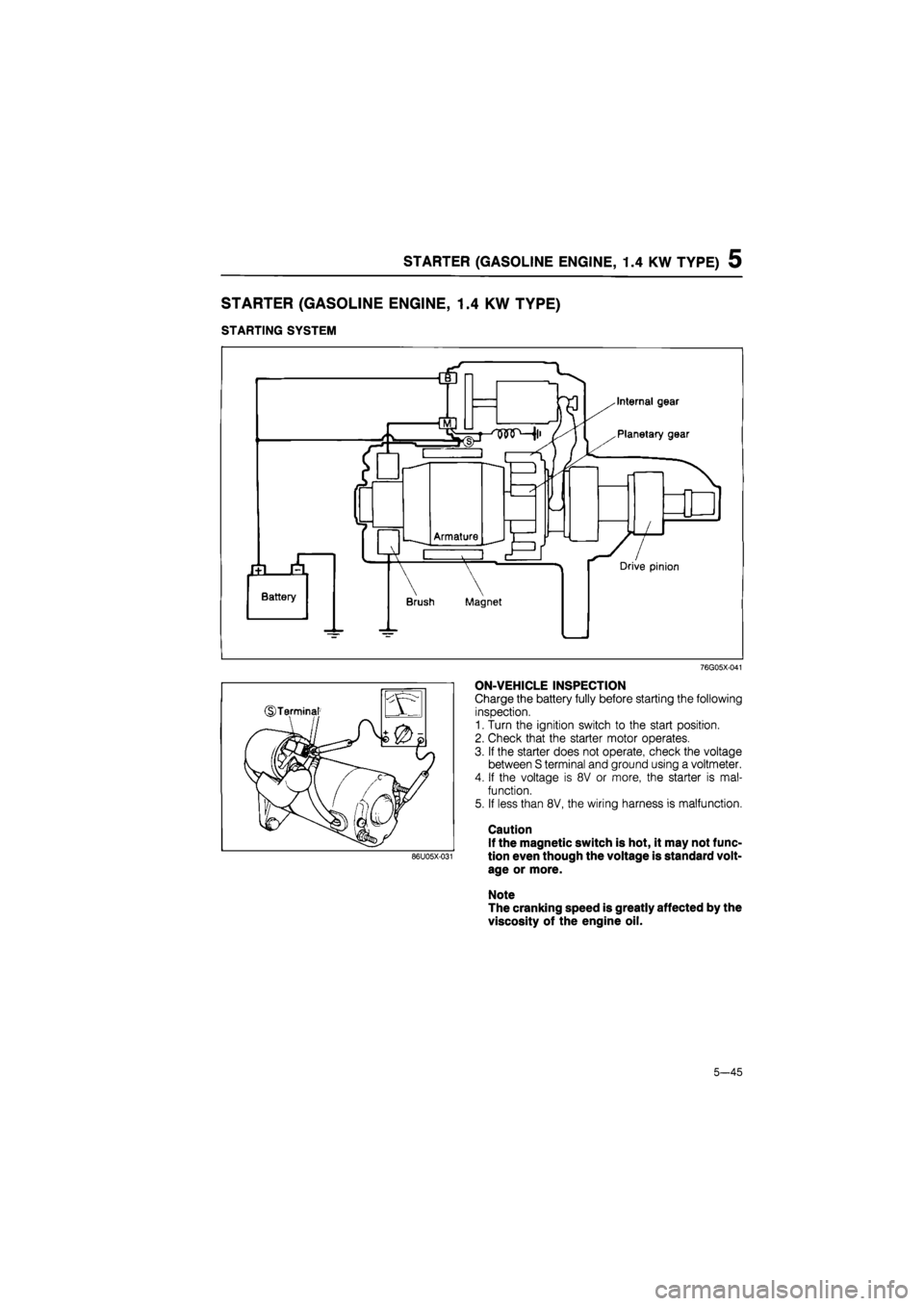

STARTER (GASOLINE ENGINE, 1.4 KW TYPE) 5
STARTER (GASOLINE
ENGINE, 1.4
KW TYPE)
STARTING SYSTEM
76G05X-041
ON-VEHICLE INSPECTION
Charge the battery fully before starting the following
inspection.
1. Turn the ignition switch to the start positron.
2. Check that the starter motor operates.
3. If the starter does not operate, check the voltage
between S terminal and ground using a voltmeter.
4. If the voltage is 8V or more, the starter is mal-
function.
5. If less than 8V, the wiring harness is malfunction.
Caution
If the magnetic switch is hot, it may not func-
tion even though the voltage is standard volt-
age or more.
Note
The cranking speed is greatly affected by the
viscosity of the engine oil.
86U05X-031
5-45

STARTER (GASOLINE ENGINE, 1.4 KW TYPE) 5
INSPECTION
Armature
1. Ground of armature coil
Check for continuity between the commutator and
the core using a circuit tester. Replace the arma-
ture if there is continuity.
67U05X-048
2. Insulation of armature coil
Check for continuity between the commutator and
the shaft using a circuit tester. Replace the arma-
ture if there is continuity.
67U05X-049
Runout of commutator
(1) Place the armature on V blocks, and measure
the runout using a dial gauge.
(2)
If
the runout is excessive, replace the armature.
Runout: 0.05 mm (0.002 in)
Maximum: 0.1 mm (0.004 in)
7BU05X-039
Outer diameter of commutator
Replace the armature if the outer diameter of the
commutator is less than the grind limit.
Roughness of commutator surface
Repair using a lathe or fine sandpaper if it is rough;
wipe it with a rag if it is dirty.
Grind limit: 28.8 mm (1.13 in)
7BU05X-040
5-49

5 STARTER (GASOLINE ENGINE, 1.4 KW TYPE)
Segments groove depth
If the depth of the groove is less than standard,
undercut the grooves to the standard depth.
Standard depth: 0.5—0.8 mm (0.02—0.03 in)
Minimum depth: 0.2 mm (0.008 in).
7BU05X-041
Magnetic Switch
1. Wiring damage (©terminal — ©terminal).
Check for continuity between the ©terminal and
the ©terminal using a circuit tester. Replace the
magnetic switch if there is no continuity.
67U05X-053
Wiring damage (©terminal — body)
Check for continuity between © terminal and
body using a circuit tester.
Replace the magnetic switch if there is no con-
tinuity.
67U05X-054
3. Ground of magnetic switch
Check for continuity between ©and ©terminals
using a circuit tester. Replace the magnetic switch
if there is continuity.
67U05X-055
5—50

STARTER (GASOLINE ENGINE, 1.4 KW TYPE) 5
Overrunning Clutch
Turn the pinion shaft by hand and hold the overrun-
ning clutch.
Replace the overrunning clutch if the pinion turns in
both directions or in neither direction.
Note
Do not wash the overrunning clutch with sol-
vent; it is packed with grease and sealed.
86U05X-035
Internal Gear and Planetary Gears
1. Internal gear
Check for wear or damage. Replace if necessary.
2. Planetary gears
Check for wear or damage. Replace if necessary.
67U05X-057
Yoke
Check for damage. Replace if necessary.
67U05X-058
Bearing
Check for abnormal noise, looseness, binding.
Replace the bearing if there is any problem.
Note
Use a bearing puller to remove the bearings.
67U05X-059
5-51
