INDEX, OUTLINE K 1. Hold switch lnspection . . . . . . . . . . . . . . . . page K- 38 Replacement . . . . . . . . . . . . . page K- 39 b 2. ParkINeutral switch lnspection . . . . . . . . . . . . . . . . page K- 39 Adjustment . . . . . . . . . . . . . . . page K- 40 3. Vehicle speed pulse generator lnspection . . . . . . . . . . . . . . . . page K- 41 Replacement . . . . . . . . . . . . . page K- 42 4. ATF thermosensor lnspection . . . . . . . . . . . . . . . . page K- 41 Replacement . . . . . . . . . . . . . page K- 41 5. 1-2 shift, 2-3 shift, 3-4 shift, 3-2 control solenoid valves lnspection . . . . . . . . . . . . . . . . page K- 42 6. Lockup control solenoid valve lnspection . . . . . . . . . . . . . . . . page K- 42 7. Powertrain control module (Transmission) lnspection . . . . . . . . . . . . . . . . page K- 43 Replacement . . . . . . . . . . . . . page K- 45 OUTLINE SPECIFICATIONS 8. Automatic transmission Removal . . . . . . . . . . . . . . . . . page K- 46 Disassembly . . . . . . . . . . . . . page K- 50 Assembly . . . . . . . . . . . . . . . . page K-132 lnstallation . . . . . . . . . . . . . . . page K-147 9. Oil cooler Removal 1 Inspection / lnstallation . . . . . . . . . . . . . . page K-151 10. Drive plate Removal 1 Inspection 1 lnstallation . . . . . . . . . . . . . . page K-152 11. P range switch lnspection . . . . . . . . . . . . . . . . page K-159 12. Shift-lock actuator lnspection . . . . . . . . . . . . . . . . page K-159 13. Selector lever lnspection . . . . . . . . . . . . . . . . page K-161 Adjustment . . . . . . . . . . . . . . . page K-160 Removal / Inspection / lnstallation . . . . . . . . . . . . . . page K-163 Disassembly 1 Inspection / Assembly . . . . . . . . . . . . . . . page K-166 - Model Item - Gear ratio NC4A-EL Torque converter stall torque ratio 1 st 1.900 : 1 2.458 4GR Reverse 0.720 2.182 Number of driveldriven plates Servo diameter (Piston outer diameterketainer inner diam- eter) mm{in} Direct clutch Front clutch Rear clutch Automatic transmission fluid (Am 212 315 515 Low and reverse brake Fourth gear band servo 2nd band servo 4/4 56/36 {2.205/1.417} 72/50 {2.835/1.969} Dexron@II or M-111 7.3 {7.7,6.4} 4.0 {4.2,3.5} Type Capacity L {US qt, Imp qtI Total oil pan Gartner Banana

OUTLINE K POWER FLOW DIAGRAM 1. Torque converter 2. Oil pump 3. Input shaft 4. Fourth gear sun gear 5. Internal gear - 6. Fourth gear one-way clutch (4GR OWC) 7. Fourth gear brake band (4GR Brk.) OPERATION OF COMPONENTS 8. Fourth gear planetary pinion carrier 9. Direct clutch (D/C) 10. Intermediate shaft 11. Front clutch (F/C) 12. 2nd brake band (2nd Brk.) 13. Rear clutch (R/C) 14. Front planetary pinion carrier 15. Internal gear 16. Sun gear 17. Rear planetary pinion carrier 18. Low and reverse brake (L&R Brk.) 19. Internal gear 20. One-way clutch (OWC) 21. Output shaft C3 indicates operation although the band servo remains deactivated due to the large area of the release pressure side. The lockup control solenoid valve operates only during lockup. The 3-2 control solenoid valve operates momentarily during 3-2 downshift. The Fourth gear one-way clutch operates momentarily during 4-3 downshift. Gartner Banana

K OUTLINE FLUID PASSAGE LOCATIONS Transmission Case TO SECOND SERVO RELEASE SlDE TO DIRECT CLUTCH AND FOURTH GEAR SERVO RELEASE SlDE TO SECOND SERVO APPLY SI OIL PUMP DISCHARGE TORQUE CONVERTER PRESSURE TO REAR CLUTCH TO FRONT CLUTC OIL PUMP SUCTION , REAR LUBRICATION TO LOW AND REVERSE BRAKE OIL PUMP SUCTION TO FRONT CLUTCH TO DIRECT CLUTCH AND FOURTH GEAR SERVO RELEASE SlDE TO REAR CLUTCH / OIL PUMP DISCHARGE TORQUE CONVERTER PRESSURE Oil Pump OIL PUMP DISCHARGE FRONT LOCKUP CONTROL OIL PUMP SUCTION SOLENOID VALVE TORQUE CONVERTER PRESSURE 0i PUMP DISCHARGE Gartner Banana

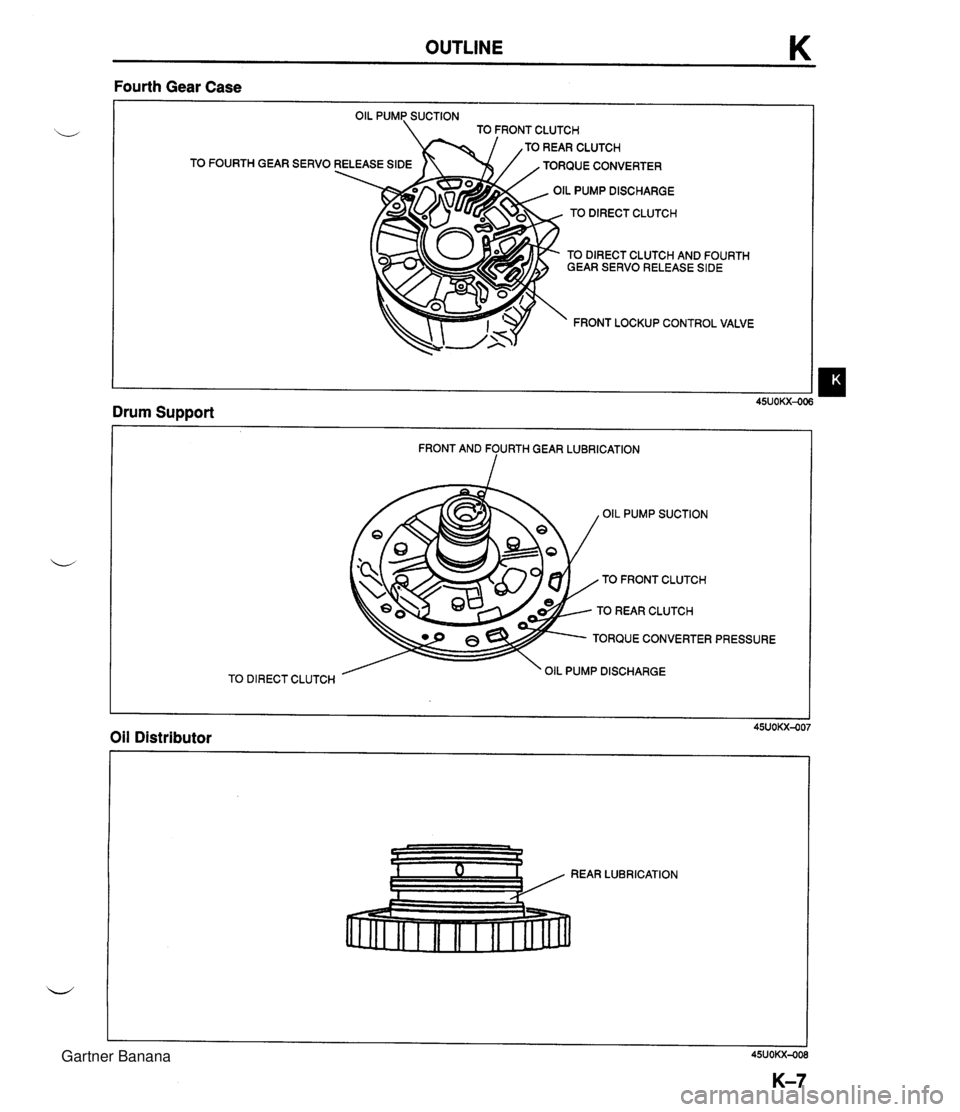

OUTLINE K Fourth Gear Case TO FRONT CLUTCH TOREARCLUTCH TO FOURTH GEAR SERVO RELEASE SIDE TORQUE CONVERTER OIL PUMP DISCHARGE TO DIRECT CLUTCH TO DIRECT CLUTCH AND FOURTH GEAR SERVO RELEASE SlDE FRONT LOCKUP CONTROL VALVE Drum Support - TO DIRECT CLUTCH FRONT AND FOURTH GEAR LUBRICATION 1 OIL PUMP SUCTION TO FRONT CLUTCH TO REAR CLUTCH TORQUE CONVERTER PRESSURE OIL PUMP DISCHARGE Oil Distributor Gartner Banana

TROUBLESHOOTING If the 3 steps on page K-8 are followed, the cause of the problem should be located. Another guide to faster location of the causes of problems, the QUICK DIAGNOSIS CHART, is on page K-1 0. b In this chart, numbers are used to indicate the components that may be the cause of 22 possible prob- lems. It is necessary to check only those components indicated by numbers during each step of the trouble- shooting process to locate the cause of the problem quickly. QUICK DIAGNOSIS CHART The QUICK DIAGNOSIS CHART shows different .problems and the relationship of components that might be the cause. 1. Components indicated in the "Adjustment" row indicate the possibility that the problem may result from an incorrect adjustment. Check the adjustment of each component, and readjust if necessary. 2. Components indicated in the "Self-DiagnosisWrow are diagnosed by the Powertrain control module (Transmission) self-diagnostic function. 3. Input and output signals of the Powertrain control module (Transmission) for components indicated in the "Tester" row can be easily checked with the Engine signal Monitor. 4. Components indicated in the "Mechanical System Test" row can be checked for malfunction by the re- sults of oil pressure test. 5. Components indicated in the "Road Test" row can be checked for malfunction by the results of the road test. 6. The numbers in the chart indicate the order of inspection for detecting malfunctions. 7. Circled numbers indicate that the transmission must be removed from the vehicle. 8. The checking, adjusting, repair, and replacement procedures for components are described in the page(s) shown in the "Reference page" row. Gartner Banana

K MECHANICAL SYSTEM TEST MECHANICAL SYSTEM TEST PREPARATION SST STALL TEST 49 0378 400A Gauge set, oil pressure 49 801 9 901 Gauge, oil pressure For oil pressure test For oil pressure test This test is performed to determine if there is slippage of the friction elements or malfunction of the hy- draulic components. Preparation 1. Check the engine coolant, engine oil, and ATF levels before testing. 2. Warm the engine thoroughly to raise the ATF temperature to operating level (50--80°C, 122-176°F). 3. Engage the parking brake and use wheel chocks at the front and rear of the wheels. ENGAGE PARKING BRAKE WARM UP ENGINE COOLANT LEVEL ENGINE OIL LEVEL TEMPERATURE 60-70°C (1 40-1 58°F) ATF LEVEL Gartner Banana

K MECHANICAL SYSTEM TEST Evaluation of Stall Test 4bove specification Nithin specification In all ranges In D (Normal), and L ranges In D (Normal) range only In R range only 3elow specification Possible cause I Worn oil Dumo Oil leakage from oil pump, control Insufficient line pressure Direct clutch and overdrive one-way clutch sli~~ina Rear clutch slipping One-way clutch slipping Low and reverse brake slipping Front clutch slipping Perform road test to determine if this is caused by low and reverse brake or front clutch as follows: a) Effective engine braking in L range . . . . . . . . . . Front clutch b) No enaine brakina in L range . . . . . Low and reverse brake All ~hiftcont~elements within transmission are functioning normally Engine out of tune One-wav clutch sli~~ina within toraue converter Gartner Banana

K MECHANICAL SYSTEM TEST LINE PRESSURE TEST This test measures line pressures for checking the hydraulic components and inspecting for oil leakage. Preparation d 1. Perform the preparation procedure shown in the STALL TEST. (Refer to page K-22.) 2. Connect a tachometer to the engine. Warning Removing the square-head plug when the ATF is hot is dangerous. Hot ATF can come out of the opening and badly burn. Before removing the square-head plug, allow the ATF to cool. 3. Connect the SST to the line pressure inspection hole(s). Procedure 1. Start the engine and check the idle speed in P range. (Refer to section F.) Idle speed: 750--850 rpm * 2. Shift the selector lever to D range and read the line pressure at idle. Caution If the accelerator pedal is pressed for longer than 5 seconds while the brake pedal is pressed, the transmission could be damaged. Therefore, do steps 3 and 4 within 5 seconds of each oth- er. 3. Depress the brake pedal firmly with the left foot and gradually depress the accelerator pedal with the right foot. 4. Read the line pressure as soon as the engine speed becomes constant, then release the accelerator .- pedal. 5. Shift the selector to N and let the engine idle for 1 minute or more to cool the ATF. 6. Read the line pressure at idle and at the engine stall speed for each range in the same manner. Gartner Banana

MECHANICAL SYSTEM TEST K Specified line pressure: 7. Cool the transmission and reconnect the SST to the line pressure inspection hole. 8. Connect a vacuum pump to the vacuum diaphragm and place the pump inside the vehicle. 9. Shift the selector lever to R range. 10. Read the line pressure at idle as described below. Range D range S range L range R range Specified line pressure: Pressure kPa {kgflcm2, psi] Idle 285--362 i2.9-3.7,42-52) 785--921 (8.G9.4, 11 4--133) 295-392 {3.0-4.0,43--56) 775--970 (7.9--9.9, 1 1 S140) Vacuum Atmospheric pressure 1 400 mmHg (15.7 inHg} I 393490 (4.0-5.0,57-71) I Stall 79S912 18.1-9.3, 11 &I321 795--91 2 {8.1-9.3, 11 6--132) 883-1,078 l9.0-11 .O, 128-1 56) 1,972-2,167 (20.1-22.1,286--314) Line pressure kPa {kgf/cm2, psi) 883-1,078 {9.&11 .O, 128--156) 200 mmHg (7.87 inHg) - Evaluation of Line Pressure Test 687-784 17.0-4.0, 10-113) Below specification I Excessive line pressure Condition I Possible Cause In all ranges Worn oil pump Fluid leakage from the oil pump, control valve body, and/or transmission case Stuck pressure regulator valve Fluid leakage from the direct clutch and/or fourth gear band servo release side hydraulic circuit In D (Normal), S (Normal), and L Fluid leakage from the rear clutch hydraulic circuit ranaes I Stuck pressure modifier valve In S (Normal & Hold) and L ranges I Fluid leakage from the throttle backup valve hydraulic circuit In L and R ranges I Fluid leakage from the low and reverse hydraulic circuit In S range (Hold) In R range only Stuck throttle backup valve Stuck backup control valve Backup control function (electronic) not operating properly Stuck pressure modifier valve Stuck backup control valve Fluid leakage from the front clutch and/or 2nd band servo release side hydraulic circuit Below specification Excessive pressure In all ranges Same as Line Pressure Test Leaking or disconnected vacuum hose Leaking vacuum diaphragm Diaphragm rod too long Stuck vacuum throttle valve Stuck Dressure renulator valve I In S ranae (Hold) I Stuck pressure modifier valve Gartner Banana

ROAD TEST K ROAD TEST A road test is necessary to inspect for problems in the different gear ranges. If a range or function tar- b geted by the road test is found to have any problem, refer to the ELECTRONIC SYSTEM COMPONENT segment or the TRANSMISSION, OIL COOLER, DRIVE PLATE, and SHIFT MECHANISM segments of this section. Do the road test only when the ATF is 50-80°C (1 22-1 76°F). D-RANGE TEST Shift Point, Shift Pattern, and Shift Shock 1. Shift the selector lever to D range and select the Normal mode. 2. Accelerate the vehicle with half-and wide open throttle opening. 3. Verify that 1-2, 2-3, and 3-4 upshifts, downshifts, and lockup are obtained. The shift points must be as shown in the D range (Normal) shift diagram. Note There is fourth gear is any of the following conditions. A The cruise control is operating, and there is an 8kmIh (5 mph} difference between the preset cruise speed and the vehicle speed. B The SET or RESUME switch is ON. There is no lockup when water temperature is below 50°C (1 22°F) or in the throttle valve closed posi- tion. 4. Check the upshifts for shift shock or slippage in the same manner. 5. While driving in overdrive, shift the selector lever to S range and verify that 4-3 downshift immediately occurs, then decelerate and verify that engine braking effect is felt in only third gear and 2nd gears. D-range (Normal) shift diagram p'yJ ..,,*sw.. LOCKUP AVAILABLE WHEN ACCELERATING AND CRUSING LOCKUP AVAILABLE WHEN COASTING 0 20 (1 2) 40 (25) 60 (37) 80 {50) 100 (63) 1 20 (75) 140 (87) 1 60 (99) VEHICLE SPEED kmlh {mph) Gartner Banana
