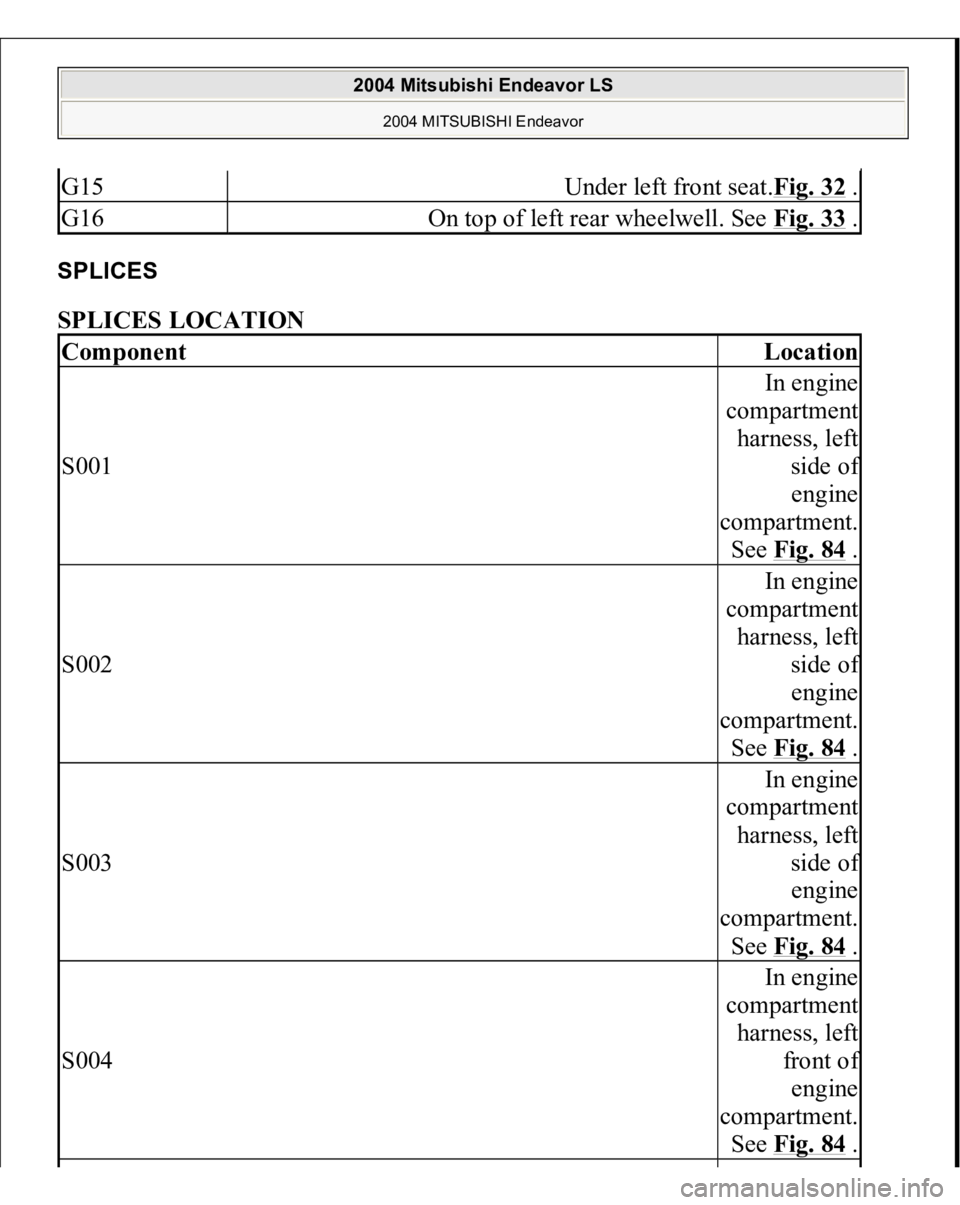

SPLICES SPLICES LOCATION G15
Under left front seat.Fig. 32
.
G16
On top of left rear wheelwell. See Fig. 33
.
Component
Location
S001
In engine
compartment
harness, left
side o
f
engine
compartment.
See Fig. 84 .
S002
In engine
compartment
harness, left
side o
f
engine
compartment.
See Fig. 84 .
S003
In engine
compartment
harness, left
side o
f
engine
compartment.
See Fig. 84 .
S004
In engine
compartment
harness, left
front o
f
engine
compartment.
See Fig. 84 .
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

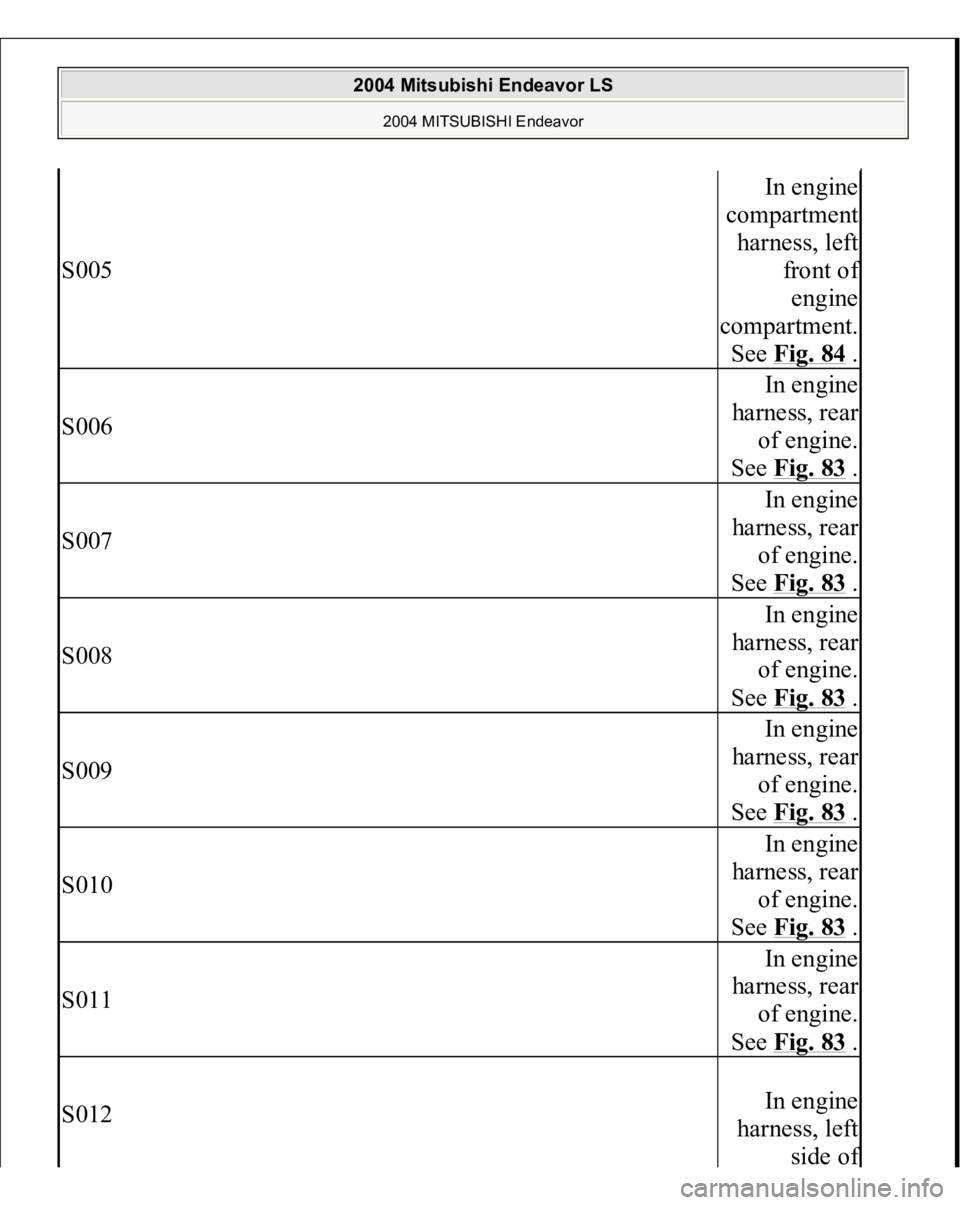

Page 1102 of 3870
S005
In engine
compartment
harness, left
front o
f
engine
compartment.
See Fig. 84 .
S006
In engine
harness, rear
of engine.
See Fig. 83
.
S007
In engine
harness, rear
of engine.
See Fig. 83
.
S008
In engine
harness, rear
of engine.
See Fig. 83
.
S009
In engine
harness, rear
of engine.
See Fig. 83
.
S010
In engine
harness, rear
of engine.
See Fig. 83
.
S011
In engine
harness, rear
of engine.
See Fig. 83
.
S012
In engine
harness, left
side o
f
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

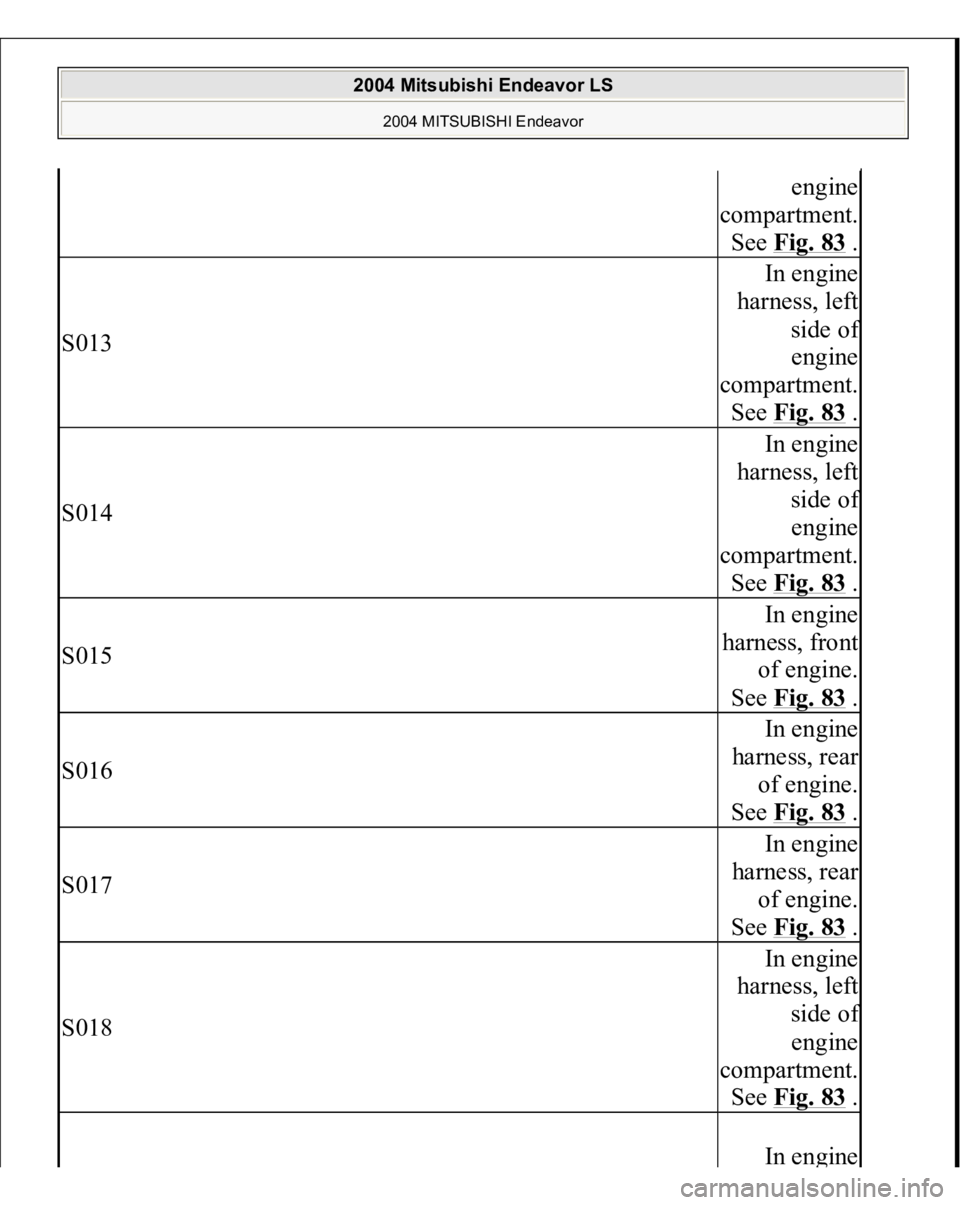

Page 1103 of 3870
engine
compartment.
See Fig. 83
.
S013
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S014
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S015
In engine
harness, front
of engine.
See Fig. 83
.
S016
In engine
harness, rear
of engine.
See Fig. 83
.
S017
In engine
harness, rear
of engine.
See Fig. 83
.
S018
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
In en
gine
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
Page 1104 of 3870

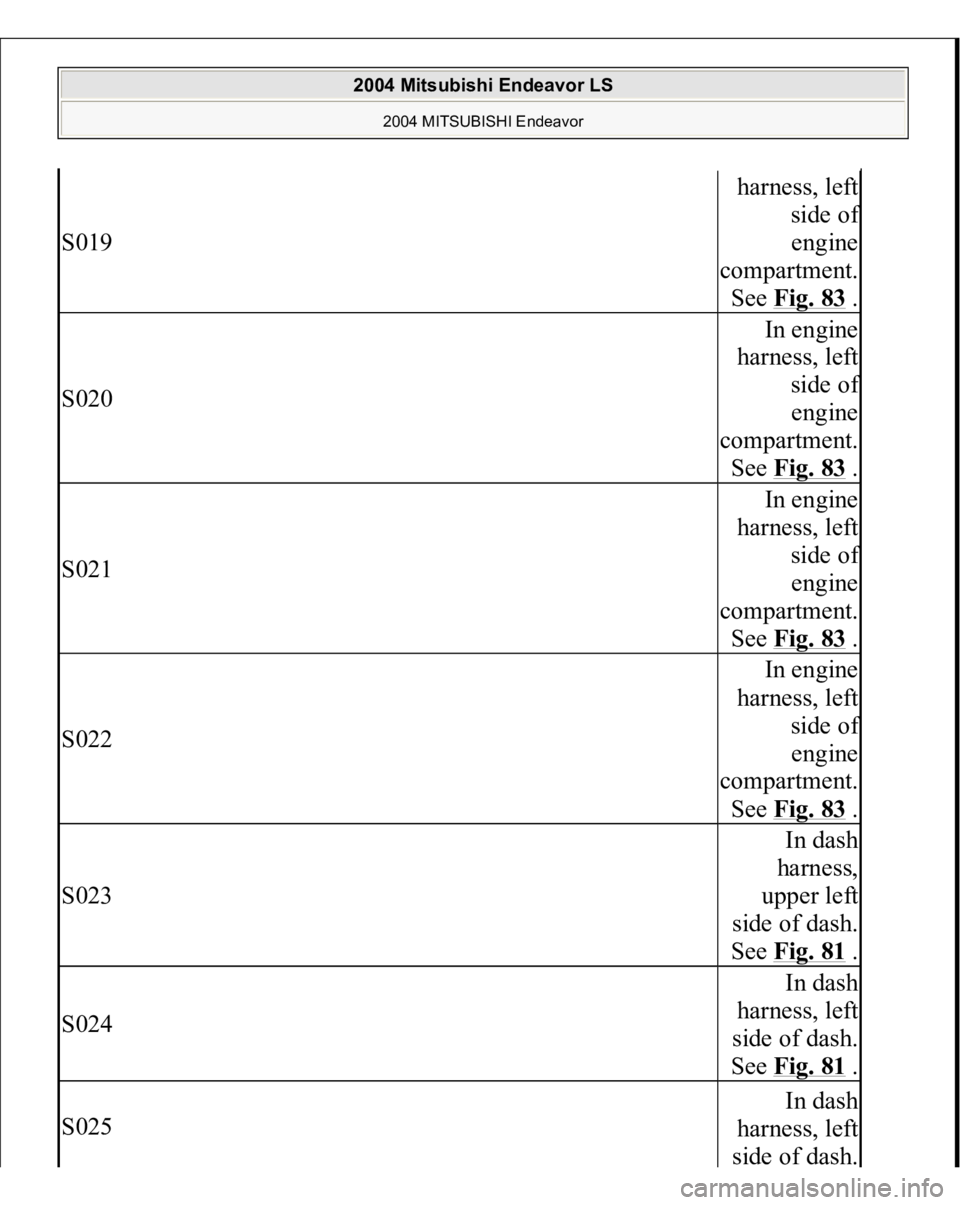

S019
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S020
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S021
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S022
In engine
harness, left
side o
f
engine
compartment.
See Fig. 83 .
S023
In dash
harness,
upper left
side of dash.
See Fig. 81
.
S024
In dash
harness, left
side of dash.
See Fig. 81
.
S025
In dash
harness, left
side of dash.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

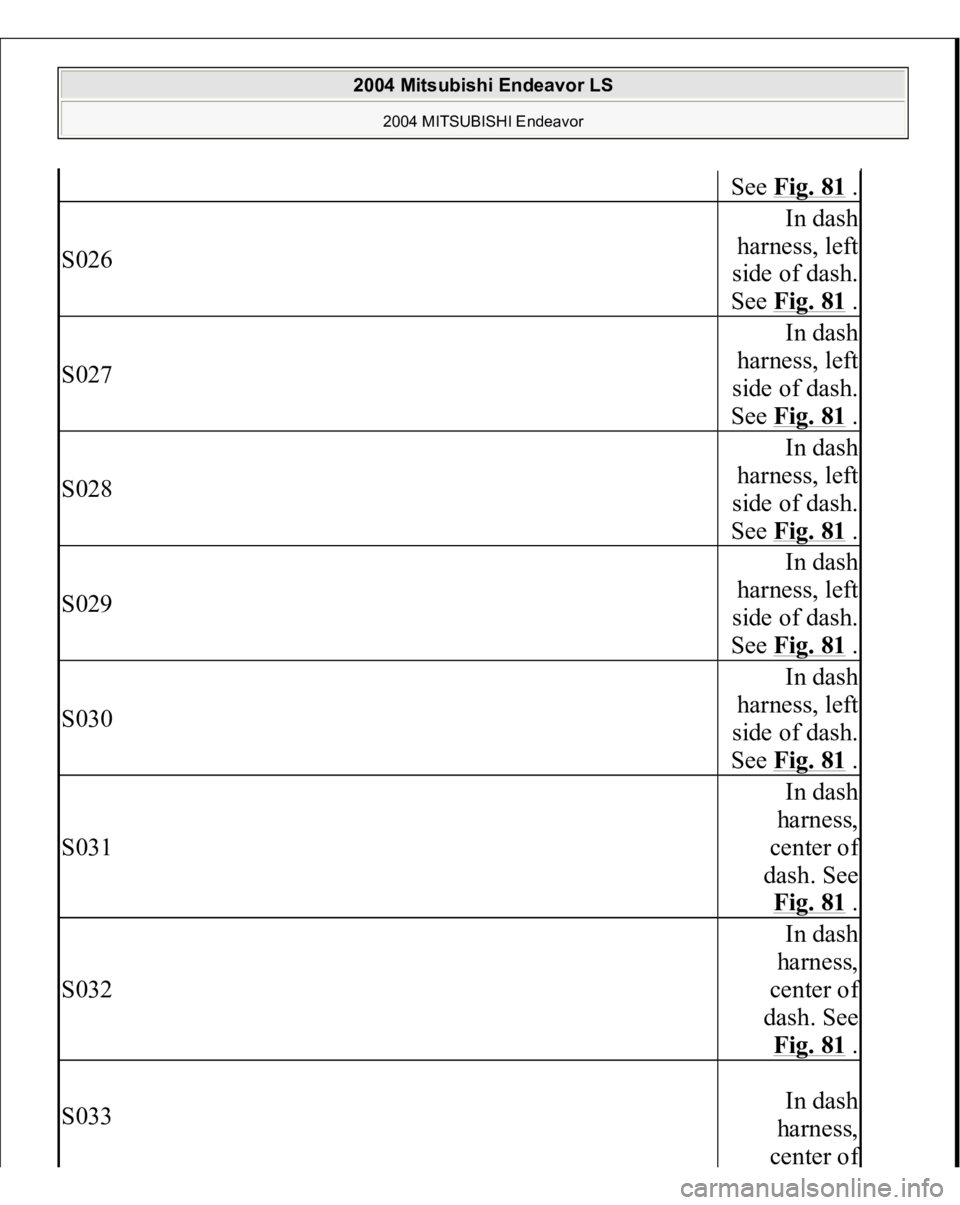

Page 1105 of 3870
See Fig. 81
.
S026
In dash
harness, left
side of dash.
See Fig. 81
.
S027
In dash
harness, left
side of dash.
See Fig. 81
.
S028
In dash
harness, left
side of dash.
See Fig. 81
.
S029
In dash
harness, left
side of dash.
See Fig. 81
.
S030
In dash
harness, left
side of dash.
See Fig. 81
.
S031
In dash
harness,
center o
f
dash. See
Fig. 81 .
S032
In dash
harness,
center o
f
dash. See
Fig. 81 .
S033
In dash
harness,
center o
f
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

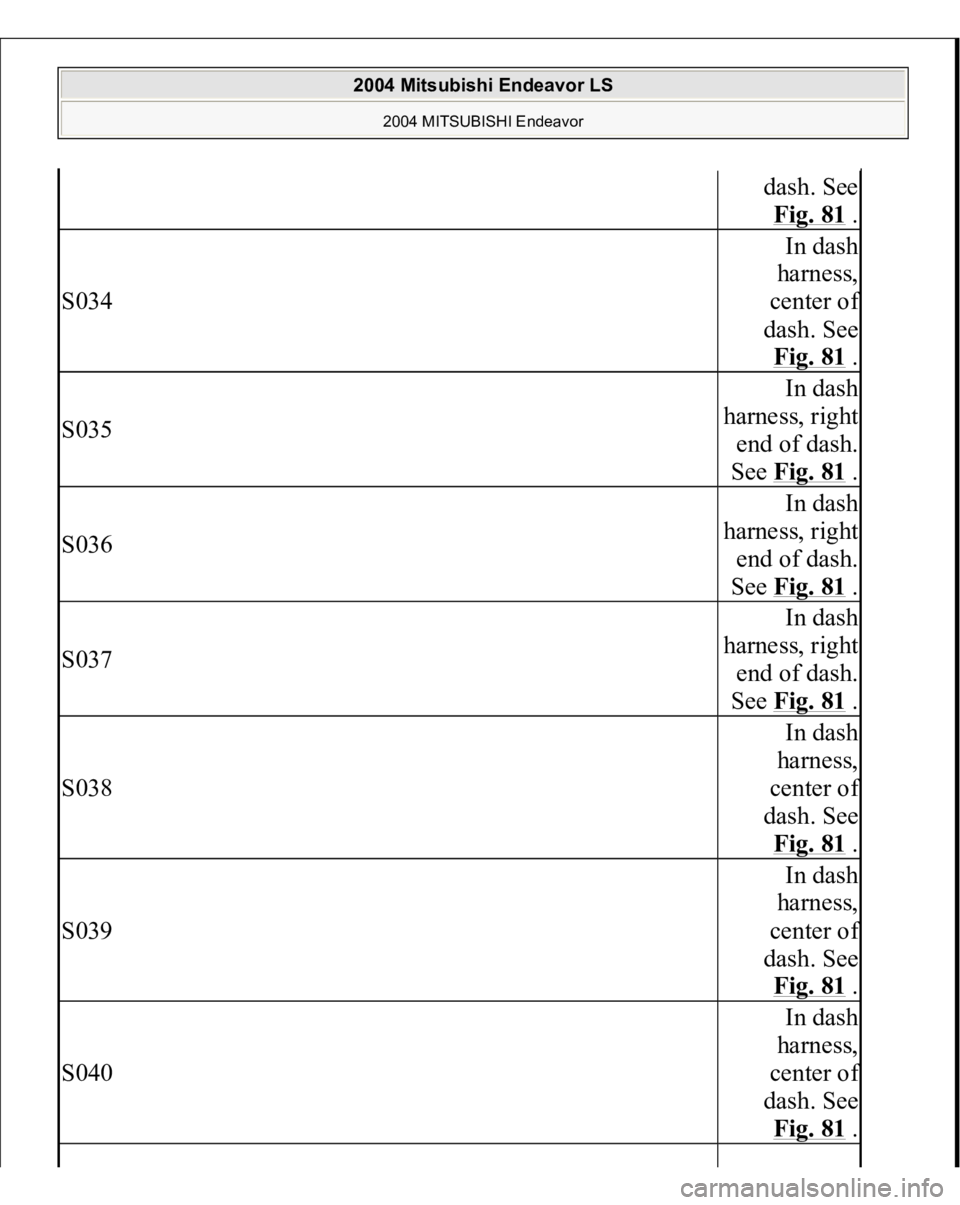

Page 1106 of 3870
dash. See
Fig. 81
.
S034
In dash
harness,
center o
f
dash. See
Fig. 81 .
S035
In dash
harness, right
end of dash.
See Fig. 81
.
S036
In dash
harness, right
end of dash.
See Fig. 81
.
S037
In dash
harness, right
end of dash.
See Fig. 81
.
S038
In dash
harness,
center o
f
dash. See
Fig. 81 .
S039
In dash
harness,
center o
f
dash. See
Fig. 81 .
S040
In dash
harness,
center o
f
dash. See
Fig. 81 .
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

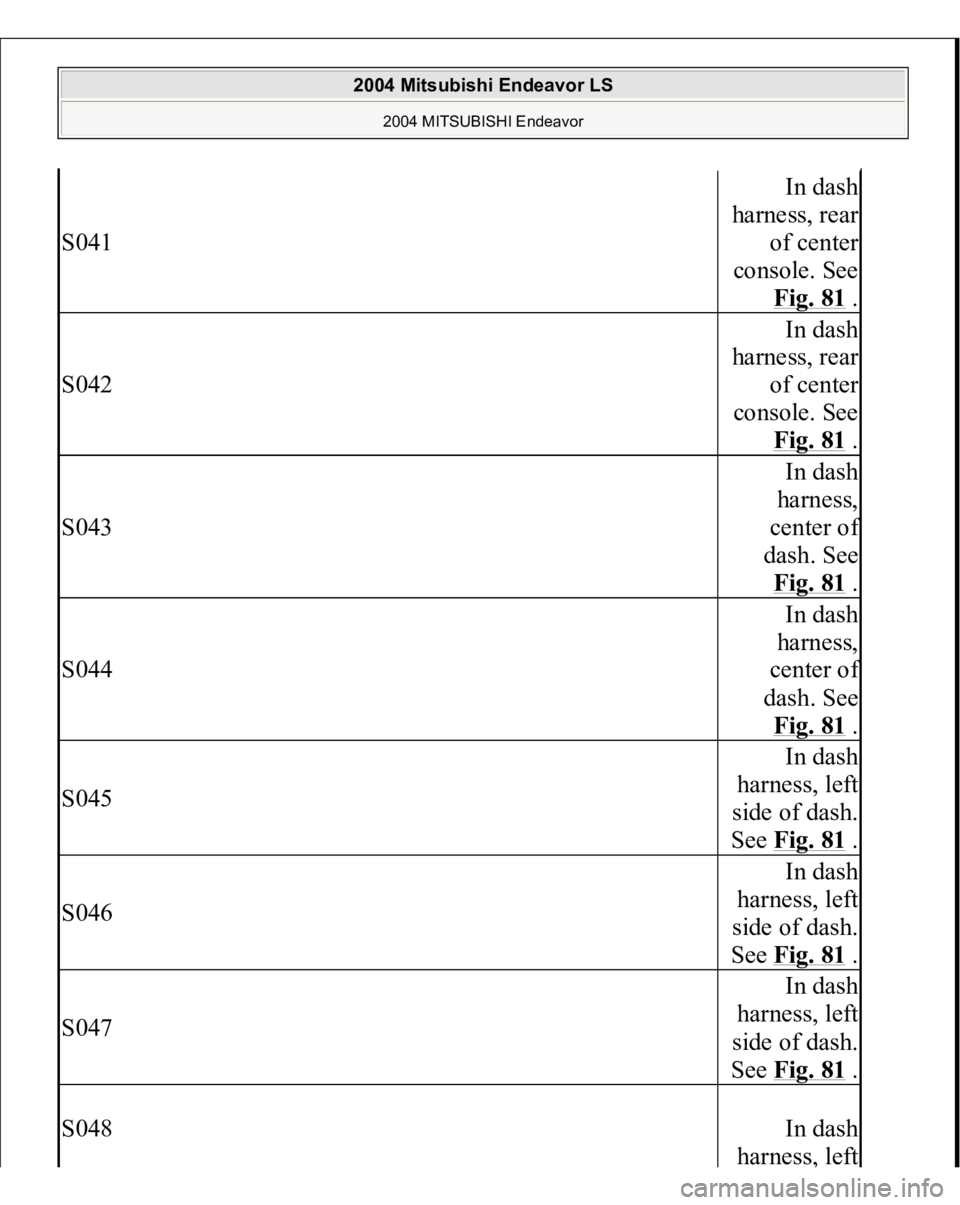

Page 1107 of 3870
S041
In dash
harness, rear
of center
console. See
Fig. 81
.
S042
In dash
harness, rear
of center
console. See
Fig. 81
.
S043
In dash
harness,
center o
f
dash. See
Fig. 81 .
S044
In dash
harness,
center o
f
dash. See
Fig. 81 .
S045
In dash
harness, left
side of dash.
See Fig. 81
.
S046
In dash
harness, left
side of dash.
See Fig. 81
.
S047
In dash
harness, left
side of dash.
See Fig. 81
.
S048
In dash
harness
, left
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

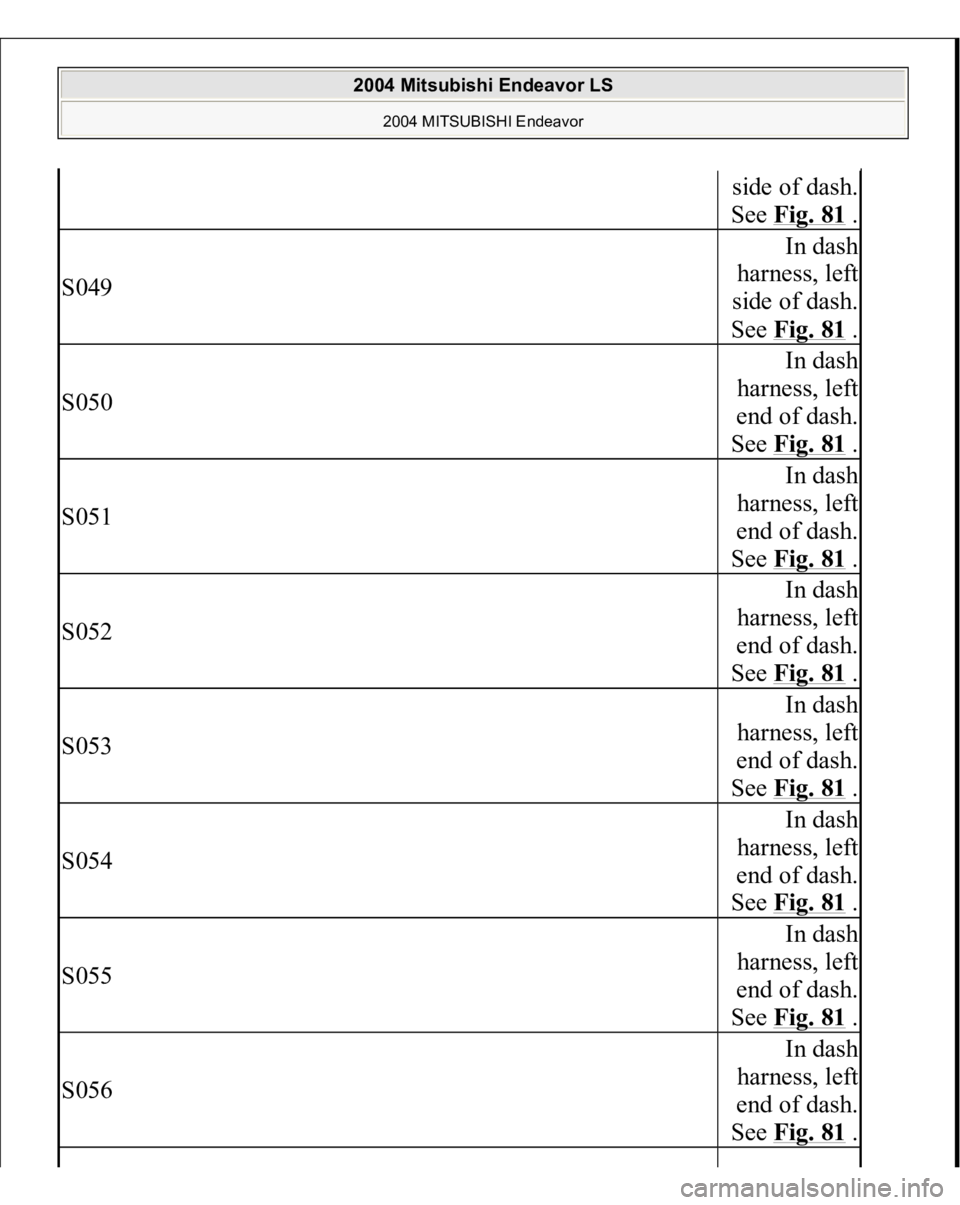

Page 1108 of 3870
side of dash.
See Fig. 81
.
S049
In dash
harness, left
side of dash.
See Fig. 81
.
S050
In dash
harness, left
end of dash.
See Fig. 81
.
S051
In dash
harness, left
end of dash.
See Fig. 81
.
S052
In dash
harness, left
end of dash.
See Fig. 81
.
S053
In dash
harness, left
end of dash.
See Fig. 81
.
S054
In dash
harness, left
end of dash.
See Fig. 81
.
S055
In dash
harness, left
end of dash.
See Fig. 81
.
S056
In dash
harness, left
end of dash.
See Fig. 81
.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
Page 1109 of 3870

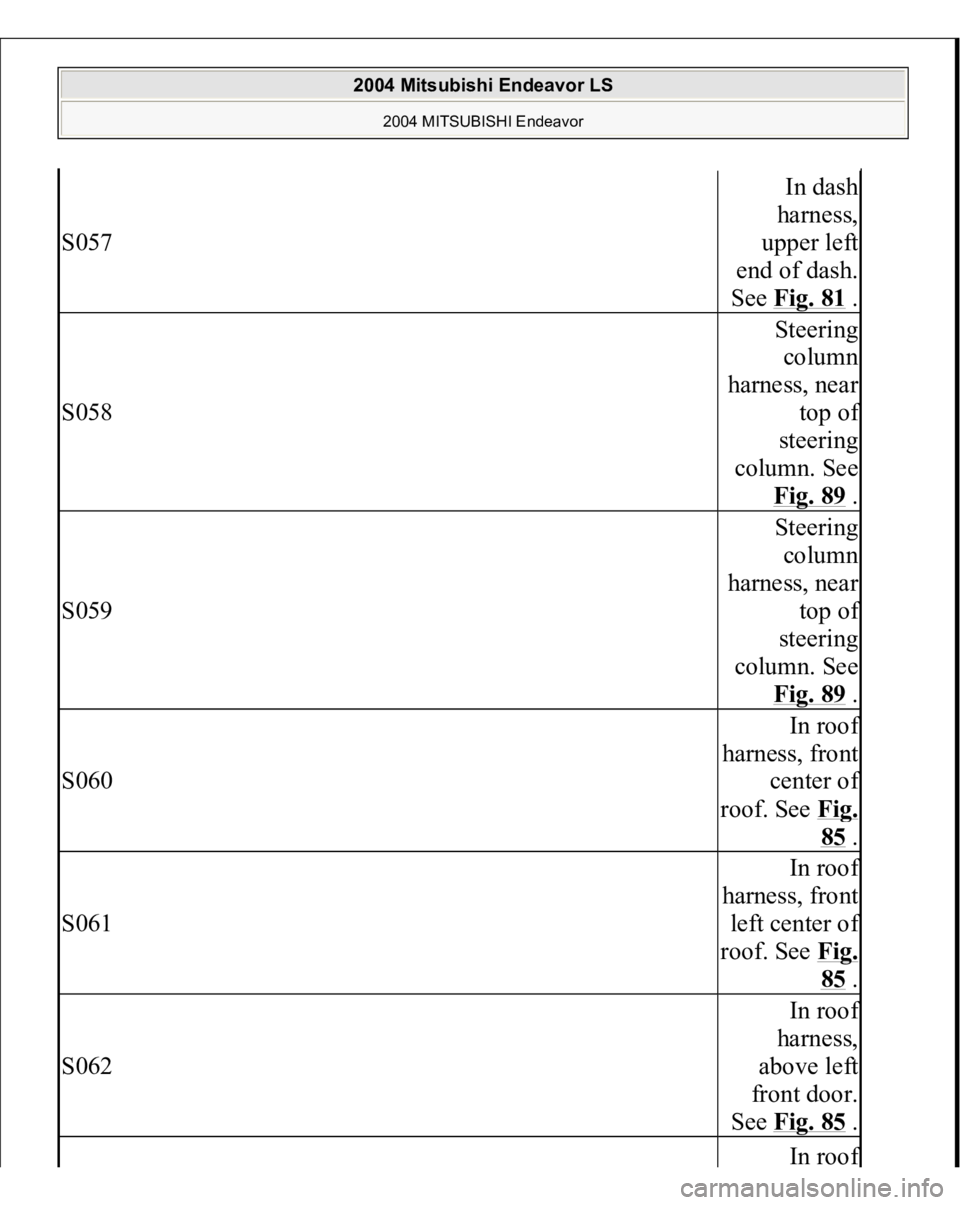

S057
In dash
harness,
upper left
end of dash.
See Fig. 81
.
S058
Steering
column
harness, near
top o
f
steering
column. See
Fig. 89 .
S059
Steering
column
harness, near
top o
f
steering
column. See
Fig. 89 .
S060
In roo
f
harness, front
center of
roof. See Fig.
85 .
S061
In roo
f
harness, front
left center of
roof. See Fig.
85 .
S062
In roo
f
harness,
above left
front door.
See Fig. 85 .
In roo
f
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

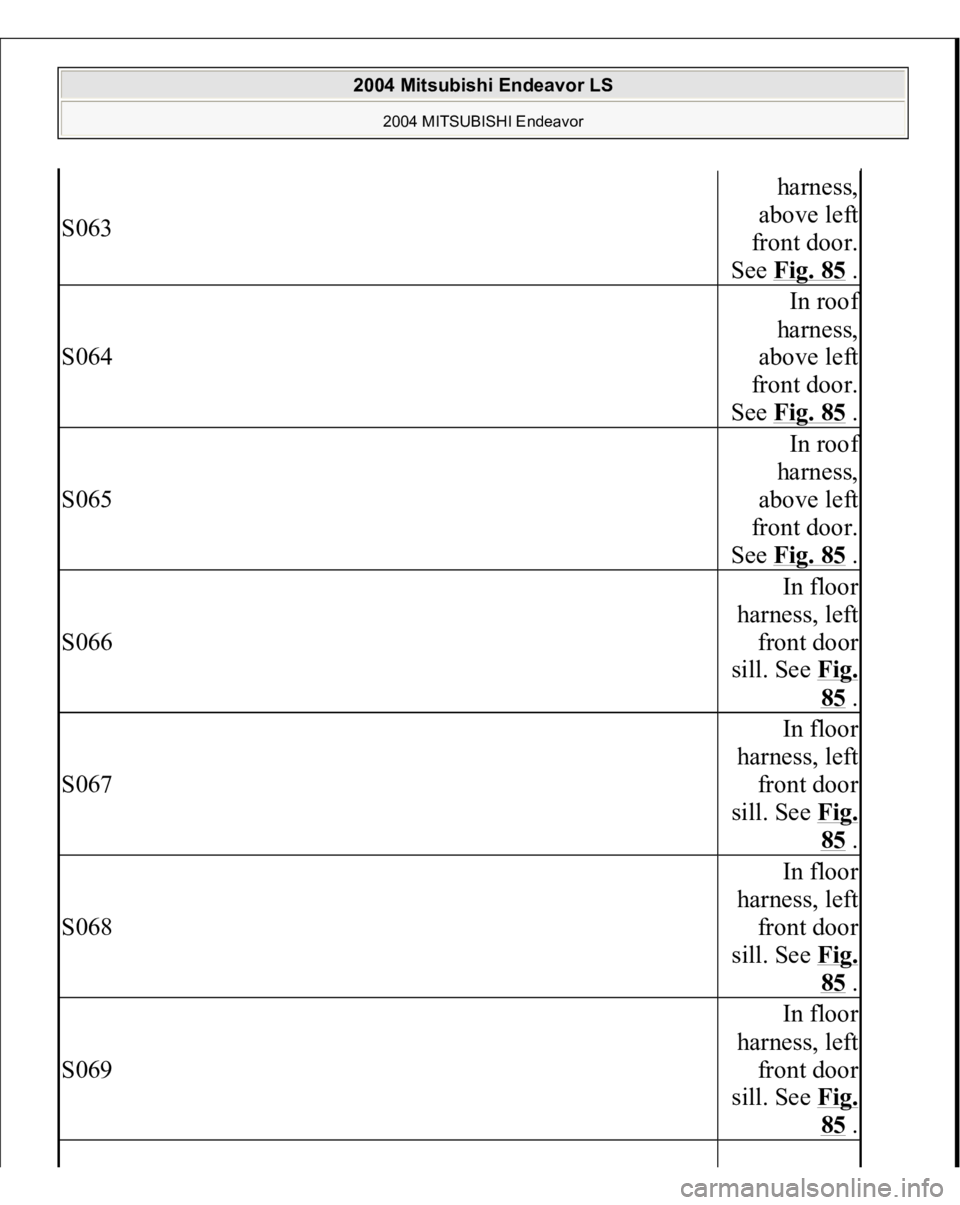

Page 1110 of 3870
S063
harness,
above left
front door.
See Fig. 85
.
S064
In roo
f
harness,
above left
front door.
See Fig. 85 .
S065
In roo
f
harness,
above left
front door.
See Fig. 85 .
S066
In floor
harness, left
front door
sill. See Fig.
85 .
S067
In floor
harness, left
front door
sill. See Fi
g.
85 .
S068
In floor
harness, left
front door
sill. See Fi
g.
85 .
S069
In floor
harness, left
front door
sill. See Fi
g.
85 .
2004 Mitsubishi Endeavor LS
