MITSUBISHI ENDEAVOR 2004 Service Repair Manual

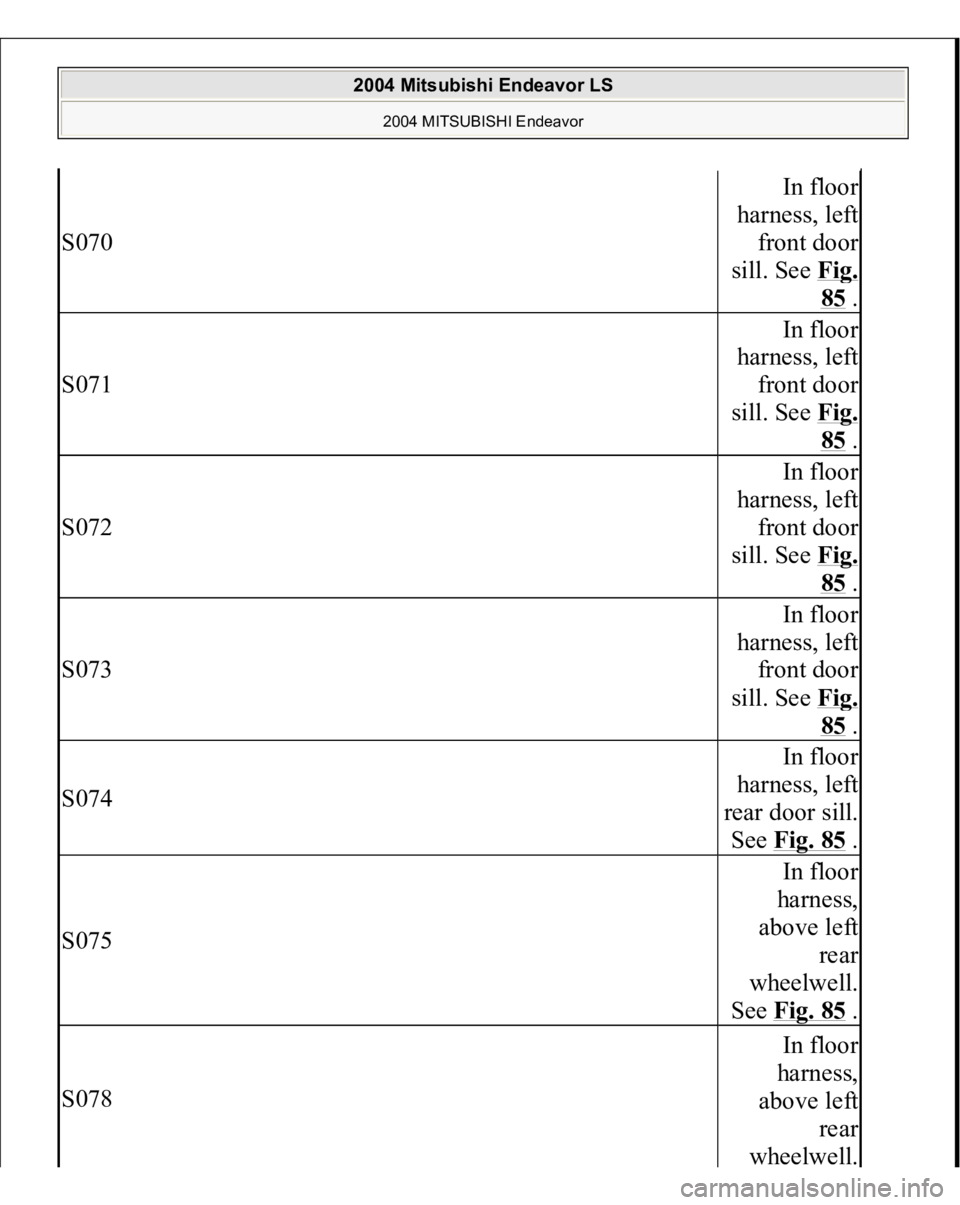

S070
In floor
harness, left
front door
sill. See Fi
g.
85 .
S071
In floor
harness, left
front door
sill. See Fig.
85 .
S072
In floor
harness, left
front door
sill. See Fi
g.
85 .
S073
In floor
harness, left
front door
sill. See Fi
g.
85 .
S074
In floor
harness, left
rear door sill.
See Fig. 85
.
S075
In floor
harness,
above left
rear
wheelwell.
See Fig. 85
.
S078
In floor
harness,
above left
rear
wheelwell.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

See Fig. 85
.
S079
In floor
harness,
above left
rear
wheelwell.
See Fig. 85
.
S080
In right front
door harness.
See Fig. 82
.
S081
In left front
door harness.
See Fig. 82
.
S082
In left front
door harness.
See Fig. 82
.
S083
In left front
door harness.
See Fig. 82
.
S085
In liftgate
harness,
center o
f
liftgate. See
Fig. 86 .
S086
In engine
compartment
harness, right
side o
f
engine
compartment.
See Fig. 84 .
In engine
compartment
harness
, right

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

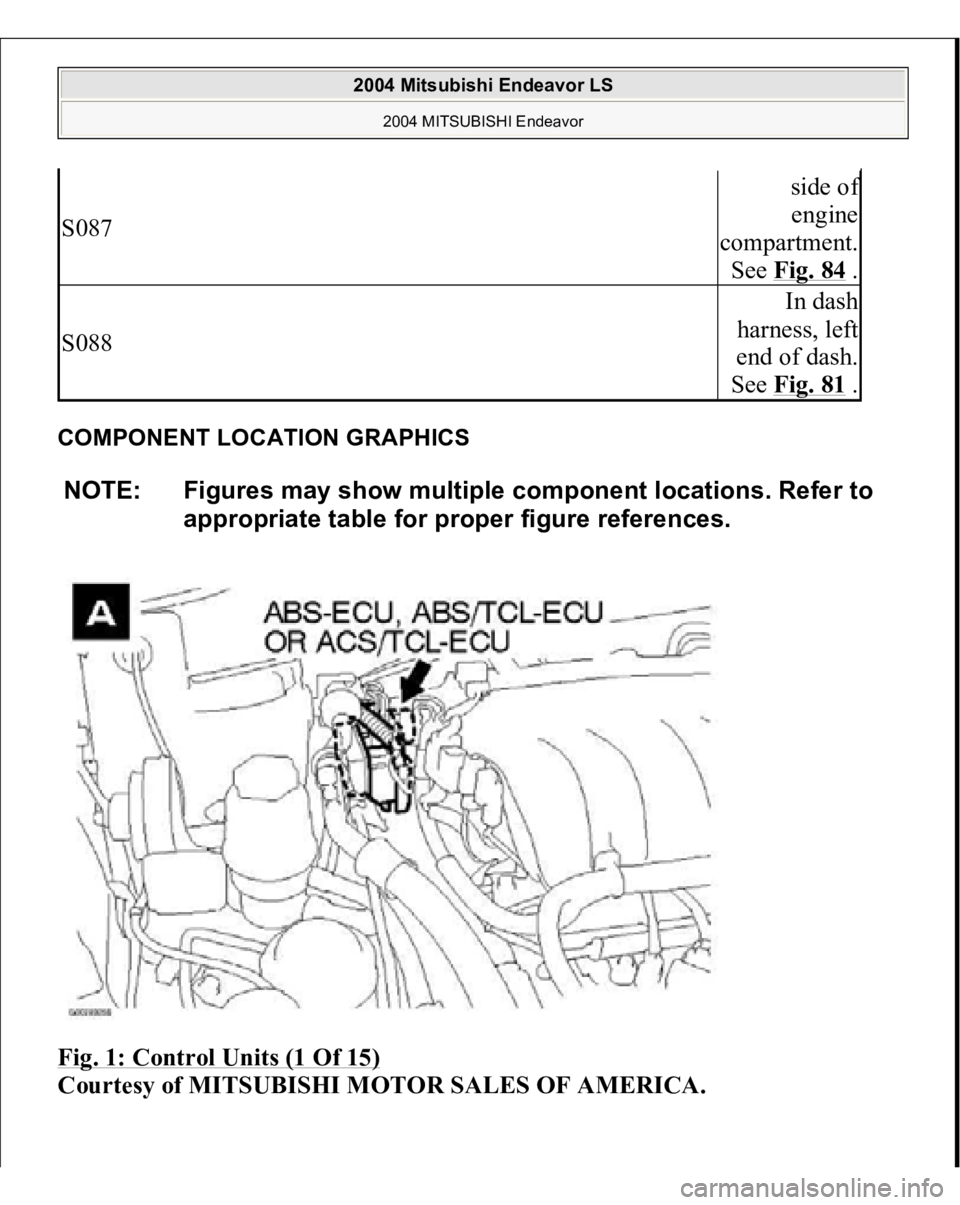

COMPONENT LOCATION GRAPHICS Fig. 1: Control Units (1 Of 15)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
S087
side o
f
engine
compartment.
See Fig. 84 .
S088
In dash
harness, left
end of dash.
See Fig. 81
.
NOTE: Figures may show multiple component locations. Refer to
appropriate table for proper figure references.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

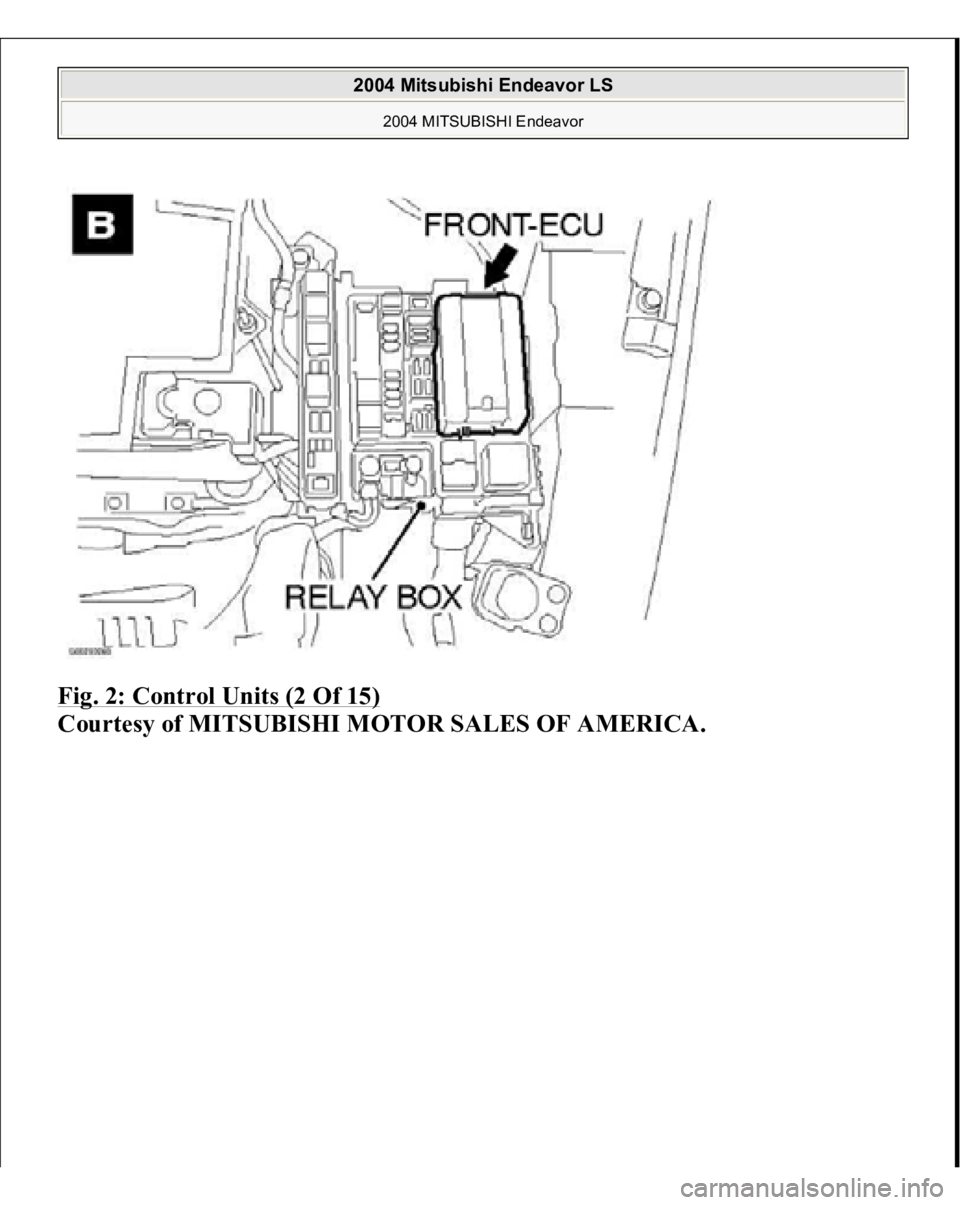

Fig. 2: Control Units (2 Of 15)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

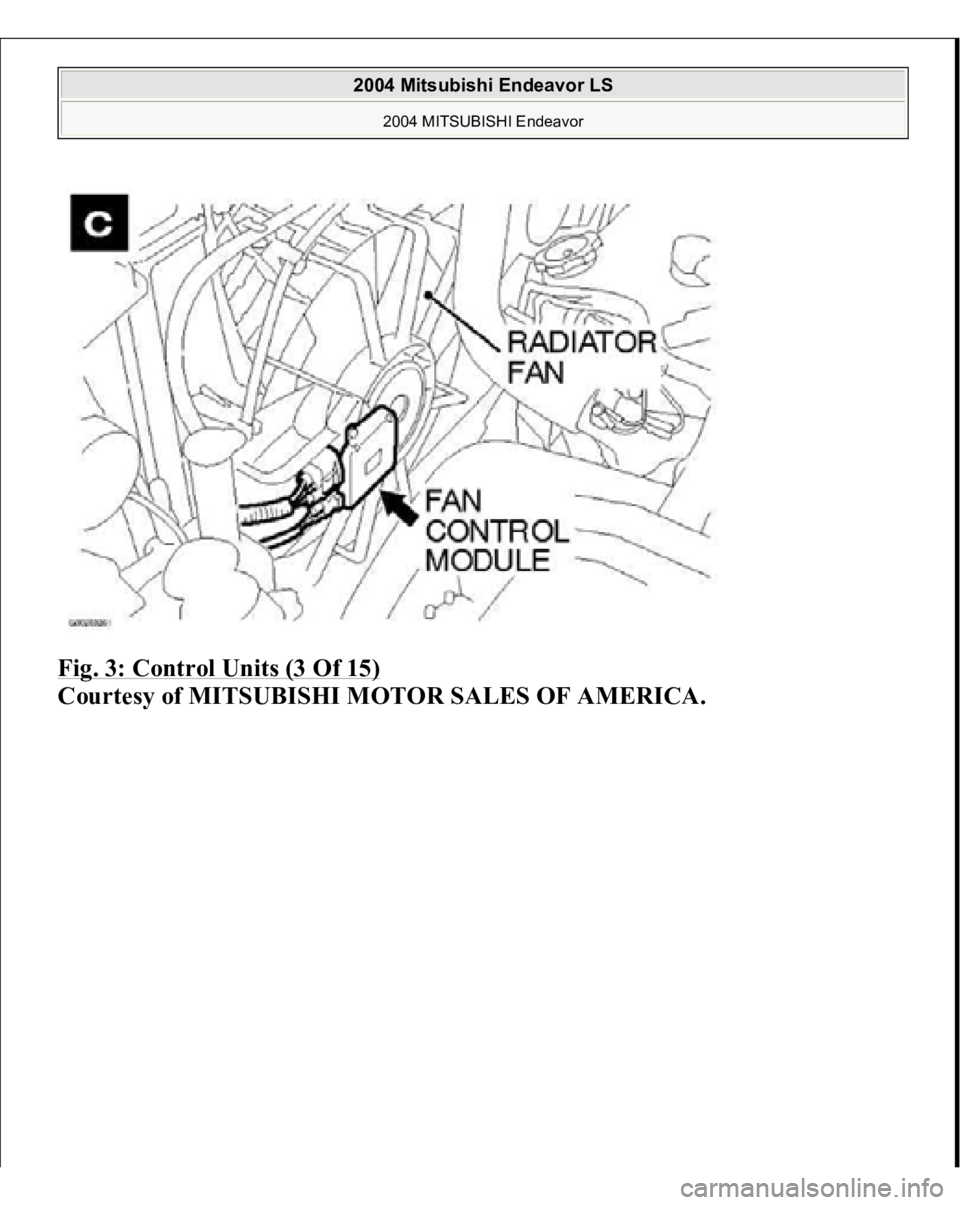

Fig. 3: Control Units (3 Of 15)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

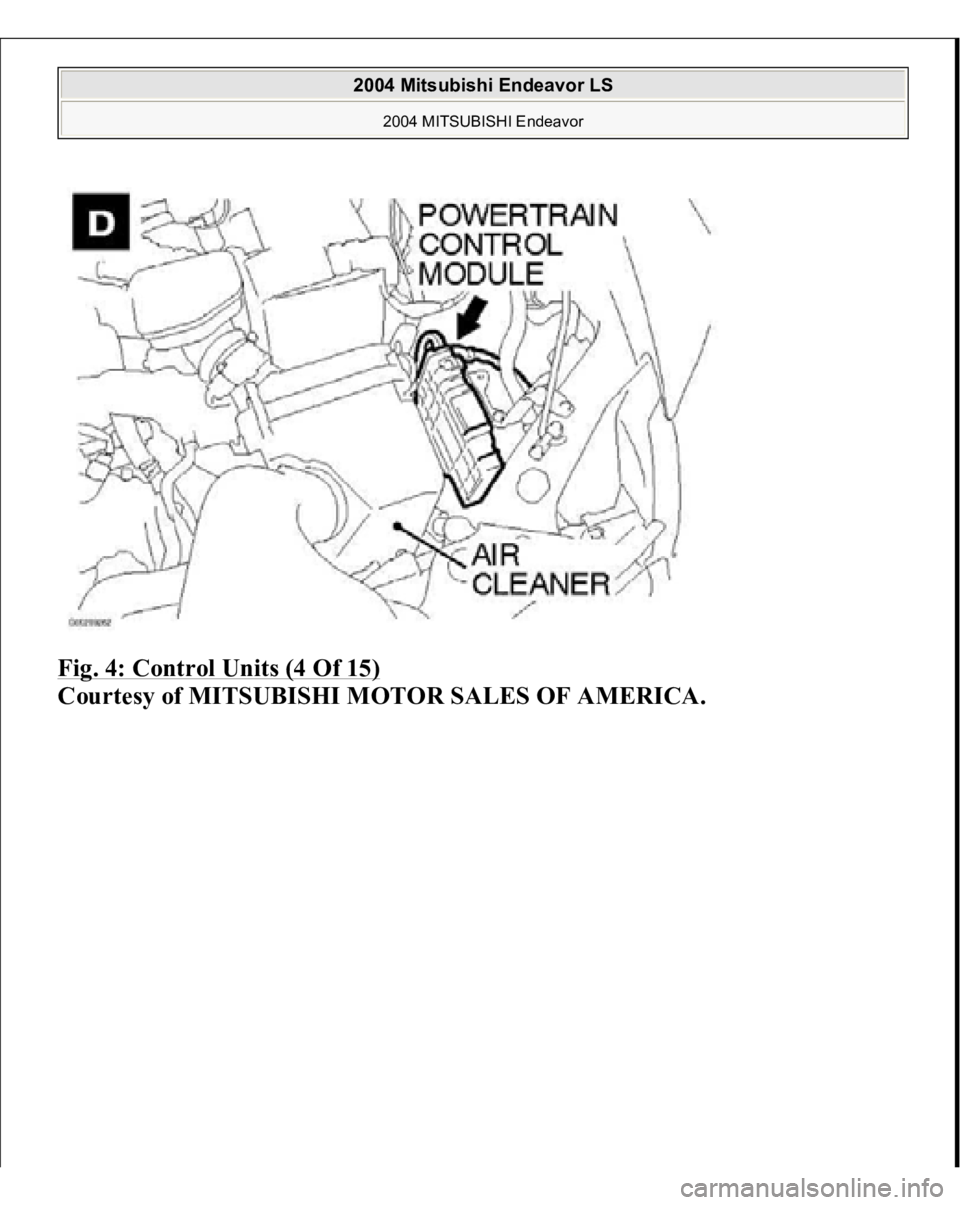

Fig. 4: Control Units (4 Of 15)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

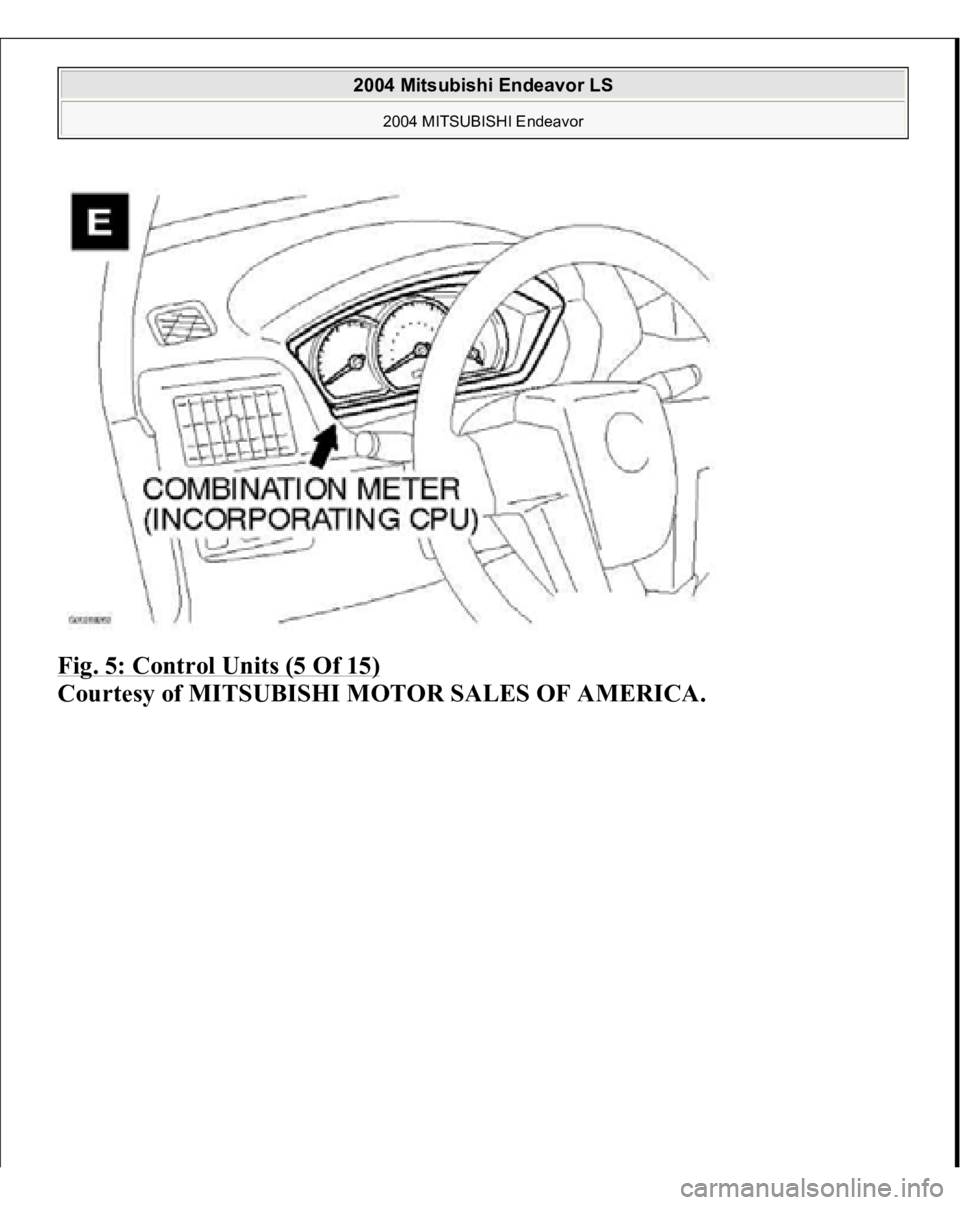

Fig. 5: Control Units (5 Of 15)

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

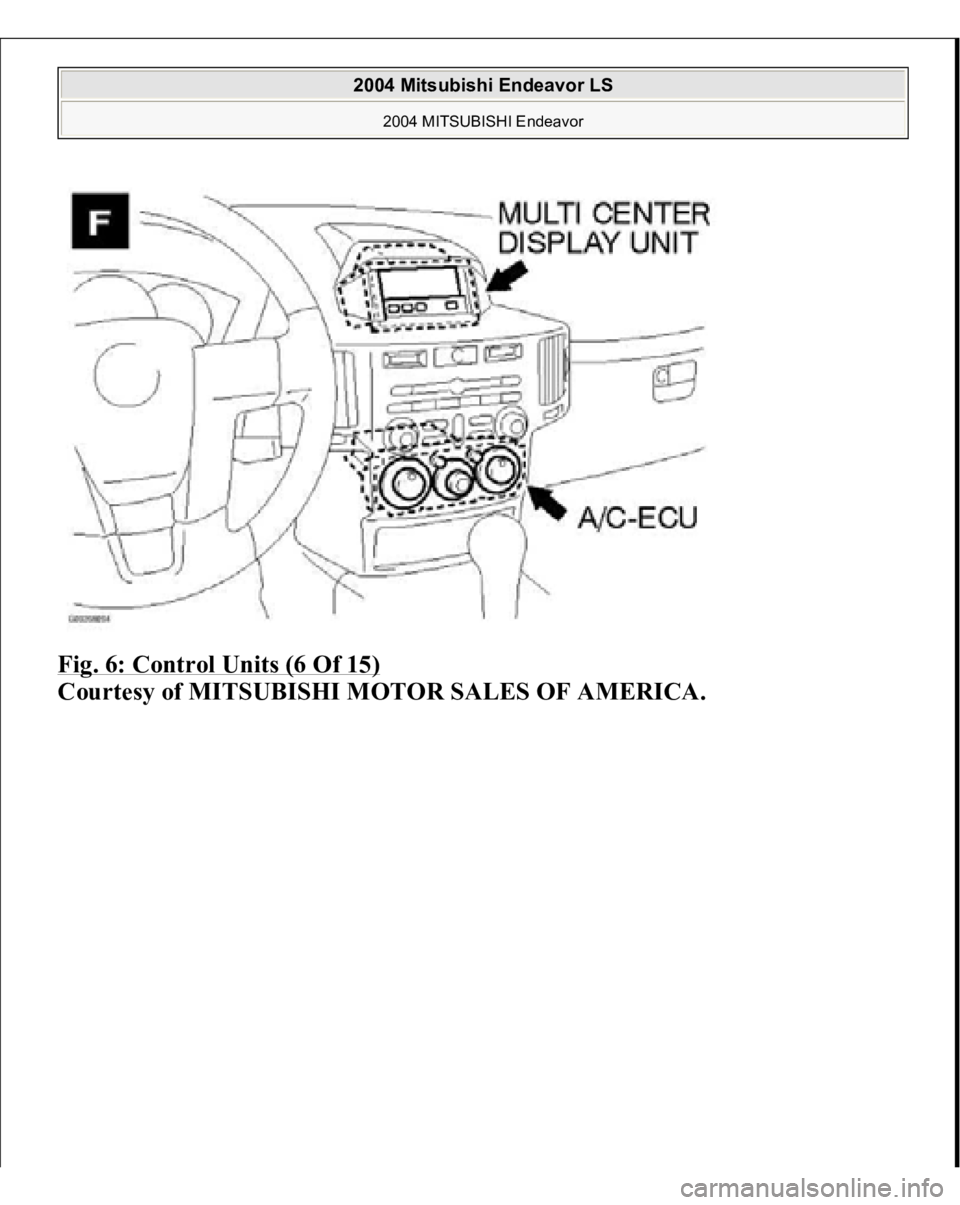

Fig. 6: Control Units (6 Of 15)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

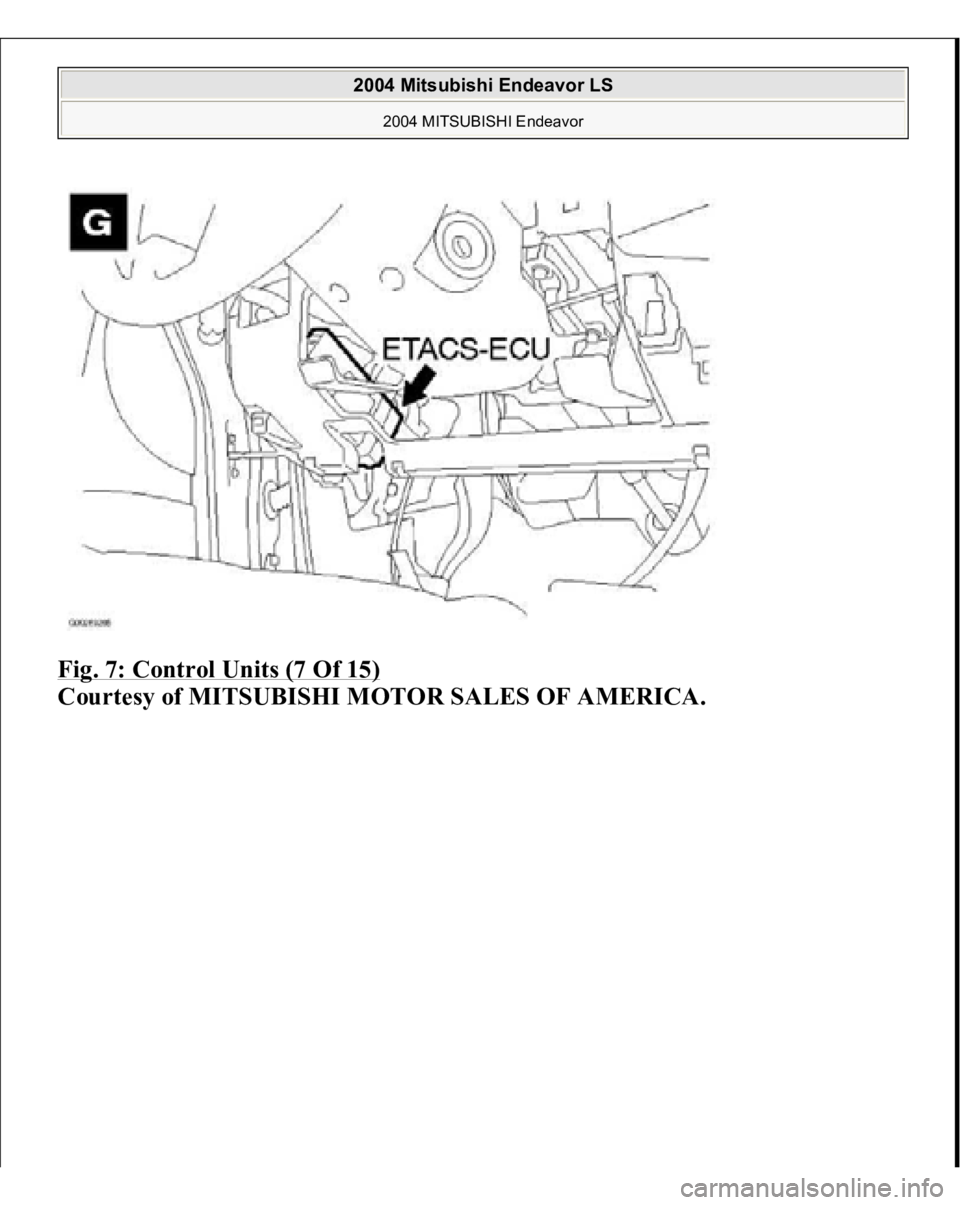

Fig. 7: Control Units (7 Of 15)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

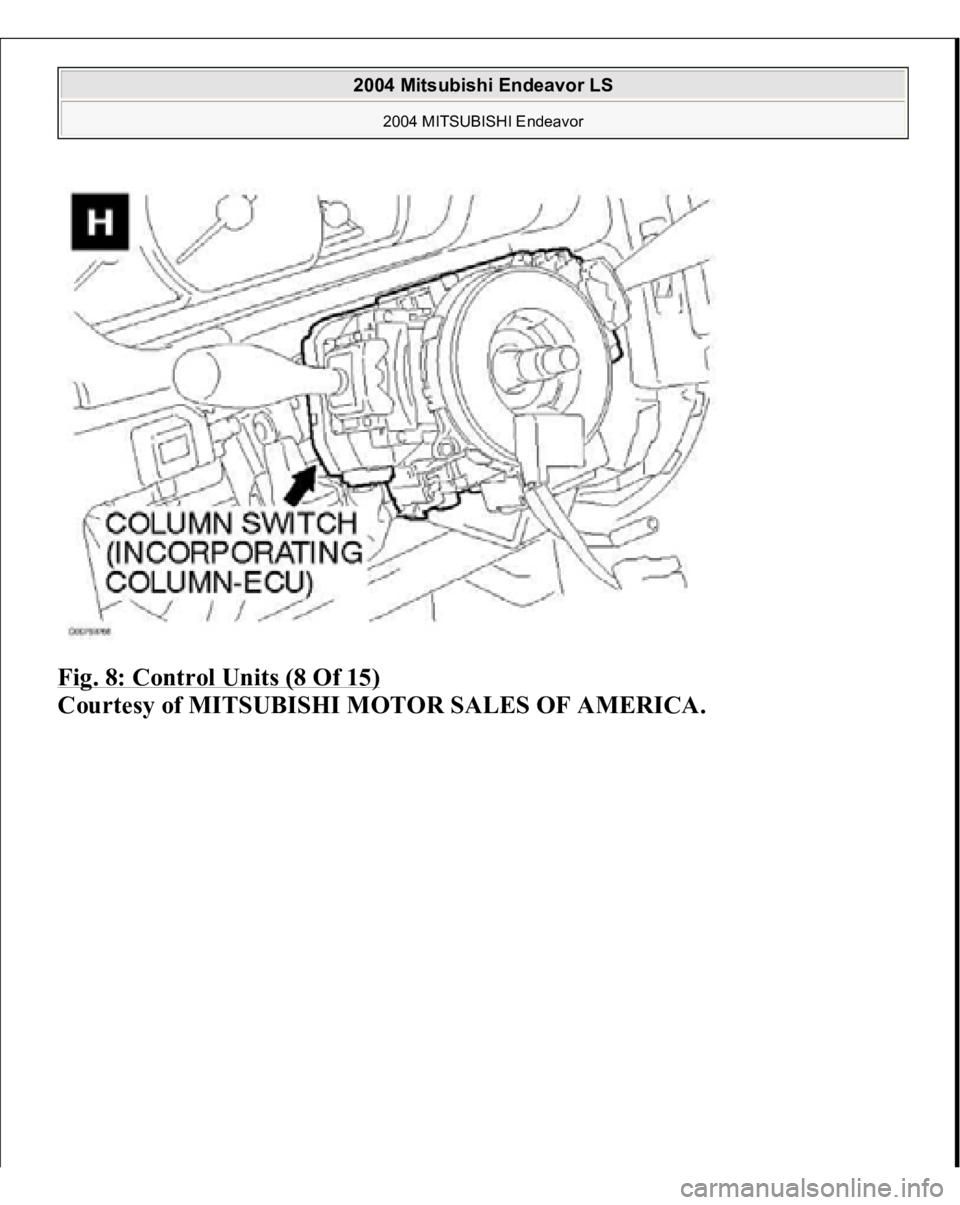

Fig. 8: Control Units (8 Of 15)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
