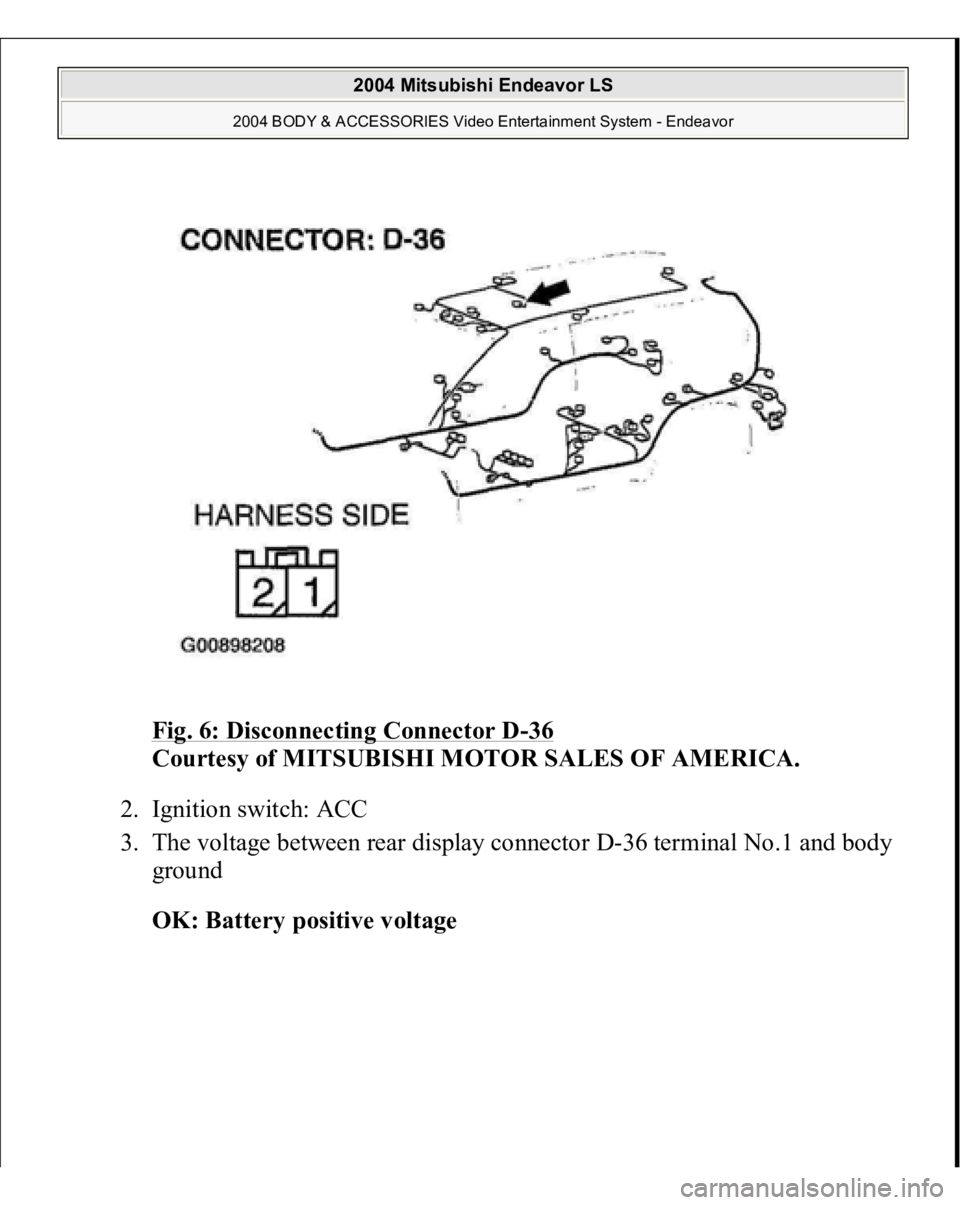

Fig. 6: Disconnecting Connector D
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Ignition switch: ACC
3. The voltage between rear display connector D-36 terminal No.1 and body
ground
OK: Battery positive voltage

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Fig. 7: Measuring Voltage At Rear Display Connector D
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the check result normal?
YES: Go to Step 8 .
NO: Go to Step 7.
STEP 7. Check the DIN cable.
Check whether the DIN cable between the M-bus adapter and the radio/CD
player is connected correctly.
Q: Is the check result normal?
YES: Go to Ste
p 8.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

NO: Replace the DIN cable.
STEP 8. Measure the resistance value at rear display connector D-36.
1. Disconnect the connector, and measure at the wiring harness side.

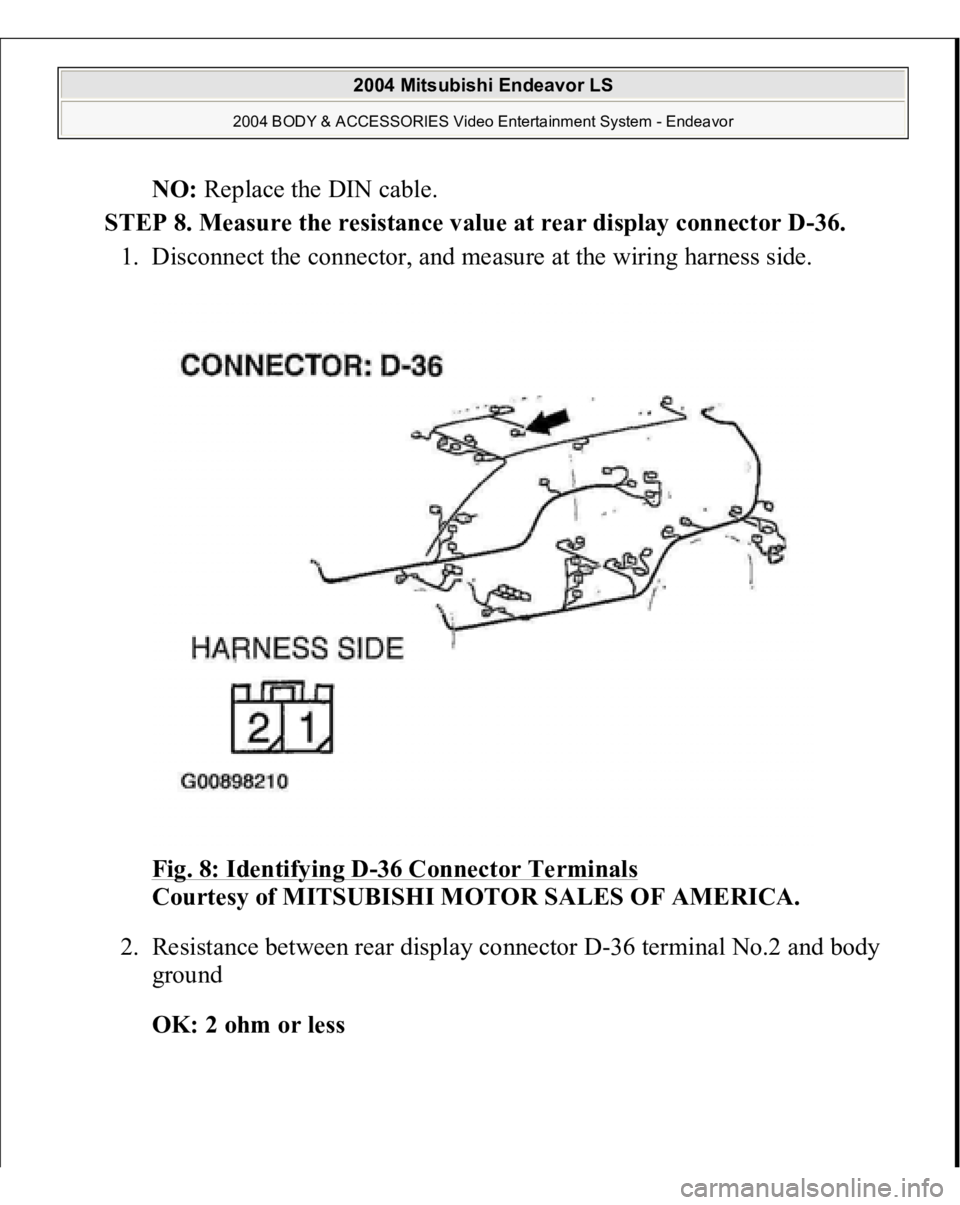

Fig. 8: Identifying D
-36 Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Resistance between rear display connector D-36 terminal No.2 and body
ground
OK: 2 ohm or less

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

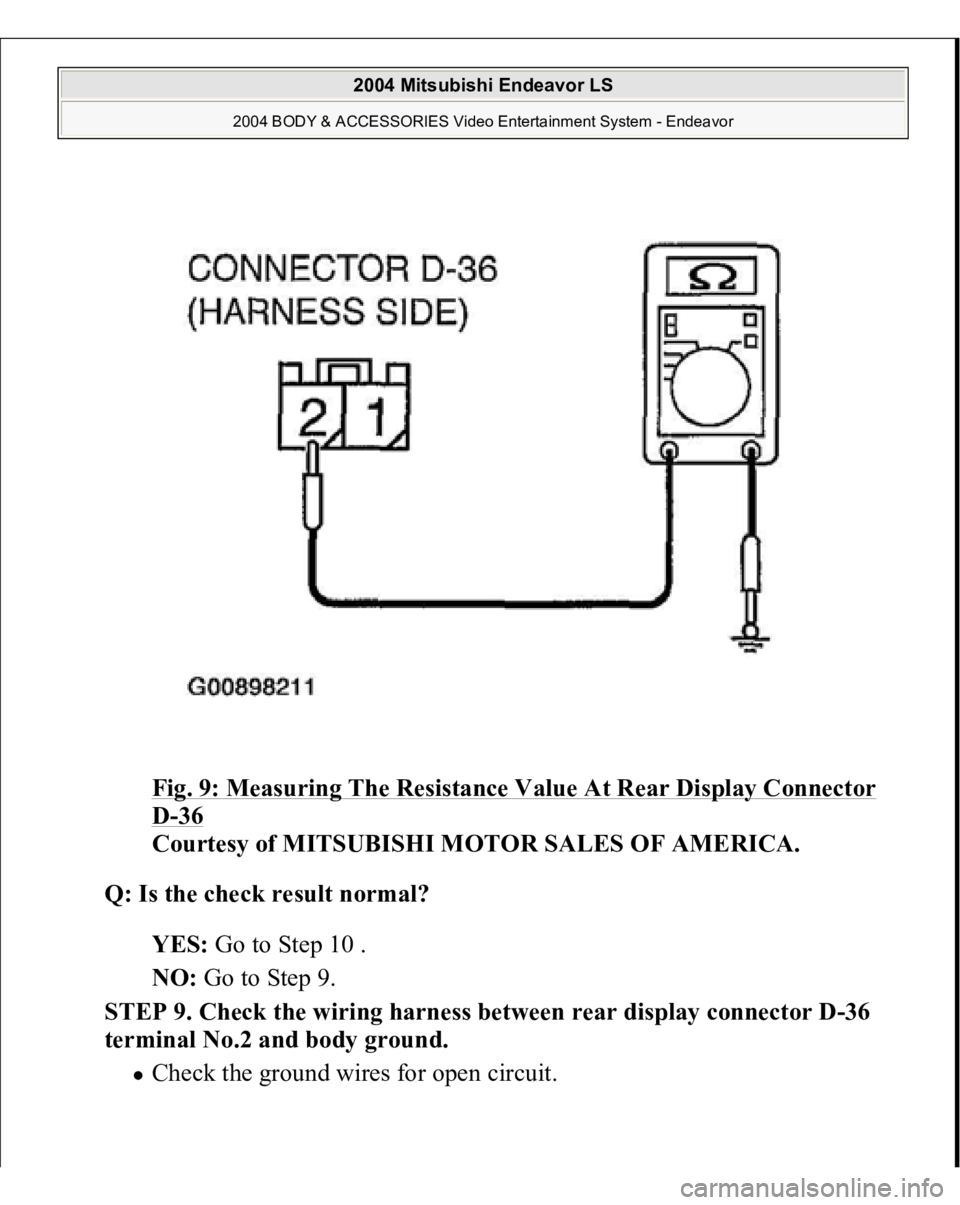

Fig. 9: Measuring The Resistance Value At Rear Display Connector D-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the check result normal?
YES: Go to Step 10 .
NO: Go to Step 9.
STEP 9. Check the wiring harness between rear display connector D-36
terminal No.2 and body ground.
Check the
ground wires for o
pen circuit.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

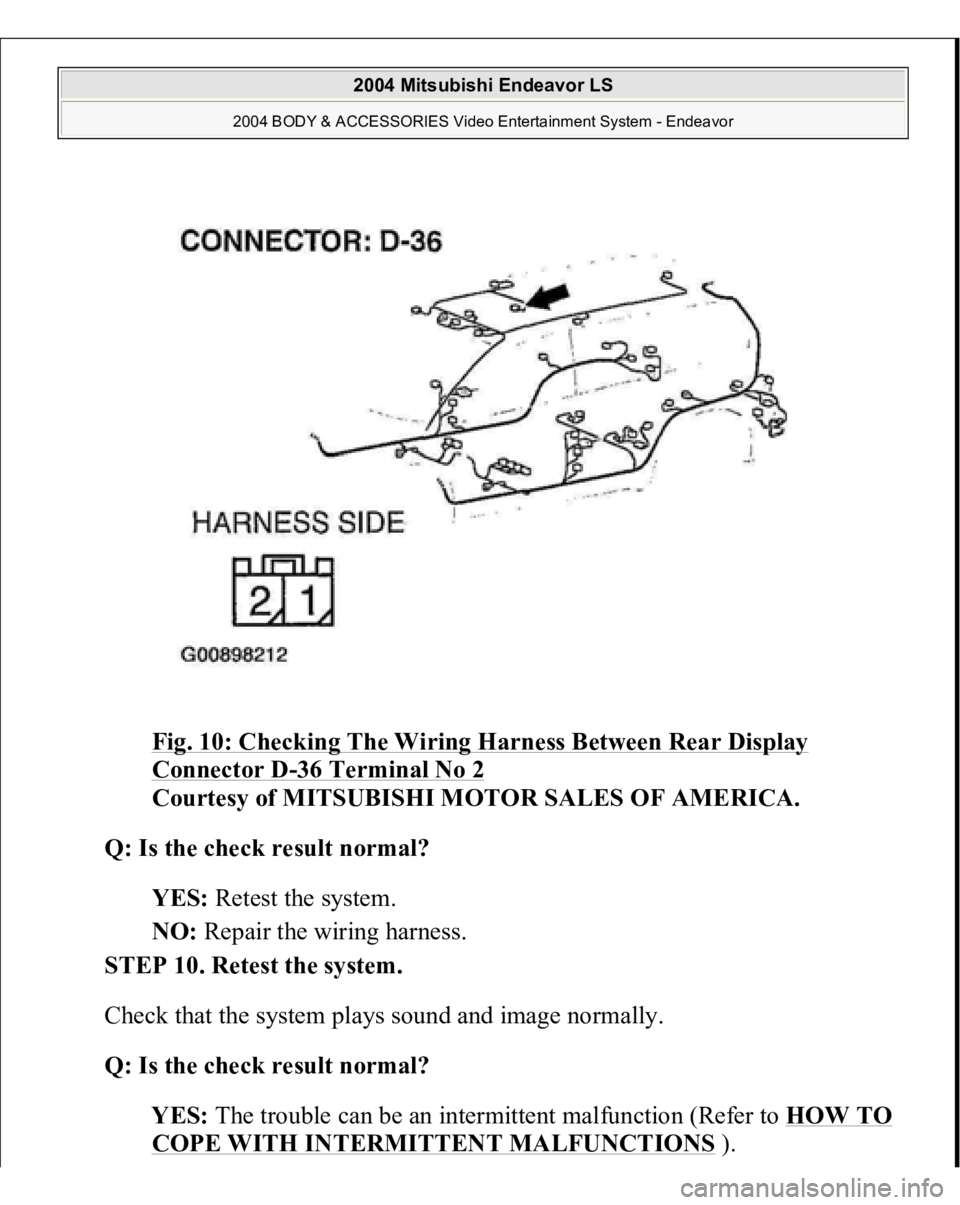

Fig. 10: Checking The Wiring Harness Between Rear Display Connector D
-36 Terminal No 2

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the check result normal?
YES: Retest the system.
NO: Repair the wiring harness.
STEP 10. Retest the system.
Check that the system plays sound and image normally.
Q: Is the check result normal?
YES: The trouble can be an intermittent malfunction (Refer to HOW TO
COPE WITH INTERMITTENT MALFUNCTIONS
).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

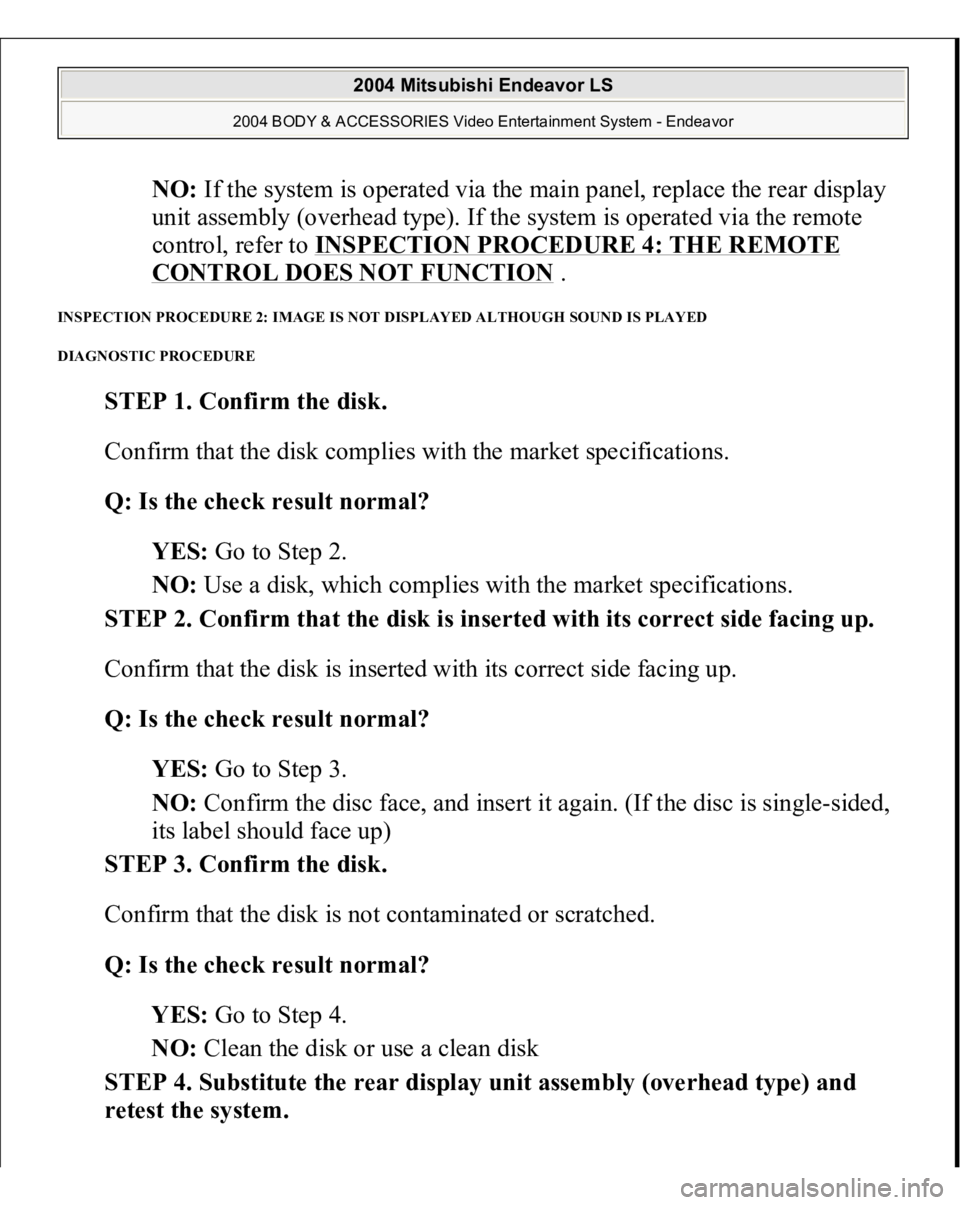

NO: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type). If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE CONTROL DOES NOT FUNCTION
.
INSPECTION PROCEDURE 2: IMAGE IS NOT DISPLAYED ALTHOUGH SOUND IS PLAYED
DIAGNOSTIC PROCEDURE
STEP 1. Confirm the disk.
Confirm that the disk complies with the market specifications.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Use a disk, which complies with the market specifications.
STEP 2. Confirm that the disk is inserted with its correct side facing up.
Confirm that the disk is inserted with its correct side facing up.
Q: Is the check result normal?
YES: Go to Step 3.
NO: Confirm the disc face, and insert it again. (If the disc is single-sided,
its label should face up)
STEP 3. Confirm the disk.
Confirm that the disk is not contaminated or scratched.
Q: Is the check result normal?
YES: Go to Step 4.
NO: Clean the disk or use a clean disk
STEP 4. Substitute the rear display unit assembly (overhead type) and
retest the system.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

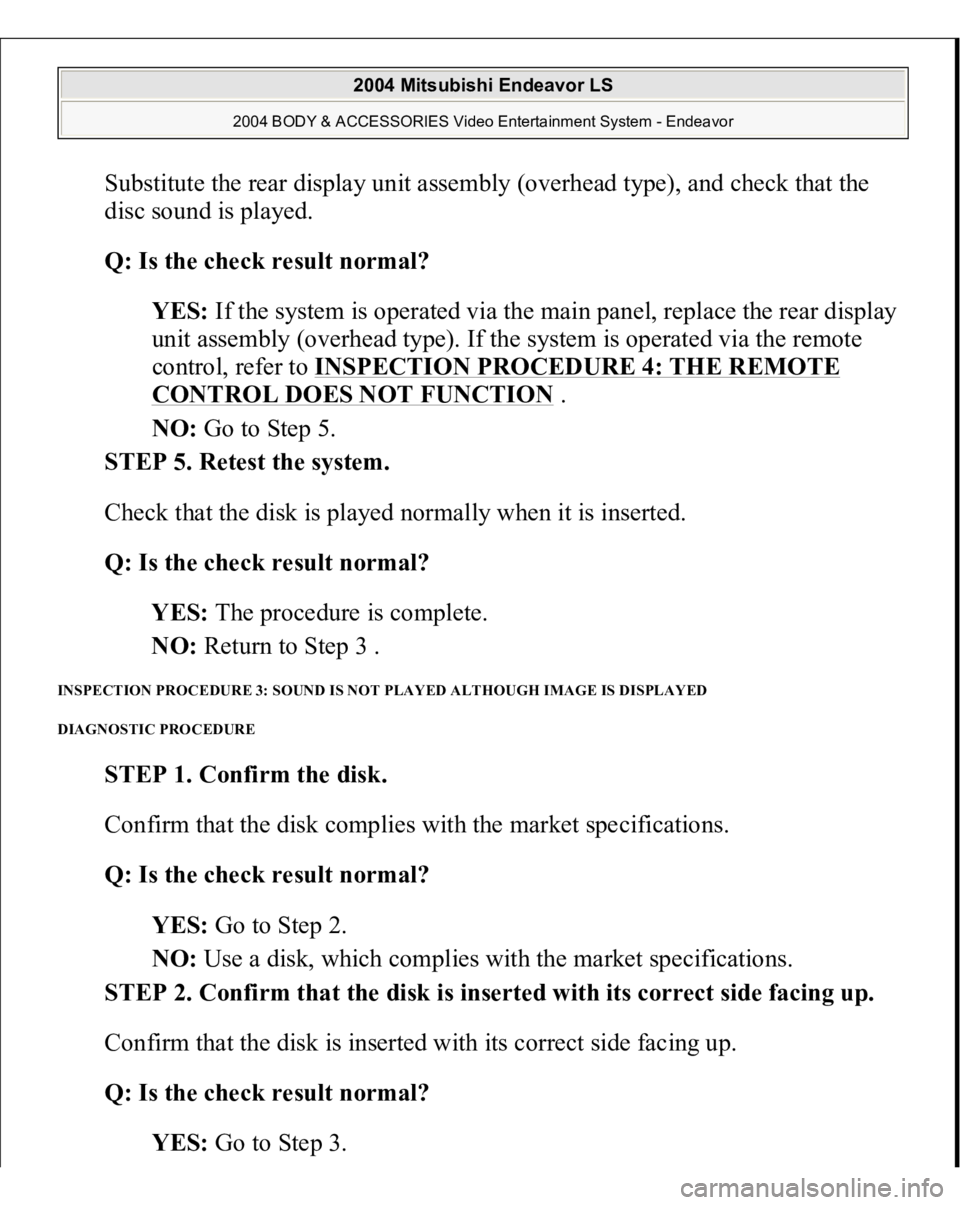

Substitute the rear display unit assembly (overhead type), and check that the
disc sound is played.
Q: Is the check result normal?
YES: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type). If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE
CONTROL DOES NOT FUNCTION
.
NO: Go to Step 5.
STEP 5. Retest the system.
Check that the disk is played normally when it is inserted.
Q: Is the check result normal?
YES: The procedure is complete.
NO: Return to Step 3 .
INSPECTION PROCEDURE 3: SOUND IS NOT PLAYED ALTHOUGH IMAGE IS DISPLAYED
DIAGNOSTIC PROCEDURE
STEP 1. Confirm the disk.
Confirm that the disk complies with the market specifications.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Use a disk, which complies with the market specifications.
STEP 2. Confirm that the disk is inserted with its correct side facing up.
Confirm that the disk is inserted with its correct side facing up.
Q: Is the check result normal?
YES: Go to Ste
p 3.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

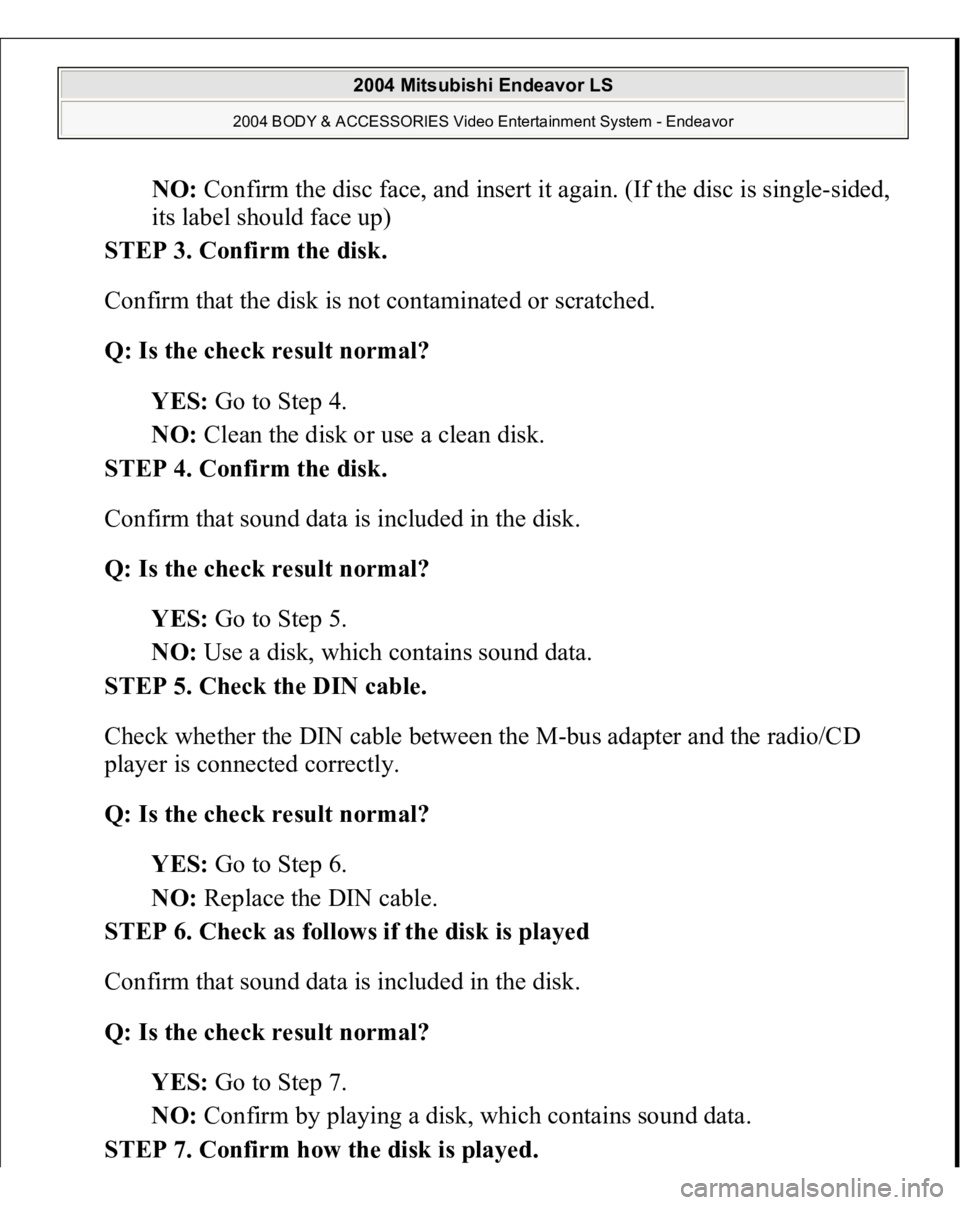

NO: Confirm the disc face, and insert it again. (If the disc is single-sided,
its label should face up)
STEP 3. Confirm the disk.
Confirm that the disk is not contaminated or scratched.
Q: Is the check result normal?
YES: Go to Step 4.
NO: Clean the disk or use a clean disk.
STEP 4. Confirm the disk.
Confirm that sound data is included in the disk.
Q: Is the check result normal?
YES: Go to Step 5.
NO: Use a disk, which contains sound data.
STEP 5. Check the DIN cable.
Check whether the DIN cable between the M-bus adapter and the radio/CD
player is connected correctly.
Q: Is the check result normal?
YES: Go to Step 6.
NO: Replace the DIN cable.
STEP 6. Check as follows if the disk is played
Confirm that sound data is included in the disk.
Q: Is the check result normal?
YES: Go to Step 7.
NO: Confirm by playing a disk, which contains sound data.
STEP 7. Confirm how the disk is played.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

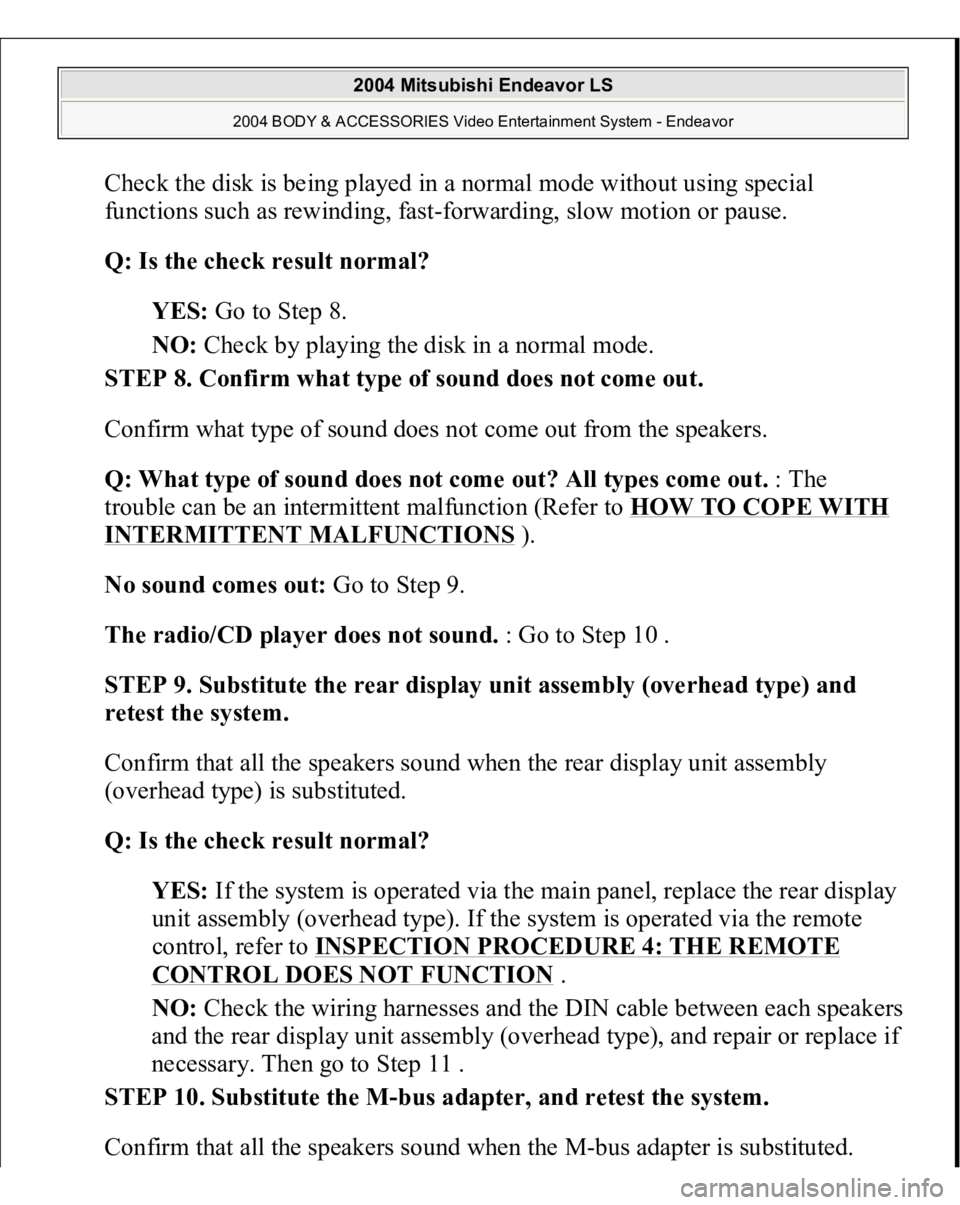

Check the disk is being played in a normal mode without using special
functions such as rewinding, fast-forwarding, slow motion or pause.
Q: Is the check result normal?
YES: Go to Step 8.
NO: Check by playing the disk in a normal mode.
STEP 8. Confirm what type of sound does not come out.
Confirm what type of sound does not come out from the speakers.
Q: What type of sound does not come out? All types come out. : The
trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
No sound comes out: Go to Step 9.
The radio/CD player does not sound. : Go to Step 10 .
STEP 9. Substitute the rear display unit assembly (overhead type) and
retest the system.
Confirm that all the speakers sound when the rear display unit assembly
(overhead type) is substituted.
Q: Is the check result normal?
YES: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type). If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE
CONTROL DOES NOT FUNCTION
.
NO: Check the wiring harnesses and the DIN cable between each speakers
and the rear display unit assembly (overhead type), and repair or replace if
necessary. Then go to Step 11 .
STEP 10. Substitute the M-bus adapter, and retest the system.
Confirm that all the s
peakers sound when the
M-bus ada
pter is substituted.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

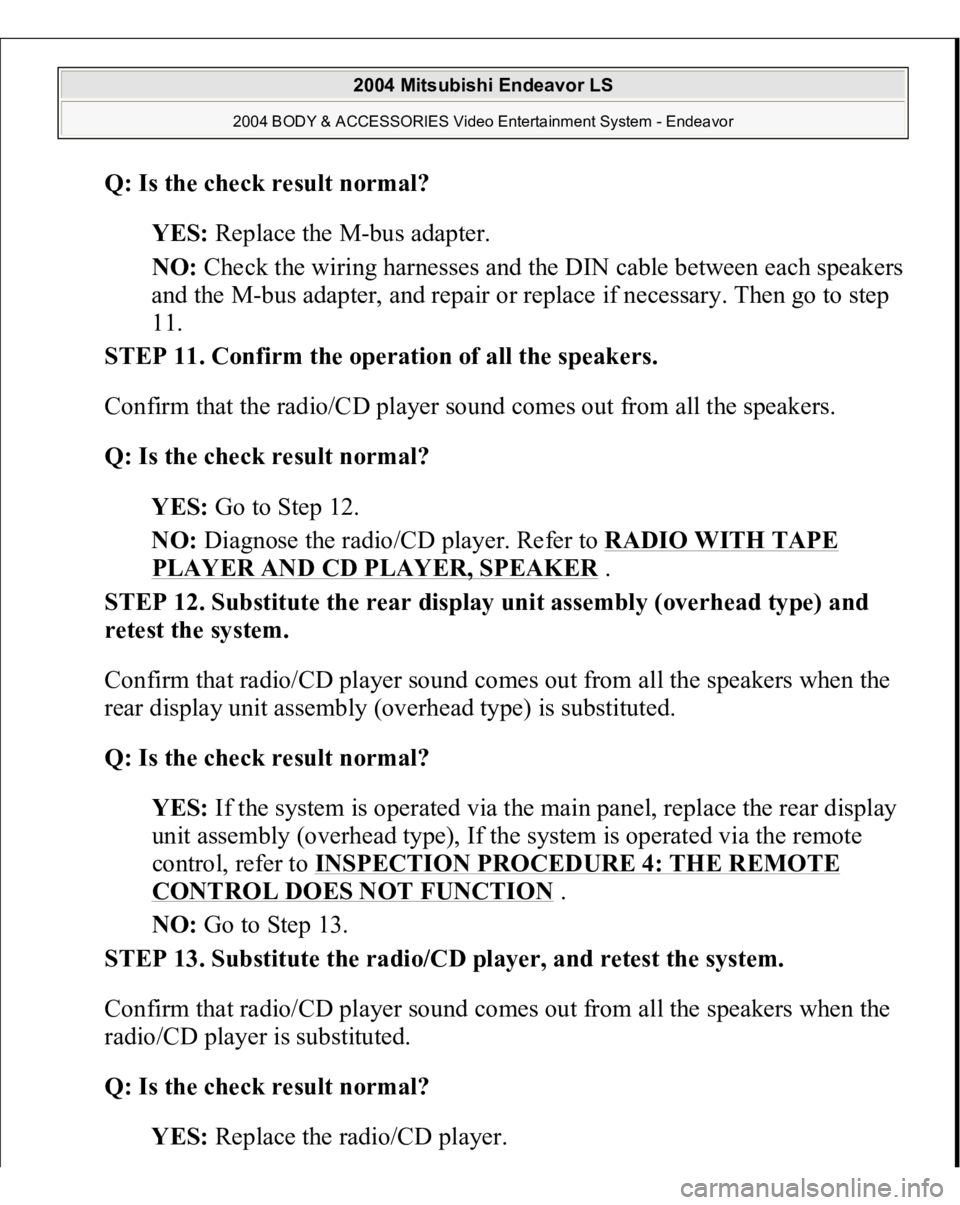

Q: Is the check result normal?
YES: Replace the M-bus adapter.
NO: Check the wiring harnesses and the DIN cable between each speakers
and the M-bus adapter, and repair or replace if necessary. Then go to step
11.
STEP 11. Confirm the operation of all the speakers.
Confirm that the radio/CD player sound comes out from all the speakers.
Q: Is the check result normal?
YES: Go to Step 12.
NO: Diagnose the radio/CD player. Refer to RADIO WITH TAPE
PLAYER AND CD PLAYER, SPEAKER
.
STEP 12. Substitute the rear display unit assembly (overhead type) and
retest the system.
Confirm that radio/CD player sound comes out from all the speakers when the
rear display unit assembly (overhead type) is substituted.
Q: Is the check result normal?
YES: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type), If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE
CONTROL DOES NOT FUNCTION
.
NO: Go to Step 13.
STEP 13. Substitute the radio/CD player, and retest the system.
Confirm that radio/CD player sound comes out from all the speakers when the
radio/CD player is substituted.
Q: Is the check result normal?
YES: Re
place the radio/CD
player.
