MITSUBISHI ENDEAVOR 2004 Service Repair Manual

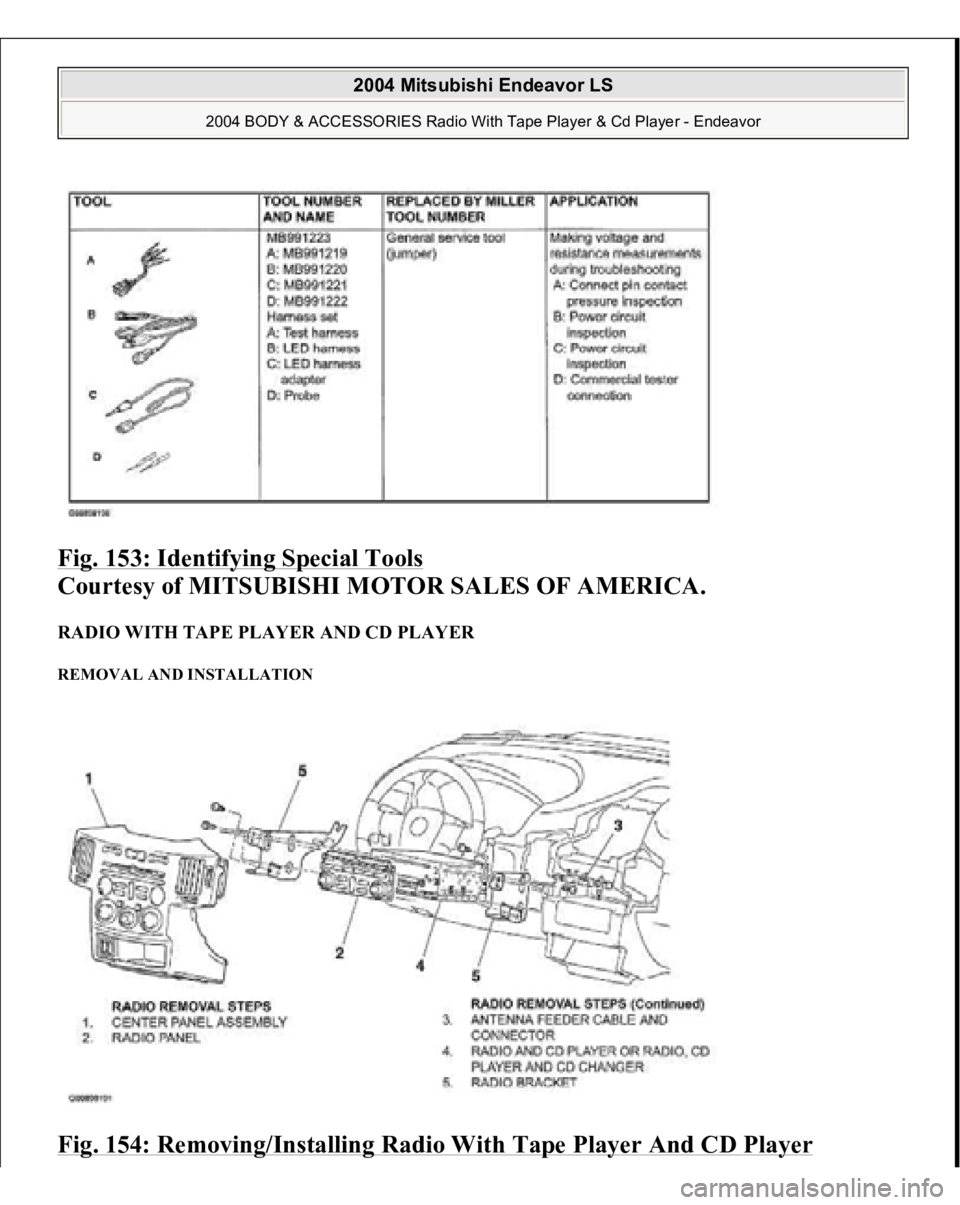

Fig. 153: Identifying Special Tools

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RADIO WITH TAPE PLAYER AND CD PLAYER REMOVAL AND INSTALLATION Fig. 154: Removing/Installing Radio With Tape Player And CD Player
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

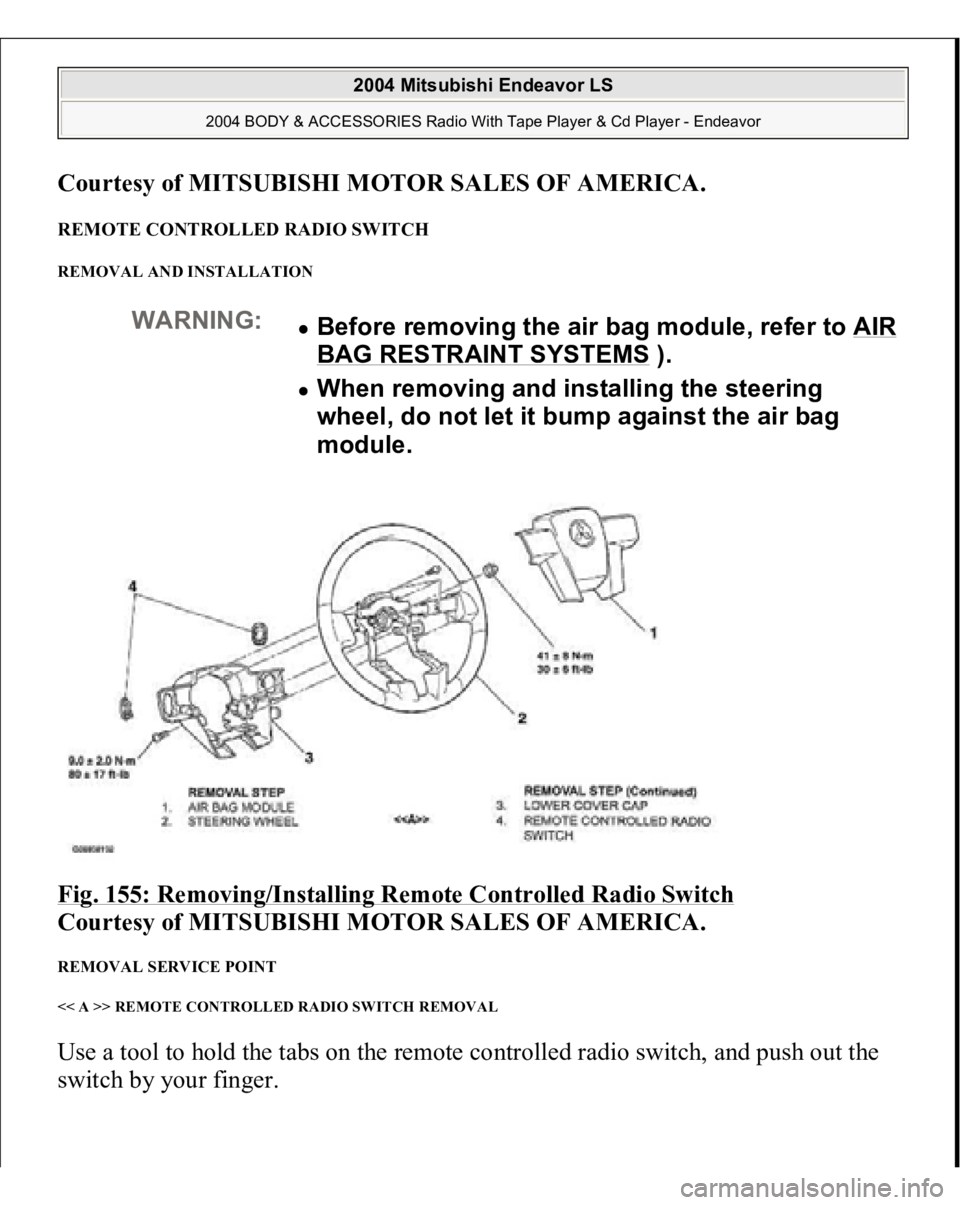

REMOTE CONTROLLED RADIO SWITCH REMOVAL AND INSTALLATION Fig. 155: Removing/Installing Remote Controlled Radio Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A >> REMOTE CONTROLLED RADIO SWITCH REMOVAL Use a tool to hold the tabs on the remote controlled radio switch, and push out the
switch b
y your fin
ger.
WARNING:
Before removing the air bag module, refer to AIR BAG RESTRAINT SYSTEMS
).
When removing and installing the steering
wheel, do not let it bump against the air bag
module.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

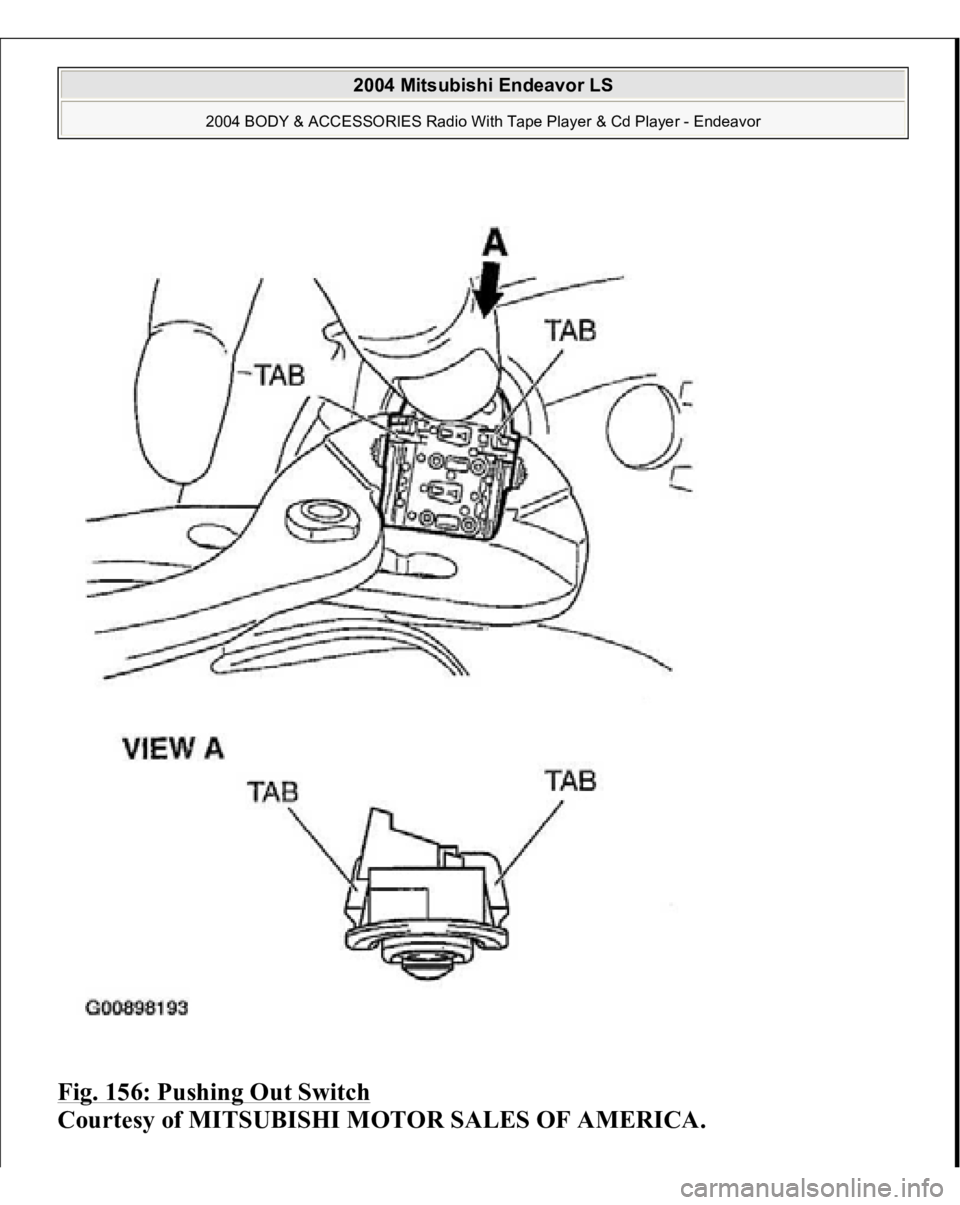

Fig. 156: Pushing Out Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

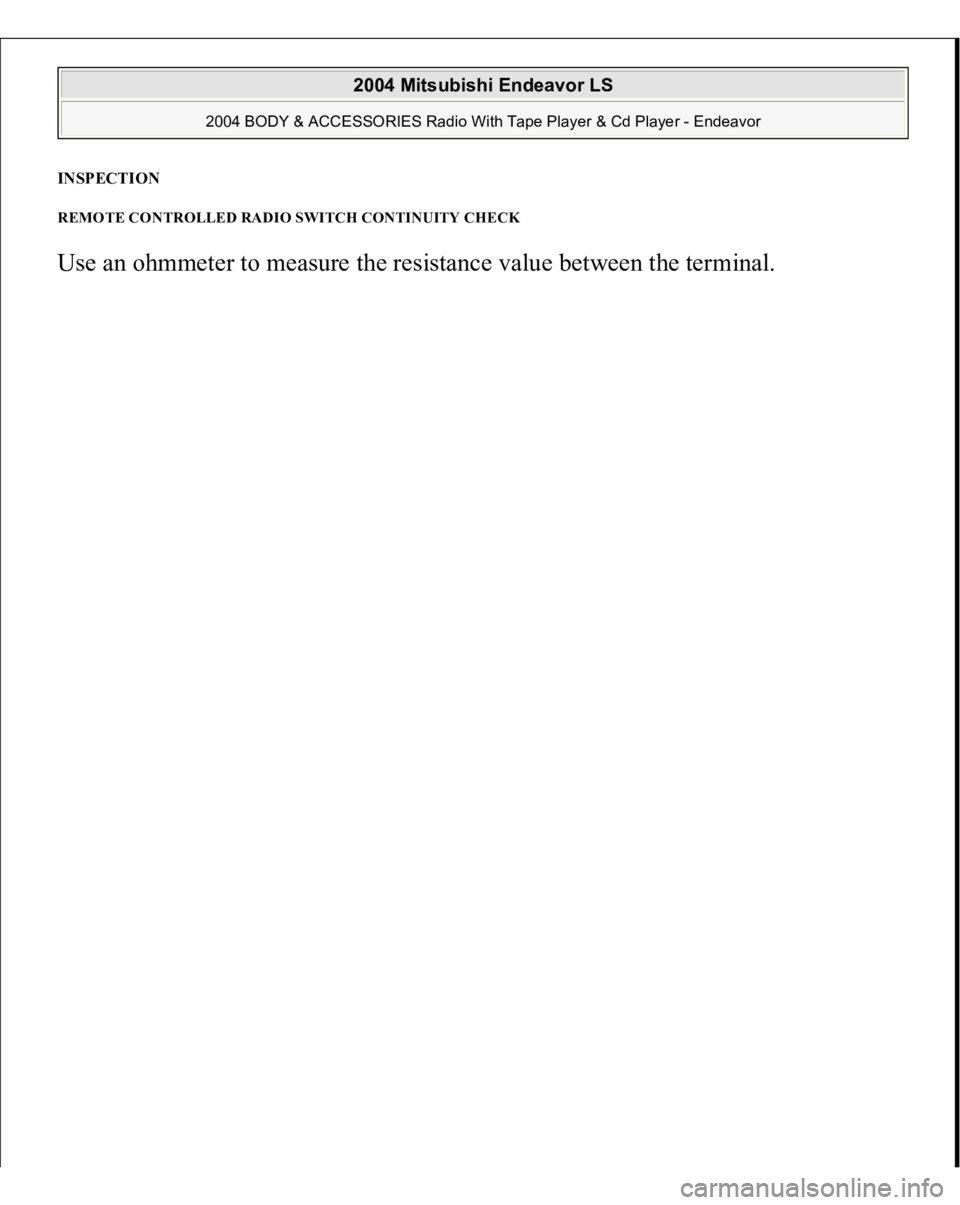

INSPECTION REMOTE CONTROLLED RADIO SWITCH CONTINUITY CHECK Use an ohmmeter to measure the resistance value be
tween the terminal.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

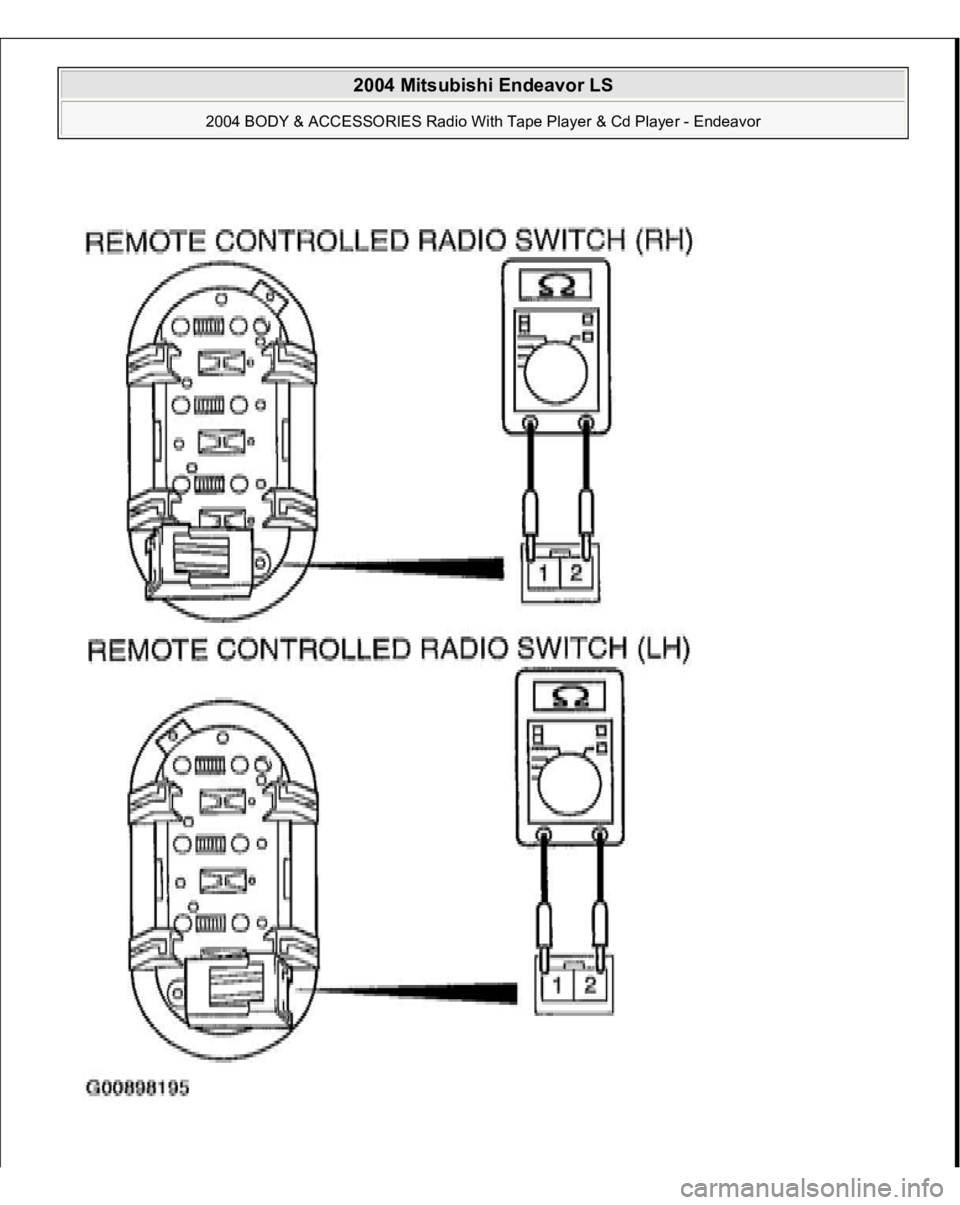

Fig. 157: Measuring Resistance Value Between Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 158: Identifying Switch Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPEAKER REMOVAL AND INSTALLATION Instrument Panel
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

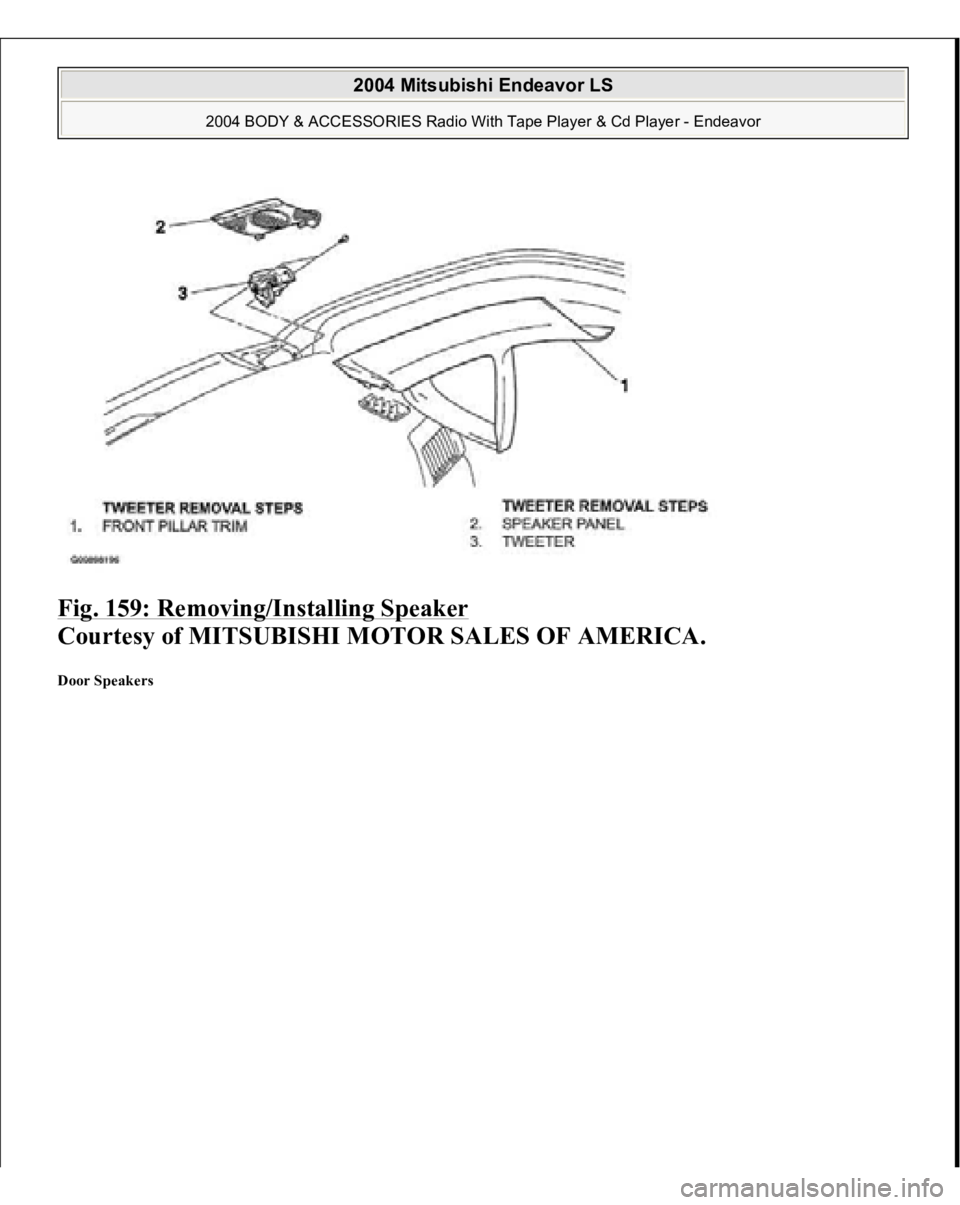

Fig. 159: Removing/Installing Speaker

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Door Speakers
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

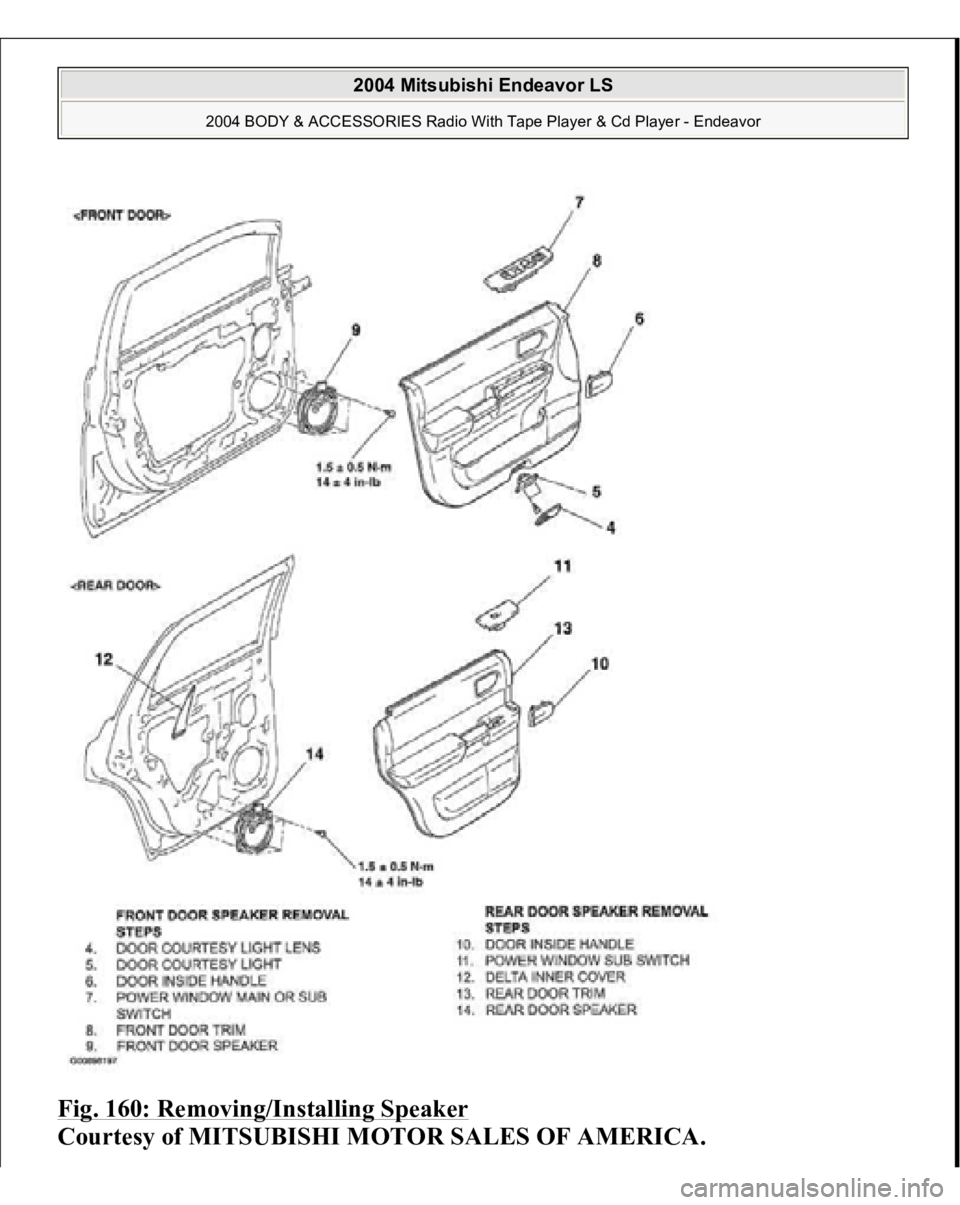

Fig. 160: Removing/Installing Speaker

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Quarter Trim Pane
l

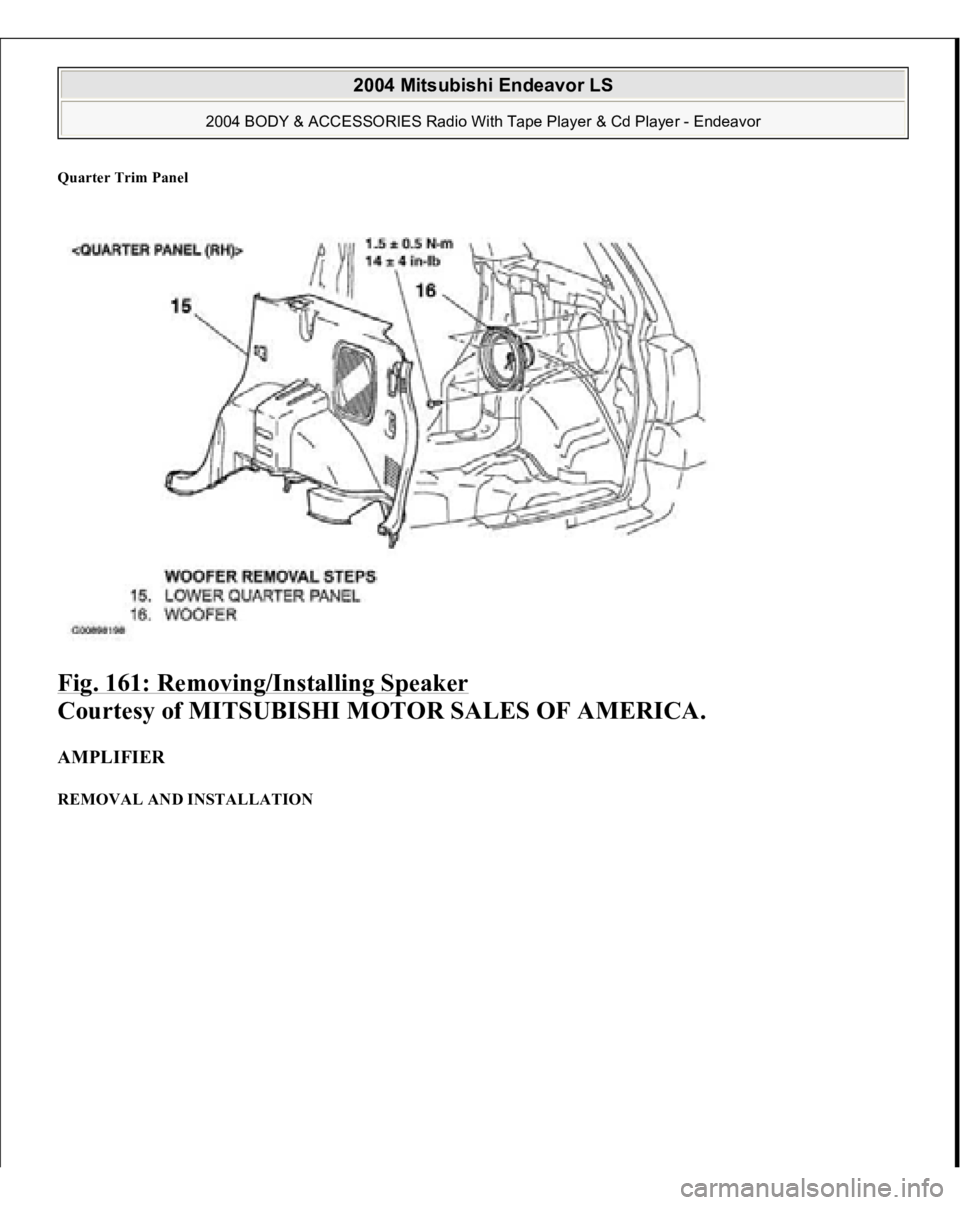

Fig. 161: Removing/Installing Speaker

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
AMPLIFIER REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

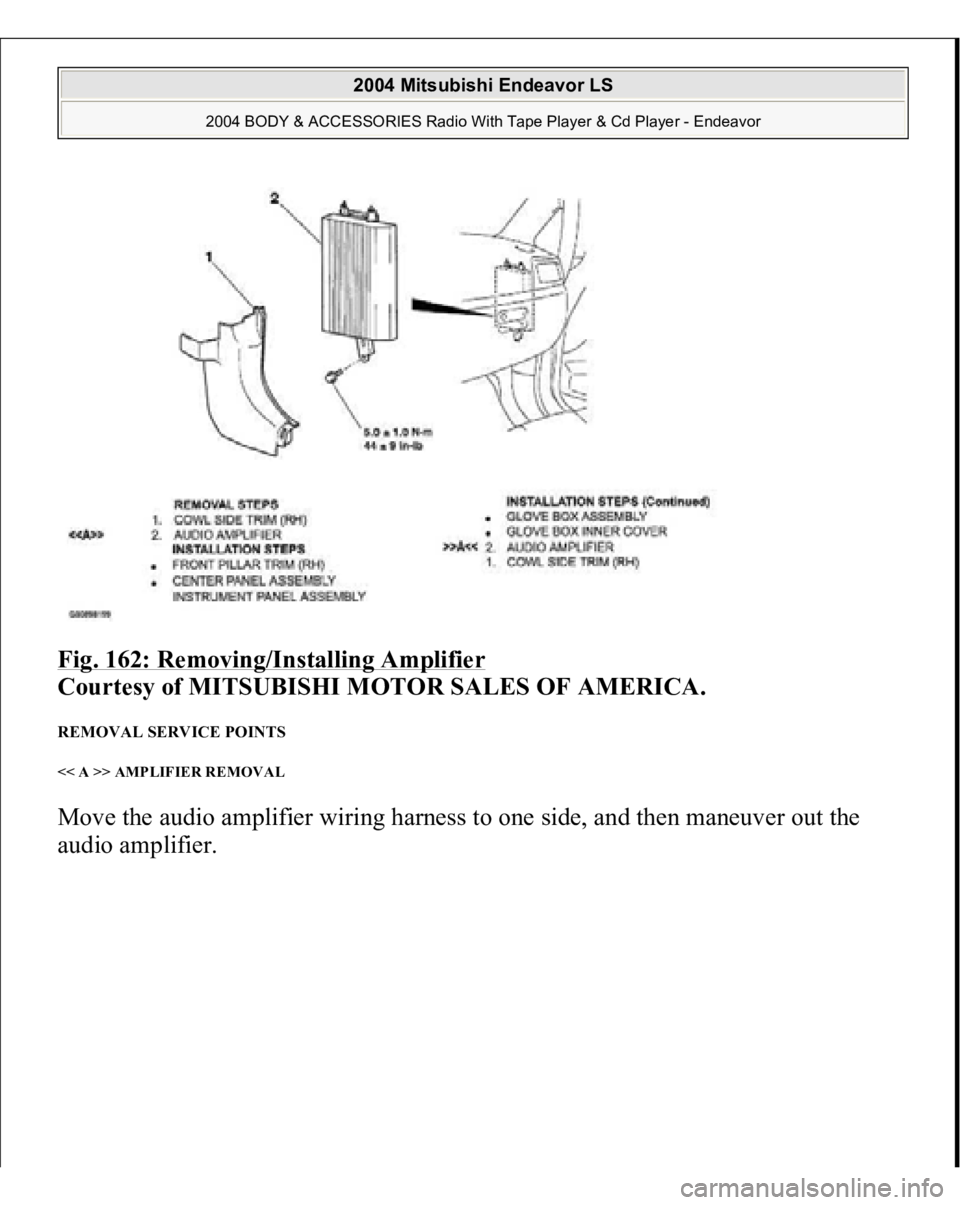

Fig. 162: Removing/Installing Amplifier

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS << A >> AMPLIFIER REMOVAL Move the audio amplifier wiring harness to one side, and then maneuver out the
audio amplifier.
