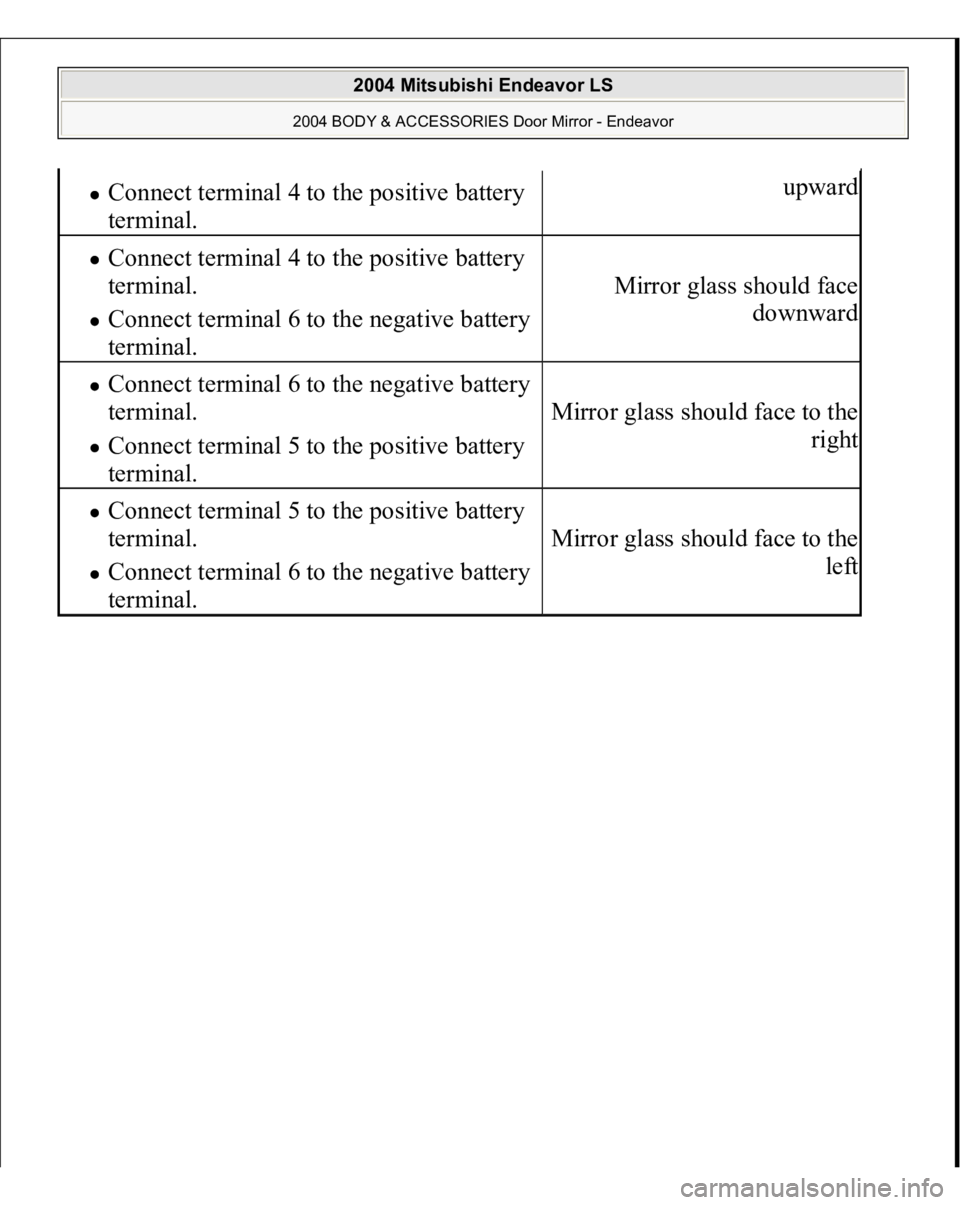

Connect terminal 4 to the positive battery
terminal.
upward
Connect terminal 4 to the positive battery
terminal. Connect terminal 6 to the negative battery
terminal.
Mirror glass should face
downward
Connect terminal 6 to the negative battery
terminal. Connect terminal 5 to the positive battery
terminal.
Mirror glass should face to the
right
Connect terminal 5 to the positive battery
terminal. Connect terminal 6 to the negative battery
terminal.
Mirror glass should face to the
left

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

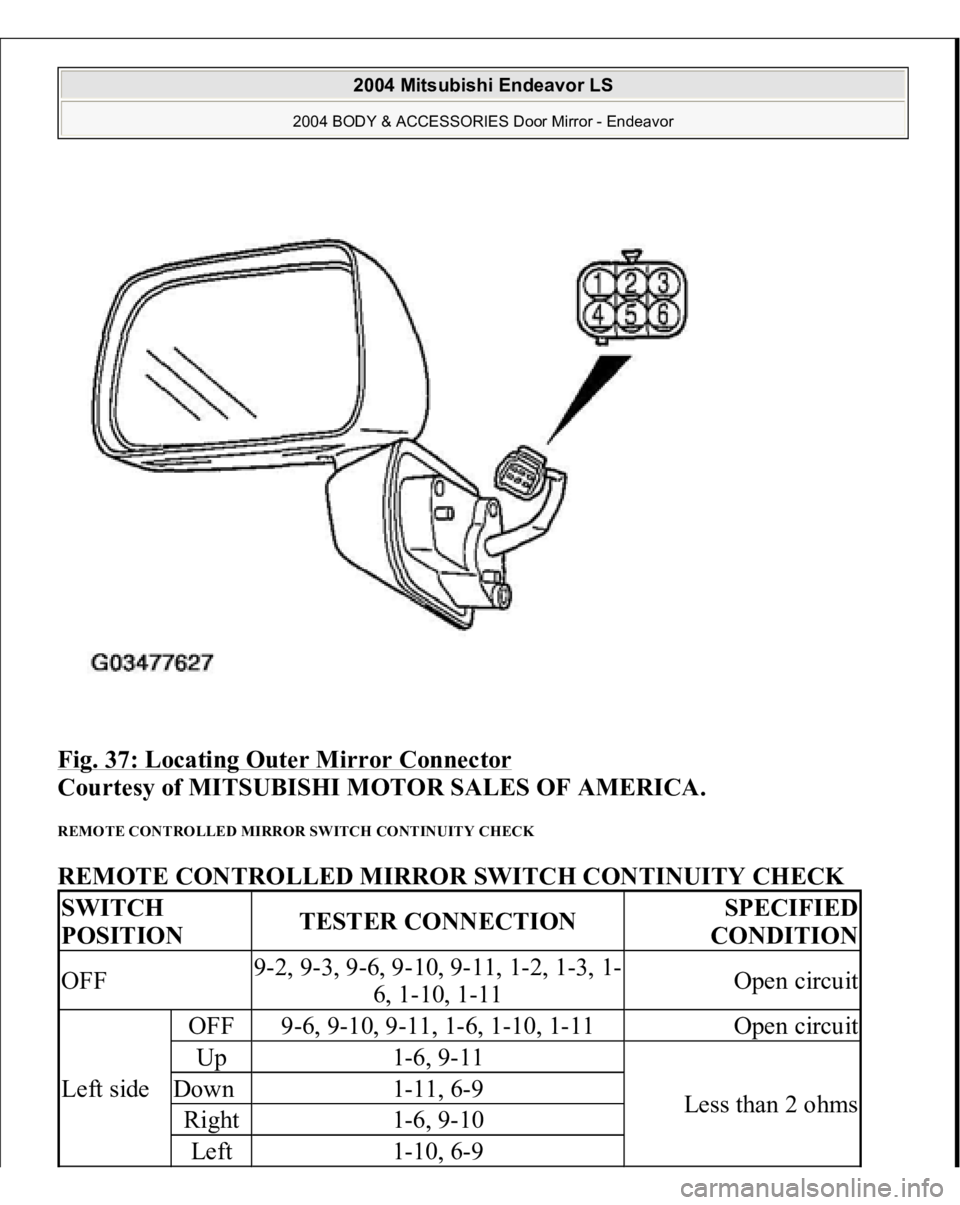

Fig. 37: Locating Outer Mirror Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOTE CONTROLLED MIRROR SWITCH CONTINUITY CHECK REMOTE CONTROLLED MIRROR SWITCH CONTINUITY CHECK SWITCH
POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
OFF
9-2, 9-3, 9-6, 9-10, 9-11, 1-2, 1-3, 1-
6, 1-10, 1-11
Open circuit
Left side
OFF
9-6, 9-10, 9-11, 1-6, 1-10, 1-11
Open circuit
Up
1-6, 9-11
Less than 2 ohms
Down
1-11, 6-9
Right
1-6, 9-10
Left
1-10, 6-9

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

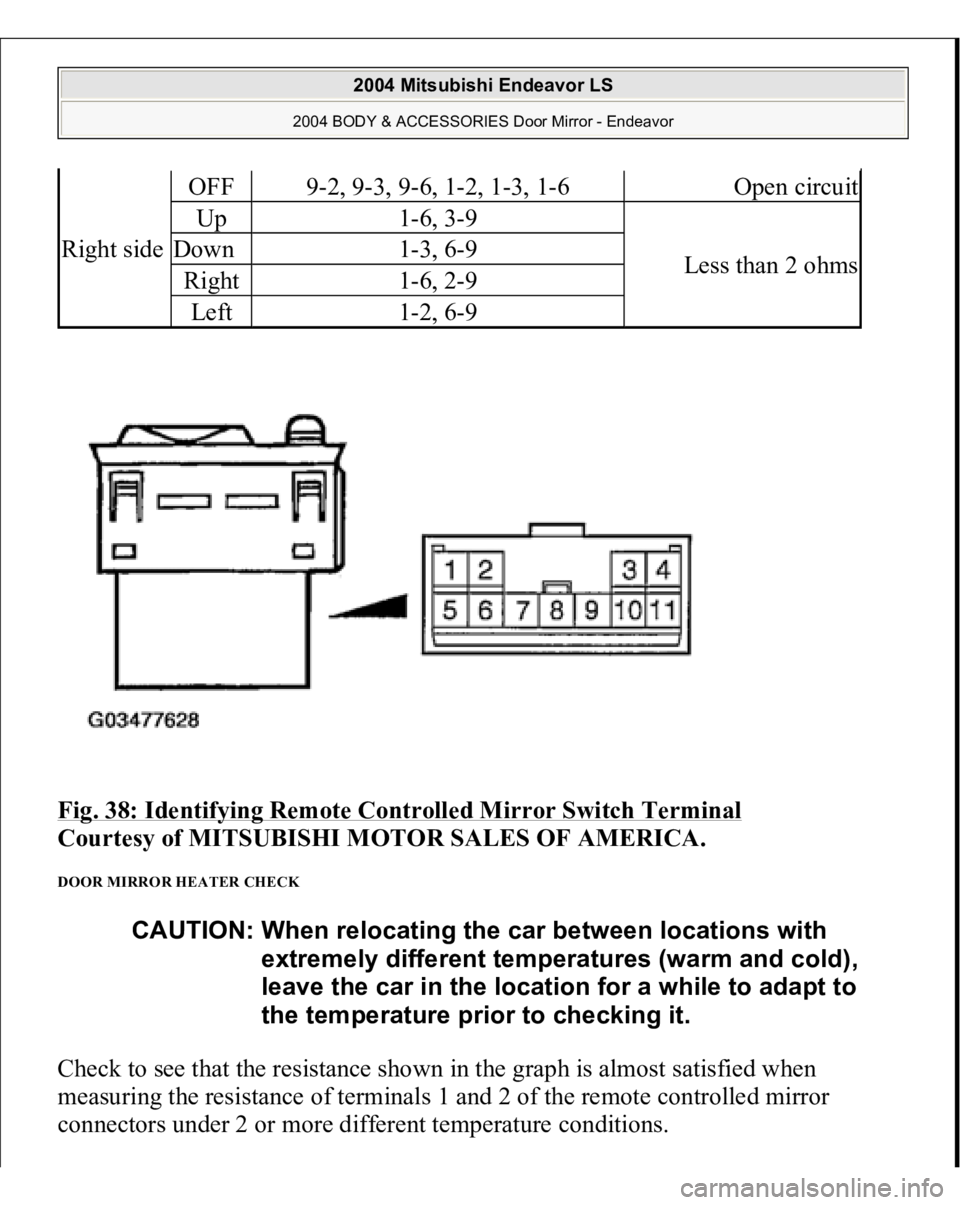

Fig. 38: Identifying Remote Controlled Mirror Switch Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DOOR MIRROR HEATER CHECK Check to see that the resistance shown in the graph is almost satisfied when
measuring the resistance of terminals 1 and 2 of the remote controlled mirror
connectors under 2 or more different temperature conditions.Right side
OFF
9-2, 9-3, 9-6, 1-2, 1-3, 1-6
Open circuit
Up
1-6, 3-9
Less than 2 ohms
Down
1-3, 6-9
Right
1-6, 2-9
Left
1-2, 6-9
CAUTION: When relocating the car between locations with
extremely different temperatures (warm and cold),
leave the car in the location for a while to adapt to
the temperature prior to checking it.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

Fig. 39: Identifying Connector E
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor

2004 BRAKES
Parking Brakes - Endeavor
GENERAL DESCRIPTION The parking brakes are a mechanical rear wheel brake design. The foot pedal is
depressed to lock and release the parking brake for easier operation. The pedal
surface is labeled with "Push," "ON," and "OFF," and users can easily understand
the pedal release mechanism. CONSTRUCTION DIAGRA
M

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor


2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

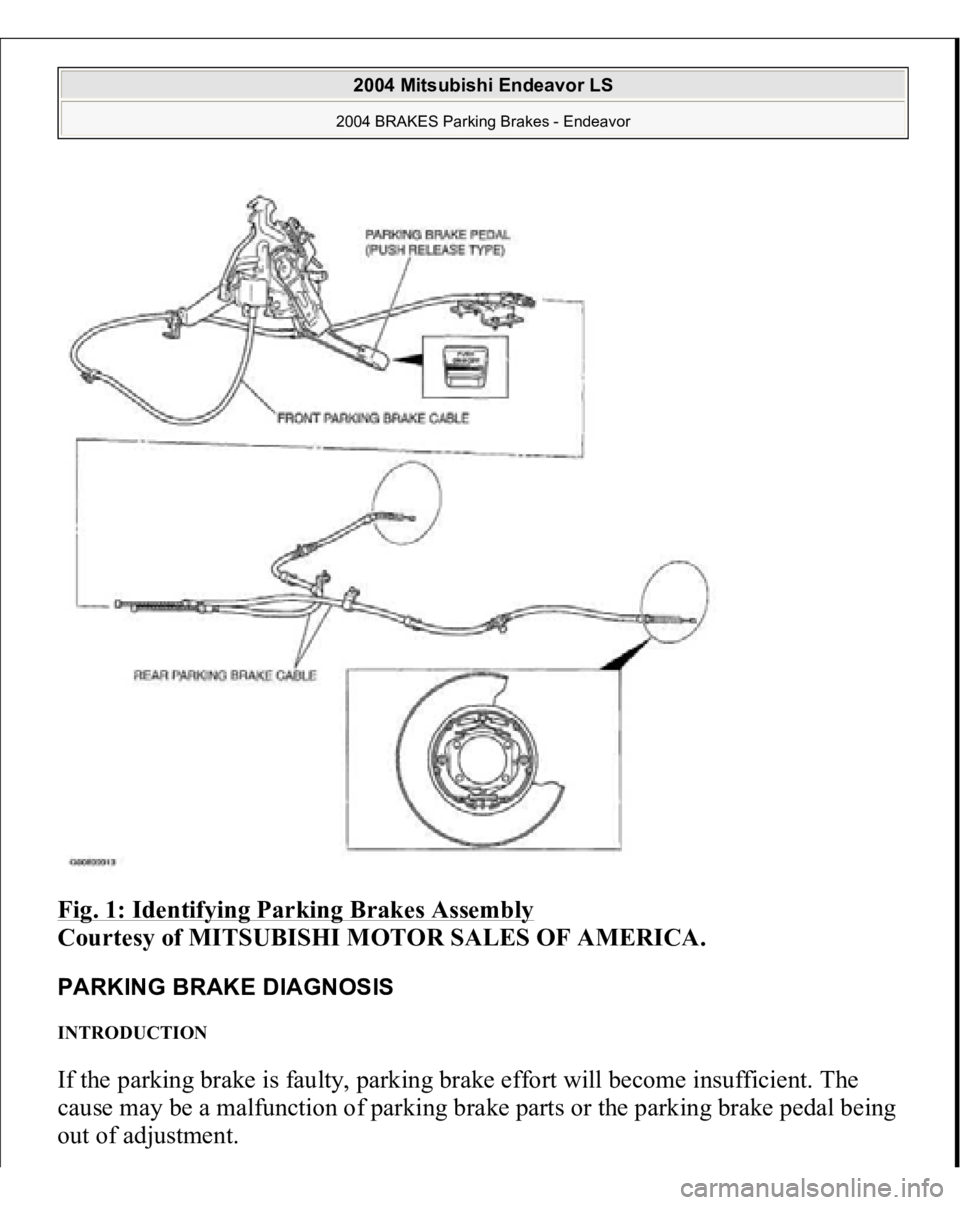

Fig. 1: Identifying Parking Brakes Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
PARKING BRAKE DIAGNOSIS INTRODUCTION If the parking brake is faulty, parking brake effort will become insufficient. The
cause may be a malfunction of parking brake parts or the parking brake pedal being
out of ad
justment.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

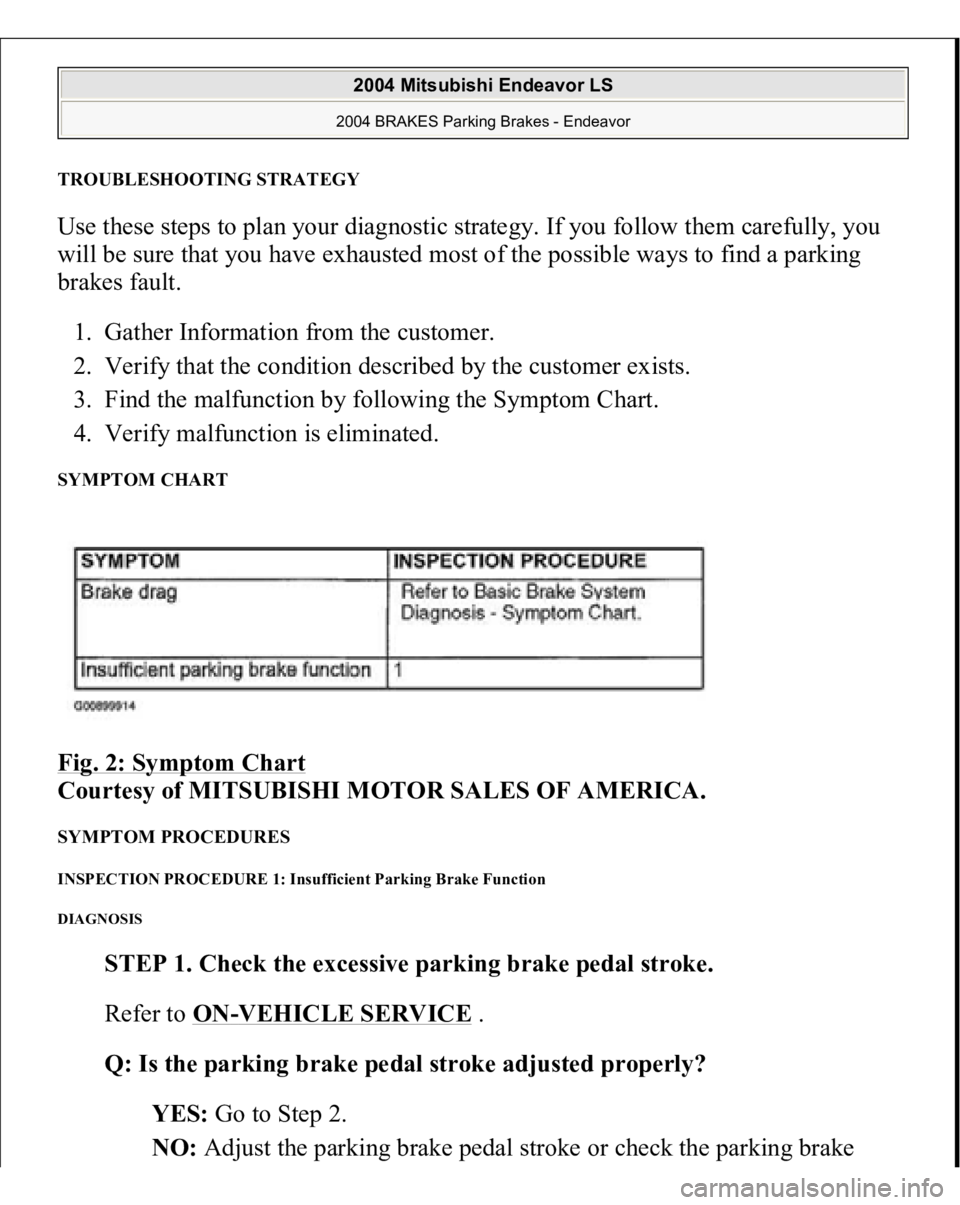

TROUBLESHOOTING STRATEG
Y
Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will be sure that you have exhausted most of the possible ways to find a parking
brakes fault.
1. Gather Information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the Symptom Chart.
4. Verify malfunction is eliminated. SYMPTOM CHART Fig. 2: Symptom Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: Insufficient Parking Brake Function DIAGNOSIS
STEP 1. Check the excessive parking brake pedal stroke.
Refer to ON
-VEHICLE SERVICE
.
Q: Is the parking brake pedal stroke adjusted properly?
YES: Go to Step 2.
NO: Ad
just the
parkin
g brake
pedal stroke or check the
parkin
g brake

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

cable routing. Then go to Step 5 .

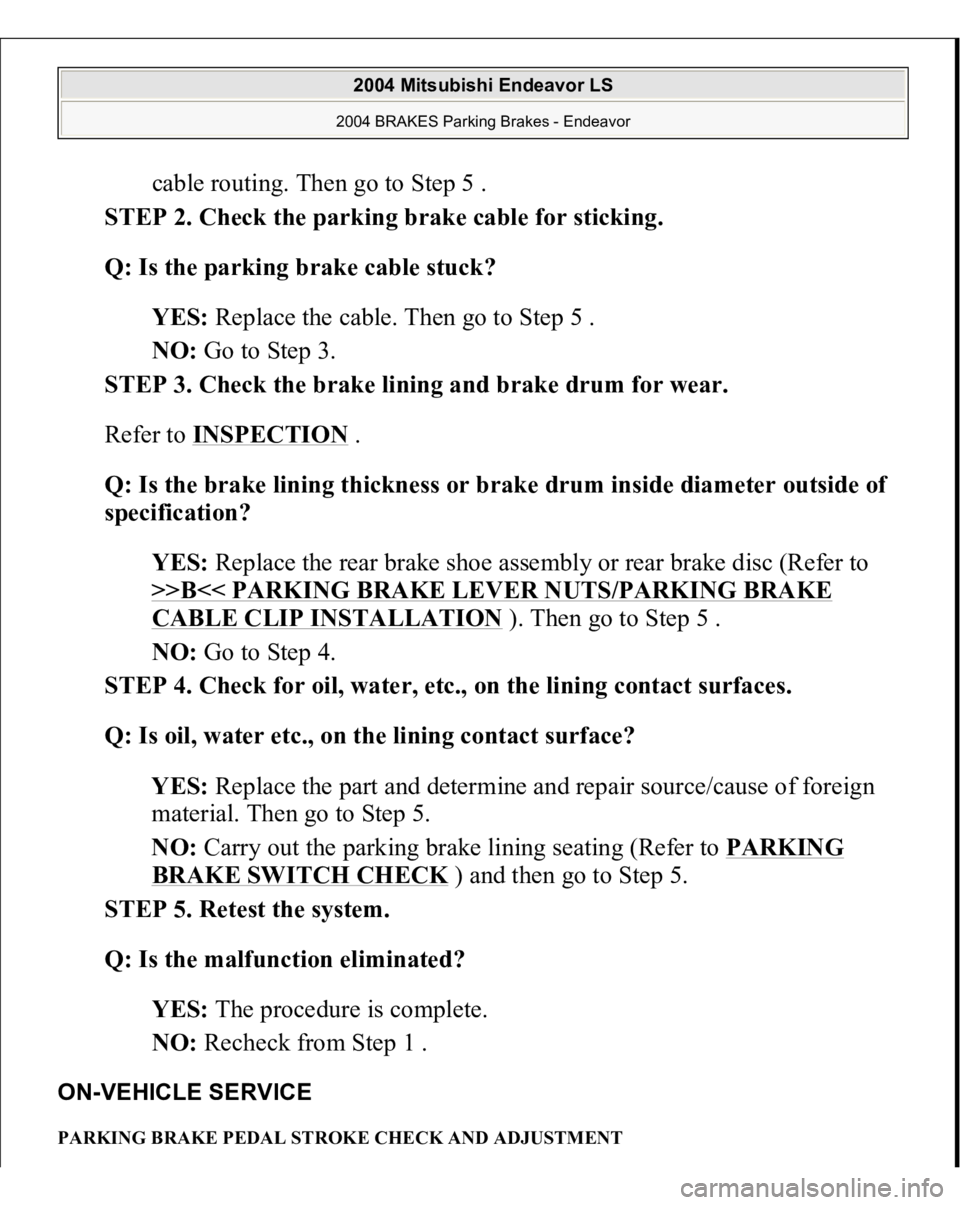

STEP 2. Check the parking brake cable for sticking.
Q: Is the parking brake cable stuck?
YES: Replace the cable. Then go to Step 5 .
NO: Go to Step 3.
STEP 3. Check the brake lining and brake drum for wear.
Refer to INSPECTION
.
Q: Is the brake lining thickness or brake drum inside diameter outside of
specification?
YES: Replace the rear brake shoe assembly or rear brake disc (Refer to
>>B<< PARKING BRAKE LEVER NUTS/PARKING BRAKE
CABLE CLIP INSTALLATION
). Then go to Step 5 .
NO: Go to Step 4.
STEP 4. Check for oil, water, etc., on the lining contact surfaces.
Q: Is oil, water etc., on the lining contact surface?
YES: Replace the part and determine and repair source/cause of foreign
material. Then go to Step 5.
NO: Carry out the parking brake lining seating (Refer to PARKING
BRAKE SWITCH CHECK
) and then go to Step 5.
STEP 5. Retest the system.
Q: Is the malfunction eliminated?
YES: The procedure is complete.
NO: Recheck from Step 1 .
ON-VEHICLE SERVICE PARKING BRAKE PEDAL STROKE CHECK AND ADJUSTMENT
2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

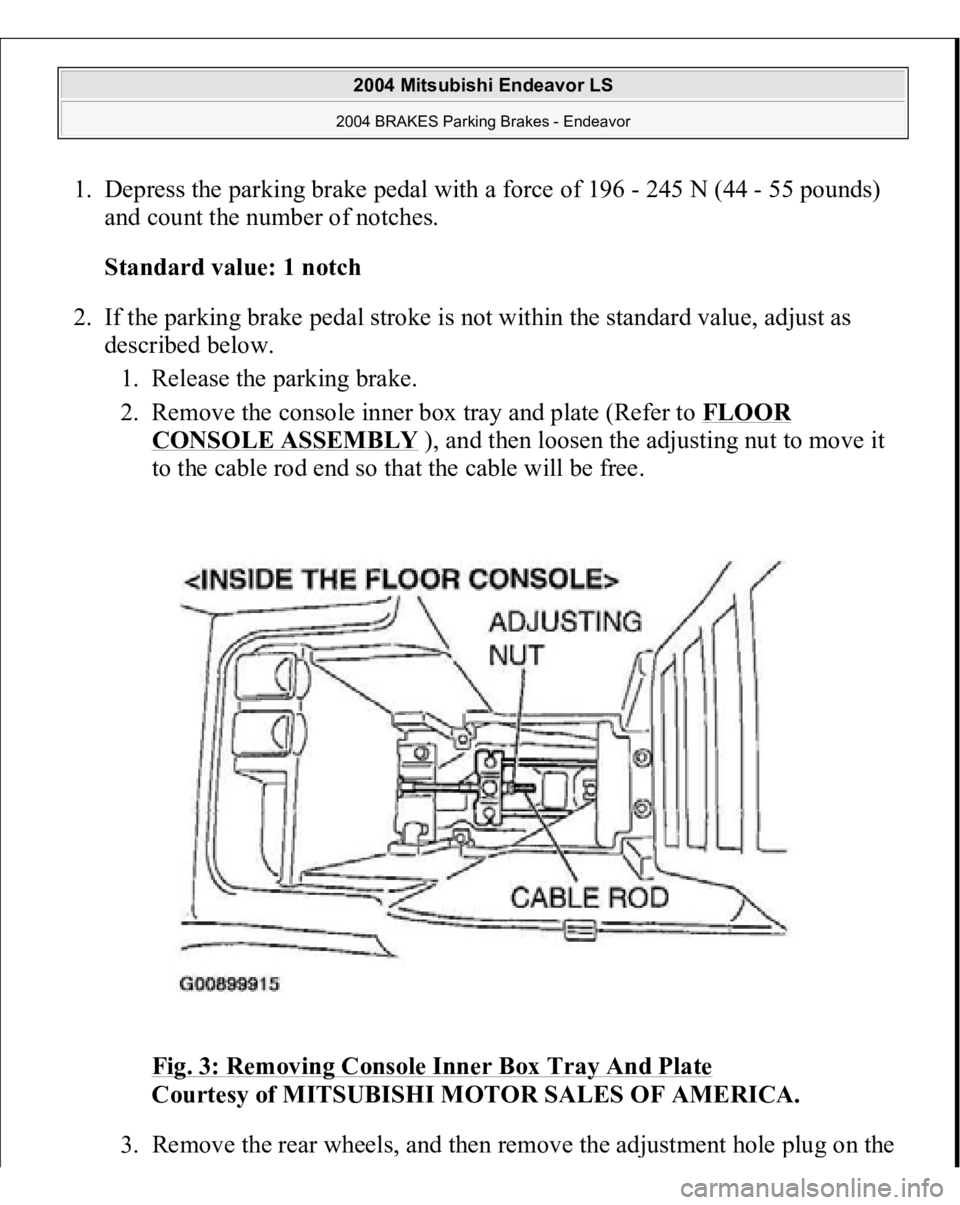

1. Depress the parking brake pedal with a force of 196 - 245 N (44 - 55 pounds)
and count the number of notches.
Standard value: 1 notch
2. If the parking brake pedal stroke is not within the standard value, adjust as
described below.
1. Release the parking brake.
2. Remove the console inner box tray and plate (Refer to FLOOR
CONSOLE ASSEMBLY
), and then loosen the adjusting nut to move it
to the cable rod end so that the cable will be free.
Fig. 3: Removing Console Inner Box Tray And Plate

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Remove the rear wheels, and then remove the ad
justment hole
plug on the

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor
