MITSUBISHI LANCER 2005 Workshop Manual

SPARE CONNECTOR (FOR AUDIO)
CIRCUIT DIAGRAMS90-133
SPARE CONNECTOR (FOR AUDIO)
M1901019000158
·FRONT
FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER ·HEADLAMP
·WINDSHIELD
WIPER AND
WASHER ·REAR FOG LAMP ·HEADLAMP
LEVELLING
SYSTEM
·HEADLAMP
WASHER
ROOF ANTENNA
ANTENNA
AMPLIFIER
ANTENNA
FEEDER
CABLE
SPARE CONNECTOR
(FOR AUDIO)
REAR SPEAKER
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet
NOTE
SEDAN
WAGON :
:
:
(LH) (RH) IGNITION
SWITCH (ACC) BATTERYFRONT-ECU
TAIL LAMP
RELAY
RELAY
BOX
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
(LH) (RH)
FRONT DOOR SPEAKERRHEOSTAT

CLOCK
CIRCUIT DIAGRAMS90-134
CLOCK
M1901007700600
IGNITION
SWITCH (ACC)
RELAY
BOX BATTERY
·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP LEVELLING SYSTEM
·HEADLAMP WASHER
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD WIPER
AND WASHER
HEADLAMP
CLOCK
NOTE: LHD
: RHD
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink
V : Violet

CIGARETTE LIGHTER AND ASHTRAY ILLUMINATION LAMP
CIRCUIT DIAGRAMS90-135
CIGARETTE LIGHTER AND
ASHTRAY ILLUMINATION LAMP
M1901007800715
IGNITION
SWITCH (ACC)FRONT-ECU
TAIL LAMP
RELAY
CIGARETTE
LIGHTERTAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
ASHTRAY
ILLUMINATION
LAMP


CIGARETTE LIGHTER
ILLUMINATION
LAMP
·METER AND GAUGE
NOTE
: LHD
: RHDRHEOSTAT
RELAY
BOX

ACCESSORY SOCKET
CIRCUIT DIAGRAMS90-136
ACCESSORY SOCKET
M1901019100111
BATTERYIGNITION
SWITCH (ACC)
RELAY
BOX
ACCESSORY
SOCKET
RELAY
ACCESSORY
SOCKET
NOTE
: LHD
: RHD

IMMOBILIZER SYSTEM
CIRCUIT DIAGRAMS90-137
IMMOBILIZER SYSTEM
M1901013601285
ENGINE CONTROL
SYSTEM
ENGINE
CONTROL
SYSTEM
DIAGNOSIS
CONNECTORBATTERY
RELAY
BOX
ENGINE
CONTROL
RELAY
ENGINE-ECU
ENGINE-
A/T-ECU
: M/T
: A/T
FRONT
SIDE1FUSIBLE
LINK
HIGH-FREQUENCY
CIRCUIT POWER
SOURCEIGNITION
KEY RING
ANTENNAIGNITION KEY
IMMOBILIZER-
ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet NOTE

IMMOBILIZER SYSTEM
CIRCUIT DIAGRAMS90-138
IMMOBILIZER SYSTEM
M1901013601296
HIGH-FREQUENCY
CIRCUIT POWER
SOURCEIGNITION
KEY RING
ANTENNAIGNITION KEY
IMMOBILIZER-
ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink V : Violet
ENGINE CONTROL
SYSTEM
·ENGINE
CONTROL
SYSTEM
·IGNITION
SYSTEM
FUSIBLE
LINK1
DIAGNOSIS
CONNECTORBATTERY
RELAY
BOX
ENGINE
CONTROL
RELAY
ENGINE-ECU
ENGINE-
A/T-ECU
NOTE: M/T
: A/T
FRONT
SIDE

ABS
CIRCUIT DIAGRAMS90-139
ABS
M1901019200088
COMBINATION
METER
IGNITION
SWITCH (IG2)
BATTERY
POWER
SOURCE FUSIBLE
LINK3
MOTOR
POWER
SOURCE SOLENOID
VALVE POWER
SOURCE ABS-ECU
STOP LAMP
STOP
LAMP
SWITCH IGNITION
SWITCH (IG1)
RELAY
BOX
SOLENOID VALVE
MOTOR
POWER
SOURCEMOTORHYDRAULIC UNIT
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet

ABS

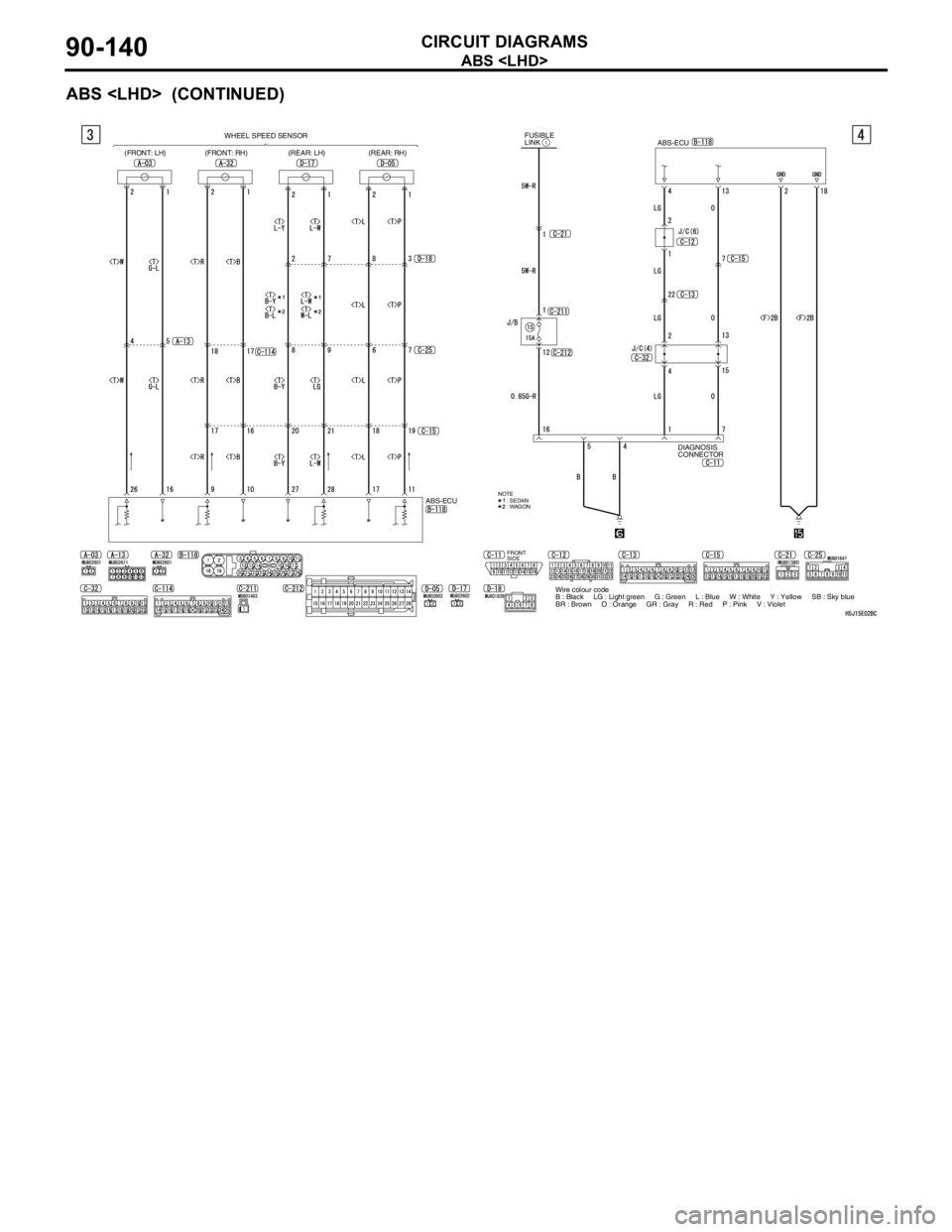

CIRCUIT DIAGRAMS90-140
ABS (CONTINUED)
1FUSIBLE
LINK
ABS-ECU
DIAGNOSIS
CONNECTOR
NOTE: SEDAN
: WAGON
FRONT
SIDE
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet WHEEL SPEED SENSOR
(FRONT: LH) (FRONT: RH) (REAR: LH) (REAR: RH)
ABS-ECU

ABS
CIRCUIT DIAGRAMS90-141
ABS
M1901019200099
IGNITION
SWITCH (IG2)
BATTERY
POWER
SOURCE FUSIBLE
LINK3
MOTOR
POWER
SOURCE SOLENOID
VALVE POWER
SOURCE ABS-ECUCOMBINATION
METER
STOP LAMP
STOP
LAMP
SWITCH IGNITION
SWITCH (IG1)
RELAY
BOX
SOLENOID VALVE
MOTOR
POWER
SOURCEMOTORHYDRAULIC UNIT
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet
NOTE
: TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER

ABS
CIRCUIT DIAGRAMS90-142
ABS (CONTINUED)
1FUSIBLE
LINK
ABS-ECU
DIAGNOSIS
CONNECTOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet WHEEL SPEED SENSOR
(FRONT: LH) (FRONT: RH) (REAR: LH) (REAR: RH)
ABS-ECU
FRONT
SIDE
