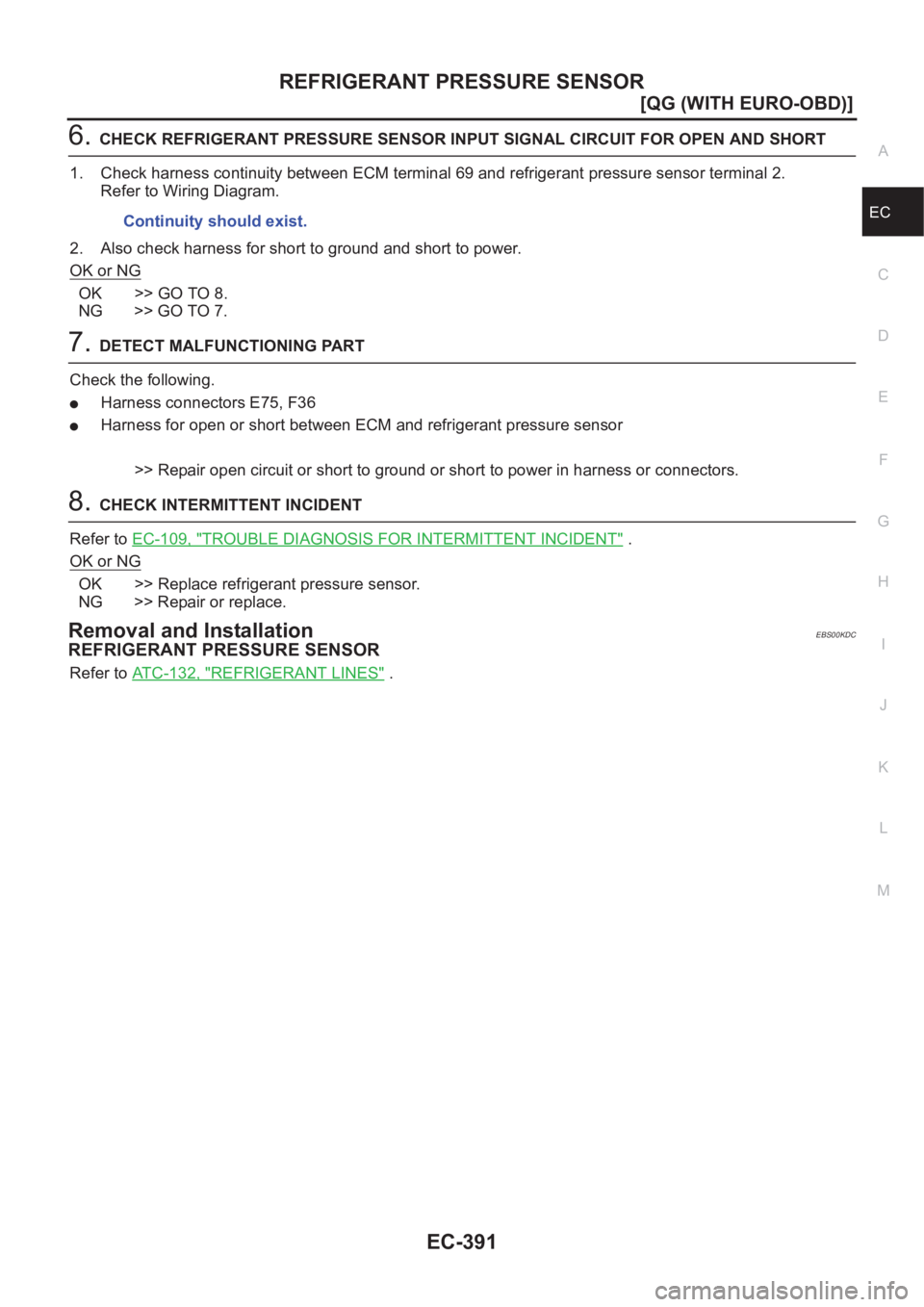

6.CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 69 and refrigerant pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E75, F36
●Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationEBS00KDC
REFRIGERANT PRESSURE SENSOR
Refer to ATC-132, "REFRIGERANT LINES" . Continuity should exist.

EC-392
[QG (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
PFP:25350
DescriptionEBS00KDD
The electrical load signals except headlamp switch signal are transferred through the CAN communication
line.
CONSULT-II Reference Value in Data Monitor ModeEBS00KDE
Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL
●Ignition switch: ONRear window defogger switch is ON and/or lighting
switch is 2nd.ON
Rear window defogger switch is OFF and lighting
switch is OFF.OFF

ELECTRICAL LOAD SIGNAL
EC-393
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

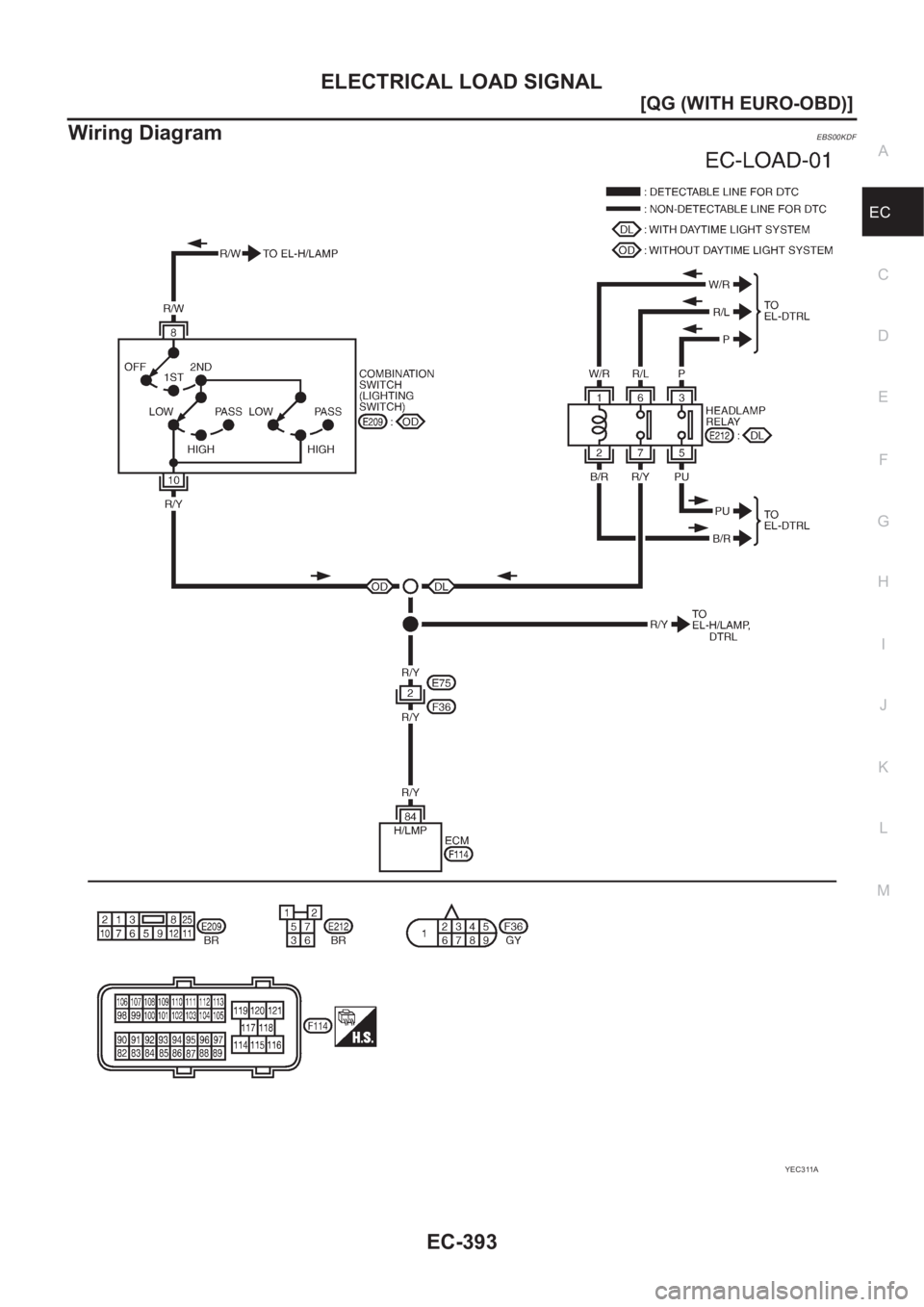

Wiring DiagramEBS00KDF
YEC311A

EC-394
[QG (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00KDG
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
With CONSULT-II
With GST
1. Turn ignition switch “ON”.
2. Connect CONSULT-II or GST and select “DATA MONITOR” mode.
3. Select “LOAD SIGNAL” and check indication under the following
conditions.
OK or NG
OK (With CONSULT-II)>>GO TO 2.
OK (Without CONSULT-II)>>GO TO 3.
NG >> GO TO 4.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
With CONSULT-II
Check “LOAD SIGNAL” indication under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
84 R/YElectrical load signal
(Headlamp signal)[Ignition switch “ON”]
●Lighting switch is “2ND” position.BATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]
●Lighting switch is “OFF”.Approximately 0V
Condition Indication
Rear window defogger switch “ON” ON
Rear window defogger switch “OFF” OFF
PBIB0103E
Condition Indication
Lighting switch “ON” at 2nd position ON
Lighting switch “OFF” OFF
PBIB0103E

ELECTRICAL LOAD SIGNAL
EC-395
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
Check voltage between ECM terminal 84 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
4.CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to EL-173.
>>INSPECTION END
5.CHECK HEADLAMP FUNCTION
1. Turn lighting switch “ON” at 2nd position.
2. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 6.
NG >> Refer to EL-42 or EL-46 .
6.CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
WITHOUT DAYTIME LIGHT SYSTEM
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connector.
4. Check harness continuity between ECM terminal 84 and lighting switch terminal 10.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
WITH DAYTIME LIGHT SYSTEM
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Disconnect daytime light relay.
4. Check harness continuity between ECM terminal 84 and daytime light relay terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
Condition Voltage
Lighting switch “ON” at 2nd position Battery voltage
Lighting switch “OFF” Approximately 0V
MBIB0158E
Continuity should exist.
Continuity should exist.

EC-396
[QG (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

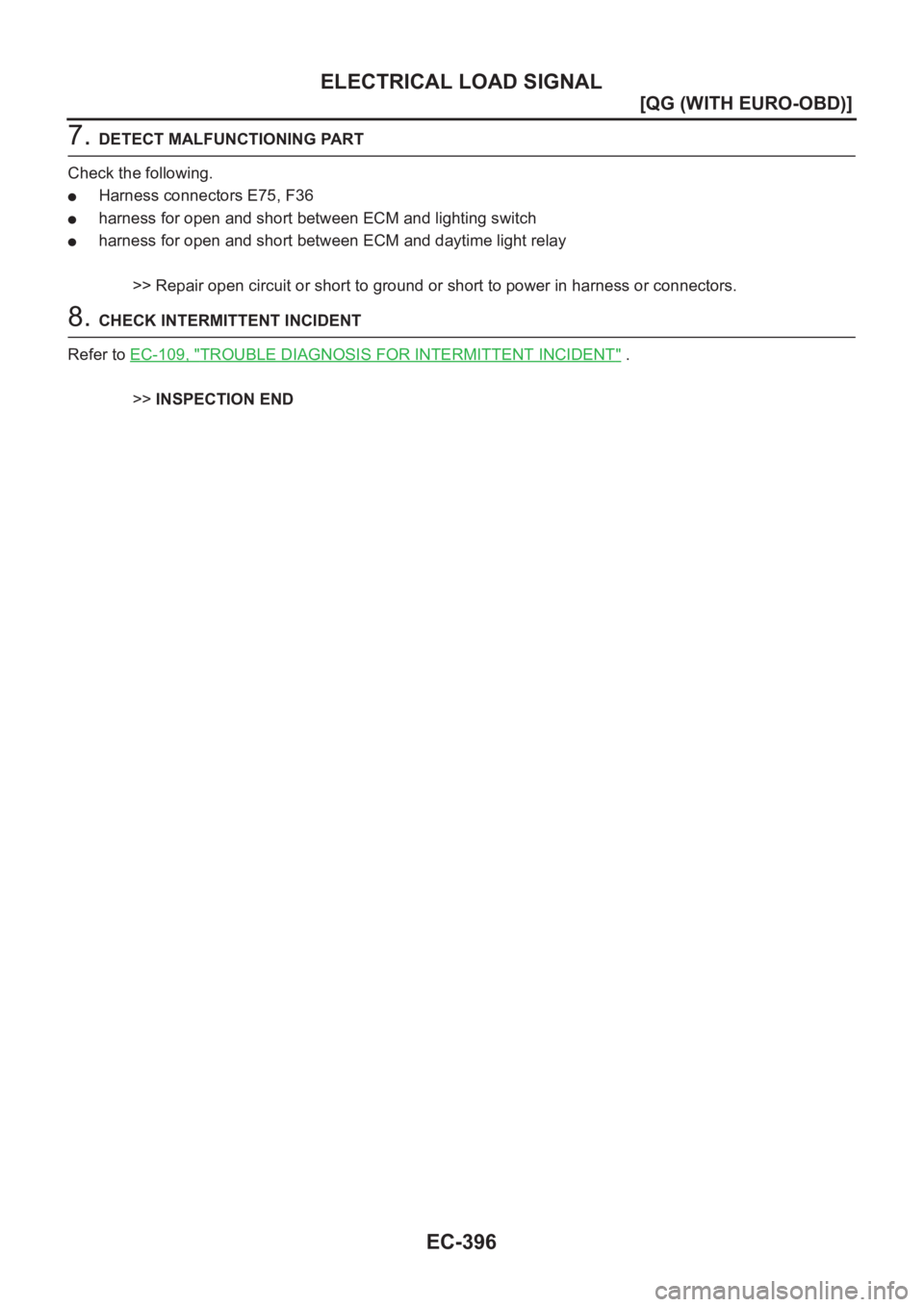

7. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E75, F36
●harness for open and short between ECM and lighting switch
●harness for open and short between ECM and daytime light relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

MI & DATA LINK CONNECTORS
EC-397
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
MI & DATA LINK CONNECTORSPFP:24814

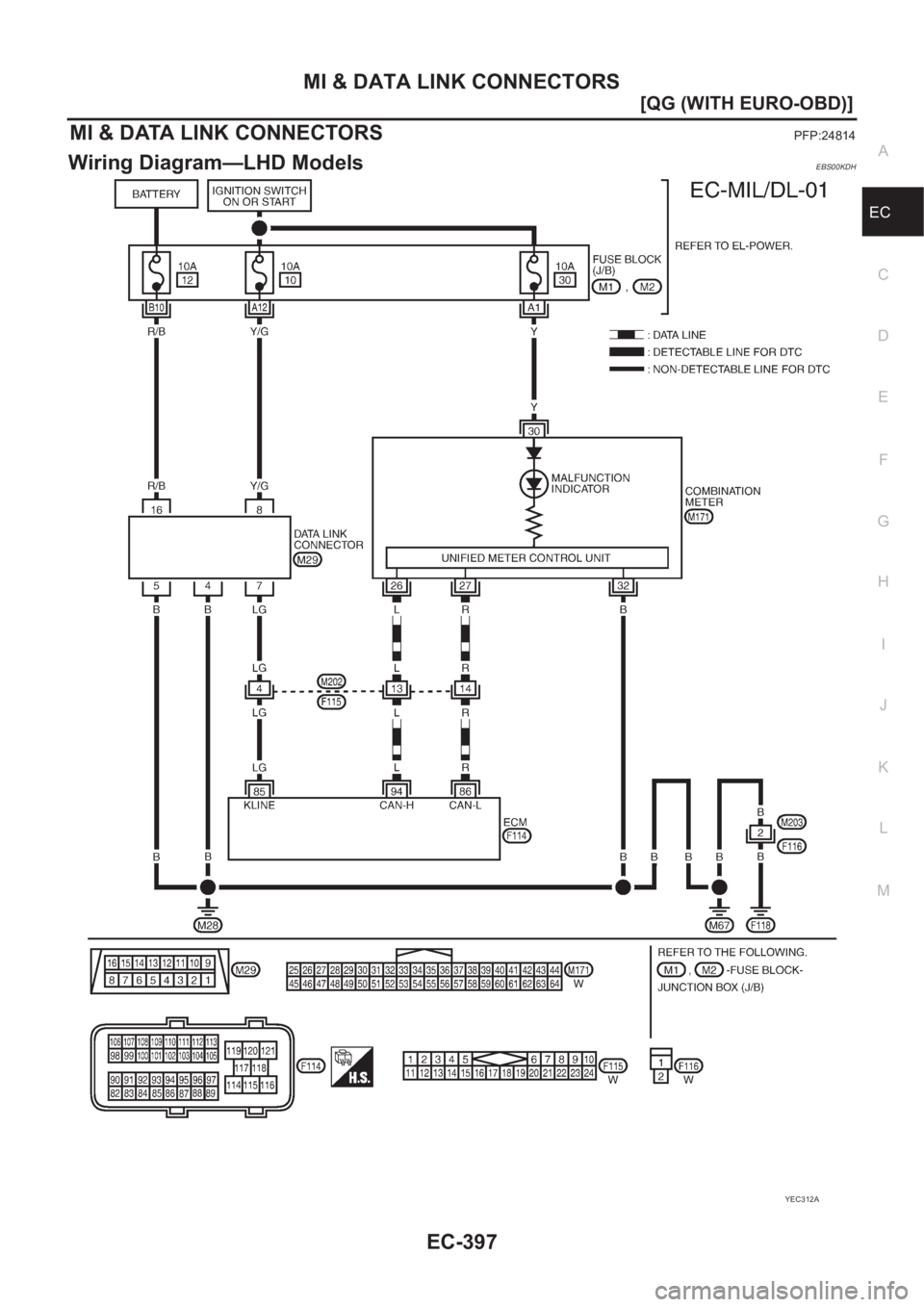

Wiring Diagram—LHD ModelsEBS00KDH
YEC312A

EC-398
[QG (WITH EURO-OBD)]
MI & DATA LINK CONNECTORS

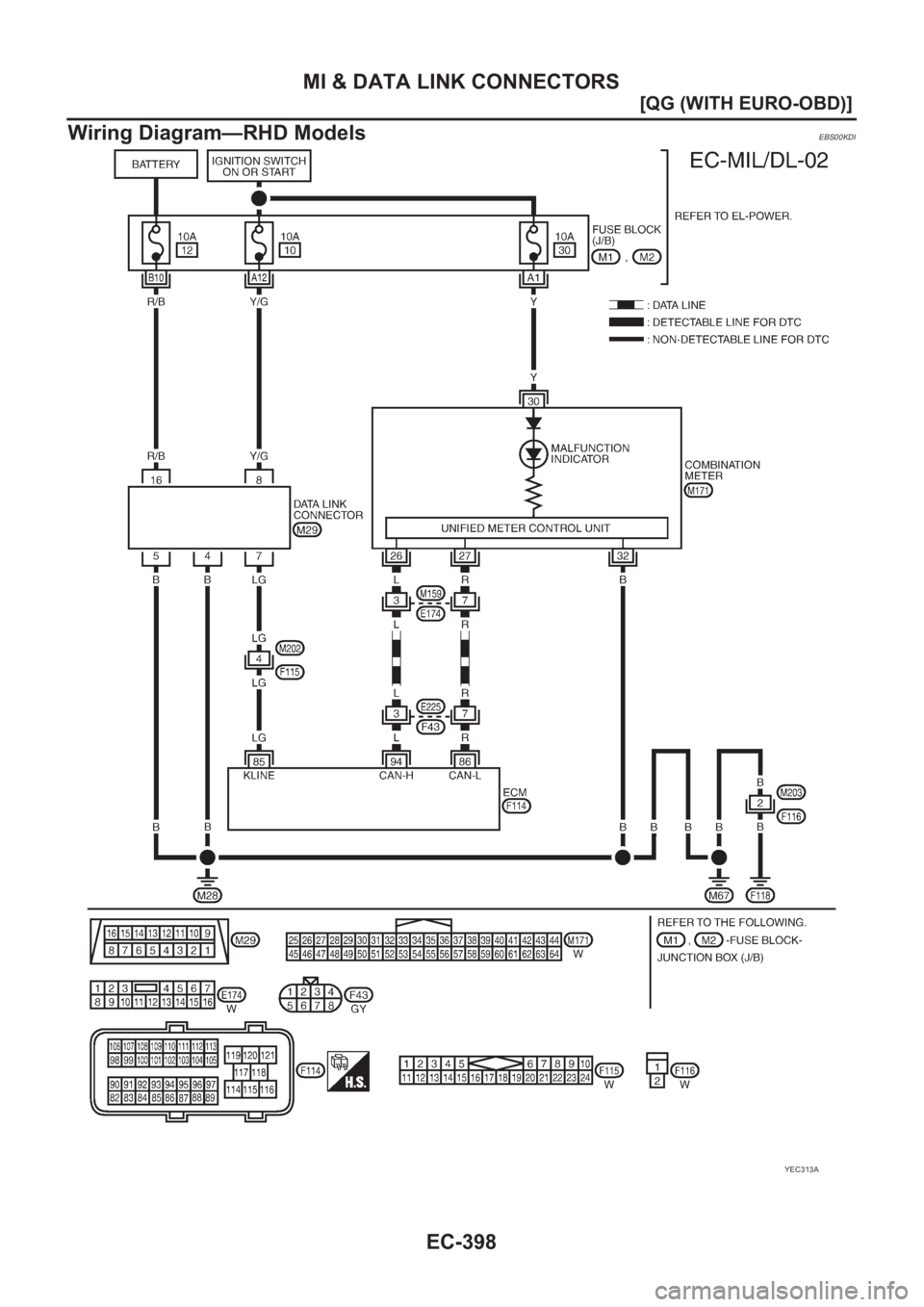

Wiring Diagram—RHD Models
EBS00KDI
YEC313A

EVAPORATIVE EMISSION SYSTEM
EC-399
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS00KDJ

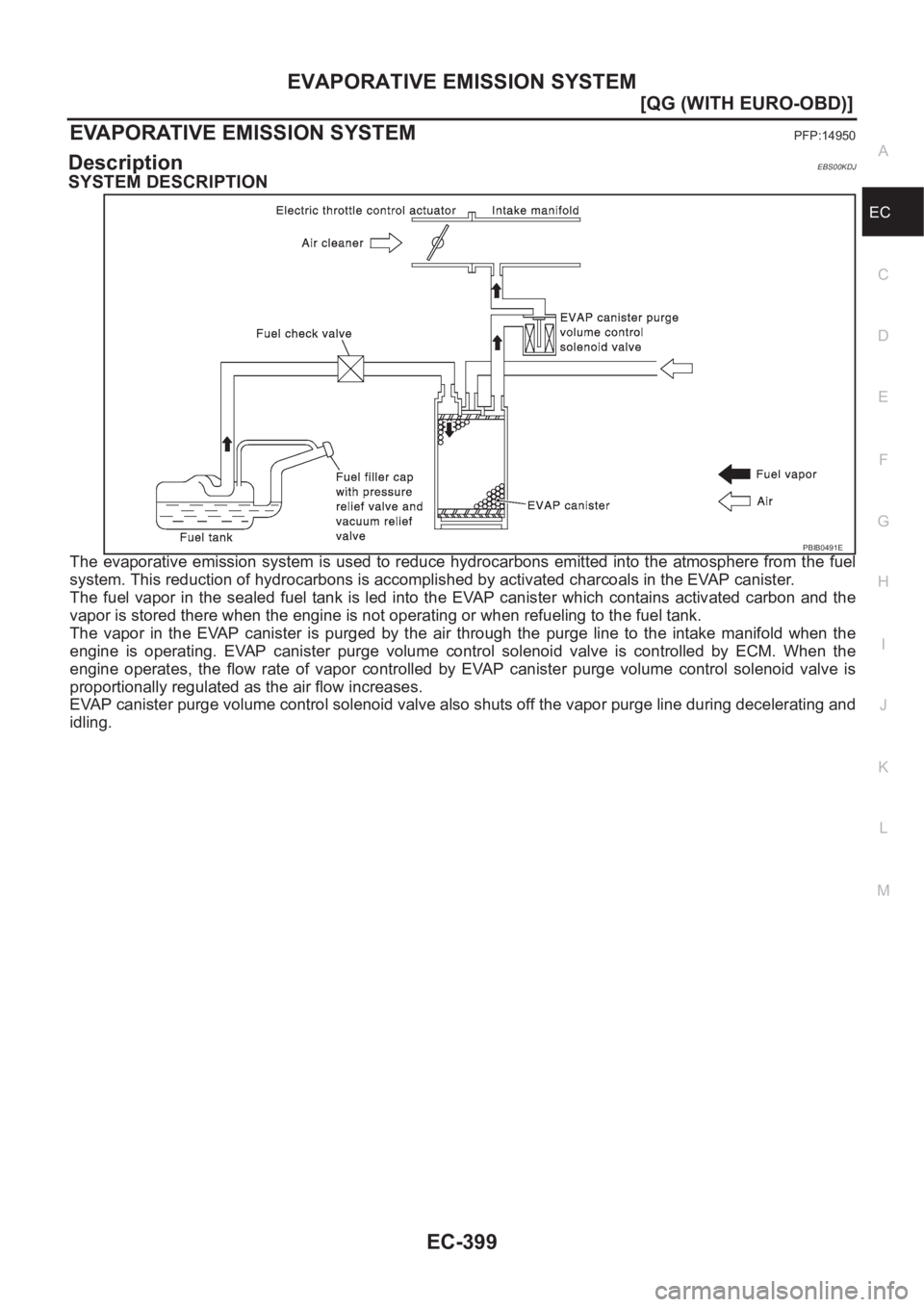

SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB0491E

EC-400
[QG (WITH EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

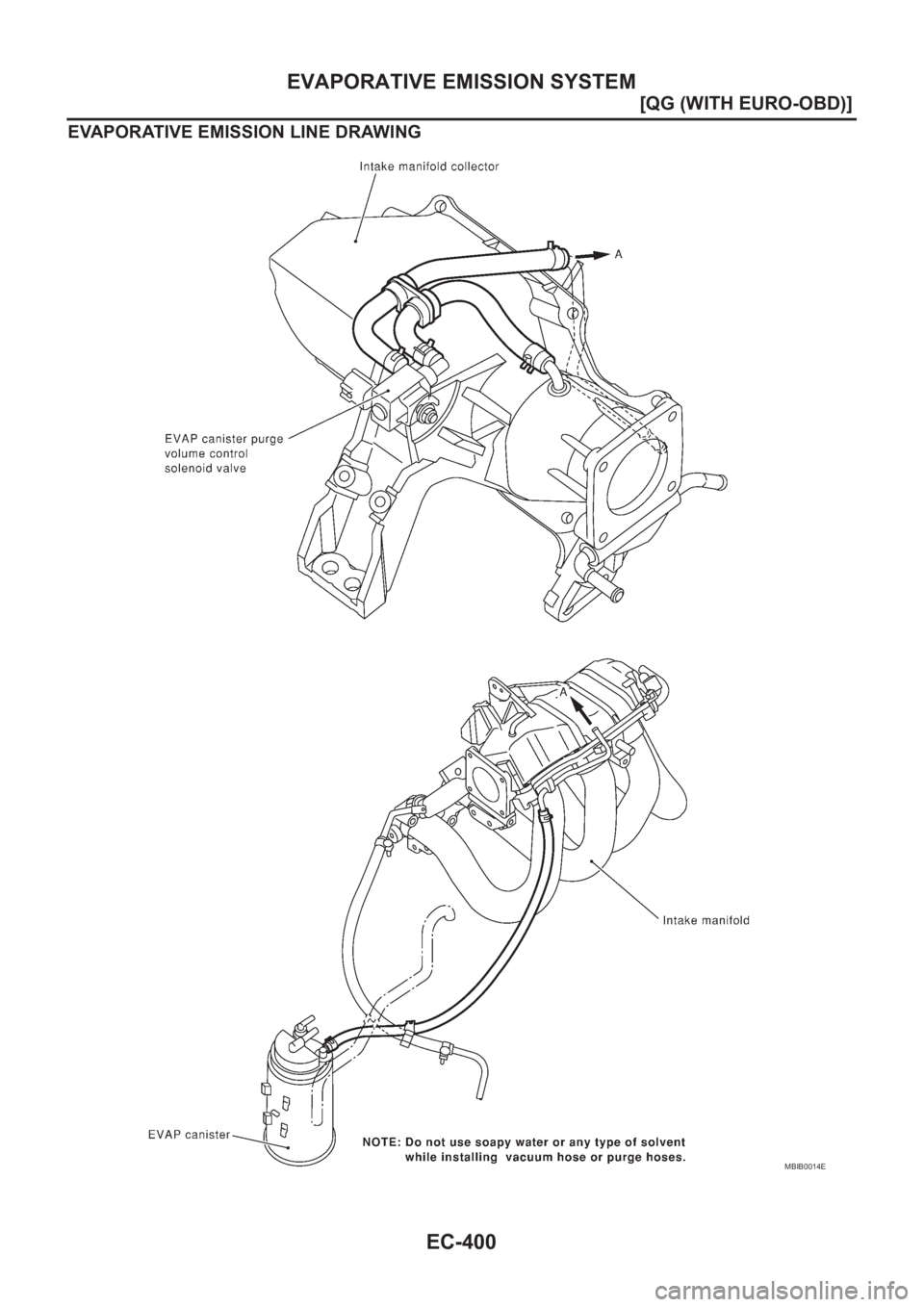

EVAPORATIVE EMISSION LINE DRAWING
MBIB0014E
