NISSAN NAVARA 2005 Repair Workshop Manual

LAN-234
[CAN]
CAN SYSTEM (TYPE 14)
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1

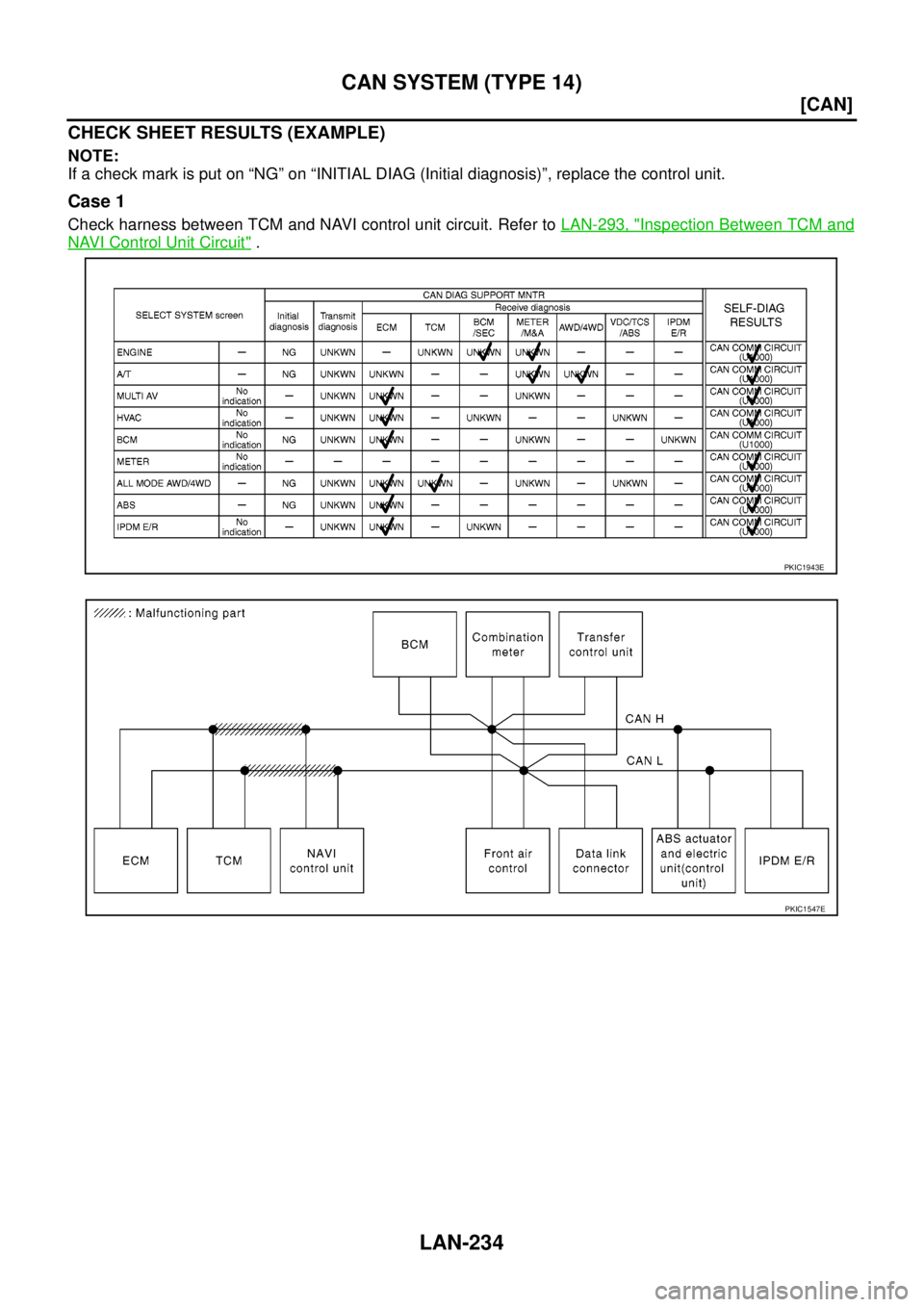

Check harness between TCM and NAVI control unit circuit. Refer toLAN-293, "Inspection Between TCM and
NAVI Control Unit Circuit".
PKIC1943E
PKIC1547E

CAN SYSTEM (TYPE 14)
LAN-235
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 2

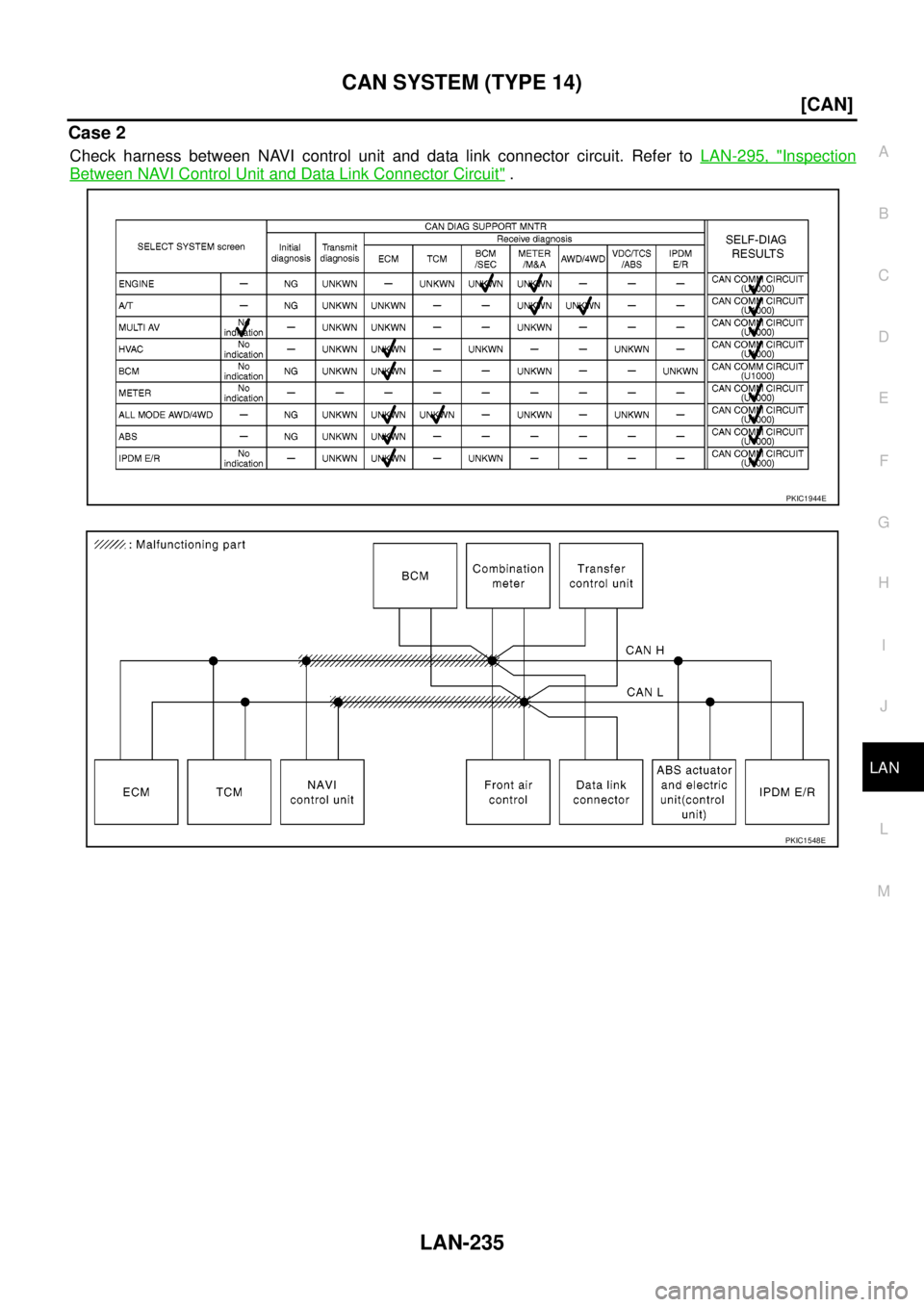

Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection
Between NAVI Control Unit and Data Link Connector Circuit".
PKIC1944E
PKIC1548E

LAN-236
[CAN]
CAN SYSTEM (TYPE 14)
Case 3

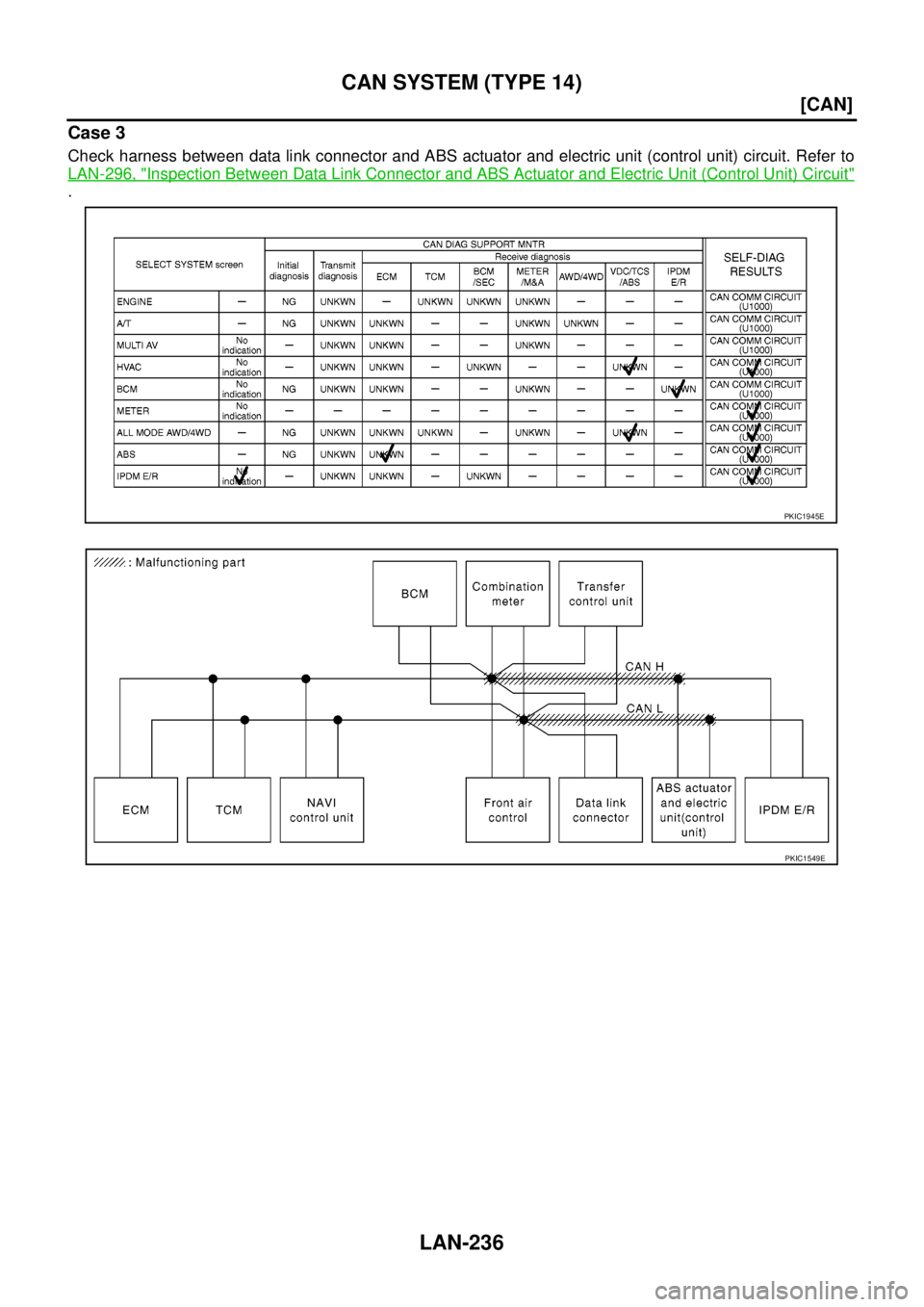

Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1945E
PKIC1549E

CAN SYSTEM (TYPE 14)
LAN-237
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 4

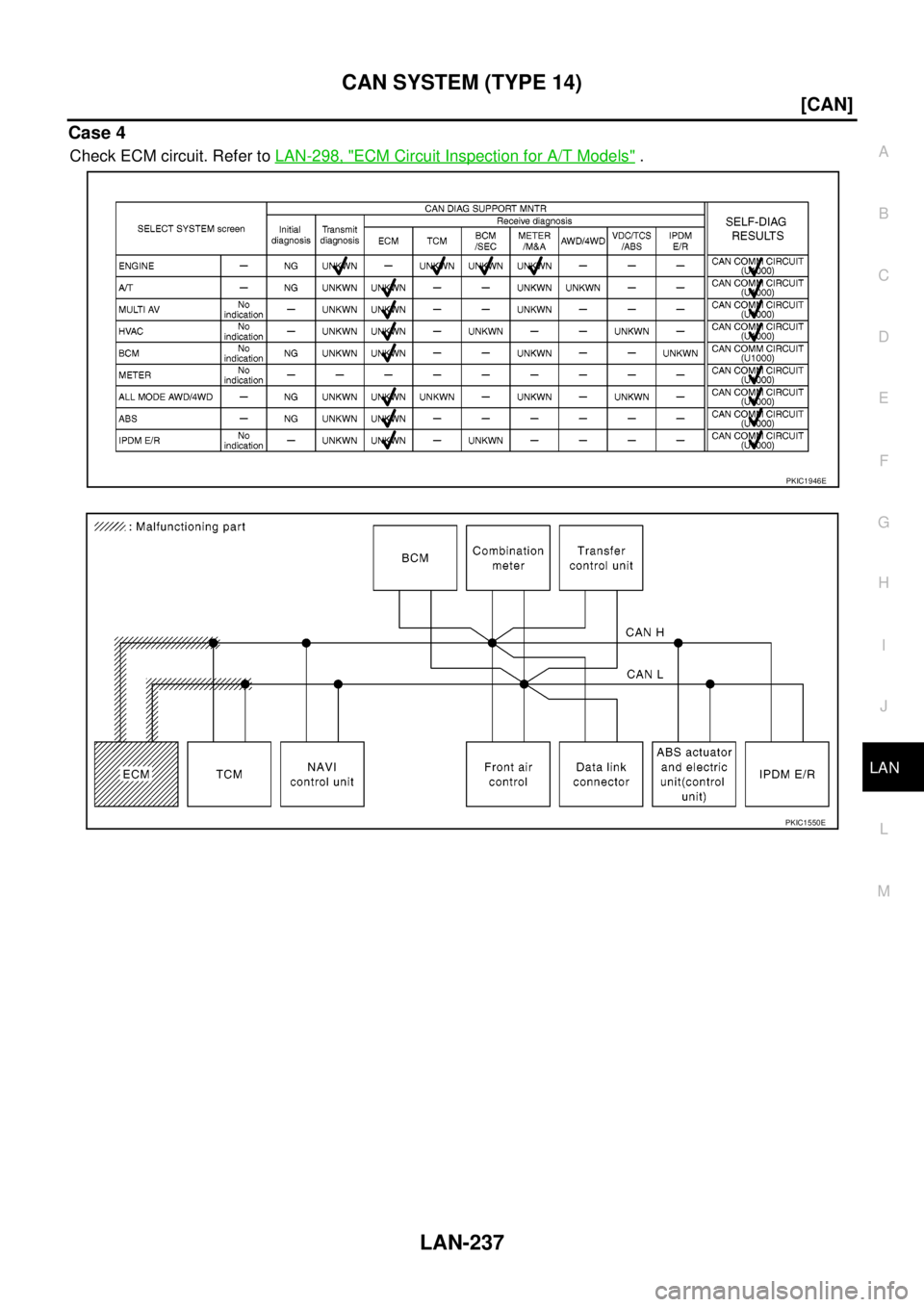

Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models".
PKIC1946E
PKIC1550E

LAN-238
[CAN]
CAN SYSTEM (TYPE 14)
Case 5

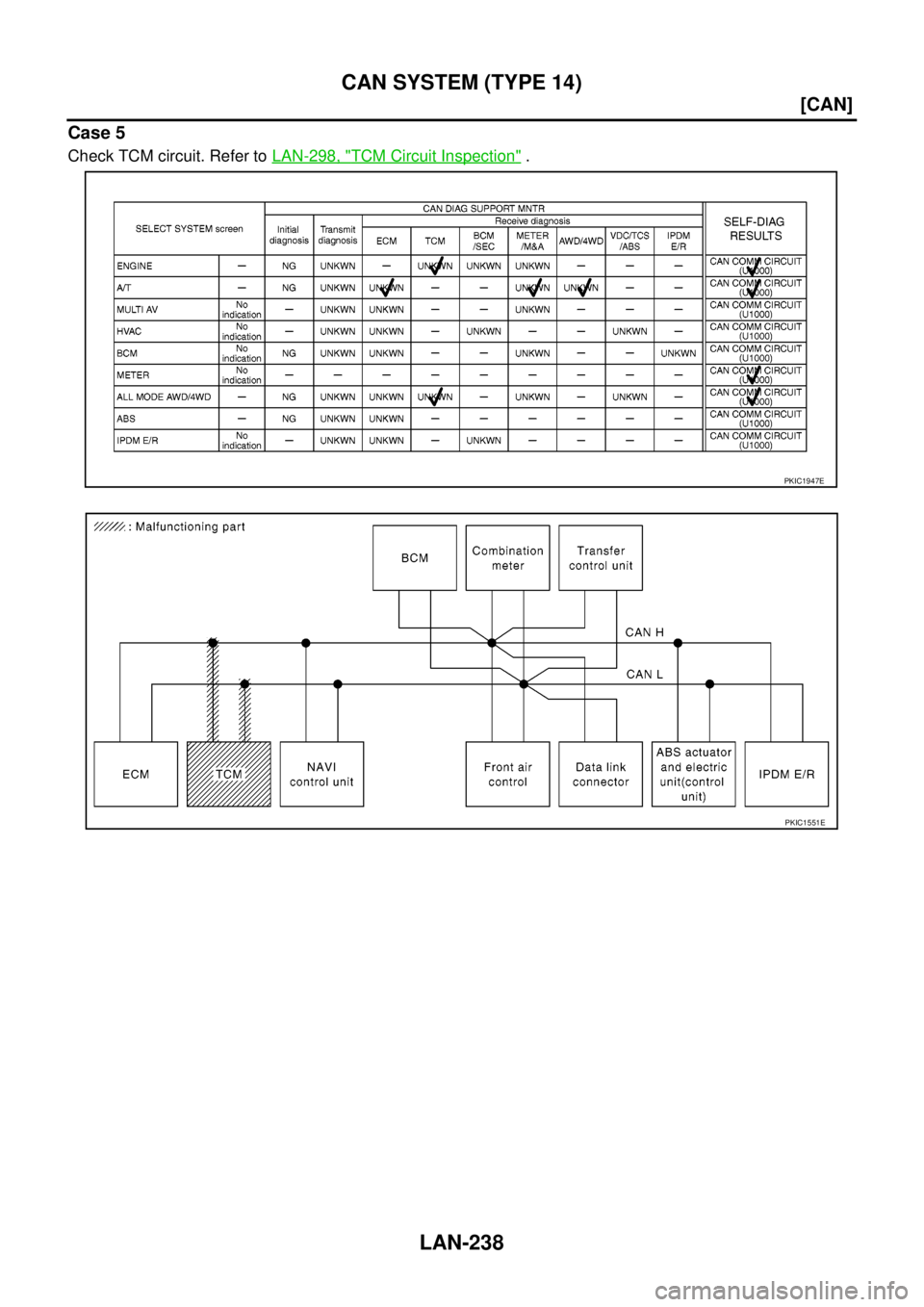

Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection".
PKIC1947E
PKIC1551E

CAN SYSTEM (TYPE 14)
LAN-239
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

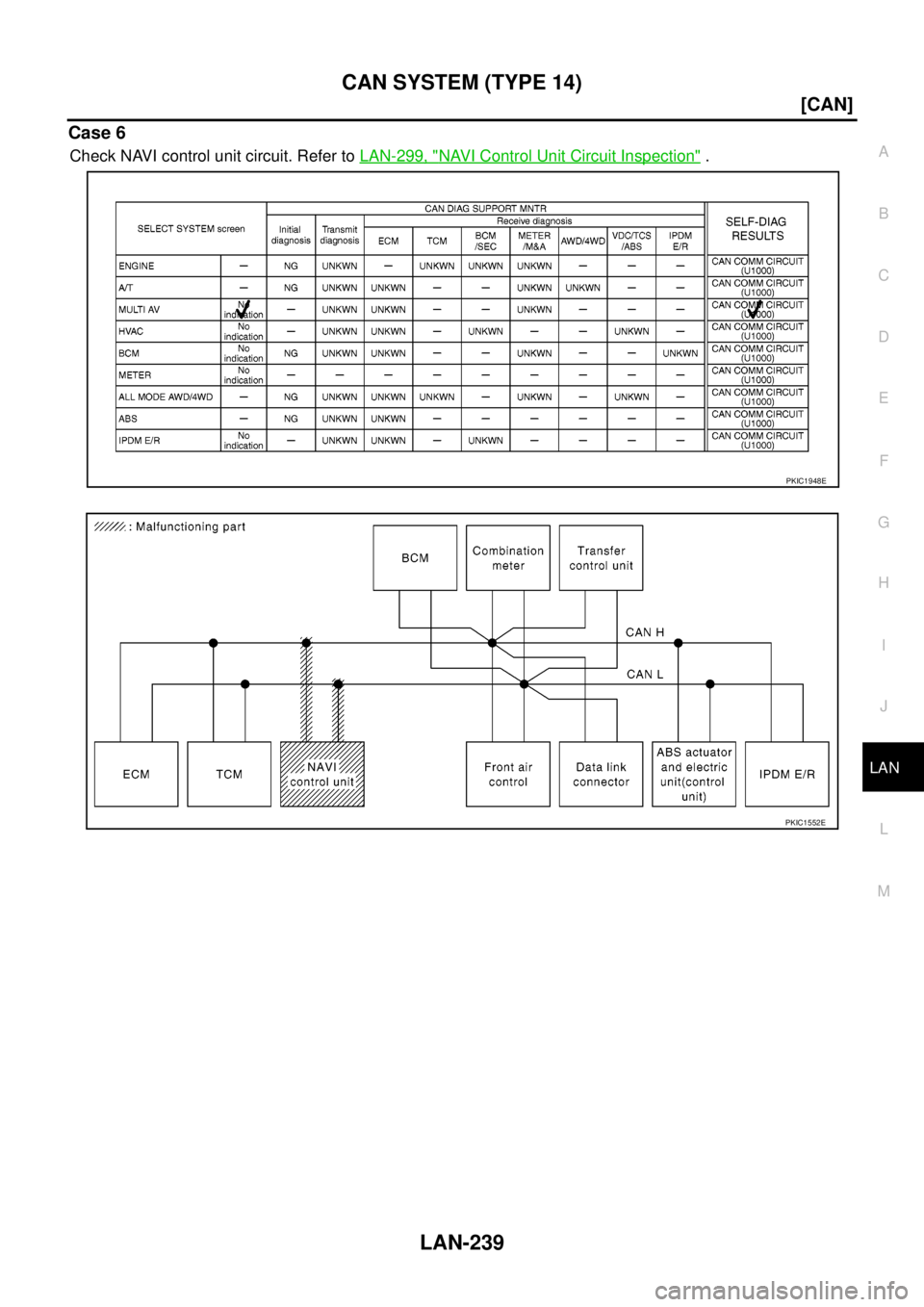

Case 6
Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection".
PKIC1948E
PKIC1552E

LAN-240
[CAN]
CAN SYSTEM (TYPE 14)

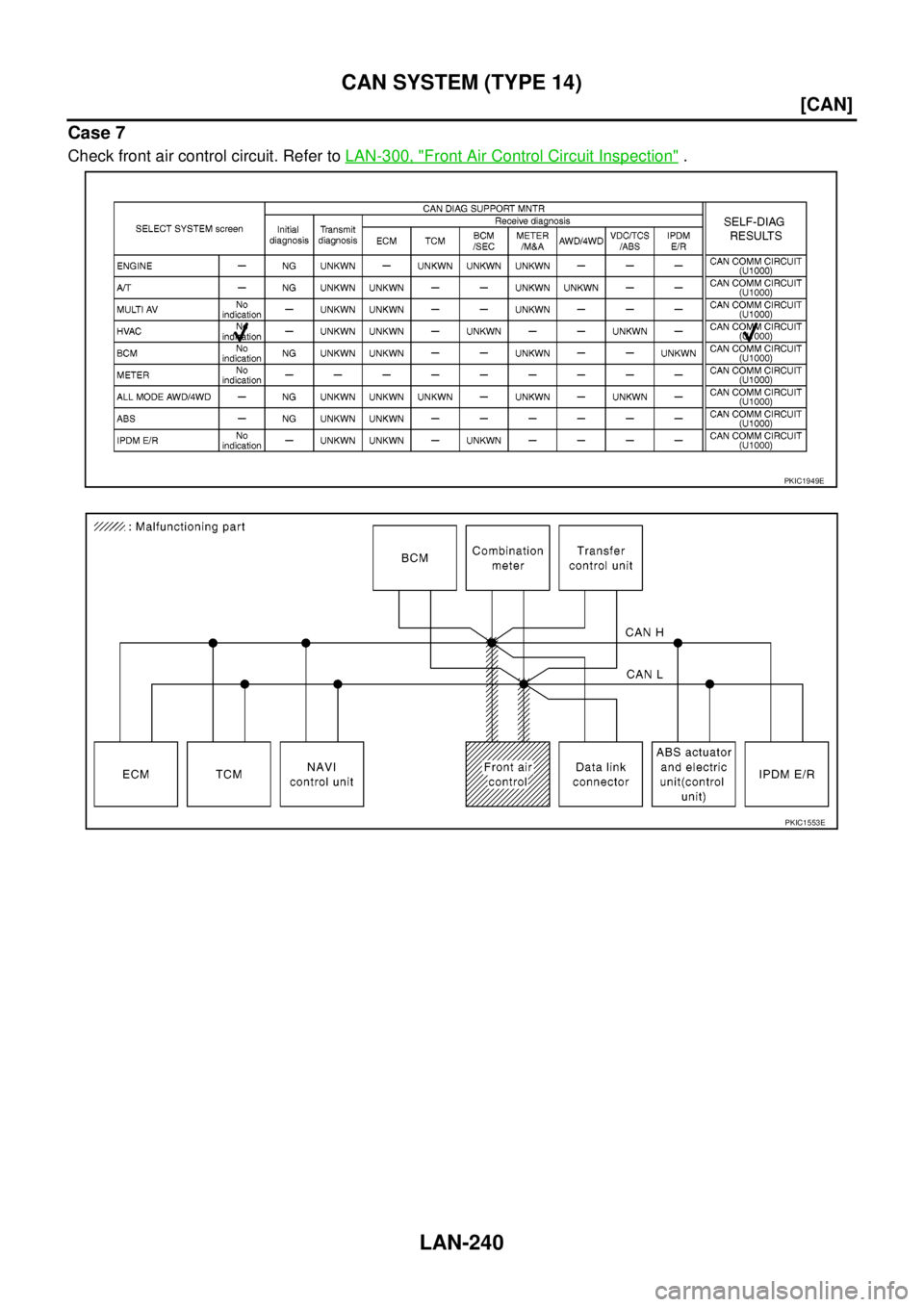

Case 7
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1949E
PKIC1553E

CAN SYSTEM (TYPE 14)
LAN-241
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 8

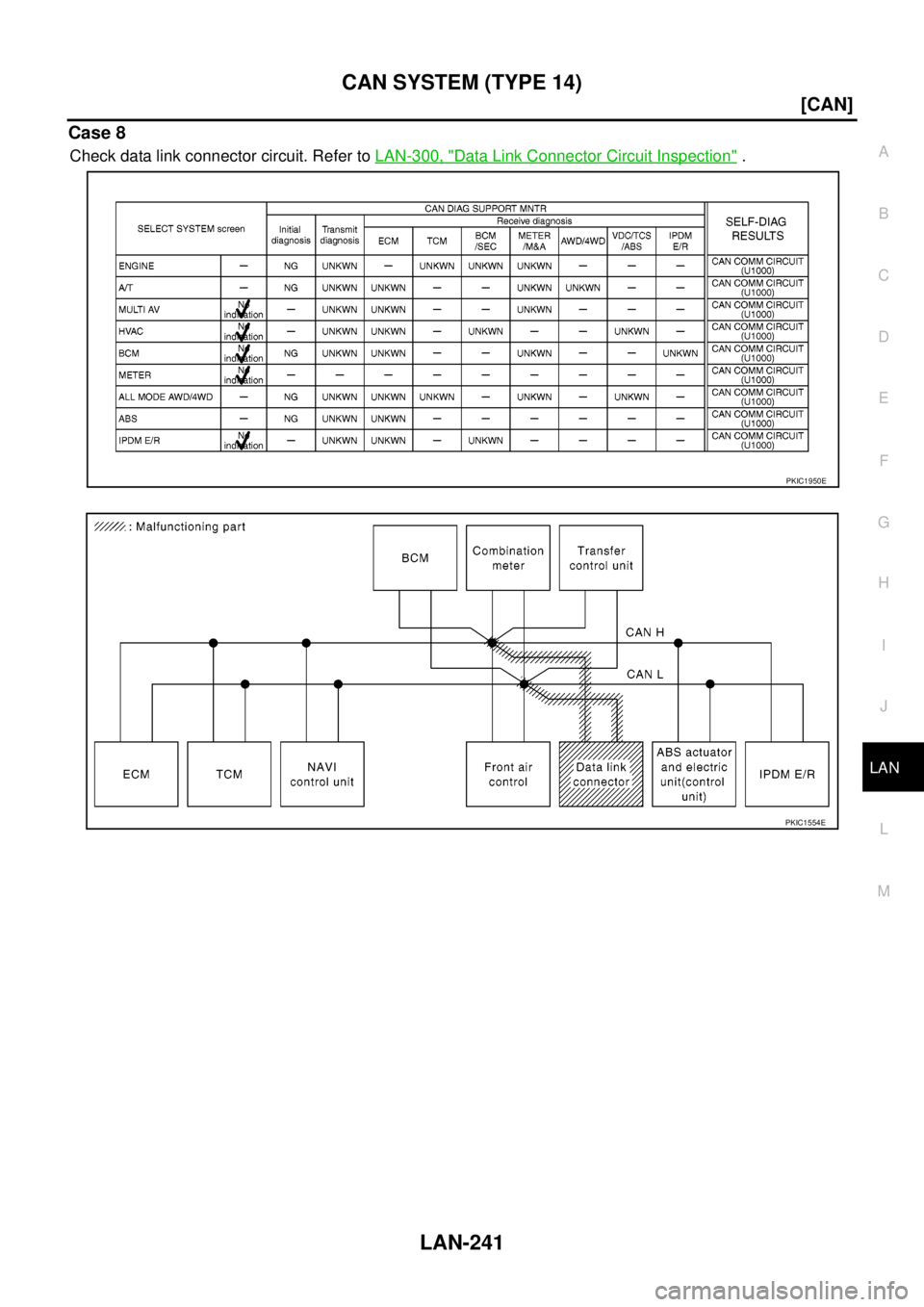

Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1950E
PKIC1554E

LAN-242
[CAN]
CAN SYSTEM (TYPE 14)
Case 9

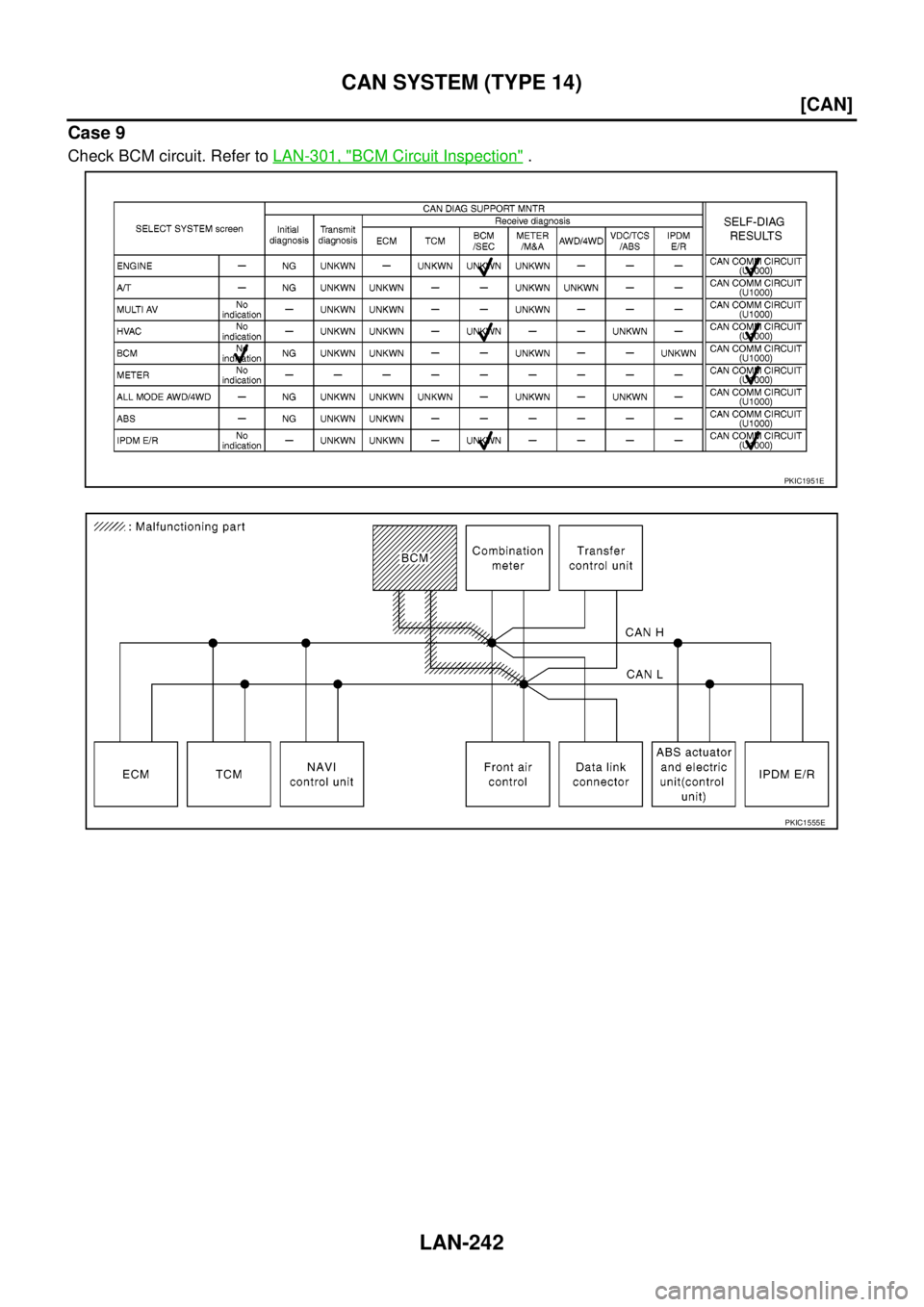

Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1951E
PKIC1555E

CAN SYSTEM (TYPE 14)
LAN-243
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 10

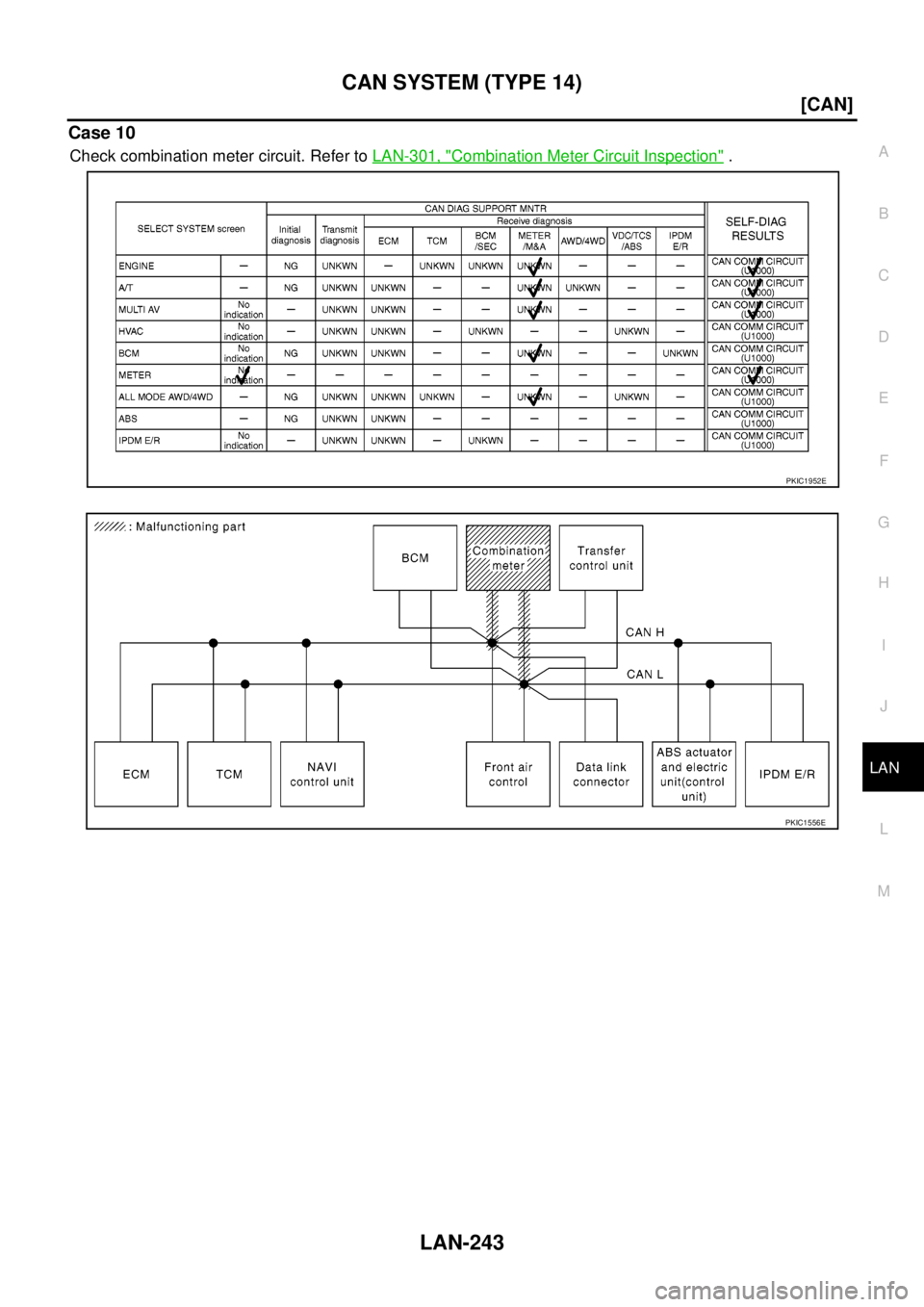

Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1952E
PKIC1556E
