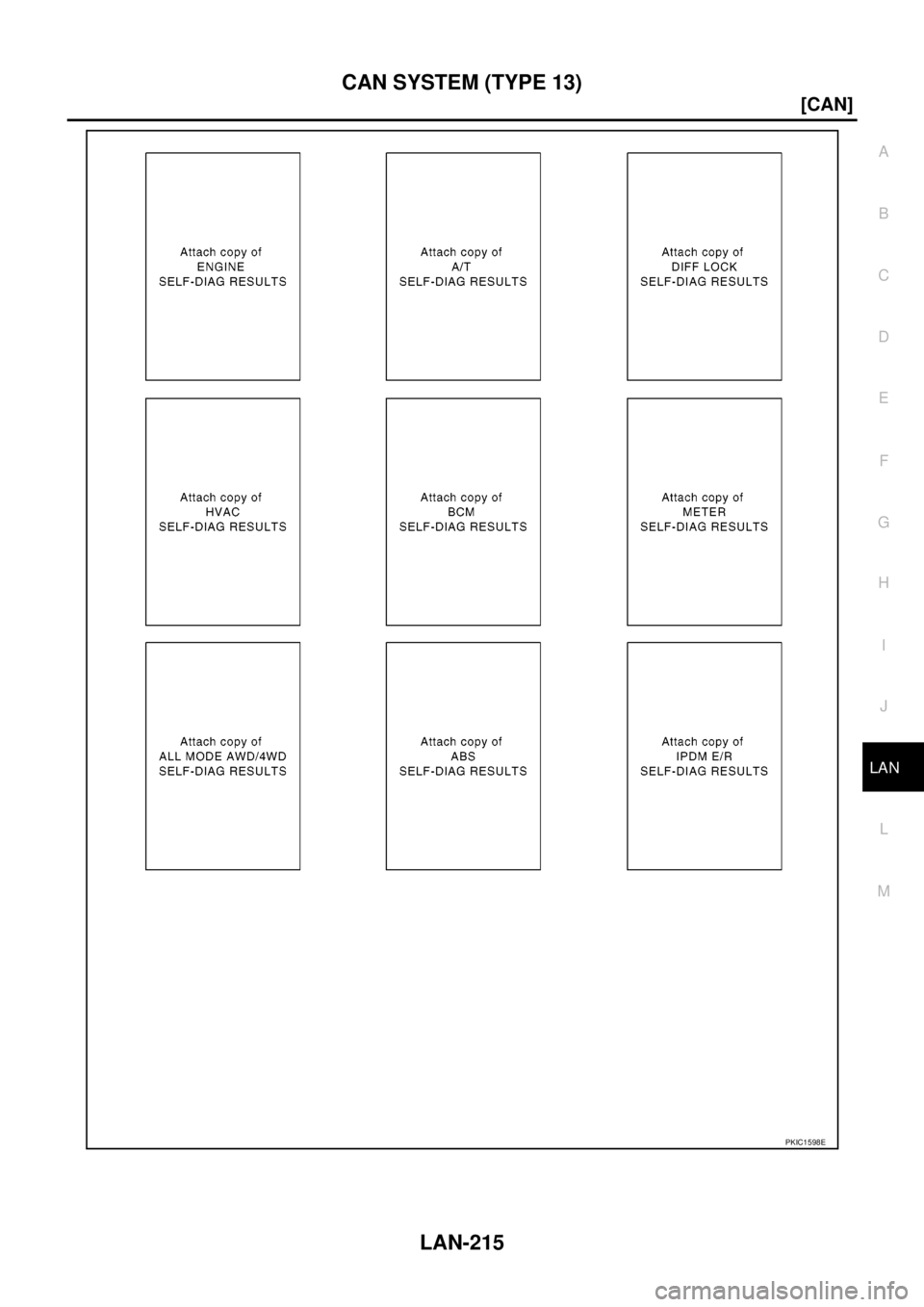

CAN SYSTEM (TYPE 13)

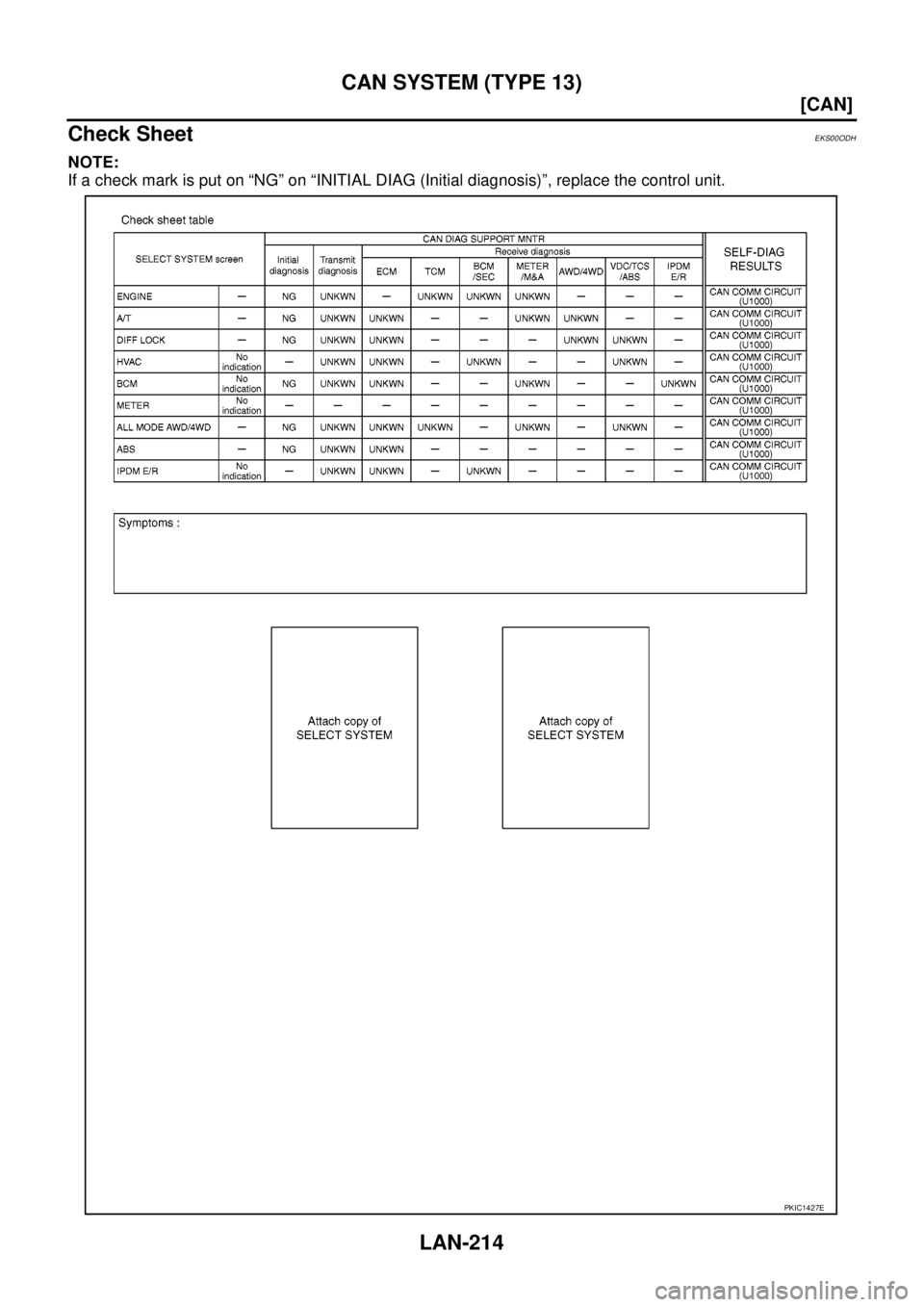

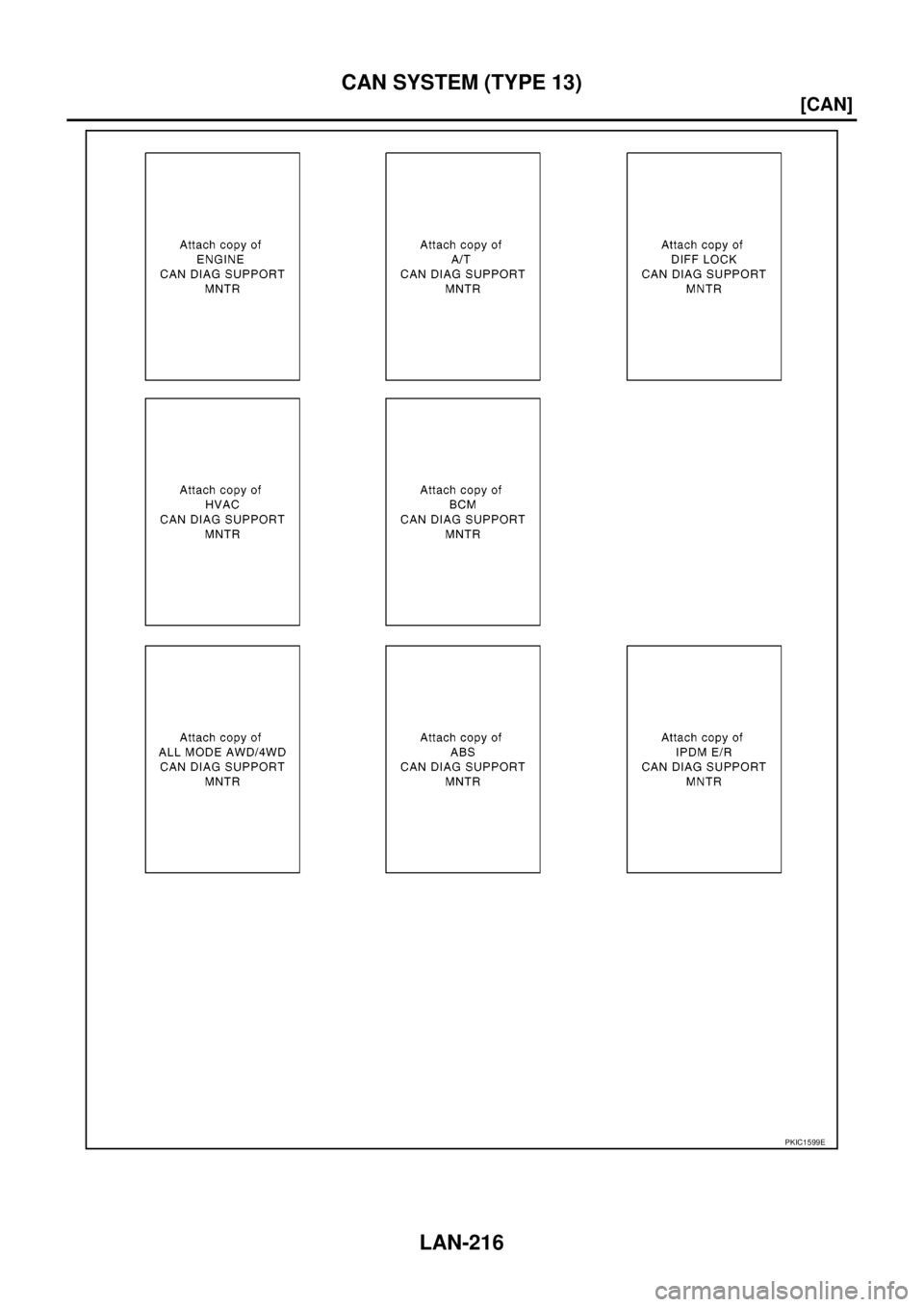

Check Sheet
EKS00ODH
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1427E

CAN SYSTEM (TYPE 13)
LAN-215
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
PKIC1598E

LAN-216
[CAN]
CAN SYSTEM (TYPE 13)
PKIC1599E

CAN SYSTEM (TYPE 13)
LAN-217
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector circuit. Refer toLAN-292, "Inspection Between TCM
and Data Link Connector Circuit".
PKIC1928E
PKIC1535E

LAN-218
[CAN]
CAN SYSTEM (TYPE 13)
Case 2

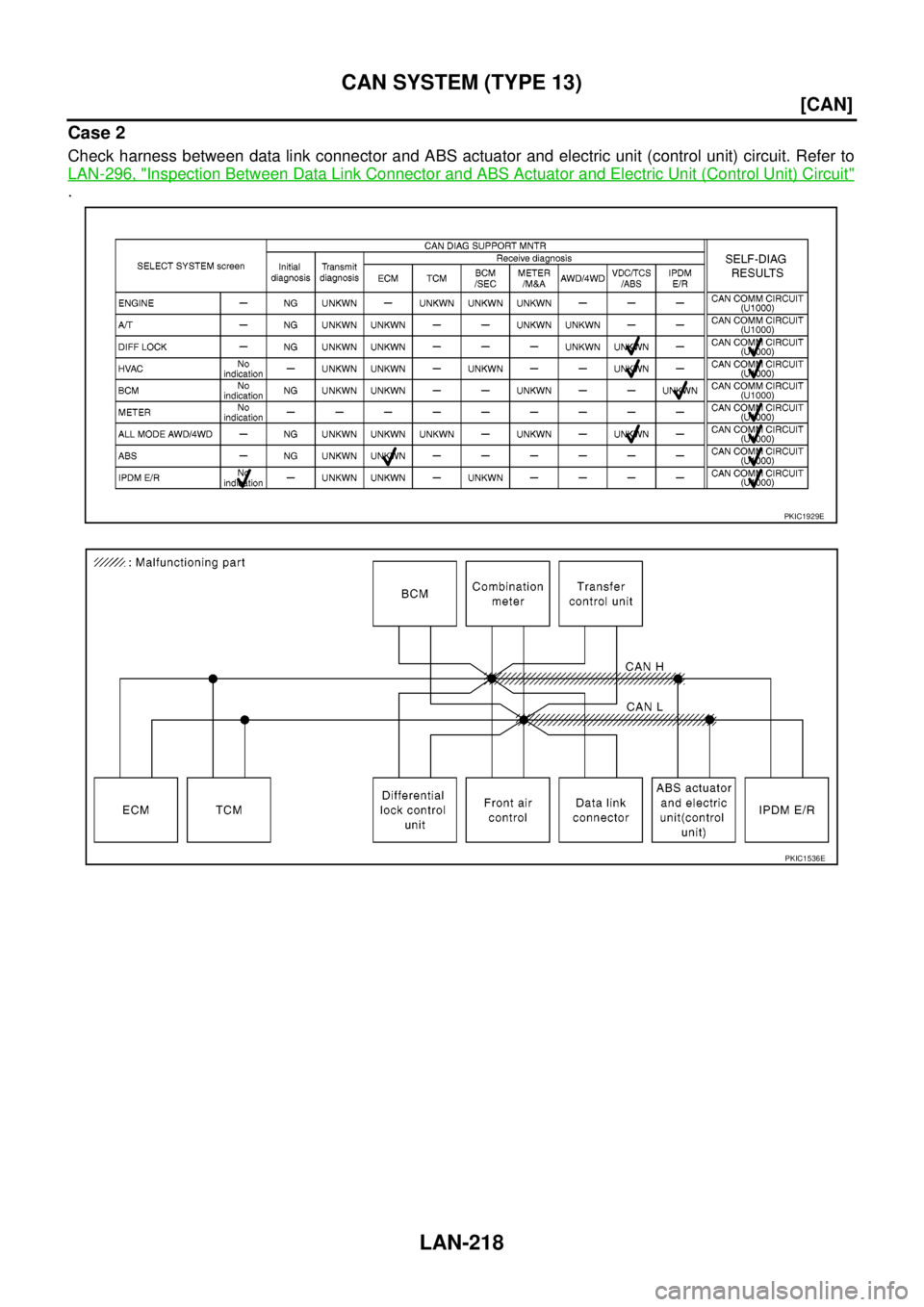

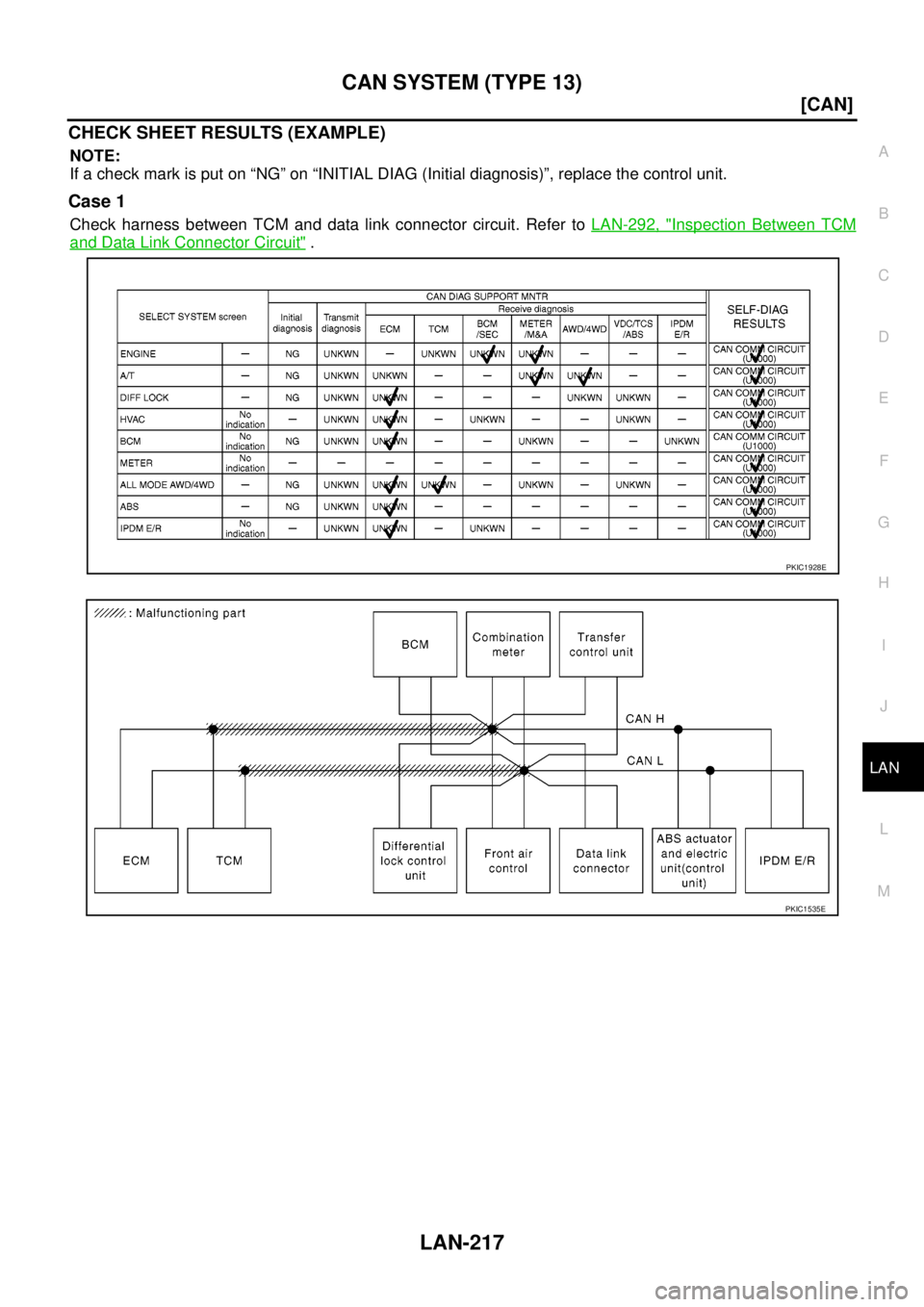

Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1929E
PKIC1536E

CAN SYSTEM (TYPE 13)
LAN-219
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 3

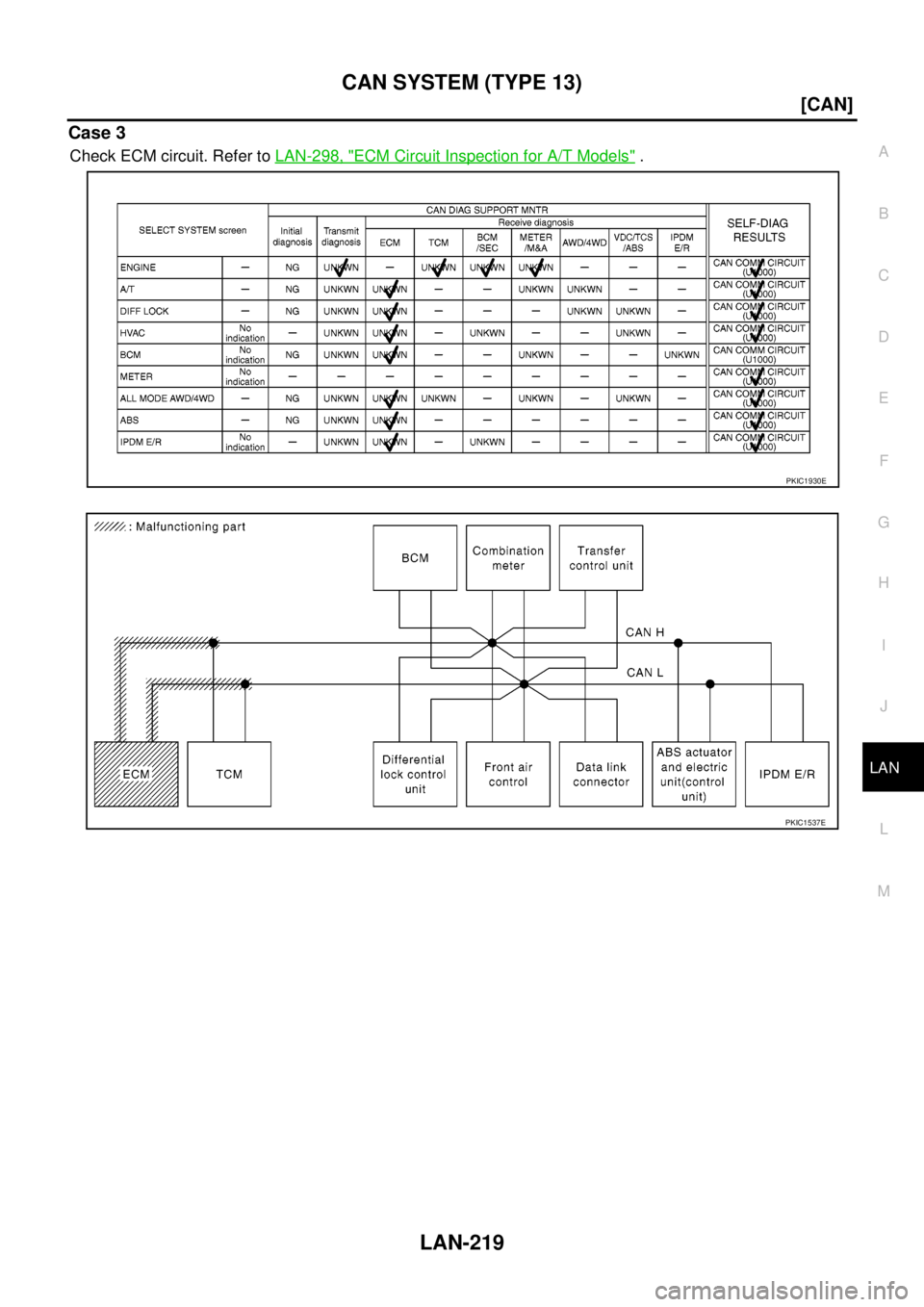

Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models".
PKIC1930E
PKIC1537E

LAN-220
[CAN]
CAN SYSTEM (TYPE 13)
Case 4

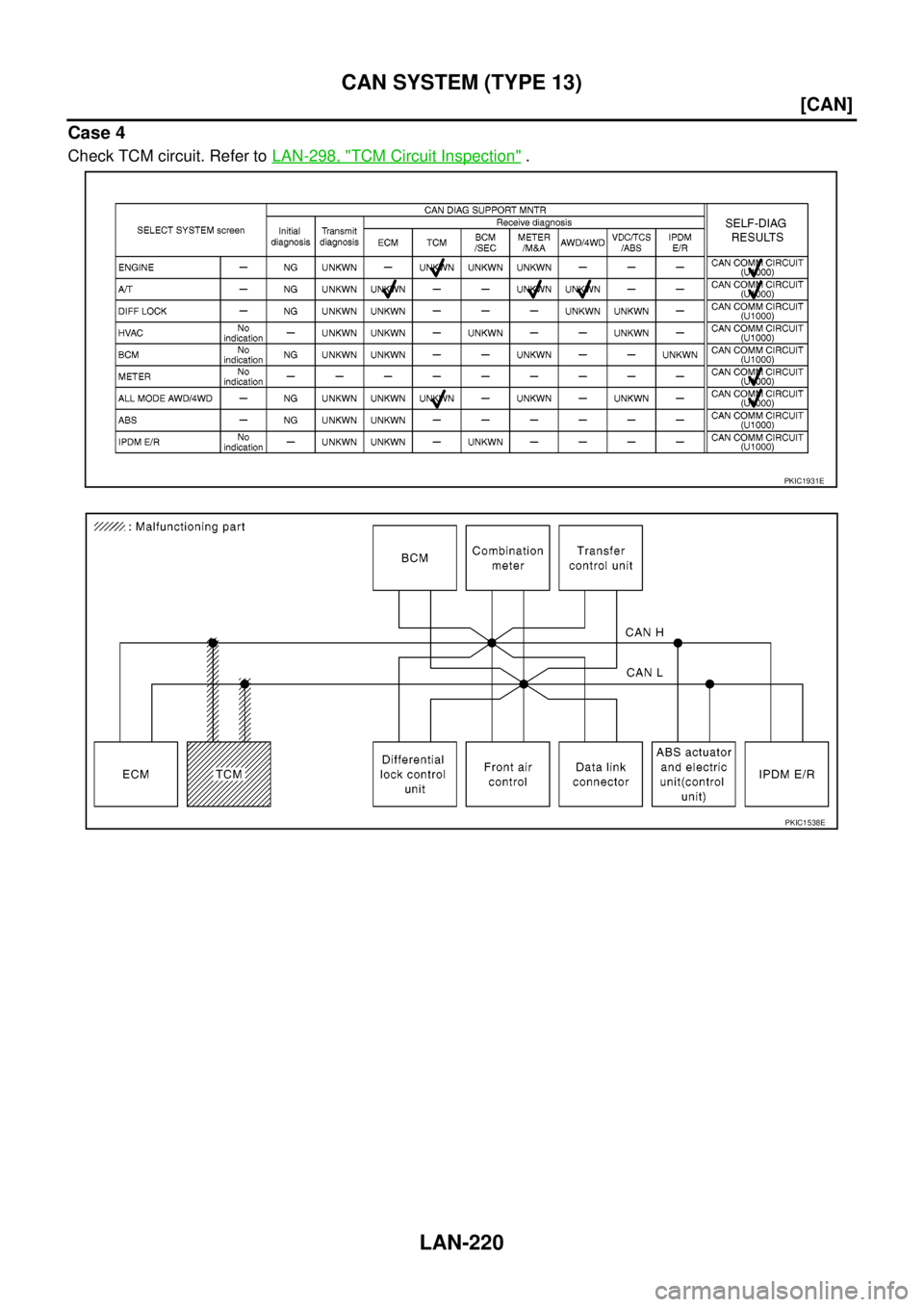

Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection".
PKIC1931E
PKIC1538E

CAN SYSTEM (TYPE 13)
LAN-221
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 5

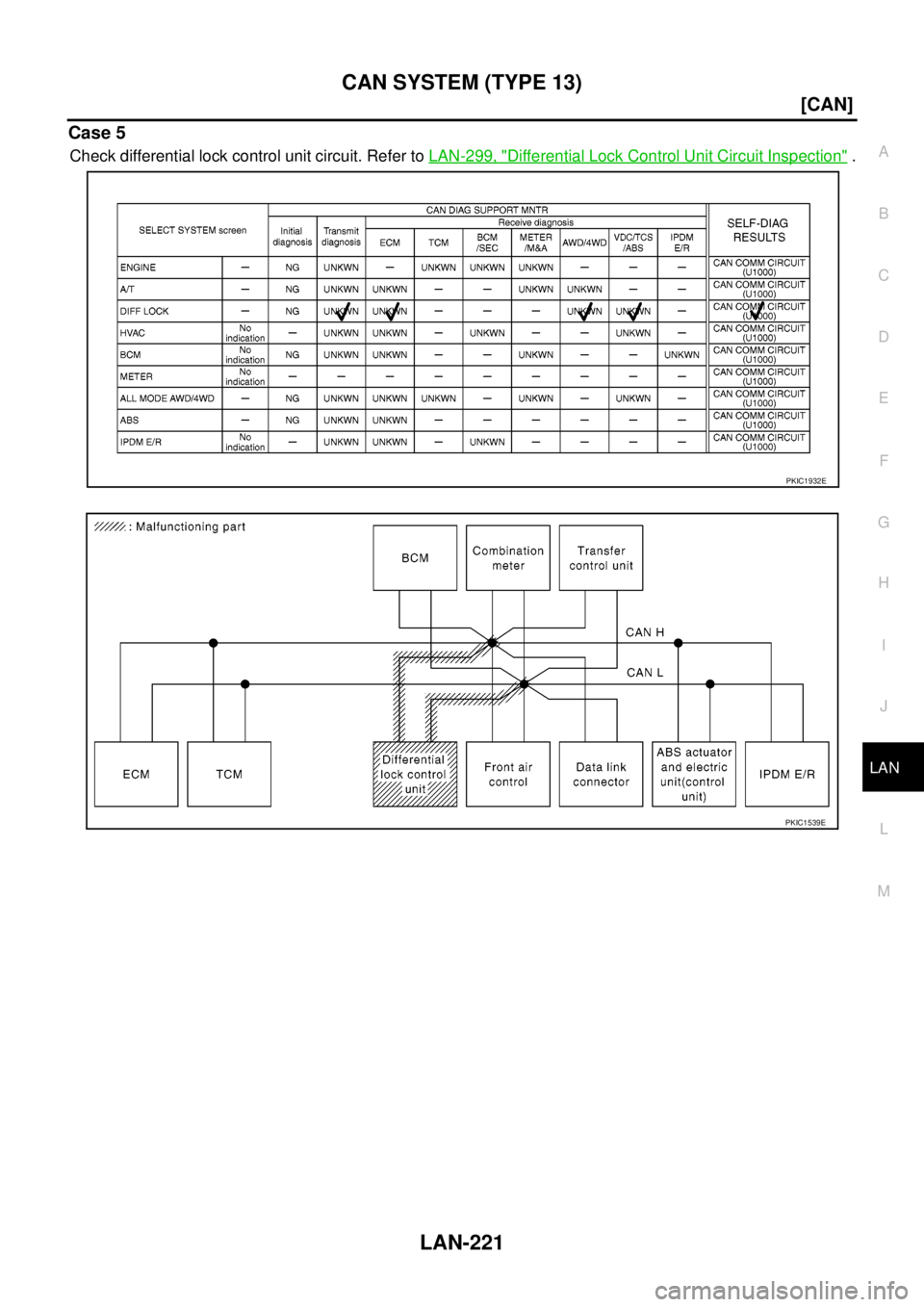

Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection".
PKIC1932E
PKIC1539E

LAN-222
[CAN]
CAN SYSTEM (TYPE 13)
Case 6

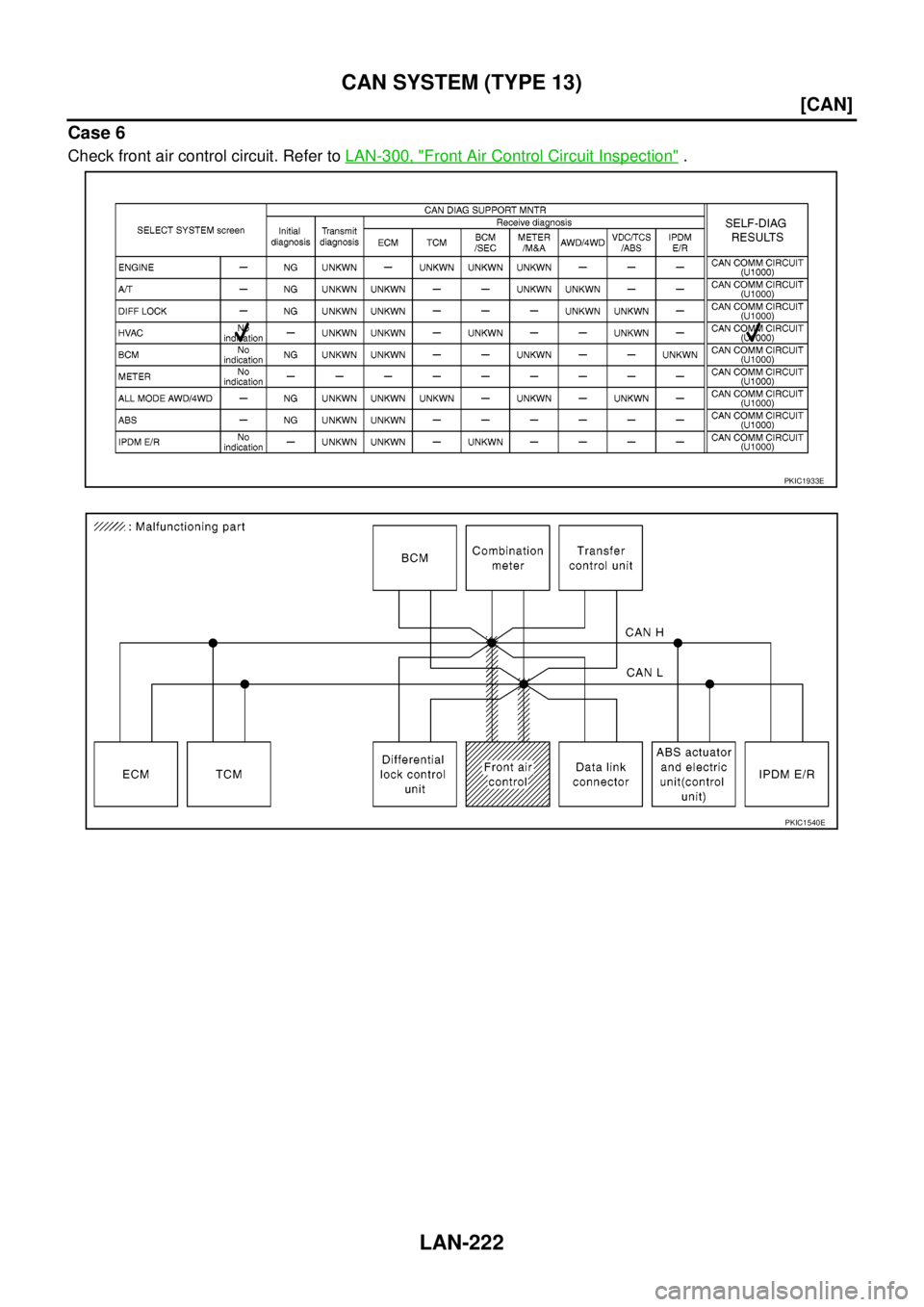

Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1933E
PKIC1540E

CAN SYSTEM (TYPE 13)
LAN-223
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 7

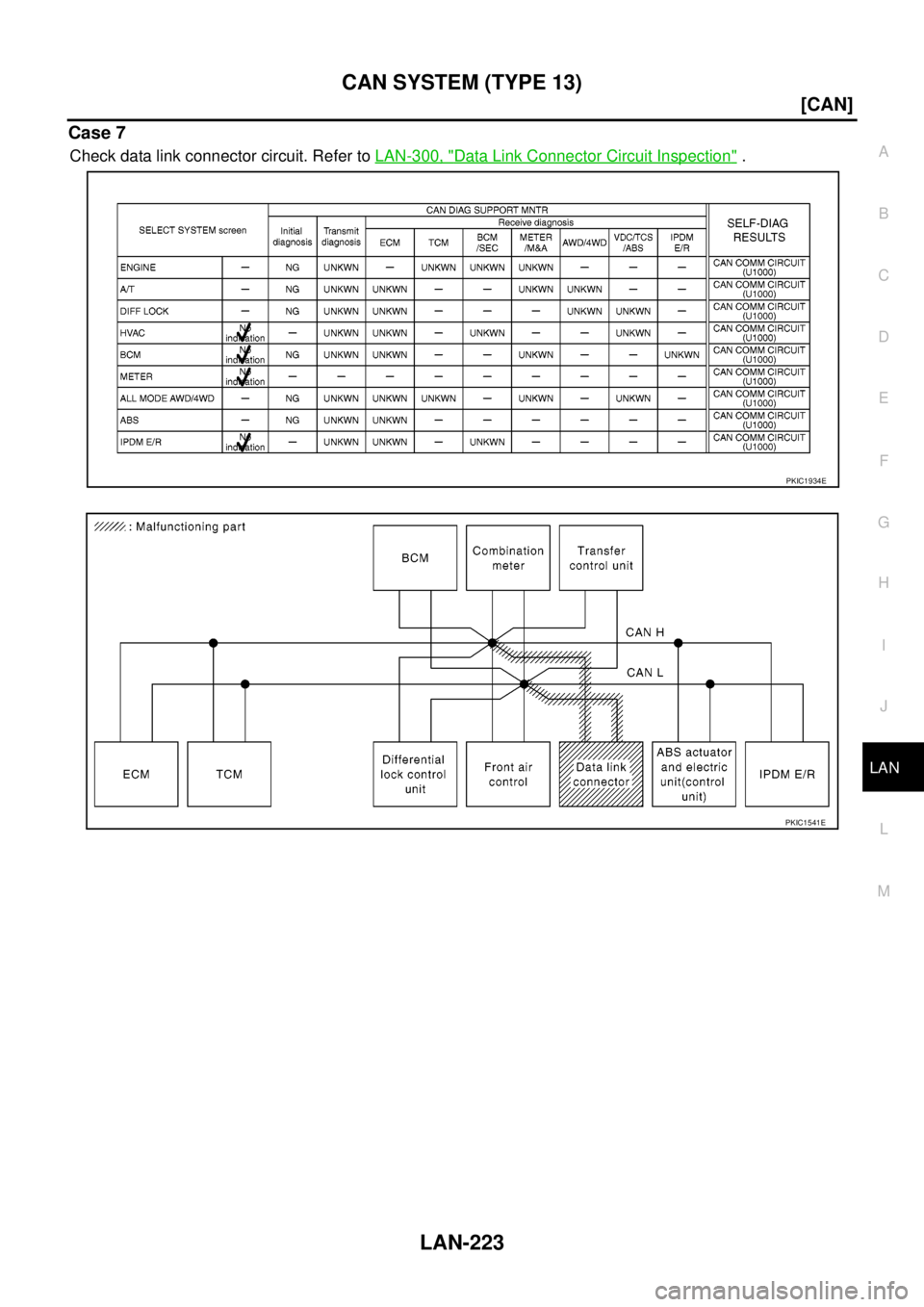

Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1934E
PKIC1541E
