NISSAN NAVARA 2005 Repair Workshop Manual

LAN-244
[CAN]
CAN SYSTEM (TYPE 14)
Case 11

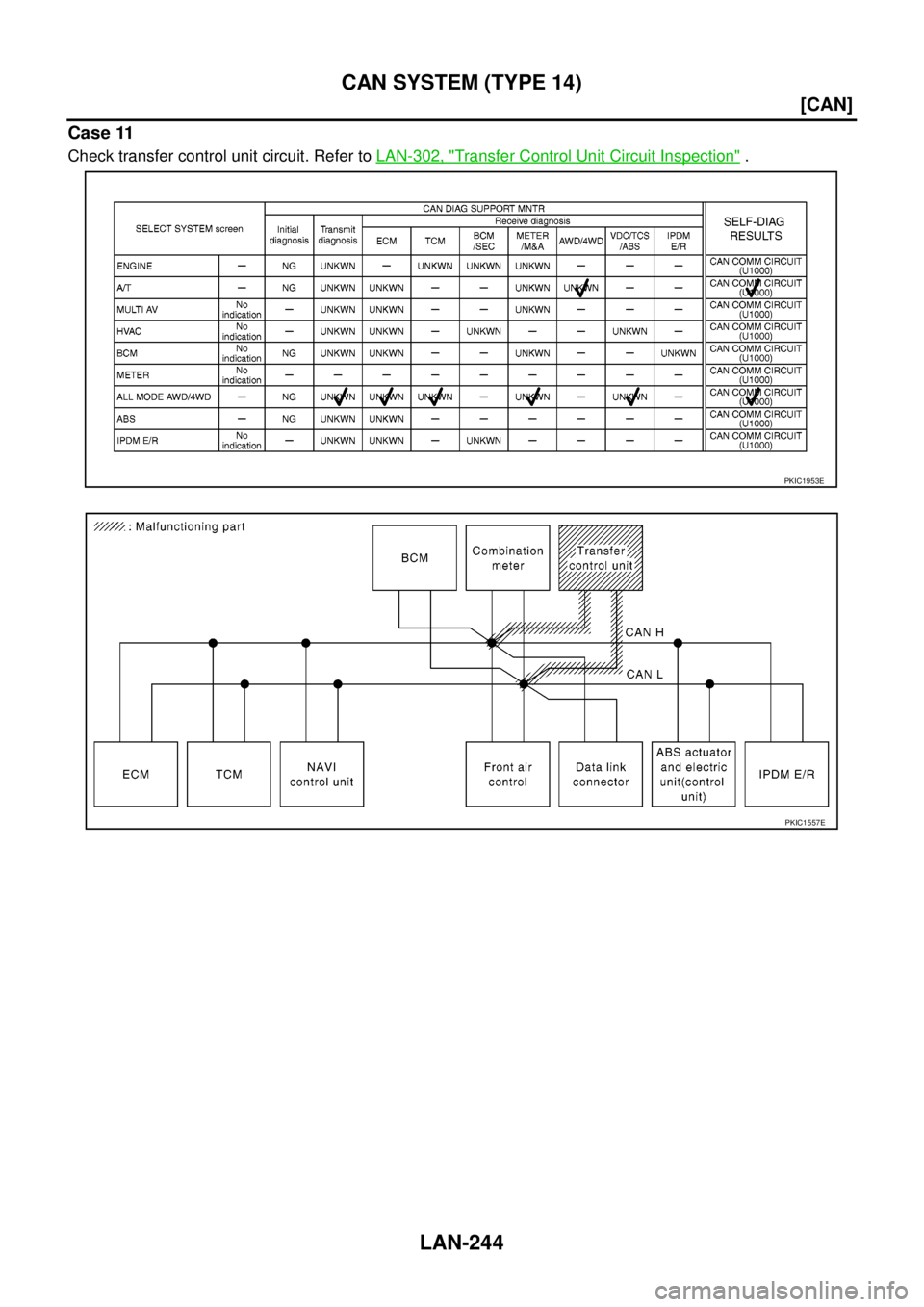

Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1953E
PKIC1557E

CAN SYSTEM (TYPE 14)
LAN-245
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 12

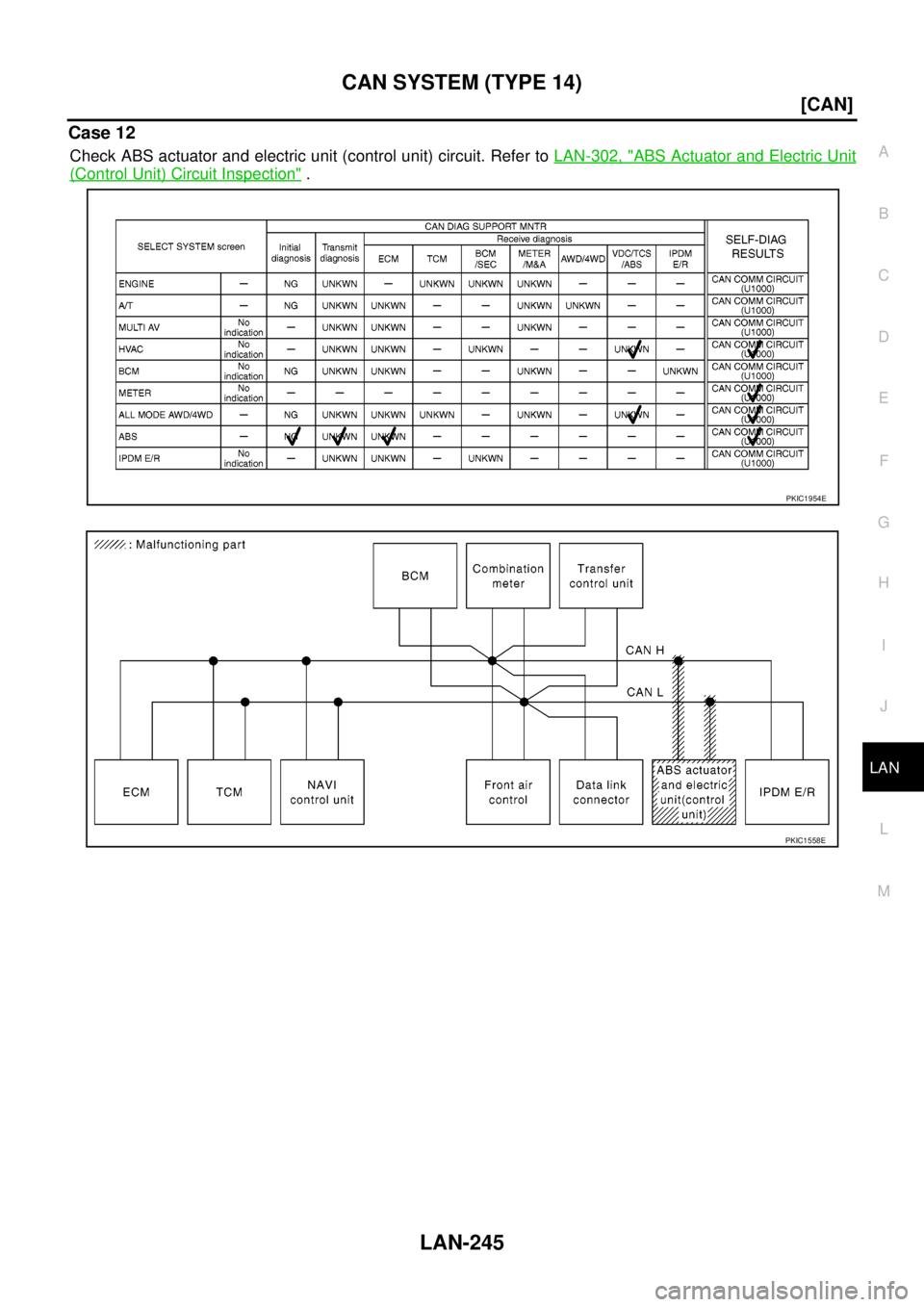

Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1954E
PKIC1558E

LAN-246
[CAN]
CAN SYSTEM (TYPE 14)
Case 13

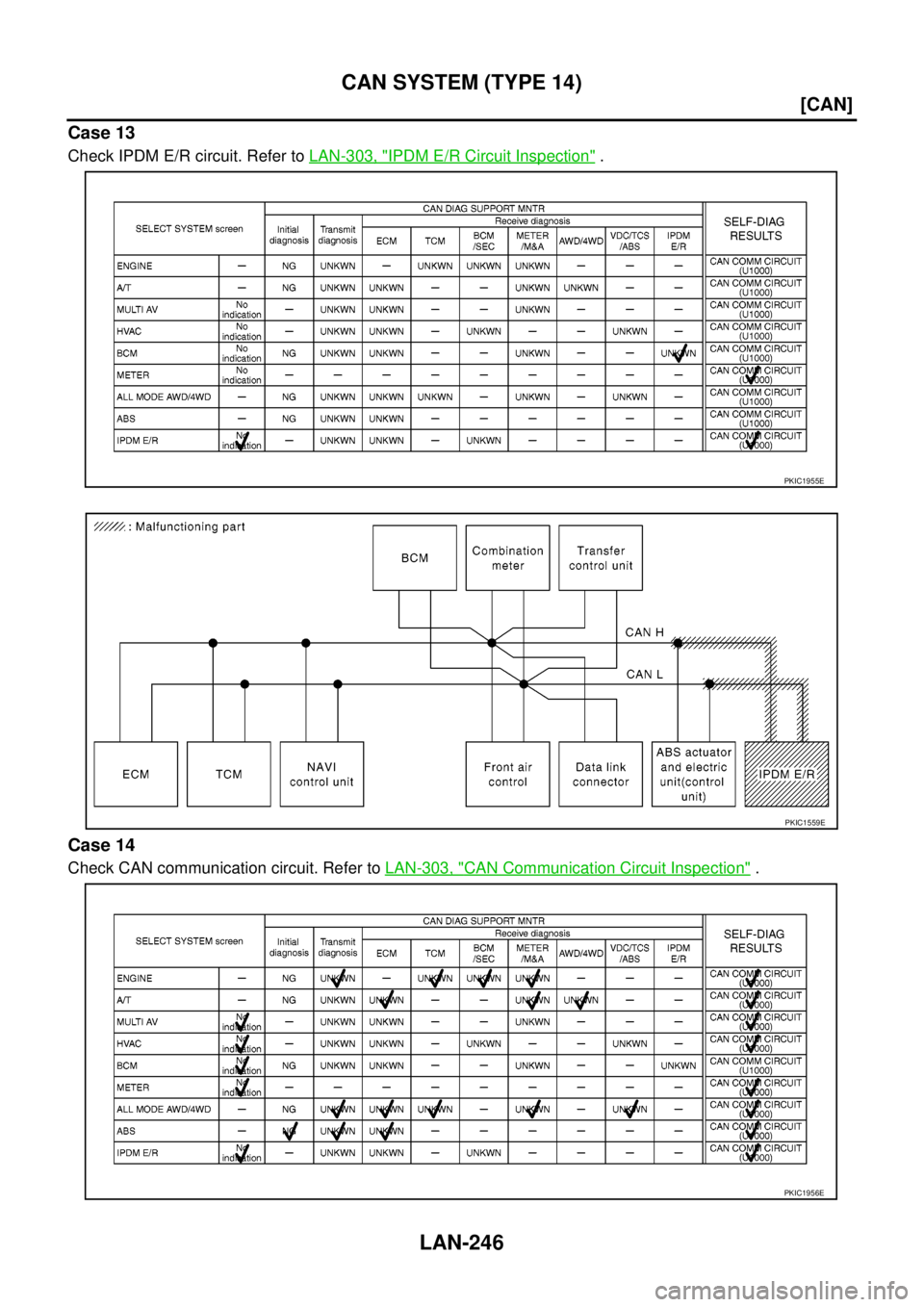

Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 14
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1955E
PKIC1559E
PKIC1956E

CAN SYSTEM (TYPE 14)
LAN-247
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 15

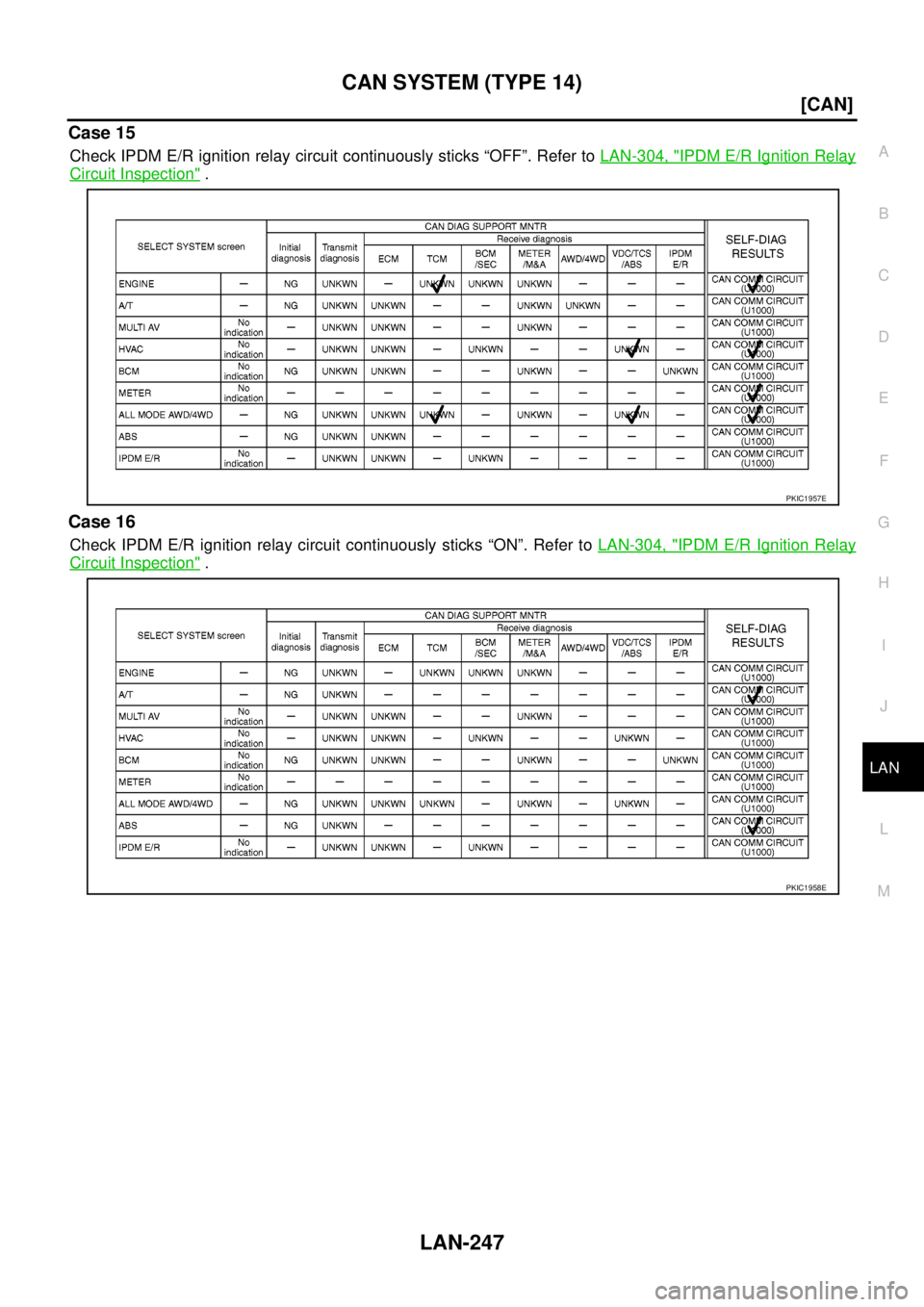

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 16
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1957E
PKIC1958E

LAN-248
[CAN]
CAN SYSTEM (TYPE 15)
CAN SYSTEM (TYPE 15)
PFP:23710
Component Parts and Harness Connector LocationEKS00QB4
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00QB5
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00QB6
Refer toLAN-26, "Wiring Diagram—CAN—".

CAN SYSTEM (TYPE 15)
LAN-249
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

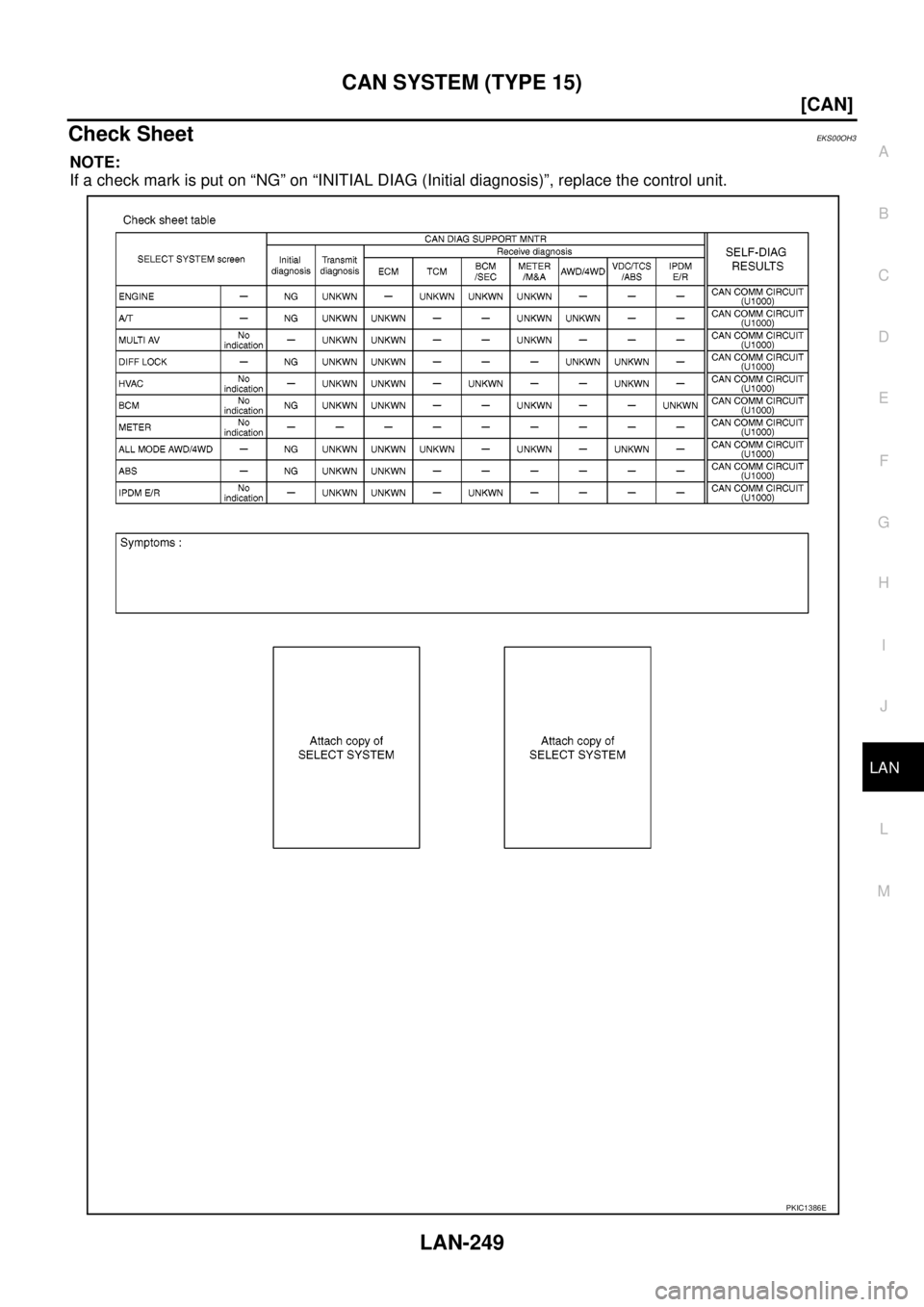

Check SheetEKS00OH3
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1386E

LAN-250
[CAN]
CAN SYSTEM (TYPE 15)
PKIC1387E

CAN SYSTEM (TYPE 15)
LAN-251
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
PKIC1388E

LAN-252
[CAN]
CAN SYSTEM (TYPE 15)

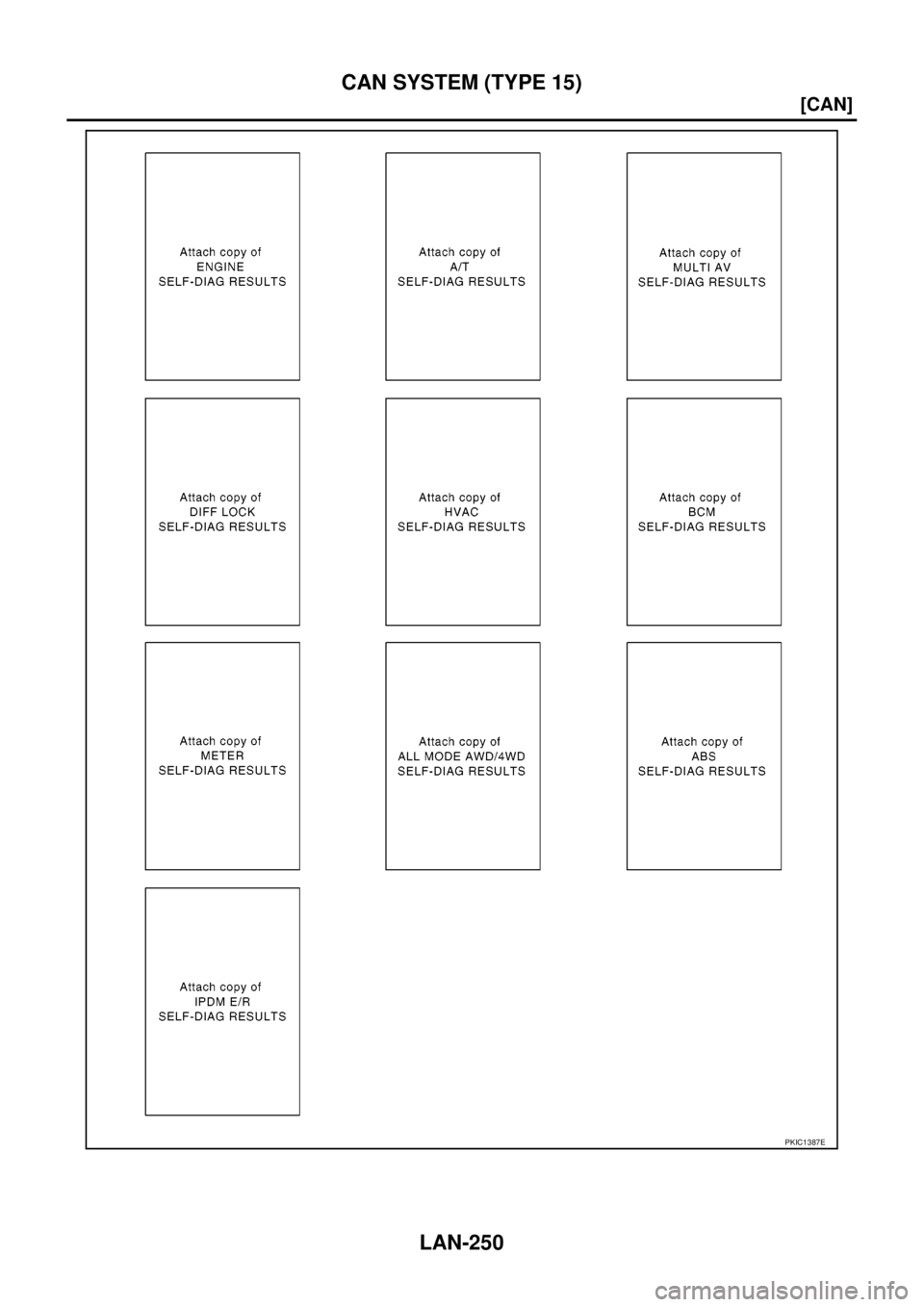

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1

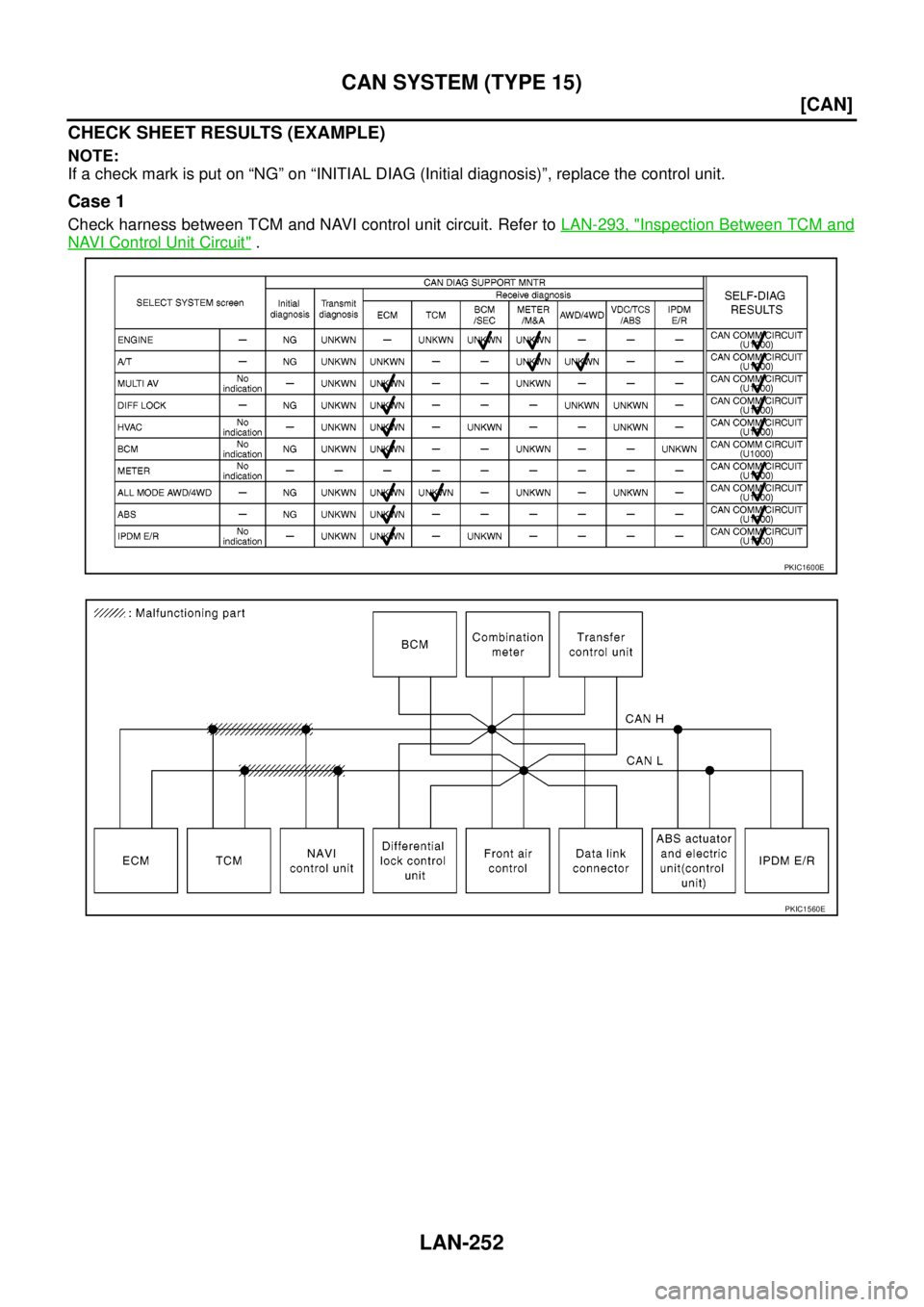

Check harness between TCM and NAVI control unit circuit. Refer toLAN-293, "Inspection Between TCM and
NAVI Control Unit Circuit".
PKIC1600E
PKIC1560E

CAN SYSTEM (TYPE 15)
LAN-253
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 2
Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection
Between NAVI Control Unit and Data Link Connector Circuit".
PKIC1601E
PKIC1561E
