LAN-254
[CAN]
CAN SYSTEM (TYPE 15)
Case 3

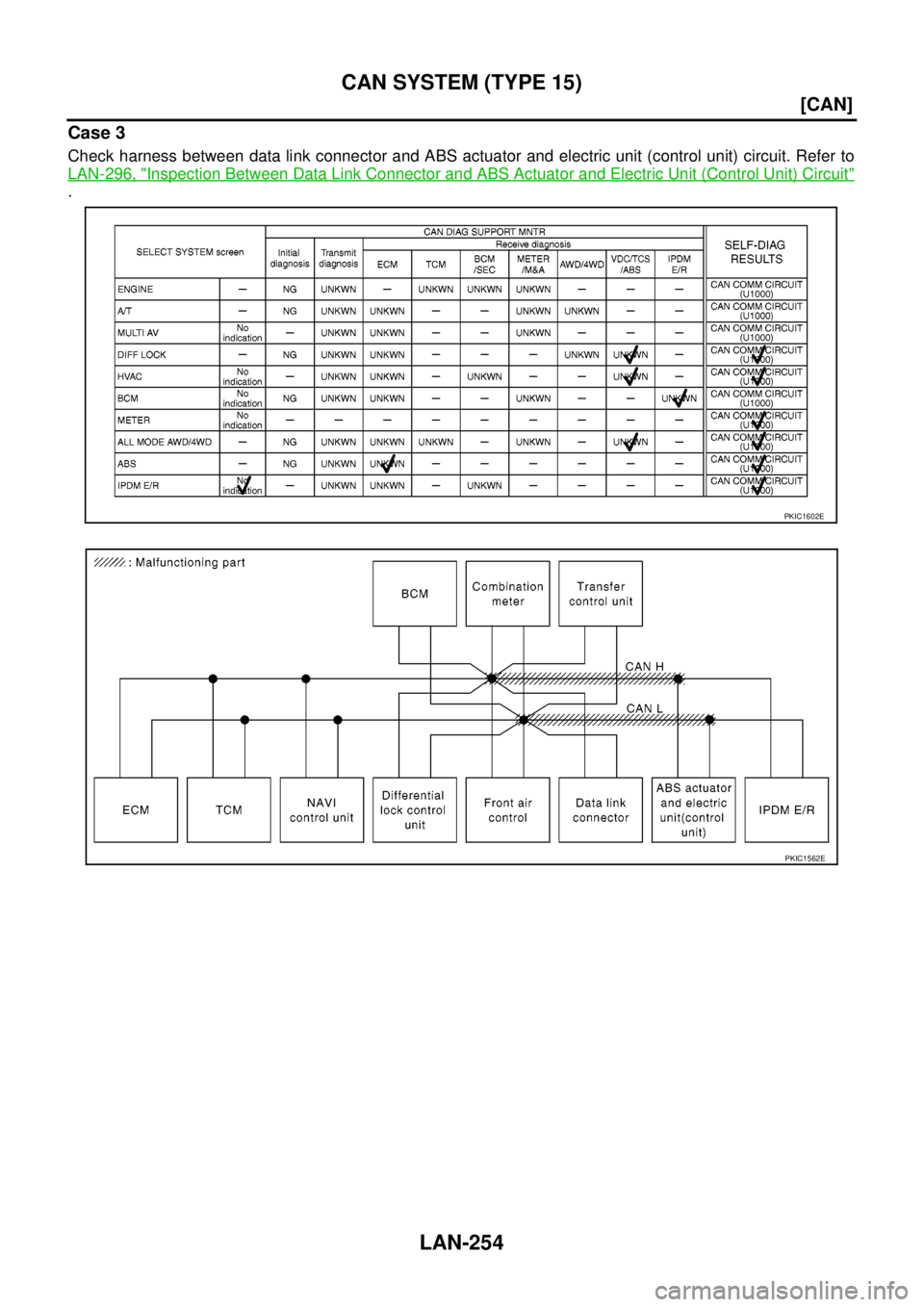

Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1602E
PKIC1562E
Page 2032 of 3171
CAN SYSTEM (TYPE 15)
LAN-255
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 4

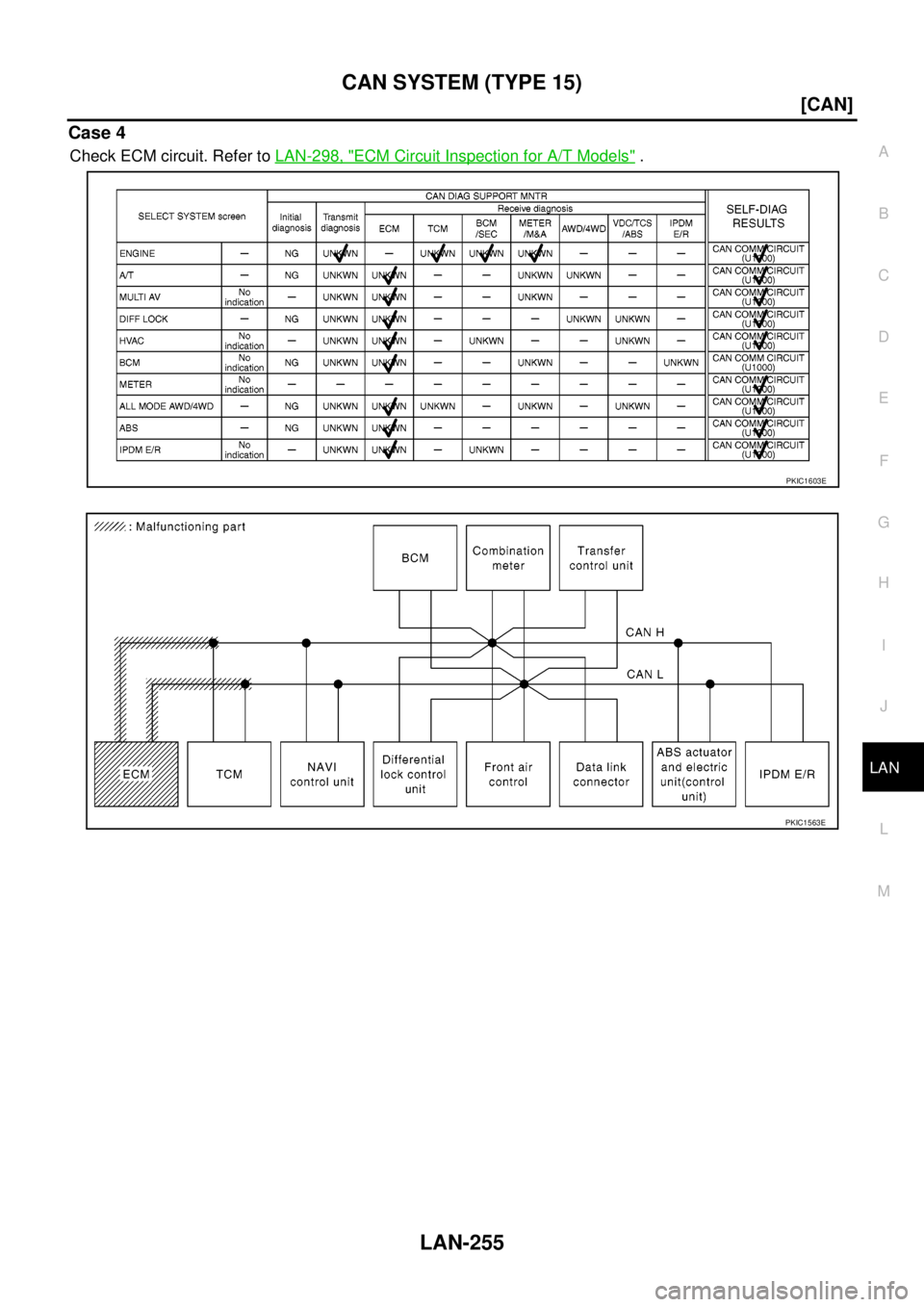

Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models".
PKIC1603E
PKIC1563E
Page 2033 of 3171
LAN-256
[CAN]
CAN SYSTEM (TYPE 15)
Case 5

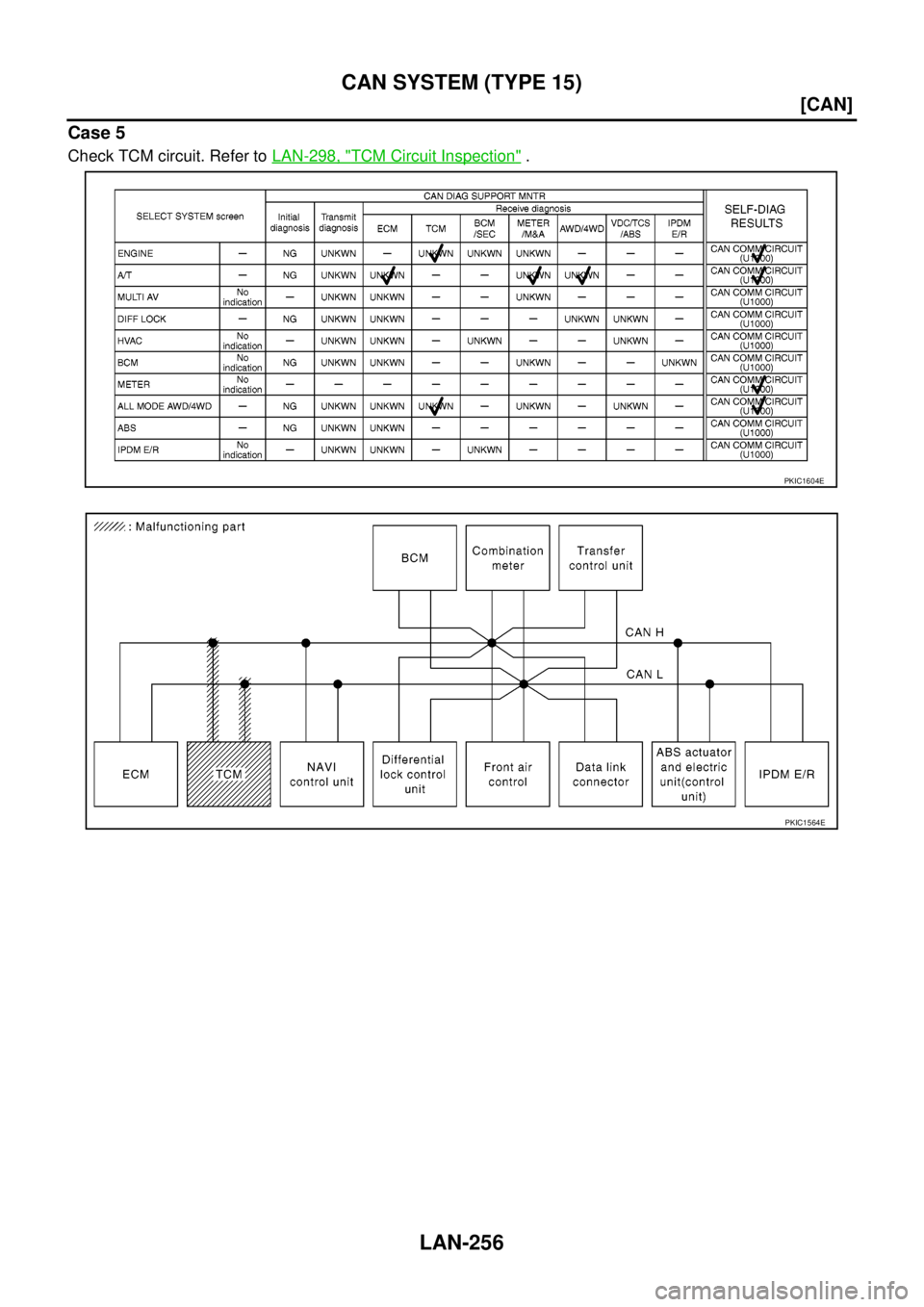

Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection".
PKIC1604E
PKIC1564E
Page 2034 of 3171
CAN SYSTEM (TYPE 15)
LAN-257
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 6

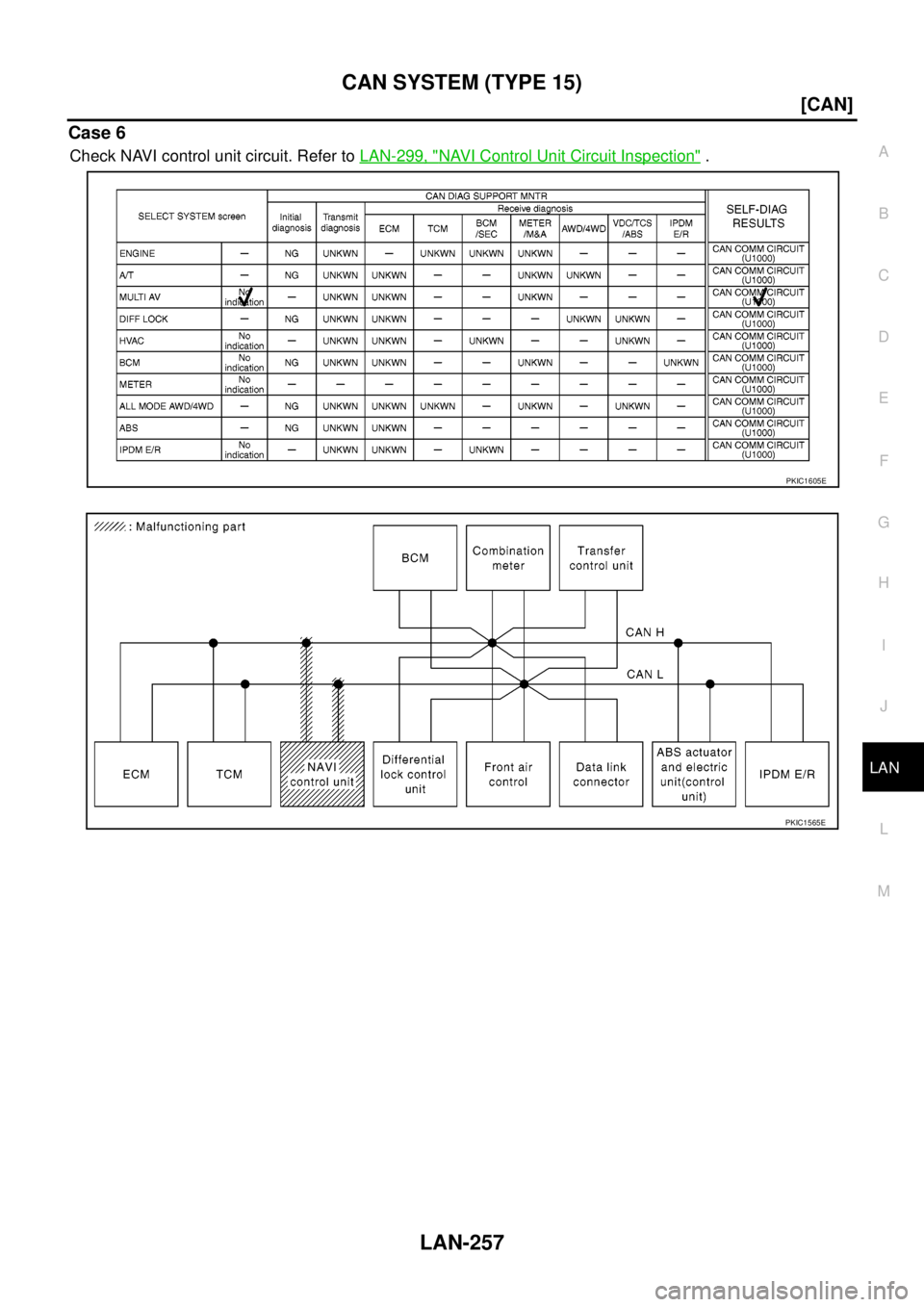

Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection".
PKIC1605E
PKIC1565E
Page 2035 of 3171
LAN-258
[CAN]
CAN SYSTEM (TYPE 15)

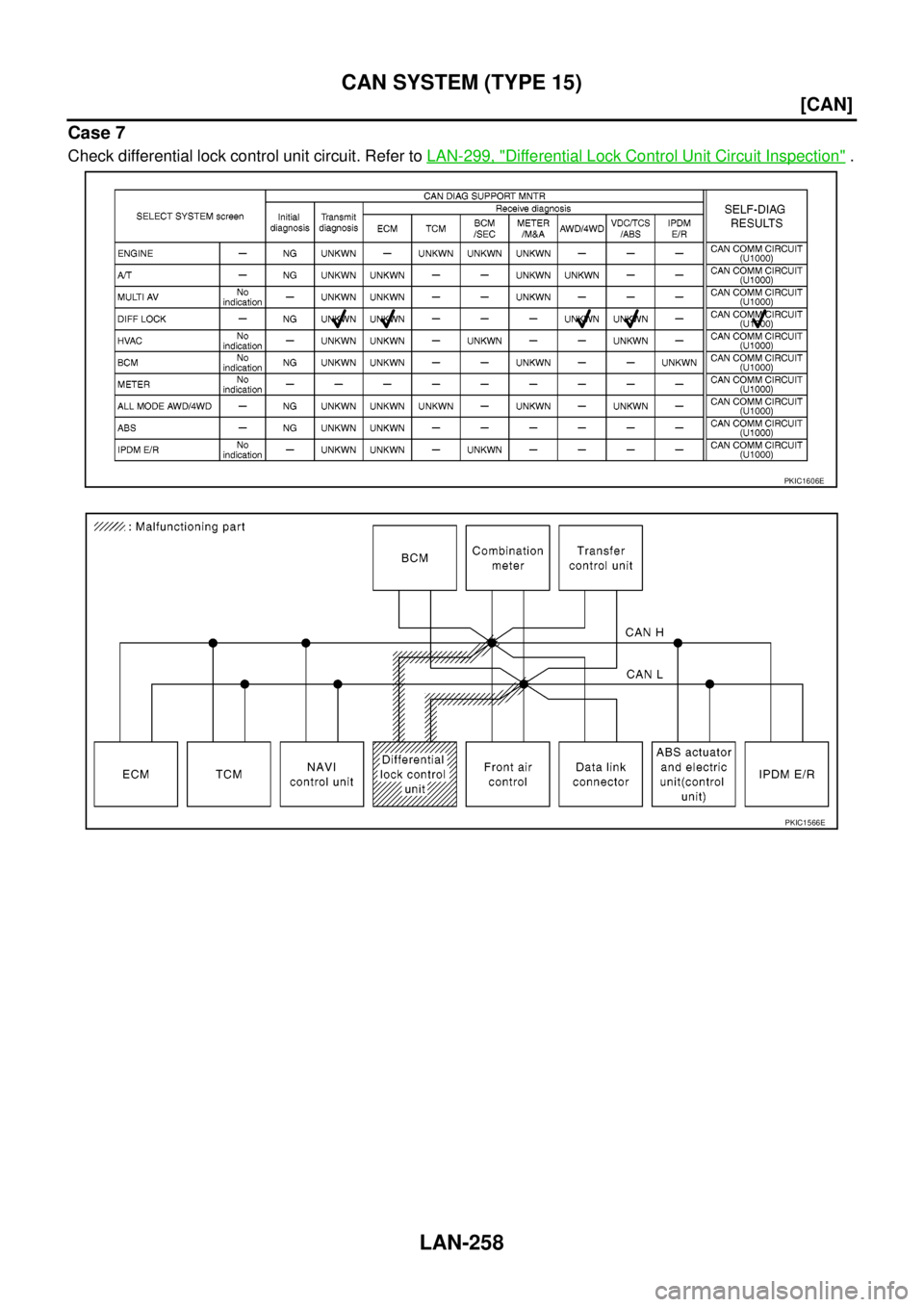

Case 7
Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection".
PKIC1606E
PKIC1566E
Page 2036 of 3171
CAN SYSTEM (TYPE 15)
LAN-259
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 8

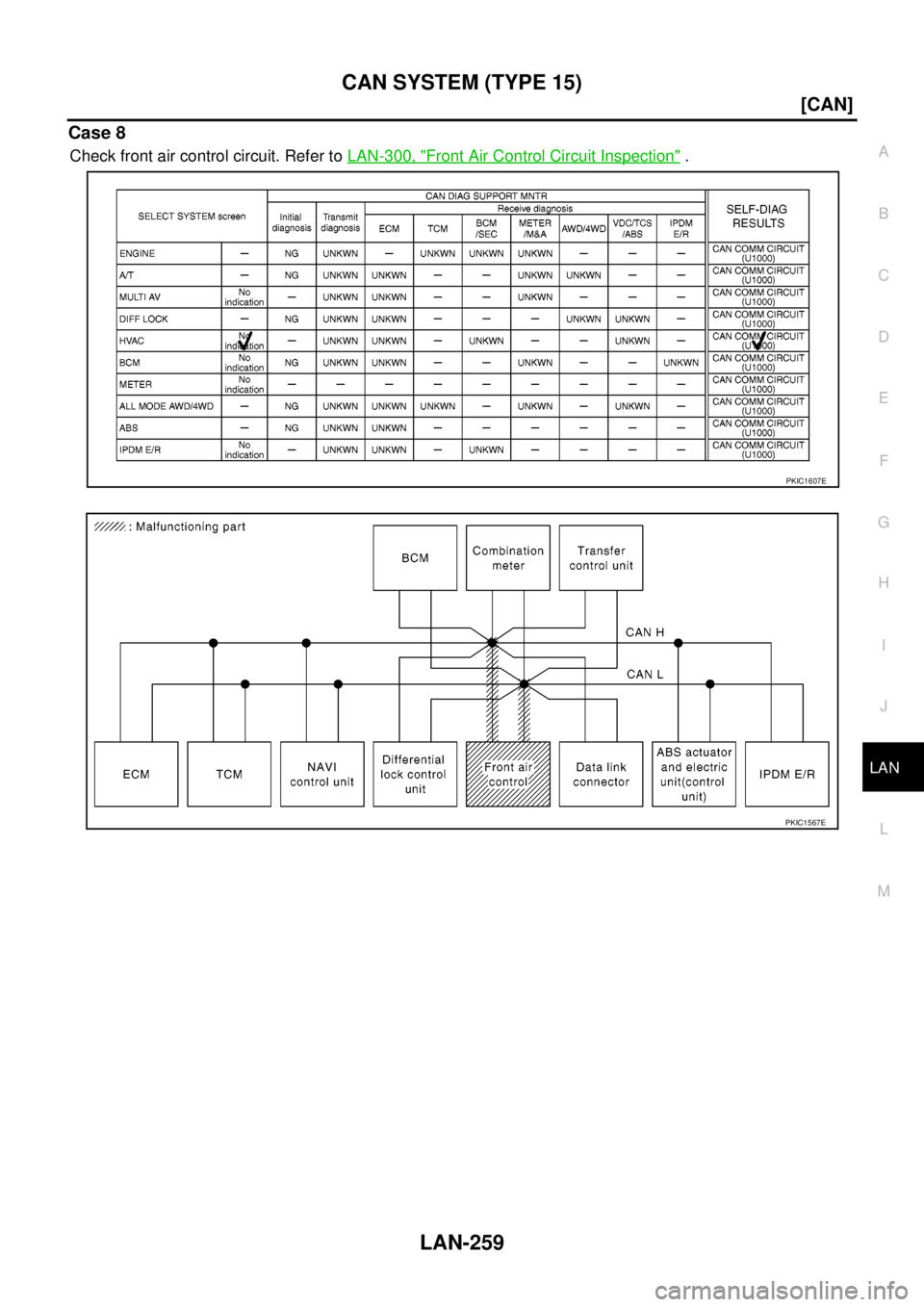

Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1607E
PKIC1567E
Page 2037 of 3171
LAN-260
[CAN]
CAN SYSTEM (TYPE 15)
Case 9

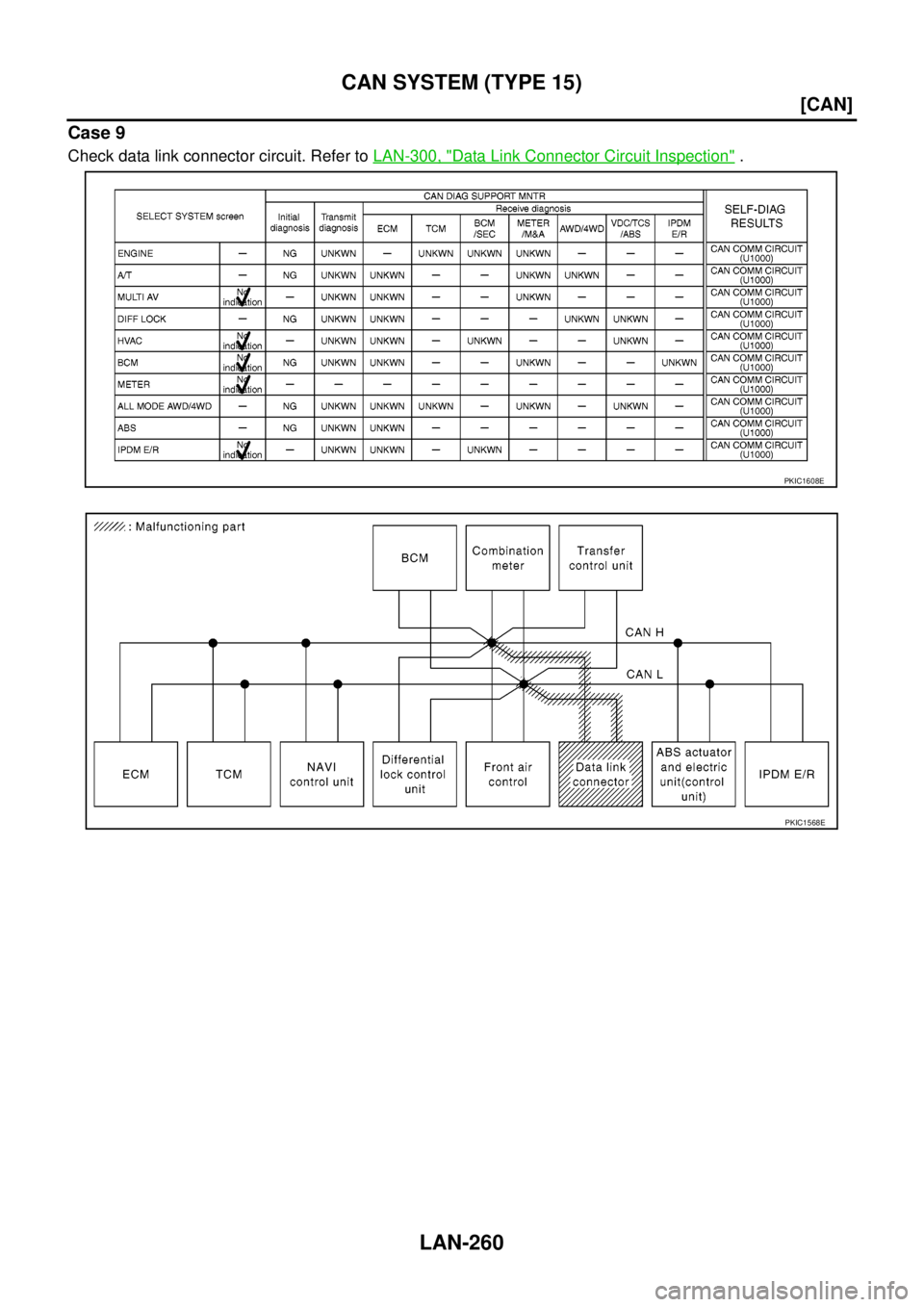

Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1608E
PKIC1568E
Page 2038 of 3171
CAN SYSTEM (TYPE 15)
LAN-261
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 10
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1609E
PKIC1569E
Page 2039 of 3171
LAN-262
[CAN]
CAN SYSTEM (TYPE 15)
Case 11

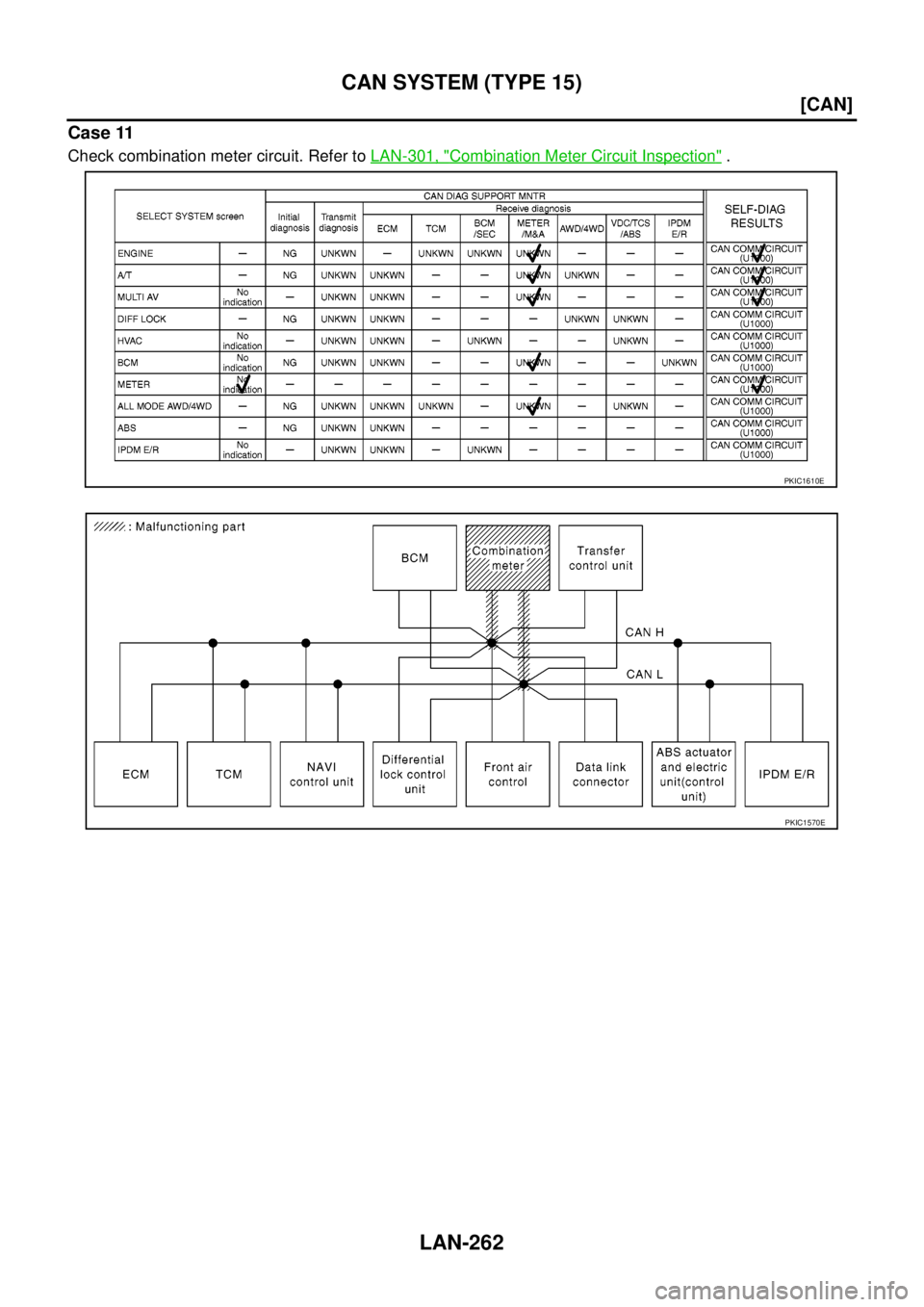

Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1610E
PKIC1570E
Page 2040 of 3171
CAN SYSTEM (TYPE 15)
LAN-263
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 12

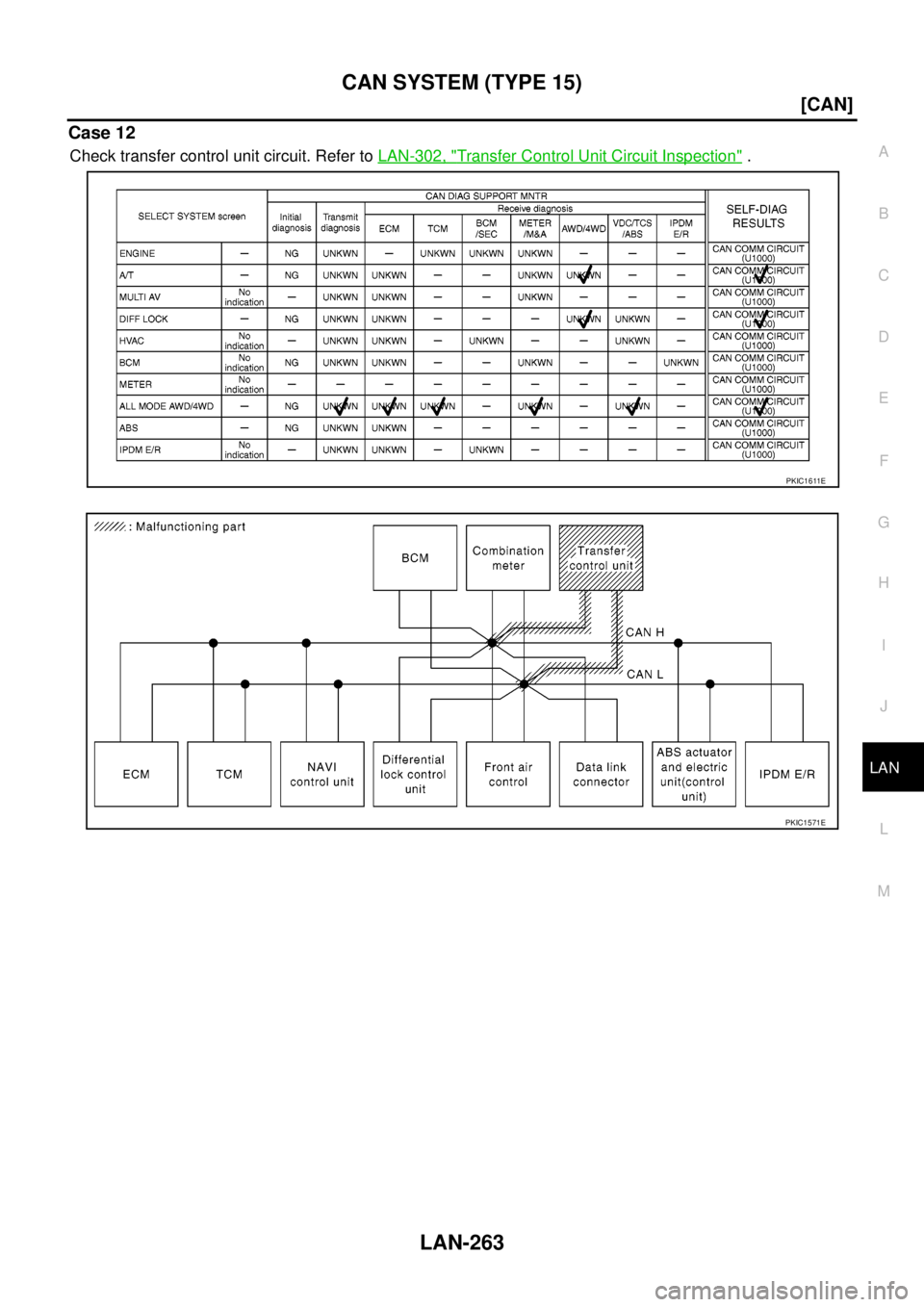

Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1611E
PKIC1571E
