Page 2041 of 3171
LAN-264
[CAN]
CAN SYSTEM (TYPE 15)

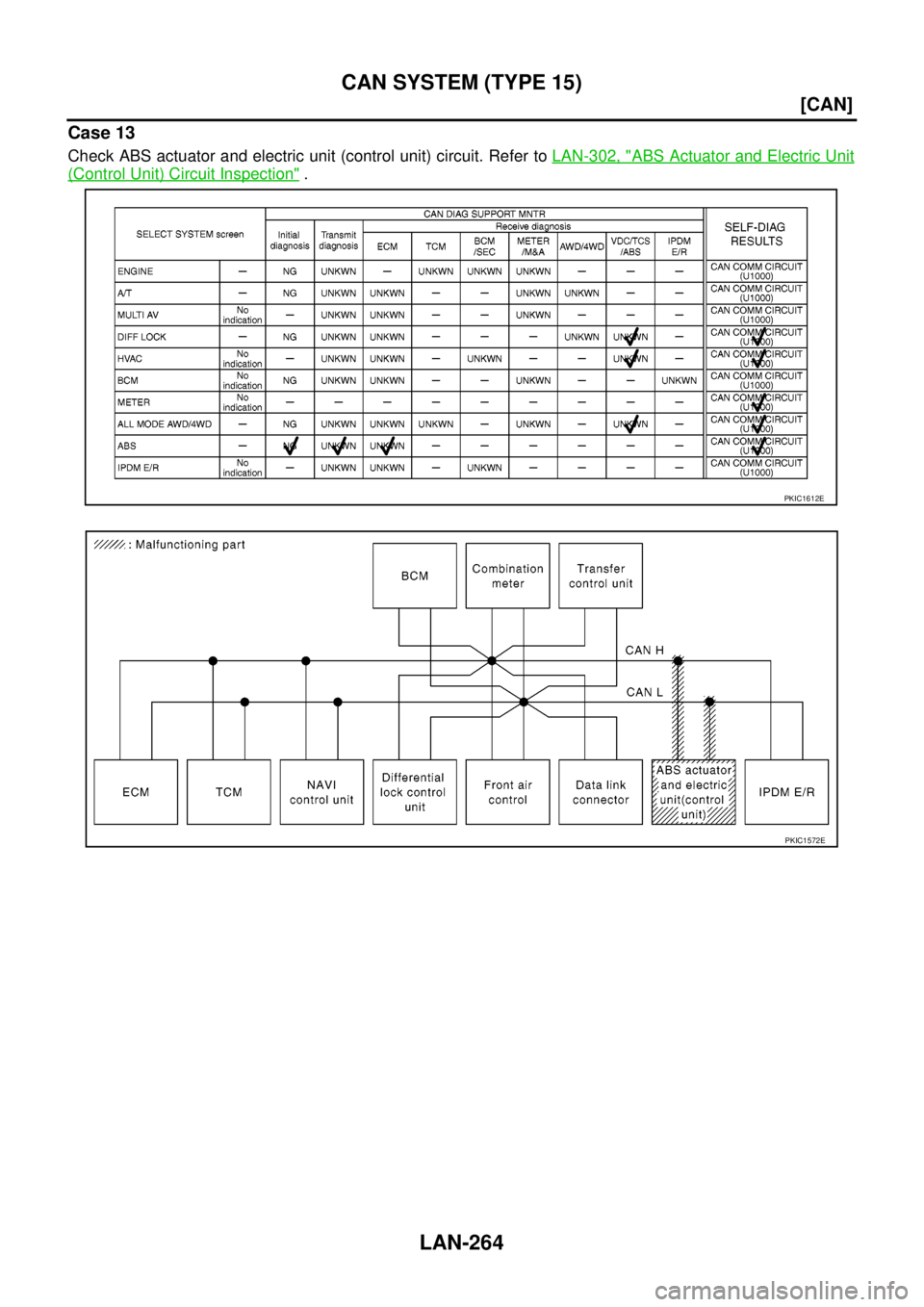

Case 13
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1612E
PKIC1572E
Page 2042 of 3171
CAN SYSTEM (TYPE 15)
LAN-265
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

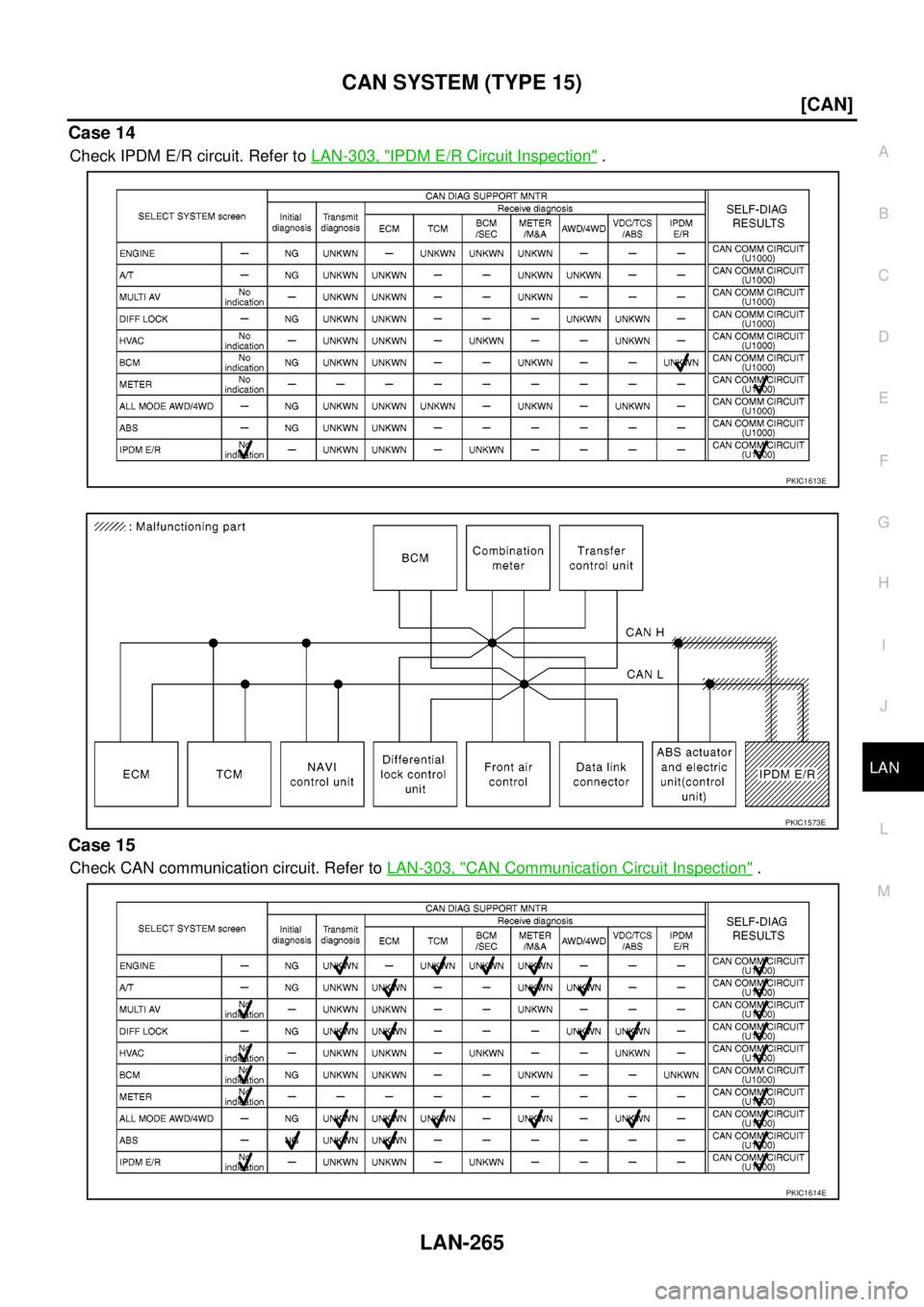

Case 14
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 15
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1613E
PKIC1573E
PKIC1614E
Page 2043 of 3171
LAN-266
[CAN]
CAN SYSTEM (TYPE 15)

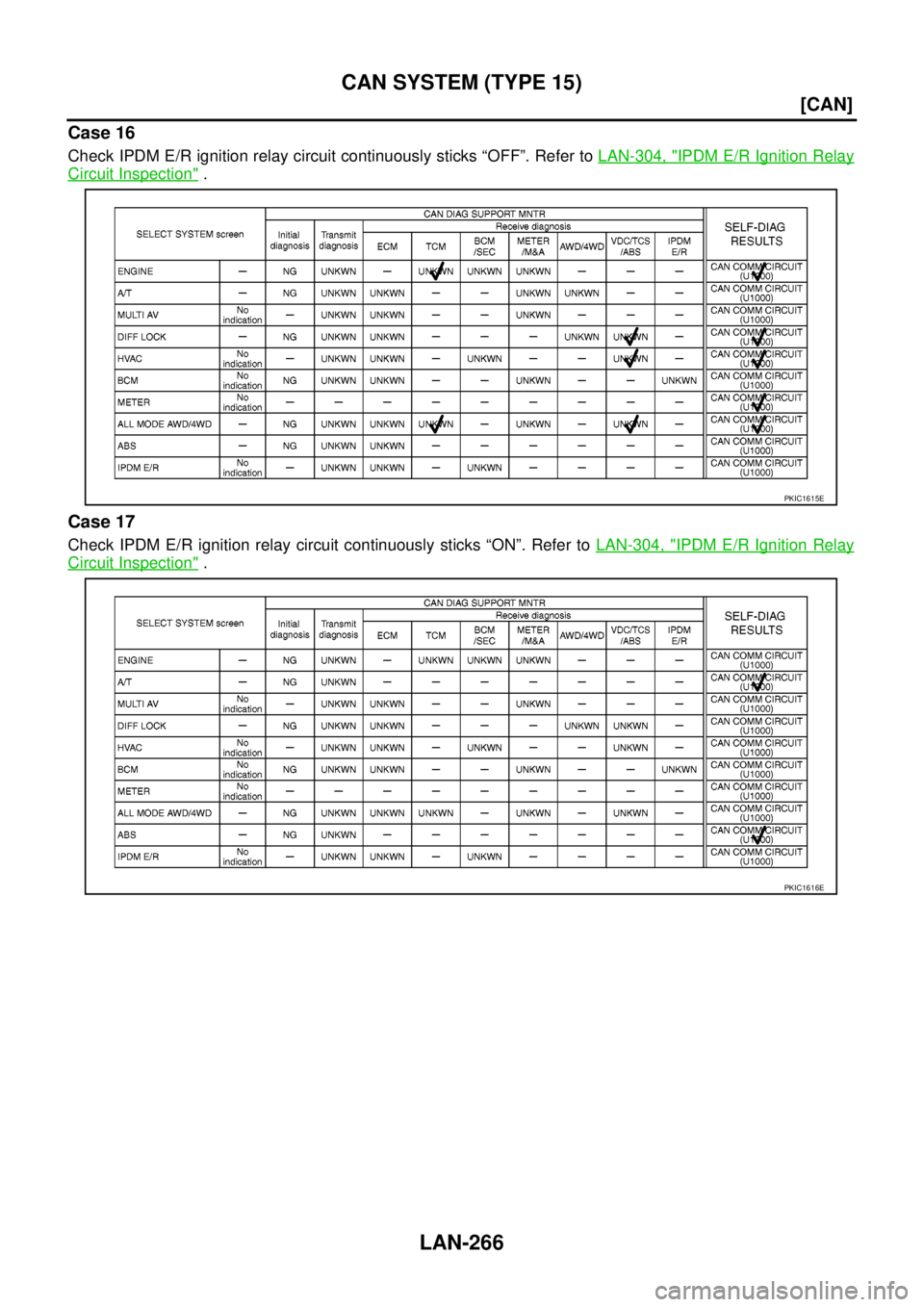

Case 16
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1615E
PKIC1616E
Page 2044 of 3171
CAN SYSTEM (TYPE 16)
LAN-267
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CAN SYSTEM (TYPE 16)PFP:23710
Component Parts and Harness Connector LocationEKS00OEF
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OEG
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OEH
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 2045 of 3171
LAN-268
[CAN]
CAN SYSTEM (TYPE 16)

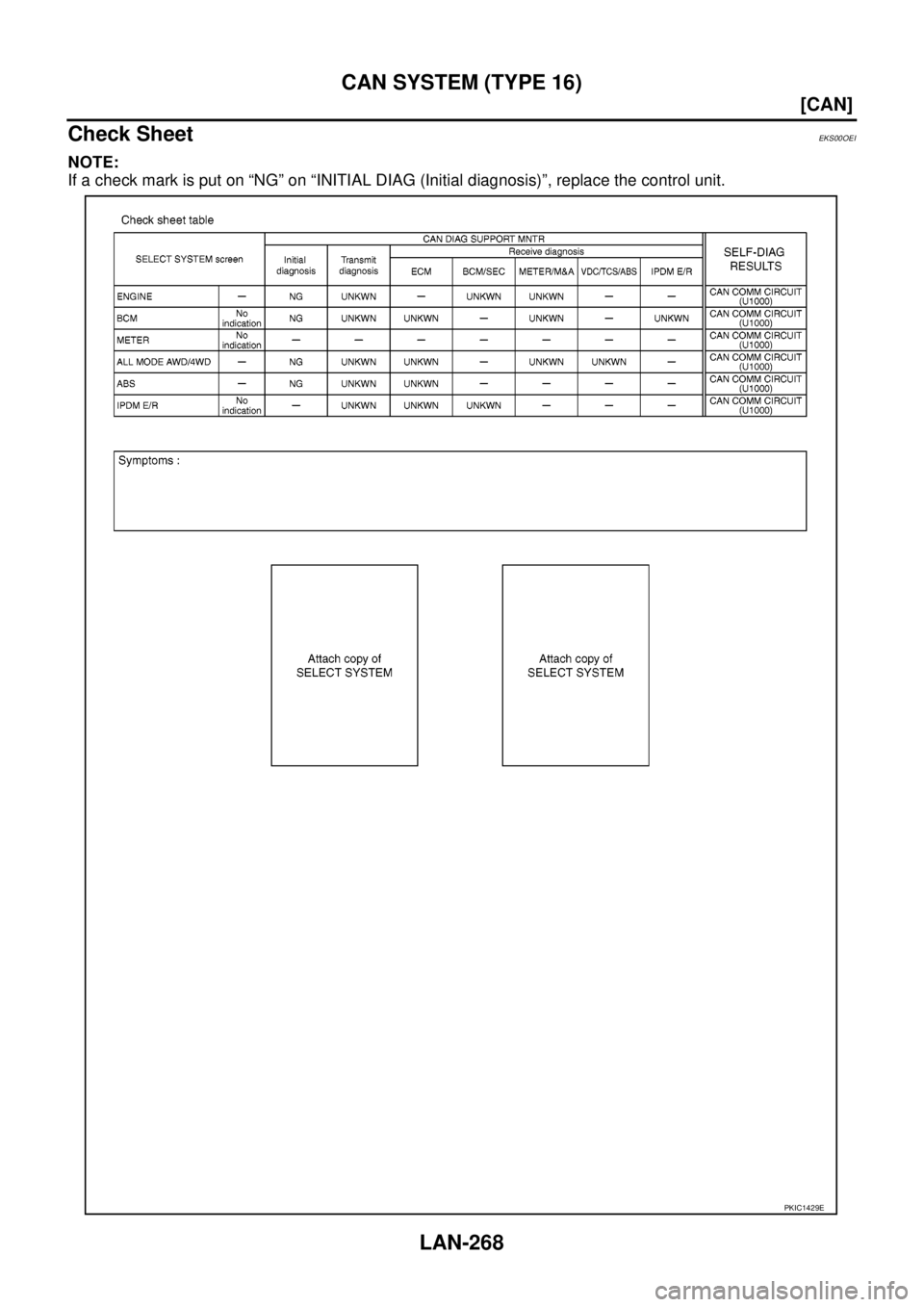

Check Sheet
EKS00OEI
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1429E
Page 2046 of 3171

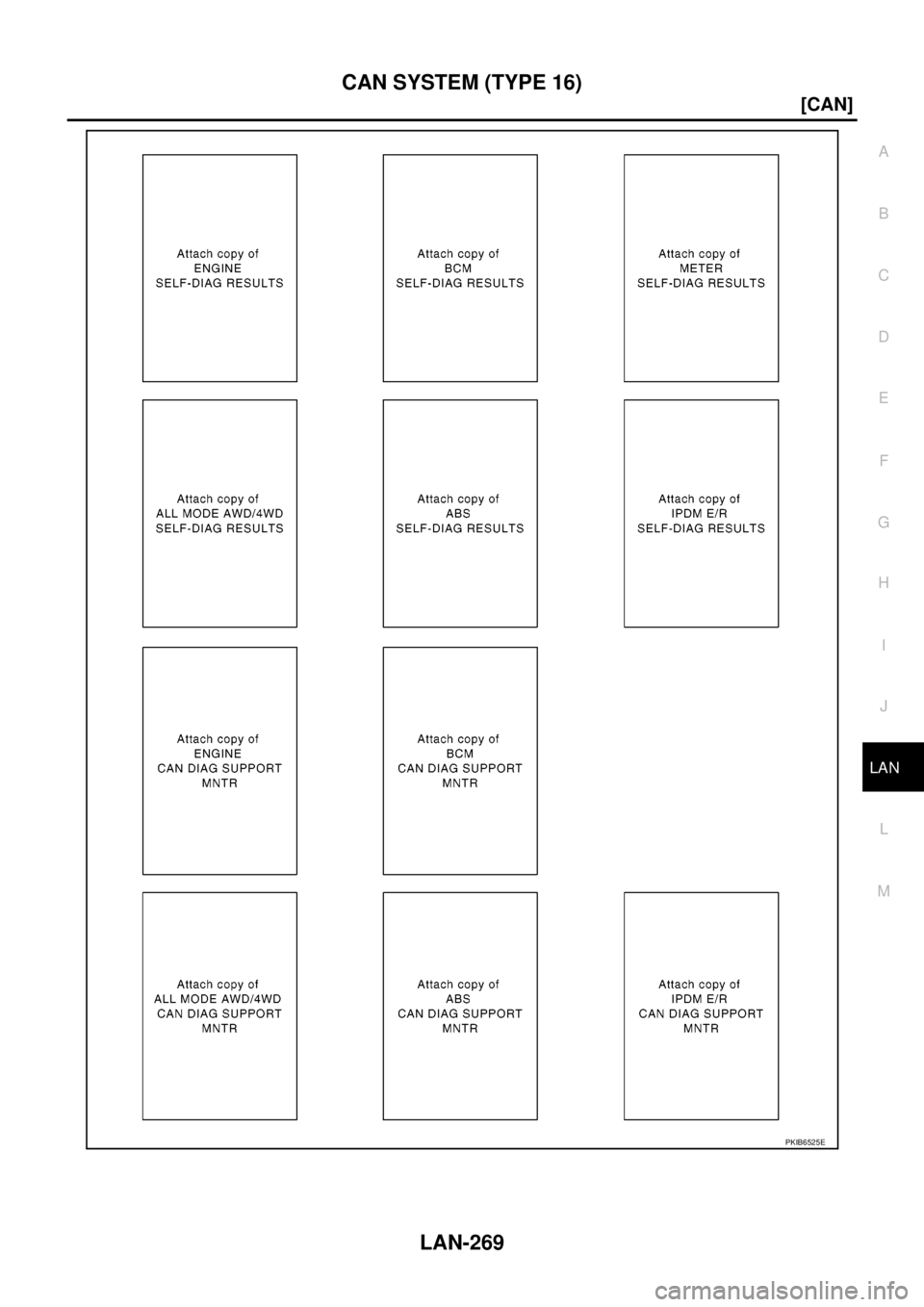

CAN SYSTEM (TYPE 16)
LAN-269
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
PKIB6525E
Page 2047 of 3171
LAN-270
[CAN]
CAN SYSTEM (TYPE 16)

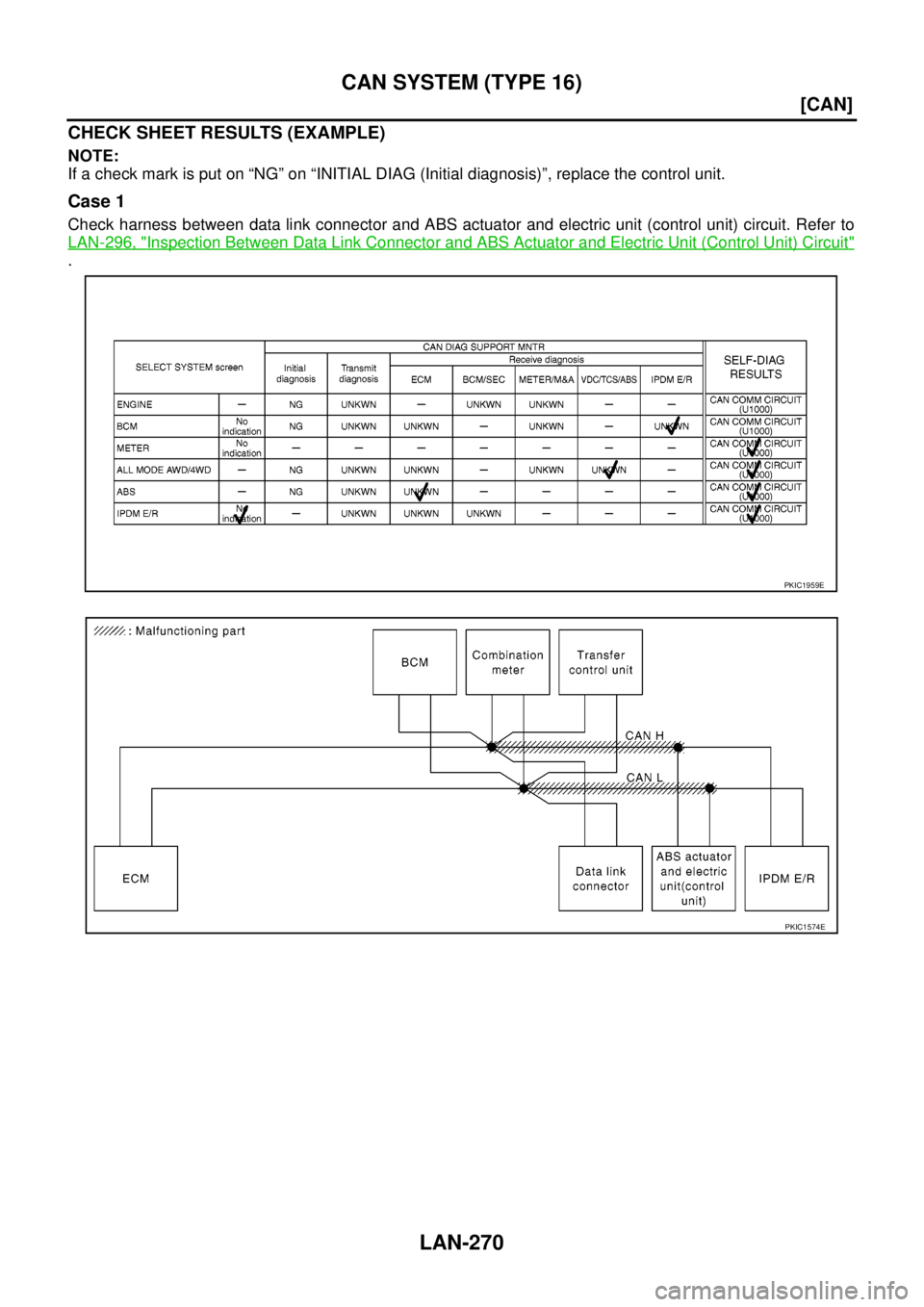

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1959E
PKIC1574E
Page 2048 of 3171
CAN SYSTEM (TYPE 16)
LAN-271
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

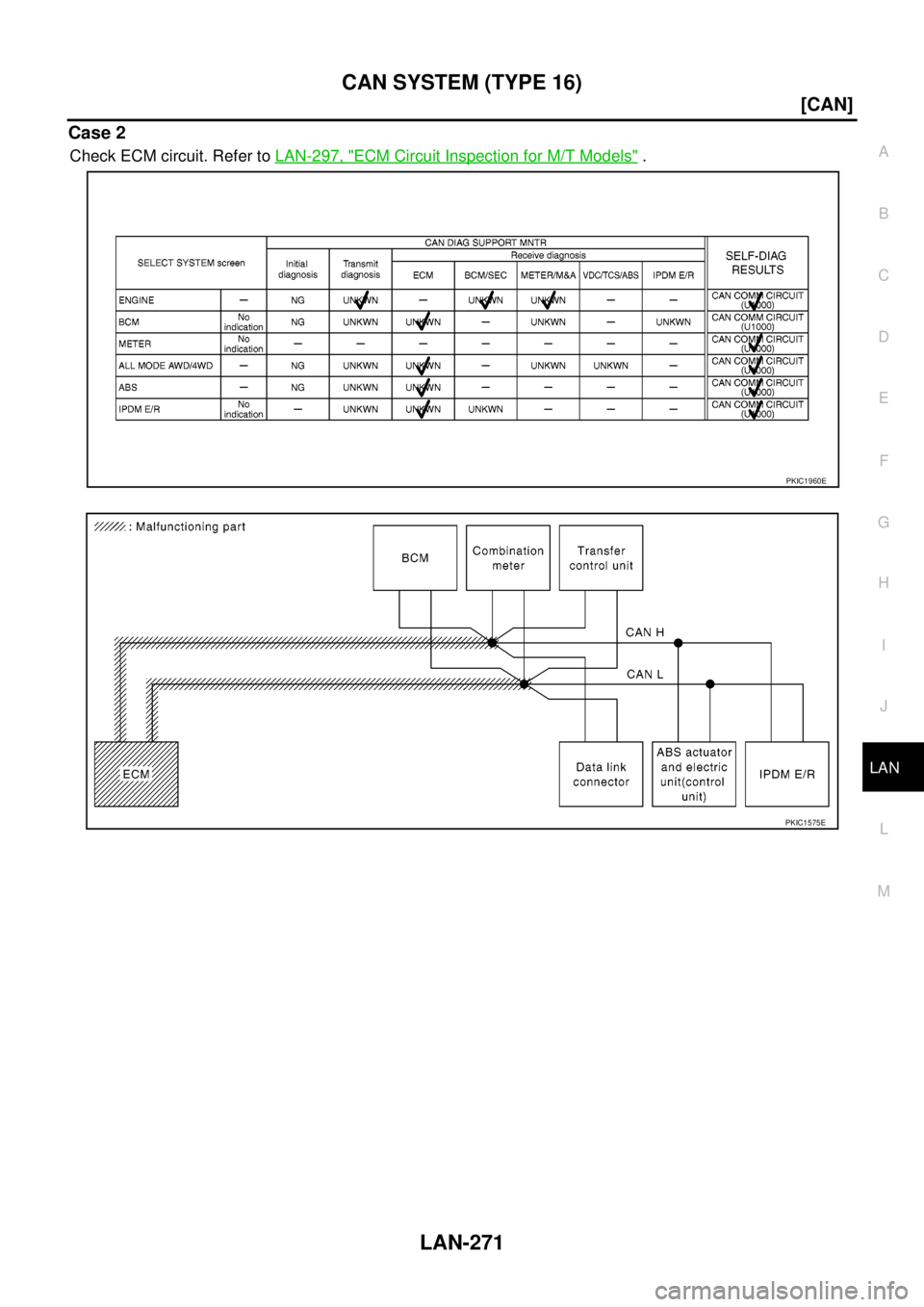

Case 2
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1960E
PKIC1575E
Page 2049 of 3171
LAN-272
[CAN]
CAN SYSTEM (TYPE 16)

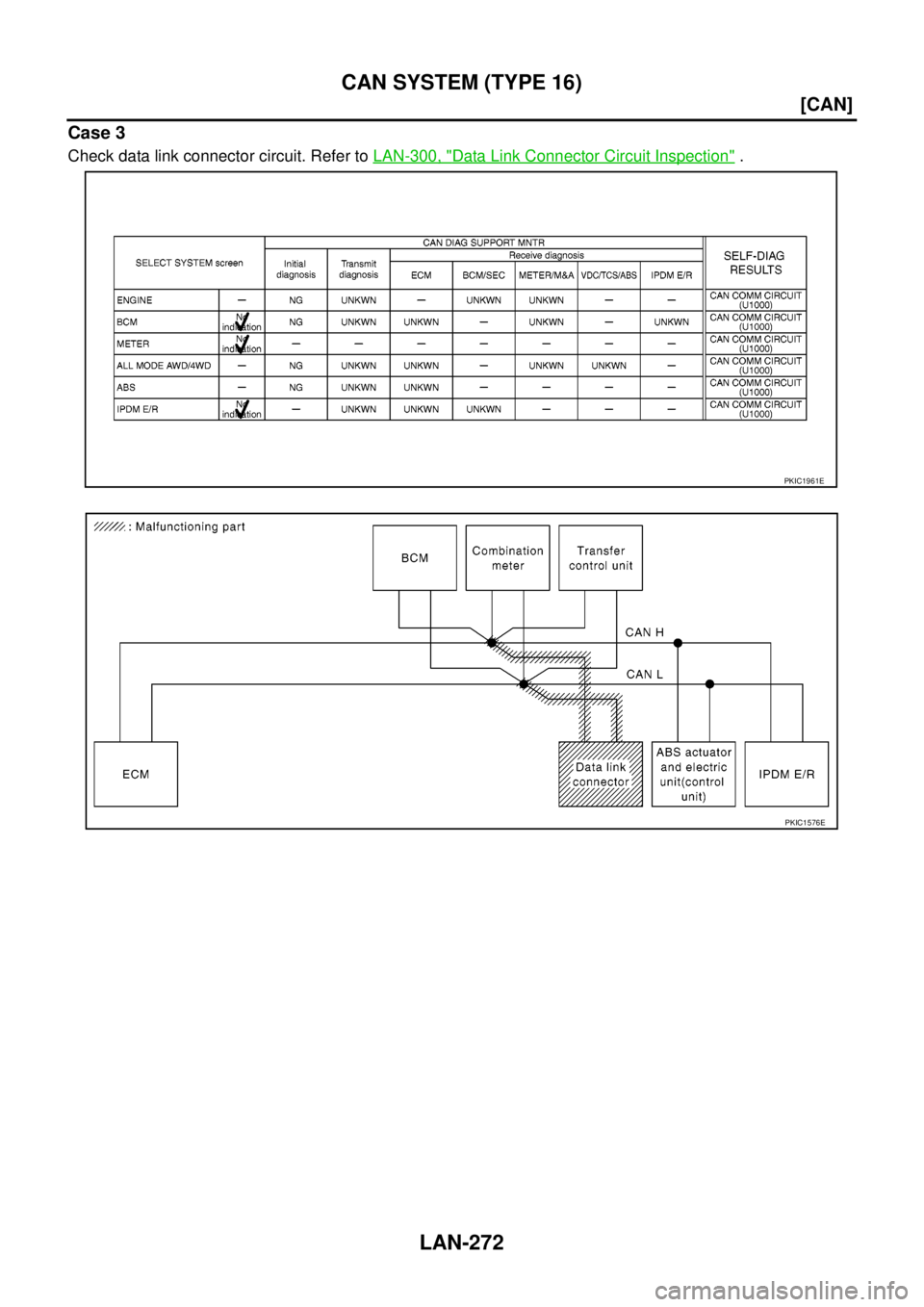

Case 3
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1961E
PKIC1576E
Page 2050 of 3171
CAN SYSTEM (TYPE 16)
LAN-273
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

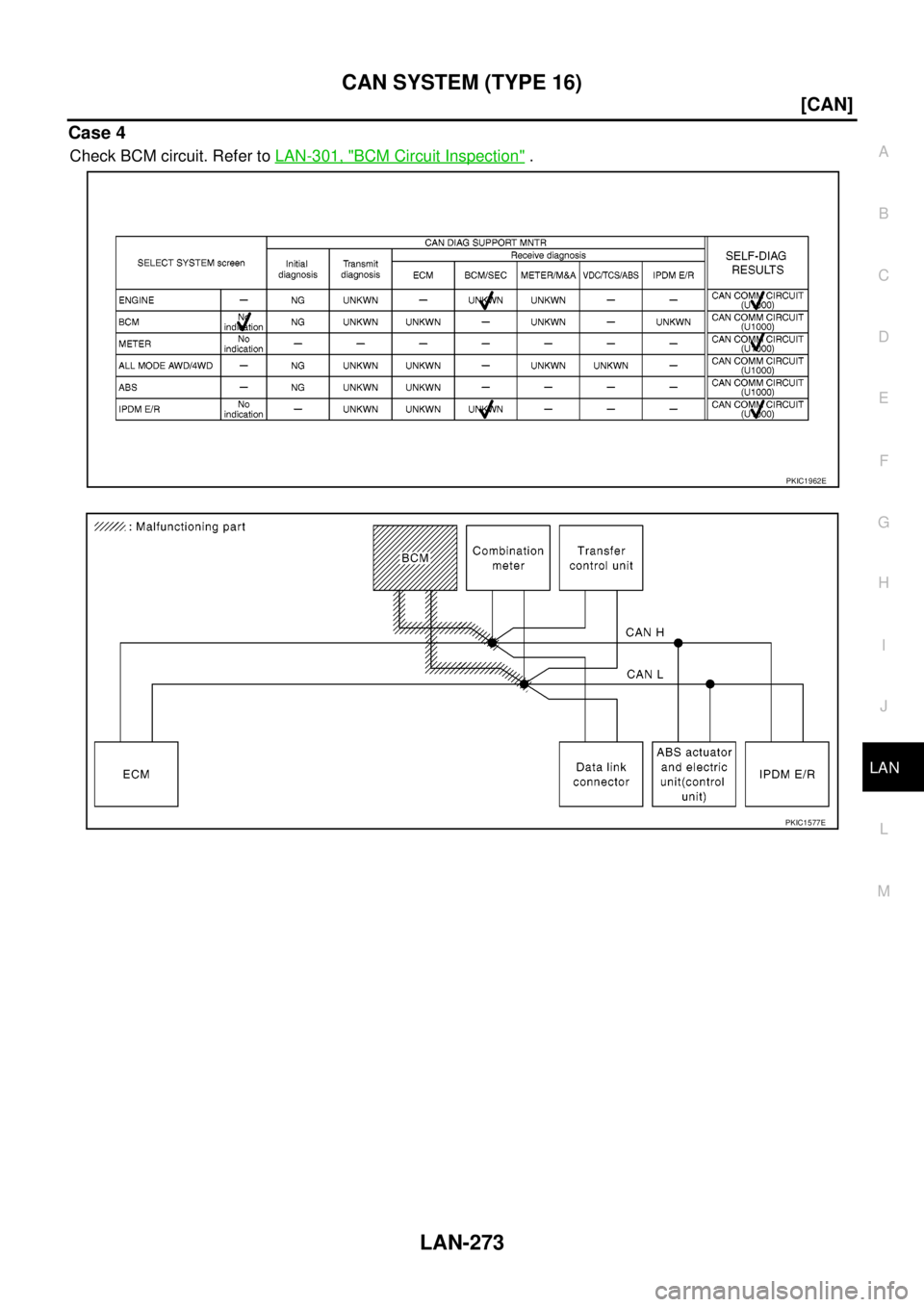

Case 4
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1962E
PKIC1577E
