Page 2051 of 3171
LAN-274
[CAN]
CAN SYSTEM (TYPE 16)

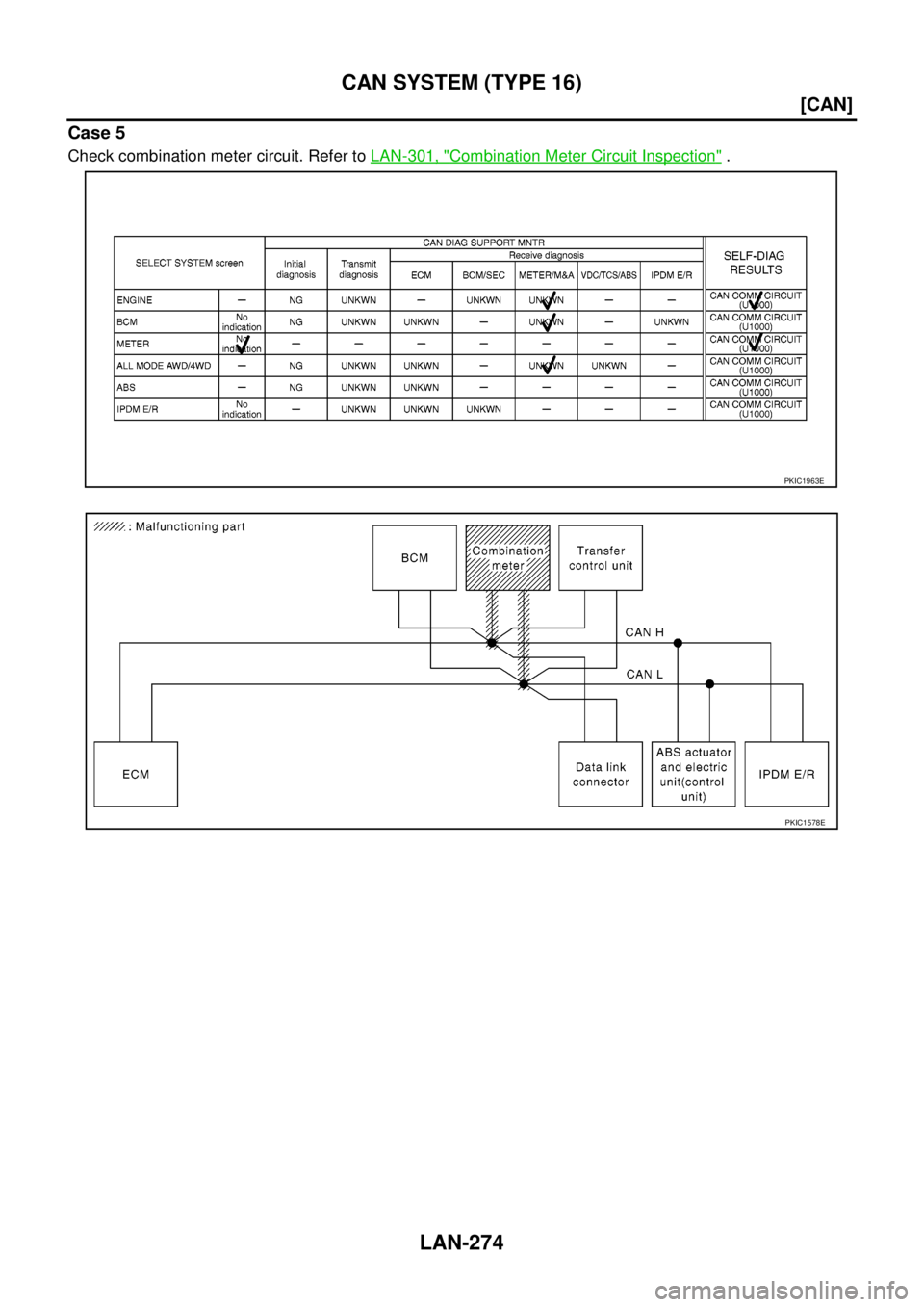

Case 5
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1963E
PKIC1578E
Page 2052 of 3171
CAN SYSTEM (TYPE 16)
LAN-275
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

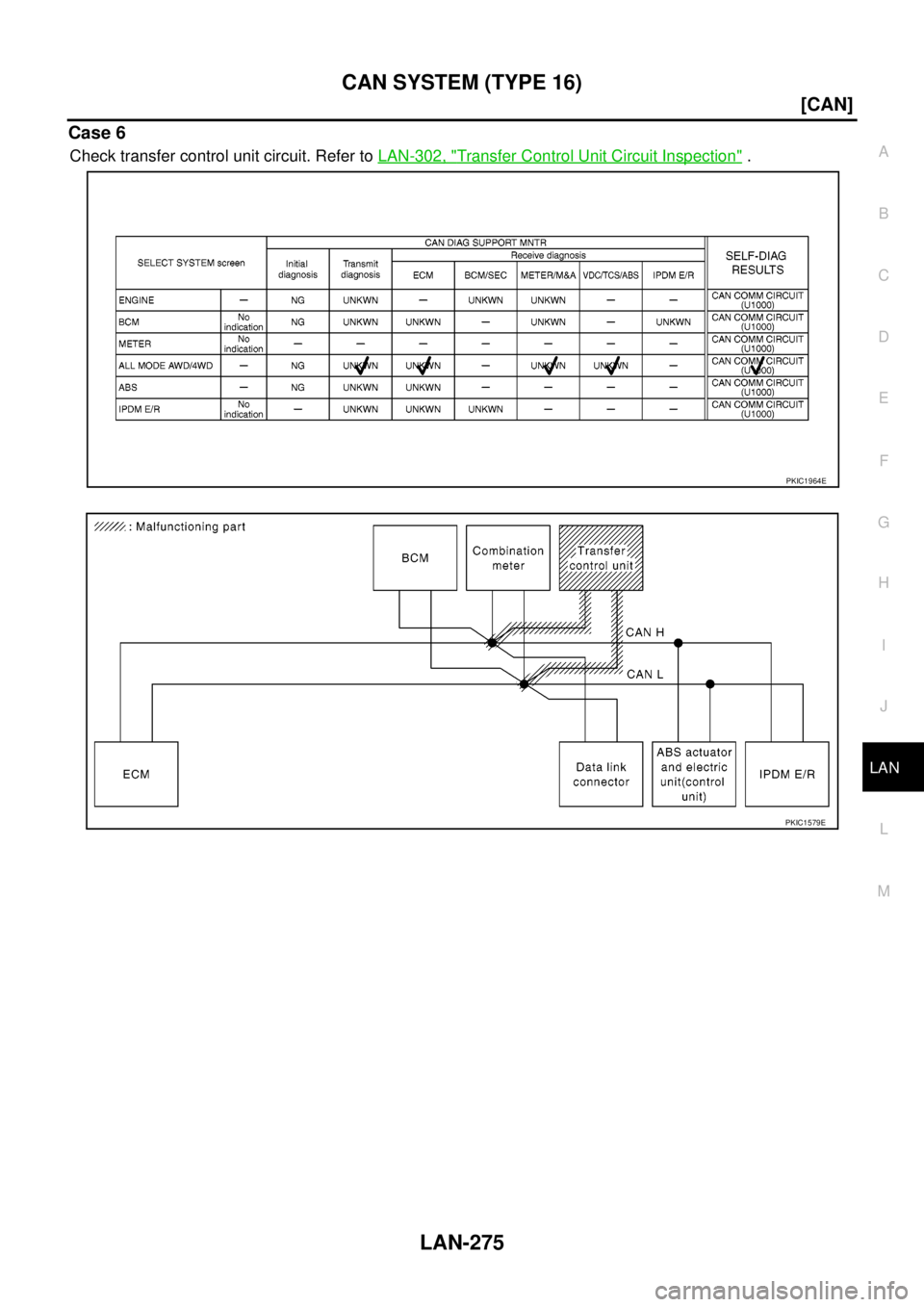

Case 6
Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1964E
PKIC1579E
Page 2053 of 3171
LAN-276
[CAN]
CAN SYSTEM (TYPE 16)

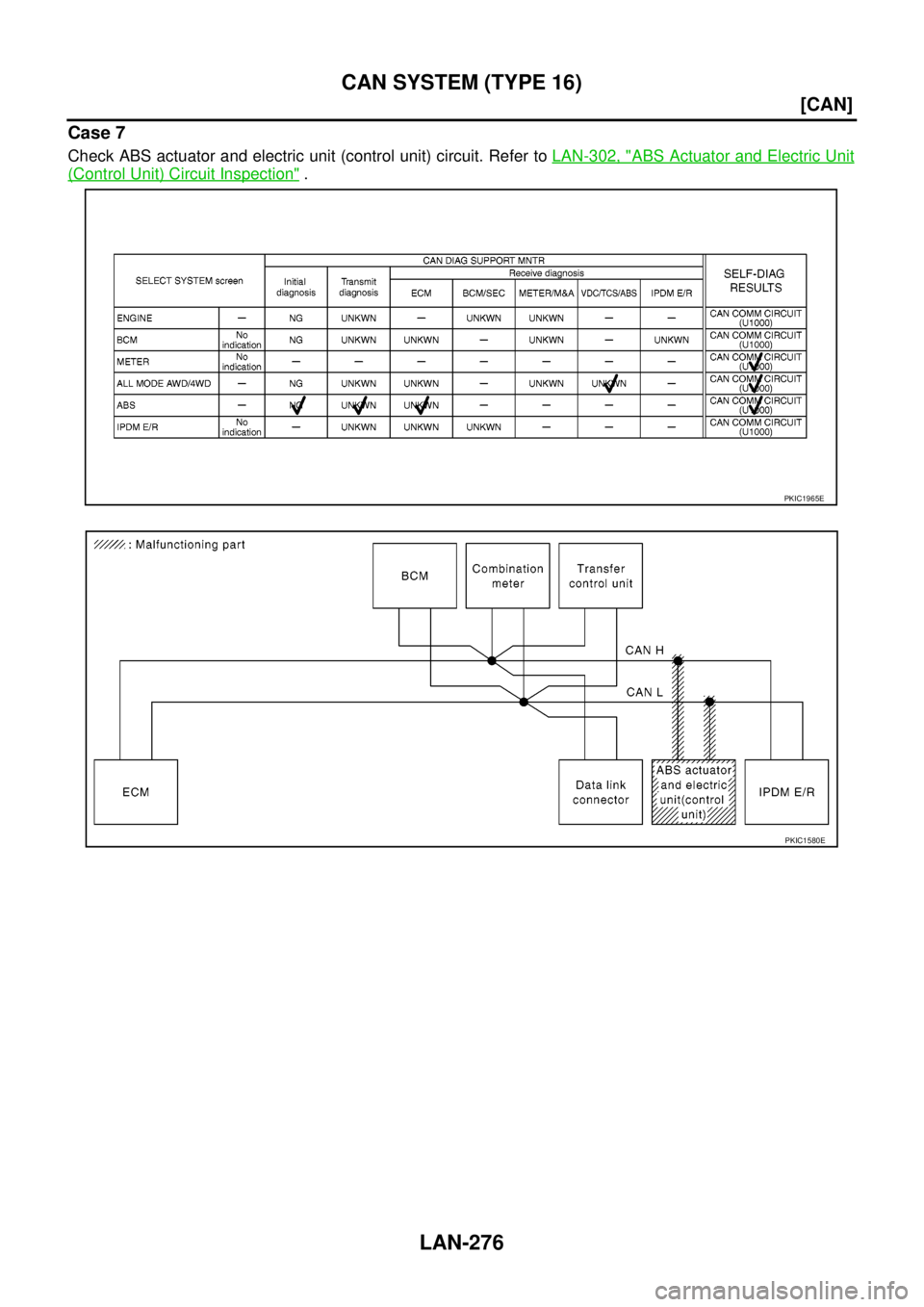

Case 7
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1965E
PKIC1580E
Page 2054 of 3171
CAN SYSTEM (TYPE 16)
LAN-277
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

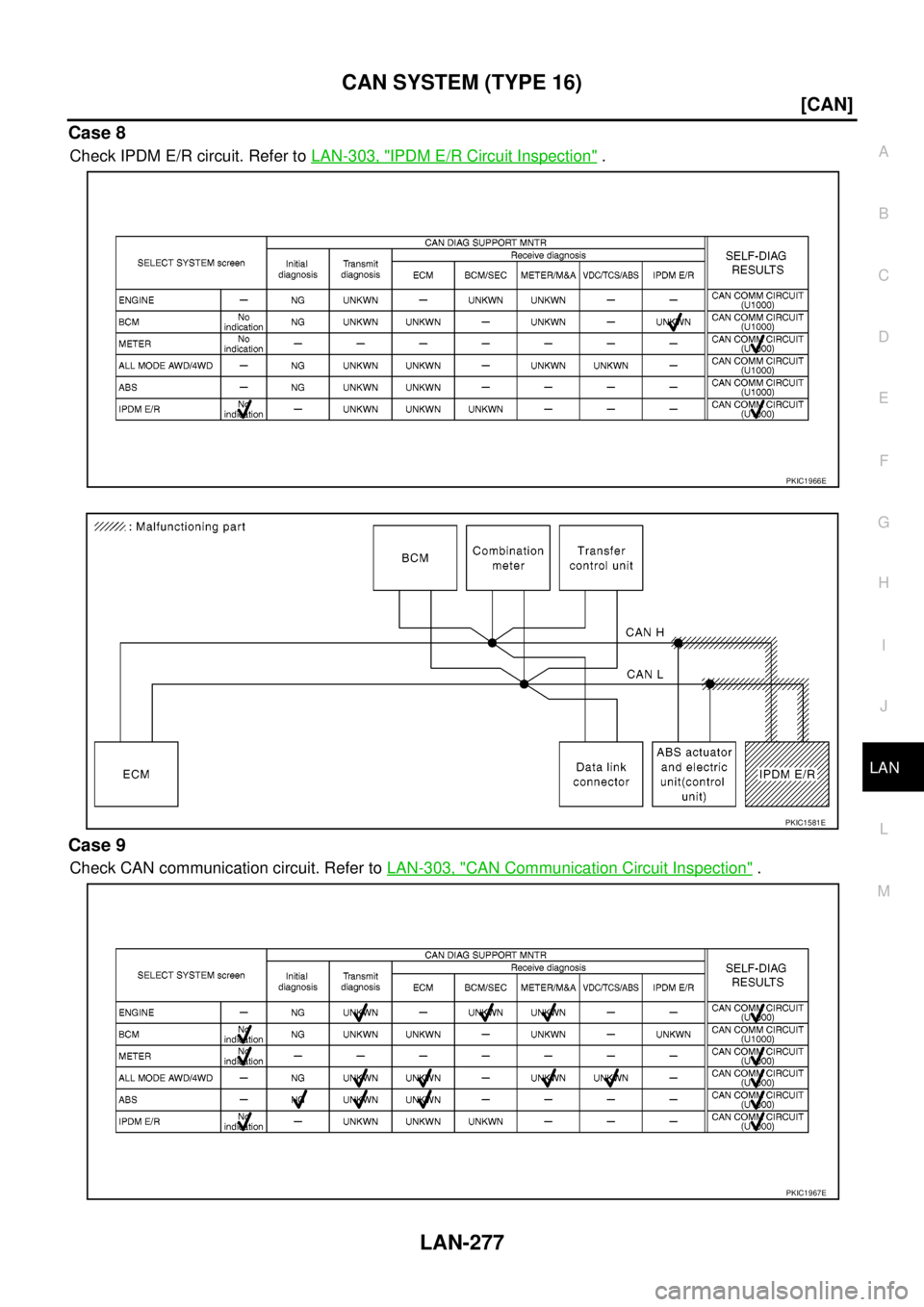

Case 8
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 9
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1966E
PKIC1581E
PKIC1967E
Page 2055 of 3171
LAN-278
[CAN]
CAN SYSTEM (TYPE 16)

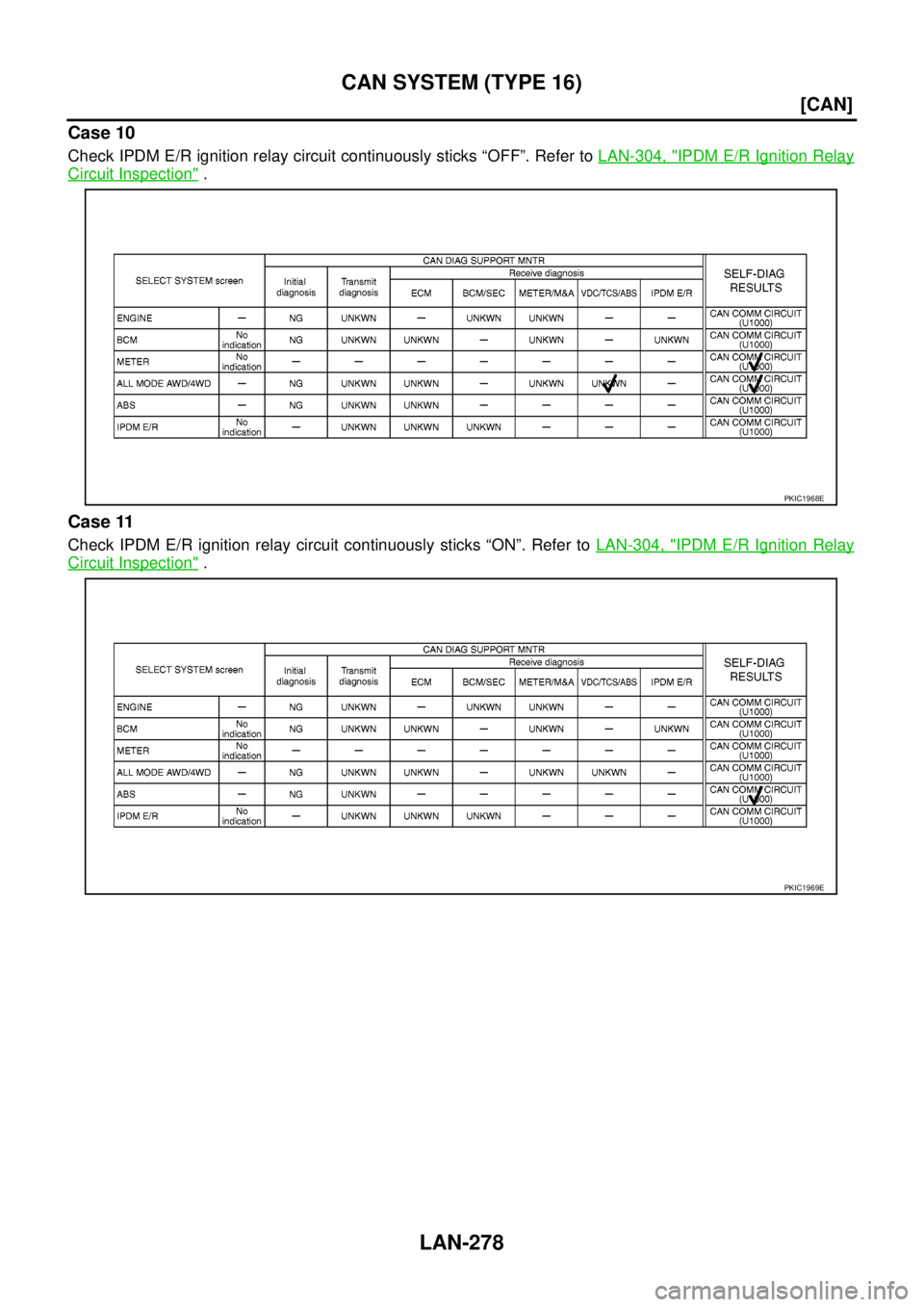

Case 10
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 11
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1968E
PKIC1969E
Page 2056 of 3171
CAN SYSTEM (TYPE 17)
LAN-279
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CAN SYSTEM (TYPE 17)PFP:23710
Component Parts and Harness Connector LocationEKS00OJJ
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OJK
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OJL
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 2057 of 3171

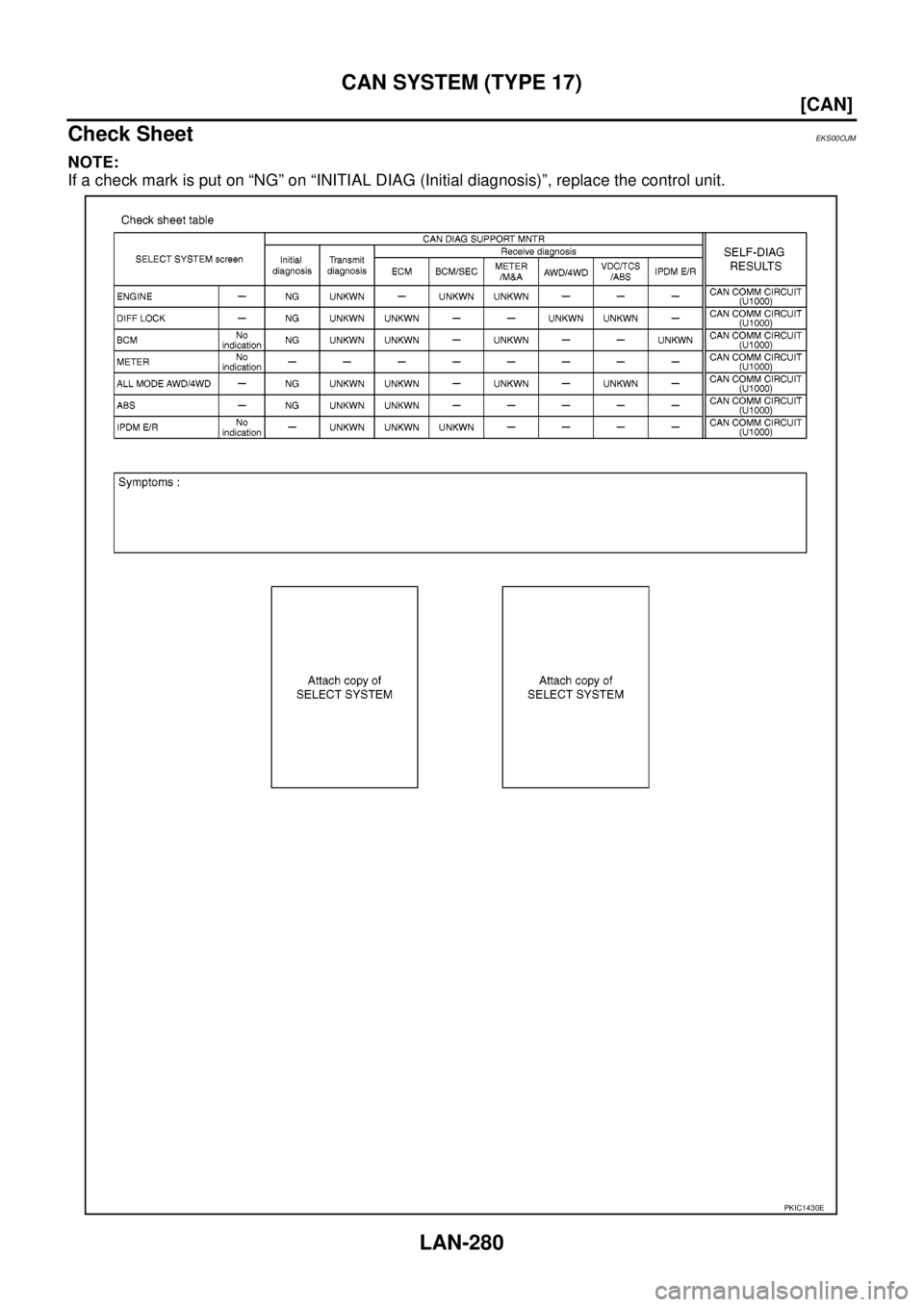

LAN-280
[CAN]
CAN SYSTEM (TYPE 17)
Check Sheet
EKS00OJM
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1430E
Page 2058 of 3171

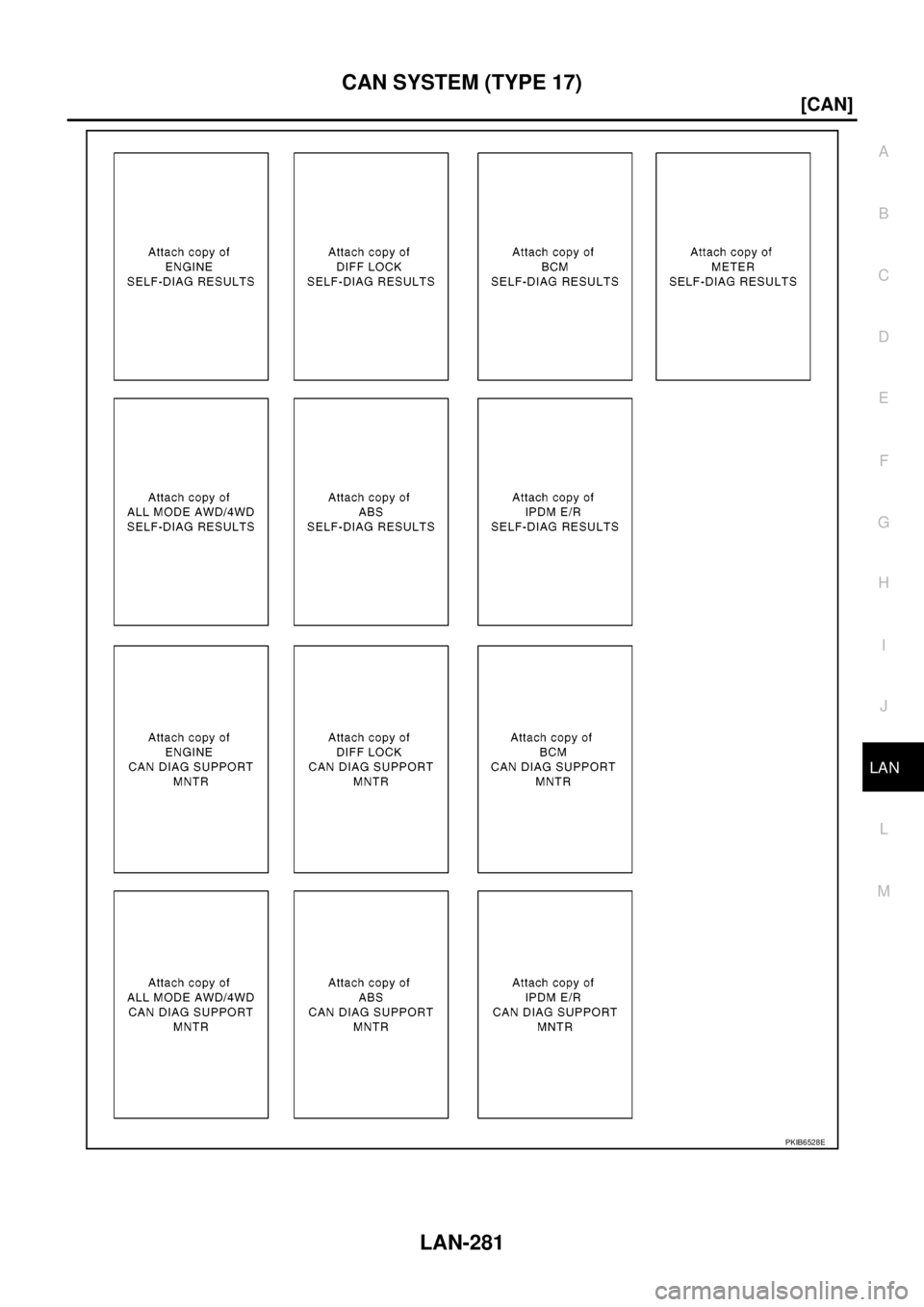

CAN SYSTEM (TYPE 17)
LAN-281
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
PKIB6528E
Page 2059 of 3171
LAN-282
[CAN]
CAN SYSTEM (TYPE 17)

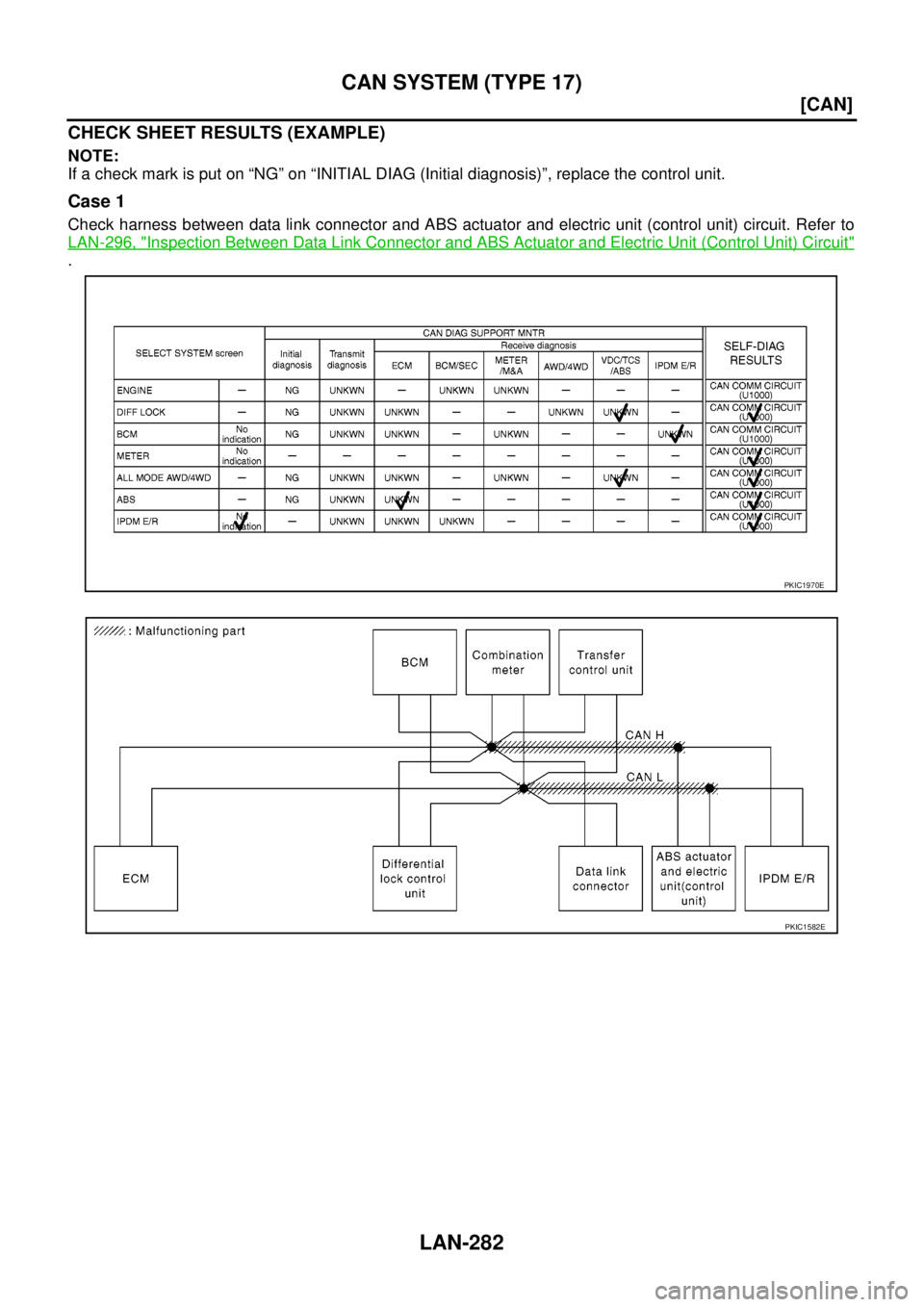

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1970E
PKIC1582E
Page 2060 of 3171
CAN SYSTEM (TYPE 17)
LAN-283
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

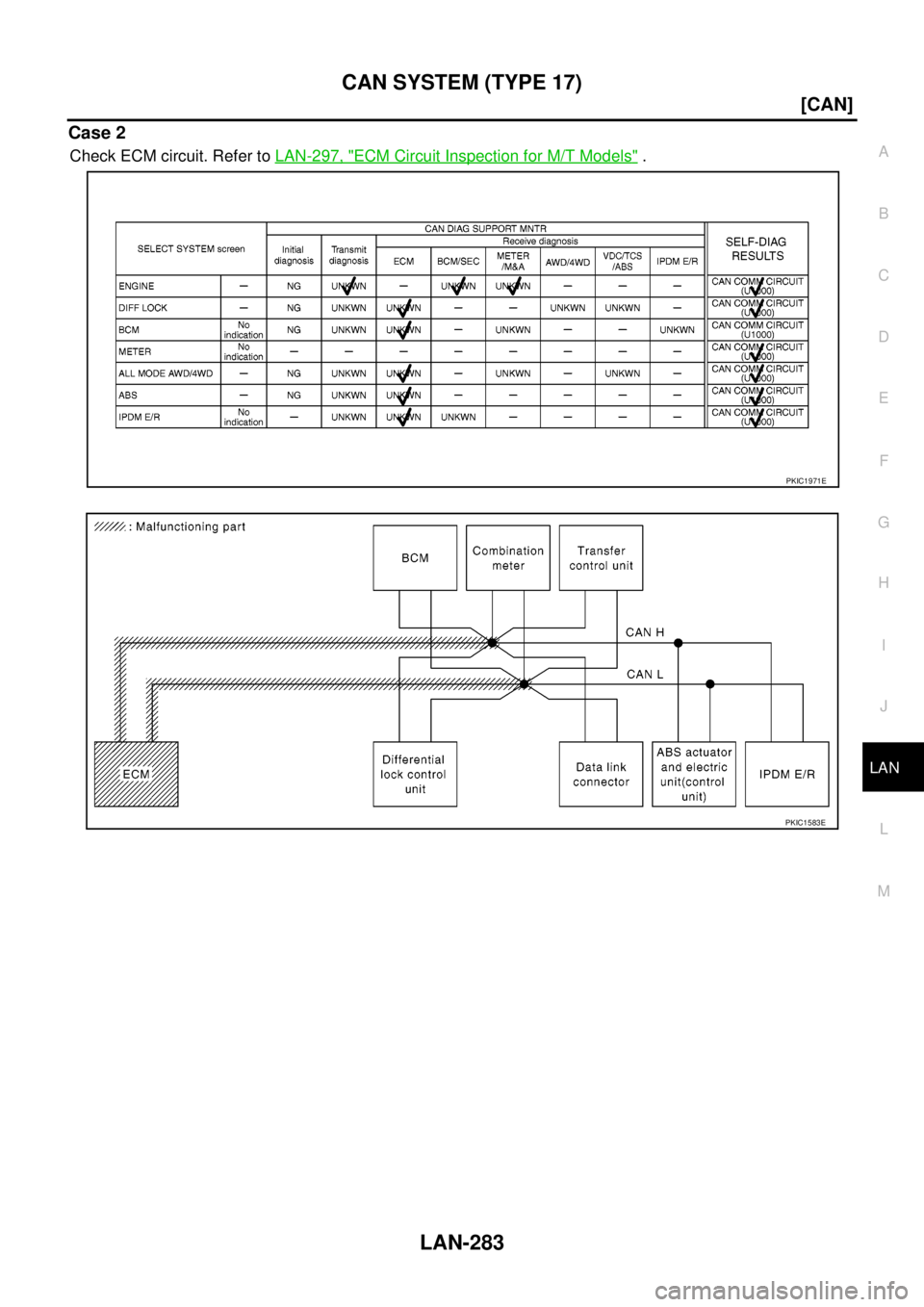

Case 2
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1971E
PKIC1583E
