NISSAN NOTE 2016 Service Repair Manual

TM-250
< REMOVAL AND INSTALLATION >[CVT: RE0F11A]
DIFFERENTIAL SIDE OIL SEAL
Since seal lips have a tolerance of
± 0.3 mm ( ± 0.012 in) at maximum due to manufacturing tolerances or
packing conditions, it is necessary to measure t he seal lip height beforehand to clarify the tolerance.
2. As an indicator of the parallelism and insertion depth, cut a masking tape (1) to specified width [add 1 mm (0.04 in) to the
value calculated from the tip of differential side oil seal lip] and
affix to the differential side oil seal.
3. Install the differential side oil seal using a suitable tool according to the guide of the masking tape (1).
CAUTION:
• If differential side oil seal is inserted deeper than the ref-erence value, use a new differe ntial side oil seal and per-
form the steps again.
• Apply ATF to the differential side oil seal lip and around
the oil seal.
NOTE:
A hub cap (Part No. 43234 1HA0A) can be used as substitute for drift. To use a hub cap, be sure to pre-
pare a new one specifically for patting seal.
4. Remove masking tape.
5. Adjust as instructed below to optimize the protrusion size and parallelism. CAUTION:
If differential side oil seal is inserted deeper th an the reference value, use a new differential side
oil seal and perform the steps again.
• Protrusion size (A) CAUTION:
Protrusion must fall within ± 0.5mm (0.020 in) of calculated
size.
• Parallelism at four diagonal points ( ) CAUTION:
The difference among four diagona l points must be within 0.3
mm (0.012 in).
NOTE:
If differential side oil seal is uneven while installing, tilt suitable tool.
6. Check that the protrusion size and parallelism are adequate.
Inspection and AdjustmentINFOID:0000000012431206
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-228, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-229, "Adjustment".
JSDIA4817ZZ
JSDIA4815ZZ
JSDIA4814ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

WATER HOSETM-251
< REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
WATER HOSE
Exploded ViewINFOID:0000000012431207
Removal and InstallationINFOID:0000000012431208
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure
engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and
turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down
and turning it all the way.
CAUTION:
Perform these steps after the engine cool ant temperature has cooled sufficiently.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove the hose clamp and pull out the water hose A.
2. Remove the hose clamp and pull out the water hose B.
3. Remove the hose clamp and pull out the water hose C.
4. Pull out the heater hose and remove the water bypass pipe.
5. Remove the heater thermostat assembly.
1. Hose clamp 2. Water hose A3. Clip
4. Bracket A 5. Bracket B6. CVT oil warner
7. Water hose B 8. Water bypass pipe9. Hose clamp
10. Water hose C 11. Water outlet
A. To heater core : Always replace after every disassembly.
: N·m (kg-m, in-lb)
JSDIA4111GB
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-252
< REMOVAL AND INSTALLATION >[CVT: RE0F11A]
WATER HOSE
6. Remove the bracket.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse hose clamps.
• Do not reuse clips.
• When installing bracket A to the transaxle assembly.
- Face arrow (A) of bracket A toward the front of the vehicle.
- Set baffle (B) of bracket
A to rib (C) of transaxle.
• When installing the bracket B to the transaxle assembly.
- Face arrow (A) of bracket A towards the top of vehicle.
- Insert baffle (B) into the boss hole (C) of transaxle.
• Refer to the following when installing water hoses.
• Refer to the following when installing hose clamp. CAUTION:
Hose clamp should not interfere with the bulge of fluid cooler tube.
: Front
JSDIA4112ZZ
: Front
JSDIA4113ZZ
Water hose (1)Installation side
tube (2) Direction of paint
mark Hose insertion depth
(L)
Water hose A Water outlet Upward
(A): 27 mm (1.06 in)
(End reaches the 2-
stage bulge.)
CVT oil warmer Frontward
Water hose B CVT oil warmer Frontward
Water bypass pipe
Rightward (Align
with the mark of
the water by-
pass pipe side)
Water hose C Water bypass pipe —
Water outlet Upward
JSDIA2459ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com

WATER HOSETM-253
< REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
InspectionINFOID:0000000012431209
INSPECTION AFTER INSTALLATION
Start the engine and check visually that there is no leakage of engine coolant.
Water hose (1) Installation side
tube (2) Hose clamp (3)
Dieection of tab Clamping position
Water hose A Water outlet Upward
5 - 7 mm (0.20 - 0.28
in) (A) from hose end
CVT oil warmer Frontward
Water hose B CVT oil warmer Leftward
Water bypass pipe Rightward
Water hose C Water bypass pipe
Upward and 45
°
frontward
Water outlet Upward and 45
°
frontward
JSDIA2424ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-254
< REMOVAL AND INSTALLATION >[CVT: RE0F11A]

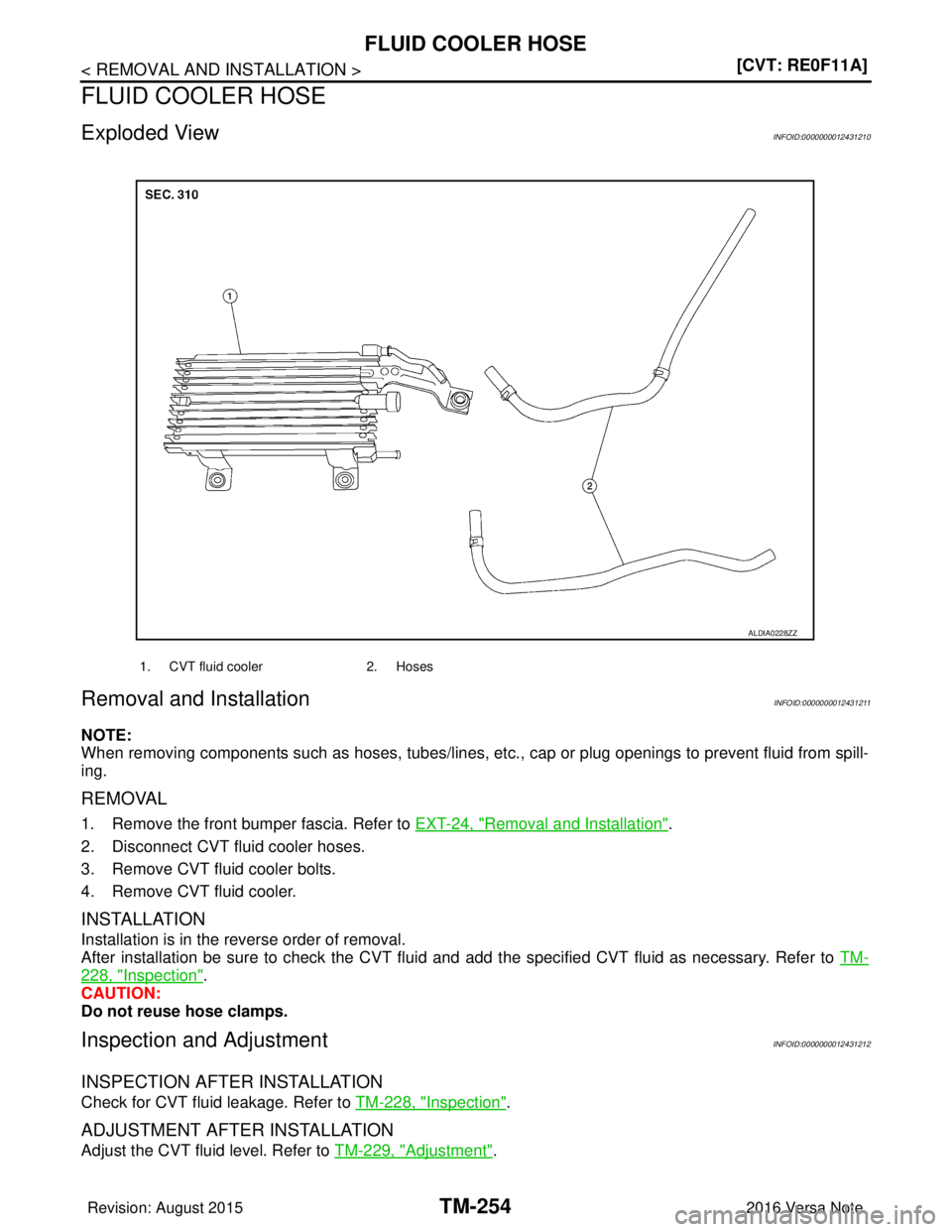

FLUID COOLER HOSE
FLUID COOLER HOSE
Exploded ViewINFOID:0000000012431210
Removal and InstallationINFOID:0000000012431211
NOTE:
When removing components such as hoses, tubes/lines, etc.
, cap or plug openings to prevent fluid from spill-
ing.
REMOVAL
1. Remove the front bumper fascia. Refer to EXT-24, "Removal and Installation".
2. Disconnect CVT fluid cooler hoses.
3. Remove CVT fluid cooler bolts.
4. Remove CVT fluid cooler.
INSTALLATION
Installation is in the reverse order of removal.
After installation be sure to check the CVT fluid and add the specified CVT fluid as necessary. Refer to TM-
228, "Inspection".
CAUTION:
Do not reuse hose clamps.
Inspection and AdjustmentINFOID:0000000012431212
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-228, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-229, "Adjustment".
1. CVT fluid cooler 2. Hoses
ALDIA0228ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

PLUG
TM-255
< REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

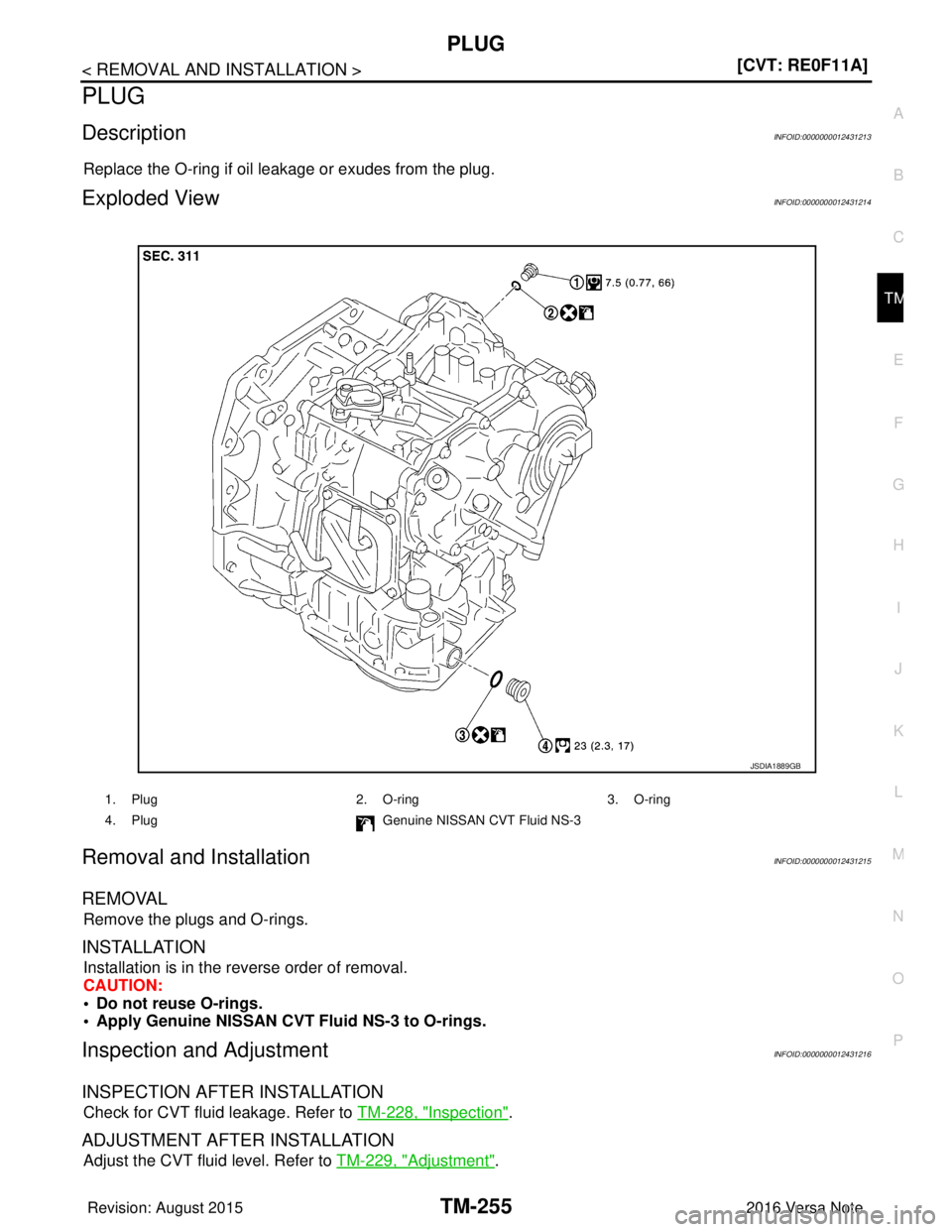

PLUG
DescriptionINFOID:0000000012431213
Replace the O-ring if oil leakage or exudes from the plug.
Exploded ViewINFOID:0000000012431214
Removal and InstallationINFOID:0000000012431215
REMOVAL
Remove the plugs and O-rings.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-rings.
• Apply Genuine NISSAN CVT Fluid NS-3 to O-rings.
Inspection and AdjustmentINFOID:0000000012431216
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-228, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-229, "Adjustment".
1. Plug 2. O-ring3. O-ring
4. Plug Genuine NISSAN CVT Fluid NS-3
JSDIA1889GB
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-256
< REMOVAL AND INSTALLATION >[CVT: RE0F11A]

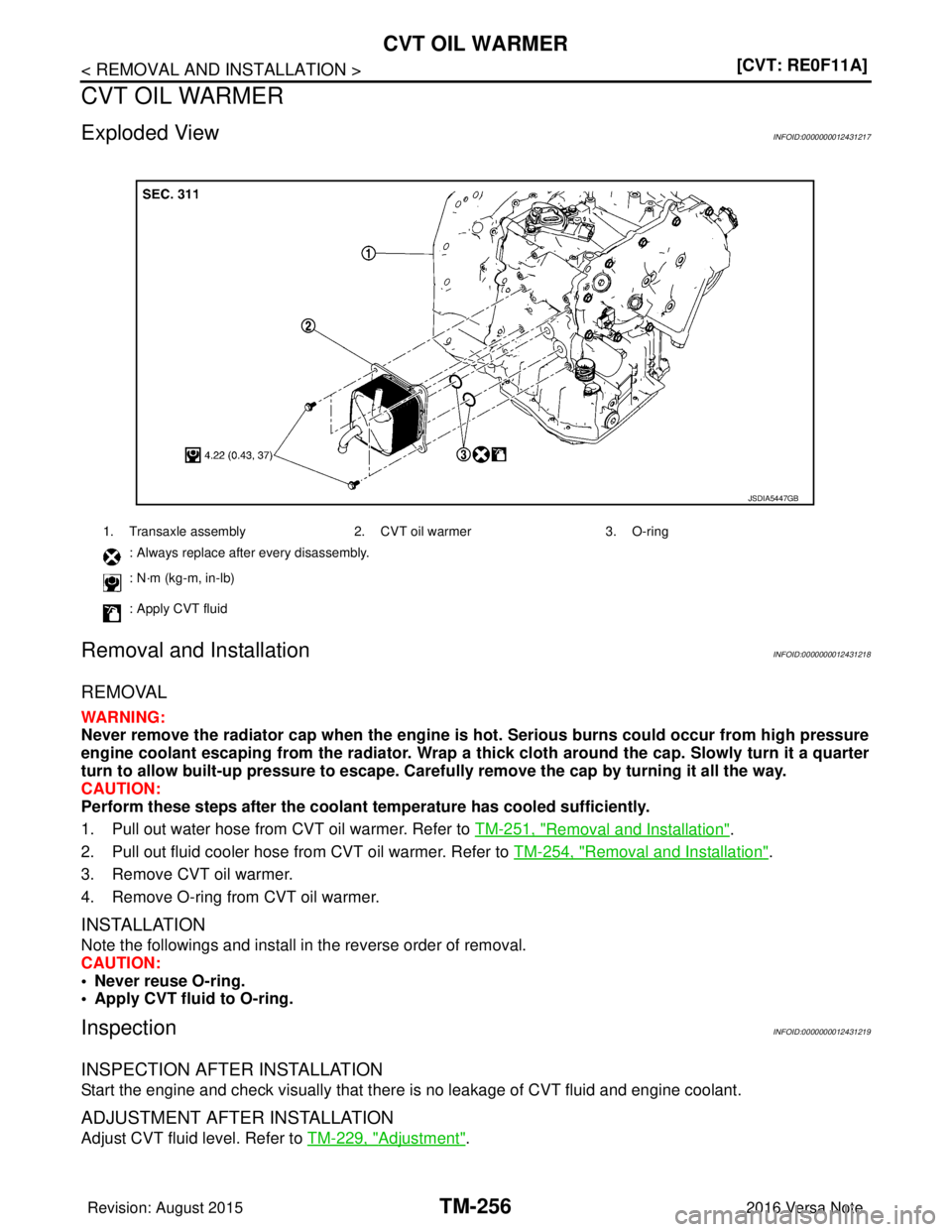

CVT OIL WARMER
CVT OIL WARMER
Exploded ViewINFOID:0000000012431217
Removal and InstallationINFOID:0000000012431218
REMOVAL
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns coul
d occur from high pressure
engine coolant escaping from the radiator. Wrap a thick cloth ar ound the cap. Slowly turn it a quarter
turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.
CAUTION:
Perform these steps after the coolant temperature has cooled sufficiently.
1. Pull out water hose from CVT oil warmer. Refer to TM-251, "
Removal and Installation".
2. Pull out fluid cooler hose from CVT oil warmer. Refer to TM-254, "
Removal and Installation".
3. Remove CVT oil warmer.
4. Remove O-ring from CVT oil warmer.
INSTALLATION
Note the followings and install in the reverse order of removal.
CAUTION:
• Never reuse O-ring.
• Apply CVT fluid to O-ring.
InspectionINFOID:0000000012431219
INSPECTION AFTER INSTALLATION
Start the engine and check visually that ther e is no leakage of CVT fluid and engine coolant.
ADJUSTMENT AFTER INSTALLATION
Adjust CVT fluid level. Refer to TM-229, "Adjustment".
1. Transaxle assembly 2. CVT oil warmer 3. O-ring
: Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT fluid
JSDIA5447GB
Revision: August 2015 2016 Versa Note

cardiagn.com

CVT FLUID FILTERTM-257
< REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

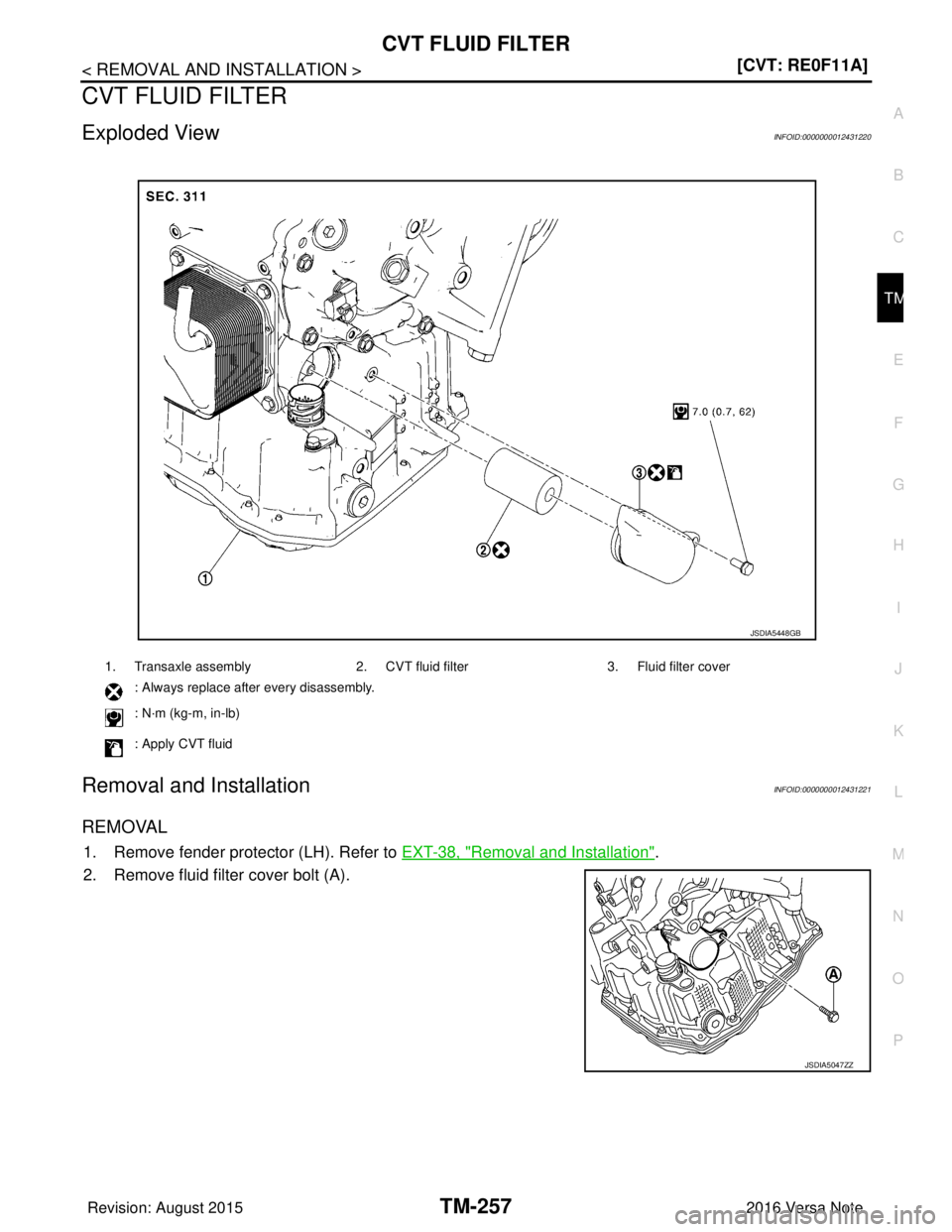

CVT FLUID FILTER
Exploded ViewINFOID:0000000012431220
Removal and InstallationINFOID:0000000012431221
REMOVAL
1. Remove fender protector (LH). Refer to EXT-38, "Removal and Installation".
2. Remove fluid filter cover bolt (A).
1. Transaxle assembly 2. CVT fluid filter3. Fluid filter cover
: Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT fluid
JSDIA5448GB
JSDIA5047ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-258
< REMOVAL AND INSTALLATION >[CVT: RE0F11A]
CVT FLUID FILTER

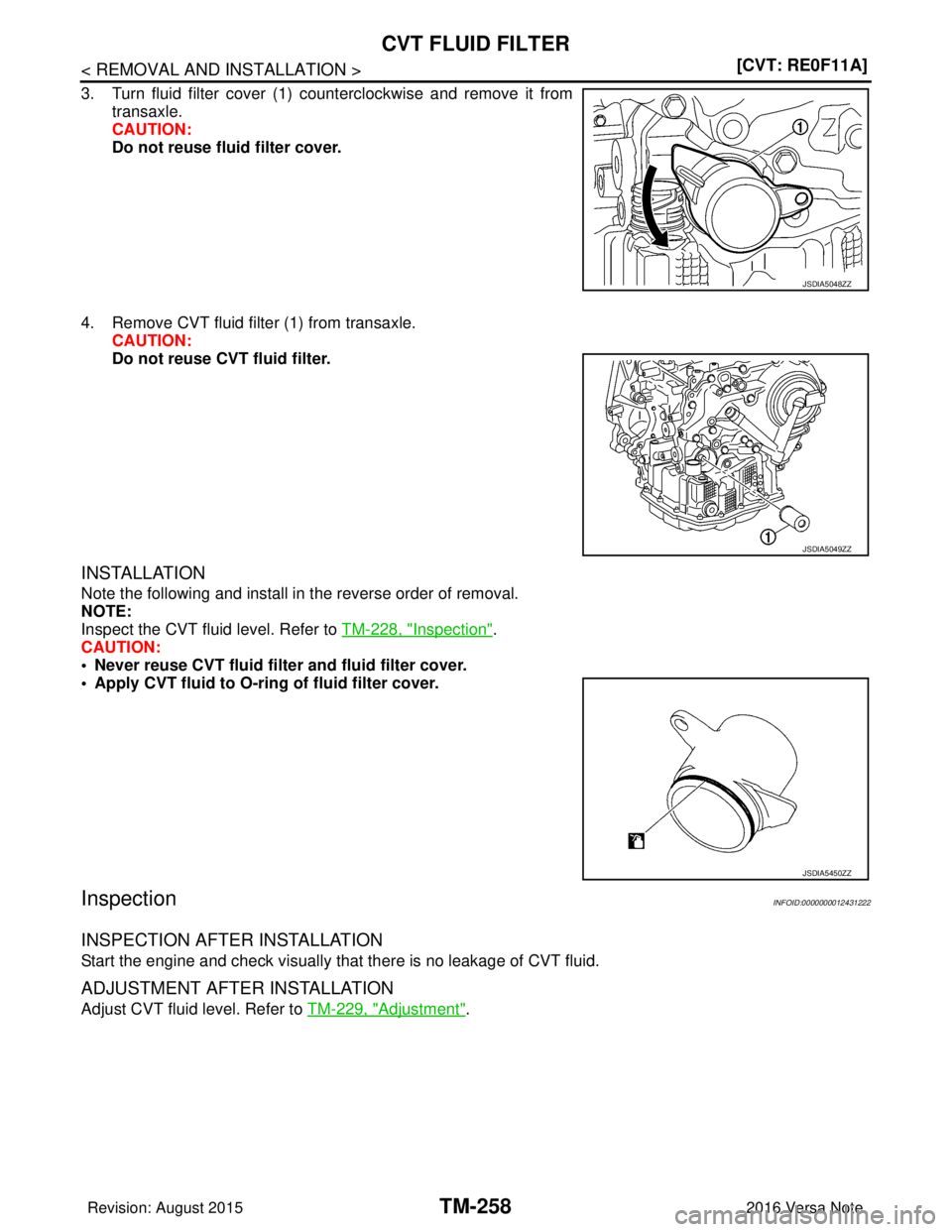

3. Turn fluid filter cover (1) counterclockwise and remove it from
transaxle.
CAUTION:
Do not reuse fluid filter cover.
4. Remove CVT fluid filter (1) from transaxle. CAUTION:
Do not reuse CVT fluid filter.
INSTALLATION
Note the following and install in the reverse order of removal.
NOTE:
Inspect the CVT fluid level. Refer to TM-228, "
Inspection".
CAUTION:
• Never reuse CVT fluid filter and fluid filter cover.
• Apply CVT fluid to O-ring of fluid filter cover.
InspectionINFOID:0000000012431222
INSPECTION AFTER INSTALLATION
Start the engine and check visually that there is no leakage of CVT fluid.
ADJUSTMENT AFTER INSTALLATION
Adjust CVT fluid level. Refer to TM-229, "Adjustment".
JSDIA5048ZZ
JSDIA5049ZZ
JSDIA5450ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

TRANSMISSION ASSEMBLYTM-259
< UNIT REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

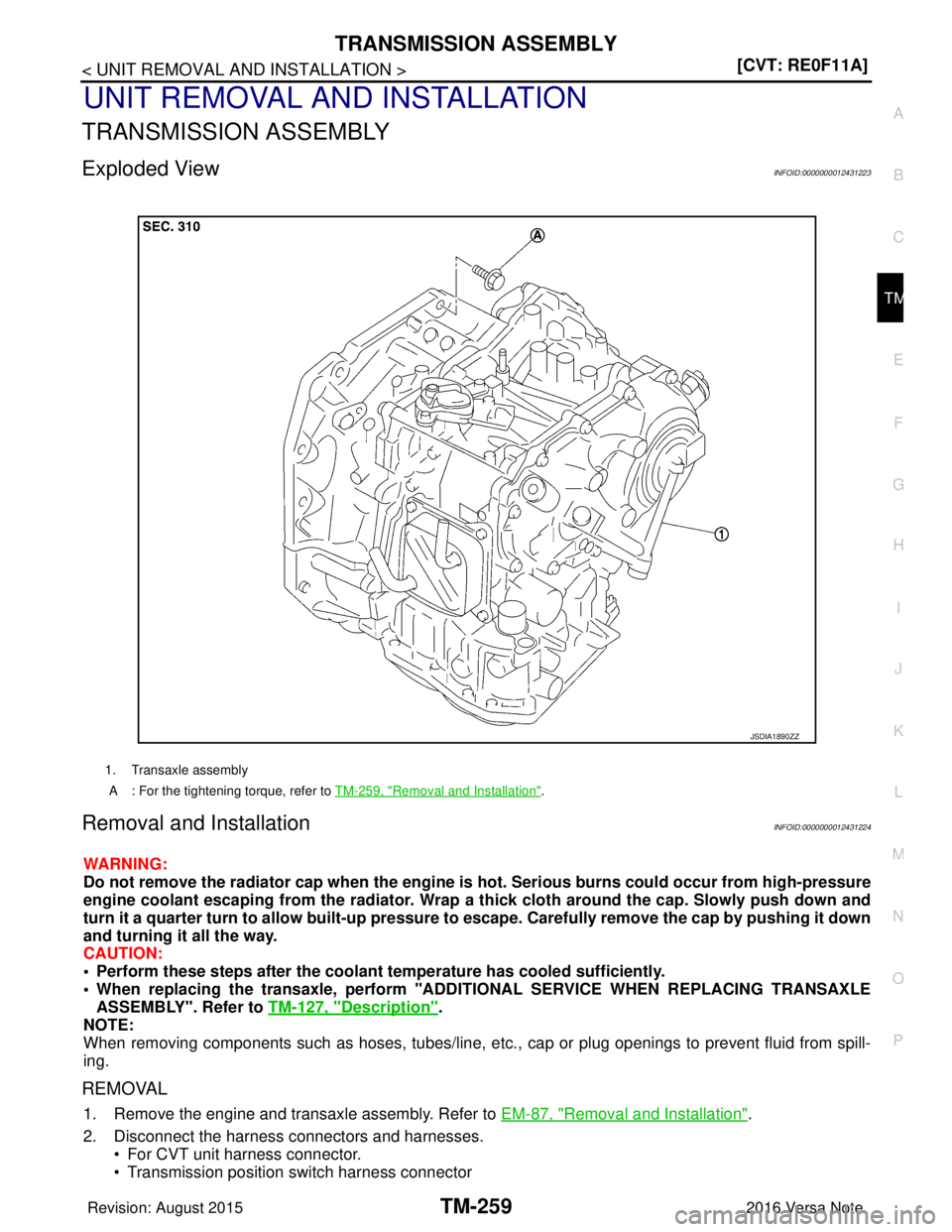

UNIT REMOVAL AND INSTALLATION
TRANSMISSION ASSEMBLY
Exploded ViewINFOID:0000000012431223
Removal and InstallationINFOID:0000000012431224
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure
engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and
turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down
and turning it all the way.
CAUTION:
• Perform these steps after the coolant temperature has cooled sufficiently.
• When replacing the transaxle, perform "ADDI TIONAL SERVICE WHEN REPLACING TRANSAXLE
ASSEMBLY". Refer to TM-127, "
Description".
NOTE:
When removing components such as hoses, tubes/line, etc. , cap or plug openings to prevent fluid from spill-
ing.
REMOVAL
1. Remove the engine and transaxle assembly. Refer to EM-87, "Removal and Installation".
2. Disconnect the harness connectors and harnesses. • For CVT unit harness connector.
• Transmission position switch harness connector
1. Transaxle assembly
A : For the tightening torque, refer to TM-259, "
Removal and Installation".
JSDIA1890ZZ
