NISSAN NOTE 2016 Service Repair Manual

TM-260
< UNIT REMOVAL AND INSTALLATION >[CVT: RE0F11A]
TRANSMISSION ASSEMBLY
• Primary speed sensor harness connector
• Secondary speed sensor harness connector
• Output speed sensor harness connector
• Ground
3. Rotate the crankshaft and remove the nuts that secure the drive plate to the torque converter from the sta- tor motor mount.
CAUTION:
When turning crankshaft, turn it clockwise as viewed from the front of the engine.
4. Remove the bolts (engine to transaxle) that fasten the transaxle assembly and engine assembly.
5. Remove transaxle assembly from engine. CAUTION:
• Secure torque converter to prevent it from dropping.
• Secure transaxle assembly to a suitable jack.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-rings.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-rings.
• When installing the transaxle assembly onto the engine assembly,
check the engagement of the dowel pins ( ).
• When using suitable tool (A) for alignment, install it to the align- ment stud bolt used to align the torque converter to the drive plate.
JSDIA1839ZZ
Bolt position ABC D
Direction of insertion Transaxle assembly
⇒
Engine assembly Engine assembly
⇒ Transaxle assembly
Q ua ntit y 2213
JSDIA1184ZZ
JPDIA0683ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

TRANSMISSION ASSEMBLYTM-261
< UNIT REMOVAL AND INSTALLATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• Rotate the crankshaft so that the alignment hole (A) of drive plate aligns with the position of the torque converter alignment stud bolt.
CAUTION:
• Rotate the crankshaft clockwise (as viewed from the front of
the engine).
• Be careful that torque converter stud bolts are aligned to the
drive plate holes. Otherwise the stud bolts contact the drive
plate.
• Insert the alignment stud bolt of torque converter into the align-
ment hole of the drive plate, ali gning the drive plate holes with the
torque converter stud bolts.
CAUTION:
Be careful not to strike the drive plate with the torque converter stud bolts.
• When installing the torque converter nuts, temporarily tighten the nuts. Then, after installing the engine and transaxle assembly bolts tighten the nuts to the specified torque.
CAUTION:
• Rotate the crankshaft clockwise (as vi ewed from the front of the engine).
• Check the tightening torque for the crankshaft pulley bolts after th e bolts fastening the drive plate
and torque converter have been tightened an d the crankshaft pulley bolts have been secured.
Refer to EM-51, "
Removal and Installation".
• Install the transaxle assembly and engine assembly bolts accord- ing to the following standards.
Inspection and AdjustmentINFOID:0000000012431225
INSPECTION BEFORE INSTALLATION
Check the distance (A) between the converter housing and torque
converter. Tightening torque : 51 N·m (5.2 kg-m, 38 ft-lb)
JPDIA0684ZZ
JSDIA1839ZZ
Bolt position
ABC D
Direction of insertion Transaxle assembly
⇒
Engine assembly Engine assembly
⇒ Transaxle assembly
Q uan tit y 2213
Nominal length [mm (in)] 40 (1.57) 44 (1.73)69 (2.72) 49 (1.93)
Tightening torque
N·m (kg-m, ft-lb) 48.0 (4.9, 35)
(B)
: Scale
(C) : Straightedge
Dimension (A) : TM-265, "Torque Converter"
JSDIA1840ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-262
< UNIT REMOVAL AND INSTALLATION >[CVT: RE0F11A]
TRANSMISSION ASSEMBLY
INSPECTION AFTER INSTALLATION
Check the following items:
• For CVT position, refer to
TM-232, "
Inspection".
• Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-11, "
Fluids and Lubricants".
• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-
age at connection points.
• Start engine. With engine speed increased, che ck again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration. NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide
may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop
after hydraulic pressure rises.
• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including engine oil and engine coolant.
• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec- ified level, if necessary.
• Summary of the inspection items:
*Power steering fluid, brake fluid, etc.
ADJUSTMENT AFTER INSTALLATION
• Adjust the CVT fluid level. TM-229, "Adjustment".
• Perform "ADDITIONAL SERVICE WHEN REPL ACING TRANSAXLE ASSEMBLY". Refer to TM-127,
"Description".
ItemBefore starting engine Engine runningAfter engine stopped
Engine coolant LevelLeakage Level
Engine oil LevelLeakage Level
Transmission/
transaxle fluid A/T and CVT Models
LeakageLevel/Leakage Leakage
M/T Models Level/Leakage LeakageLevel/Leakage
Other oils and fluids* LevelLeakage Level
Fuel LeakageLeakageLeakage
Exhaust gas —Leakage —
Revision: August 2015 2016 Versa Note

cardiagn.com

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEALTM-263
< UNIT DISASSEMBLY AND ASSEMBLY > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
UNIT DISASSEMBLY AND ASSEMBLY
TORQUE CONVERTER AND CO NVERTER HOUSING OIL SEAL
Exploded ViewINFOID:0000000012431226
DisassemblyINFOID:0000000012431227
1. Remove transaxle assembly. Refer to TM-259, "Removal and Installation".
2. Remove torque converter. CAUTION:
Never damage the bushing on the inside of to rque converter sleeve when removing torque con-
verter.
3. Remove converter housing oil seal using an oil seal remover (commercial service tool). CAUTION:
Be careful not to scratch converter housing.
AssemblyINFOID:0000000012431228
Note the followings and install in the reverse order of removal.
CAUTION:
• Never reuse converter housing oil seal.
• Apply CVT fluid to converter housing oil seal.
• Drive converter housing oil seal evenly using a drift (commercial
service tool) so that converter housing oil seal protrudes by the
dimension (A) respectively.
NOTE:
Converter housing oil seal pulling direction is used as the refer-
ence.
1. Torque converter 2. Converter housing oil seal3. Transaxle assembly
: Always replace after every disassembly.
: Genuine NISSAN CVT Fluid NS-3
JPDIA0837ZZ
Dimension (A) : 1.3 ±0.5 mm (0.051 ±0.02 in)
JPDIA0839ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-264
< UNIT DISASSEMBLY AND ASSEMBLY >[CVT: RE0F11A]
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

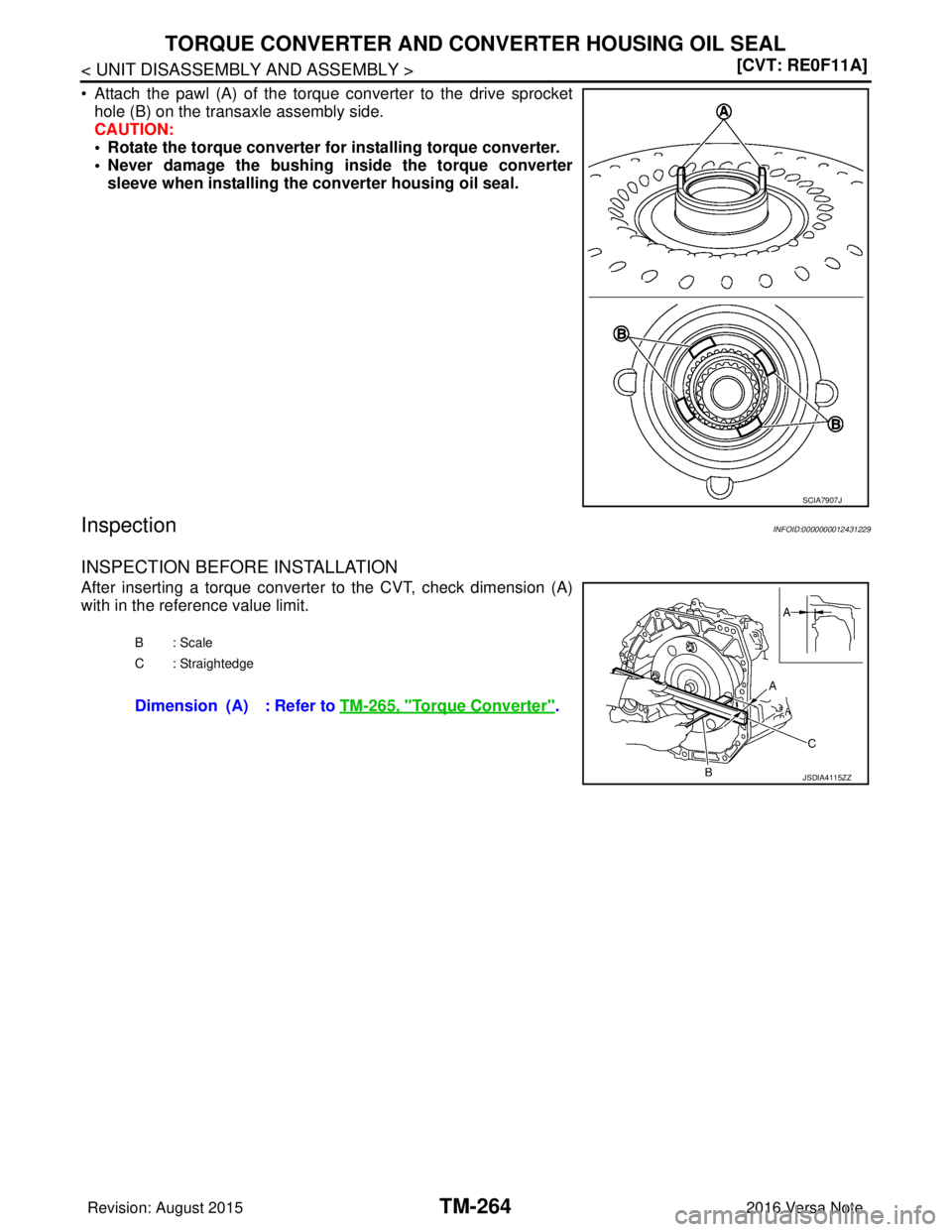

• Attach the pawl (A) of the torque converter to the drive sprocket
hole (B) on the transaxle assembly side.
CAUTION:
• Rotate the torque converter fo r installing torque converter.
• Never damage the bushing inside the torque converter sleeve when installing the converter housing oil seal.
InspectionINFOID:0000000012431229
INSPECTION BEFORE INSTALLATION
After inserting a torque converter to the CVT, check dimension (A)
with in the reference value limit.
SCIA7907J
B: Scale
C : Straightedge
Dimension (A) : Refer to TM-265, "Torque Converter".
JSDIA4115ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SERVICE DATA AND SPECIFICATIONS (SDS)TM-265
< SERVICE DATA AND SPECIFICATIONS (SDS) [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000012431230
Shift CharacteristicsINFOID:0000000012431231
Unit: rpm
CAUTION:
Lock-up is engaged at the vehicle speed of approximately 10 km/h (11 MPH) to 90 km/h (56 MPH).
Stall SpeedINFOID:0000000012431232
Unit: rpm
Line PressureINFOID:0000000012431233
Unit: MPa (bar, kg/cm2, psi)
Torque ConverterINFOID:0000000012431234
Applied model Engine HR16DE
Axle
2WD
Transaxle model RE0F11A
Stall torque ratio 1.91 : 1
Pulley ratio Forward
2.200 – 0.550
Reverse 2.200
Auxiliary gearbox gear ratio 1GR
1.821
2GR 1.000
Reverse 1.714
Counter gear 0.967
Final drive 3.882
Recommended fluid Refer to MA-11, "
Fluids and Lubricants".
Fluid capacity
Throttle position Shift pattern Engine speed
At 40 km/h (25 MPH) At 60 km/h (37 MPH)
2/8 “D” position (Overdrive control OFF)
1,300 – 3,1001,400 – 3,400
“D” position (Overdrive control ON) 2,200 – 3,1002,700 – 3,500
“L” position 3,000 – 3,8003,500 – 4,300
8/8 “D” position (Overdrive control OFF)
3,600 – 4,4004,300 – 5,100
“D” position (Overdrive control ON) 3,600 – 4,4004,300 – 5,100
“L” position 3,600 – 4,4004,300 – 5,100
Stall speed 2,420 – 2,870
Shift selector positionEngine speed Line pressure
“P” and “N” At idle 0.40 (4, 4.1, 58)
“R” and “D” At idle
0.40 (4, 4.1, 58) – 1.39 (13.9, 14.2, 201.6)
At stall 4.20 (42, 42.8, 609) – 4.70 (47, 47.9, 681.5)
Distance (A) between the converter housing and torque converter 16.2 mm
Revision: August 2015 2016 Versa Note

cardiagn.com

VTL-1
VENTILATION, HEATER & AIR CONDITIONER
C
DE
F
G H
J
K L
M
SECTION VTL
A
B
VTL
N
O P
CONTENTS
VENTILATION SYSTEM
PRECAUTION ....... ........................................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution for Work ..................................................2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tool ........................................... ......3
Commercial Service Tool ..........................................3
SYSTEM DESCRIPTION ..............................4
VENTILATION SYSTEM ................................ .....4

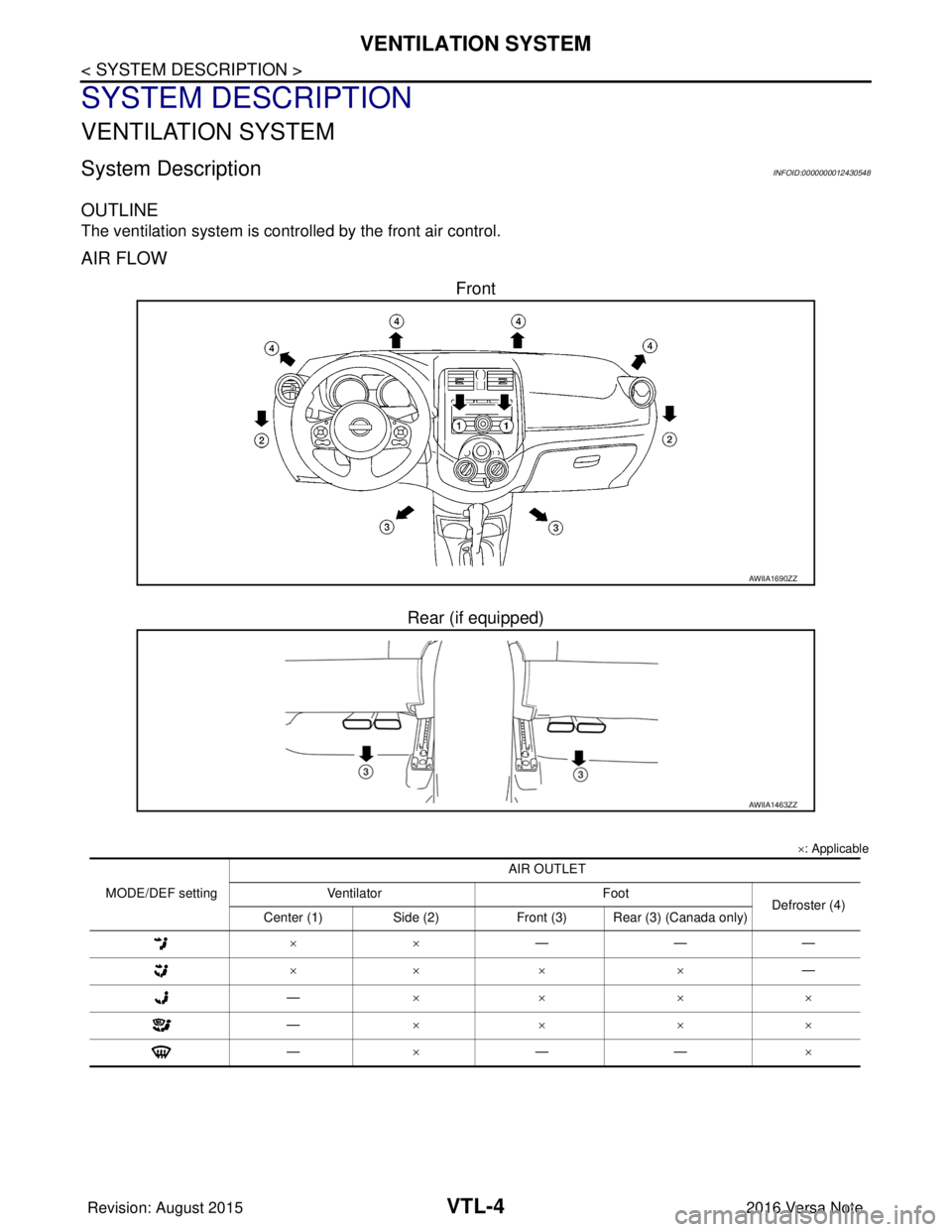

System Description ............................................. ......4
REMOVAL AND INSTALLATION ................5
DUCT AND GRILLE ....................................... .....5
Exploded View .................................................... ......5
CENTER VENTILATOR GRILLE .......................... ......6
CENTER VENTILATOR GRILLE : Removal and
Installation .................................................................
6
SIDE VENTILATOR GRILLE ................................. .....6
SIDE VENTILATOR GRILLE : Removal and In-
stallation ...................................................................
6
SIDE DEFROSTER GRILLE .................................. .....6
SIDE DEFROSTER GRILLE : Removal and In-
stallation ...................................................................
6
CENTER VENTILATOR DUCT .............................. .....7
CENTER VENTILATOR DUCT : Removal and In-
stallation ...................................................................
7
CENTER DEFROSTER DUCT ............................... .....7
CENTER DEFROSTER DUCT : Removal and In-
stallation ...................................................................
7
SIDE DEFROSTER DUCT ..................................... .....7
SIDE DEFROSTER DUCT : Removal and Instal-
lation .........................................................................
7
FOOT DUCT ........................................................... .....7
FOOT DUCT : Removal and Installation ..................7
REAR FLOOR DUCT ............................................. .....8
REAR FLOOR DUCT : Removal and Installation .....8
FRONT BLOWER MOTOR ................................9
Exploded View ..........................................................9
Removal and Installation ..........................................9
Revision: August 2015 2016 Versa Note

cardiagn.com

VTL-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012430544
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000012430545
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: August 2015 2016 Versa Note

cardiagn.com

PREPARATIONVTL-3
< PREPARATION >
C
DE
F
G H
J
K L
M A
B
VTL
N
O P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000012430546
The actual shape of the tools may di ffer from those illustrated here.
Commercial Service ToolINFOID:0000000012430547
Tool number
(TechMate No.)
Tool name Description
—
(J-46534)
Trim Tool Set Removing trim components
AWJIA0483ZZ
Tool name
Description
Power tool Loosening nuts, screws and bolts
PIIB1407E
Revision: August 2015 2016 Versa Note

cardiagn.com

VTL-4
< SYSTEM DESCRIPTION >
VENTILATION SYSTEM
SYSTEM DESCRIPTION
VENTILATION SYSTEM
System DescriptionINFOID:0000000012430548
OUTLINE
The ventilation system is controlled by the front air control.
AIR FLOW
Front
Rear (if equipped)
× : Applicable
AWIIA1690ZZ
AWIIA1463ZZ
MODE/DEF setting AIR OUTLET
Ventilator Foot
Defroster (4)
Center (1) Side (2)Front (3) Rear (3) (Canada only)
×× ———
×× × × —
— ×× × ×
— ×× × ×
— ×—— ×
Revision: August 2015 2016 Versa Note

cardiagn.com
