NISSAN NOTE 2016 Service Repair Manual

WCS-26
< WIRING DIAGRAM >
WARNING CHIME SYSTEM
WIRING DIAGRAM
WARNING CHIME SYSTEM

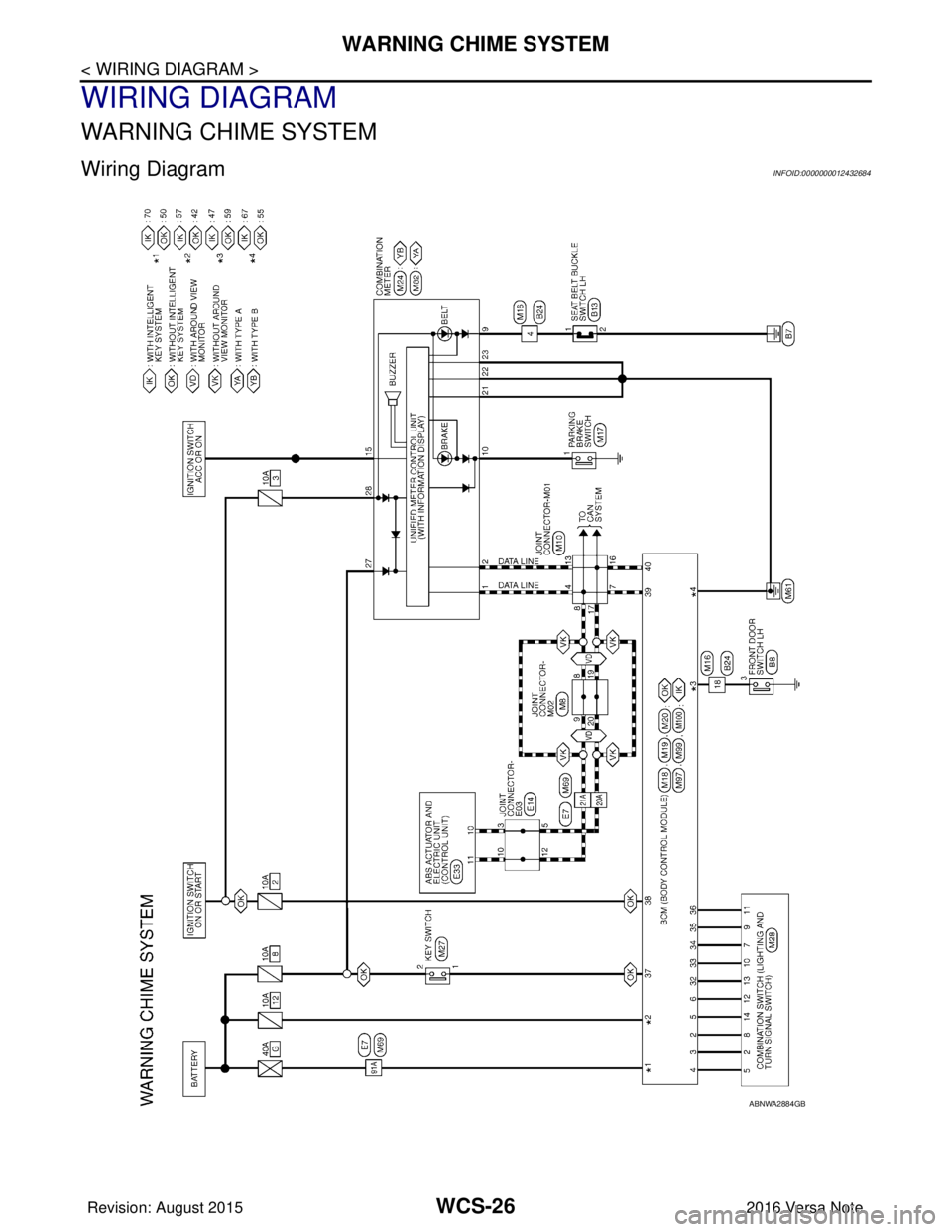

Wiring DiagramINFOID:0000000012432684
ABNWA2884GB
Revision: August 20152016 Versa Note

cardiagn.com

WCS
WARNING CHIME SYSTEMWCS-27
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M B A
O P

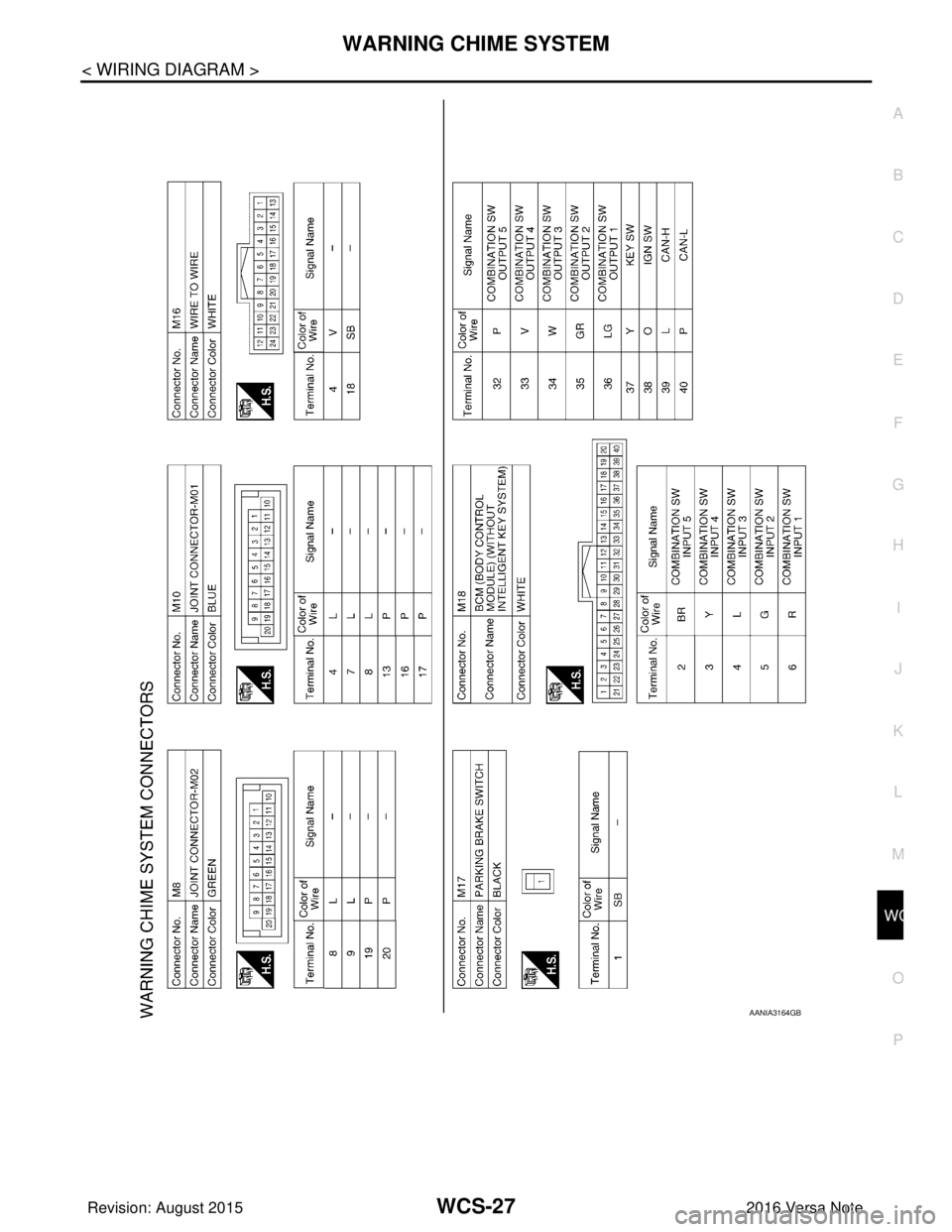

AANIA3164GB
Revision: August 2015 2016 Versa Note

cardiagn.com

WCS-28
< WIRING DIAGRAM >
WARNING CHIME SYSTEM

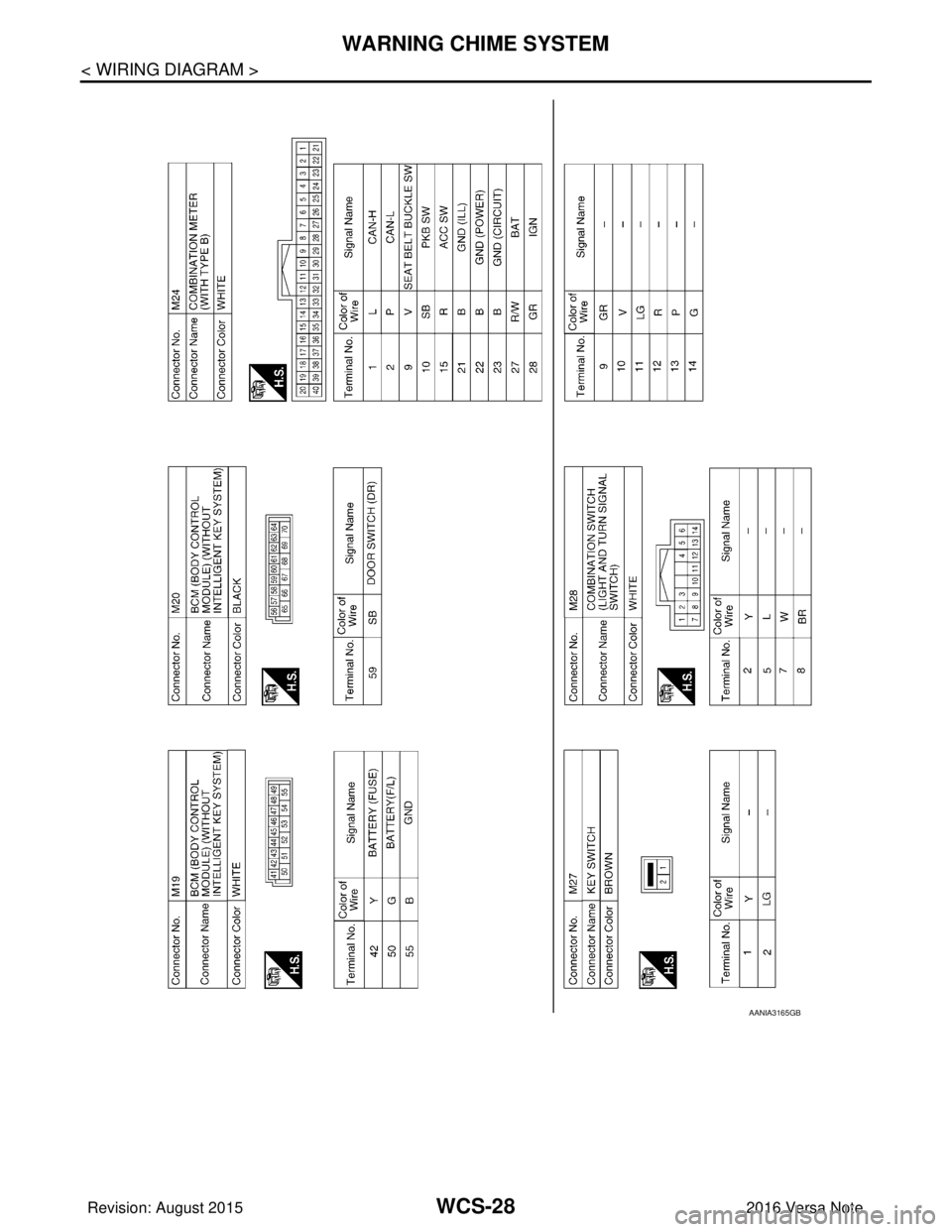

AANIA3165GB
Revision: August 20152016 Versa Note

cardiagn.com

WCS
WARNING CHIME SYSTEMWCS-29
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M B A
O P

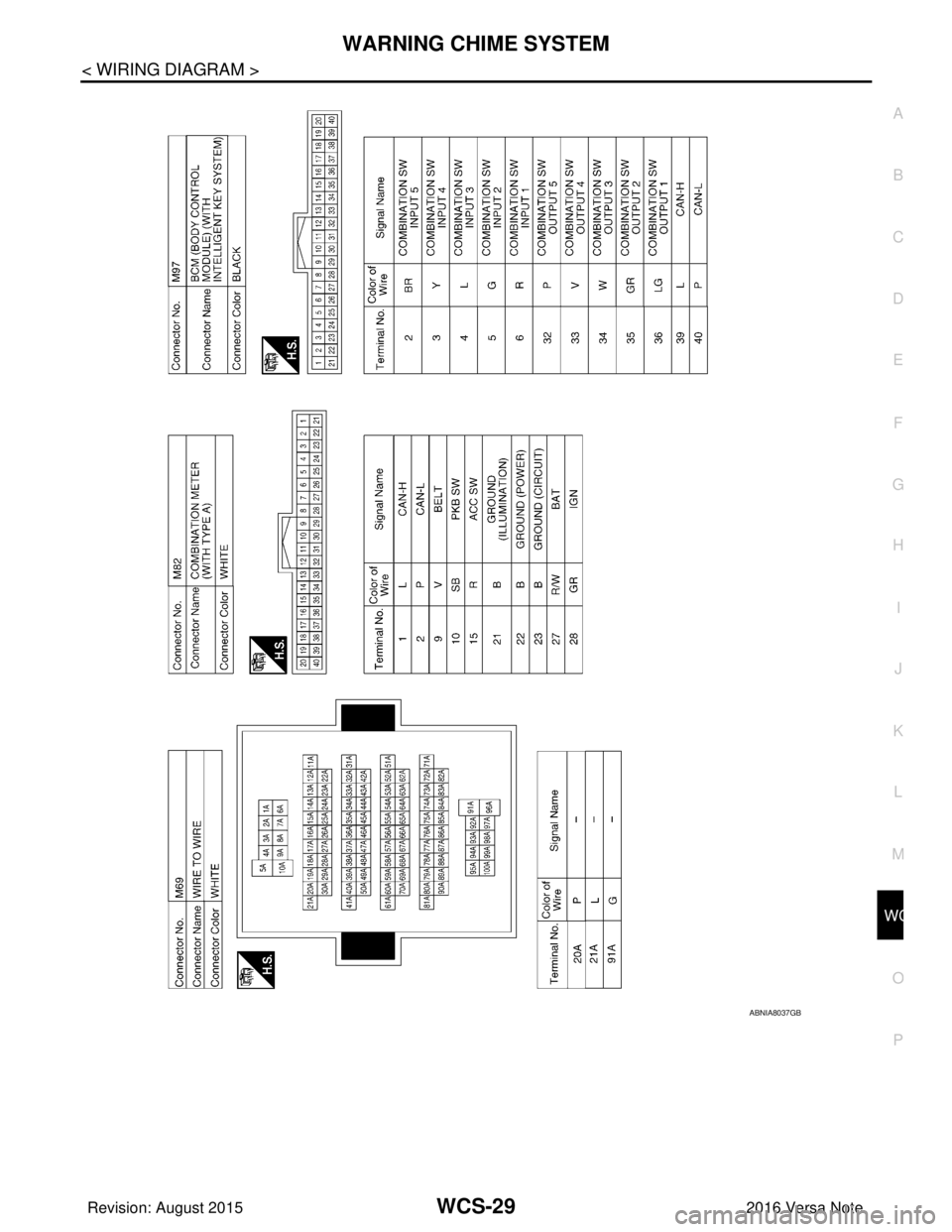

ABNIA8037GB
Revision: August 2015 2016 Versa Note

cardiagn.com

WCS-30
< WIRING DIAGRAM >
WARNING CHIME SYSTEM
ABNIA8038GB
Revision: August 20152016 Versa Note

cardiagn.com

WCS
WARNING CHIME SYSTEMWCS-31
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
M B A
O P
ABNIA8039GB
Revision: August 2015 2016 Versa Note

cardiagn.com

WCS-32
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW

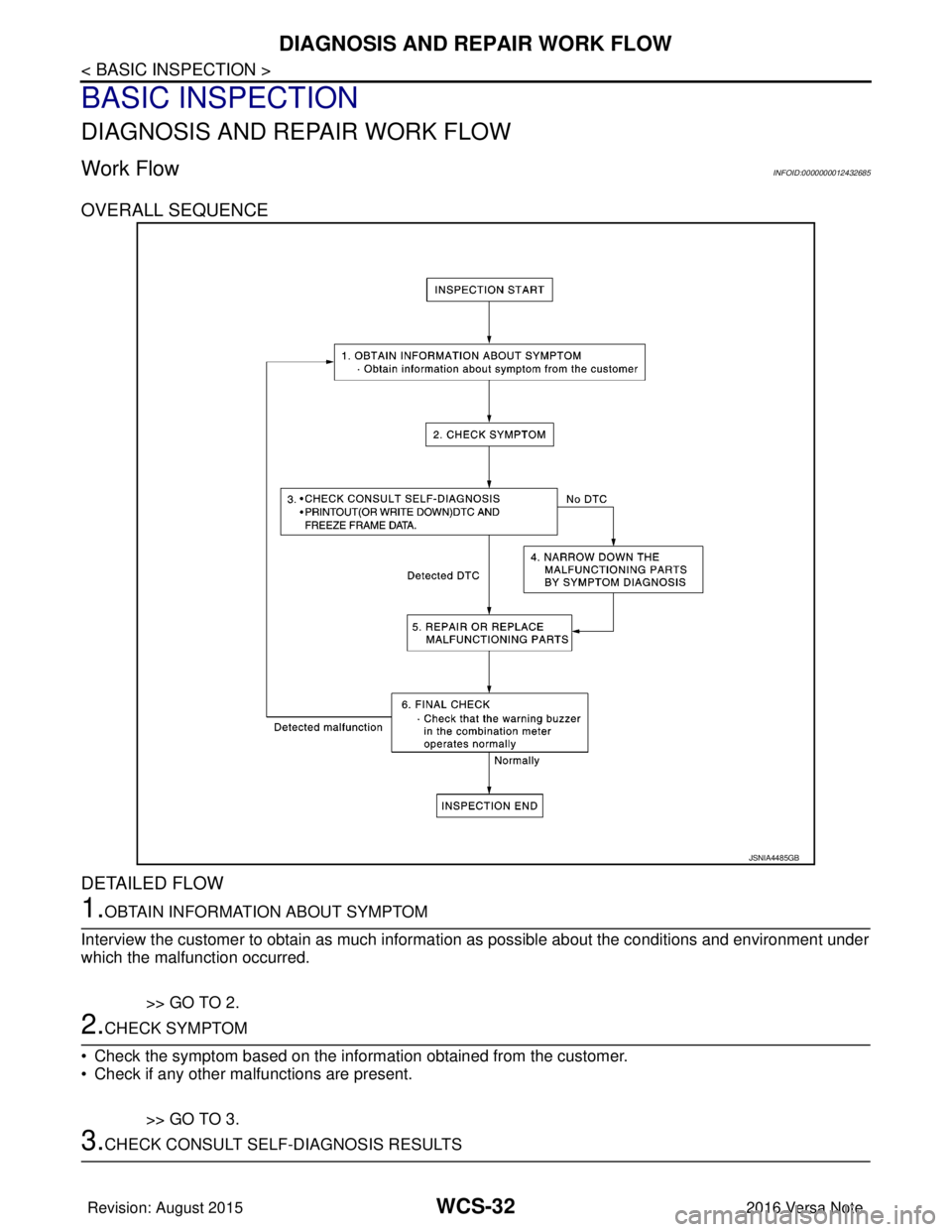

Work FlowINFOID:0000000012432685
OVERALL SEQUENCE
DETAILED FLOW
1.OBTAIN INFORMATION ABOUT SYMPTOM
Interview the customer to obtain as much inform ation as possible about the conditions and environment under
which the malfunction occurred.
>> GO TO 2.
2.CHECK SYMPTOM
• Check the symptom based on the inform ation obtained from the customer.
• Check if any other malfunctions are present.
>> GO TO 3.
3.CHECK CONSULT SELF-DIAGNOSIS RESULTS
JSNIA4485GB
Revision: August 2015 2016 Versa Note

cardiagn.com

WCS
DIAGNOSIS AND REPAIR WORK FLOWWCS-33
< BASIC INSPECTION >
C
DE
F
G H
I
J
K L
M B A
O P
1. Connect CONSULT and perform self-diagnosis. Refer to MWI-24, "DTC Index" (Type A) or MWI-77, "DTC
Index" (Type B).
2. When DTC is detected, follow the instructions below:
- Record DTC and Freeze Frame Data.
Are self-diagnosis results normal?
YES >> GO TO 4.
NO >> GO TO 5.
4.NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS
Perform symptom diagnosis and narrow down the malfunctioning parts.
>> GO TO 5.
5.REPAIR OR REPLACE MALFUNCTIONING PARTS
Repair or replace malfunctioning parts.
NOTE:
If DTC is displayed, erase DTC after repairing or replacing malfunctioning parts.
>> GO TO 6.
6.FINAL CHECK
Check that the warning buzzer in the combination meter operates normally.
Does it operate normally?
YES >> Inspection End.
NO >> GO TO 1.
Revision: August 2015 2016 Versa Note

cardiagn.com

WCS-34
< DTC/CIRCUIT DIAGNOSIS >
POWER SUPPLY AND GROUND CIRCUIT
DTC/CIRCUIT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
COMBINATION METER (TYPE A)
COMBINATION METER (TYPE A) : Diagnosis ProcedureINFOID:0000000012542990
Regarding Wiring Diagram information, refer to MWI-26, "Wiring Diagram".
1.CHECK FUSE
Check that the following fuses are not blown.
Is the fuse blown?
YES >> Replace the blown fuse after repairing the affected circuit.
NO >> GO TO 2.
2.POWER SUPPLY CIRCUIT CHECK
1. Disconnect combination meter connector.
2. Check voltage between combination meter harness connector M82, terminals 27, 28, 15 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness or connector.
3.GROUND CIRCUIT CHECK
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter har ness connector M82, terminals 21, 22, 23 and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace harness or connector.
COMBINATION METER (TYPE B)
Power source Fuse No.
Battery 8
Ignition switch ON or START 3
Ignition switch ACC or ON 18
TerminalsIgnition switch position
(+) (–)OFF ACC ONSTART
Connector Terminal
M82 27
GroundBattery voltage Battery voltage Battery voltage Battery voltage
28 0V0VBattery voltage Battery voltage
15 0V Battery voltage Battery voltage 0V
Te r m i n a l s
Continuity
(+)
(–)
Connector Terminal
M82 21
Ground Yes
22
23
Revision: August 2015 2016 Versa Note

cardiagn.com

WCS
POWER SUPPLY AND GROUND CIRCUITWCS-35
< DTC/CIRCUIT DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
COMBINATION METER (TYPE B) : Diagnosis ProcedureINFOID:0000000012542991
Regarding Wiring Diagram information, refer to MWI-79, "Wiring Diagram".
1.CHECK FUSE
Check that the following fuses are not blown.
Is the fuse blown?
YES >> Replace the blown fuse after repairing the affected circuit.
NO >> GO TO 2.
2.POWER SUPPLY CIRCUIT CHECK
1. Disconnect combination meter connector.
2. Check voltage between combination meter harness connector M24, terminals 27, 28, 15 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness or connector.
3.GROUND CIRCUIT CHECK
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter harness connector M24, terminals 21, 22, 23 and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace harness or connector.
BCM (BODY CONTROL SYSTEM) (W ITH INTELLIGENT KEY SYSTEM)
BCM (BODY CONTROL SYSTEM) (WITH IN TELLIGENT KEY SYSTEM) : Diagnosis
Procedure
INFOID:0000000012542992
Regarding Wiring Diagram information, refer to BCS-52, "Wiring Diagram".
Power source Fuse No.
Battery 8
Ignition switch ON or START 3
Ignition switch ACC or ON 18
TerminalsIgnition switch position
(+) (–)OFF ACC ONSTART
Connector Terminal
M24 27
GroundBattery voltage Battery voltage Battery voltage Battery voltage
28 0V0VBattery voltage Battery voltage
15 0V Battery voltage Battery voltage 0V
Te r m i n a l s
Continuity
(+)
(–)
Connector Terminal
M24 21
Ground Yes
22
23
Revision: August 2015 2016 Versa Note
