SENSOR ROTOR
FRONT SENSOR ROTOR
FRONT SENSOR ROTOR : Removal and InstallationINFOID:0000000012430929
REMOVAL
Remove sensor rotor from steering knuckle. Refer to FA X - 9 , "Exploded View".
INSTALLATION
Installation is in the reverse order of removal.
REAR SENSOR ROTOR
REAR SENSOR ROTOR : Removal and InstallationINFOID:0000000012430930
REMOVAL
Remove sensor rotor from brake drum. Refer to RAX-6, "Exploded View".
CAUTION:
Do not reuse rear sensor rotor.
INSTALLATION
Installation is in the reverse order of removal.
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-144
< REMOVAL AND INSTALLATION >[VDC/TCS/ABS]
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
ABS ACTUATOR AND ELECTRIC
UNIT (CONTROL UNIT)
Exploded ViewINFOID:0000000012430931
Removal and InstallationINFOID:0000000012430932
REMOVAL
CAUTION:
• Before servicing, disconnect the ba ttery cable from negative terminal.
• Do not remove actuator by holding harness.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Disconnect negative battery cable. Refer to PG-70, "
Removal and Installation (Battery)".
2. Disconnect vacuum hose from intake manifold. Refer to BR-33, "
Exploded View".
1. ABS actuator and electric unit (con-
trol unit) 2. ABS actuator and electric unit (con-
trol unit) harness connector 3. Bracket
4. Bushing 5. Insulating clip6. Bolt
A. To master cylinder secondary side B. To rear brake tube (RH) C. To front brake tube (LH)
D. To front brake tube (RH) E. To rear brake tube (LH)F. To master cylinder primary side
AWFIA1105ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)BRC-145
< REMOVAL AND INSTALLATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

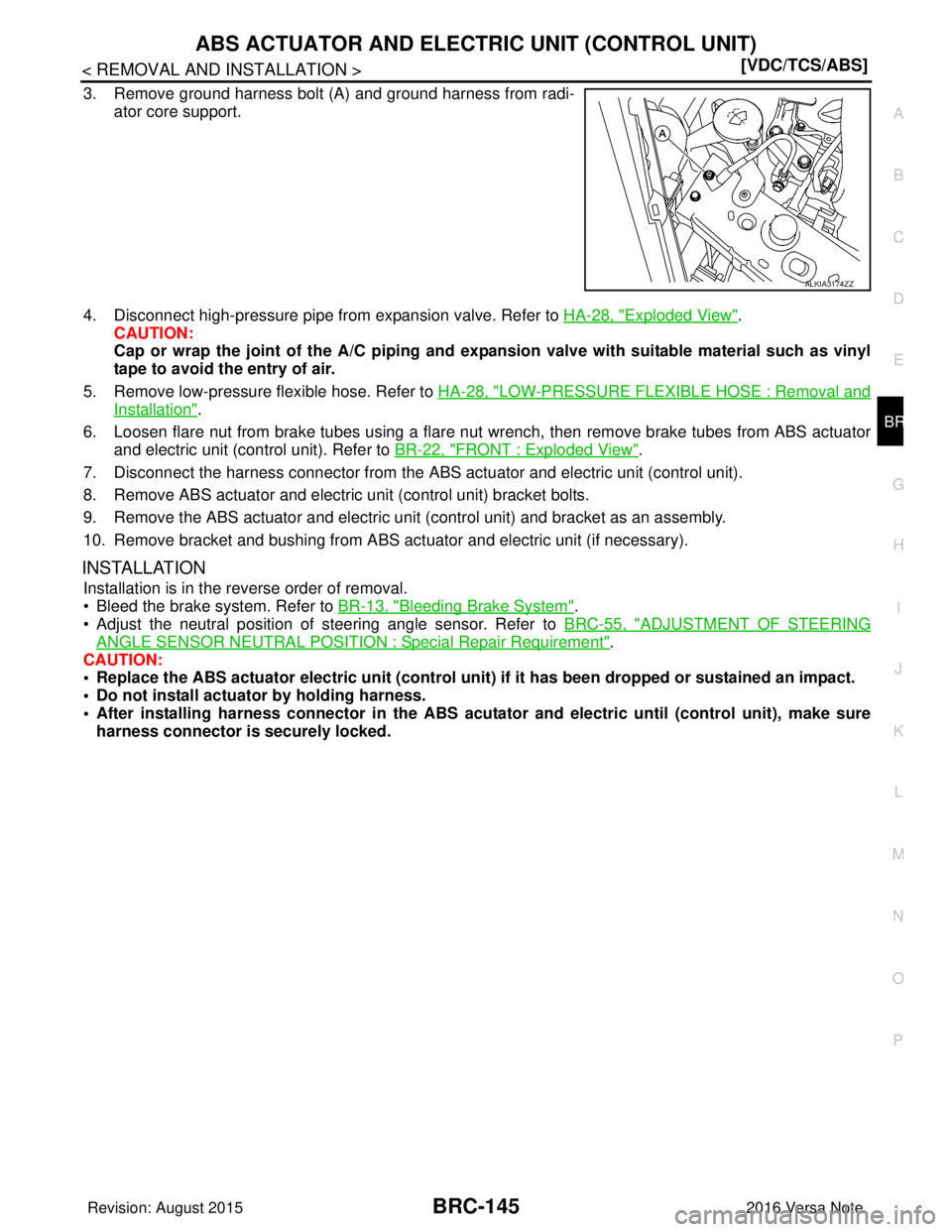

3. Remove ground harness bolt (A) and ground harness from radi- ator core support.
4. Disconnect high-pressure pipe from expansion valve. Refer to HA-28, "
Exploded View".
CAUTION:
Cap or wrap the joint of the A/C piping and expan sion valve with suitable material such as vinyl
tape to avoid the entry of air.
5. Remove low-pressure flexible hose. Refer to HA-28, "
LOW-PRESSURE FLEXIBLE HOSE : Removal and
Installation".
6. Loosen flare nut from brake tubes using a flare nut wrench, then remove brake tubes from ABS actuator
and electric unit (control unit). Refer to BR-22, "
FRONT : Exploded View".
7. Disconnect the harness connector from the ABS actuator and electric unit (control unit).
8. Remove ABS actuator and electric unit (control unit) bracket bolts.
9. Remove the ABS actuator and electric uni t (control unit) and bracket as an assembly.
10. Remove bracket and bushing from ABS ac tuator and electric unit (if necessary).
INSTALLATION
Installation is in the reverse order of removal.
• Bleed the brake system. Refer to BR-13, "
Bleeding Brake System".
• Adjust the neutral position of steering angle sensor. Refer to BRC-55, "
ADJUSTMENT OF STEERING
ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement".
CAUTION:
• Replace the ABS actuator electric unit (control unit) if it has been dropped or sustained an impact.
• Do not install actuator by holding harness.
• After installing harness connector in the ABS acu tator and electric until (control unit), make sure
harness connector is securely locked.
ALKIA3174ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-146
< REMOVAL AND INSTALLATION >[VDC/TCS/ABS]
VDC OFF SWITCH
VDC OFF SWITCH
Removal and InstallationINFOID:0000000012430933
REMOVAL
1. Remove the instrument lower panel LH. Refer to
IP-24, "Removal and Installation".
2. Release pawls (A) using suitable tool and remove the VDC OFF switch.
INSTALLATION
Installation is in the reverse order of removal.
ALFIA0211ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

STEERING ANGLE SENSORBRC-147
< REMOVAL AND INSTALLATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
STEERING ANGLE SENSOR
Exploded ViewINFOID:0000000012430934
Removal and InstallationINFOID:0000000012430935
REMOVAL
1. Remove the spiral cable. Refer to SR-16, "Removal and Installation".
2. Remove the screws (A), then release the pawls (B) and remove the steering angle sensor (2) from the spiral cable (1).
INSTALLATION
Installation is in the reverse order of removal.
Adjust the neutral position of the steering angle sensor. Refer to BRC-55, "
ADJUSTMENT OF STEERING
ANGLE SENSOR NEUTRAL POSITION : Description".
CAUTION:
Do not reuse steering angle sensor.
1. Steering angle sensor A. Screw Do not reuse
Front
ALFIA0235ZZ
ALHIA0271ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

CHG
CHG-1
ELECTRICAL & POWER CONTROL
C
DE
F
G H
I
J
K L
B
SECTION CHG
A
O P
N
CONTENTS
CHARGING SYSTEM
PRECAUTION .......
........................................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution for Power Generation Voltage Variable
Control System ..........................................................
3
PREPARATION ............................................4
PREPARATION .............................................. .....4
Special Service Tool ........................................... ......4
Commercial Service Tool ..........................................4
SYSTEM DESCRIPTION ..............................5
COMPONENT PARTS ................................... .....5
Component Parts Location .................................. ......5
Component Description .............................................6
SYSTEM ..............................................................7
CHARGING SYSTEM ..................................................7
CHARGING SYSTEM : System Diagram ........... ......7
CHARGING SYSTEM : System Description .............7
CHARGING SYSTEM : Component Description ......7
POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM .................................
8
System Diagram .................................................. ......8
System Description ...................................................8
WIRING DIAGRAM .......................................9
CHARGING SYSTEM ..................................... .....9
Wiring Diagram ................................................... ......9
BASIC INSPECTION ...................................14
DIAGNOSIS AND REPAIR WORKFLOW ..... ....14
Work Flow (With EXP-800 NI or GR8-1200 NI) ......14
Work Flow (Without EXP-800 NI or GR8-1200 NI) ....17
DTC/CIRCUIT DIAGNOSIS .........................20
CHARGING SYSTEM PRELIMINARY IN-
SPECTION ....... .................................................
20
Diagnosis Procedure ........................................... ....20
POWER GENERATION VOLTAGE VARI-
ABLE CONTROL SYSTEM OPERATION IN-
SPECTION ........................................................
21
Diagnosis Procedure ........................................... ....21
B TERMINAL CIRCUIT .....................................23
Description ...............................................................23
Diagnosis Procedure ...............................................23
L TERMINAL CIRCUIT (OPEN) ........................24
Description ...............................................................24
Diagnosis Procedure ...............................................24
L TERMINAL CIRCUIT (SHORT) .....................26
Description ...............................................................26
Diagnosis Procedure ...............................................26
S TERMINAL CIRCUIT .....................................27
Description ...............................................................27
Diagnosis Procedure ...............................................27
SYMPTOM DIAGNOSIS ..............................28
CHARGING SYSTEM .......................................28
Symptom Table ................................................... ....28
REMOVAL AND INSTALLATION ...............29
GENERATOR ....................................................29
Exploded View ..................................................... ....29
Removal and Installation .........................................29
SERVICE DATA AND SPECIFICATIONS
(SDS) ............... .......................................... ...
31
Revision: August 2015 2016 Versa Note

cardiagn.com

CHG-2
SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................
31
Generator ............................................................. ...31
Revision: August 2015 2016 Versa Note

cardiagn.com

CHG
PRECAUTIONSCHG-3
< PRECAUTION >
C
DE
F
G H
I
J
K L
B A
O P
N
PRECAUTION
PRECAUTIONS
Precaution for Supplemental
Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012431235
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for Power Generation Voltage Variable Control SystemINFOID:0000000012431236
CAUTION:
For model with power generation voltage variable control system, the battery current sensor that is
installed to the battery cable at the negative te rminal measures the charging/discharging current of
the battery, and performs various controls. If the electrical component or the ground wire is connected
directly to the battery terminal, the current othe r than that being measured with the battery current
sensor is charging to or discharging from the battery. This cond ition causes the malfunction of the
control, and then the battery discharge may occur. Do not connect the electrical component or the
ground wire directly to the battery terminal.
Revision: August 2015 2016 Versa Note

cardiagn.com

CHG-4
< PREPARATION >
PREPARATION
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000012431237
The actual shape of the tools may differ from those illustrated here.
Commercial Service ToolINFOID:0000000012431238
Tool number
(TechMate No.)
Tool nameDescription
—
(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station Tests batteries, starting and charging sys-
tems and charges batteries.
Operating instructions, refer to diagnostic sta-
tion instruction manual.
—
(—) Model EXP-800 NI
Battery and electrical diagnostic ana-
lyzer Tests batteries and charging systems.
Operating instructions, refer to diagnostic an-
alyzer instruction manual.
AWIIA1239ZZ
JSMIA0806ZZ
Tool name
Description
Power tool Loosening nuts, screws and bolts
PIIB1407E
Revision: August 2015 2016 Versa Note

cardiagn.com

CHG
COMPONENT PARTSCHG-5
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
B A
O P
N
SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000012431239
ALMIA0739ZZ
A.
Engine room LH (view with air duct
inlet removed)
B. Engine room RH
C. Combination meter (type A)
D. Combination meter (type B)
Revision: August 2015 2016 Versa Note

cardiagn.com
